USER MANUAL SC UV 900 Efbe-Schott

1. Housing
2. Air outlet
3. Indicator LED lamp (green or red)
4. Control panel
5. Remote control
6. On/Off button
7. Fan button
8. Oscillation function button (swing)
9. UVC lamp button (sterilizer)

FR

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons, especially when it is plugged into the wall.

The appliance is to be used only as indicated in this manual.
- Never leave the appliance unsupervised when in use.
- Regularly check the appliance and its cord for damages. Never use the appliance if the cord shows any signs of damage. Any repairs should be done by a competent qualified electrician (^*) in order to avoid all danger.
- Never immerse the appliance in water or any other liquid for any reason whatsoever.
- Unplug the appliance when not in use or when cleaning or replacing the filters.
- Never use the appliance near hot surfaces. Do not allow the cord to touch any hot surfaces.
- Never use accessories which are not recommended by the producer. They could cause danger to the user. They could also damage the appliance.
- Do not touch any sockets, cords or the appliance itself with wet hands.
- Never use the appliance outdoors, and always place it in a dry environment.
- Never move or lift the appliance by pulling by the cord. Never unplug the appliance from the mains by pulling by the cord. Do not wind the cord around the appliance and do not bend it.

• Keep hair, loose clothing, fingers and all parts of the body away from any unshielded suction or rotating components.
• Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
• Do not use the appliance with full or damaged filters. Ensure good quality and proper placement of the filters.
  □ If your appliance is not working correctly, check if all the components, including filters and lamps, are properly assembled and/or replace the filters/lamps.
  The use of the air sterilizer without or with misplaced filters can cause internal damages and invalidate the warranty.
• Do not expose this appliance to direct sunlight, to air outlets, or to a heat source as it may cause deformation, deterioration, discoloration and malfunctions.
• Do not use the air sterilizer in an environment that was treated with insecticides as chemical residues may accumulate in the appliance, then be released from the outlet and harm the users' health.
  For an effective air circulation in the room, keep a distance between the unit's air in/ - outlet of min. 30cm to walls and furniture.
• Do not block or place anything on the air inlet and outlet.
• Do not use this product in a very humid or high-temperature environment (e.g. bathrooms, toilets or kitchens).
• Never use the device near gas-powered devices, heating devices or an oven.
• Direct exposure of UVC irradiation causes irreversible damage to skin and eyes
• Do not use this unit for other than the intended use. The warranty is invalid if the unit is used for (semi-) professional purposes and/or not according to these instructions of use. The manufacturer will not assume any responsibility in case of non-respect of these instructions of use. Keep this user manual carefully.

INSTALLATION

It is recommended to install the unit indoors on a flat, dry floor.
- Do not place your air sterilizer near a heat source, in direct sunlight, in a very humid room or facing the air outlet of an air conditioner: this may cause deformation, deterioration, discoloration and malfunction.
- Avoid installing it close to TV sets, radios and other devices using waves; the image could be blurred, noise could occur and there could be interference with the remote control. Keep a distance of at least 1m .
- In order to optimize the air circulation in the room, please leave a space of minimum 30cm on each side of the unit.
- Do not place anything on the unit, especially not magnets or metal objects.

OPERATION

The air sterilizer improves air quality and reduces the risk of infections caused by airborne germs. Such as viruses & bacteria. It is certified to eliminate 99,9999% of viruses including the SARS-CoV-2 virus and its variants. The innovative UVC technology in this sterilizer also fights pollen, mold and other organic germs.

This is how the UVC air sterilizer works:

1) Preparation: Place UVC air sterilizer in the room. Plug in the power cable. Make sure that there is enough distance from walls and other objects. The more centralized you place the sterilizer in the room, the higher the efficiency.
2) Start: Press the power button on top of the sterilizer or on your remote control.
3) Sterilization process: The ventilation system automatically sucks in the air and leads it into the UVC chamber where powerful UVC lamps eliminate germs instantly and safely. Also, bad odors are removed by the UVC light and the additional carbon filters. The now sterilized air is released back into the room.
4) Safety: It is important that no UVC light can leave the device. Therefore, special carbon filters are in place. Furthermore, an emergency shutdown occurs if the UVC chamber is opened during usage.
5) Monitoring: On the lower part of the front side you can find a transparent window. If you see a green light in there the device is working correctly. If it is red, please change the lamps as instructed below. If the red light is still on please contact customer service.

REPLACE FILTERS AND/OR LAMPS

Warning: Before opening the device, please make sure you have unplugged the power cable. Direct exposure of UVC irradiation causes irreversible damage to skin and eyes.

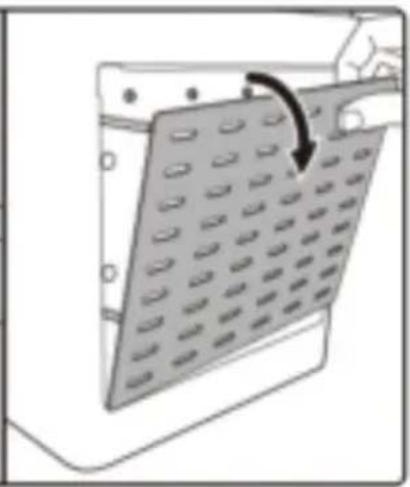

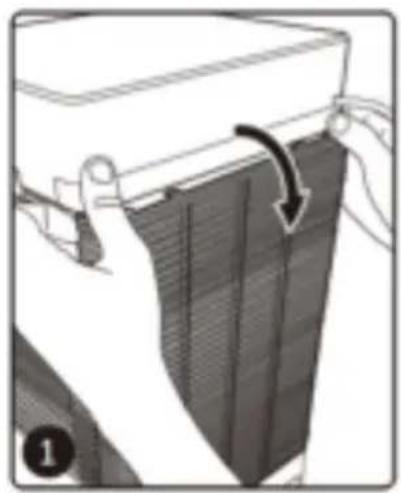

1. Open the upper back cover of the appliance.

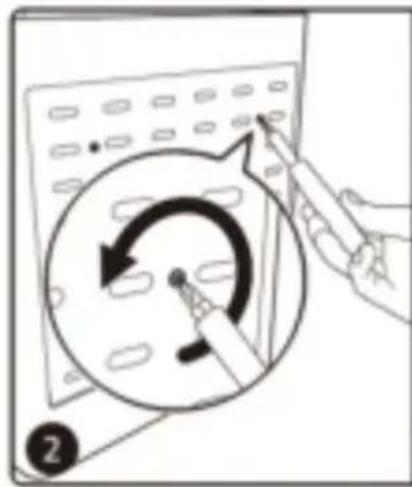

2. Remove the metallic bottom back cover by unscrewing the 4 screws with a cross-shaped screwdriver.

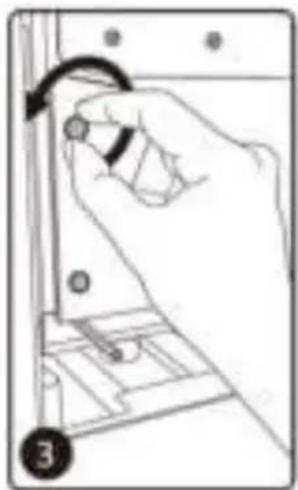

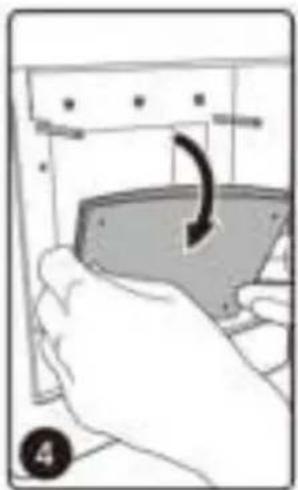

3+4. Remove bottom filter (2 sheets) by unscrewing 4 screws by hand.

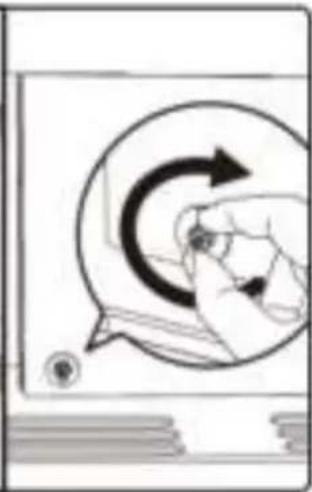

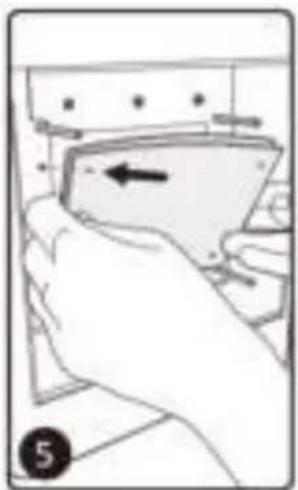

5+6. Install new filter (2 sheets) by screwing in 4 screws by hand (not too tight).

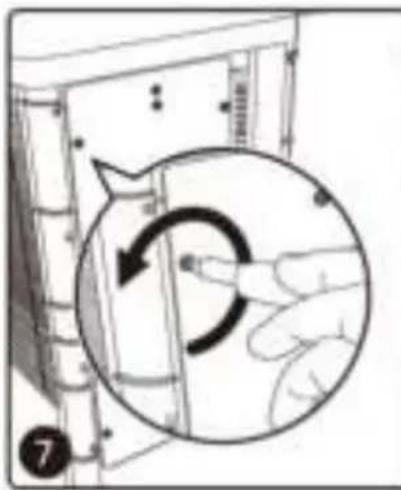

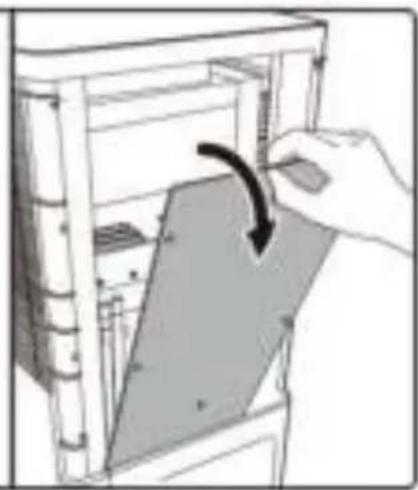

1. Remove the upper metallic back cover by unscrewing 5 screws with a cross-shaped screwdriver.

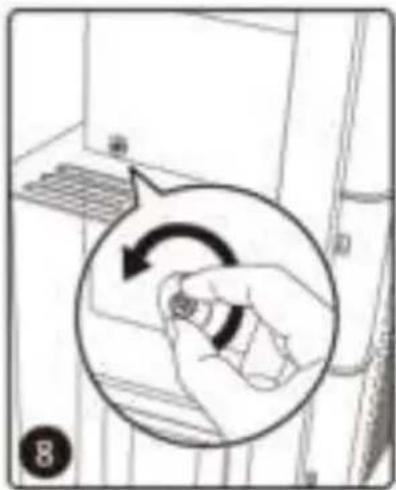

8+9. Remove upper filter (2 sheets) by unscrewing 4 screws by hand.

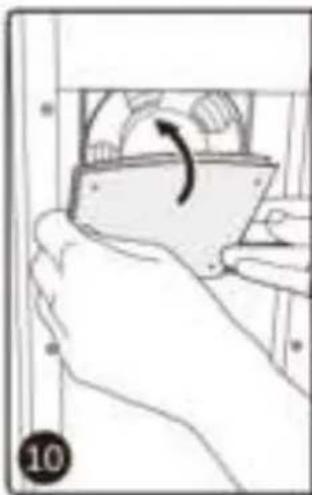

1. Install new filter (2 sheets) by screwing in 4 screws by hand (not too tight)

When to change the filter: Replace bottom and top filters every 3 month or every 2.100 hours in operation.

Note: Only use the efbe-Schott filters 000704 Aktivkohlefilter 135 × 180 ~mm (bottom) and 000705 Aktivkohlefilter 120 × 120 ~mm (top) to secure safety and efficiency of the air sterilizer.

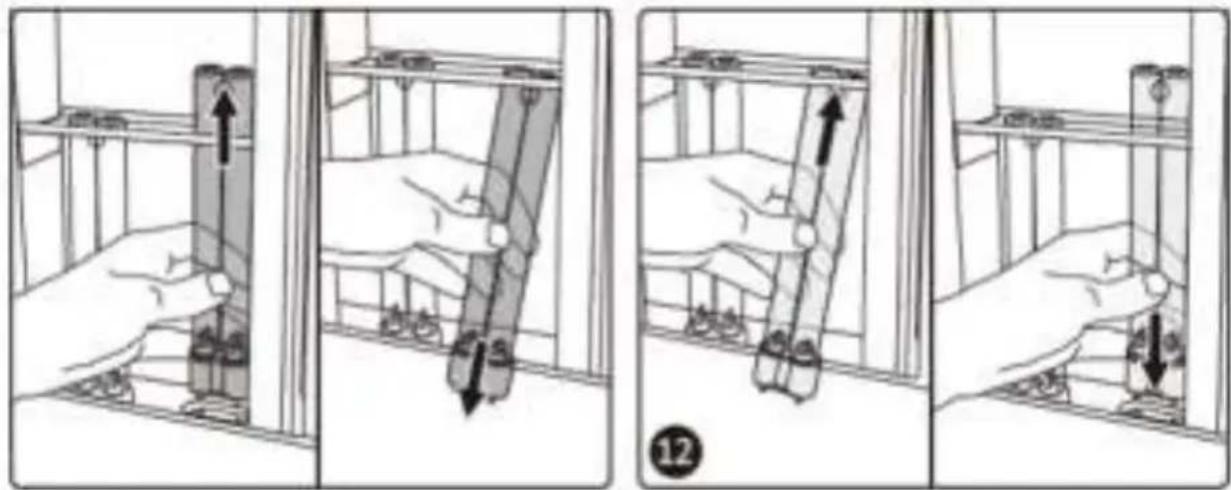

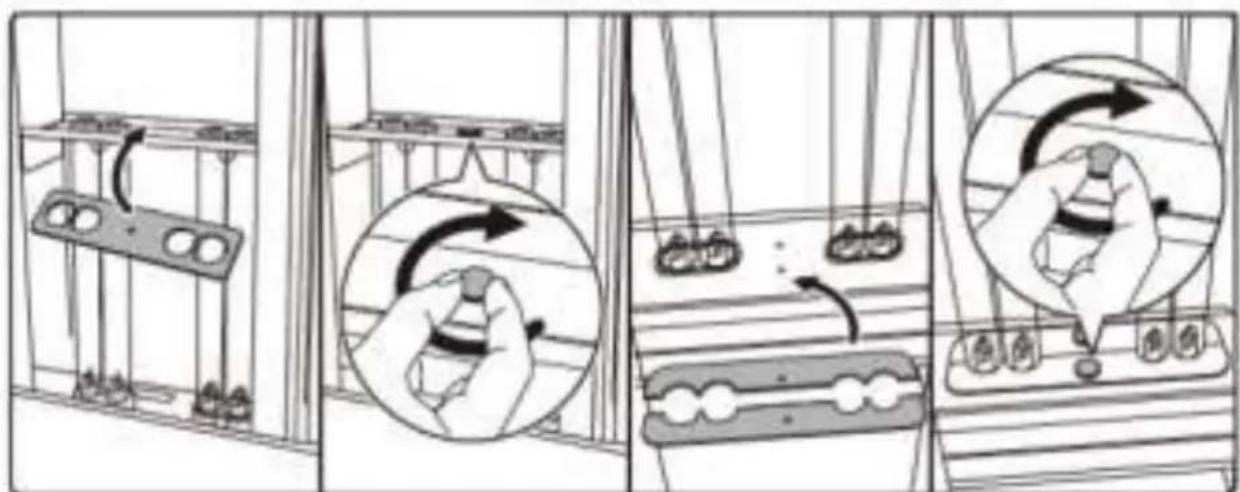

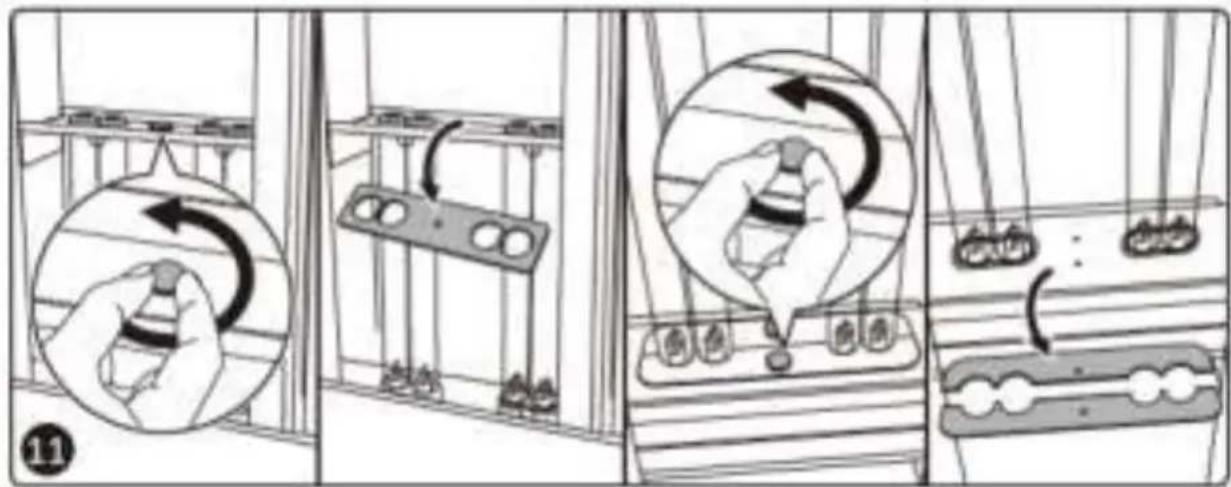

1. Unscrew by the hand the screws in the middle of the top and bottom plates hold and remove them. Take out the lamps by lifting them out of the socket, tilting it slightly and pulling it out of the upper metal holder.

1. Unwrap new lamps*, insert them slightly tilted in the metal holder and push it straight down until it clicks into the socket and therefore is locked in. Place the metal holders back on top and bottom and fasten them by screwing the screws back in.

When to replace the lamps: Replace UVC lamps when the red light signal appears in the small window on the lower front side of the device, or after one year (~9.000 hours of operation).

*Only use efbe-Schott 136550TUV PL-L 35W/4PHO 1CT/25 Philips Lamps to secure safety and efficiency of the air sterilizer.

Note: Like all fluorescent tubes, UVC lamps contain specific admixtures. These tubes are classified hazardous waste and must be disposed of according to the respective law.

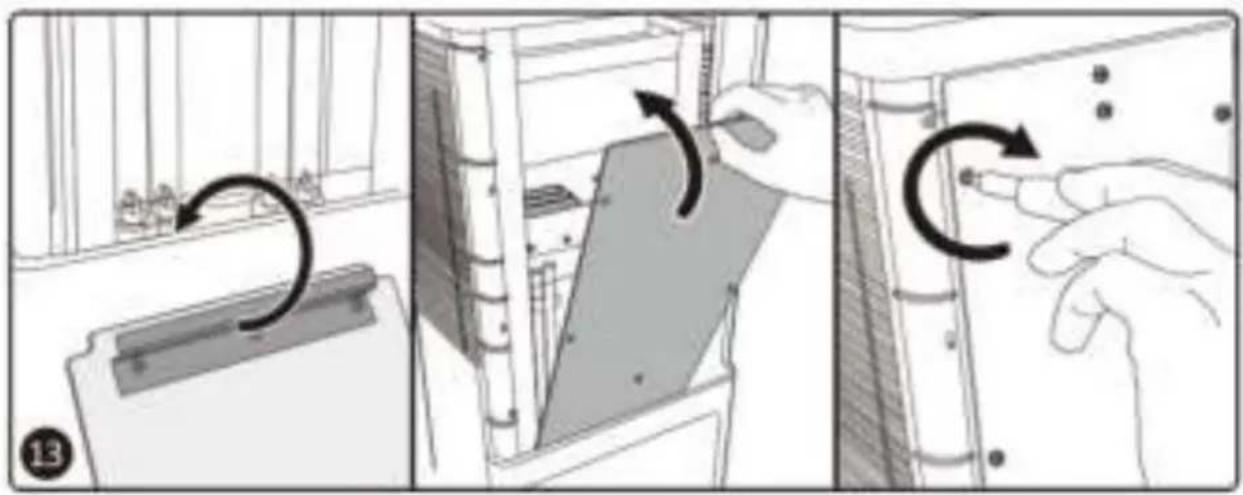

1. Close the metallic back cover (hinge on bottom side), slide in the fitting slot, close and screw 5 screws back in.

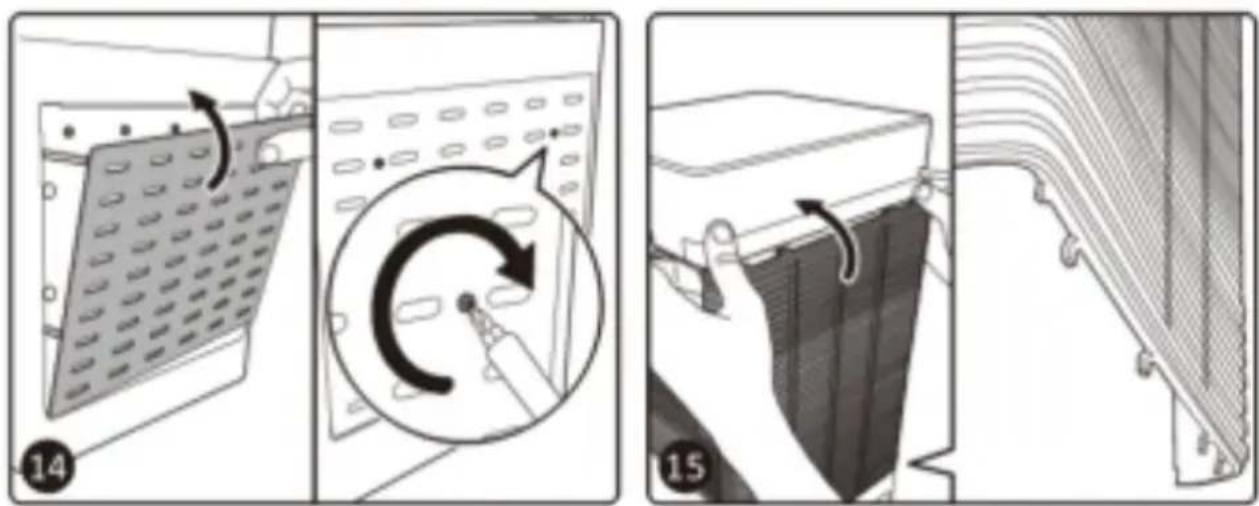

1. Close the metallic bottom back cover by screwing in 4 screws using a cross-shaped screwdriver

2. Close the upper back cover by sliding in the fixings on the bottom and close by clicking it in the housing

CONTROL PANEL

On / Off - Press the ON/OFF button to turn on the unit. Automatically the "fan" function gets activated. A blue light indicates that the function is active.

Fan – The fan automatically turns on when you press the power button. You can turn it off manually. However, in order to use the sterilization function, the fan has to be active.

Sterilizer - Press this button to start the sterilization function. The indicator lights up when the function is active. If you turn off the fan function, the sterilization function turns off as well.

Swing - Press the swing button to optimize the air flow. The device distributes the clean air in slightly different directions. The indicator lights up when the function is active.

Note: The safety shutdown function prevents the air sterilizer from switching on when the UVC chamber is opened.

REMOTE CONTROL

The air sterilizer is equipped with a remote control:

• The buttons on the remote control and the corresponding buttons on the control panel work exactly the same way.

If you do not use the remote control for a long period of time, remove the battery.

TROUBLESHOOTING

Problem	Solution
The device does not switch on or the key does not respond.	Check that the unit is properly connected. Check that the back panel is securely in place. Check that the unit is installed on a flat surface. Check that the device cover is closed completely and all the parts inside the device are fixed and not lose
The air is polluted but the indicator remains green.	Make sure that the unit is placed in a place with good air circulation.
The smell from the air outlet is unpleasant.	Replace the filters if necessary.
The sterilizer works but seems to have no effect on air quality.	Check that the filter packaging is removed. Check that the filters are installed in the correct positions and are fixed in their position Check that the lamps are working (green LED signal on bottom front side window).
The red light in the front side window of the device is switched on permanently.	Unplug the unit immediately and replace the lamps.
Even after replacing the lamps, the red light in the front side window is still red.	Unplug the unit immediately and contact customer service.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2012/19/EU

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

Like all fluorescent tubes, UVC lamps contain specific admixtures. These tubes are classified hazardous waste and must be disposed of according to the respective law.

ERP DECLARATION - REGULATION 1275/2008/EC

We, Efbe-Schott Elektrogeräte GmbH, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the power consumption, which should according to regulation 1275/2008/EC put the product in off or standby mode after finishing the main function, but this is practically impossible, as it would compromise the main function of the product so strongly, that using the product would no longer be possible!

The user manual is by simple request also available in electronic format from the after-sales service (see warranty card).

(*) Competent qualified service: After-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service.
