Product type	Wristwatch with repair kit
Model	IAN 277413 (HG01480A / HG01480C / HG01480E)
Brand	Auriol
Display	Analog with hour, minute and second hands
Water resistance	Up to 3 bar (3 ATM) according to DIN 8310
Power source	Battery (replacement recommended at a specialist shop)
Time setting	By crown in position 1 (pulled out)
Bracelet adjustment	Removable links (2 included); for models C/E: repair kit provided
Clasp	Deployant clasp on model HG01480A
Bracelet material	Metal with removable links
Care and cleaning	Soft, dry cloth for the exterior
Warranty	3 years from date of purchase (excluding wear and loss of water resistance)
Spare parts and repairability	Repair kit with replacement pin and pusher; additional links included
Safety	Do not open yourself; have the battery replaced by a specialist
Waste disposal	Recyclable packaging; used batteries to be disposed of in designated containers

Frequently Asked Questions - IAN 277413 AURIOL

How to set the time on the Auriol IAN 277413 watch?

Pull the crown 2 to position 1 (setting position). Turn it to set the hour and minute. Push the crown back in to start the second hand.

What is the water resistance of the watch?

The watch is water resistant up to 3 bar (3 ATM) in accordance with DIN 8310. This allows use in rain or hand washing, but not for swimming or diving. Water resistance is not permanent and should be checked annually.

How to replace the watch battery?

It is recommended to have the battery replaced at a specialist shop. Opening the cover by an unauthorized person may void the warranty and compromise water resistance.

How to adjust the bracelet length?

For models HG01480C/HG01480E, use the provided repair kit to remove links. For model HG01480A, open the clasp of the removable link and remove 1 or 2 links. Refer to illustrations D and following in the manual.

What to do if the bracelet pin is lost?

The repair kit contains a replacement pin. Follow steps E, F, G of the manual to remove the old pin using pliers and insert the new one into the pusher slide.

How to clean the watch?

Clean only the exterior with a soft, dry cloth. Avoid contact with chemical or abrasive products.

What is the warranty period?

The watch comes with a 3-year warranty from the date of purchase. Keep the receipt as proof. The warranty does not cover normal wear (batteries, glass) nor loss of water resistance due to unauthorized opening.

What to do if the watch gets water inside?

If water resistance is compromised, contact a professional watchmaker. The warranty does not cover water damage if annual maintenance has not been performed.

How to recycle used batteries?

Do not dispose of batteries with household waste. Place them in a recycling container provided for this purpose, in accordance with Directive 2006/66/EC.

Can I replace the bracelet links myself?

Yes, if you are meticulous. Use the repair kit to push the pins. For models C/E, remove the link pins using the pusher and pliers. Follow the illustrations in the manual to avoid damaging the bracelet.

USER MANUAL IAN 277413 AURIOL

WRISTWATCH AND BRACELET SET

GBIENI

WRISTWATCH AND BRACELET SET

Operation and Safety Notes

FR BE

PARURE MONTRE ET BRACELET

GB/IE/NI Operation and Safety Notes Page 5

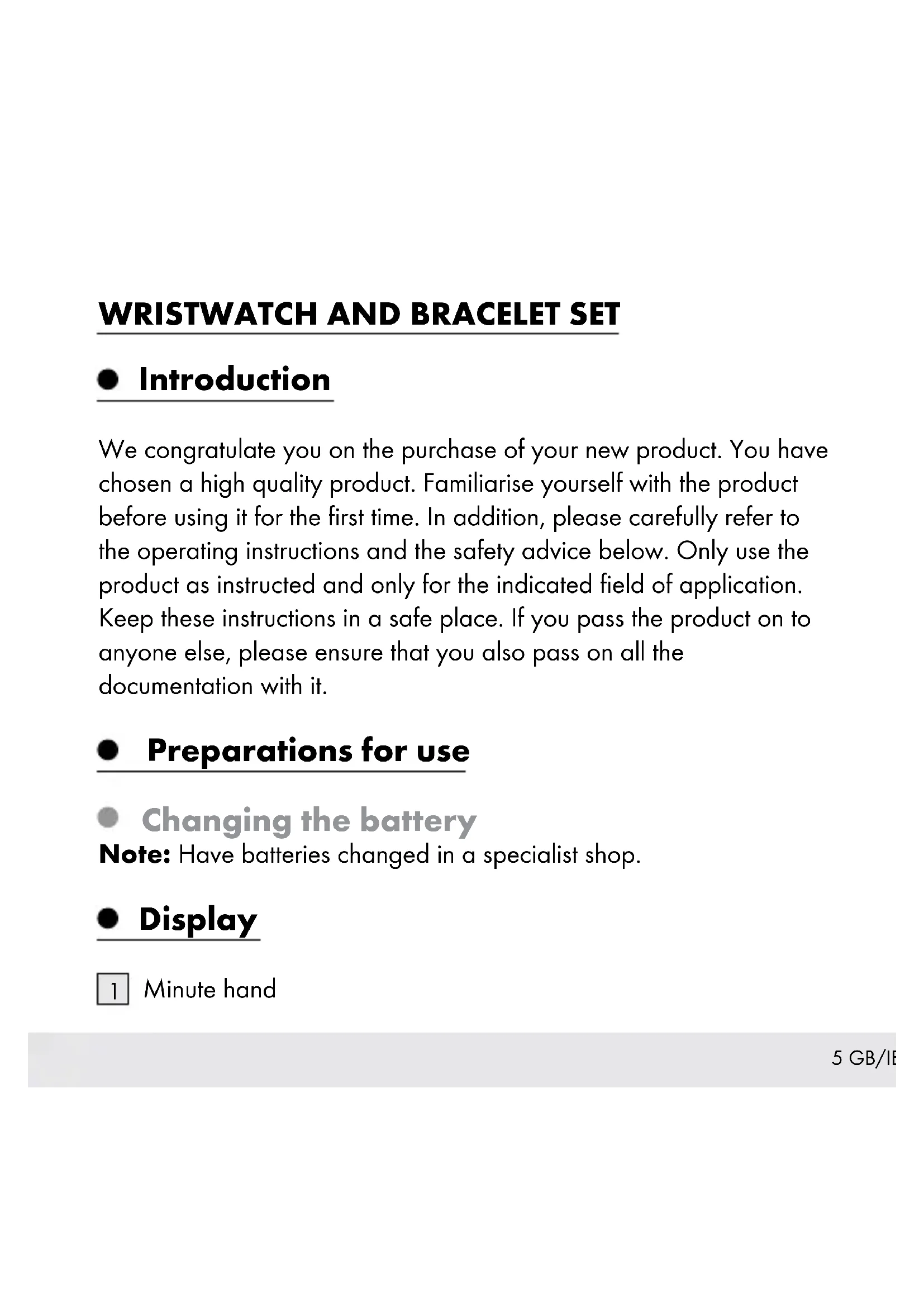

WRISTWATCH AND BRACELET SET

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Preparations for use

• Changing the battery

Note: Have batteries changed in a specialist shop.

Display

1 Minute hand

Crown
Second hand
Hour hand
1st position
Fastener (for model HG01480A)
Segment
Repair set
Slider
Spare pin
Bottom cover

Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5.
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

Watertightness

This watch is watertight to 3 bar in accordance with DIN 8310.

Figure B shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

- Shortening the watch strap

Model No. HG01480A

To shorten the watch strap, 2 removable segments are included. Open the fastener of the watch strap and the fastener of the removable segment. Remove 1 or 2 segments and re-close the fastener of the watch strap (see Fig. C).

Model No. HG01480C / HG01480E

Note: The watch strap can be shortened by removing segments (2 spare units are included). To this purpose you should use the repair set supplied.

- Removing Segments (Fig. D)

Note: The segments which can be removed are marked with an arrow (see Fig. D). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 8. Use a pair of tweezers if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 8.
Remove the pins of the segment that you wish to remove (as described above) and take out the segment 7. Note: If you would like to take out more than one consecutive segment 7, it is sufficient to remove the two outer pins.
- Connect the watch strap together again by joining the loose segments 7 with a pin. Press this pin against the direction of the arrow into the adjacent segments 7 .

• How to exchange the pin inside the slider (Fig. E,F,G)

Take out the slider 9, open the bottom cover 11 with the spare pin 10 inside.
□ You will need the pliers to carefully remove the old pin from the

slider.

Insert the spare pin carefully into the slider by again using the pliers. The new pin is installed.

- Cleaning and maintenance

Clean the product on the outside only with a soft, dry cloth.

- Disposal

packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC and its amendments. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase.

Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.
