USER MANUAL RIG 800HS V2 Nacon

Adjust mic monitoring

Support 7

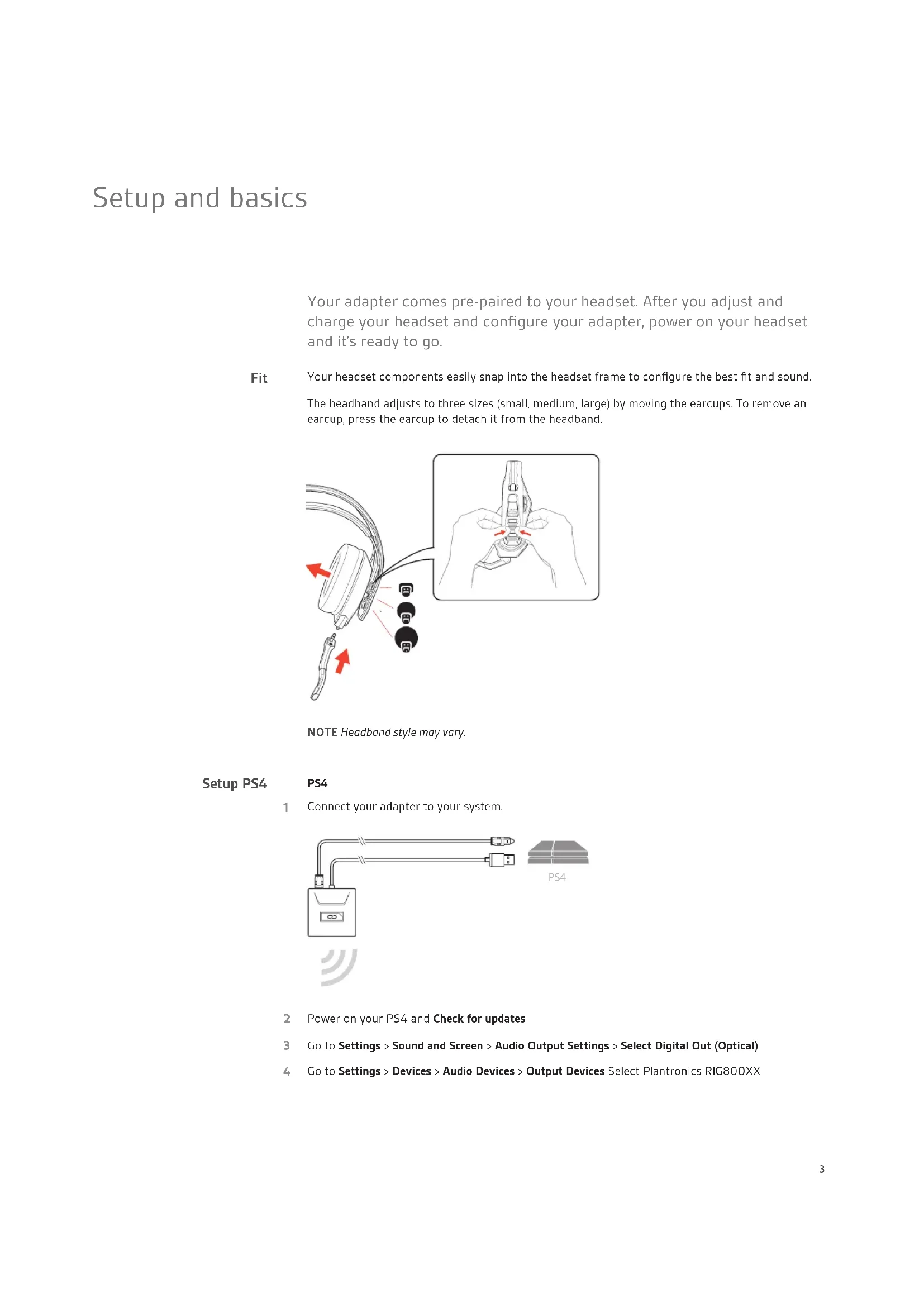

Setup and basics

Your adapter comes pre-paired to your headset. After you adjust and charge your headset and configure your adapter, power on your headset and it's ready to go.

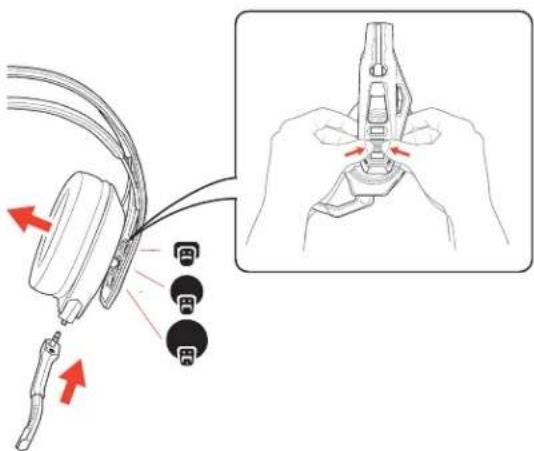

Fit Your headset components easily snap into the headset frame to configure the best fit and sound.

The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an earcup, press the earcup to detach it from the headband.

NOTE Headband style may vary.

Setup PS4 PS4

1 Connect your adapter to your system.

2 Power on your PS4 and Check for updates
3 Go to Settings > Sound and Screen > Audio Output Settings > Select Digital Out (Optical)
4 Go to Settings > Devices > Audio Devices > Output Devices Select Plantronics RIG800XX

PS4 (slim version)

1 Connect your adapter to your system.

2 Power on your PS4 and Check for updates
3 Go to Settings > Devices > Audio Devices > Output Devices Select Plantronics RIG800XX
4 Go to Settings > Devices > Audio Devices > Output to headphones > All audio

Setup Xbox One

1 Connect your adapter to your system.

2 Power on your Xbox One and Check for updates
3 Go to Display and Sound > Kinect and Devices > Device Options > Assign

Setup PC

1 Connect your adapter to your system.

IMPORTANT Optical cable connection is only for RIG 800HD and RIG 800HS.

2 RIG 800HX and RIG 800LX only: Ensure the switch on the back of the adapter is set to «PC.»

Charge

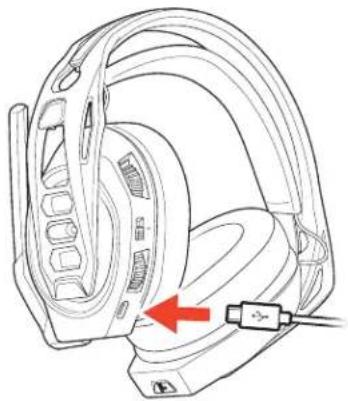

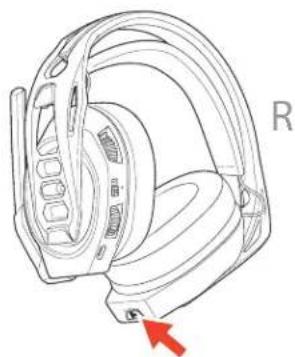

It takes up to 4.5 hours to fully charge your headphones. The headset LED is red while charging and turns off when complete.

04:30:00 = 10%

Adjust volume 1 To increase or decrease the game and chat volume, adjust the top headset dial.

2 To increase or decrease the master volume, adjust the bottom headset dial.

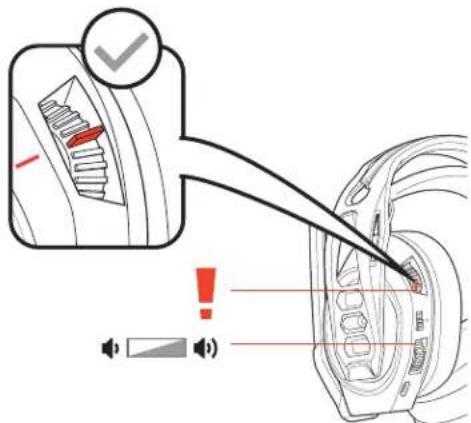

IMPORTANT For the PS4 (slim version), set the top headset dial in the middle; game and chat remain balanced. Use the bottom headset dial to increase or decrease the master volume.

Mute

Lift the boom to a full stop to mute the microphone.

CAUTION Do not force the boom past its upper or lower limits.

Set EQ

Cycle through the EQ modes by tapping the EQ button.

Tap the EQ button and hear EQ mode
one tone	Pure EQ is our signature sound
two tones	Seismic EQ boosts bass
three tones	Intensify EQ focuses on detail sounds
four tones	Vocal EQ emphasizes vocal frequencies

Adjust mic monitoring

Press and hold the Mute button to cycle through mic monitoring levels. Mic monitoring lets you hear your own voice in the headset.

Press and hold the Mute button and hear		Mic monitoring level
one	tone		None
two tones	Low
three tones	High

Support

NEED MORE HELP?

www.naongaming.com

nacon

NACONG GAMING, Inc

10400 NE 4^th Street, Suite 500,

Bellevue, WA 98004 USA

([phone]

Headquarter

NACON

©2020 NACON. NACON and RIG are trademarks of NACON. registered in the US and other countries. Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. All other trademarks are the property of their respective owners.

Patents pending

208788-06 (05.20)
