Product name	ELPLX03
Type	Projector lens
Focal length	11.16 mm
Aperture (F number)	2.2
Operating temperature	0 to +50 °C (non-condensing)
Storage temperature	-10 to +60 °C (non-condensing)
Weight	Approx. 13.0 kg
Projector compatibility	EB-L30002U, EB-L30000U, Pro L30002U, Pro L30000U (firmware update required); EB-L25000U, Pro 25000U (contact Epson)
Zoom	Not supported (fixed focal length)
Lens shift	Yes (adjustable)
Box contents	Lens unit, lens covers (large and small), decorative cover, user guide, USB cable
Installation	Screw and lock lever fixing; remove decorative cover and lens cover before installation
Maintenance	Clean the lens with a blower and soft cloth; do not use solvents or flammable gases
Precautions	Unplug the projector before installation; do not look into the lens during projection; wait for cooling after use
Calibration	After replacement, a message appears; select Yes to calibrate

Frequently Asked Questions - ELPLX03 EPSON

How to install the ELPLX03 lens on the projector?

Before any installation, unplug the projector. Remove the lens cover (small) and the decorative cover. Insert the lens unit by aligning the protruding points with the holes, then turn the lock lever clockwise. Tighten the screws (4 points) to secure the lens, then attach the decorative cover with two screws. Finally, remove the lens cover (large).

How to safely remove the lens?

Turn off the projector and wait about 30 minutes for the lens to cool. Return the lens to its original position if you used lens shift. Attach the lens cover (large), unscrew the decorative cover screws, then loosen the 4 fixing screws. Turn the lock lever counterclockwise and pull the lens toward you to remove it. Attach the lens cover (small) for storage.

Which projectors are compatible with the ELPLX03?

The lens is compatible with EB-L30002U, EB-L30000U, Pro L30002U and Pro L30000U after firmware update to version V105 or later. For EB-L25000U and Pro 25000U, contact Epson for assistance.

How to clean the lens without damaging it?

Use a blower to remove dust, then gently wipe with a soft cloth. Never use solvents like alcohol, benzene, or thinner, nor a damp cloth. Avoid touching the lens with fingers.

What to do if the projected image is blurry?

First check that the lens is properly installed and locked. Use the projector's focus function. If the image remains blurry, recalibrate the lens via the projector menu (a message usually appears at startup).

Do I need to calibrate the lens after installation?

Yes, after replacing the lens unit, a message appears at projector startup asking you to calibrate the lens. Select [Yes] so the projector recognizes the position and adjustment range.

Can I use zoom with this lens?

No, the ELPLX03 is a fixed focal length lens (11.16 mm). Zoom function is not supported. You can adjust the image size by changing the projection distance.

What safety precautions should be taken?

Never look into the lens during projection: intense light can damage eyesight. Always unplug the projector before installing or removing the lens. Wait for cooling after use to avoid burns. Do not use flammable gas for cleaning.

What to do if the lens unit falls or is impacted?

Visually inspect the lens for cracks or damage. If the lens appears damaged, do not use the projector and contact your dealer. Avoid dropping the unit and always store it on a stable surface.

How to transport the projector with the lens installed?

It is recommended to remove the lens unit before transporting the projector to avoid damage. If transporting the lens separately, attach the lens cover (small) and keep it in a safe place. Never hold the projector by the lens or decorative cover.

USER MANUAL ELPLX03 EPSON

Projection Distance 71

Included Items List

Check the following list to confirm that you have all of the supplied items. If by any chance there is anything missing or damaged, please contact your dealer.

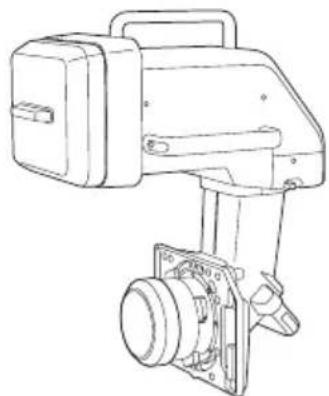

Lens unit (With lens covers (large and small)) Decorative cover

User's Guide (this guide) USB cable

Use this cable to connect the optional external camera ELPEC01 to the projector. For details, see the User's Guide supplied with ELPEC01.

Safety Instructions

Read this document and the User's Guide supplied with the projector carefully to use this unit safely and correctly. To allow you to solve any unknown points quickly, keep this information close to hand.

So that you can use the product safely and correctly, symbols are applied in this Guide and on the product to indicate possible harm to the user or to others and the risk of damage to property. The indications and their meaning are as follows. Make sure you understand them properly before reading the guide.

Warning	This symbol indicates information that, if ignored, could possibly result in death or personal injury due to incorrect handling.
Caution	This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Warning

• Disconnect the power cord from the projector before attaching or removing this product. Attaching or removing while the power cord is connected could cause an electric shock.
• When attaching the product to the projector, make sure that it is securely installed and that it is locked in place. If this product is not attached correctly it may fall, resulting in personal injury or an accident.
• When removing dirt and dust from the product, do not use a spray that contains flammable gas. The high heat generated inside the projector may cause a fire.

Caution

• When projecting, remove the lens cover from the front of the lens unit. The cover may get hot and may cause a malfunction.
• Before attaching the lens unit, check the projector's model number. If this lens unit is attached to a projector other than the specified projector, the lens unit or the projector could be damaged.
• Be careful not to trap your finger when attaching this product to the projector. This may cause an injury.
• Do not disassemble or remodel.
• Do not use or store the projector in places where it might be subjected to high and low extremes of temperature. Also, avoid any sudden changes in temperature.
• Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can adversely affect the quality of the projected images.
• Do not get it wet.
• Do not drop it or subject it to impacts. When putting this product down, make sure you place it on a flat, stable surface.
• When moving the projector, do not hold the lens unit and decorative cover. They may come off and the projector may fall causing an injury.
• Remove the lens unit when transporting the projector. If the projector is transported with the lens unit attached, the lens unit or the projector could be damaged.
• When carrying the lens unit, be sure to hold the handles on the lens unit.

Caution

• Do not attach the lens unit when the projector's lens insertion section is facing up. Dust or dirt could enter the projector.
• Try not to touch the lens section with your hand or fingers. If fingerprints or oils are left on the surface of the lens, projection quality deteriorates.
• To remove dust on the lens, blow it off using a blower.
  To clean any dirt on the lens, wipe it off gently with a soft cloth.
• Do not use any hard materials to clean the lens and do not subject the lens to any impacts.
• Do not touch or pull the connector part or the cable as this could cause a malfunction.
• When cleaning this product, do not use a wet cloth or solvents such as alcohol, benzene, or thinner as this could cause an electric shock or a malfunction.
• Do not open or eat the desiccant that comes with the lens unit. If it gets into your eyes or mouth, flush them immediately with water. If discomfort or vision problems continue after a thorough flushing, see a doctor immediately.

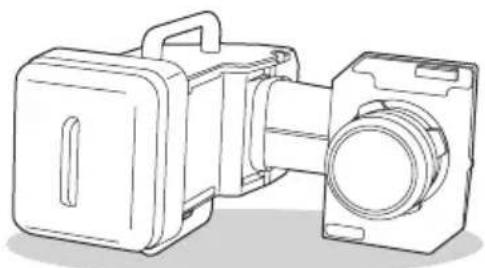

• Attach the cover to the lens unit, and place it on its side on a stable surface. Failure to do so may cause the lens unit to fall causing a malfunction or damage.

Projector Information

• When you use the lens unit with the following projector models, update the projector firmware to V105 or later:

EB-L30002U, EB-L30000U, Pro L30002U, Pro L30000U

You can check the firmware version using the projector menu.

[Info] - [Version] - [Main]

• When you use the lens unit with the following projector models, contact Epson for help: EB-L25000U, Pro 25000U

Removing and Attaching the Lens Unit

Attaching

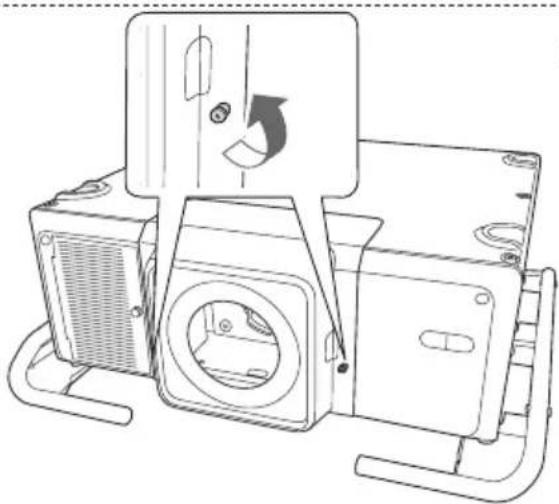

1 Loosen the lens cover fixing screws.

Turn the screws by hand.

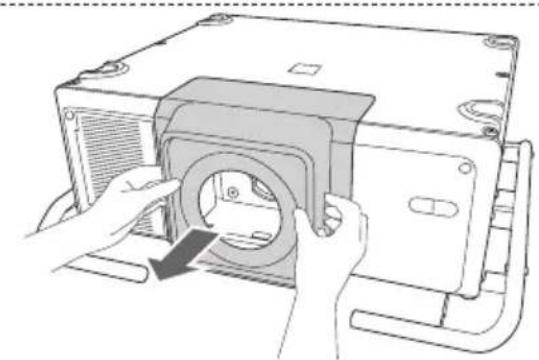

2 While pressing the tabs on both sides of the lens replacement cover, pull it towards you to remove it.

Keep the lens replacement cover in a safe place.

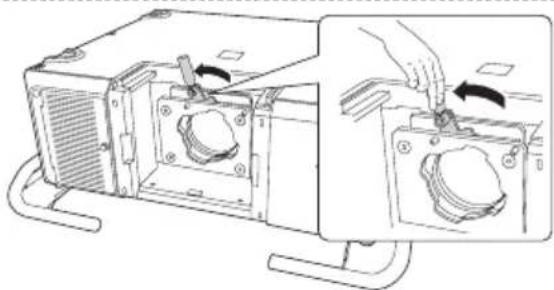

3 Raise the lock lever and turn it counterclockwise.

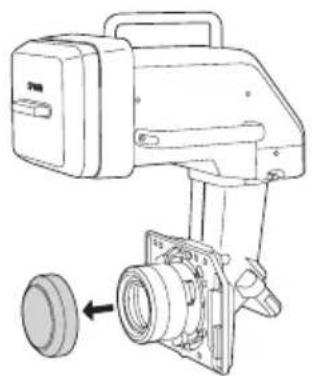

4 Remove the lens cover (small) from the lens unit.

Use the cover when storing or transporting the lens unit on its own. Keep the lens cover in a safe place.

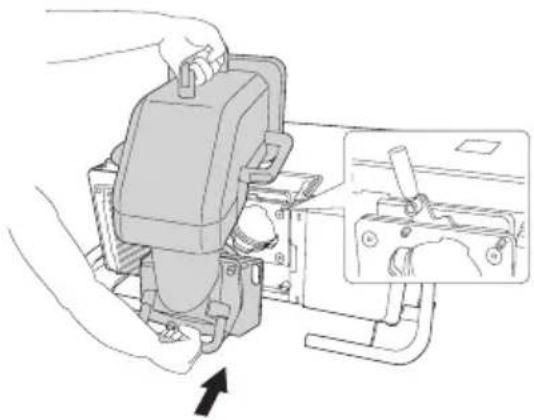

Insert the lens unit straight so that the protruding points on the lens fit through the holes (2 points) at the top of the lens unit.

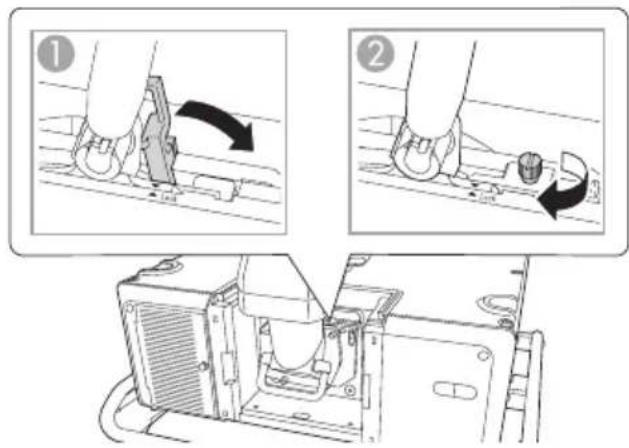

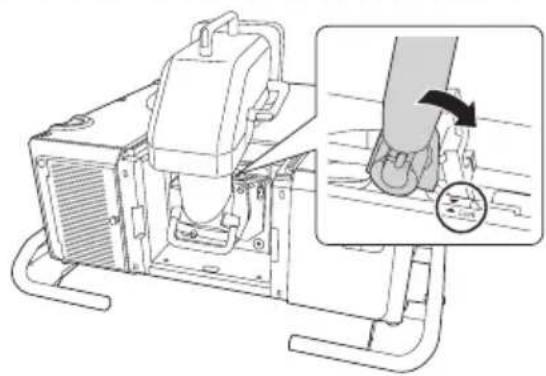

While holding the lens unit firmly, hold the lock lever and turn it clockwise to lock the lens unit.

Check that the lens cannot be detached.

If it cannot be locked, the lens unit is at an angle.

Remove and then reinstall the lens unit.

• To further secure the lever, tighten the screw. You can turn the screw by hand.

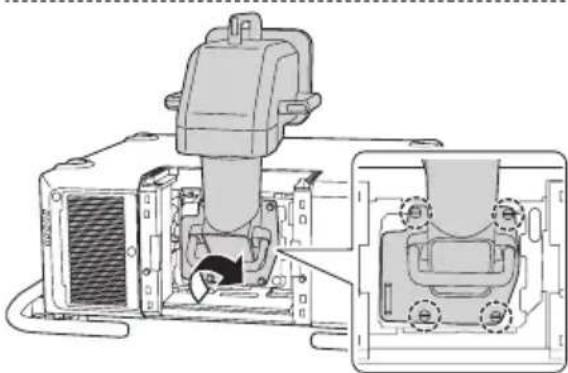

7 Tighten the screws (4 points) to fix the lens unit.

Tighten the four screws equally to prevent the lens from being installed at an angle.

Turn the screws by hand.

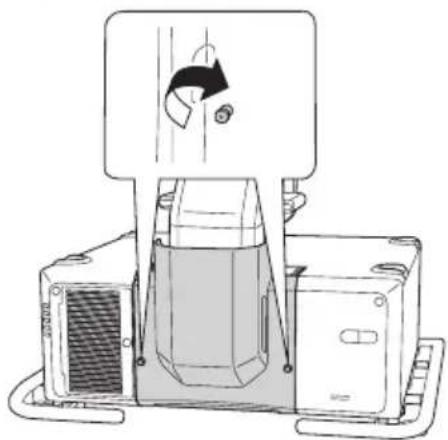

8 Tighten the two screws to fix the decorative cover.

Turn the screws by hand.

You can remove the handles from the lens unit with a commercially available hexagonal wrench (5 mm). Keep the handles in a safe space.

9 Remove the lens cover (large).

Keep the lens cover in a safe place.

After Replacing the Lens Unit

After replacing the lens unit, calibrate the lens so that the projector can correctly acquire the lens position and adjustment range. After attaching a lens unit, a message is displayed when the projector is turned on. Select [Yes] to calibrate the lens.

Adjusting the Image

For more information on the following, see the User's Guide supplied with the projector.

Focus adjustment
- Distortion adjustment

When you perform distortion adjustment, the size of the screen changes.

• Lens shift
• Keystone correction

*This product is a fixed focus lens. The zoom function is not supported.

The User's Guide is available from the following Web site.
epson-sn

Warning

Do not look into the lens while projecting. The powerful light emitted could cause damage to eyesight. When turning on the projector at a distance using the remote control, make sure there is no one looking into the lens.

Caution

Do not install the projector in a location that is subject to vibrations or shocks. Projection quality deteriorates and it could cause a malfunction.

Removing

Caution

• If lens shift has been performed, move the lens position to the home position before replacing the lens unit.
• Turn off the projector and then wait for a while (approximately 30 minutes) before removing the lens unit. If you touch the lens unit during projection or immediately after turning off the projector, it could cause a burn.

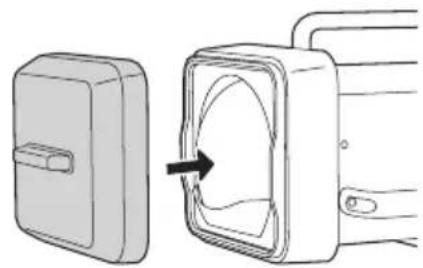

Attach the lens cover (large).

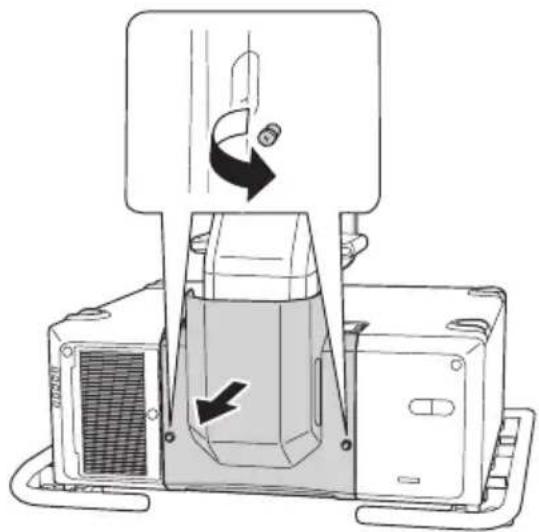

2 Loosen the two screws to remove the decorative cover.

Turn the screws by hand.

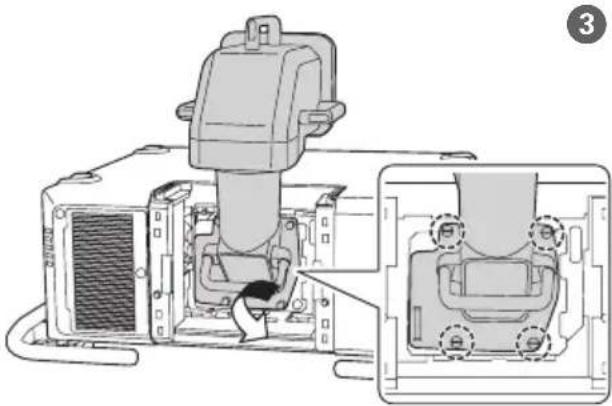

3 Loosen the screws (4 points).

Turn the screws by hand.

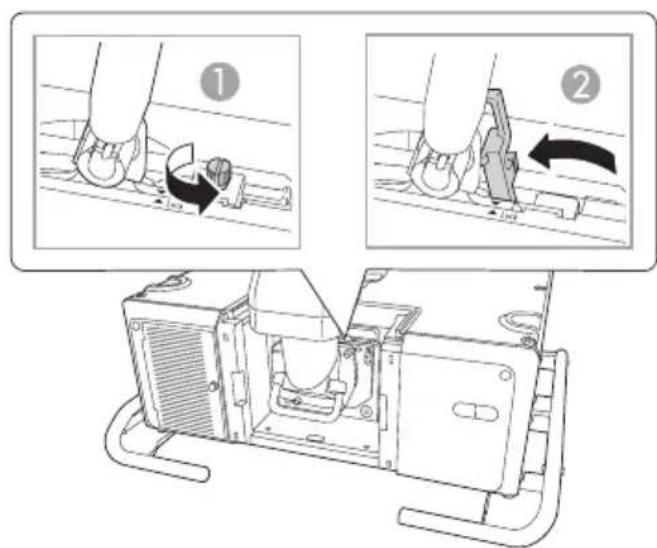

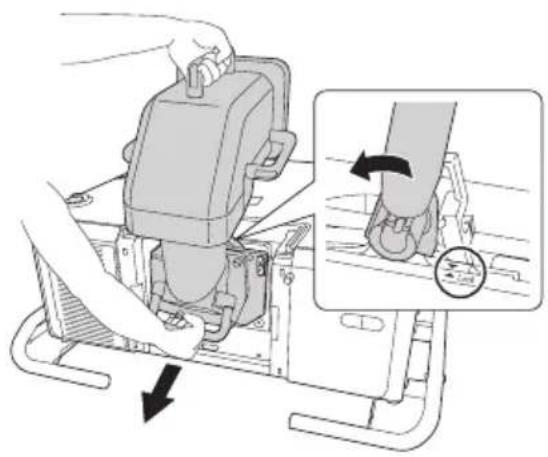

While holding the lens unit firmly, hold the lock lever and turn it counterclockwise to unlock the lens unit.

Pull the lens unit straight out as it is released.

If the lever is fixed with the screw, loosen the screw first.

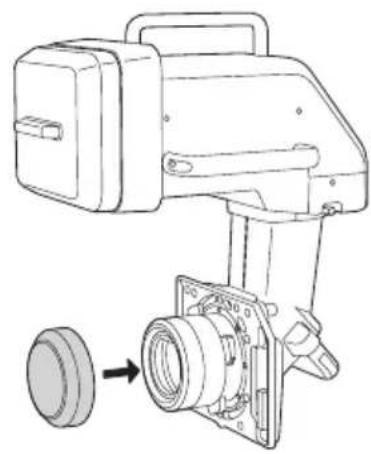

5 Attach the lens cover (small).

Specifications

Product name ELPLX03
Focal length 11.16 mm
F number 2.2
Operating temperature 0 to +50°C (No condensation)
Storage temperature -10 to +60 °C (No condensation)
Mass Approx. 13.0 kg

Contact your local dealer or the nearest address provided in the documentation supplied with the projector.
