USER MANUAL Salsa 6510 NOVY

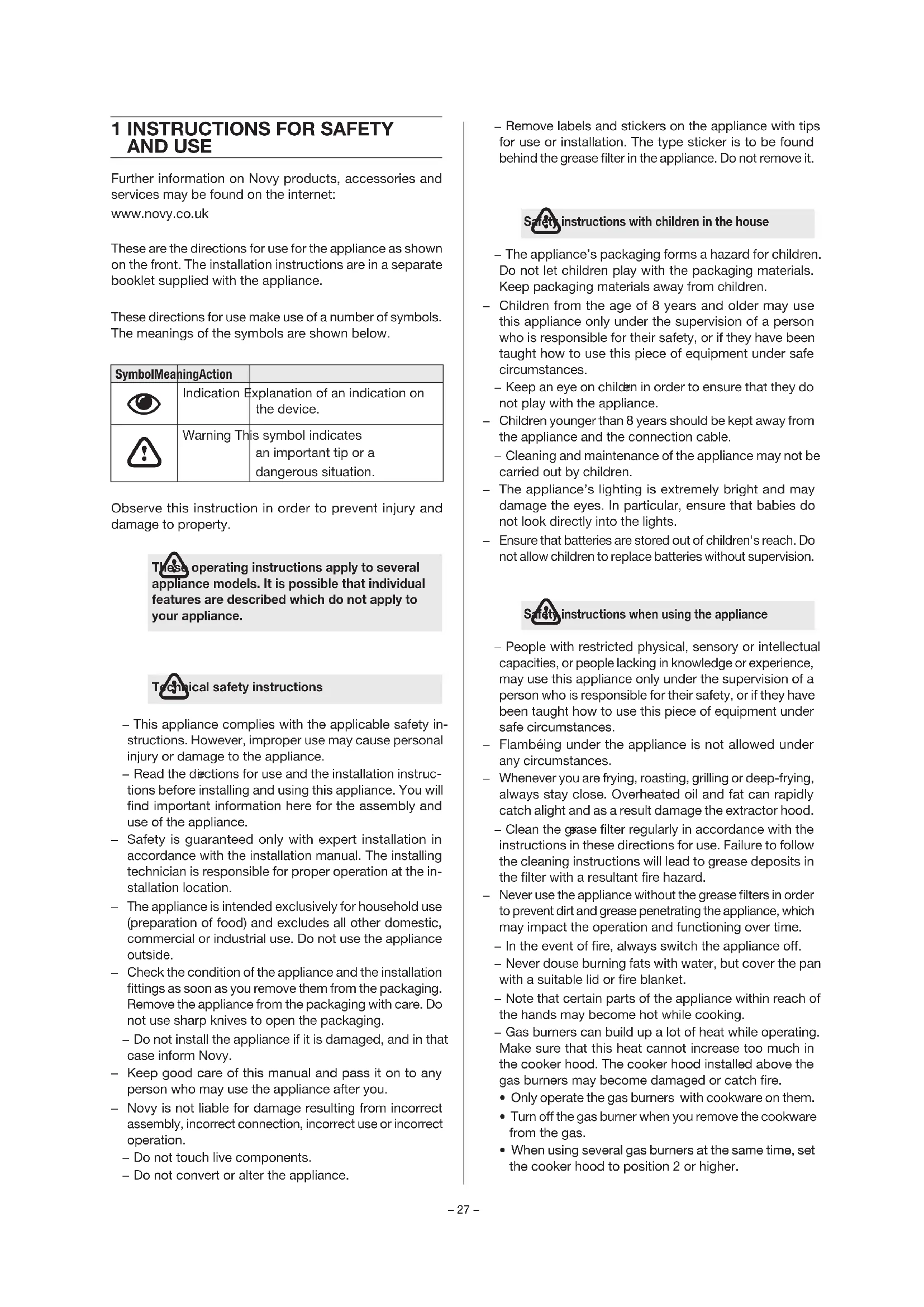

1 INSTRUCTIONS FOR SAFETY AND USE

2.1 Operating the device

2.2 Turning the extraction on and off

AND USE Further information on Novy products, accessories and services may be found on the internet: www.novy.co.uk These are the directions for use for the appliance as shown on the front. The installation instructions are in a separate booklet supplied with the appliance. These directions for use make use of a number of symbols. The meanings of the symbols are shown below. Symbol Meaning Action

Indication Explanation of an indication on the device.

Warning This symbol indicates an important tip or a dangerous situation. Observe this instruction in order to prevent injury and damage to property.

These operating instructions apply to several appliance models. It is possible that individual features are described which do not apply to your appliance.

Technical safety instructions − This appliance complies with the applicable safety in- structions. However, improper use may cause personal injury or damage to the appliance. − Read the dir ections for use and the installation instruc- tions before installing and using this appliance. You will find important information here for the assembly and use of the appliance.

Safety is guaranteed only with expert installation in accordance with the installation manual. The installing technician is responsible for proper operation at the in- stallation location.

The appliance is intended exclusively for household use (preparation of food) and excludes all other domestic, commercial or industrial use. Do not use the appliance outside.

Check the condition of the appliance and the installation fittings as soon as you remove them from the packaging. Remove the appliance from the packaging with care. Do not use sharp knives to open the packaging. − Do not install the appliance if it is damaged, and in that case inform Novy.

Keep good care of this manual and pass it on to any person who may use the appliance after you.

Novy is not liable for damage resulting from incorrect assembly, incorrect connection, incorrect use or incorrect operation. − Do not touch live components. − Do not convert or alter the appliance. − Remove labels and stickers on the appliance with tips for use or installation. The type sticker is to be found behind the grease filter in the appliance. Do not remove it.

Safety instructions with children in the house − The appliance’s packaging forms a hazard for children. Do not let children play with the packaging materials. Keep packaging materials away from children.

Children from the age of 8 years and older may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances. − Keep an eye on childr en in order to ensure that they do not play with the appliance.

Children younger than 8 years should be kept away from the appliance and the connection cable. − Cleaning and maintenance of the appliance may not be carried out by children.

The appliance’s lighting is extremely bright and may damage the eyes. In particular, ensure that babies do not look directly into the lights.

Ensure that batteries are stored out of children's reach. Do not allow children to replace batteries without supervision.

Safety instructions when using the appliance − People with restricted physical, sensory or intellectual capacities, or people lacking in knowledge or experience, may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances.

Flambéing under the appliance is not allowed under any circumstances.

Whenever you are frying, roasting, grilling or deep-frying, always stay close. Overheated oil and fat can rapidly catch alight and as a result damage the extractor hood. − Clean the gr ease filter regularly in accordance with the instructions in these directions for use. Failure to follow the cleaning instructions will lead to grease deposits in the filter with a resultant fire hazard.

Never use the appliance without the grease filters in order to prevent dirt and grease penetrating the appliance, which may impact the operation and functioning over time. − In the event of fire, always switch the appliance off. − Never douse burning fats with water, but cover the pan with a suitable lid or fire blanket. − Note that certain parts of the appliance within reach of the hands may become hot while cooking. − Gas burners can build up a lot of heat while operating. Make sure that this heat cannot increase too much in the cooker hood. The cooker hood installed above the gas burners may become damaged or catch fire.

• Only operate the gas burners with cookware on them.

• Turn off the gas burner when you remove the cookware from the gas.

• When using several gas burners at the same time, set the cooker hood to position 2 or higher.– 28 –

• Never operate large burners of more than 5 kW with the highest flame for longer than 15 minutes, e.g. a wok. − Switch on the appliance a few minutes befor e starting to cook for effective extraction of the cooking vapours.

Make use of the delay position if the appliance has one. The instructions for the delay position are set out in these directions for use. − A void all draughts above the cooking surface. − Position your cooking utensils in such a way that ris ing vapour is directed under the extraction surface of the hood.

Cooking with induction: set the intensity of the ap pliance and hob as low as possible in order to limit excess vapour.

If the appliance has an under-plate, ensure that it is always properly closed. Take care that it is properly inserted into the clamps and cannot come free. When opening the under-plate, do not put your hands on the side of the hinges in order to prevent being crushed. − Do not place objects on top of the appliance, as these may fall and cause a dangerous situation.

Air supply However large the kitchen or the room with open kitchen is, only so much air can be extracted from the room as is supplied. Too little air supply could result in a yield loss of 50% and more. [!] If the extraction is used at the same time as a combus- tion system (for example heaters fired by gas, oil, wood or coal, hot water boilers using gas, gas hobs and gas ovens), combustion gases may be sucked back in and lead to poisoning. A combustion system uses air from the room as combustion air. Combustion gases arise as a result, which are removed to the outside by an extraction system. The appliance sucks in air from the kitchen and adjacent rooms. Negative pressure occurs if the air supply is inad- equate. The toxic gases are then sucked back from the chimney or extraction duct into the room. With simultaneous use of the appliance and combustion appliances in the same room, the negative pressure may not exceed 4 Pa (=0.04 mBar). Negative pressure can be prevented by allowing sufficient air into the room through openings that cannot be closed (for example through win- dows or doors, in combination with a ventilation cabinet in the wall). Have an expert assess the overall ventilation system in your home for a proposal on suitable measures in the area of air supply. When using the appliance with an internal or external mo- tor (unit) with air extraction to the outside, there must be adequate air supply in the room where the appliance has been installed / is positioned, so that fresh air can flow in. Fresh air can be provided by tilting a window, opening a door or installing an inlet grille. With an appliance with recirculation, there must be a min- imum of ventilation in the room where the appliance has been installed / is positioned. Ventilation can be provided by the overall ventilation in the home or by tilting a window or opening a door. Certain appliances are fitted with a connection for a win- dow contact switch (see the technical specifications for your appliance). If the appliance is to operate at the same time as a heating appliance that needs air from the room, and if the required supply can only take place through a single open window, there is the option of connecting the appliance to a window contact switch (not included). This ensures that the appliance operates only when the window is open. If the window is closed, the fan cannot be switched on. Contact your technician for the correct accessories for your appliance.

Precautionary measures against damage

The correct installation method is described in the in- stallation instructions. Read these instructions through carefully.

The installation and electrical connection of the appliance should be left to a recognised expert.

NOVY cannot accept liability for any damage arising from incorrect installation or connection.

Check the distance between the hob and the appliance. The minimum and maximum heights are shown in the installation instructions.

Precautionary measures in the event of a fault

If a fault occurs, switch off the appliance and disconnect the power supply.

Repairs should be carried out only by specialised person- nel. Do not under any circumstances open the equipment yourself. Contact the Novy service department.– 29 – ENVIRONMENTAL PROTECTION Tips for saving energy The new appliance is exceptionally efficient and econom- ical with energy. Some tips follow below for making your appliance even more energy-efficient. − Switch the appliance on at the lowest speed when you start cooking to adjust the relative humidity andeliminate cooking odours.

Only use the highest speed when absolutely necessary.

Only increase the speed of the appliance when thequan- tity of vapour so requires.

Keep the appliance filter/filters clean to optimise grease and odour filtering efficiency. − Switch to higher power in good time if much vapour is released. This is more efficient than using the appliance for a long time, and catching vapour already spread in the kitchen.

Do not allow the appliance to unnecessarily ventilate after cooking. − Switch the lighting of f when leaving the kitchen or if the kitchen is already light enough.

Ensure adequate air supply in the room, so that the appliance can operate efficiently and economically.

Put lids on the pots to reduce cooking vapours and condensation. Recycling the transport packaging and the old appliance This appliance is protected against damage during trans- port by packaging. The materials used are not harmful to the environment and are suitable for recycling. Ensure environmentally-friendly disposal of the packaging. Your appliance also contains many materials that can be recycled. For this reason, used appliances should be separated from other waste. Recycling of old appliances arranged by your manufacturer will in this way be carried out under the best circumstances. For recycling your appliance, we refer you to the recent European guidelines in force concerning electrical and electronic waste. Ask your municipality or your salesperson about the closest collection point for your old appliance. Keep old appliances out of the reach of children. Recycling batteries Do not put batteries into the standard household refuse. Ask your municipality or your salesperson about the closest battery collection point. Keep batteries out of the reach of children.

2 CONTROLS AND FUNCTIONS

2.1 Operating the device

2.2 Turning the extraction on and off

Turning the extraction on o Press button

to turn on the extractor. Only with this button you can start and to stop the extractor. Turning the extraction o with delay mode The cooker hood has a delay mode with a number of different delay times. You can activate the delay mode by pressing and holding button

for 3 seconds until all LED indications in the control light up. By pressing one of buttons

the following delay mode times can be set:

20 minutes The button of the selected delay mode time continues to flash during the delay mode time and the button of the selected motor speed burns continuously. As soon as the selected delay mode time has expired, the motor and lighting are switched off. 3 sec Switching extraction o without delay mode Press key

twice.– 30 – Cancellation of the delay mode If you wish to end the delay mode prematurely, press the flashing button of the selected delay mode time for 3 seconds. The LED indication changes from flashing to continuous and the delay mode is cancelled. Extractor power level − The motor of hood has 4 speed levels. − With buttons

you can choose the speed level.

indicates the Power position. The Power position is only used if there are strong odours, or a lot of smoke or vapour. Its use must be kept to a minimum because of the large extraction of air in this position. − The Power position automatically goes back to speed three after 5 minutes − The illuminated buttons shows the level in use.

The motor has a thermal switch that switches the motor off with overheating. After cooling the motor will switch on again.

Determining the cause of overheating is re- quired. This can be caused for example by a pan fir e, theimpeller motor being blocked or an object getting in the exhaust opening and causing it to bepartly or fully blocked.

Turning the lighting on and o To turn the lighting on or off press

The light works independent of the motor.

Follow all instructions as described in the Con- ditions for Safety and Use section.

Follow the cleaning instructions below for a longer working life and optimal operation of the appliance.

Allow the lighting to cool down sufficiently be- fore you start cleaning the extractor hood.

Never use aggressive, abrasive or chlorinated products.

Do not use a high pressure or steam cleaner. Stainless steel Clean with a cleansing tissue with mild cleaning agent then dry with a soft cloth. Maintenance of the stainless steel can be performed with the Novy cleaner (906060). Coated parts of the extractor hood The extractor hood can be cleaned with a damp cleansing tissue and a mild cleaning agent. Glass Glass parts of the extractor hood can be cleaned with asoft cloth and a glass cleaner.

If the following instructions are not carried out, serious soiling can cause a fire hazard. Indication cleaning grease filter

Indication: 4 indicator lights stays on After 30 hours of running the motor, when the cooker hood is switched off, 4 indication LEDs on the speed buttons remain lit for 30 seconds. This indicates that the grease filter(s) must be cleaned.– 31 – Reset the cleaning indicator

When you replace the grease fi lter after cleaning, it is suffi cient to press the button for position

of the motor for 3 seconds to again set the indicator. 3 sec If you ignore this, the 4 indicator lights will remain on for 30 seconds when the cooker hood is switched off. Accessing the grease fi lter First protect the hob. Grip the bottom plate left and right and pull it downwards so that the grease fi lter is visible. You can take the grease fi lter from the hood by pulling the handle on the fi lter. The fi lter will come down. Cleaning the grease fi lter The metal grease fi lter can be cleaned by hand or in adish- washer. We recommend cleaning the grease fi lterby hand. Cleaning the fi lter by hand: − Immerse the fi lter in a solution of boiling water to which a degreasing detergent has been added. − Use a brush for cleaning − Then rinse the fi lters with warm water under a tap and allow them to dry. Cleaning the fi lter in a dishwasher: − Use a customary dishwasher detergent

Do not put the saturated grease fi lters together with crockery in the dishwasher − Select a programme with a low temperature − After cleaning allow the fi lter to drain.

When cleaning in a dishwasher the fi lter may discolour as a result of the salt content. This does not affect its operation. Replacing the grease fi lters

Before replacing the grease fi lter, clean the edges of the part in the extractor hood in which the fi lter isplaced. − Grasp the fi lter with 2 hands. − Make sure that the lock or the lip on the fi lter is on the bottom side. − Insert the back of the fi lter in the opening, press the fi lter upwards at the front and make sure it clicks tight.

You can obtain a new grease fi lter from adealer or the Novy website. Article number grease fi lter: 6200.020 (2x)

3.3 Recirculation fi lter (optional))

If recirculation is chosen the active carbon cartridges are turned left and right on the motor of the cooker hood. Replacement indicator recirculation fi lter

Indication: 4 fl ashing indicator lights After 120 hours of running the motor, when the cooker hood is switched off, 4 indication LEDs on the speed buttons will fl ash for 30 seconds.This indicates that the carbon fi lter needs to be changed (if present). It is recommended to clean the grease fi lter at the same time. Reset the replacement indicator

When you replace the grease fi lter after cleaning, it is suffi cient to press the button for position

of the motor for 3 seconds to again set the indicator. 3 sec If you ignore this, the 4 indicator lights will continue to fl ash when the cooker hood is switched off for 30 seconds.– 32 – Accessing the recirculation filter First protect the hob. Grip the bottom plate left and right and pull it downwards so that the grease filter is visible. You can take the grease filter from the hood by pulling the handle on the filter. The filter will come down. The carbon filters have been screwed at the left and the right sides on the motor in the hood. Remove the carbon filter from the motor with a turning and pulling movement.

If there is a fault you can contact your (kitchen) supplier and/or Novy Customer Service. Belgium Tel.: [phone] France Tel.: [phone] Germany Tel.: [phone] The Netherlands Tel.: [phone] Unite Kingdom Tel.: [phone] Italy Tel.: [phone] For all other countries: your local installer or Novy in Belgium: [phone] To be able to deal with the fault promptly and efficiently it is necessary that the Repaired Service knows which type of appliance you have.

You can find the type number on a sticker in theinside of the extractor hood. This becomes visible as soon as you take the filter out of the extractor hood. You can note the type number here:– 33 – 4 QUICKGUIDE

EXPOSED ACTION INDICATION NOTE PAG. Switching on the engine

p 29 Increase engine speed

p 29 Decrease engine speed

p 30 Reset cleaning indicator grease filters

Four Leds stays on Grease flter must be cleaned If the cleaning instructions are not followed, excessive contamination, risk of fire and loss of efficiency will result. p 30 Four flashing LEDs Time to replace the recirculation filter used p 31
