USER MANUAL SFFPRO1 OPTOMA

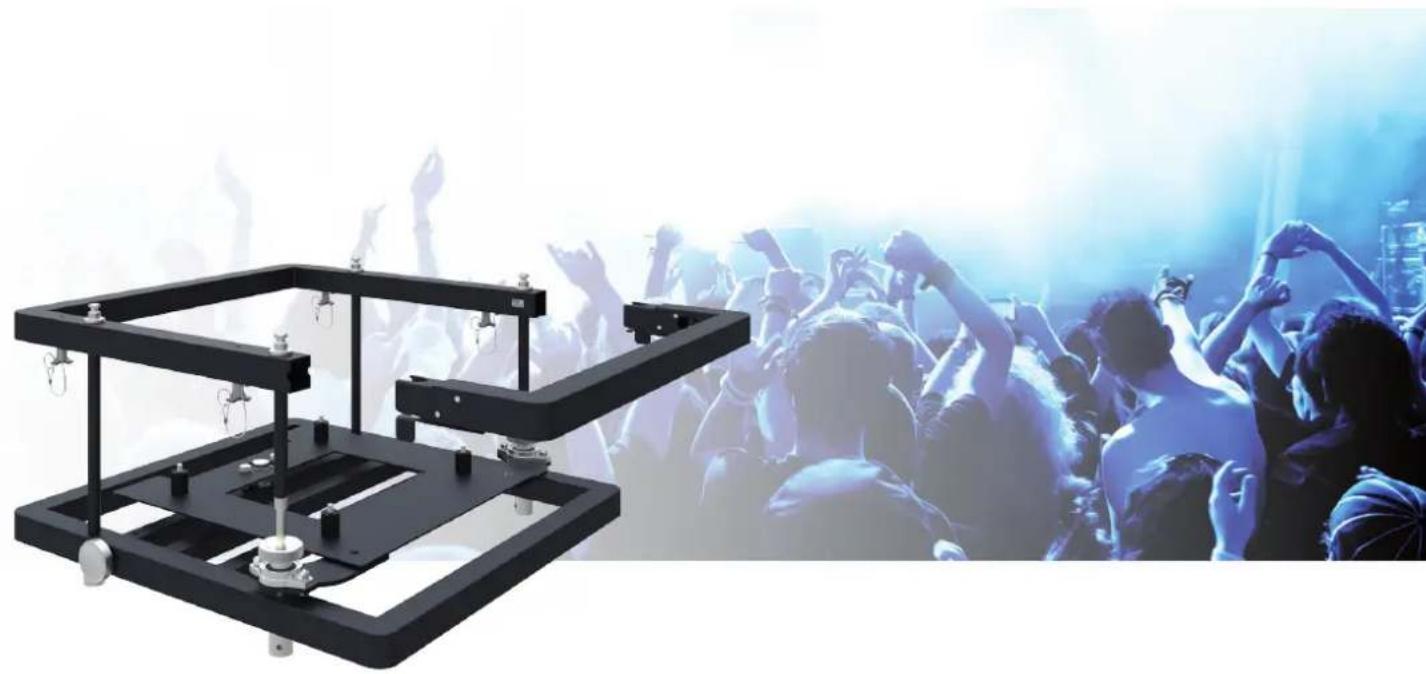

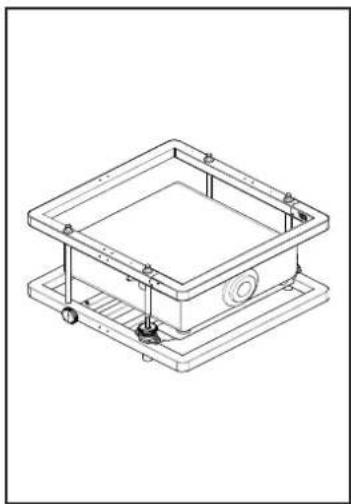

112.4xxx ~ 112.6xxx Stack frame Aluminium
PRODUCT MANUAL
original language English
DE Produkthandbuch
FR Manuel de produit
NL Producthandleiding
CONTENTS
Mounting regulations 2
Guarantee terms and conditions 3
Declaration of conformity 4
Important safety instructions 5
Mounting instructions 6
User manual 8
Specification sheet 13
Contact details 18
112.4xxx ~ 112.6xxx Stack frame Aluminium
GB
Mounting regulations
WARNING
A correct mounting is extremely important and this is not the responsibility of SmartMetals Mounting Solutions. Faulty mounting may result in injury to persons or damage to equipment. SmartMetals will not be responsible in any way if the product has been mounted incorrectly.
Mounting fittings are not included with the product for reasons of safety, since the properties and bearing strength of walls/ceilings are specific for each case. Suitable mounting fittings must be selected based on the material of the wall/ceiling.
Obtain advice from a specialist in the field or from a specialist shop concerning the choice of mounting fittings. It is the responsibility of the installer to ensure that the wall/ceiling can support at least four times the combined weight of the screen/projector and bracket. The maximum load for this product is given in these mounting instructions. The instructions for installation and use of the screen/projector must also be followed with respect to the location and attachment of the screen/projector.
DE
Montagevorschriften
WARNING
GUARANTEE TERMS AND CONDITIONS
112.4xxx ~ 112.6xxx Stack frame Aluminium
GB Guarantee terms and conditions
- SmartMetals Mounting Solutions guarantees that a product that SmartMetals has determined to be defective as a result of deficient manufacture or material this will be repaired or if necessary - replaced or you will be provided with a replacing part (the previous always to be determined by SmartMetals), without cost, an condition that a claim is made within the period of warranty, which is 5 years.
- In the event of a claim being made under the terms of the warranty, the product needs to be returned to SmartMetas accompanied by a RMA form, which we will send on request. The freight costs back and forth will always be borne by the owner.
-
The guarantee provided by SmartMetals shall lapse:
-
if a defect arises as the result of incorrect or inexpert assembly or installation.
- in case of improper use or any use not in accordance with the instructions.
- in case of normal wear and tear.
- if, without obtaining the written consent of SmartMetals, customer or a third party have introduced changes to the product or have attempted to do so, if other items have been attached to the product that should not be attached, if products were processed or revised in some way other than was instructed.
- if customer or a third party engaged by customer performed repairs without the written consent of SmartMetals beforehand.
DE Garantiebedingungen
The maximum admissible load of the Stack frame varies dependant on the way of use.
We strongly refer you to check your specific way of mounting and the corresponding maximum load in the user manual on page 8-12.
DE

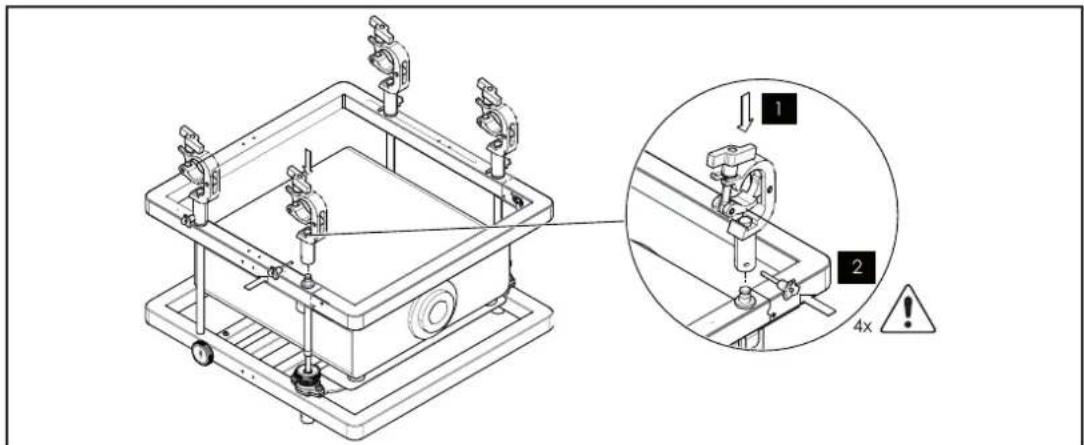

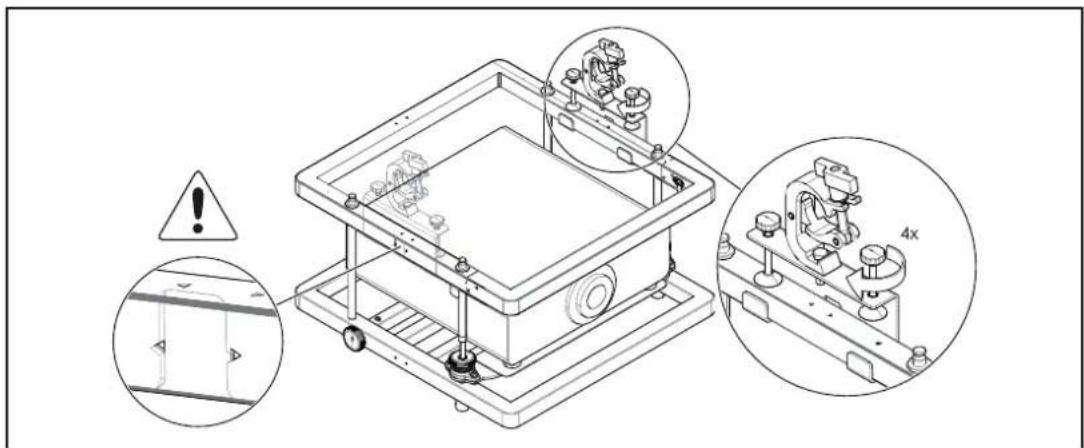

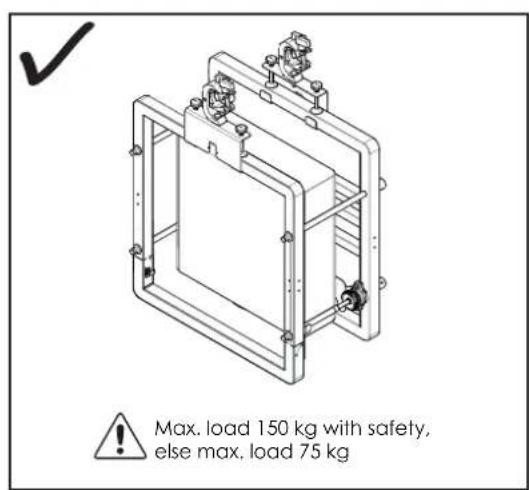

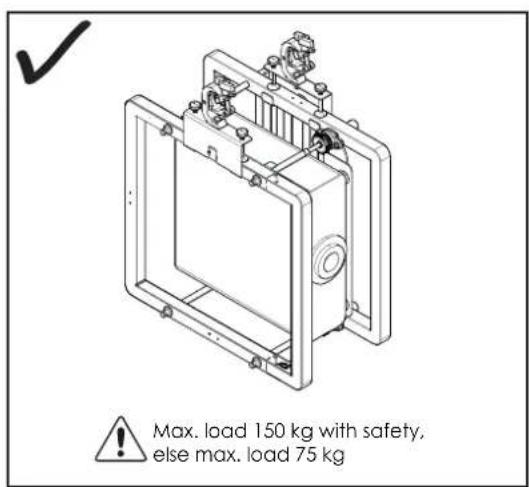

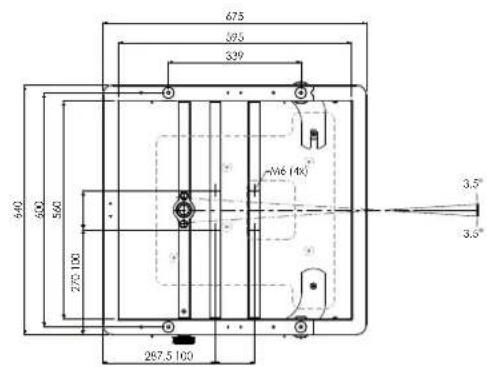

With 4x truss clamps (ref. 003.1128)

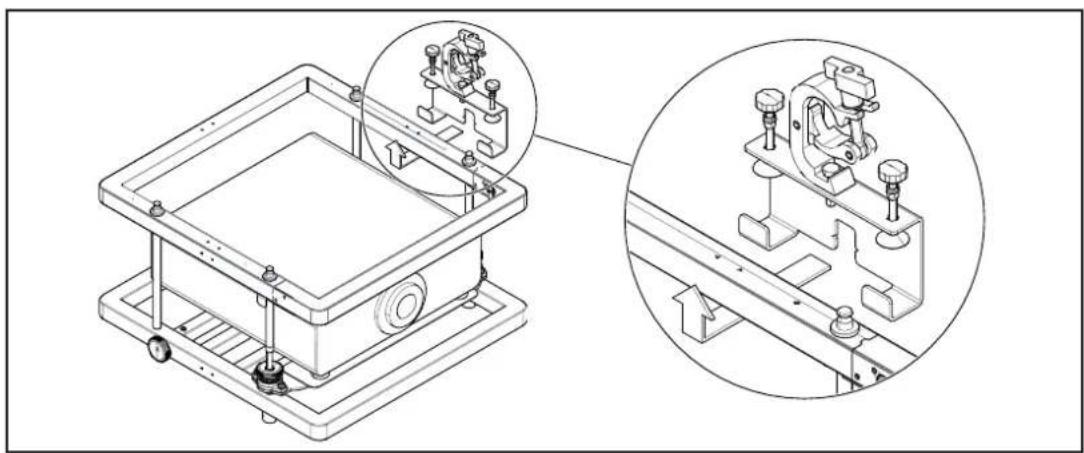

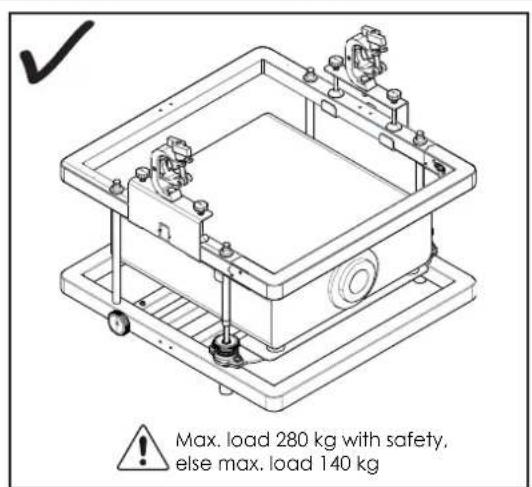

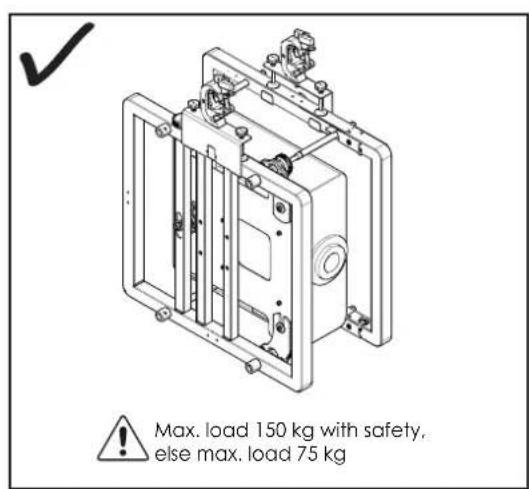

With 2x truss clamps (ref. 003.1128) and 2x clamp (ref. 112.1017)
112.4xxx ~ 112.6xxx Stack frame Aluminium

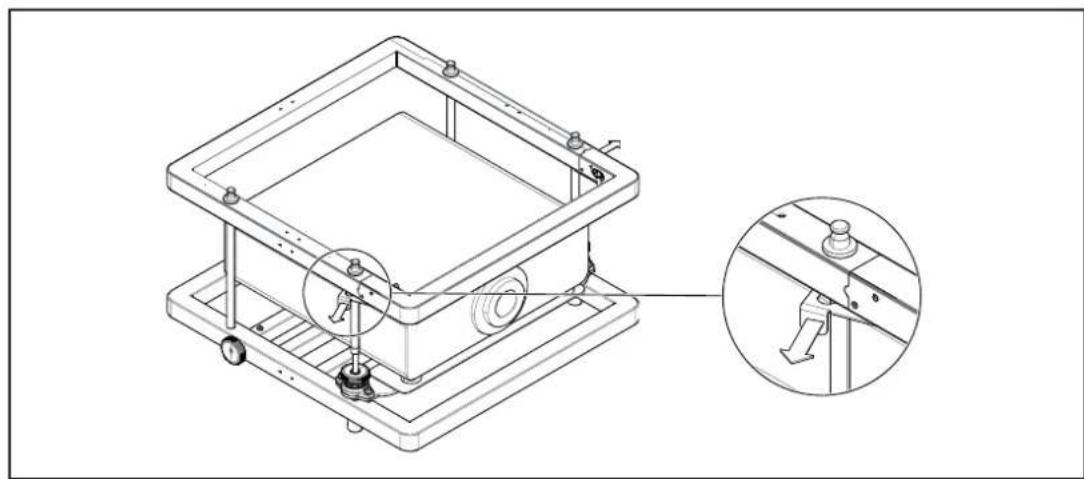

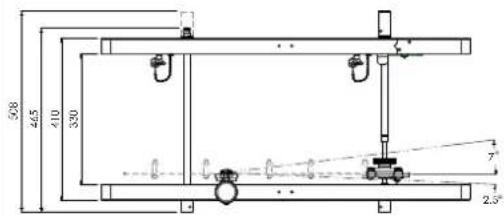

1 Truss clamps positions as indicated below
112.4xxx ~ 112.6xxx Stack frame Aluminium

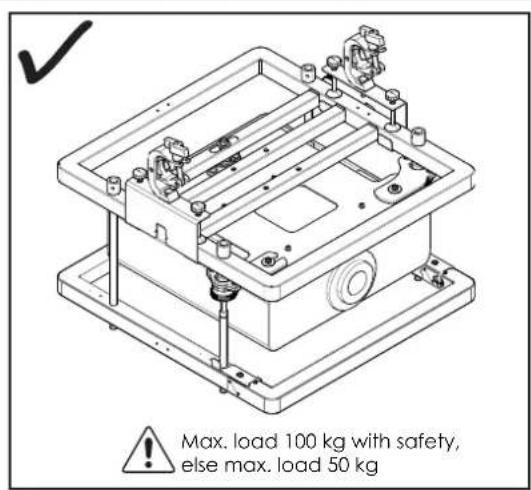

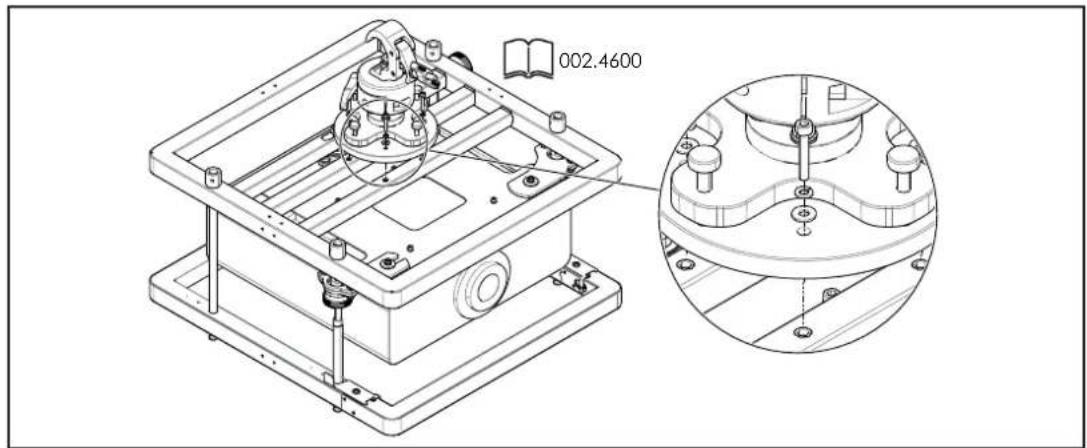

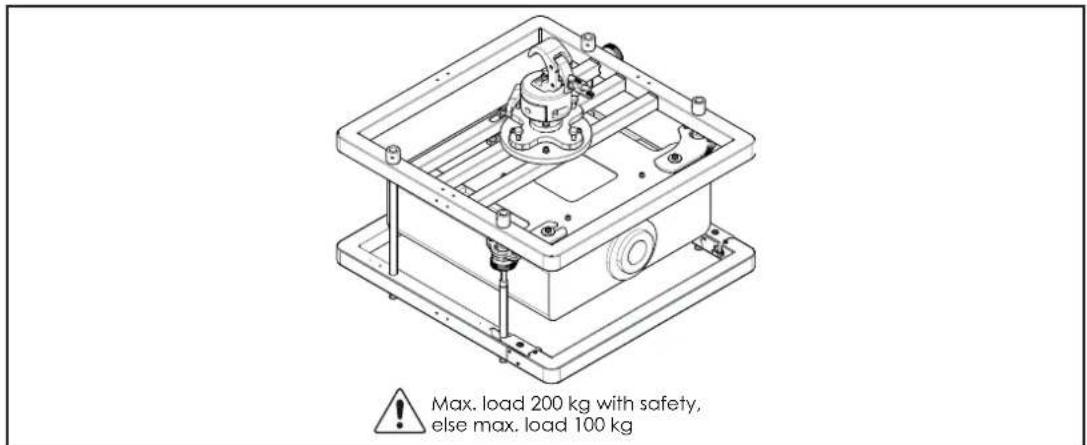

With 1x rental mount (ref. 002.4600)

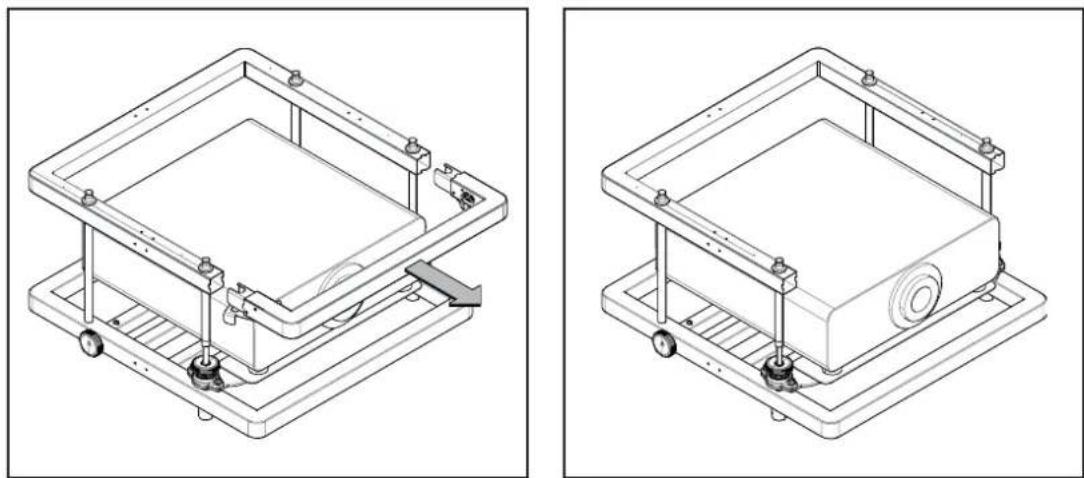

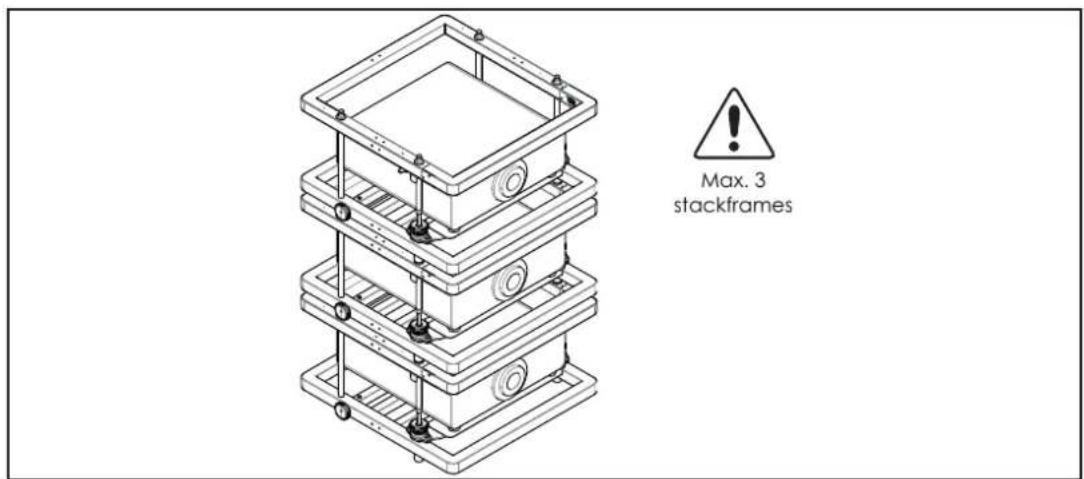

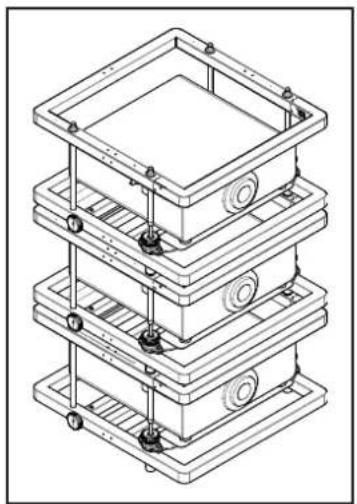

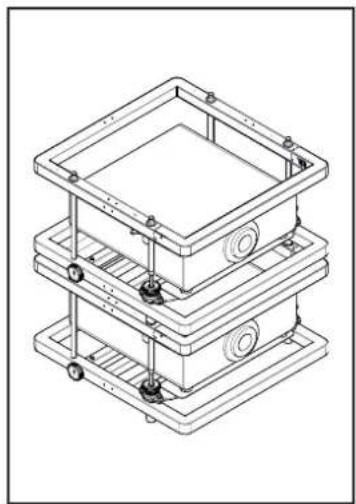

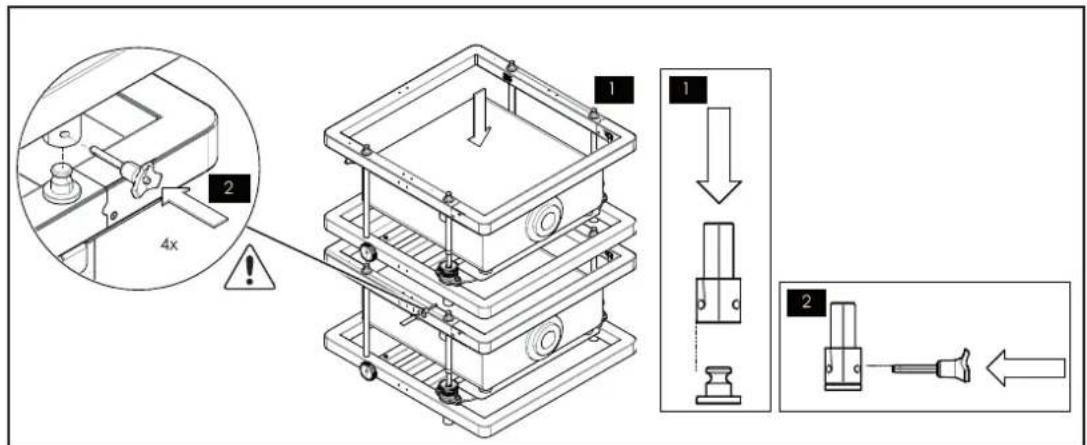

Stacking several frames
112.4xxx ~ 112.6xxx Stack frame Aluminium

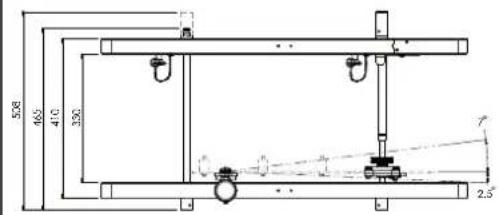

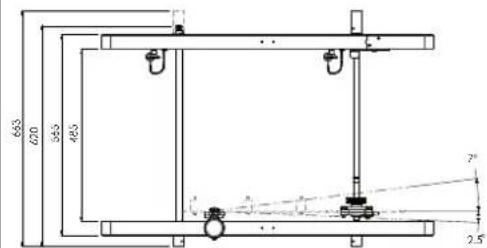

Short throw use
112.4xxx ~ 112.6xxx Stack frame Aluminium

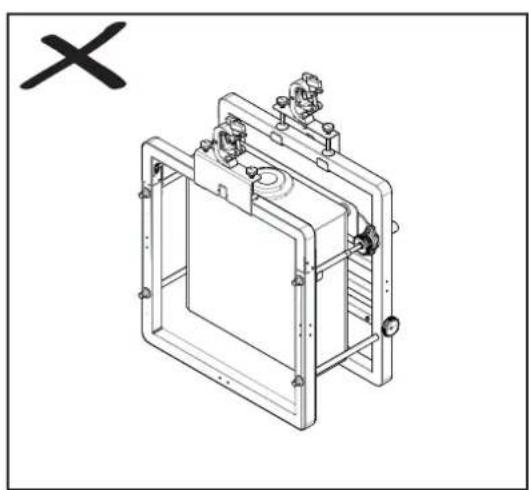

IMPORTANT NOTE:
The loads depend on the upper attachment.
The maximum loads stated on pages 9 and 10 must be observed!

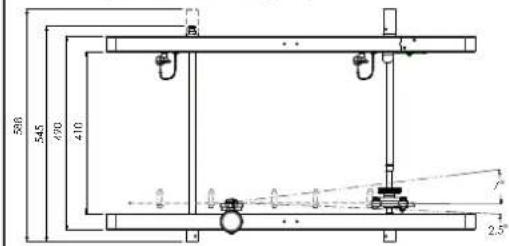

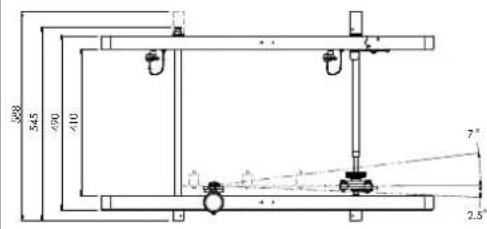

112.4xxx ~ 112.6xxx Stack frame Aluminium

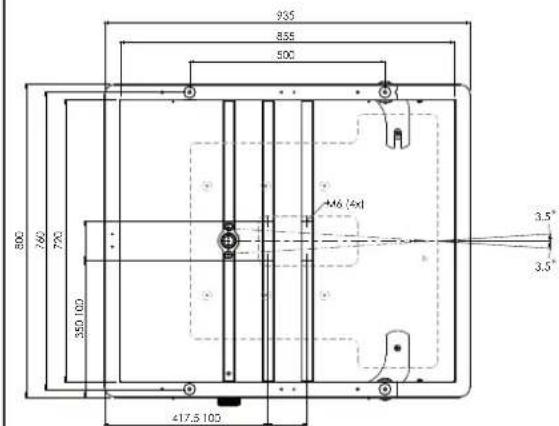

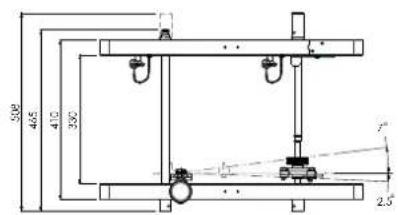

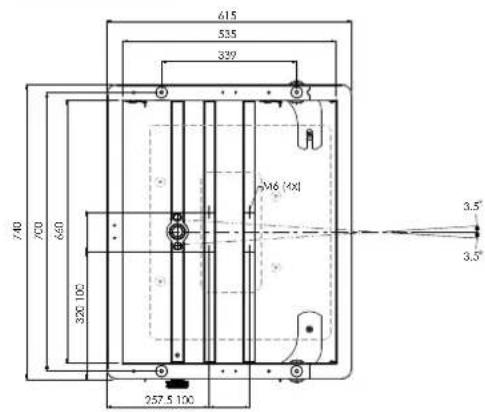

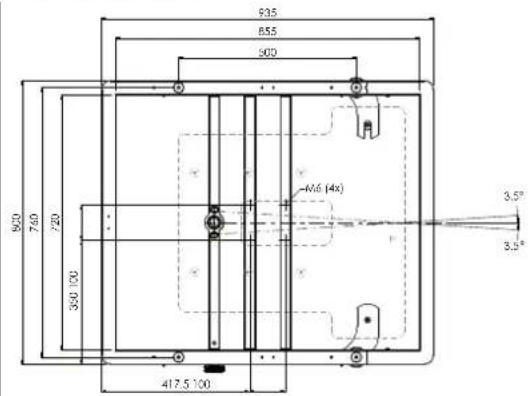

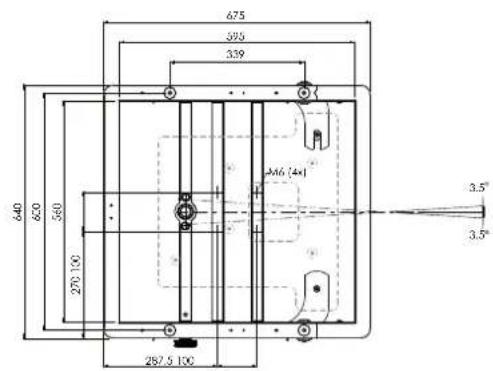

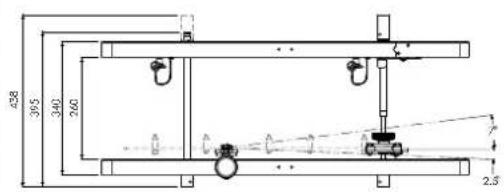

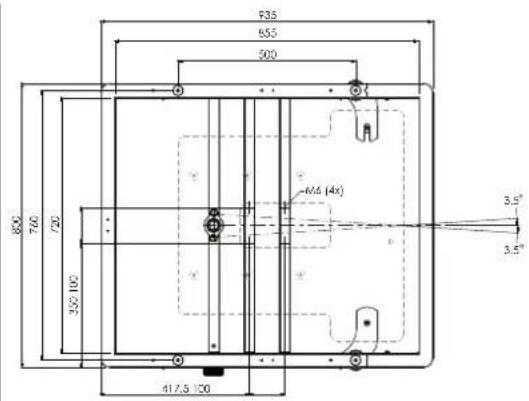

112.4160

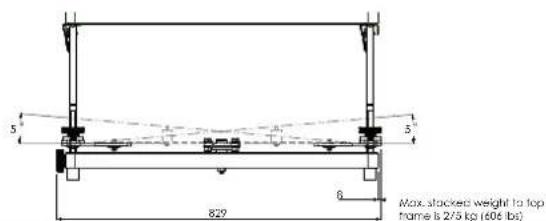

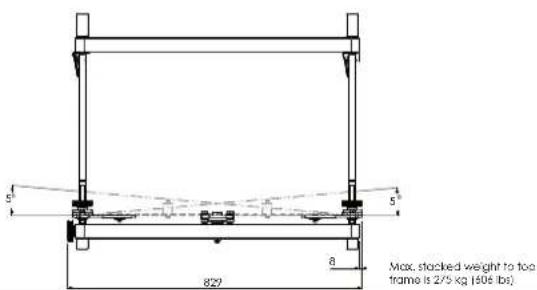

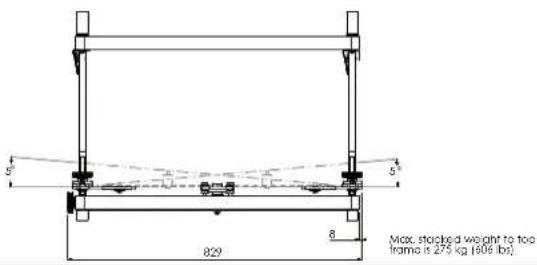

Max. stacked weight to top frame is 275kg (105 lbs)
112.4200
Max. cocked weight to kg frame is 275 Kg [606 lb]
112.4xxx ~ 112.6xxx Stack frame Aluminium

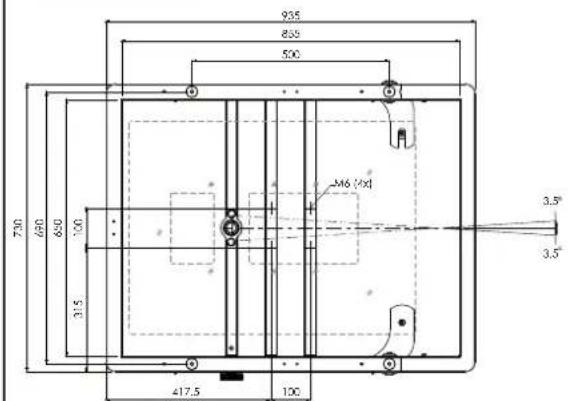

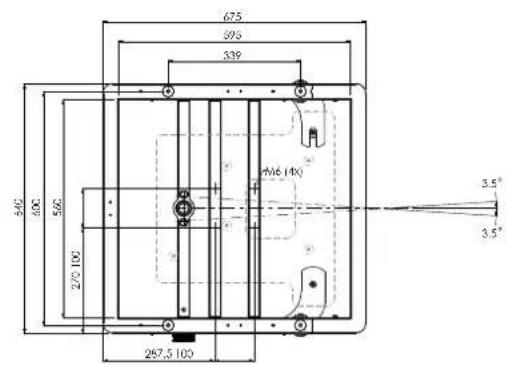

112.4210

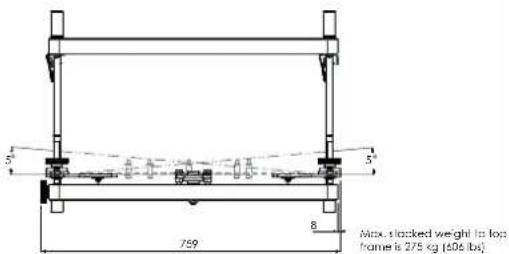

Max. stacked weight for top frame 275kg (606 lbs)

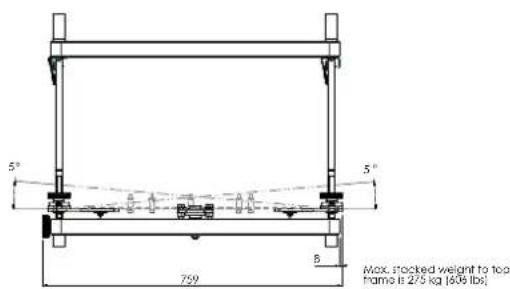

112.4270
Max. stockowed weight to 102 frames is 275 kg (60 lbs)
112.4xxx ~ 112.6xxx Stack frame Aluminium

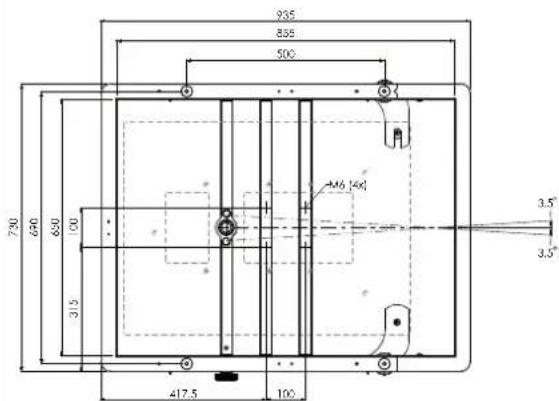

112.5200
112.5270
112.4xxx ~ 112.6xxx Stack frame Aluminium
112.5350
112.6270
112.4xxx ~ 112.6xxx Stack frame Aluminium
112.6350
112.6425
CONTACT
SMARTSELECTOR

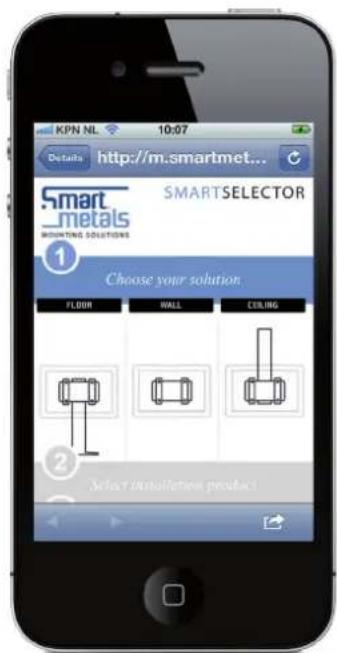

Find your solution fast and easy with the mobile SmartSelector. Scan the QR code and find your solutions within 3 steps with the mobile SmartSelector
