Product type DLP laser projector
Brand Optoma
Model ZU920T
Native resolution WUXGA (1920 x 1200)
Brightness 9,200 ANSI lumens
Light source Laser phosphor
Light source lifespan Up to 20,000 hours (normal mode)
Contrast ratio 2,000,000:1 (DCR)
Keystone correction Vertical and horizontal, +/- 30°
Lens shift Vertical: 0-100%, Horizontal: +/- 10%
Lens Interchangeable (optional)
Video inputs 1x HDMI 2.0, 1x HDBaseT, 1x VGA, 1x Composite
Outputs 1x HDMI (loop), 1x VGA, 1x audio 3.5 mm
Network connectivity Ethernet RJ45, RS-232, 12V trigger
Dimensions (W x D x H) 486 x 393 x 191 mm
Weight 16.5 kg
Power supply 100-240 VAC, 50/60 Hz
Power consumption 580 W (max), < 0.5 W standby
Noise level 37 dB (normal mode), 35 dB (eco mode)
Maintenance and cleaning Regular air filter cleaning, replace if necessary
Safety Class 1 laser product, auto power off, Kensington lock
Spare parts and repairability Interchangeable lenses, filters, fans available

Frequently Asked Questions - ZU920T OPTOMA

How to turn on and off the Optoma ZU920T projector?
Press the Power button (on/off) located on the control panel or remote control. To turn off, press the same button twice; the projector will enter standby mode.
Can I use a replacement lamp for this laser projector?
No, the ZU920T uses a laser light source that does not require lamp replacement. Its lifespan is approximately 20,000 hours.
How to correct a distorted or keystone image?
Use the Keystone Correction function in the OSD (On-Screen Display) menu. You can adjust vertical and horizontal manually or enable automatic correction.
What image formats are supported?
The projector supports resolutions up to WUXGA (1920x1200) as well as 4K UHD (3840x2160) input via HDMI.
How to connect a computer to the projector?
Connect your computer using an HDMI or VGA cable to the corresponding inputs. Select the appropriate source in the Input menu.
The projector displays 'No signal'. What to do?
Check that the cable is properly connected and the source is on. Press the Source button to cycle through inputs. If the problem persists, restart the projector and source.
How to clean the projector air filter?
Turn off and unplug the projector. Remove the filter located on the side, clean it with a vacuum or compressed air. Reinstall after complete drying. Replace it every 500 hours.
Can I use the projector in landscape or portrait mode?
Yes, the ZU920T supports 360° rotation and can be used in portrait orientation for vertical installations. Ensure proper airflow.
How to access the advanced settings menu?
Press the Menu button on the remote or panel. Use the arrow keys to navigate and the Enter button to confirm. Submenus include image, color, geometry, etc.
What to do if the image is blurry?
Turn the focus ring on the lens. If the blur persists, clean the lens with a soft cloth. Also check the projection distance relative to image size.

User questions about ZU920T OPTOMA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Projector in PDF format for free! Find your manual ZU920T - OPTOMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZU920T by OPTOMA.

USER MANUAL ZU920T OPTOMA

natural_image Line drawing of a projector with ventilation slots and mounting feet (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

Menu Communication....61

Menu Info....66

INFORMATIONS SUPPLÉMENTAIRES ...... 67

"WARNING: MOUNT ABOVE THE HEADS OF CHILDREN." Additional warning against eye exposure for close exposures less than 1 m.

IEC/EN 60825-1:2014 CLASS 1 LASER PRODUCT RISK GROUP 2 Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

natural_image 3D rendering of a projector with a circular lens and mounting feet, labeled 'Projecteur' below (no other text or symbols)

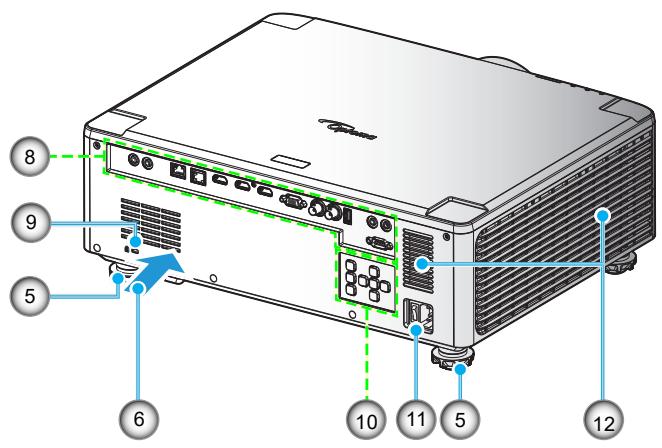

Diagram of a projector with numbered parts and directional arrows indicating components

8 9 5 6 10 11 5 12

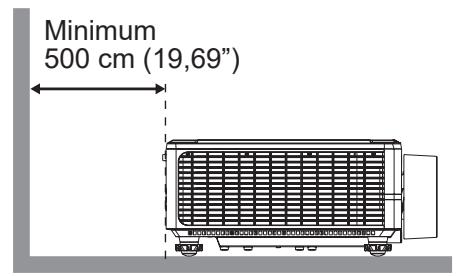

Minimum 500 cm (19,69")

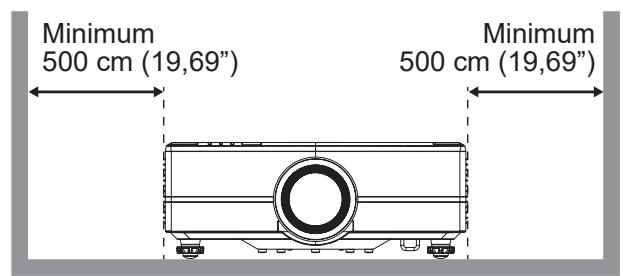

Minimum 500 cm (19,69") Minimum 500 cm (19,69")

Remarque :

geo | Position | Top Section (%) | Bottom Section (%) | |---|---|---| | Top Left | 10 | 40 | | Top Right | 10 | 40 | | Bottom Left | 110 | 30 | | Bottom Right | 80 | 30 | | Bottom Center | 110 | 40 | | Bottom Right | 80 | 40 | H (Left) | V (Center) | H (Right) | The chart displays a grid layout with labeled dimensions: Top Left (40%), Top Right (40%), Bottom Left (110%), Bottom Right (80%), Bottom Center (110%), Bottom Right (80%). The width of the central cell is labeled 'V'.

Remarque :

UTILISER LE PROJECTEUR

natural_image Back view of a computer monitor with ports and connectors, showing a hand pointing to a server rack (no text or symbols visible)

UTILISER LE PROJECTEUR

Mise hors tension

natural_image Pure geometric diagram with dashed and solid lines inside a rectangle, no text or symbols present

OPTOMA ZU920T - Mise hors tension - 1

natural_image Pure geometric diagram with dashed lines and arrows, no text or symbols present
natural_image Pure geometric diagram with dashed and solid lines forming a trapezoid-like shape, no text or symbols present

OPTOMA ZU920T - Mise hors tension - 2

natural_image Pure geometric shape with dashed lines and arrows, no text or symbols present
natural_image Pure geometric diagram of a symmetrical shape with dashed vertical and horizontal boundaries (no text or symbols)

OPTOMA ZU920T - Mise hors tension - 3

natural_image Pure geometric shape with rounded corners and dashed border (no text or symbols)
natural_image Pure geometric diagram of a rectangle with curved sides and arrows indicating direction (no text or symbols)

OPTOMA ZU920T - Mise hors tension - 4

natural_image Pure geometric shape with rounded corners and dashed border (no text or symbols)
natural_image Pure geometric diagram of a rectangle with dashed internal lines and blue arrows indicating dimensions (no text or symbols)

UTILISER LE PROJECTEUR

Déformation avancée

Emplacement PBPTaille PBP
PetitMoyenLarge
PBP, Gauche PrincipaleOPTOMA ZU920T - Déformation avancée - 1OPTOMA ZU920T - Déformation avancée - 2OPTOMA ZU920T - Déformation avancée - 3
PBP, Droite PrincipaleOPTOMA ZU920T - Déformation avancée - 4OPTOMA ZU920T - Déformation avancée - 5OPTOMA ZU920T - Déformation avancée - 6
PBP, Haut PrincipalOPTOMA ZU920T - Déformation avancée - 7OPTOMA ZU920T - Déformation avancée - 8OPTOMA ZU920T - Déformation avancée - 9
PBP, Bas PrincipalOPTOMA ZU920T - Déformation avancée - 10OPTOMA ZU920T - Déformation avancée - 11OPTOMA ZU920T - Déformation avancée - 12
  • Emplacement PIP
Emplacement PIPTaille PIP
PetitMoyenLarge
PIP, Bas DroiteOPTOMA ZU920T - Déformation avancée - 13OPTOMA ZU920T - Déformation avancée - 14OPTOMA ZU920T - Déformation avancée - 15
PIP, Bas GaucheOPTOMA ZU920T - Déformation avancée - 16OPTOMA ZU920T - Déformation avancée - 17OPTOMA ZU920T - Déformation avancée - 18
PIP, Haut GaucheOPTOMA ZU920T - Déformation avancée - 19OPTOMA ZU920T - Déformation avancée - 20OPTOMA ZU920T - Déformation avancée - 21
PIP, Haut DroiteOPTOMA ZU920T - Déformation avancée - 22OPTOMA ZU920T - Déformation avancée - 23OPTOMA ZU920T - Déformation avancée - 24

UTILISER LE PROJECTEUR

natural_image Grid background with a diagonal pink line and green grid, no text or symbols present.

(a) Gauche : 0 (0%) / 192 (10%) \~ 960 (50%)
(b) Droite : 0 (0%) / 192 (10%) \~ 960 (50%)
(c) Haut : 0 (0%) / 120 (10%) \~ 600 (50%)
(d) Bas : 0 (0%) / 120 (10%) \~ 600 (50%)

natural_image Two-panel grid transformation diagram showing color mapping from purple to green and gray to black (no text or symbols)
Pass:Okn
Variable

Fail: F

■ System Automatically Send

INFOn
Variable
Write CommandRead Command
CommandCommand
CMDSpaceSet Para.CMDCMD ValuePass
MagentaSaturation0 ~ 254"XX3380~254
Gain0 ~ 254"XX3440~254
WhiteRed0 ~ 254"XX3450~254
Green0 ~ 254"XX3460~254
Blue0 ~ 254"XX3470~254
Reset"XX2151
Wall ColorOff"XX5060
BlackBoard"XX5061
Light Yellow"XX5067
Light Green"XX5063
Light Blue"XX5064
Pink"XX5065
Gray"XX5066
3D Setup3D ModeOff"XX2304
Active 3D"XX2300
3D FormatAuto"XX4050
Frame Packing"XX4057
Side by Side"XX4051
Top and Bottom"XX4052
Frame Sequential"XX4053
3D TechOLP-Link"XX2301
3D Sync"XX2303
3D-2D3D"XX4000
L"XX4001
R"XX4002
To Emitter"XX2320
To Next Projector"XX2321
DiffOff"XX2310
On"XX2311
Frame Delay1~200"XX2331~500
Reset"XX2341
Save to User
Apply to UserUser-Presentation"XX2031"XX12310k11
User-Bright"XX2032"XX12310k12
User-Cinema"XX2033"XX12310k13
User-HDR"XX2026"XX12310k26
User-sRGB"XX2034"XX12310k34
User-DICOM SIM."XX2035"XX12310k35
User-Blending"XX2036"XX12310k36
User-3D"XX206"XX12310k6
User-2D High Speed"XX2037"XX12310k17
Reset
Aspect RatioAuto"XX607"XX12710k7
4:3"XX601"XX12710k1
16:9"XX602"XX12710k1
16:10"XX603"XX12710k3
LBX"XX605"XX12710k5
Native"XX606"XX12710k6
Digital ZoomProportionalOff"XX3640
On"XX3641
Horizontal50% ~ 400%"XX50450~400
Vertical50% ~ 400%"XX50550~400
Horizontal Shift0 ~ 100"XX3650~100
Vertical Shift0 ~ 100"XX3660~100
Reset"XX3649
Image ShiftH. Position0 ~ 100"XX630~100
V. Position0 ~ 100"XX640~100
Reset"XX1721
Warp ControlBasic"XX1421
Advanced"XX1425
AP"XX1422
Basic WarpKeystoneHorizontal0 ~ 40"XX650~40"XX54340k0~40
Vertical0 ~ 40"XX660~40"XX54330k0~40
PincushionHorizontal0 ~ 100"XX3000~100"XX54360k0~100
Vertical0 ~ 100"XX3010~100"XX54350k0~100
Four CornerTop leftright +1"XX591
left +1"XX592
up + 1"XX593
down +1"XX594
Top rightright +1"XX595
left +1"XX596
up + 1"XX597
down +1"XX598
Bottom-leftright +1"XX599
left +1"XX5910
up + 1"XX5911
down +1"XX5912
Bottom-leftright +1"XX5913
left +1"XX5914
up + 1"XX5915
down +1"XX5916
Command
CMDCMD ValuePass
*X5421O k 0
*X5423O k 1
1O k w0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
*X871O k 1
*X871O k 0
*X15017O k 0
*X15017O k 1
*X873O k w0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
*X4431O k w@nnnn.nnnnn.nnnnn
*X4432O k w@nnnn.nnnnn.nnnnn
*X4401O k w00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
Write Command
Command
CMDspaceSetPara.
Command
CMDCMD ValuePass
Other Items
Power Off
Power On
Power On with password
Restart
Re Sync
AV MuteOff
On
FreezeUnfreeze
Freeze
3D Sync OutTo Emitter
To Next Projector
3D Frame Delay1" 200
Output 3D state2D
3D
System Auto SendStandby Mode
Warming up
Cooling Down
Out of Range
Lightsource Fail (LED Fail)
Thermal Switch Error
Fan Lock
Over Temperature
LightSource Hours Running Out
Cover Open
Lightsource Ignite Fail
Format Board Power On Fail
Color Wheel Unexpected Stop
Over Temperature
FAN 1 Lock
FAN 2 Lock
FAN 3 Lock
FAN 4 Lock
FAN 5 Lock
JAN Fall then restart
LD lower than 60%
LD NTC (1) Over Temperature
LD NTC (2) Over Temperature
High Ambient Temperature
System Ready
FAN 6 Lock
FAN 7 Lock
FAN 8 Lock
FAN 9 Lock
FAN 10 Lock
FAN 11 Lock
FAN 12 Lock
FAN 13 Lock
FAN 14 Lock
System TemperatureGreen/Normal
Orange/Notice
Red/Warning, About to trigger shutdown
Fan Status LevelGreen/Normal
Orange/Notice
Red/Warning, About to trigger shutdown
Device TypeProjector
Model NameDiploma WUXGA
OSD LockOn
Off
xx0000
xx0001
xx0001 ~mmn
xx0003
xx0011
xx0020
xx0021
xx0040
xx0041
xx2320
xx2321
xx2331~200
1 ~nonnonnen
xx2392 ~nonnonnen
*XX1241O k 0
*XX1241O k 1
*XX3551O k 0
*XX3551O k 1
*XX1301O k 0
*XX1301O k 1
IN F O D
IN F O 1
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
*XX1301O k 0
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN F O D
IN W F O D
IN W F O D
IN W F O D
IN W F O D
IN W F O D
IN W F O D
IN W F O D
IN W F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D
IN F F O D

Remote Control Simulation

Power
Power Off
Up
Left
Enter (for projection MENU)
Right
Down
V Keystone +
V Keystone -
Brightness
Menu
VGA-1
AV Mate
Contrast
Zoom +
Zoom
Focus +
Focus -
Mode
info
Re-sync
HDMI 1
HDMI 2
Source
1
2
3
4
5
6
7
8
9
0
“XX1401
“XX1402
“XX14010
“XX14011
“XX14012
“XX14013
“XX14014
“XX14015
“XX14016
“XX14019
“XX14020
“XX14023
“XX14024
“XX14028
“XX14032
“XX14033
“XX14034
“XX14035
“XX14036
“XX14040
“XX14041
“XX14042
“XX14043
“XX14047
“XX14051
“XX14052
“XX14053
“XX14054
“XX14055
“XX14056
“XX14057
“XX14058
“XX14059
“XX14060
1
Level 1Level 2Level 3Level 4Level 5Level 6n value
Gamma
pur
Lens H(left)
Lens H(Right)
Lens V(left)
Lens V(Right)
H Keystone +
H Keystone
Hot Key (user1)(F1)
Hot Key (user2)(F2)
Pattern
Exit
Mute
Return
Write Command
Command
CMDSet Para.
~XX14061
~XX14063
~XX14064
~XX14065
~XX14066
~XX14067
~XX14068
~XX14069
~XX14070
~XX14071
~XX14073
~XX14074
~XX14077
~XX14082
Command
CMDCMD ValuePass

47697 Westinghouse Drive,

Fremont, CA 94539, USA

www.optomausa.com

888-289-6786

510-897-8601

services@optoma.com

Japon

https://www.optoma.com/jp/

Taiwan

https://www.optoma.com/tw/

Canada

47697 Westinghouse Drive,

Fremont, CA 94539, USA

www.optomausa.com

888-289-6786

510-897-8601

services@optoma.com

Chine

Room 2001, 20F, Building 4,

No. 1398 Kaixuan Road,

Changning District

Shanghai, 200052, Chine

www.optoma.com.cn

+86-21-62947376

+86-21-62947375

servicecn@optoma.com.cn

Amérique Latine

47697 Westinghouse Drive,

Fremont, CA 94539, USA

www.optomausa.com

888-289-6786

510-897-8601

services@optoma.com

Australie

https://www.optoma.com/au/

Europe

Unit 1, Network 41, Bourne End Mills,

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom

www.optoma.eu

service@tsc-europe.com

Benelux BV

Randstad 22-123

1316 BW Almere

Les Pays-Bas

www.optoma.nl

+31 (0) 36 820 0252

+31 (0) 36 548 9052

France

Bâtiment E

81-83 avenue Edouard Vaillant

92100 Boulogne Billancourt, France

+33 1 41 46 12 20

+33 1 41 46 94 35

savoptoma@optoma.fr

Espagne

C/ José Hierro,36 Of. 1C

28522 Rivas VaciaMadrid,

Espagne

+34 91 499 06 06

+34 91 670 08 32

Allemagne

Am Nordpark 3

41069 Mönchengladbach

Germany (Allemagne)

+49 (0) 2161 68643 0

https://www.optoma.com/kr/

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : OPTOMA

Model : ZU920T

Category : Projector
