Serina Swivel - Baby swing Joie - Free user manual and instructions

Product type	Baby swing
Brand	Joie
Model	Serina Swivel
Maximum supported weight	9 kg (0 to 6 months)
Power supply	4 D batteries (1.5 V) or AC adapter (included)
Functions	Swinging, vibrations, music, nightlight (6 min)
Number of recline positions	3 adjustable positions
Seat rotation	Yes (manual, 360°)
Wheels	Yes (for moving)
Safety harness	5-point
Safety standard	EN 16232:2013+A1:2018
Included accessories	Head support, infant insert, toy, electronic module
Care and cleaning	Wash with soapy water; do not use harsh detergents
Usage	On a flat, stable surface; do not leave unattended
Spare parts	Contact the manufacturer (Joie)
Adapter compatibility	Use only the supplied or approved adapter
Battery type	Disposable alkaline recommended; do not mix types
Recommended age	From birth to 6 months (up to 9 kg)
Warranty	Not specified

Frequently Asked Questions - Serina Swivel Joie

How to install the Serina Swivel swing?

Assemble the seat, attach the wheels, insert the electronic module and batteries, then install the head support and infant insert. Follow the illustrated steps in the manual. Never leave the child unattended.

What is the maximum weight of the child?

The maximum weight is 9 kg (approximately from birth to 6 months). Do not use the swing if the child can sit up independently or exceeds 9 kg.

How to adjust the seat recline?

Press both adjustment buttons located on the left and right sides simultaneously, then tilt the seat to one of the 3 available positions.

Can the swing be used as a bed for overnight sleep?

No, this product is not designed for extended sleep periods. It does not replace a crib or bassinet. For sleeping, place the child in a suitable bed.

What type of batteries to use?

Use 4 alkaline D (1.5 V) batteries. Do not mix new and old batteries or different types. Rechargeable batteries are possible but must be removed for charging.

How to activate vibrations?

Use the separate vibration module (batteries not included). Press the buttons to increase, decrease, or turn off vibrations. Batteries must be inserted with correct polarity.

How to clean the swing?

Wash with a sponge and soapy water. Do not use undiluted detergents, gasoline, or organic solvents. Do not use bleach. Check regularly for wear.

What to do if the module indicator blinks blue?

This indicates the AC adapter is not correct or not approved. Ensure you use the supplied adapter or an adapter recommended by the manufacturer.

How to properly fasten the harness?

Place the shoulder straps over the child's shoulders, fasten them to the central buckle until it clicks. The space between the child and the strap should be the thickness of one hand. Do not cross the straps.

How long does the nightlight stay on?

The nightlight automatically turns off after 6 minutes of operation.

USER MANUAL Serina Swivel Joie

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Parts List

Line drawings of various car seat components and accessories, including headrests, seats, and accessories (no text or labels)

2 1 2 3 4 5 6 7 8 9

Swing Assembly

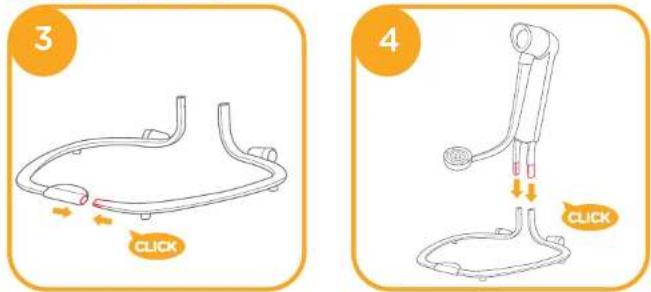

3 CLICK 4 CLICK

5 6

7 8 CLICK

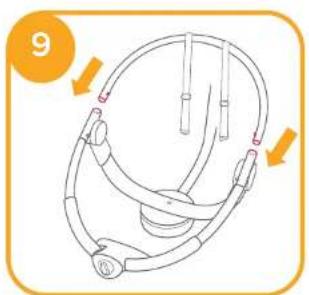

9

Line drawing of a headgear device with no text or symbols

11 G 1 2 3 4 5 6 7 8 9 10 11

12

13 5 8 9 ⑤

14

Use Buckle

Diagram of a helmet with arrows indicating rotation or movement (no text or symbols)

16

17 1 2 3 CLICK

18 3 2 Use Shoulder Harnesses 19

20

Use Wheels

Adjust Recline

21

Use Electronic Module

Line drawing of a hand operating a kitchen stand with a seat and handle (no text or symbols)

Rotate the seat

Simple line drawing of a person standing with arms raised, no text or symbols present

23

25

27

29

Use Vibration

Diagram of a car interior with a magnified inset showing the seat and wheel (no text or symbols)

Use Wall Plug

28

Use Infant Insert

30

Use Toy

31 CLICK

32

NOTE

Simple line drawing of a medical device with a numbered label (33) and hanging weights (no text or symbols on the device itself)

Illustration of a medical device with three ports and a numbered label '34' (no text or symbols on the device itself)

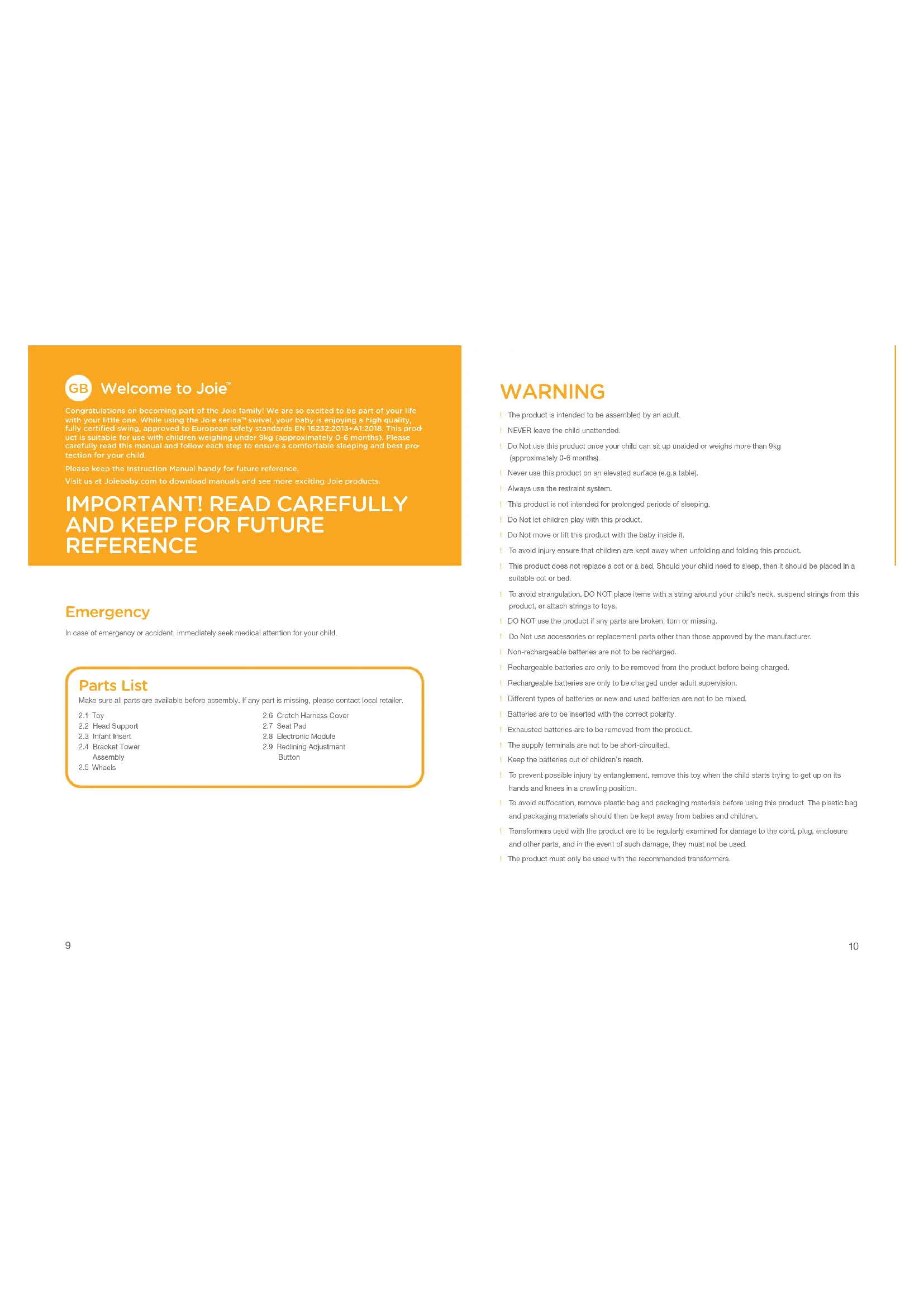

Welcome to Joie ^TM

Congratulations on becoming part of the Joie family! We are so excited to be part of your life with your little one. While using the 'Joie serina™ swivel, your baby is enjoying a high quality, fully certified swing, approved to European safety standards EN 16232:2013+A1:2018. This product is suitable for use with children weighing under 9kg (approximately 0-6 months). Please carefully read this manual and follow each step to ensure a comfortable sleeping and best protection for your child.

Please keep the Instruction Manual handy for future reference.

Visit us at Joiebaby.com to download manuals and see more exciting Joie products.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Emergency

In case of emergency or accident, immediately seek medical attention for your child.

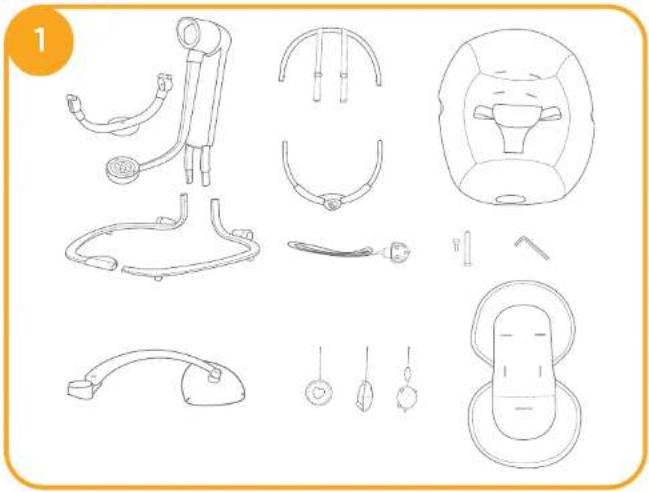

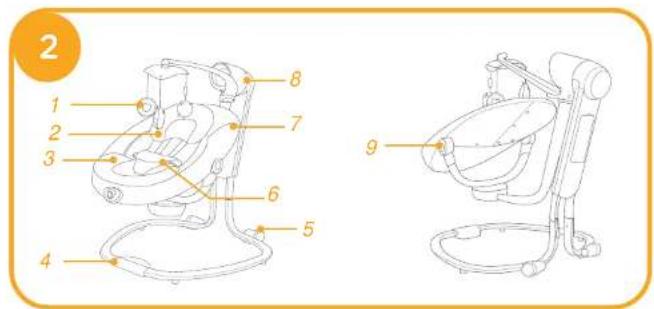

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer.

2.1 Toy

2.6 Crotch Harness Cover

2.2 Head Support

2.7 Seat Pad

2.3 Infant Insert

2.8 Electronic Module

2.4 Bracket Tower

2.9 Reclining Adjustment

Assembly

2.5 Wheels

Button

WARNING

! The product is intended to be assembled by an adult.

1 NEVER leave the child unattended.

Do Not use this product once your child can sit up unaided or weighs more than 9kg (approximately 0-6 months).

1 Never use this product on an elevated surface (e.g. a table).

Always use the restraint system.

This product is not intended for prolonged periods of sleeping.

Do Not let children play with this product.

Do Not move or lift this product with the baby inside it.

To avoid injury ensure that children are kept away when unfolding and folding this product.

This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.

To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.

! DO NOT use the product if any parts are broken, torn or missing.

Do Not use accessories or replacement parts other than those approved by the manufacturer.

1. Non-rechargeable batteries are not to be recharged.

Rechargeable batteries are only to be removed from the product before being charged.

Rechargeable batteries are only to be charged under adult supervision.

Different types of batteries or new and used batteries are not to be mixed.

! Batteries are to be inserted with the correct polarity.

1 Exhausted batteries are to be removed from the product.

The supply terminals are not to be short-circuited.

1 Keep the batteries out of children's reach.

To prevent possible injury by entanglement, remove this toy when the child starts trying to get up on its hands and knees in a crawling position.

To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.

1 Transformers used with the product are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they must not be used.

The product must only be used with the recommended transformers.

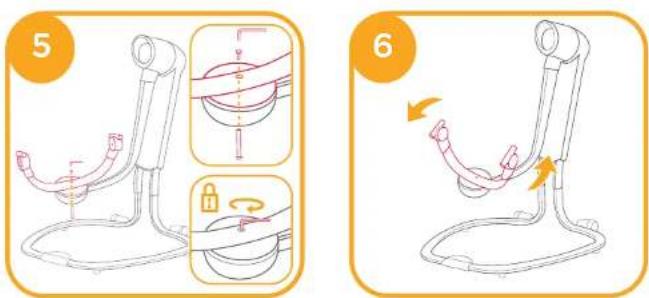

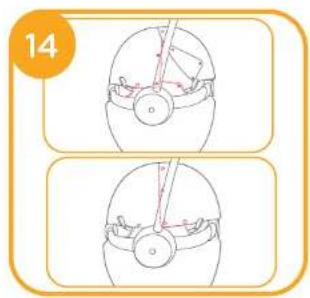

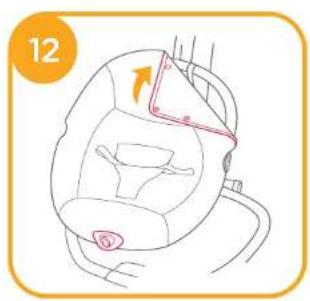

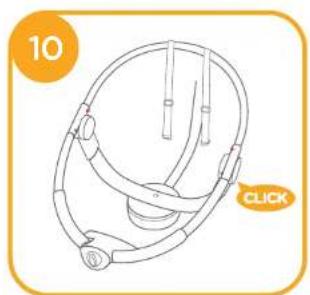

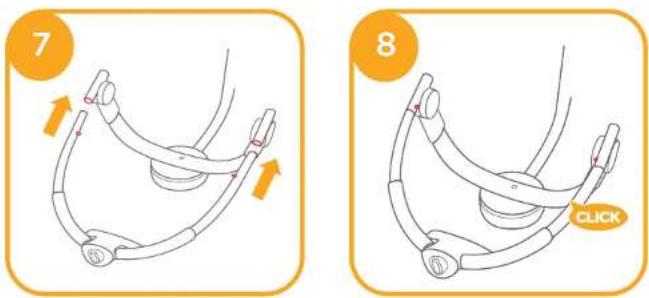

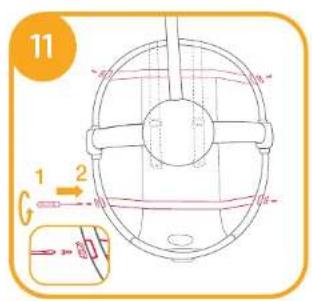

Swing Assembly

see images ① - ②

Keep the small parts away from children.
To reattach the soft goods please repeat the above steps in the reverse order.

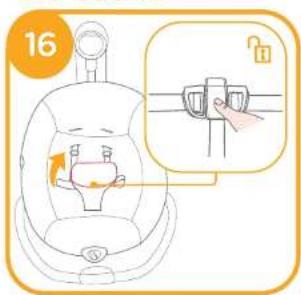

Use Buckle

see images 10 - 13

Release Buckle

Press the center button to release the buckle.

Lock Buckle

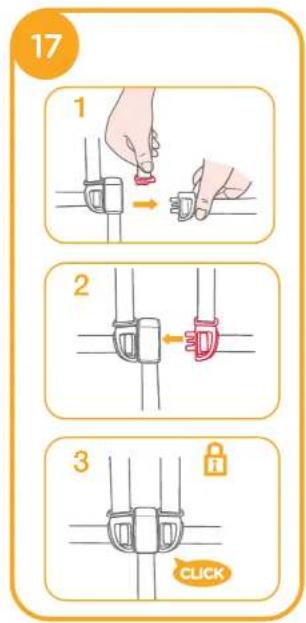

Match the waist belt buckle with the shoulder buckle 17 -1, and click into the center buckle. 17 -2

A "click" sound means the buckle is locked completely. ⑦ -3

To avoid serious injury from falling or sliding out, always secure your child with harness.
Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
Do not cross the shoulder belts. This will cause pressure on child's neck,

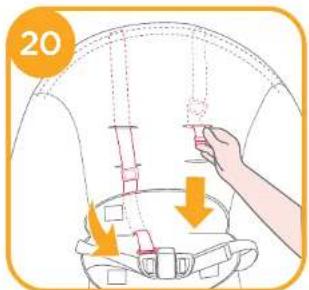

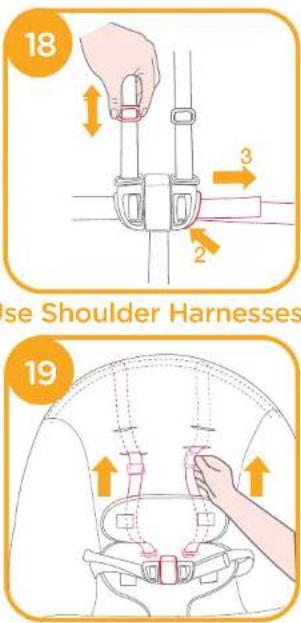

Use Shoulder Harnesses

see images 10 - 20

Adjust Recline

see images ②

There are 3 recline positions.

To adjust the recline positions, press both recline adjustment buttons on the left and right sides at the same time, and recline the seat to a desired position.

Make sure the recline is set properly for use.

Use Wheels

see images

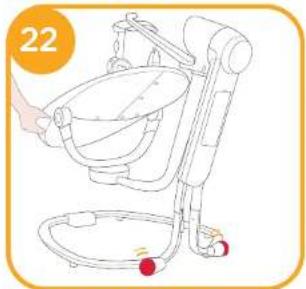

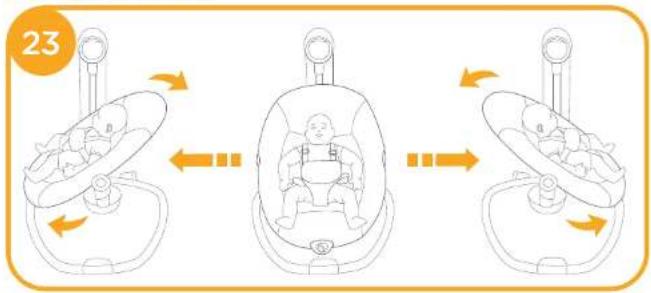

Rotate The Seat

see images

Use Electronic Module

see images -

Recommended type batteries-alkaline disposables, size D (4X1.5V). NEVER mix battery types.

Main Power OFF/ON

Nature Sound

Music

Volume UP/DOWN

Swing Speed UP/DOWN

Mute

If the top left light on the motor is flashing blue, please check to ensure that you are using the correct
adaptor (adaptor supplied or approved by the manufacturer).
Night light turns off automatically after continuously running for 6 minutes.

Use Vibration

see images -

Recommended type batteries-alkaline disposables, size D (1.5V).

Vibration Speed Down

Vibration Off

Vibration Speed Up

1 Batteries not included

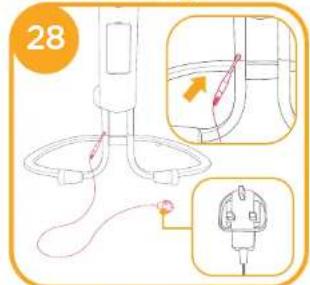

Use Wall Plug

see images -

Product does not recharge batteries. When AC adapter is in use, batteries will automatically shut off.
DO NOT place product near water and moisture. Do not use the product near possible wet areas, such
as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.
DO NOT use the AC adaptor if it has been exposed to liquids, has been dropped, or is damaged.
Protect the power cord. Place it so it is not walked on or pinched by furniture or other items.
Keep this cord out of the reach of children. DO NOT use with an extension cord.
! Use only power cord provided.

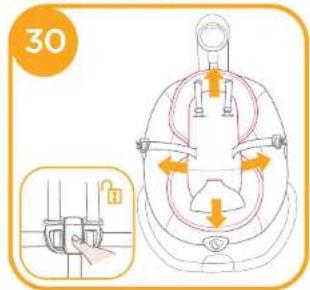

Use Infant Insert

see images

Use Toy

see images 31 - 32

Care and Maintenance

1. Your product can be spot cleaned with a sponge and soapy water.
2. Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the product. It may cause damage to the product.
3. Do not use bleach.
4. From time to time, check your product for worn parts, torn material or stitching. Replace or repair the parts as needed.
5. If the product is not in use for a long period of time, please put it in the shade where your child cannot access it.

Please recycle this product.
