USER MANUAL ATHANC40BT AUDIO TECHNICA

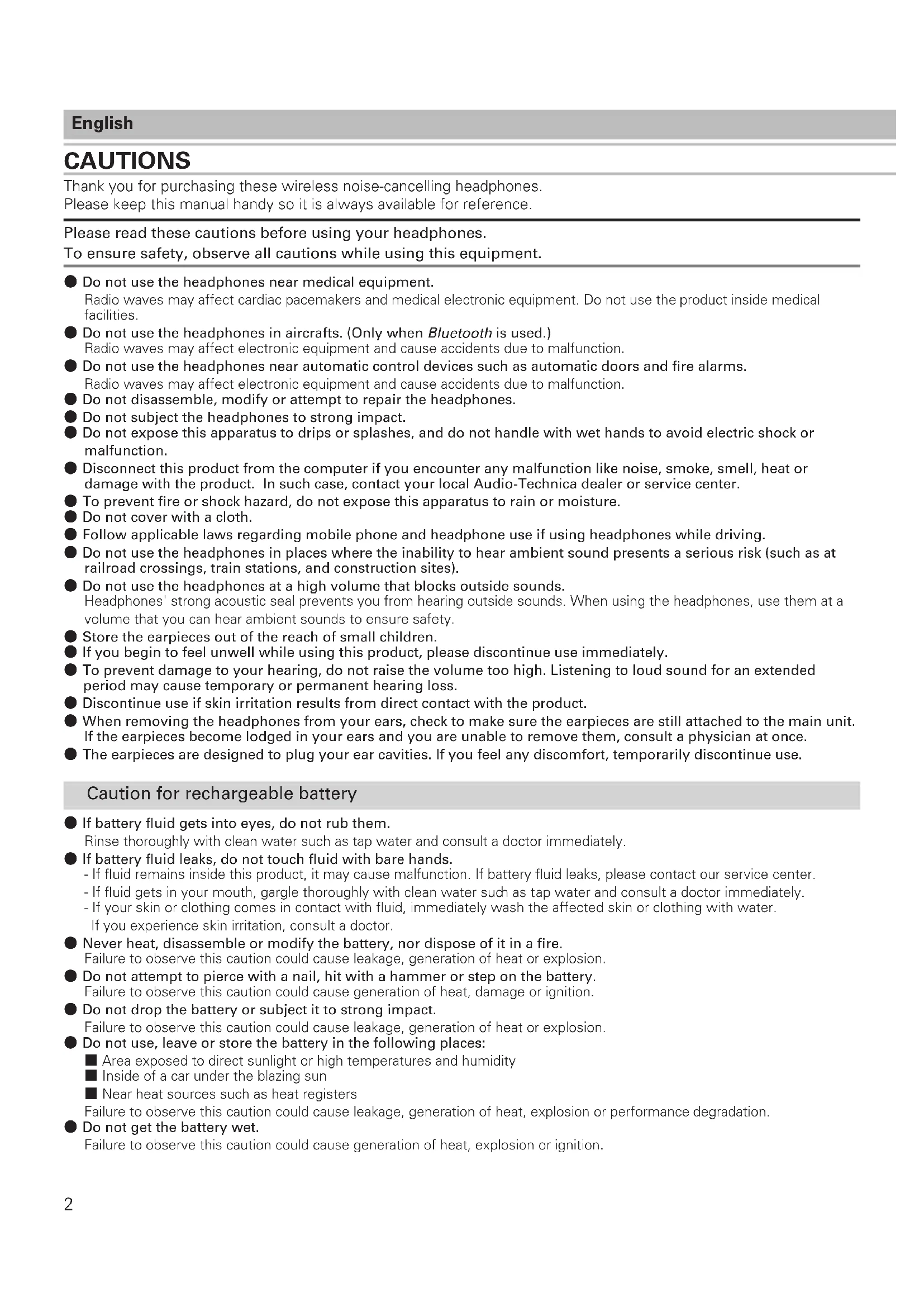

Benutzerhandbuch Manual de instrucciones Руководство по эксплуатации Casque sans l á réduction de bruit ATH-ANC40BT2 Please read these cautions before using your headphones. To ensure safety, observe all cautions while using this equipment. Thank you for purchasing these wireless noise-cancelling headphones. Please keep this manual handy so it is always available for reference. English CAUTIONS ●Do not use the headphones near medical equipment.  Radio waves may affect cardiac pacemakers and medical electronic equipment. Do not use theproduct inside medical  facilities. ●Do not use the headphones in aircrafts. (Only when Bluetooth is used.)  Radio waves may affect electronic equipment and cause accidents due to malfunction. ●Do not use the headphones near automatic control devices such as automatic doors and re alarms.  Radio waves may affect electronic equipment and cause accidents due to malfunction. ●Do not disassemble, modify or attempt to repair the headphones. ●Do not subject the headphones to strong impact. ●Do not expose this apparatus to drips or splashes, and do not handle with wet hands to avoid electric shock or  malfunction. ●Disconnect this product from the computer if you encounter any malfunction like noise, smoke, smell, heat or  damage with the product. In such case, contact your local Audio-Technica dealer or service center. ●To prevent re or shock hazard, do not expose this apparatus to rain or moisture. ●Do not cover with a cloth. ●Follow applicable laws regarding mobile phone and headphone use if using headphones while driving. ●Do not use the headphones in places where the inability to hear ambient sound presents a serious risk (such as at  railroad crossings, train stations, and construction sites). ●Do not use the headphones at a high volume that blocks outside sounds.  Headphones' strong acoustic seal prevents you from hearing outside sounds. When using the headphones, use them at a  volume that you can hear ambient sounds to ensure safety. ●Store the earpieces out of the reach of small children. ●If you begin to feel unwell while using this product, please discontinue use immediately. ●To prevent damage to your hearing, do not raise the volume too high. Listening to loud sound for an extended period may cause temporary or permanent hearing loss. ●Discontinue use if skin irritation results from direct contact with the product. ●When removing the headphones from your ears, check to make sure the earpieces are still attached to the main unit.  If the earpieces become lodged in your ears and you are unable to remove them, consult a physician at once. ●The earpieces are designed to plug your ear cavities. If you feel any discomfort, temporarily discontinue use.

Caution for rechargeable battery ●If battery uid gets into eyes, do not rub them.  Rinse thoroughly with clean water such as tap water and consult a doctor immediately. ●If battery uid leaks, do not touch uid with bare hands.  - If uid remains inside this product, it may cause malfunction. If battery uid leaks, please contact our service center.  - If uid gets in your mouth, gargle thoroughly with clean water such as tap water and consult a doctor immediately.  - If your skin or clothing comes in contact with uid, immediately wash the affected skin or clothing with water. If you experience skin irritation, consult a doctor. ●Never heat, disassemble or modify the battery, nor dispose of it in a re.  Failure to observe this caution could cause leakage, generation of heat or explosion. ●Do not attempt to pierce with a nail, hit with a hammer or step on the battery.  Failure to observe this caution could cause generation of heat, damage or ignition. ●Do not drop the battery or subject it to strong impact.  Failure to observe this caution could cause leakage, generation of heat or explosion. ●Do not use, leave or store the battery in the following places:  ■ Area exposed to direct sunlight or high temperatures and humidity  ■ Inside of a car under the blazing sun  ■ Near heat sources such as heat registers  Failure to observe this caution could cause leakage, generation of heat, explosion or performancedegradation. ●Do not get the battery wet.  Failure to observe this caution could cause generation of heat, explosion or ignition.3 PRECAUTIONS ●Be sure to read the operation manual for the Bluetooth device before use. ●Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while  using this product. ●On public transport systems or in other public places, keep the volume low so as not to disturb other people. ●Please minimize the volume on your audio device before connecting the headphones in order to avoid hearing damage  from sudden exposure to excessive volume. ●When using this product in a dry environment, you may feel a tingling sensation in your ears. This is caused by stat

 electricity accumulated on your body, not by a headphone malfunction. ●Do not store the headphones under direct sunlight, near heating devices or in a hot, humid or dusty place. Do not allow  the headphones to get wet. ●When this product is used for a long time, the headphones may become discolored due to ultraviolet light (especially  direct sunlight) or wear. ●The cable may become caught or severed if product is placed in a bag or pocket without adequate protection. Always  store the product in the included pouch. ●Connect/disconnect the cable by holding the plug. Pulling directly on the cable can result in a broken wire and the ris k of  electric shock. ●Reception on the headphones is available only through the mobile telephone network. Please note that performance of  other types of phone reception (phones using other wireless applications) cannot be guaranteed. ●If you use the headphones close to an electronic device or transmitter (such as a mobile phone), a noise may be  generated in the headphones. In this case, keep headphones away from the electronic device or transmitter. ●If you use the headphones near a TV or radio antenna, noise may be generated in the televi sion or radio. In this case,  keep headphones away from the TV or radio antenna. ●To protect the built-in rechargeable battery, charge it at least once every half year. If you leave it too long, you will have  less rechargeable battery life or the battery may not recharge at all. ●There is a difference in volume on these headphones when the NC(Noise-Cancelling) switch is on and off. ●The headphones can still be used if there is no battery power left. Charge the battery if it has lost its charge. ●The provided airplane conversion adapter may not be compatible with certain types of aircraft devices. ●Do not use these headphones when the use of electronic devices is prohibited on the airplane, or when the use of personal  headphones with the aircraft's audio service is prohibited. ●Do not forcibly bend the neck band. Failure to observe this caution could cause broken wires or malfunction. ●Charge only with the included (specied) USB cable.  Failure to observe this caution could cause malfunction or re. ●After using the device, be sure to switch it off.  Leakage often occurs due to battery drain that results from a failure to switch off device. English CAUTIONS Simultaneous use with other devices Failure, such as the interruption of sound, may be caused by radio wave interference from devices that use the same frequency band (2.4GHz) as the headphones, including Bluetooth-enabled devices, devices using wireless LAN, digital cordless phones and microwaves. Similarly, because radio waves of the headphones may affect these devices, take the following precautions: - Install the devices using the same frequency band (2 .4GHz) away from the headphones. - Do not use the product in hospitals, trains and aircrafts. Instructions for Use Any device which is connected to the headphones, needs to meet the Bluetooth standards established by Bluetooth SIG and be certied. Even if the device meets the Bluetooth standards, it might not connect to the headphones, or the operation method and behavior may differ depending on the device's characteristics and specication. This function works by picking up ambient noise from the surroundings (such as vehicle noise or noise from air conditioning units) using the miniature microphone that is built into these headphones, and generating opposite phase noise to cancel out the ambient noise. The result is a substantial reduction in the amount of ambient noise you can hear. Active Noise-Cancelling Function *The noise-cancelling function of this device mainly operates to reduce noise at 300Hz or lower, which means it has almost no effect on noise that is above this frequency (such as telephone ringtones and voices). *This function does not cancel all noise. *Effectiveness of the noise-cancelling function may be limited when used in a quiet location or depending on the type of noise. *A hissing noise can be heard when the NC switch is turned on. This is the sound of the noise-cancelling function operating, and is not a malfunction.4 English Part names and functions ■ Headphone parts Noise-cancelling microphone installation section Housing L / RThe left earpiece has a protruding part. Back Bushing For more information on earpieces, refer to "About the earpieces". Earpiece Indicator Connect the cable to charge and to listen to music via a wired connection. NC (Noise-Cancelling) switch NC (Noise-Cancelling) indicator (green) ■Bluetooth■Power supply section

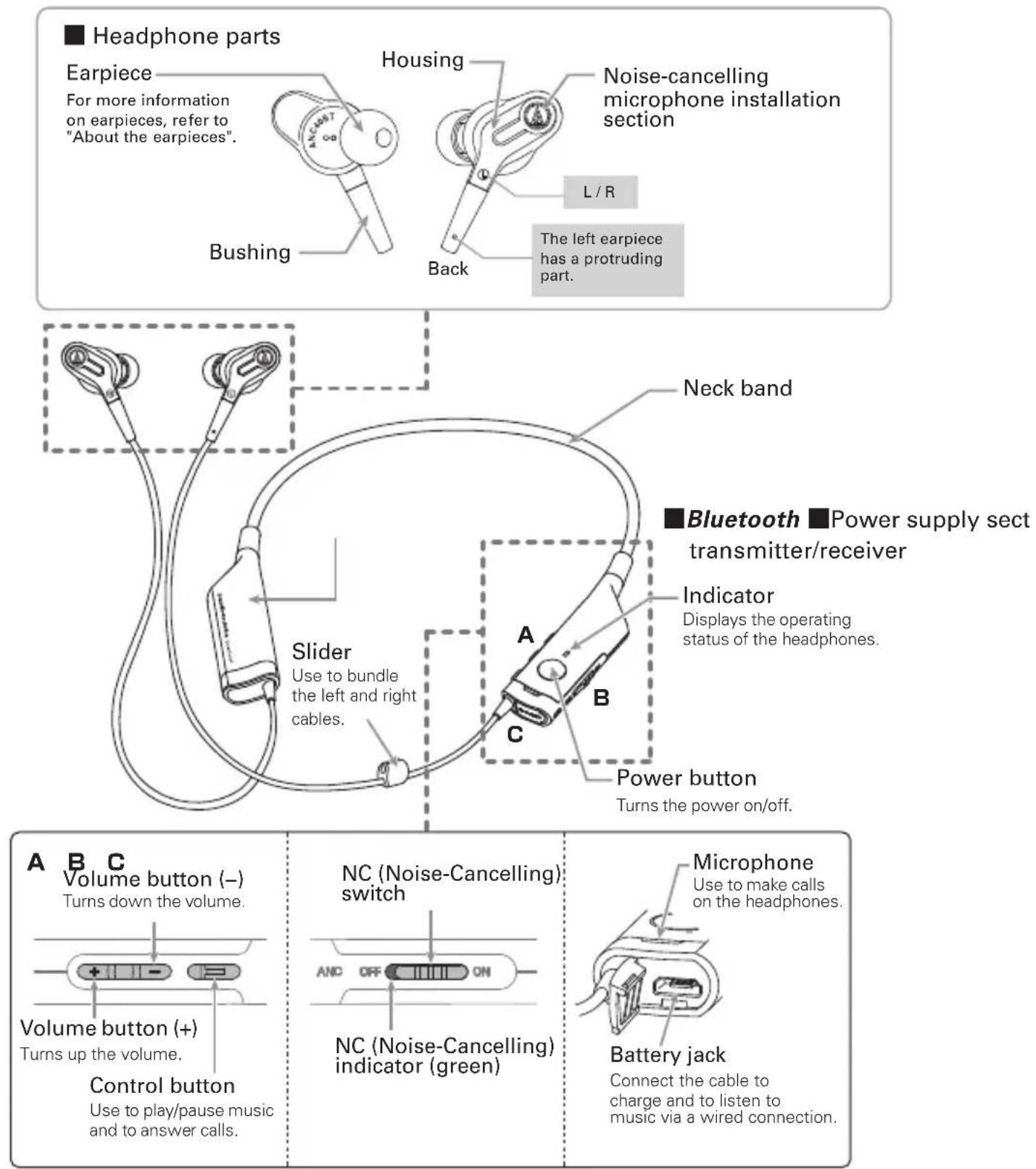

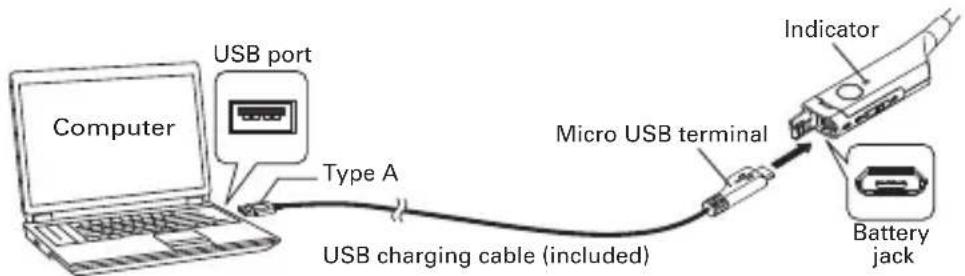

Use to bundle the left and right cables. Displays the operating status of the headphones. Turns the power on/off. Power button transmitter/receiver Microphone Use to make calls on the headphones. Turns down the volume. Volume button (−) Turns up the volume. Volume button (+) Battery jack Slider Control button Use to play/pause music and to answer calls.5 English How to Charge How to Connect Lit red:Charging 2 Connect the USB cable (the Type A side) to the computer and start charging. 3 During charging, the indicator operates as follows: Fully charge the battery when using for the rst time. When the rechargeable battery power runs low, you will hear a short beep and the indicator will ash red. When you hear the beep, charge the battery. It takes about 3 hours to charge the battery fully. (It varies depending on service conditions.)

• The headphones cannot be used during charging becauseBluetooth is disconnected. To connect the headphones to a Bluetooth device, the headphones need to pair (register) with the device. Once they are paired, you don't need to pair them again.However, you will need to pair again in the following cases: ・If the headphones are deleted from the Bluetooth device connection history, ・If the headphones are sent out for repair,・If the headphones are paired with 9 devices or more. (The headphones can be paired with up to 8 devices. When you pair with a new device after pairing with 8 devices, pairing information for the device with the oldest connection date will be overwritten by information for the new device.) About Pairing USB portUSB charging cable (included)Micro USB terminalBattery jackType AComputerIndicator Off:Charging complete 1 Connect the included USB cable (the micro USB terminal side) to the headphone battery jack.
• Read the user manual for the Bluetooth device.* Place the Bluetooth device within 1 meter of the headphones to perform pairing correctly.* Wear the headphones to conrm pairing by listening for sound. How to Perform Pairing 1 When these headphones are turned off, press and hold the power  button until the indicator on the Bluetooth transmitter/receiver  ashes red/blue (about 6 seconds).
• For more information on how to use the Bluetooth device, read the operation manual for the device. 2 Pairing process will begin and the Bluetooth device will search for the headphones. 2nd beep 1st beep

A 2-second pause Long press6 English How to Connect How to Perform Pairing 3 When the headphones are searched for, "ATH-ANC40BT" will display  on theBluetooth device. Select "ATH-ANC40BT" and register the device to be connected.Some devices may ask for passkey*. In this case, enter "0000". 4 When the headphones ring, the pairing has performed normally  and been successfully completed.

• The passkey is also called passcode, PIN code, PIN number or password. SelectATH-ANC40BTDevice

1 Turn the Bluetooth function of the Bluetooth device OFF, and then turn the headphones ON. 2 While the headphones are waiting to be connected, press and hold the control button for  approximately 1 second while holding down the volume button (+) until a beep sound is heard.  *Multipoint connection is enabled by default. 1 Pair the headphones with the rst Bluetooth device. 2 When pairing to the rst Bluetooth device is complete, turn the Bluetooth function of that device OFF. 3 Pair the headphones with the second Bluetooth device. 4 Turn the Bluetooth function of the rst Bluetooth device ON. 1 Turn the Bluetooth function of the Bluetooth device OFF, and then turn the headphones ON. 2 While the headphones are waiting to be connected, press and hold the control button for approximately 1 second while  holding down the volume button (-) until a beep sound is heard.  *Disable multipoint connection if you do not intend to connect a second Bluetooth device.  Sound may be interrupted if only one device is connected when multipoint connection is enabled because the  headphones will automatically search for the second device. About Multipoint These headphones can connect to two Bluetooth devices simultaneously, and can also be on standby to take mobile phone calls.*These headphones are not guaranteed to pair or operate with all Bluetooth devices. How to Connect Using Multipoint Enabling Multipoint Connection Connecting to a Bluetooth device *If headphones do not connect, turn the power off and on again. *A maximum of two devices can be connected using multipoint connection. If a third device is connected, the two most recently connected devices will remain connected.*The remaining battery display may not be correct on iOS devices such as an iPhone when connected using multipoint connection. Disabling Multipoint Connection Compatible codecs The product is compatible with Qualcomm

aptX™ audio/SBC/AAC codecs. The appropriate codec will be determined automatically by the Bluetooth device during the pairing process. However, you may encounter problems with hearing sound from aptX codec compatible devices. In this case, disable the aptX codec of the Bluetooth device before connection.7 English About Indicator Display How to Use Operating statusSearching for device*Pairing ConnectChargeWaiting to be connectedConnectingRemaining batterylevel lowFull chargeIndicator display patternsFlashing Lit Off ChargingBlueRedRemaining battery level ON : Press and hold the Power button (for about 4 seconds) to turn on the power. The headphones are capable of making Bluetooth connections, playing music and receiving incoming calls. Please use the headphones in accordance with applications. Please note that we cannot guarantee the operation of applications of the Bluetooth device. OFF : When the power is on, press and hold the Power button (for about 3 seconds) to shut off the power. Power supply

• The lamp ashes red rapidly if you pair a device when the remaining battery level is low.
• If the headphones are switched to pairing mode by mistake, turn the power off and on again.The indicator of the headphones displays the following operating status by ashing or turning on. (Indicator: blue) Beep

(Indicator: red) Beep

Wear the side of the headphones marked with “L” (left) on the left ear and the side marked with “R” (right) on the right ear and adjust the earpieces for best t (refer to "About the earpieces"). *Turn the volume of the connected device to the minimum level and put on the headphones. How to Wear Using the Noise-Cancelling Function Turn the NC switch ON. The NC indicator (green) lights when the NC switch is turned ON. The noise-cancelling function can be used when there is no Bluetooth device connected. NC switchNC indicator (green) Long press8 English How to Use 2 Play and enjoy music according to the operation manual of the Bluetooth device connected. 1 To connect for the rst time, refer to “How to Connect” and pair the headphones with a Bluetooth device   and connect.   Once pairing has been performed, turn on the headphones and turn on the Bluetooth connection of the   Bluetooth device. Listening to Music Play/PauseShort pressShort pressLong press Volume Up The volume turns up by one level. buttonForward Forwards to the next track.Short pressLong pressVolume Down The volume turns down by one level. buttonRewind Returns to the previous track. Plays or pauses music and video. Volume button Control button1 Press and hold for approximately 1 second, then release when you hear the sound of a short beep.2 You will hear a short "beep" when the volume reaches its maximum/minimum. * You may not be able to forward/rewind music or video on some smartphones. The following operations are available on the headphones:■ Taking a Call If telephone function is incorporated in the Bluetooth device, you can make a call using the headphones.When the Bluetooth device receives a call, you will hear the headphones ring. When you get a call while listening to music, the music will stop. When you end the call, the music will resume. Control button* There are some Bluetooth devices on which audio playback cannot be restarted. Taking a call Ending a call During an incoming call, press the Control button while holding down the volume button (+) to reject the incoming call. Blocking communications Every time you press the Control button while holding down the volume button (+) during a call, the call switches between the connected mobile phone handset and the headphones. Switching a call between the headphones and mobile phone During the call, you can turn the volume up or down by pressing the Volume button (+/−). Changing call volume When you hear the ringtone, briey press the Control button and take the call.During the call, briey press the Control button to end the call.

English How to Use Using as Headphones (Wired Connection) Connect the supplied connection cable to the battery jack on the headphones. Turn the volume of the connected device to the minimum level, and connect the stereo mini plug of the connection cable to the headphone terminal. When using on an airplane, use the provided airplane conversion adapter as shown in the gure below. Turn the NC switch to ON to use the noise-cancelling function. *These headphones feature a play-through function that enables music playback even if the headphones have run out of battery power. *The Bluetooth function is stopped when using the headphones with a wired connection.

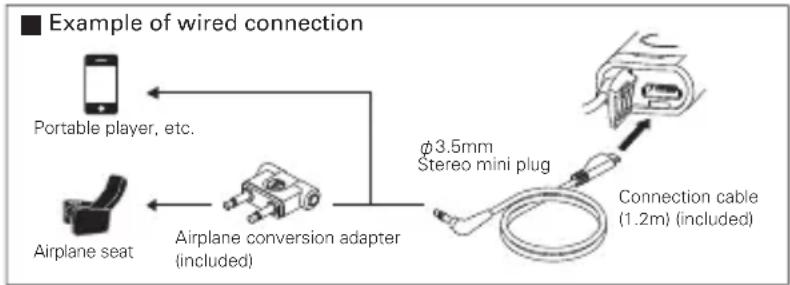

Example of wired connection 3.5mm Stereo mini plugConnection cable (1.2m) (included)Airplane conversion adapter (included)Airplane seatPortable player, etc. About the earpieces Remove earpieces from the headphones and clean them with diluted detergent. After cleaning, dry before use. Note: ・Periodically remove and clean the earpieces as they become dirty easily. Using with dirty  earpieces may cause the headphones themselves to become dirty, resulting in deteriorated  sound quality. ・Earpieces are consumable parts which degrade through storage and use. If the t has become  loose or if the earpieces appear to have degraded, purchase replacements. ・When reattaching earpieces to the headphones, be sure to check that they are securely attached.  Injury or illness may occur if the earpieces are left inside the ear. About Earpieces Sizes Cleaning the earpieces Replacing the earpieces It may be difficult to hear the bass sounds if the earpieces do not fit snugly in your ears. These headphones come with silicon earpieces in four sizes (XS, S, M and L). At the time of purchase, the M size silicon earpieces are attached to the headphones. To ensure the best sound quality, it may be necessary to change the size to that which is best suited for you, and adjust the earpieces inside your ears for a snug fit. Cleaning ●For long-term storage, keep the headphones in a well-ventilated place without high temperatures and humidity. Get into the habit of regularly cleaning your headphones to ensure that they will last for a long time. Do not use alcohol, paint thinners or other solvents for cleaning purposes. ●About headphones, Bluetooth receiver, and power supply section Wipe the main unit with a dry cloth. Foreign matter can accumulate within the earpiece attachment. Continued use while dirty can cause the earpiece to detach easily. Wipe the dirt away periodically. Avoid touching the sensitive port that emits sound; doing so can cause breakage or malfunction. ●About the cable,USB charging cable, connection cable, and neck band Wipe your cables with a dry cloth after use if there is sweat or other dirt present. Using an unclean cable continuously will deteriorate and harden the cable, resulting in headphone malfunction. Remove each old earpiece, and mount the new earpiece over thestem up to the stem's base.10 English Other functions

Troubleshooting Auto Power Off function The headphones will automatically turn off after 5 minutes of not being connected to a device with the power turned on. *The NC switch is not linked to this function. Turn it OFF manually. Reset function Charge the headphones. Power is not supplied Unable to pair Bring the headphones and the Bluetoothdevice closer together – within the range of 1 meter. Set proles for the Bluetooth device. For procedures on how to set, refer to the operation manual for the Bluetooth device. Turn on the power of the headphones and the Bluetooth device. No sound comes out / a faint sound Turn up the volume of the headphones and the Bluetooth device. For the HFP/HSP connection, switch to the A2DP connection. (Mobile phones only.) Switch the output of the Bluetooth device to the Bluetooth connection. Pairing is available on version 2.1+EDR or later of the communication system of the Bluetooth device. If the headphones do not work or other malfunctions occur, refer to "How to Charge", attach the supplied USB cable to the headphones and to your computer, then press the Control button while holding down the power button. Pressing these buttons should resolve the problem. To reset the headphones again, start again from re-inserting the USB cable. If problem does not improve, please contact our service center. Control buttonPower button For operation of the Bluetooth device, refer to the device's operation manual. If the problem still remains, reset the headphones. For the procedure for resetting the device, refer to "Reset function". Securely connect the USB charging cable and charge. The headphones cannot be charged Turn on the power of the headphones and the Bluetooth device. Turn up the volume of the headphones and the Bluetooth device. For the A2DP connection, switch to the HFP/HSP connection. (Mobile phones only.) Switch the voice output of the Bluetooth device to the Bluetooth connection. Turn down the volume of the headphones and the Bluetooth device. Sound utters / noise is caused / sound is interrupted Keep the microwave and other devices such as wireless LAN away from the headphones. Keep TV, radio and devices with built-in tuners away from the headphones. Turn off the equalizer settings of the Bluetooth device. Cannot hear the person on the other end / voice of the person on the other end sounds too quiet The antenna is installed in the position shown in the gure on the right. Make sure there are no obstructions (such as metallic objects or walls) between this antenna and the Bluetooth device. Briey press the power button when the USB charging cable is connected. Internal Antenna Noise may occur when connecting or reconnecting to a Bluetooth device. Complete the connection.11 English Specications Communication System ： Bluetooth Version 3.0 Output ： Bluetooth Maximum communication range ： Within 10m* Frequency band ： 2.402 GHz to 2.480 GHz Modulation method ： FHSS Compatible Bluetooth

aptX™ audio/SBC/AAC Supported content protection method ： SCMS-T Headphones Driver：Dynamic 13.5 mm Output sound pressure level：100 dB/mW(When noise cancellation is used)               100 dB/mW(When noise cancellation is not used) Frequency Response：20 to 24,000 Hz Transmission band ： 20 to 20,000 Hz Impedance：16 Ω(When noise cancellation is used) 16 Ω(When noise cancellation is not used) Microphone Element：Electret condenser Directional characteristic：Omnidirectional Sensitivity：-42 dB (1V/Pa at 1 kHz) Effective frequency range：70 to 8,000 Hz Power source：DC3.7 V lithium polymer battery Charging time : Approx. 3 hours* Operating time : Approx. 8 hours* (When Bluetooth and noise cancellation are used) Approx. 13 hours* (When only Bluetooth is used) Weight：Approx. 35 g(Without earpieces) Operating temperature： 5℃ to 40 ℃ Accessory：Earpieces (XS,S,M,L), USB cable for charge (1.0m) Connection cable (1.2m), Airplane adapter, Pouch Optional : Sold separately earpieces

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Audio-Technica Corporation is under license. All other trademarks are property of their respective owners. Active noise reduction：up to 20dB (By our measuring method) Maximum input power：10ｍW Others Charge / Input terminal：Micro-USB         Approx. 24 hours*(When only noise cancellation is used) Max. 100 hours* (Continuous standby time)

“AAC” logo is a trademark of Dolby Laboratories.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries,   used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the  United States and other countries, used with permission. (1.4mW EIRP)12 Français PRÉCAUTIONS Attention à la batterie rechargeable
