USER MANUAL PDP5060HD PIONEER

SYSTEME D’ÉCRAN PLASMA

SISTEMA DE PANTALLA DE PLASMA

PDP-5050HD PDP-4350HD PDP-5045HD PDP-4345HD Operating Instructions Mode d’emploi Manual de instrucciones Register Your Product on www.pioneerelectronics.comRead these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10) Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 11) 12) 13) 14) Note to CATV system installer. This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground–shall be connected to the grounding system of the building, as close to the point of cable entry as practical.English CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interfer- ence with electric appliances such as radios and televi- sions, use shielded cables and connectors for connec- tions.

FEDERAL COMMUNICATIONS COMMISSION

DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Op- eration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: Plasma Display System (Plasma Display) (Media Receiver) Model Number: PDP-5050HD PDP-4350HD (PDP-505PU) (PDP-435PU) (PDP-AR05U) (PDP-AR05U)

PDP-5045HD PDP-4345HD

(PDP-504PU) (PDP-434PU) (PDP-R05U) (PDP-R05U) Product Category: Class B Personal Computers & Periph- erals Responsible Party Name: PIONEER ELECTRONICS (USA), INC., Customer Support Div. Address: P.O. BOX 1760, LONG BEACH, CA., 90801-1760 U.S.A. Phone: [phone] For Business Customer URL http://www.PioneerUSA.com IMPORTANT NOTICE: The serial number for this equipment is located on the rear panel. Please write this serial number on your enclosed warranty card and keep it in a secure area. This is for your security.

WARNING: Be sure to plug this equipment into a

grounding-type AC outlet.

WARNING: THE APPARATUS IS NOT WATER-

PROOFS, TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE AND DO NOT PUT ANY WATER SOURCE NEAR THIS APPARATUS, SUCH AS VASE, FLOWER POT, COSMET- ICS CONTAINER AND MEDICINE BOTTLE ETC.

WARNING: Handling the cord on this product or

cords associated with accessories sold with the prod- uct will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm. Wash hands after handling. NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn- ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol- lowing measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV tech- nician for help. Information to User Alteration or modifications carried out without appro- priate authorization may invalidate the user’s right to operate the equipment. [For Canadian model] This Class B digital apparatus complies with Canadian ICES-003.4

In order to obtain maximum enjoyment from this Pioneer PureVision PDP-5050HD/PDP-4350HD/PDP-5045HD/PDP- 4345HD Plasma Display System, please first read this information carefully. With the Pioneer PureVision PDP-5050HD/PDP-4350HD/PDP- 5045HD/PDP-4345HD, you can be assured of a high quality Plasma Display System with long-life and high reliability. To achieve images of exceptional quality, this Pioneer Plasma Display System incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology. Over the course of its lifetime, the luminosity of the Pioneer PDP-5050HD/PDP-4350HD/PDP-5045HD/PDP-4345HD Plasma Display System will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on your Pioneer Plasma Display System for many years to come, please carefully read and follow the usage guidelines below. Usage guidelines All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Plasma Display Systems are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your plasma:

• Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. closed-captioned images or video game images which have static portions).

• Avoid viewing the On Screen Display for extended periods, from a DVD player, VCR, and all other components.

• Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component.

• Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.

• When playing a game, the “GAME” mode setting within “AV Selection” is strongly recommended. However, please limit its use to less than 2 hours at a time.

• After playing a game, or displaying a PC image or any still image, it is best to view a normal moving picture in the “WIDE” or “FULL” screen setting for over 3 times longer than the previous still/moving image.

• After using the Plasma Display System, always switch the display to “STANDBY” mode. Installation guidelines The Pioneer PureVision PDP-5050HD/PDP-4350HD/PDP- 5045HD/PDP-4345HD Plasma Display System incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the Plasma Display, in order to prevent the unit from tipping over in the event of vibration or accidental movement. This product should be installed by using only parts and accessories designed by PIONEER. Use of accessories other than the PIONEER stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit. PIONEER will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies. To avoid malfunction and overheating when installing, make sure that the vents on the main unit are not blocked. To ensure proper heat emission:

• Distance the unit slightly from other equipment, walls, etc. For the minimum space required around the unit, see pages 15 to 16.

• Do not fit the unit inside narrow spaces where ventilation is poor.

• Do not cover with a cloth, etc.

• Clean the vents on the sides and rear of the unit to remove dust build-up by using a vacuum cleaner set to its lowest suction setting.

• Do not place the product on a carpet or blanket.

• Do not leave the product tilted over except the case of vertical installation of the Media Receiver.

• Do not reverse the product. Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics and prevent a hazardous occurrence. Malfunction can be caused by many factors: inappropriate installation site, improper assembly/installation/mounting, improper operation of or modifications made to this product. However, PIONEER cannot be held responsible for accidents or malfunction caused by the above. Typical effects and characteristics of a phosphor-based matrix display such as permanent residual images upon the phosphors of the panel and the existence of a minute number of inactive light cells in the screen are not covered by local warranties.01Important User Guidance Information English

Panel sticking and after-image lag

• Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

1. After-image lagging due to remaining electric

load When image patterns with very high peak luminance are displayed more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

2. After-image (lag image) due to burning

Avoid displaying the same image on the Plasma Display continuously over a long period of time. If the same image is displayed continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

• The Energy save function can be set to help prevent damage from screen burning (see page 43). About operations through i.LINK PIONEER shall not always assure normal video/audio recording or playback when a D-VHS is operated through i.LINK. DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL, CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER, OR SOLD WITH THE PRODUCT. FOLLOW

THE MANUFACTURE’S INSTRUCTIONS WHEN INSTALLING

THE PRODUCT AND USE MOUNTING ACCESSORIES

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when install- ing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product.

1. Read instructions—All operating instructions must be read

and understood before the product is operated.

2. Keep this manual in a safe place—These safety and

operating instructions must be kept in a safe place for future reference.

3. Observe warnings—All warnings on the product and in the

instructions must be observed closely.

4. Follow instructions—All operating instructions must be

5. Cleaning—Unplug the power cord from the AC outlet before

cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

6. Attachments—Do not use attachments not recommended

by the manufacturer. Use of inadequate attachments can result in accidents.

7. Water and moisture—Do not use the product near water,

such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.

8. Stand—Do not place the product on an unstable cart,

stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

9. When relocating the product placed on a cart, it must be

moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

10. Ventilation—The vents and other openings in the cabinet

are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

11. Power source—This product must operate on a power

source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

12. Power cord protection—The power cords must be routed

properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

13. The plasma Display used in this product is made of glass.

Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the plasma Display breaks.

14. Overloading—Do not overload AC outlets or extension

cords. Overloading can cause fire or electric shock.

15. Entering of objects and liquids—Never insert an object into

the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

16. Servicing—Do not attempt to service the product yourself.

Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

17. Repair—If any of the following conditions occurs, unplug

the power cord from the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as de- scribed in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

18. Replacement parts—In case the product needs replace-

ment parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

19. Safety checks—Upon completion of service or repair work,

request the service technician to perform safety checks to ensure that the product is in proper operating condition.

20. Wall or ceiling mounting—When mounting the product on

a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

21. Heat sources—Keep the product away from heat sources

such as radiators, heaters, stoves and other heat- generat- ing products (including amplifiers).

22. Unplug the power cord from the AC outlet before installing

23. Never expose the screen of the Plasma Display to a strong

impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury.

24. Do not expose the Plasma Display to direct sunlight for a

long period of time. The optical characteristics of the front protection panel changes, resulting in discoloration or warp.

25. The Plasma Display weighs about 32.8 kg (72.3 lbs.) for the

PDP-505PU, about 38 kg (83.8 lbs.) for the PDP-504PU, about 26.8 kg (59.1 lbs.) for the PDP-435PU and about 30.5 kg (67.3 lbs.) for the PDP-434PU. Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.02 Safety Precautions English

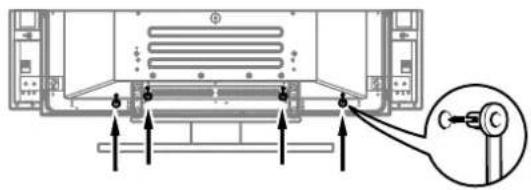

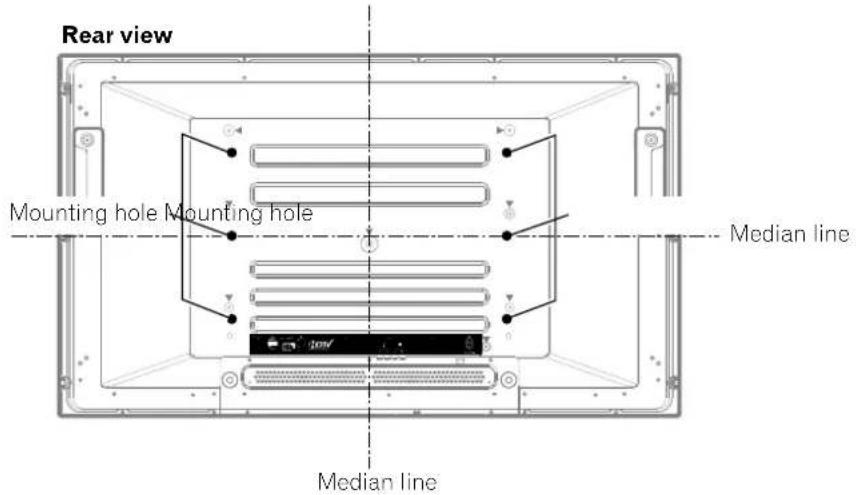

• Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines.

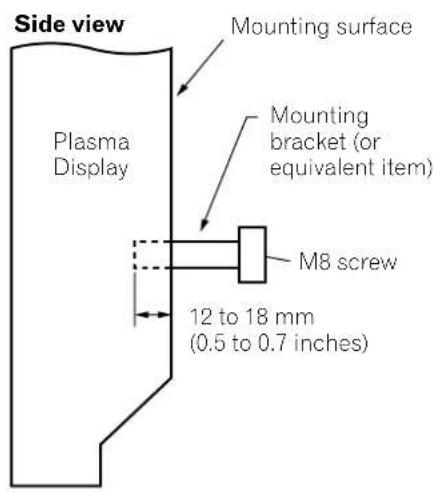

• Use M8 screws, which go 12 to 18 mm (0.5 to 0.7 inches) in depth from the mounting surface of the Plasma Display. See the side view above.

• Be careful not to block the ventilation opening at the rear of the Plasma Display.

• Be sure to install the Plasma Display on a flat surface because it contains glass.

• The screw holes other than the above are to be used only for the specified products. Never use them for mounting non-specified products.

• Do not mount or remove the Plasma Display to or from the stand, with speakers attached.

• It is strongly recommended to use the optional PIONEER mounting products.

• PIONEER shall not be liable for any personal injury or product damage that results from the use of mounting items other than the optional PIONEER products. Installation Precautions Observe the following precautions when installing with any items such as the optional stand. When using the optional stand, brackets, or equivalent items

• Ask your dealer to perform the installation.

• Be sure to use the supplied bolts.

• For details, see the instruction manual that comes with the optional stand (or equivalent items). When using other items

• Consult your dealer.

• The following six mounting holes can be used for the installation: Median line Mounting hole Mounting hole Rear view Median line Side view Plasma Display Mounting surface 12 to 18 mm (0.5 to 0.7 inches) M8 screw Mounting bracket (or equivalent item) Illustration shows PDP-5045HD/4345HD.03 Operational Precautions

PIONEER bears no responsibility for any damages arising from incorrect use of the product by you or other people, malfunctions when in use, other product related problems, and use of the product except in cases where the company must be liable. Plasma Display protection function When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the Plasma Display automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes. Infrared rays The Plasma Display releases infrared rays because of its characteristics. Depending on how the Plasma Display is in use, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected. Radio interference While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product. Fan motor noise When ambient temperature of the Media Receiver becomes high, the rotation speed of the cooling fan motor increases. This may make you feel that the fan motor is noisy at such an occasion. The fan motor keeps running until the power cord of the Media Receiver is removed from a wall outlet. Do not attach such items as labels and tape to the product.

• This may result in the discoloration or scratch of the cabinet. When not using the product for a long period of time

• If you do not use the product for a long period of time, the functions of the product may be adversely affected. Switch on and run the product occasionally. Condensation

• Condensation may take place on the surface or inside of the product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction. Cleaning the screen

• When cleaning the screen of this product, gently wipe it with a soft dry cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a hard cloth or rub the screen hard, the surface of the screen will be scratched.

• If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction. Cleaning the cabinet

• When cleaning the cabinet of this product, gently wipe it with a soft dry cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a hard cloth or rub the cabinet hard, the surface of the cabinet will be scratched.

• The cabinet of this product is mostly composed of plastic. Do not use chemicals such as benzine or thinner to clean the cabinet. Using these chemicals may result in quality deterioration or coating removal.

• Do not expose the product to volatile gas or fluid such as pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal.

• If you clean the surface of the cabinet with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction. Handles at the rear of the Plasma Display

• Do not remove the handles from the rear of the Plasma Display.

• When moving the Plasma Display, ask another person for help and use the handles attached to the rear of the Plasma Display. Do not move the Plasma Display by holding only a single handle. Use the handles as shown.

• Do not use the handles to hang the product when installing or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.04 Supplied Accessories English

Plasma Display Media Receiver Operating Instructions

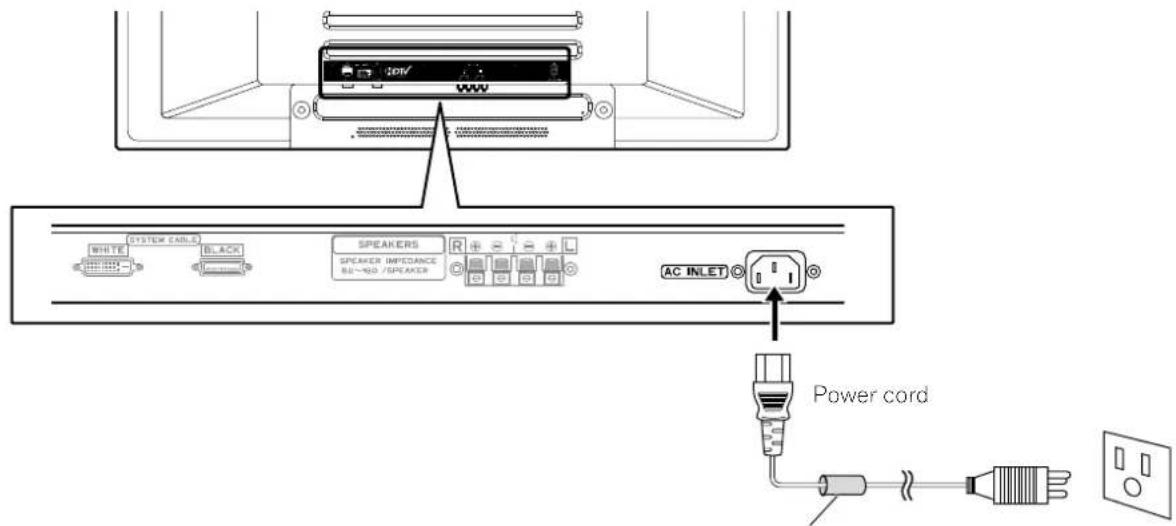

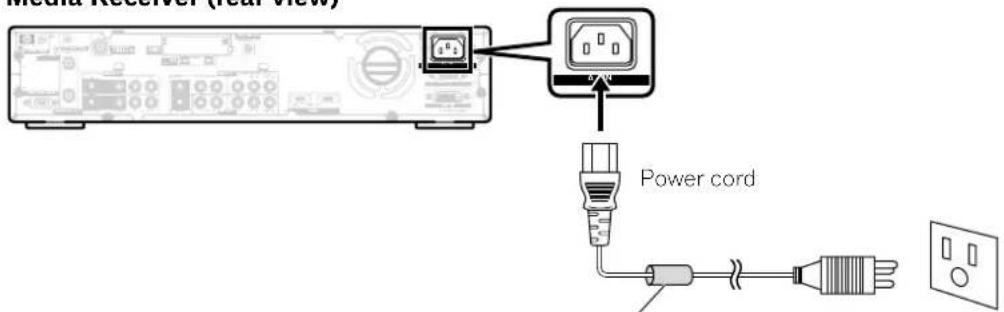

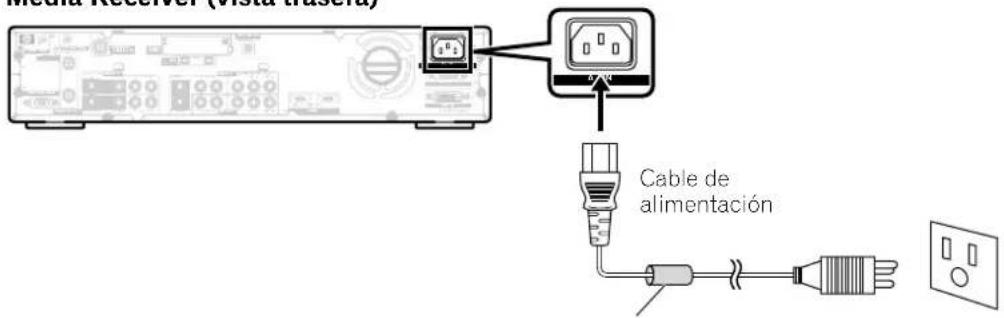

• Always use the power cord supplied with the Plasma Display and the one supplied with the Media Receiver for each respective unit. Power cord (2 m/6.6 feet) Cleaning cloth Speed clamp × 3 Bead band × 3 Warranty card Speaker cushion × 3 (For PDP-5045HD/4345HD only) (Use when installing the optional speakers at the bottom of the Plasma Display.) Power cord (2 m/6.6 feet) Remote control unit System cable (3 m/9.8 feet) AA size battery × 2 (Alkaline battery) Stand Screw × 4 (for stand) Screw hole cap × 4 VCR controller (1.8 m/5.9 feet) Instruction guide05 Part Names

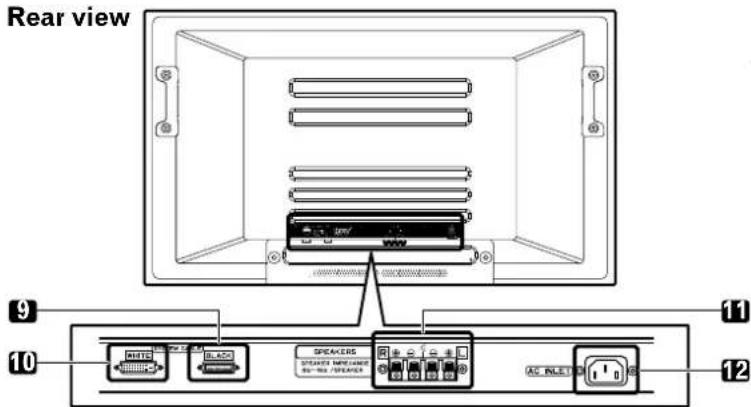

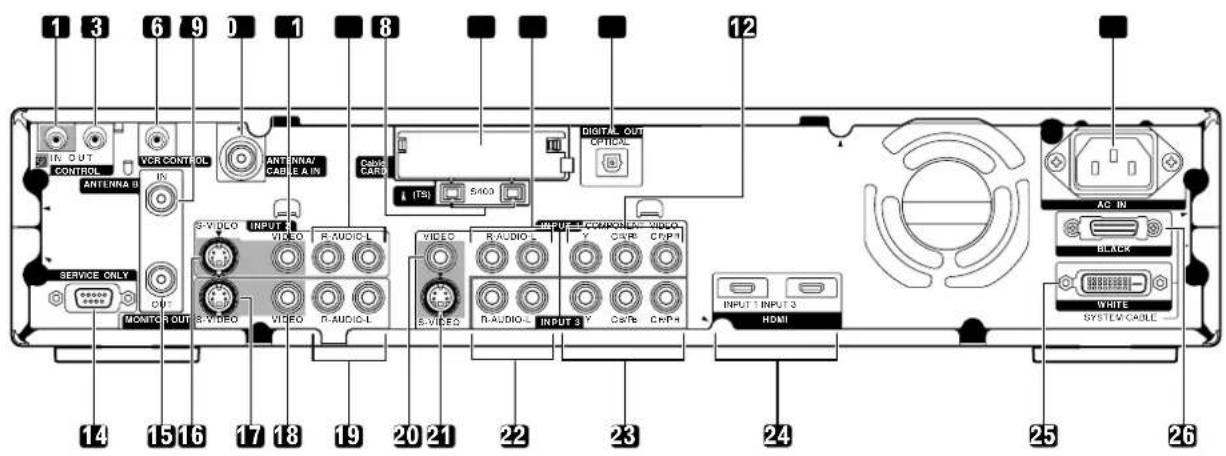

Rear view Front view 9 SYSTEM CABLE terminal (BLACK) 10 SYSTEM CABLE terminal (WHITE) 11 SPEAKER (right/left) terminals 12 AC INLET terminal The terminals have faced downward. Media Receiver Front view POWERON STANDBY REC TIMER DATA ACQUISITIONCOMPONENT VIDEO

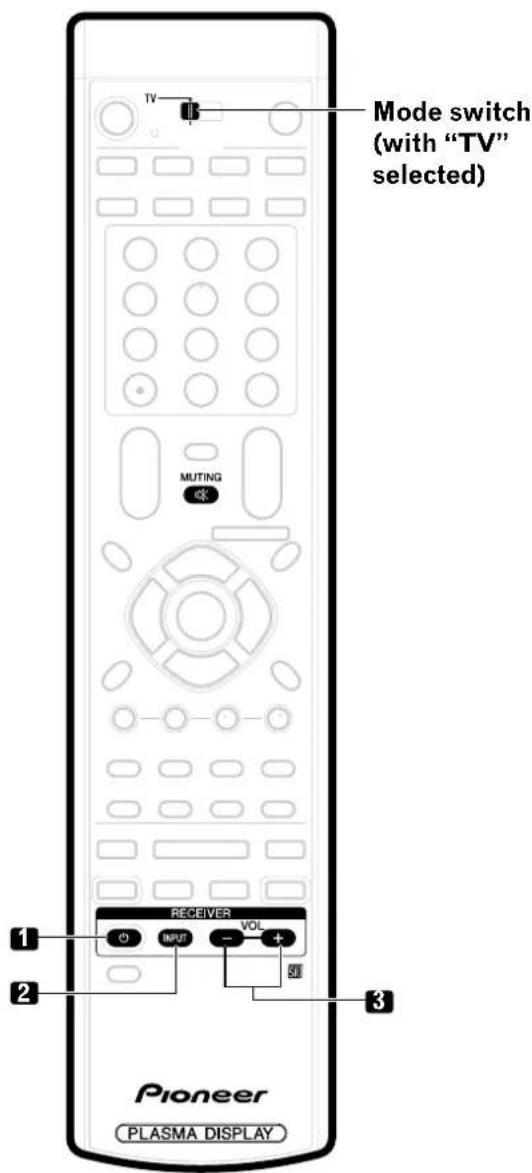

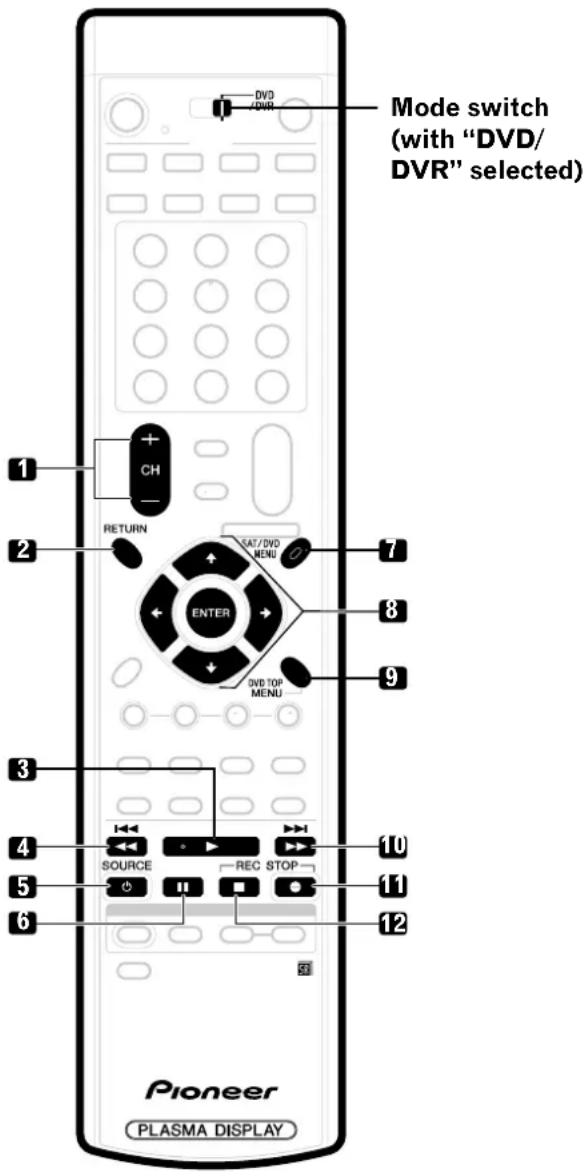

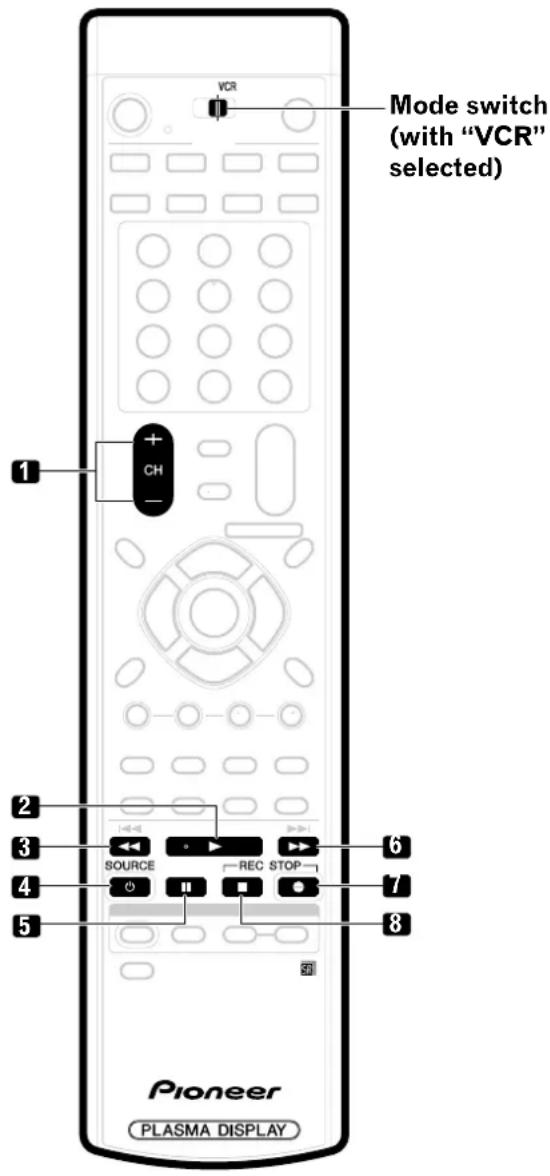

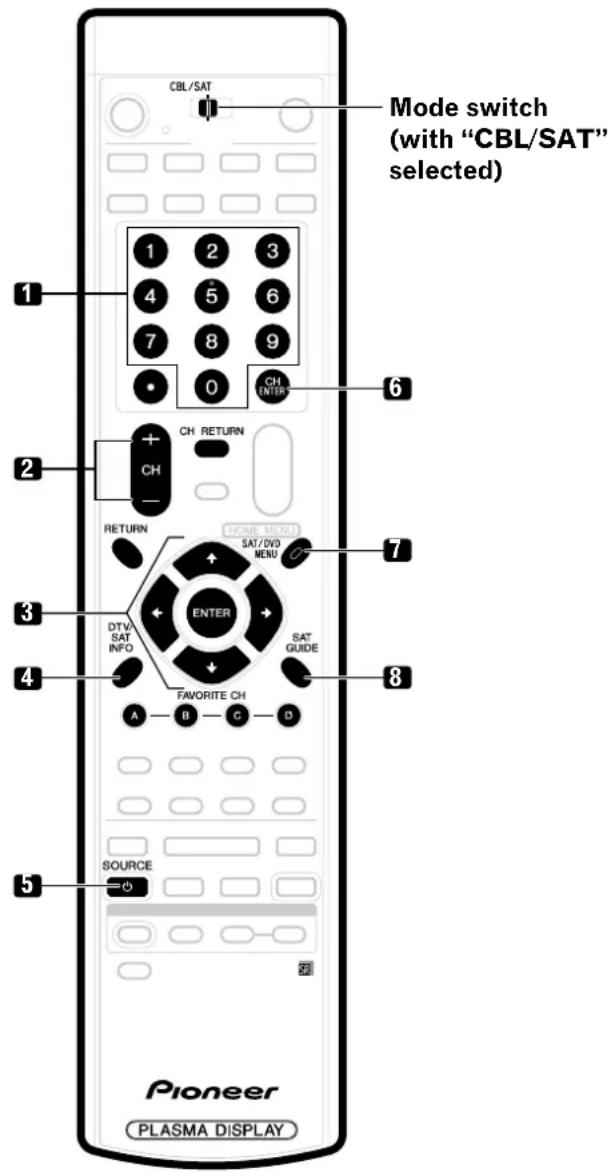

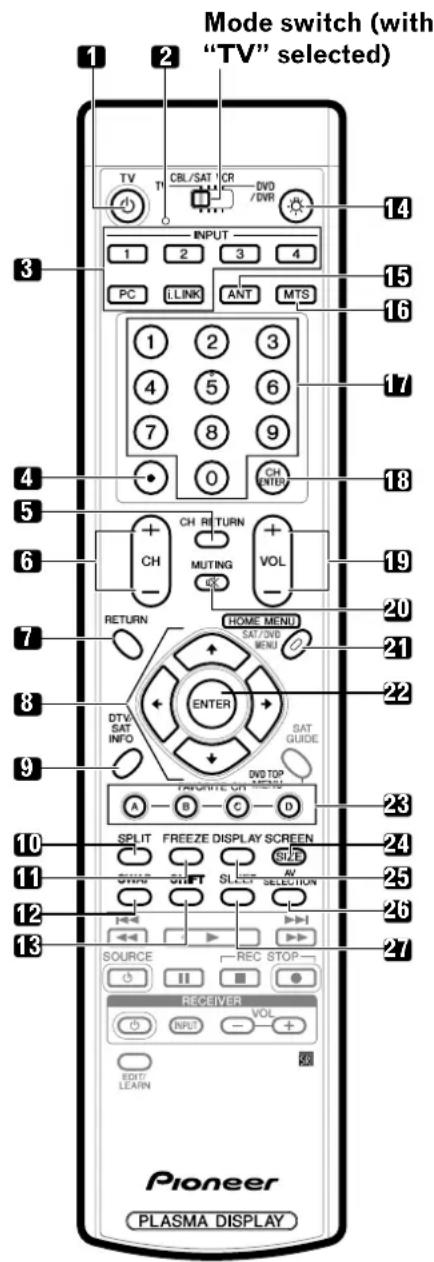

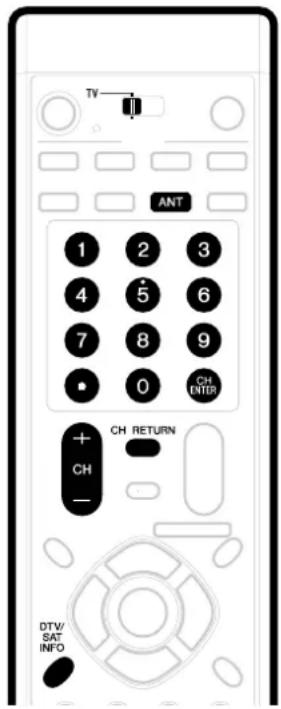

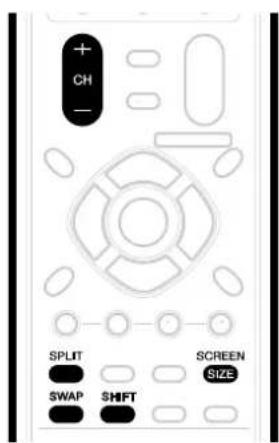

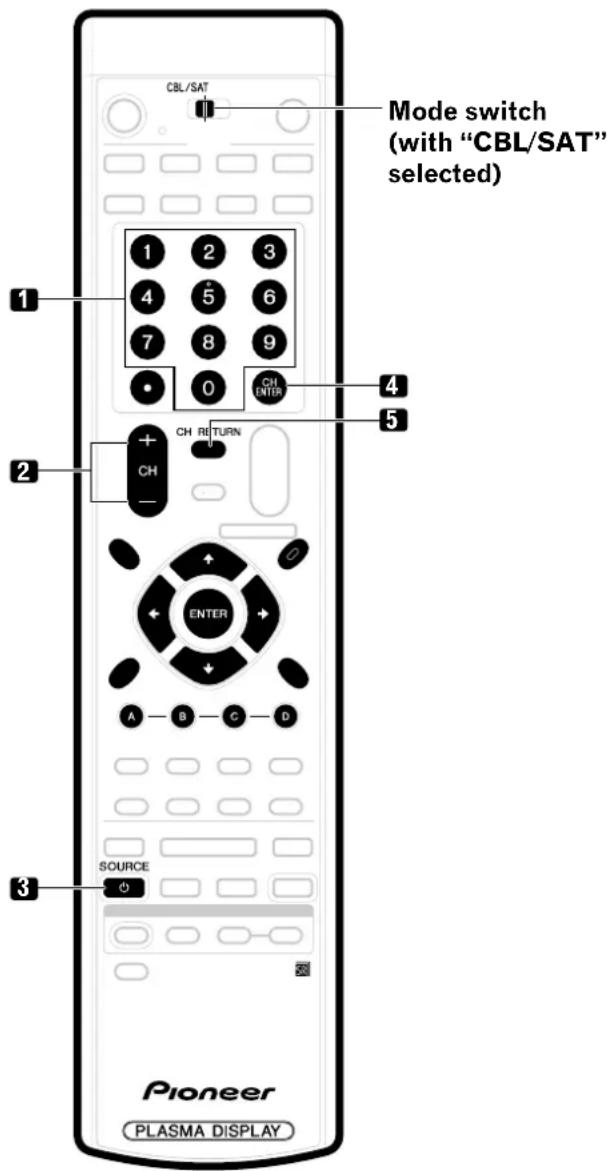

Remote control unit With the mode switch set to TV 1 TV : Turns on the power to the Plasma Display or places it into standby mode. 2 Transmission confirmation LED 3 INPUT: Selects an input source of the Plasma Display. (INPUT 1, INPUT 2, INPUT 3, INPUT 4, PC, i.LINK) 4 •(dot): Enters a dot. 5 CH RETURN: Returns to the previous chan- nel. Mode switch (with “TV” selected) 6 CH +/–: Selects the channel. 7 RETURN: Returns to the previous menu screen.

/ / / : Selects a desired item on the menu screen. 9 DTV INFO: Shows more information on DTV programs. 10 SPLIT: Switches the screen mode among 2- screen, picture-in-picture, and single-screen. 11 FREEZE: Freezes a frame from a moving image. Press again to cancel the function. 12 SWAP: Switches between the two screens when in the 2-screen or picture-in-picture mode. 13 SHIFT: Moves the location of the small screen when in the picture-in-picture mode.

:When pressed, all buttons on the remote control unit will light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in dark places. 15 ANT: Selects the antenna (A, B). See pages 21 and 22 for details. 16 MTS: Selects the MTS/SAP. 17 0 – 9: Selects the channel. 18 CH ENTER: Executes a channel number. 19 VOL +/–: Sets the volume.

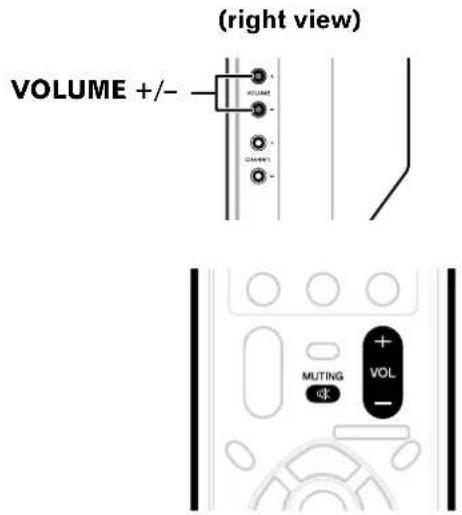

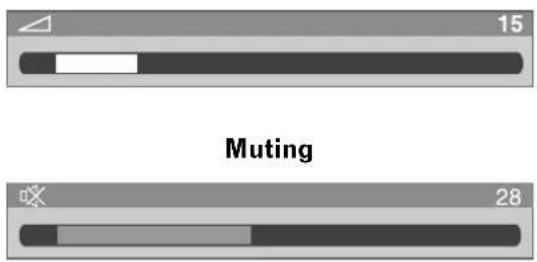

MUTING: Mutes the sound. 21 HOME MENU: Displays the menu screen. 22 ENTER: Executes a command. 23 FAVORITE CH (A, B, C, D): Selects any of the four preset channels. See page 37 for details to set the FAVORITE CH. While watching, you can toggle the set chan- nels by pressing A, B, C and D. 24 SCREEN SIZE: Selects the screen size. 25 DISPLAY: Displays the channel information. 26 AV SELECTION: Selects audio and video settings. (AV mode: STANDARD, DYNAMIC, MOVIE, GAME, USER. PC mode: STANDARD, USER.) 27 SLEEP: Sets the sleep timer.

• When using the remote control unit, point it at the Plasma Display.• See pages 62 to 68 for operating buttons not listed on this page.

• Avoid direct sunlight. Maintain adequate ventilation.

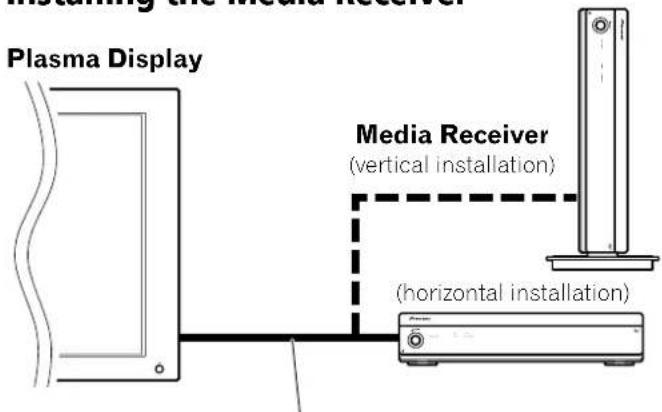

• The length of the system cable used to connect the Plasma Display and the Media Receiver is about 3 m (9.8 feet).

• Because the Plasma Display is heavy, be sure to have someone help you when moving it.

• If you place anything on the top of the Media Receiver it will not receive enough ventilation and will not operate properly.

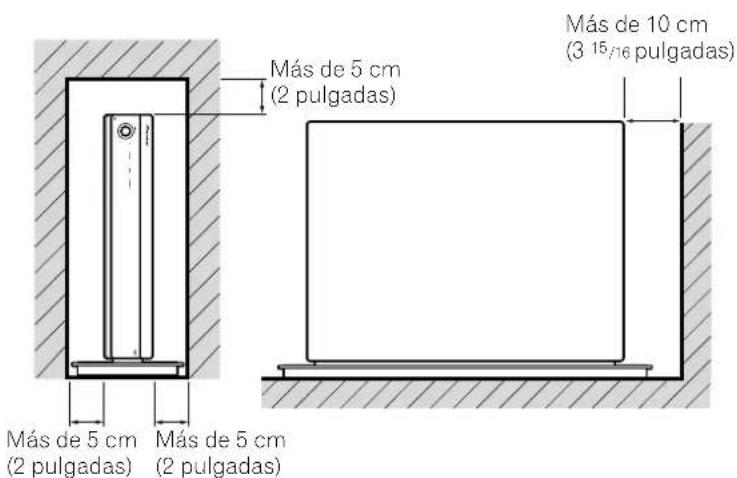

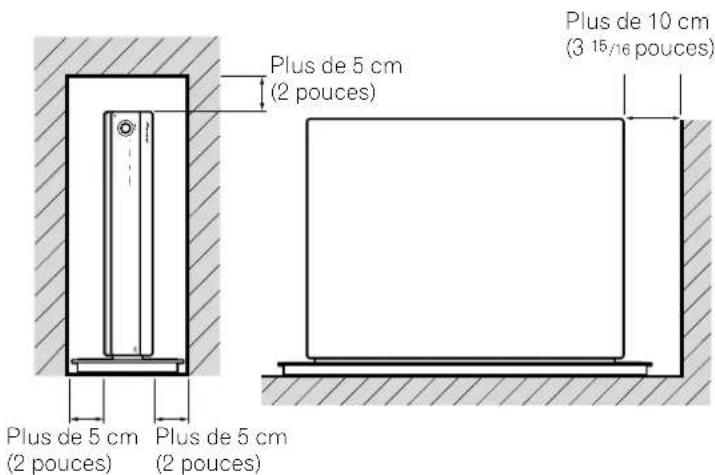

• Allow enough space around the upper and back parts wheninstalling to ensure ventilation around the backside. Using the optional PIONEER stand For details on installation, refer to the instruction manual supplied with the stand.

• This product may be used only with model PDK-TS04 stand. Use with other stands may result in instability causing possible injury. Using the optional PIONEER speakers For details on installation, refer to the instruction manual supplied with the speaker. Operating Environment Operating environment temperature and humidity: +0°C to +40°C (+32°F to +104°F); less than 85% RH (cooling vents not blocked) Avoid installing at the following locations:

• Under direct exposure to sunlight

• Under strong artificial light

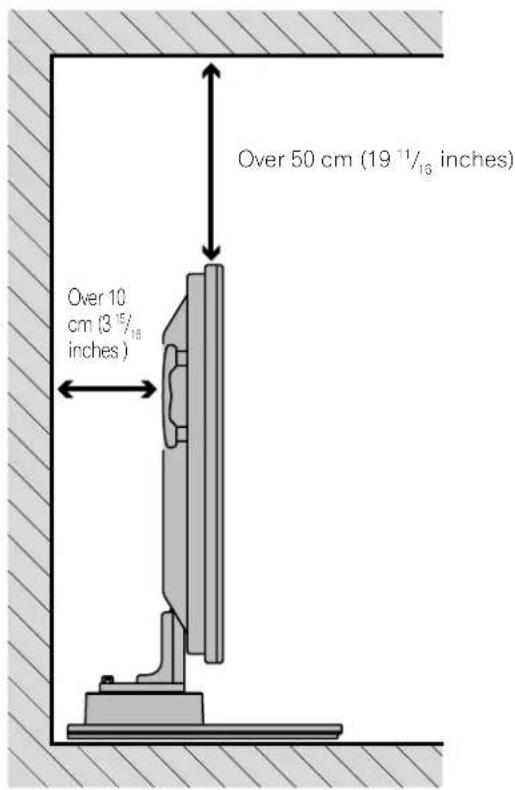

• Poorly ventilated Over 50 cm (19

inches )06 Preparation

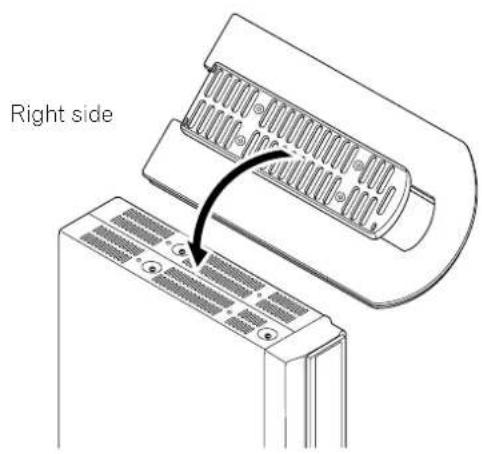

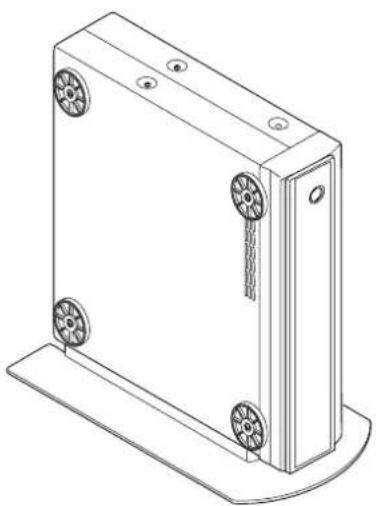

Right side Installing the Media Receiver vertically You can use the supplied stand to install the Media Receiver vertically.

1. Insert the stand into the side of the Media

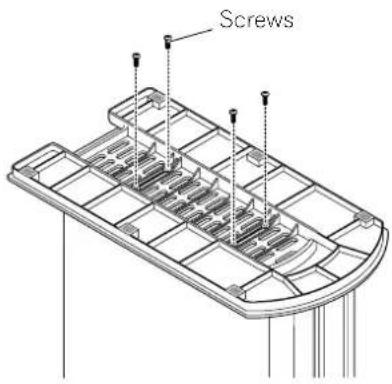

2. Secure the stand with the supplied screws.

Screws POWERON STANDBY REC TIMER DATA ACQUISITIONPOWERON STANDBY REC TIMER DATA ACQUISITION Installing the Media Receiver POWERON STANDBY REC TIMER DATA ACQUISITION Plasma Display Media Receiver (vertical installation) (horizontal installation) System cable (approx. 3 m/9.8 feet)

• Do not place a VCR or any other device on the top of the Media Receiver.

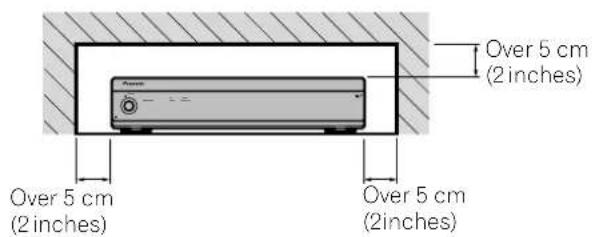

• When installing, allow enough space on the sides and above the Media Receiver.

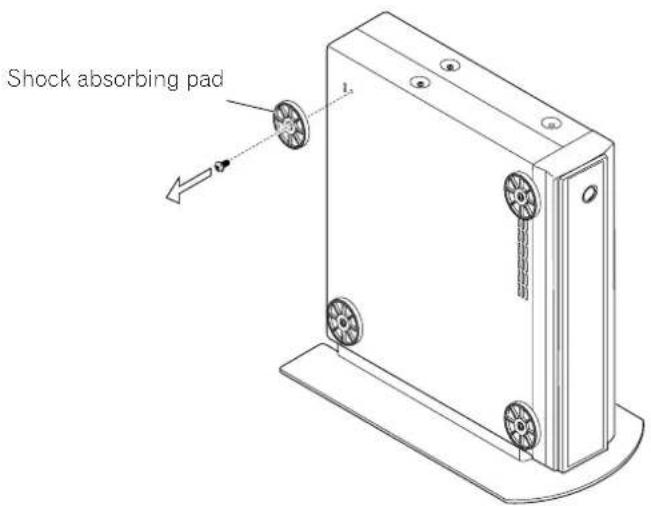

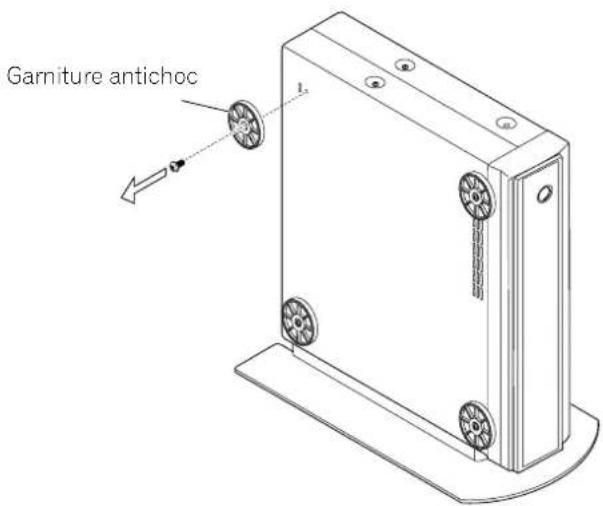

3. Remove the shock absorbing pads.

Keep the shock absorbing pads and screws. They are required when you place the Media Receiver in the horizontal position.

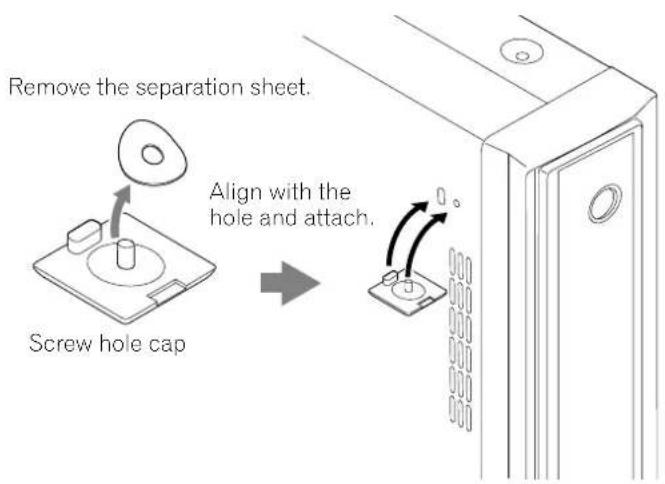

4. Plug the screw holes using the supplied caps.

• When you have installed the Media Receiver vertically, be sure to use the supplied stand. If you place the unit directly on the floor, the cooling vents will be blocked, resulting in mechanical failure. Remove the separation sheet. Screw hole cap Align with the hole and attach.06 Preparation

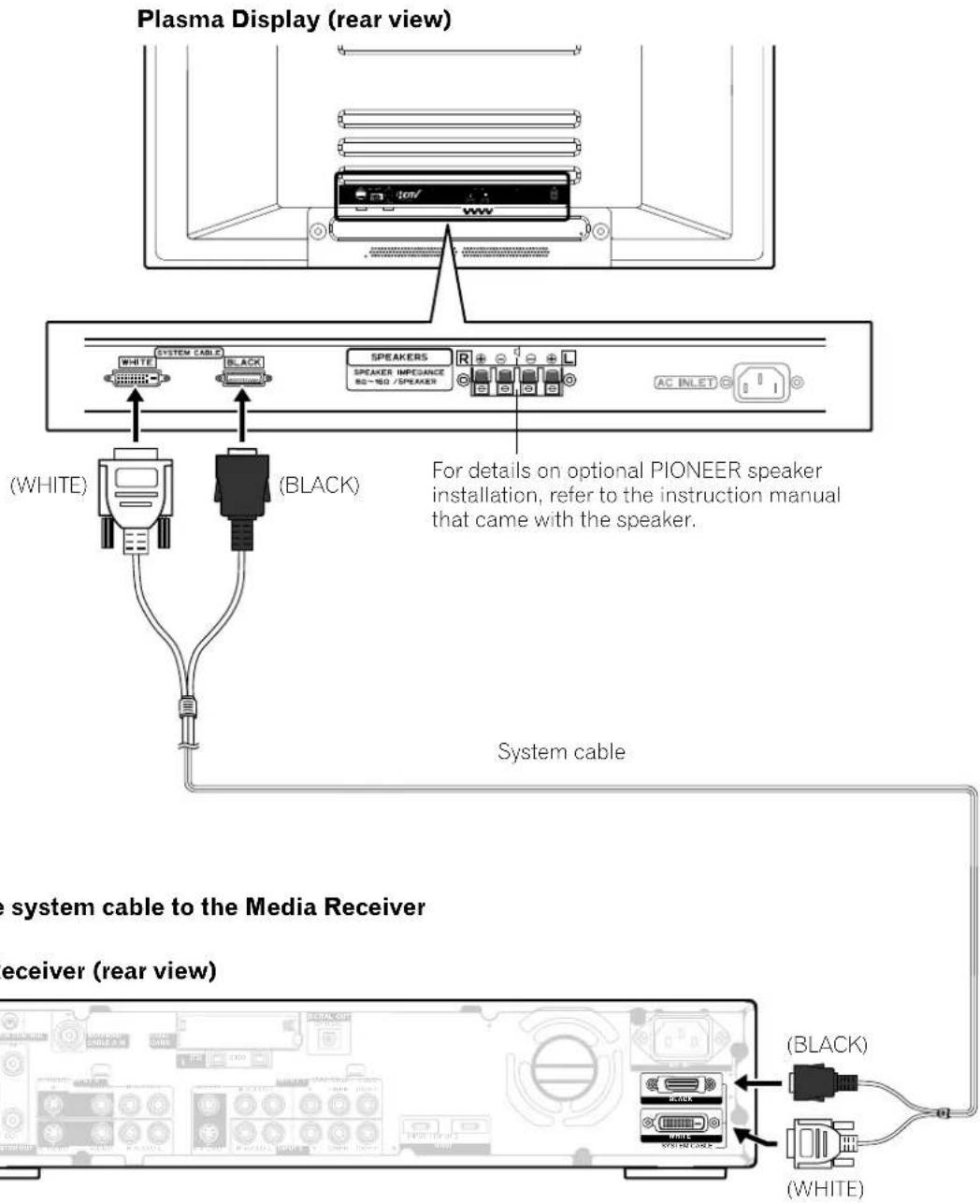

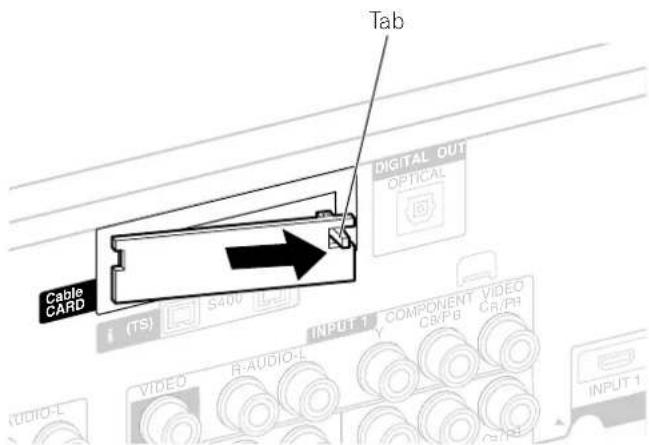

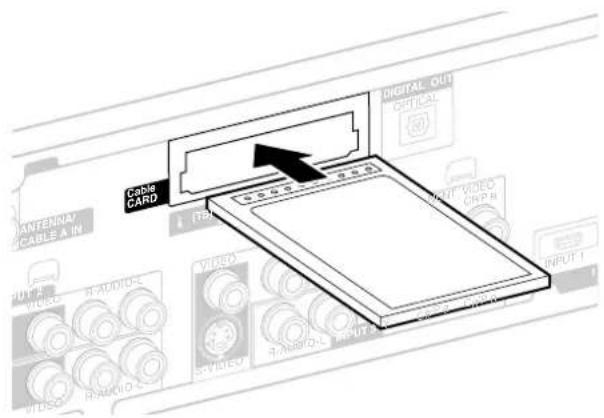

OUT Cable CARD (TS) Connecting the system cable Connecting the system cable to the Plasma Display

• THESE SPEAKER TERMINALS CAN BE APPLIED WITH HAZARDOUS VOLTAGE WHEN YOU CONNECT OR DIS- CONNECT THE SPEAKER CABLES. TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT TOUCH UNINSULATED PARTS BEFORE DISCONNECTING THE POWER CORD. Connecting the system cable to the Media Receiver For details on optional PIONEER speaker installation, refer to the instruction manual that came with the speaker. Plasma Display (rear view) (WHITE) (BLACK) System cable Media Receiver (rear view) (WHITE) (BLACK)06Preparation English

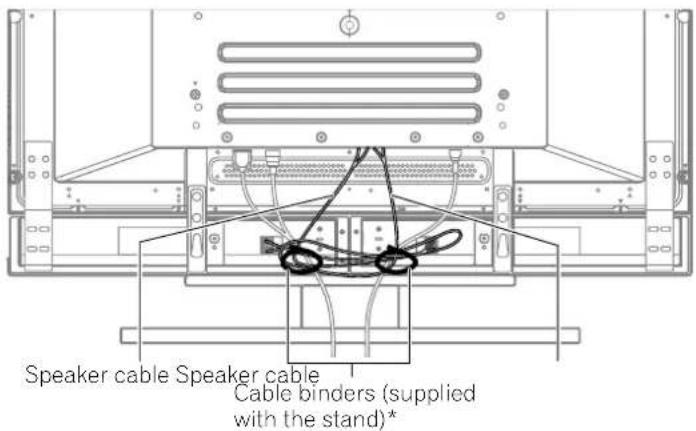

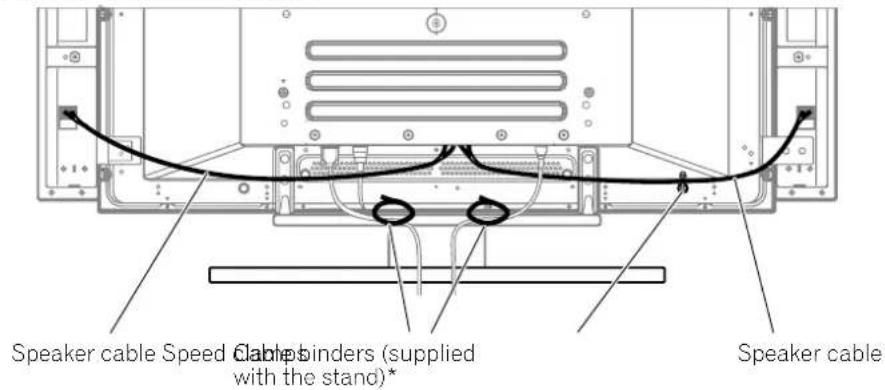

Routing cables Speed clamps and bead bands are supplied for bunching cables. Once properly bunched, follow the steps below to route the cables. When the speakers are installed on the sides When the speakers are installed at the bottom (For PDP5045HD/4345HD only) (rear view) Speaker cable Attaching speed clamps to the main unit Attach the speed clamps using the 4 holes marked with below, depending on your routing system. Attaching and removing speed clamps Insert [1] into an appropriate hole on the rear of the Plasma Display and snap [2] into the back of [1] to lock the clamp. Speed clamps are designed to be difficult to undo once in place. Please attach them carefully. Use pliers to twist the clamp 90°, pulling outward. The clamp may deteriorate over time and become damaged if removed.

Speaker cable Speed clamps Speaker cable Speaker cable Cable binders (supplied with the stand)* Cable binders (supplied with the stand)*

• Cable binder Using the cable binders supplied with the stand, put the speaker and system cables together so that the cables are invisible from the front. At that time be careful not to apply any force to the connection sections of the cables.06 Preparation

Preparing the remote control unit Inserting batteries

Open the battery cover.

Insert the supplied two AA size batteries.

• The battery polarities must correspond with the (+) and (–) indicators in the battery compartment.

Close the battery cover. Cautions regarding batteries

• The remote control unit cannot operate the system if the batteries in the unit are empty. When this happens, replace the batteries with new ones.

• Do not use manganese batteries. When you replace the batteries, use alkaline ones.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Do not leave dead batteries in the remote control unit; chemical leakage will occur. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not use the remote control unit for an extended period of time, remove the batteries from it.

• WHEN DISPOSING OF USED BATTERIES, BE SURE

TO COMPLY WITH GOVERNMENT REGULATIONS

AND ENVIRONMENTAL PROTECTION GUIDELINES

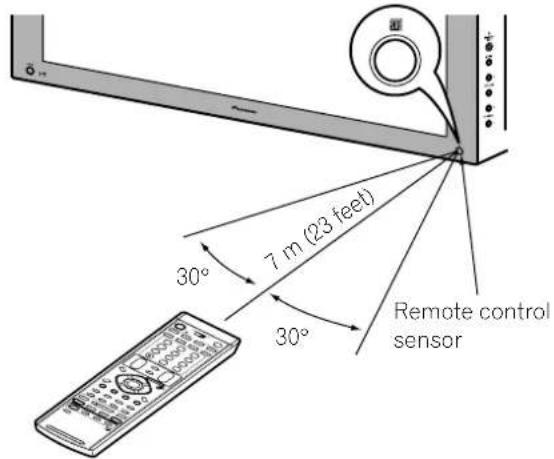

THAT APPLY IN YOUR COUNTRY OR AREA. Allowed operation range of the remote control unit Operate the remote control unit while pointing it toward the remote control sensor ( ) located at the bottom right of the front panel of the Plasma Display. The distance from the remote control sensor must be within 7 m (23 feet) and the angle relative to the sensor must be within 30 degrees in the right or left direction. 30° Remote control sensor 7 m (23 feet) 30° Cautions regarding the remote control unit

• Do not expose the remote control unit to shock, liquid, or high humidity.

• Do not place the remote control unit under direct sunlight; the unit may deform.

• The remote control unit may not work properly if the remote sensor window of the Plasma Display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Plasma Display, or operate the remote control unit closer to the remote sensor window.

• When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function.

• As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones if necessary.

• The Plasma Display emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the Plasma Display.

• Depending on the installation environment, infrared rays from the Plasma Display may not allow this system to properly receive commands from the remote control unit or may shorten allowable distances between the remote control unit and the remote control sensor. The strength of infrared rays emitted from the screen differs, depending on images displayed on the screen.06Preparation English

Cable connections for watching digital and/or conventional TV channels This system is equipped with two terminals for inputting TVbroadcasting signals: ANTENNA/CABLE A IN and ANTENNA B.The ANTENNA/CABLE A IN terminal accepts both digital andconventional TV broadcasting signals while the ANTENNA Bterminal accepts only conventional TV broadcasting signals.When using a cable TV to watch digital and/or conventional TVchannels, connect to the ANTENNA/CABLE A IN terminal asshown. In addition, you may connect an antenna to theANTENNA B terminal as shown; use an outdoor antenna toenjoy clearer pictures. If your outdoor uses a 75-ohm coaxialcable with an F-type connector, plug it into the antennaterminal at the rear of the Media Receiver. Connecting VHF/UHF antennas and a Cable Converter

• Be sure to connect coaxial cables as shown above. Signal receptionmay fail if not properly connected.ANTENNA B

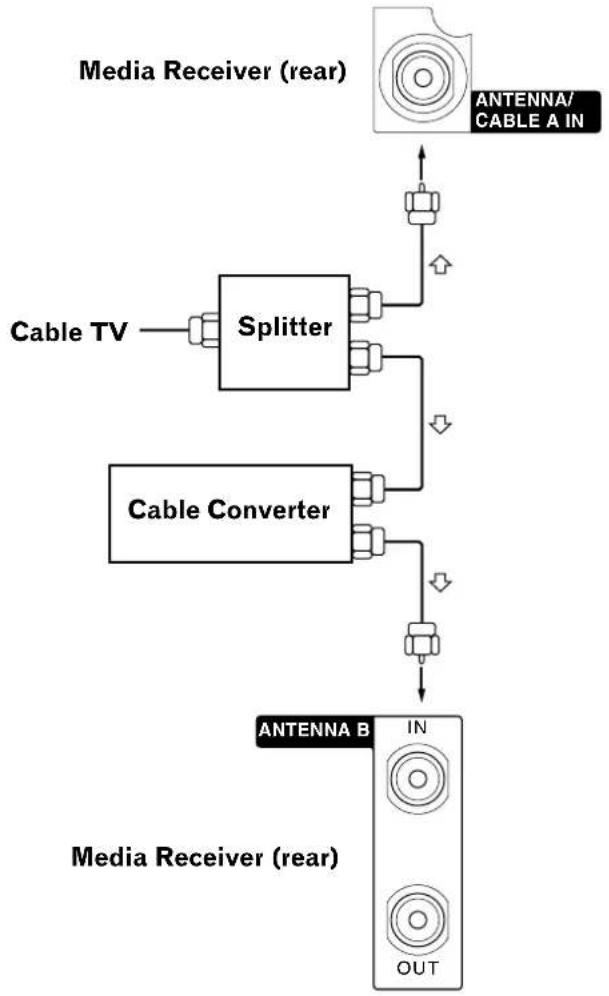

Media Receiver (rear) Cable TV Cable Converter Cable connections for watching digital TV channels over air (VHF/UHF) If using VHF and UHF antennas to watch digital TV channels,connect the coaxial cables as shown. Connecting VHF/UHF antennas ANTENNA B

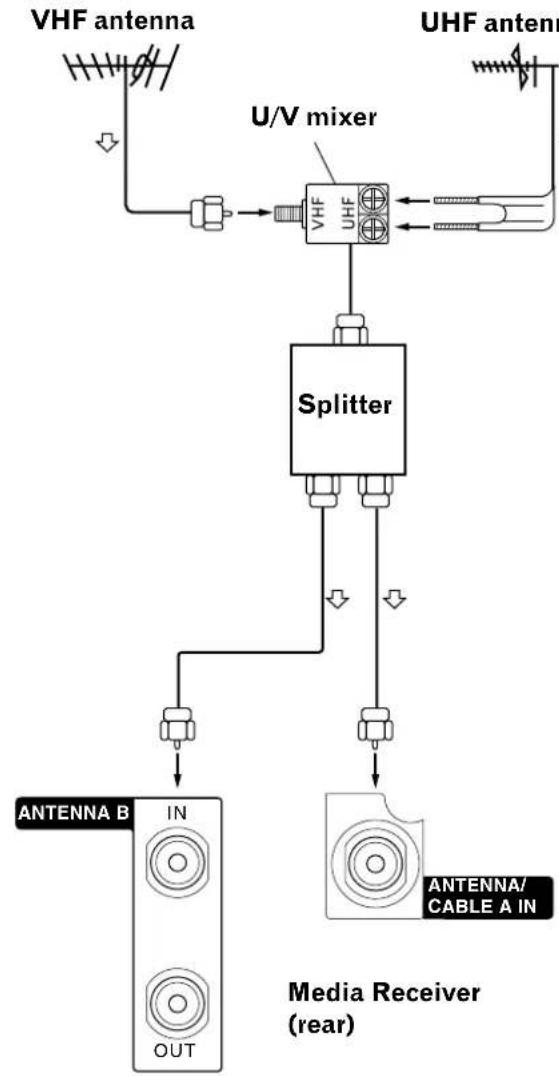

VHF antenna UHF antenna U/V mixer Media Receiver (rear) Media Receiver (rear)

• Be sure to connect coaxial cables as shown above. Signal receptionmay fail if not properly connected. Splitter Splitter06 Preparation

Switching between antenna A and B To watch broadcasts via the two antennas, you can select it by pressing ANT on the remote control unit.

• While watching a broadcast, press ANT to view the image received from the other antenna.

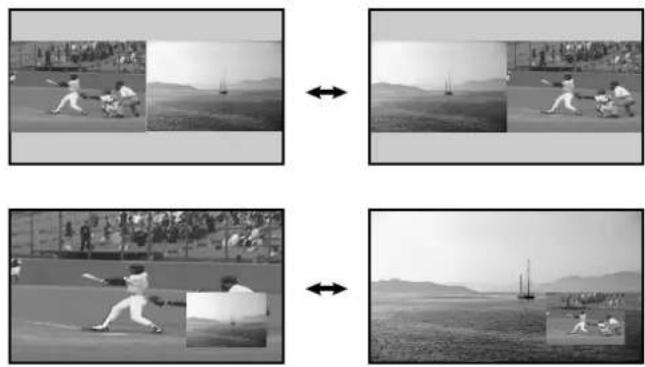

• Pressing ANT while watching in the 2-screen mode (TV image and video image) with TV selected will display the TV image of the other antenna.

• Pressing ANT while watching in the 2-screen mode with two TV images displayed will not have any effect.

• Pressing ANT while watching in the 2-screen mode with two video images displayed will switch the selected screen to a TV image. Inserting the cable card The Media Receiver is equipped with a slot for inserting a cable card. When you are watching digital and/or High Definition TV channels over cable, the card allows you to use the POD service provided by the cable TV company; the POD stands for Point of Deployment. This service presents various types of useful information, using HTML text.

Confirm that the ANTENNA/CABLE A IN terminal has been connected with the coaxial cable from the Cable Converter. See page 21.

Hold the tab of the slot cover on the rear of the Media Receiver, and remove the cover while releasing the tab’s latch. Cable CARD

Insert the specified cable card into the Cable CARD slot as far as it goes. Cable CARD

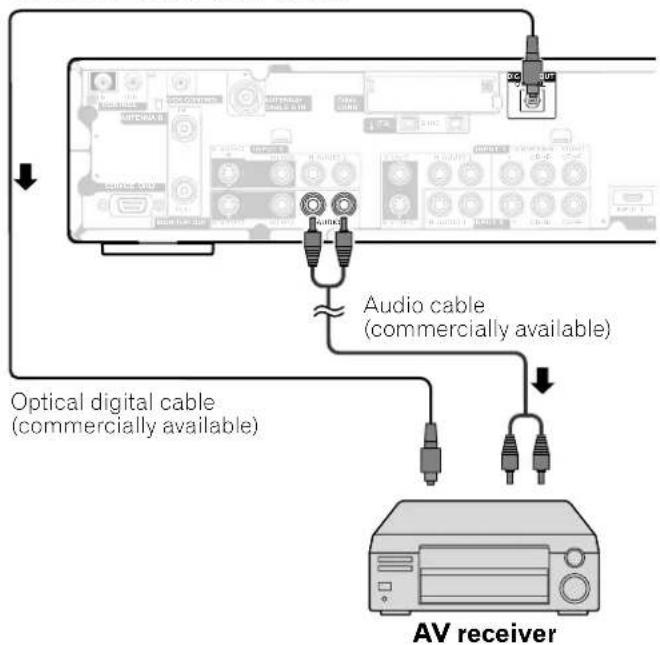

DIGITAL OUTOPTICAL (TS)

Power cord Power cord

• Use only the supplied power cord.

• Be sure to use the specified power supply voltage; neglecting this can result in fire or electric shock.

• For the Plasma Display System, a three-core power cord with a ground terminal is used for efficiency protection. Always connect the power cord to a three-pronged outlet and make sure that the cord is properly grounded.
• Always turn off the power of the Plasma Display and Media Receiverwhen connecting the power cords.• Disconnect the power cord from the power outlet when the PlasmaDisplay System is not going to be used for a long period of time.ANTENNA/CABLE A INMONITOR OUTINPUT 2VCR CONTROL INPUT 3ANTENNA BCONTROLIN OUTS-VIDEOS-VIDEOVIDEOVIDEOR-AUDIO-LR-AUDIO-LCOMPONENT VIDEO

OUT AC IN Connecting the power cord Connect the power cord after all component connections have been completed. Plasma Display (rear view) Media Receiver (rear view) Noise filter Partially eliminates noise caused by the power source. Noise filter Partially eliminates noise caused by the power source.07 Basic Operations

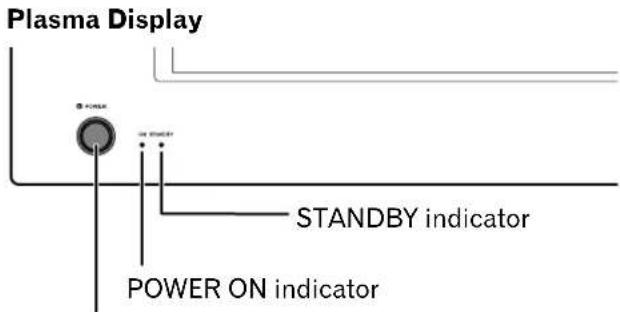

Press POWER on the Plasma Display if the STANDBY indicator is off.

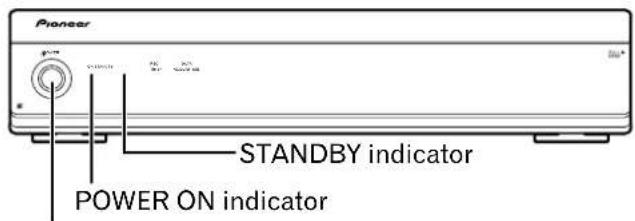

Confirm that the STANDBY indicators light up red, and then press TV on the remote control unit or STANDBY/ON on the Plasma Display or POWER on the Media Receiver to turn the system on.

• The POWER ON indicators on the Plasma Display and Media Receiver light up green.
• In this manual, “system” means the Plasma Display Panel and MediaReceiver. Turning off the power (Standby)

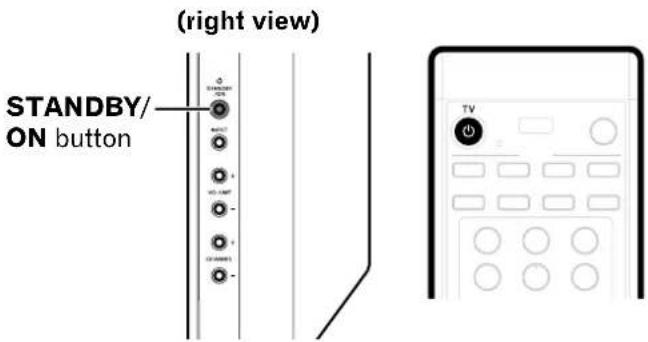

Press TV on the remote control unit or STANDBY/ON on the Plasma Display or POWER on the Media Receiver.

• The system enters the standby mode and the image on the screen disappears.

• Both STANDBY indicators light up red.

• It is recommended to place the system into the standby mode by pressing TV on the remote control unit. This allows the system to automatically receive digital TV program information in the standby mode.
• If you are not going to use this system for a long period of time, pressPOWER on the Plasma Display and remove the power cord from thepower outlet. Plasma Display/Media Receiver status indicators Indicator Status System Status Plasma Display Media Receiver

POWER ON STANDBY POWER ON STANDBY

Power to the Plasma Display and Media Receiver is off. Or the power cords have been disconnected. Power to the system is on. The system is in the standby mode. The power cord has been disconnected from the Media Receiver. Power to the Plasma Display is off. Or the power cord has been disconnected from the Plasma Display. For other than the above, see “Troubleshooting” on page 69. Flashing Flashing Illustration shows PDP-5045HD/4345HD.07Basic Operations English

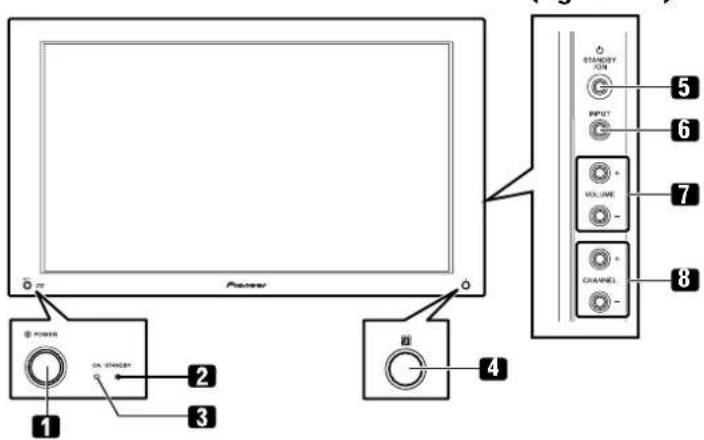

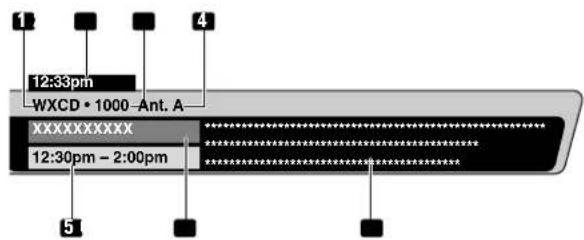

Plasma Display (right view) Channel banner DTV 2 • 1002.102 AXXXXXXXXXX12:30pm — 2:00pm12:33pm CHANNEL +/– Watching TV channels Unless you set up TV channels that you can watch under thecurrent conditions, you cannot tune in those channels. For theprocedure, see “Setting up TV channels” on page 31.• When watching a digital TV program, you may see emergency alertmessages scrolling at the top of the screen. Those messages arebroadcasted by TV stations as necessary when in emergencysituations. Selecting the antenna After confirming that the Mode switch on the remote controlunit has been set to “TV”, press ANT on the remote control unitto select antenna A or B.• Make this selection depending on the connections to theantenna input terminals on the Media Receiver (page 21). Changing channels To increase the channel number, press CH + on the remotecontrol unit. To decrease the channel number, press CH –.• CHANNEL +/– on the Plasma Display operates the same asCH +/– on the remote control unit.

• Press CH RETURN to switch the currently tuned channel to the previously tuned channel.Press CH RETURN again to restore the currently tunedchannel. Using 0 – 9 and • (dot) on the remote control unit Select channels directly by pressing buttons 0 to 9. To selectsubchannels, also use the • (dot) button. EXAMPLE

• After entering a channel or subchannel number, you may pressCH ENTER to tune in the channel more quickly.• Each time you change a channel, such a channel banner appearsthat shows information about the currently selected channel. To clearthe channel banner, press DTV INFO. For more information aboutthe channel banner, see “Viewing a channel banner” on page 26.07 Basic Operations

• VOLUME +/– on the Plasma Display operates the same as VOL +/– on the remote control unit.

• To mute the sound output, press MUTING. “ ” appears on the screen. To quit muting, press MUTING again. Pressing VOL + also quits muting. Plasma Display (right view) Volume adjustment Muting Viewing a channel banner While watching a digital TV program, pressing DTV INFO causes the following banner to appear. Pressing DTV INFO again causes the banner to disappear. 12:30pm – 2:00pmWXCD • 1000 Ant. AXXXXXXXXXX***********************************************************************************************************************************************12:33pm1 2 35 6 7

1 Station name 2 Current time 3 Channel number 4 Input (Ant. A or Ant. B) 5 Program time schedule 6 Program title 7 TV rating and program description (This may be unavailable for some programs.)

• The above information is not displayed if not included in broadcast signals.

• If “ ” is shown at the bottom right of the channel banner containing program description, press / to scroll the program description. VOLUME +/–07Basic Operations English

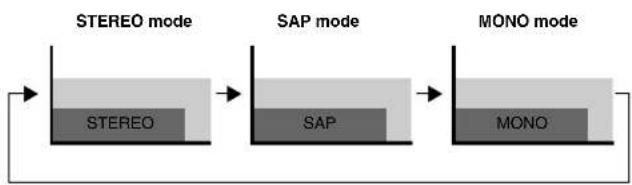

Setting MTS/SAP mode When watching conventional TV programs, you may enjoy stereo sound and/or Secondary Audio Programs (SAP), using the Multi-channel Television Sound (MTS) function.

• Stereo broadcasts You can enjoy, for example, sports, shows, and concerts in dynamic stereo sound.

• SAP broadcasts MAIN sound: The normal program soundtrack (either in mono or stereo). SAP sound: Listen to second language, supplementary commentary and other information. (SAP is mono sound.)

• Conventional TV channels in this manual designate TV channels that are received through the conventional VHF/UHF frequencies or conventional cable TV channels.

• When stereo sound is difficult to hear, you may manually switch to the MONO mode to obtain clearer sound.

• Once the MONO mode is selected, the Plasma Display System sound remains mono even if the system receives a stereo broadcast. You must reselect the STEREO mode if you want to hear stereo sound again.

• Selecting MTS while the input source is INPUT 1 to 4 or PC does not change the type of sound. In this case, sound is determined by the video source. Each time you press MTS, MTS toggles as shown below. STEREOSTEREO mode SAP SAP mode MONO MONO mode
• In each of the MTS/SAP modes selected using the MTS button, the display changes depending on broadcasting signals being received. Using the POD service If you have watched digital and/or High Definition TV channels over cable, you can use the POD service provided by the cable TV company. This service presents various types of useful information, using HTML text. Press HOME MENU, 9, 9, then 9 to view the POD display.

• If you have enabled data acquisition using the menu, POD information is automatically acquired even when the system is in the standby mode. See page 32. Changing the language If you have selected a digital TV program that provides multi- language services, you can switch among the languages by pressing MTS on the remote control unit. Each time you press MTS, the language switches.

• Switchable languages differ depending on the current broadcast.

• If the language selected through language setting is available when the channel or program is changed, you will hear that language.07 Basic Operations

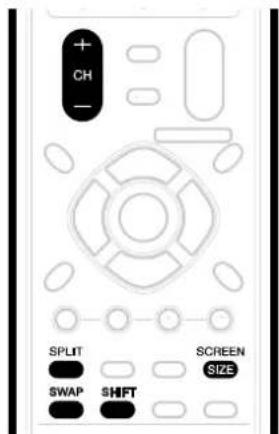

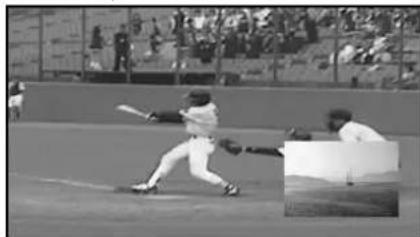

Using the multiscreen functions Splitting the screen Use the following procedure to select the 2-screen or picture-in- picture mode. 2-screen Picture-in-picture

• Each time you press SPLIT, the display mode is switched among 2-screen, picture-in-picture, and single-screen. When receiving STEREO sound signals A 125STEREOIn STEREO modeIn SAP modeIn MONO modeA 125STEREOA 125 MONO When receiving MAIN + SAP sound signals In STEREO modeIn SAP modeIn MONO modeA 125MAIN (SAP)A 125SAP (MAIN)A 125MONO (SAP) When receiving STEREO + SAP sound signals In STEREO modeIn SAP modeIn MONO modeA 125 STEREO (SAP)A 125SAP (STEREO)A 125MONO (SAP) When receiving MONO sound signals In STEREO mode In SAP mode In MONO mode A 125 MONO A 125 MONO A 125 MONO07Basic Operations English

• In 2-screen or picture-in-picture mode, press SWAP to switch the position of the 2 screens shown. Left screen is the active screen which will be indicated by “ ”. The user is allowed to operate picture and sound.

• In 2-screen mode, press SCREEN SIZE to change the size of the left screen.

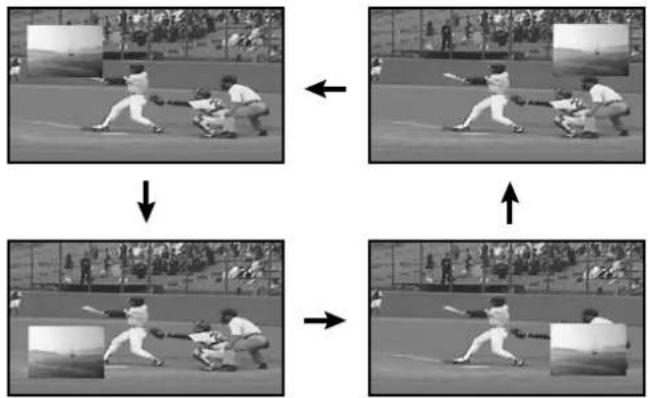

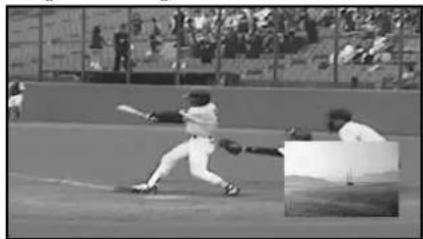

• In picture-in-picture mode, press SHIFT to move the position of the small screen in anti-clockwise.

• If watching TV programs, press CH +/– to change the channel.
• The multiscreen function cannot display images from the same inputsource at the same time. If you make such an attempt, a warningmessage appears.
• When you press HOME MENU or DTV INFO, the single-screen mode is restored and the corresponding menu is displayed.• When the two screens show the same analog broadcasting comingthrough antenna A and B, the picture quality may differ between thetwo screens. Freezing images Use the following procedure to capture and freeze one frame from a moving image that you are watching. Normal image Still image

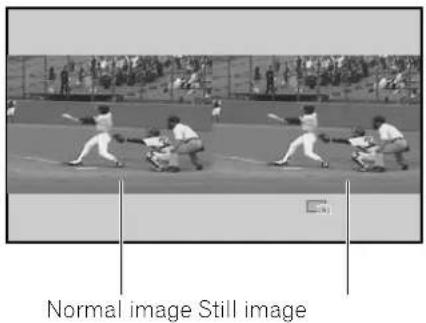

• A still image appears on the right screen while a moving image is shown on the left screen.

Press FREEZE again to cancel the function.

Menu operations The following describes the typical procedure for setting up the menus. For the actual procedures, see the appropriate pages that describe individual functions.

Repeat step 2 until you access the desired submenu item.

• The number of menu layers differs depending on menu items.

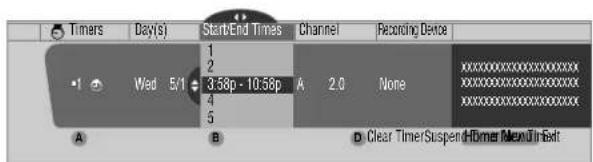

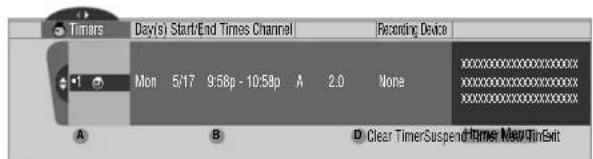

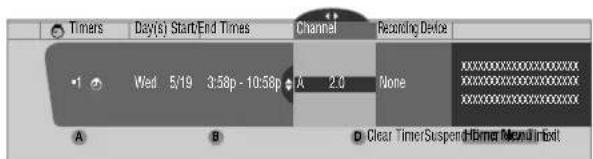

• If you select “Tuner Setup” or “Timers” , a menu bar appears at the bottom of the screen. To select a submenu item on the bar, press / instead of / .

Setting up TV channels This section describes how to search and set up TV channels that you can watch under the current conditions. Unless you set up TV channels using Auto Channel Preset, you may not be able to tune in those channels. Using Auto Channel Preset Auto Channel Preset automatically searches and sets up TV channels.

Select “Channel Setup”. ( / then ENTER)

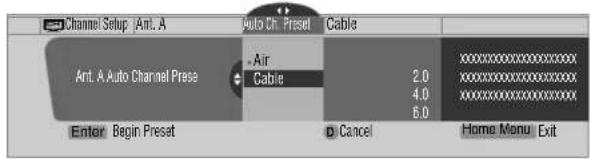

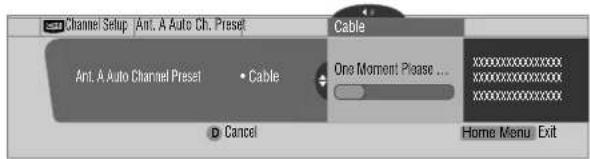

After Auto Channel Preset has been finished, press HOME MENU to exit the menu.

• When using the Cable Converter, you may need to manually addCable Converter output channels. Setting for skipping unwanted channels From among TV channels searched and set up using Auto Channel Preset, you can select channels to be skipped when CH +/– are operated.

Select “Channel Setup”. ( / then ENTER)

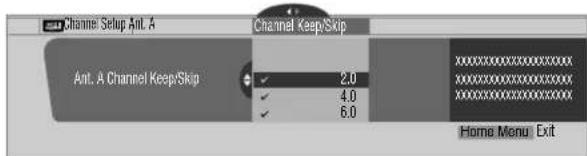

Select “Channel Keep/Skip”. ( / then ENTER)

Select a channel to be skipped. ( / then ENTER) Channel Setup Ant. AChannel Keep/SkipAnt. A Channel Keep/Skip

• For the skipped channel, a check mark disappears.

• To restore skipped channels, use the above procedure except that youselect a skipped channel in step 6.• When using the Cable Converter, you may need to manually addCable Converter output channels. Setting up TV channels manually This section describes how to manually set up TV channels that have not been set up by Auto Channel Preset.

Select “Channel Setup”. ( / then ENTER)

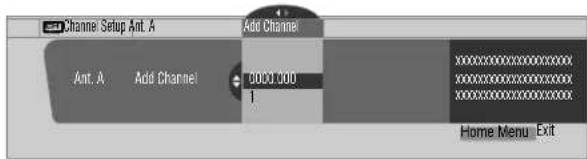

Select a channel number to be added. ( / then ENTER)

• You can also use buttons 0 – 9 to enter a channel number. Channel Setup Ant. AAdd Channel0000.000Ant. A Add Channelxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

• After ENTER has been pressed, a confirmation screen appears.

Press A to complete the setup processing.

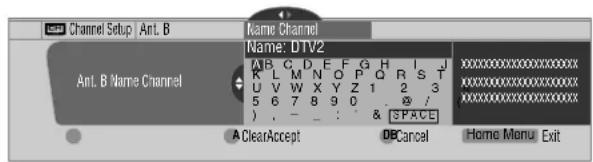

Naming TV channels You can name TV channels that you have set up for antenna B. This may help you easily identify the channels during selections.

Select “Channel Setup”. ( / then ENTER)

• You can also use buttons 0 – 9 to enter a channel number. Channel Setup Ant. B Name Channel Ant. B Name Channel xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxx Exit Home Menu

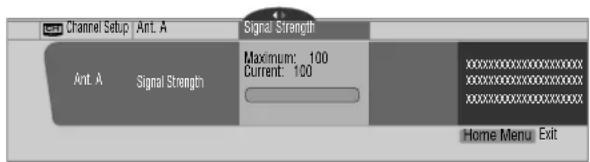

Press HOME MENU to exit the menu. Checking signal strength When you have selected antenna A, you can check the current channel’s signal strength. You may use this function when receiving a channel through a VHF/UHF antenna.

Select “Channel Setup”. ( / then ENTER)

• Adjust the direction of the antenna so that the current signal strength reaches as close to the maximum signal strength as possible.

Press HOME MENU to exit the menu. Checking the Cable Card ID The Media Receiver has a slot for a cable card that is used for managing your information by the cable TV company. The following procedure allows you to check your Cable Card ID and the Host ID.

Select “Channel Setup”. ( / then ENTER)

Select “POD ID”. ( / )

• The Host ID and Cable Card ID appear.

Press HOME MENU to exit the menu. Enabling data acquisition Use this function to enable the system to automatically acquire information about digital TV programs even when in the standby mode.

Select “Channel Setup”. ( / then ENTER)

• The DATA ACQUISITION indicator on the front of the Media Receiver lights while data is being acquired.09Tuner Setup English

Parental Control With the Parental Control, parents can prevent their childrenfrom watching inappropriate TV programs, VCR or DVDcontents. When an attempt is made to watch a program (orcontent) blocked by parents, the Plasma Display shows nothingbut a message. The Parental Control functions for bothconventional and digital TV channels.In the U.S. three rating systems have been provided: the TVratings, TV Parental Guidelines, and movie ratings. Movieratings are provided by the Motion Picture Association ofAmerica (MPAA) and are used for original movies not edited fortelevision.For the rating system in Canada, see pages 36 and 37. Voluntary movie rating system (MPAA) Rating DescriptionG General audiences. All ages admitted.PG Parental guidance suggested. Some materialmay not be suitable for children.PG-13 Parents strongly cautioned. Some materialmay be inappropriate for children under 13.Age-Base R Restricted. Under 17 requires accompanyingparent or adult guardian (age varies in somejurisdictions).NC-17 No one 17 and under admitted.Adult A rating that has now been superseded byNC-17.NR Not rated.

• The voluntary movie rating system only uses an age-based rating. TV ratings Rating DescriptionTV-Y All childrenTV-Y7 Children 7 and aboveAge-BaseTV-G General audiencesTV-PG Parental guidance suggestedTV-14 Parents strongly cautionedTV-MA Mature audiences only TV Parental Guidelines ContentFV V S L D Rating (Fantasy (Violence) (Sexual (Adult (Sexually violence) situations) language) suggestive dialog) TV-Y (All children)TV-Y7(Directed to older children)

TV-G Age-Base (General audience)TV-PG(Parental guidance suggested) X XXX TV-14(Parents strongly cautioned) X XXX TV-MA(Mature audience only) XXXX: Content rating can be set. Changing the password Using a password prevents other persons from changingParental Control settings. A default password (1234) has beenset before shipment. Use the following procedure to change thepassword. Press HOME MENU.

Select “Change Password”. ( / then ENTER) Parental ControlPasswordChange PasswordPasswordxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxClear Password Exit Home Menu Enter the current 4-digit password, using buttons 0 – 9. Enter a 4-digit password to be newly set, using buttons0 – 9. Enter the same password that you have entered in step 7.•A confirmation screen appears. Press A. Press HOME MENU to exit the menu.

• Take a note of the newly set password and keep it handy.09 Tuner Setup

Clearing the password Use the following procedure to clear the password.

• A confirmation screen appears.

• The password entry screen appears. Enter your 4-digit password using buttons 0 – 9.

• If you select “Off” in step 5, then select “Reset on Startup” or “Don’t Reset”. With “Reset on Startup” selected, the Parental Control is automatically activated when the power to the system is turned off and on. With “Don’t Reset” selected, the Parental Control remains off when the power to the system is off and on. Setting the voluntary movie rating system (MPAA)

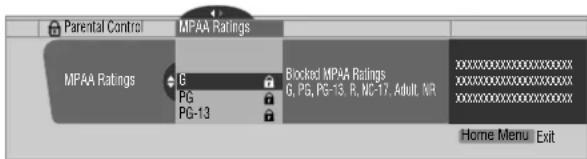

Select “MPAA Ratings”. ( / then ENTER)

Select the desired rating and change the setting. ( / then ENTER) Parental ControlMPAA Ratings MPAA RatingsBlocked MPAA RatingsG, PG, PG-13, R, NC-17, Adult, NRxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx PG-13 Exit Home Menu

• The password entry screen appears. Enter your 4-digit password using buttons 0 – 9.

• Each time you press ENTER, the setting is switched.

• A lock icon appears beside the blocked rating.

• All the ratings have been unblocked before shipment.

• Blocking a rating causes more severe ratings to be automatically blocked as well. Likewise, unblocking a rating causes less severe ratings to be automatically unblocked. We suggest you write down your password so you don’t forget it.

PDP-5045HD/PDP-4345HD

Your password No.: If you forget the password When the message “Enter your Password” is displayed in step 6 under “Clearing the password”, press the ENTER button on the remote control unit and hold it down for 3 seconds or longer. The password reverts to “1234”.09Tuner Setup English

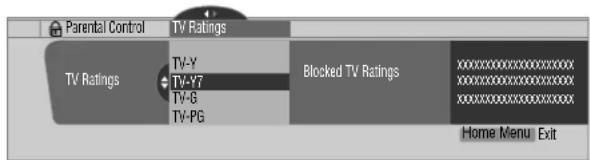

Setting the TV ratings

Select the desired rating and change the setting. ( / then ENTER) TV Ratings TV-Y TV-Y7TV RatingsBlocked TV Ratingsxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx TV-G TV-PG Exit Home MenuParental Control

• The password entry screen appears. Enter your 4-digit password using buttons 0 – 9.

• Each time you press ENTER, the setting is switched.

• A lock icon appears beside the blocked rating.

• All the ratings have been unblocked before shipment.

• Blocking a rating causes more severe ratings to be automatically blocked as well. Likewise, unblocking a rating causes less severe ratings to be automatically unblocked. Setting the TV Parental Guidelines (TV Guidelines)

Select the desired rating and change the setting. ( / then ENTER) Parental ControlTV Parental GuidelinesFantasy ViolenceTV Parental GuidelinesBlocked TV Parental GuidelinesxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxViolenceSexual Situations Exit Home Menu

• The password entry screen appears. Enter your 4-digit password using buttons 0 – 9.

• Each time you press ENTER, the setting is switched.

• A lock icon appears beside the blocked rating.

• All the ratings have been unblocked before shipment.

• Blocking a rating causes more severe ratings to be automatically blocked as well. Likewise, unblocking a rating causes less severe ratings to be automatically unblocked. Blocking Not Rated TV programs Use the following procedure to block TV programs whose rating information is unavailable.

• The password entry screen appears. Enter your 4-digit password using buttons 0 – 9.

The factory default is “Don’t Block”.

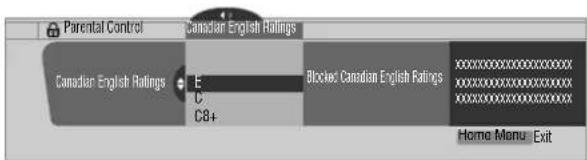

Canadian rating systems In Canada you can choose the Canadian English ratings or the Canadian French ratings. These ratings are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy. Canadian English ratings Rating Description E Exempt: Includes news, sports, documenta- ries and other information programming; talk shows, music videos, and variety programming. C Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being. C8+ Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen. G General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional. Age-Base PG Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues. 14 + Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme. 18 + Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the develop- ment of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity. Canadian French ratings Rating Description E Exempt programming. G General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner. 8ans+ General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under eight who cannot distinguish between imaginary and real situations. Recommended for viewing with parent. Age-Base 13ans+ Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for viewing with parent. 16ans+ Over 16 years: Could contain frequent violent scenes and intense violence. 18ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence. Setting Canadian English ratings

Select “Canadian English Ratings”. ( / then ENTER)

Select the desired rating and change the setting. ( / then ENTER) Parental ControlCanadian English Ratings Canadian English RatingsBlocked Canadian English Ratingsxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

• The password entry screen appears. Enter your 4-digit password using buttons 0 – 9.

• Each time you press ENTER, the setting is switched.

• A lock icon appears beside the blocked rating.

• All the ratings have been unblocked before shipment.

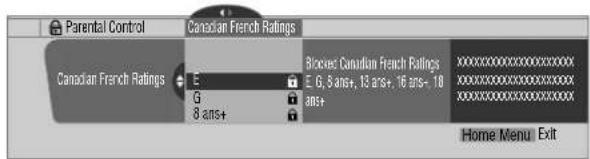

Setting Canadian French ratings

Select “Canadian French Ratings”. ( / then ENTER)

Select the desired rating and change the setting. ( /then ENTER)Parental ControlCanadian French Ratings Canadian French RatingsBlocked Canadian French RatingsE, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+ xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx 8 ans+ Exit Home Menu• The password entry screen appears. Enter your 4-digitpassword using buttons 0 – 9.

• Each time you press ENTER, the setting is switched.
• A lock icon appears beside the blocked rating.• All the ratings have been unblocked before shipment. Press HOME MENU to exit the menu. Temporarily deactivating the Parental Control When the Parental Control is working and censors a blocked TVprogram (or content), the Plasma Display shows nothing but amessage.The method for temporarily deactivating the Parental Controldiffers, depending on the currently selected input source. Antenna A, antenna B, or i.LINK: Press ENTER and then enter your 4-digit password.WWWWWWW1000.0000(Ant. B)xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxParental ControlDisable Parental ControlEnter• The password entry screen stays only for one minute. Afterthe screen disappears, pressing ENTER causes it to appearagain. Input 1 – 4: Enter your 4-digit password. You need not press ENTER first,pressing ENTER causes the password entry screen todisappear.Please Input Your Password.• The above password entry screen will also be shown during2-screen mode, picture-in-picture, and while freezing animage.• The password entry screen stays only for one minute. Afterthe screen disappears, pressing ENTER causes it to appearagain. Setting your favorite channels Set up to 10 TV channels to each of the four color buttons onthe remote control unit (40 channels in total). You can thenquickly select from only your favorite channels. Press HOME MENU. Select “Tuner Setup”. ( / then ENTER) Select “Favorites”. ( / then ENTER) Select a color button (A, B, C, D). ( / then ENTER) Select a TV channel to be registered. ( / then ENTER)Favorites FavoritesCurrent Favorites A Line UpA4.0 A6.0FavoritesA 2.0xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxA 4.0A 6.0

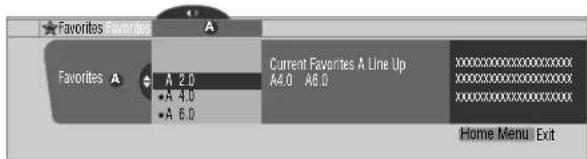

• A star appears beside the favorite channels currentlyselected.•To register another TV channel under the same colorbutton, repeat step 5. To register another TV channelunder a different color button, repeat steps 4 and 5. Press HOME MENU to exit the menu. Setting up closed captions Your Plasma Display System is equipped with an internal closedcaption decoder. Closed caption allows you to viewconversations, narration, and sound effects in TV programs andhome videos as subtitles on your Plasma Display screen.You may enjoy digital closed captions when watching digital TVprograms. Digital closed captions allow you to changeparameters such as fonts and colors.• Not all programs and videos offer closed caption. Please lookfor the “” symbol to ensure that captions will be shown.09 Tuner Setup

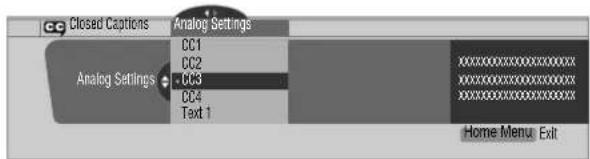

Activating the closed caption

On If Mute Off Exit Home Menu Item Description Off Does not show closed captions. (factory default) On Always shows closed captions. On If Mute Shows closed captions only while sound is being muted.

• For MONITOR OUT, only conventional closed caption signals are output; digital closed caption signals are not output. Selecting the type of conventional closed captions Select the type of conventional closed captions that you will watch after tuning to a conventional TV channel. This selection also becomes effective when a selected digital TV program provides only conventional closed captions.

• “CC1”, “CC2”, “CC3”, or “CC4” displays subtitles of TV dramas and news programs while allowing a full view of the picture.

• “Text1”, “Text2”, “Text3”, or “Text4” superimposes on the picture other information (e.g. TV guide, weather) that is independent of the TV in progress.

• The factory default is “CC1”.

Press HOME MENU to exit the menu. Selecting digital closed captions Use the following procedure to select digital closed captions.

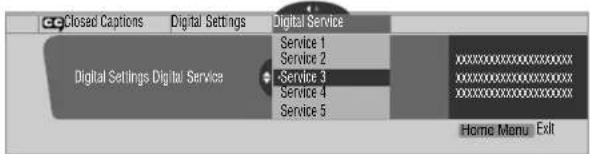

Select the desired closed caption. ( / then ENTER) Digital Settings Digital Settings Digital Service xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxx Closed Captions Digital Service Service 3 Service 4 Service 5 Service 2 Service 1 Exit Home Menu

• The factory default is “Service 1”.

• The Primary Caption Service is usually offered for Service 1, and the Secondary Language Service is usually offered for Service 2 if these services are available. Selecting digital closed caption parameters Use the following procedure to change such parameters of digital closed captions as font size, font type, foreground and background colors.

Repeat steps 5 and 6 as necessary. ( , / )

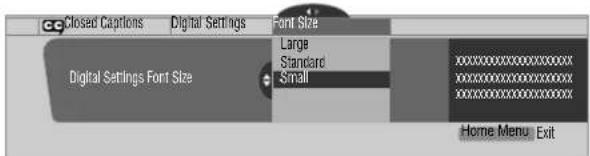

Font 1 (monospaced with serifs)/ Font 2 (proportionally spaced withserifs)/ Font 3 (monospaced without serifs)/ Font 4 (proportionallyspaced without serifs)/ Font 5 (casual font)/ Font 6 (cursive font)/Font 7 (small capitals font) With “Auto” selected, parameters specified by the provider are used; if not specified by the provider, the bolded default parameters are used. If you select parameters other than “Auto”, the selected parameters are used regardless of provider’s specifications. Clock Setting With “Auto Set” selected for Clock Setting, the system acquires and sets time information automatically. You can also manually set the correct time. If you disconnect the power cord from the power outlet or power blackout occurs, the set time is cleared.

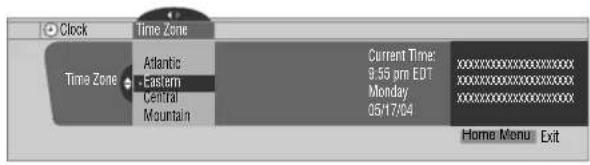

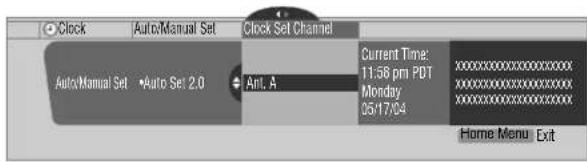

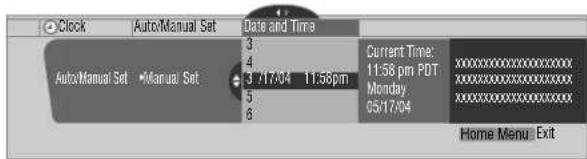

Select a time zone for your area. ( / then ENTER) ClockTime ZoneAtlanticEasternTime ZonexxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxCentralMountain Exit Home MenuCurrent Time:9:55 pm EDTMonday05/17/04

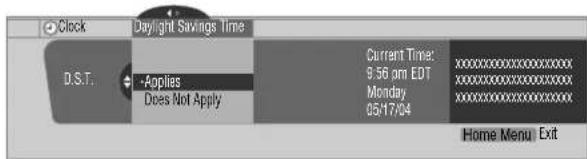

• Make this selection, depending on whether summer time is employed in your area. ClockDaylight Savings TimeAppliesD.S.T.xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxDoes Not Apply Exit Home MenuCurrent Time:9:56 pm EDTMonday05/17/04

Exit Home MenuCurrent Time:11:58 pm PDTMonday05/17/04

Press HOME MENU to exit the menu.

• When the time has not been set, the REC TIMER indicator on thefront of the Media Receiver blinks.• When the time has not yet been set, you cannot view channel bannerinformation, use auto channel select, and preset TV programs forrecording.10 Adjustments and Settings

You can also use the menu to change the options. Press HOME MENU. Select “Picture”. ( / then ENTER)

Select the desired option. ( / then ENTER) AV SelectionSTANDARDDYNAMICMOVIE GAME USER For AV source Item Description STANDARD For a highly defined image in a normally bright room DYNAMIC For a very sharp image with the maximum contrastThis mode does not allow manual imagequality adjustment.MOVIE For a movieGAME Lowers image brightness for easier viewing.USER Allows the user to customize settings asdesired. You can set the mode for each inputsource. For PC source Item Description STANDARD For a highly defined image in a normally (factory default) bright roomUSER Allows the user to customize settings asdesired. You can set the mode for each inputsource. Press HOME MENU to exit the menu. Sleep Timer When the selected time elapses, the Sleep Timer automaticallyplaces the system into the standby mode.Press SLEEP to select the desired time.• The timer starts counting.

• Each time you press SLEEP, the selection is switched as below: (cancel)

• The factory default is “Off”.
• To cancel the Sleep Timer, select “Off” by pressing SLEEP.

• Five minutes before the selected time elapses, the remaining time appears every minute.You can also use the menu to set the Sleep Timer. Press HOME MENU. Select “Sleep Timer”. ( / then ENTER)

Select the desired time. ( / then ENTER)

Press HOME MENU to exit the menu. AV Selection Select from the five viewing options, depending on the currentenvironment (e.g., room brightness), the type of the current TVprogram, or the type of images input from external equipment. Press AV SELECTION.• The current AV Selection mode appears.

Press AV SELECTION again before the displayed mode disappears.•For AV source, the mode is switched in the order;STANDARD, DYNAMIC, MOVIE, GAME, then USER.•For PC source, the mode is switched betweenSTANDARD and USER.10Adjustments and Settings English

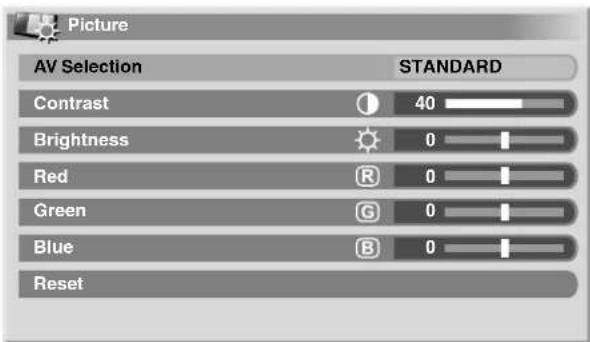

For PC source, the following screen appears:PictureAV SelectionContrastBrightness Red Green Blue ResetSTANDARD

• When an adjustment screen is in display, you can alsochange an item to be adjusted, by pressing

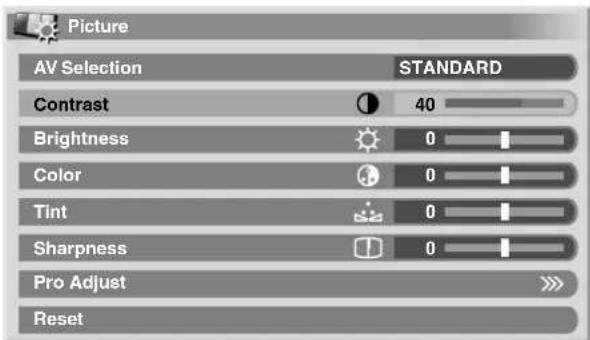

Press HOME MENU to exit the menu. For AV source Item button button Contrast For less contrast For more contrast BrightnessFor less brightness For more brightness Color For less color intensity For more color intensity Tint Skin tones become Skin tones becomepurplish greenishSharpnessFor less sharpness For more sharpness For PC source Item button button Contrast For less contrast For more contrast Brightness For less brightness For more brightness Red For weaker red For stronger red Green For weaker green For stronger green Blue For weaker blue For stronger blue

• To make settings for “PureCinema”, “Color Temp”, “MPEG NR”,“DNR”, “CTI”, and “DRE”, select “Pro Adjust” in step 3, and then pressENTER. For the subsequent procedures, see “Pro Adjust”.
• To restore the factory defaults for all the items, press / to select“Reset” in step 3, and then press ENTER. A confirmation screen appears. Press / to select “Yes”, and then press ENTER. Pro Adjust This system provides various advanced functions for optimizingthe picture quality. Press HOME MENU. Select “Picture”. ( / then ENTER)

Select “Pro Adjust”. ( / then ENTER)

Select an item to be adjusted. ( / then ENTER)•You can select “PureCinema”, “Color Temp”,“MPEG NR”, “DNR”, “CTI”, or “DRE”.

Select the desired parameter. ( / then ENTER)

• For the selectable parameters, see the table.PureCinemaAutomatically detects a film-based source (originally encoded at24 frames/second), analyzes it, then recreates each still filmframe for high-definition picture quality.Selections Off Deactivates the PureCinema.Standard Produces smooth and vivid movingimages (film specific) byautomatically detecting recordedimage information when displayingDVD or 1080i HDTV images (e.g.,movies) having 24 frames persecond.ADV Produces smooth and quality movingimages (as shown on theaterscreens) by converting to 72 Hzwhen displaying DVD images (e.g.,movies) having 24 frames persecond.Remark You cannot select “Standard” when 480p or 720psignals are being input.10 Adjustments and Settings

Color Temp Adjusts the color temperature, resulting in a better white balance. Selections High White with bluish tone Mid Natural tone Low White with reddish tone MPEG NR Eliminates mosquito noise from video images when a digital TV channel is watched or a DVD is played, resulting in noise-free images. Selections Off Deactivates the MPEG NR. On Activates the MPEG NR. DNR Eliminates video noise for clean crisp images. The DNR stands for Digital Noise Reduction. Selections Off Deactivates the DNR. High Enhanced DNR Mid Standard DNR Low Moderate DNR CTI Provides images with clearer color contours. The CTI stands for Color Transient Improvement. Selections Off Deactivates the CTI. On Activates the CTI. DRE Adjusts dark and bright portions on images so that the contrast between brightness and darkness becomes clearer. Selections Off Deactivates the DRE. On Activates the DRE. Sound adjustments Adjust the sound to your preference for the chosen AV Selection option. See page 40.

Select an item to be adjusted. ( / )

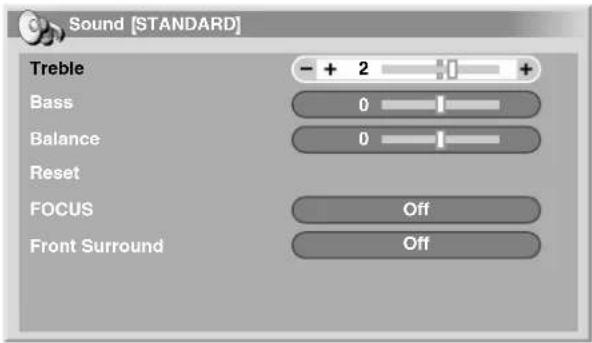

Sound STANDARD Item button button Tr eble For weaker treble For stronger treble Bass For weaker bass For stronger bass Balance Decreases audio from Decreases audio from the right speaker the left speaker

• To restore the factory defaults for all the items, press / to select “Reset” in step 3, and then press ENTER. A confirmation screen appears. Press / to select “Yes”, and then press ENTER.10Adjustments and Settings English

FOCUS This shifts the sound coming direction (sound images) upward and produces clear sound contours.

Press HOME MENU to exit the menu. Front Surround This provides three-dimensional sound effects and/or deep, rich bass.

Select the desired parameter. ( / ) Item Description Off Deactivates both the SRS and TruBass. SRS Reproduces highly effective three- dimensional sound. TruBass Provides deep, rich bass using a new (factory default) technology. TruBass + SRS Provides both TruBass and SRS effects.

• (WOW) designates a status where the FOCUS is on andTruBass + SRS has been selected for Front Surround.• is a trademark of SRS Labs, Inc.• WOW technology is incorporated under license from SRS Labs, Inc. Power Control Power Control provides convenient functions for power saving. Energy Save You can save power consumption by decreasing the picture brightness. When you need not watch the screen and want to enjoy only audio, you can also deactivate the screen.

Select “Save” or “Picture Off”. ( / then ENTER) Item Description Standard Does not decrease picture brightness. (factory default) Save Decreases picture brightness to save power. Picture Off Deactivates the screen to save power. To restore the screen display, press any button other than VOL +/– and MUTING. This setting is not memorized by the system.

• You can also select this function using the Home menu when theinput source is a PC. No Signal off (AV mode only) The system will be automatically placed into the standby mode if no signal is received for 15 minutes.

Select “Enable”. ( / then ENTER) Item Description Disable Does not place the system into the (factory default) standby mode. Enable Places the system into the standby mode if no signal is received for 15 minutes.

• Five minutes before the system is placed into the standby mode, a message appears every minute.• The system may not be placed into the standby mode when noisesignals are present at the Media Receiver after a TV program finishes.10 Adjustments and Settings

No Operation off (AV mode only) The system will be automatically placed into the standby mode when no operation is performed for three hours.

Select “No Operation off”. ( / then ENTER)

Select “Enable”. ( / then ENTER) Item Description Disable Does not place the system into the (factory default) standby mode. Enable Places the system into the standby mode if no operation is performed for three hours.

• Five minutes before the system is placed into the standby mode, a message appears every minute. Power Management (PC mode only) The system will be automatically placed into the standby mode when no signal is received from the personal computer.

Select “Mode1” or “Mode2”. ( / then ENTER) Item Description Off No power management (factory default) Mode1 • Places the system into the standby mode when no signal is received from the personal computer for eight minutes.

• Even when you start using the computer and a signal is received again, the system stays off.

• The system is switched on again by pressing STANDBY/ON on the Plasma Display or TV on the remote control unit. Mode2 • Places the system into the standby mode when no signal is received for eight seconds.

• When you start using the computer and a signal is received again, the system is switched on.

• The system is switched on again by pressing STANDBY/ON on the Plasma Display or TV on the remote control unit.

Press HOME MENU to exit the menu. Adjusting image positions (AV mode only) Adjust the horizontal and vertical positions of images on the Plasma Display.

• To restore the factory defaults for all the items, press / to select “Reset” in step 4, and then press ENTER. A confirmation screen appears. Press / to select “Yes”, and then press ENTER.

• Adjustments are stored separately according to input source.10Adjustments and Settings English

Adjusting image positions and clock automatically (PC mode only) Use Auto Setup to automatically adjust positions and clock of images coming from a personal computer.

• When Auto Setup is finished, “Auto Setup completed.” appears.• Even when “Auto Setup completed.” appears, Auto Setup may havefailed, depending on conditions.• Auto Setup may fail with a PC image composed of similar patterns ormonochrome. If not successful, change the PC image and try again.• Be sure to connect the computer to the Media Receiver and switch iton before starting Auto Setup. Adjusting image positions and clock manually (PC mode only) Usually you can easily adjust the positions and clock of images using Auto Setup. Use Manual Setup to optimize the positions and clock of images when necessary.

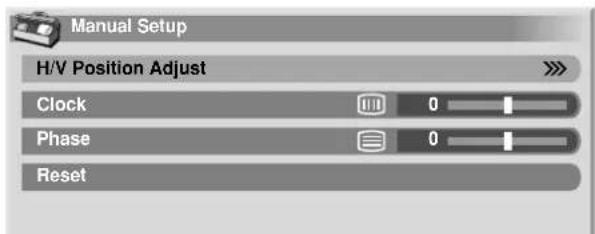

Perform adjustment. ( / and / )

• Use / only when you adjust the vertical position after selecting “H/V Position Adjust”.

• To restore the factory defaults for all the items, press / to select “Reset” in step 4, and then press ENTER. A confirmation screen appears. Press / to select “Yes”, and then press ENTER.10 Adjustments and Settings

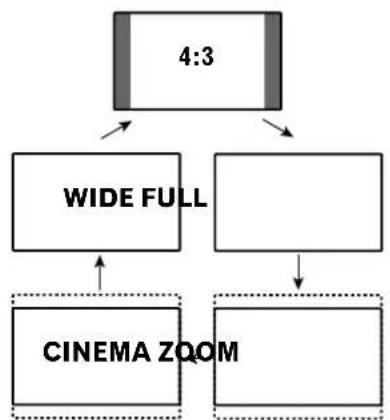

AV mode 4:3 WIDE FULL CINEMA ZOOM PC mode except for XGA signals 4:3 Dot by Dot FULL PC mode for XGA signals 4:3 FULL2 FULL1 Selecting a screen size In single-screen mode, press SCREEN SIZE to change the sizeof the screen from among the selectable options for the type ofvideo signals currently received.• The selectable screen sizes differ depending on the types ofinput signals. AV mode Item Description4:3 For 4:3 “standard” pictures. A side bar appears oneach side.FULL For 16:9 squeeze pictures.ZOOM For 16:9 letterbox pictures. Bars may appear on thetop and bottom with some programs.CINEMA For 14:9 letterbox pictures. Bars may appear on thetop and bottom on some programs.WIDE In this mode pictures are progressively stretchedtoward each side of the screen. PC mode except for XGA signals Item Description4:3 Fills the screen without altering the input signalaspect ratio.FULL Full 16:9 screen displayDot by Dot Matches input signal with same number of screenpixels. PC mode for XGA signals (Ex. 1024 × 768 input at PDP-5045HD)Item Description4:3 Matches input signal with the same number ofscreen pixels.Optimized for 1024 × 768 displayFULL1 Full 16:9 screen displayOptimized for 1024 × 768 displayFULL2 For wide signal display Use when displaying 1280 × 768 signal resolution.

• In 2-screen mode, press SCREEN SIZE to change the size of left screen.
• The PC mode above is for the PDP-5045HD. For the PDP-4345HD the number of panel pixels is different, so signal processing and actualviewing conditions will vary slightly.
• While watching High Definition TV broadcasting, pressing SCREEN SIZE switches between FULL and WIDE.• If you watch High Definition TV broadcasting with WIDE selected,part of the screen (e.g., images, graphic interface) can be missed. Ifthis is the case, select FULL.10Adjustments and Settings English

Changing the brightness at both sides of the screen (Side Mask) With the 4:3 screen size selected for the AV mode, you can change the brightness of the gray side masks that appear at both sides of the screen.

Select the desired parameter. ( / then ENTER) Item Description Fixed Always sets the same brightness for the (factory default) gray side masks. Auto Adjusts the brightness of the gray side masks according to the brightness of images.

Press HOME MENU to exit the menu. Language setting You can select a language to be used for on-screen display such as menus from among three languages: English, French, and Spanish.

Select a recording device. ( / then ENTER)

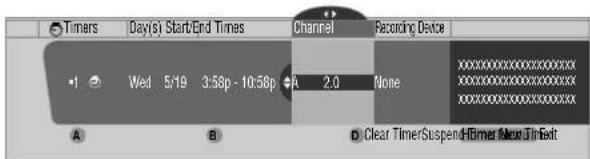

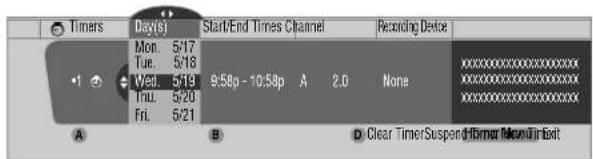

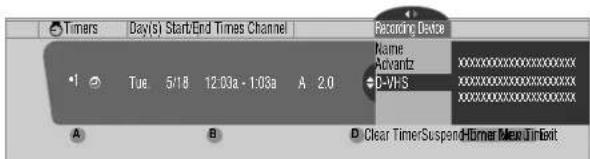

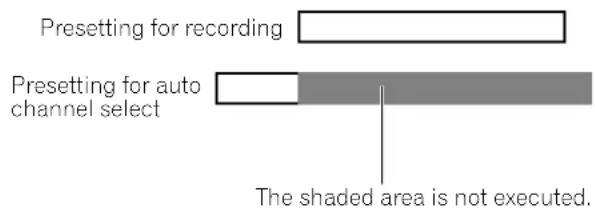

• To preset for auto channel select, select “None”. Day(s) Start/End Times Channel Tue. 5/18 12:03a - 1:03a A 2.0 D-VHSxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxClear TimerSuspend Timer New Timer Exit Home Menu DBA Name AdvantzRecording DeviceTimers

Press HOME MENU to exit the menu. An alarm screen appears slightly before the preset timer is activated. If watching a TV channel through antenna A or B in a single-screen mode, the screen allows you to cancel the presetting by pressing D. Timer AlertThe Following timer is about to begin:Sun. 1/0 12:00 am – 12:00 amAnt. A 0.0Cancel TimerAccept

The icons beside the list numbers have the following meanings. Icon Meaning REC Preset for recording; no conflicts with other timers exist. Preset for auto channel select; no conflicts with other timers exist. REC Preset for recording; conflicts with other timers exist. Preset for auto channel select; conflicts with other timers exist. REC Preset for recording; the timer start has been delayed. Preset for auto channel select; the timer start has been delayed. Presetting TV programs using the timer Using the menu, you can easily preset TV programs for watching later (auto channel select), recording with a D-VHS recorder, or recording via the supplied VCR controller. With the power to the system left on, the Auto Channel Preset automatically selects the preset TV program when its on-air time comes. Then you will not miss an important TV program when you are enjoying another TV program. For the connections with a D-VHS recorder, see pages 54 and

55. For the connections with the supplied VCR controller, see

• You can make up to 32 presettings in total.

• In steps 4 to 8, you can also press / to move the cursor.

• The selections include the days of the week (e.g., Mondays), “Weekdays”, “Weekends”, and “Everyday”. Selecting one of these will cause the timer to activate periodically. Start/End Times ChannelRecording Device Wed. 5/19 9:58p - 10:58p A 2.0 NonexxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxClear TimerSuspend Timer New Timer Exit Home Menu DBA TimersTue. 5/18Mon. 5/17Thu. 5/20Fri. 5/21Day(s)

• If you set a timer to record a future digital program on a VCR, youmust first turn off Parental Control. Otherwise, you will record only ablack screen. See “Temporarily deactivating the Parental Control” onpage 37.•To change the TV program presetting, repeat the above procedure. Tocancel the presetting, press D after selecting a list number in step 4.• Switch on the recording equipment at least 30 seconds before thestart of the preset program; otherwise recording will not be executed.• When presetting for recording, finish the operations two minutes(one minute for auto channel select) before the start of the program;otherwise presetting may fail.• Auto channel select is not executed when the system is in thestandby mode.•Recording is not executed if recordable D-VHS tape is not present inthe D-VHS recorder when the preset program starts. This is also truewhen a specified D-VHS recorder is not in connection.•For recording with a VCR, confirm that the video output terminals onthe Media Receiver have been connected to the signal inputterminals on the VCR.•Presettings become ineffective if the start time and the end time areidentical. Priority rules for overlapped presettings When preset TV programs are overlapped, the following three rules are used to determine a higher priority. If more than one of the three rules are met, the rules are applied in the order; 1, 2, then 3. Rule 1: Presetting for recording is given a higher priority over presetting for auto channel select. Presetting for recording Presetting for auto channel select The shaded area is not executed. Rule 2: If two presettings are overlapped, presetting with earlier start time is given a higher priority. If two presettings are sequential, the last portion of the first program may not be recorded for 60 seconds (or less) because recording of the second program is started at the exact start time. Program A Program B The shaded area is not executed. Rule 3: If presettings at the same start time are overlapped, presetting with a higher list number is given a higher priority.12 Enjoying through External Equipment

You can connect many types of external equipment to your Plasma Display System, like a DVD player, VCR, personal computer, game console, and camcorder. To view images coming from external equipment, select the input source using the INPUT buttons on the remote control (page 14) or the INPUT button on the Plasma Display.

• To protect all equipment, always turn off the system before connecting to a DVD player, VCR, personal computer, game console, camcorder, or other external equipment.
• Refer to the relevant instruction manual (DVD player, personalcomputer, etc.) carefully before making connections. Watching a DVD image Connecting a DVD player Use the INPUT 1 terminals when connecting a DVD player and other audiovisual equipment. CableCARDANTENNA/CABLE A INNPUT 2VIDEOVIDEOR-AUDIO-LR-AUDIO-LCOMPONENT VIDEO

• Refer to your DVD player instruction manual for the signal type.• The INPUT 1 terminals are checked for cable connections in theorder where; 1) Component Video, 2) S-Video, 3) Video.• Connect external equipment to only terminals that are to be actuallyused.•You can also use the INPUT 3 terminals when connecting only withthe Component Video output terminals on a DVD player. Watching a VCR image Connecting a VCR Use the INPUT 2 terminals when connecting a VCR and other audiovisual equipment. MONITOR OUTVCR CONTROL CableCARDANTENNA/CABLE A INANTENNA BCONTROLIN OUTS-VIDEO INPUT 2INPUT 3S-VIDEOVIDEOVIDEOR-AUDIO-LR-AUDIO-LCOMPONENT VIDEO

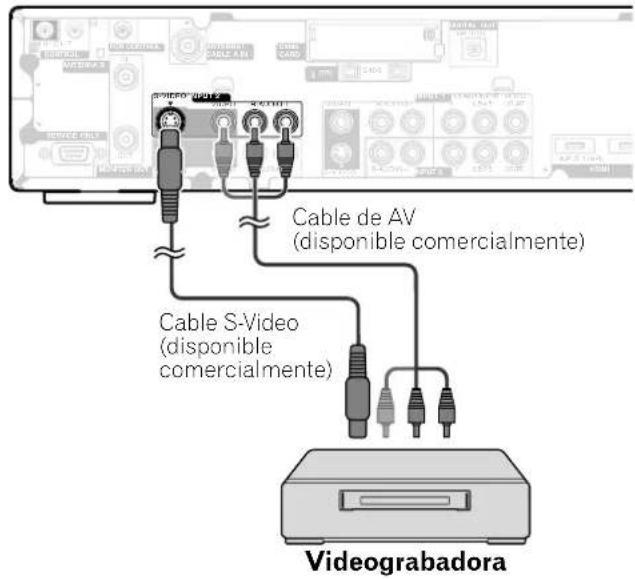

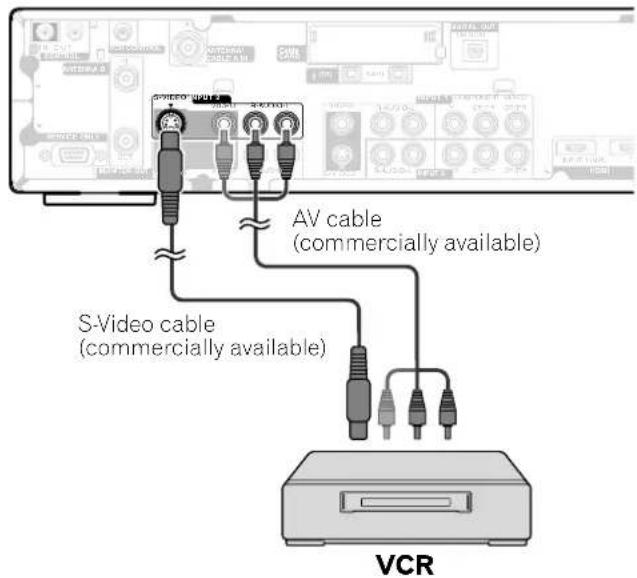

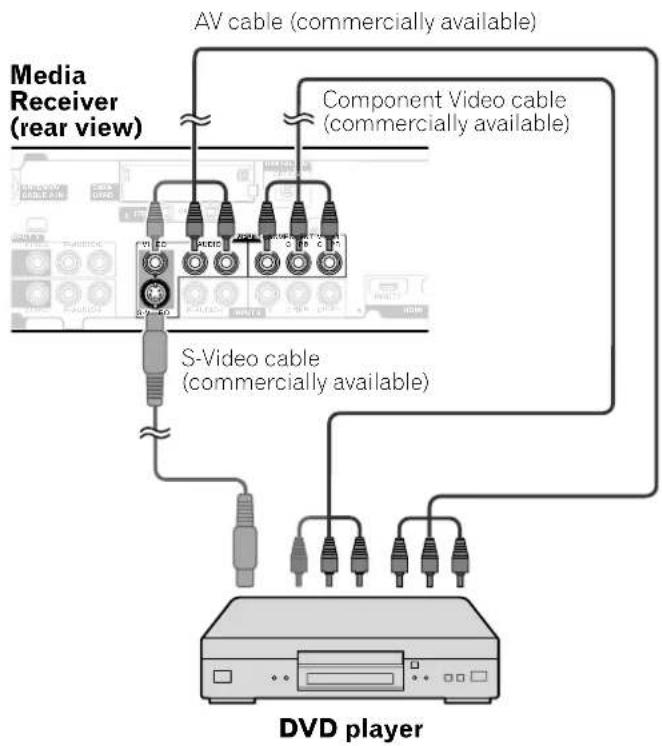

OUT Cable CARD (TS) Media Receiver (rear view) AV cable (commercially available) S-Video cable (commercially available) VCR Displaying a VCR image To watch a VCR image, press INPUT 2 on the remote control unit or press INPUT on the Plasma Display to select INPUT2.

• The INPUT 2 terminals are checked for cable connections in theorder where; 1) S-Video, 2) Video.• Connect external equipment to only terminals that are to be actuallyused.12Enjoying through External Equipment English

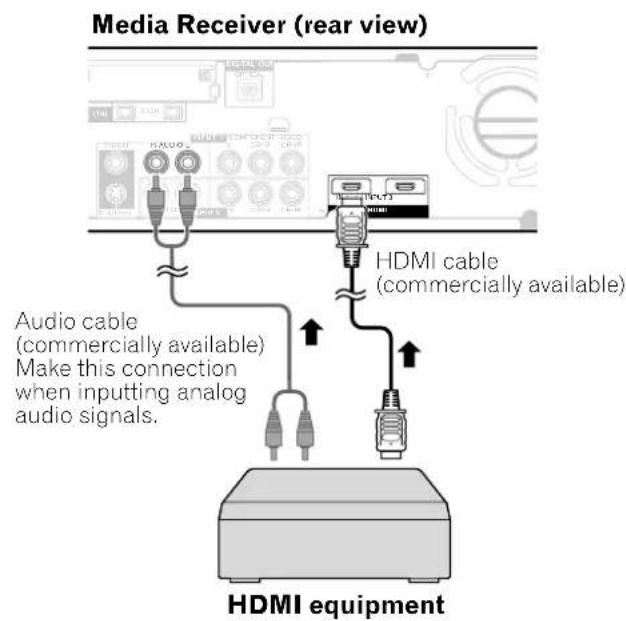

Using HDMI Input The INPUT 1 and INPUT 3 terminals include HDMI terminals towhich digital video and audio signals can be input. To use theHDMI terminal, activate the terminal and specify the types ofvideo and audio signals to be received from the connectedequipment. For the types of these signals, see the operationmanual that came with the connected equipment. Before starting the menu, press INPUT 1 (or INPUT 3) on the remote control unit or press INPUT on the Plasma Display toselect INPUT 1 (or INPUT 3).Input signal correlation table19 2 0 1080i@59.94/60Hz

720p@59.94/60Hz720(1440) 480i@59.94/60Hz• PC signals are not supported. Connecting HDMI equipment

(TS) Audio cable (commercially available)Make this connection when inputting analog audio signals. Media Receiver (rear view) HDMI cable (commercially available) HDMI equipment To activate the HDMI terminal:

Select “Video”. ( / then ENTER) Select the type of digital video signals. ( / thenENTER)• If you select “Auto”, an attempt will be made to identifythe type of digital video signals when digital videosignals are received.Item DescriptionAuto Automatically identifies input digital video(factory default) signals.Color-1 Digital Component Video signals (4:2:2)lockedColor-2 Digital Component Video signals (4:4:4)lockedColor-3 Digital RGB signals locked Press HOME MENU to exit the menu.• If you select a parameter other than “Auto”, make such a setting thatresults in natural color.• If no image appears, specify another digital video signal type.

• For the digital video signal types to be specified, check the operation manual that came with the connected equipment. To specify the type of audio signals:

Select the type of audio signals. ( / then ENTER)

• If you select “Auto”, an attempt will be made to identifythe type of audio signals when audio signals arereceived.12 Enjoying through External Equipment

Item DescriptionAuto Automatically identifies input audio(factory default) signals.Digital Accepts digital audio signals.Analog Accepts analog audio signals. Press HOME MENU to exit the menu.• If no sound is output, specify another audio signal type.•For the audio signal types to be specified, check the operationmanual that came with the connected equipment.• Depending on the equipment to be connected, you also need toconnect analog audio cables. Enjoying a game console or watching camcorder images Connecting a game console or camcorder Use the INPUT 4 terminals to connect a game console,camcorder and other audiovisual equipment.COMPONENT VIDEO

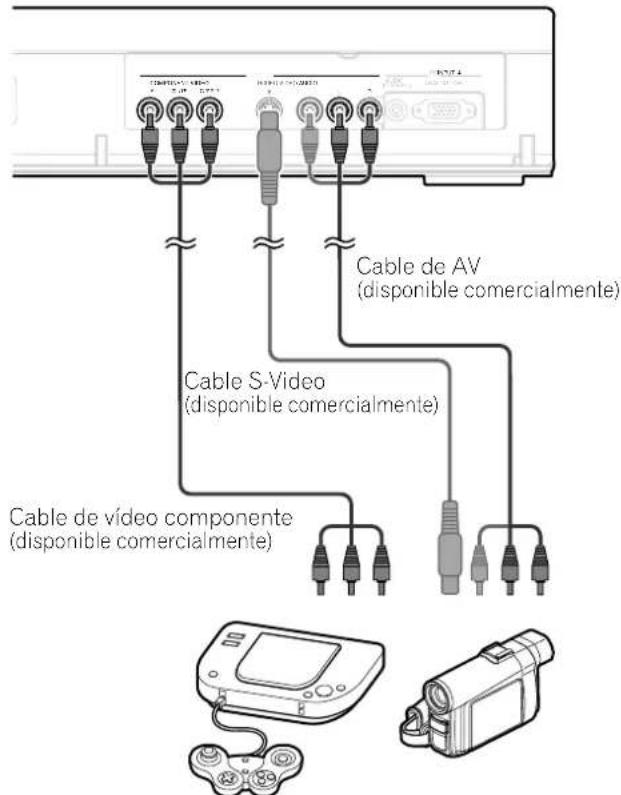

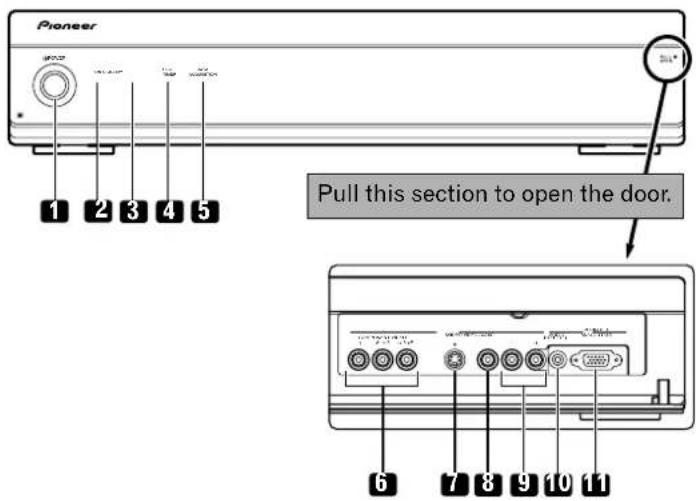

Media Receiver (front view) AV cable (commercially available) S-Video cable (commercially available) Component Video cable (commercially available) Game console/Camcorder

• The INPUT 4 terminals are checked for cable connections in theorder where; 1) Component Video, 2) S-Video, 3) Video.• Connect external equipment to only terminals that are to be actuallyused. Displaying an image of the game console or camcorder To watch an image coming from the game console orcamcorder, press INPUT 4 on the remote control unit or pressINPUT on the Plasma Display to select INPUT4. Recording digital TV programs using a VCR or DVD recorder If you connect recording equipment such as a VCR or DVDrecorder to the MONITOR OUT terminals on the rear of theMedia Receiver, you can record, for example, digital TVprograms using the recording equipment.You can also record digital TV programs more easily by usingthe supplied VCR controller. Connect the VCR controller to theVCR control terminal on the rear of the Media Receiver andthen position the controller so that its light emitting sectionfaces the remote control sensor on the recording equipment.For more information, see page 59. Avoiding unwanted feedback You can prevent unwanted feedback from adversely affectingthe quality of images. Specify the output terminal whose outputis to be inhibited. Press HOME MENU.

Select “INPUT1 Prohibit”, “INPUT2 Prohibit”, “INPUT3Prohibit”, or “INPUT4 Prohibit”. (/ then ENTER) Press HOME MENU to exit the menu.12Enjoying through External Equipment English

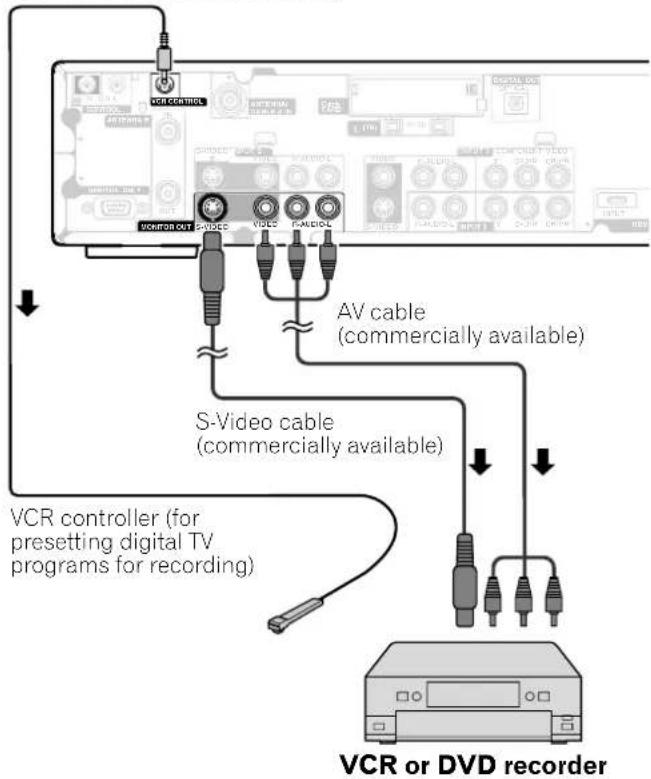

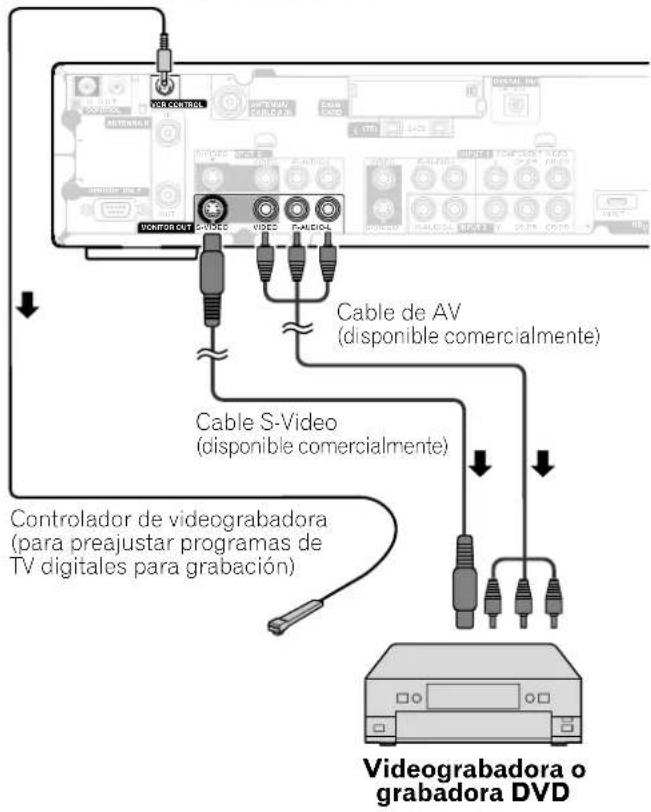

OUT Cable CARD (TS) MONITOR OUTVCR controller (for presetting digital TV programs for recording) Media Receiver (rear view) AV cable (commercially available)S-Video cable (commercially available) VCR or DVD recorder

• About the MONITOR OUT terminalsThe MONITOR OUT terminals cannot output the following signals:1 Video signals input from the COMPONENT VIDEO terminal2 Video signals from a personal computer3 S-Video signals when a conventional TV channel is being received4 S-Video signals when Video signals (INPUT 1, 2, and 4) are beinginput5 Digital video and audio signals from the HDMI terminals• When watching images played back on a VCR or DVD recorderconnected to the MONITOR OUT terminals, select an input source(e.g., TV channel reception) on the recording equipment other thanexternal input sources. Selecting an external input source may resultin distorted images or noise.• Analog broadcasting signals are not sent to the MONITOR OUT(S-VIDEO) terminal. This is also true of composite signals comingfrom INPUT 1, 2, or 4. Connecting other audio equipment The digital audio output terminal (optical) on this system canoutput Dolby Digital signals. Using an optical digital cable,connect an AV receiver to the digital audio output terminal(optical) on the rear of the Media Receiver. This allows audiosuch as digital TV broadcasting to be played in high quality.If your AV receiver does not have a digital audio input terminal(optical), connect the MONITOR OUT terminals (AUDIO) on therear of the Media Receiver to the audio input terminals on theAV receiver.• When using the digital audio output terminal (optical), you need tomake settings depending on your AV receiver. For more information,see the instruction manual that came with the AV receiver. Connecting an AV receiver MONITOR OUT VCR CONTROL Cable CARD ANTENNA/

OUT Cable CARD (TS) Media Receiver (rear view) Audio cable (commercially available)Optical digital cable (commercially available) AV receiver12 Enjoying through External Equipment

Switching the optical audio signal type Set up for the DIGITAL AUDIO output terminal (OPTICAL), depending on your AV receiver.

Select “Dolby Digital” or “PCM”. ( / then ENTER) Item Description PCM Always outputs in the PCM format (factory default) regardless of the types of signals. Dolby Digital For Dolby Digital encoded signals, outputs in the Dolby Digital format. For PCM encoded signals, outputs in the PCM format.

Press HOME MENU to exit the menu. Watching a D-VHS image What is i.LINK? i.LINK is a digital serial interface for handling digital video, digital audio, and other data in two directions. i.LINK is Sony’s term for the IEEE 1394 data transport bus. Digital AV equipment compatible with i.LINK can be connected using a single i.LINK cable. The i.LINK interface allows this PDP system to control one of up to two i.LINK compatible devices (in connection) that can be identified. Which i.LINK devices are connectable? For i.LINK devices, this system supports only D-VHS recorders. The i.LINK terminals on this system cannot be connected with other equipment such as DVD recorders, digital video cameras, personal computers, and PC peripheral devices because of differences in the specifications. What can be recorded through i.LINK? With D-VHS recorders connected to this system through i.LINK, you can record only digital TV programs. You cannot record conventional TV channels nor contents coming from external input sources and personal computers. Connecting D-VHS recorders Use the i.LINK terminals when connecting D-VHS recorders. When connecting a single D-VHS recorder

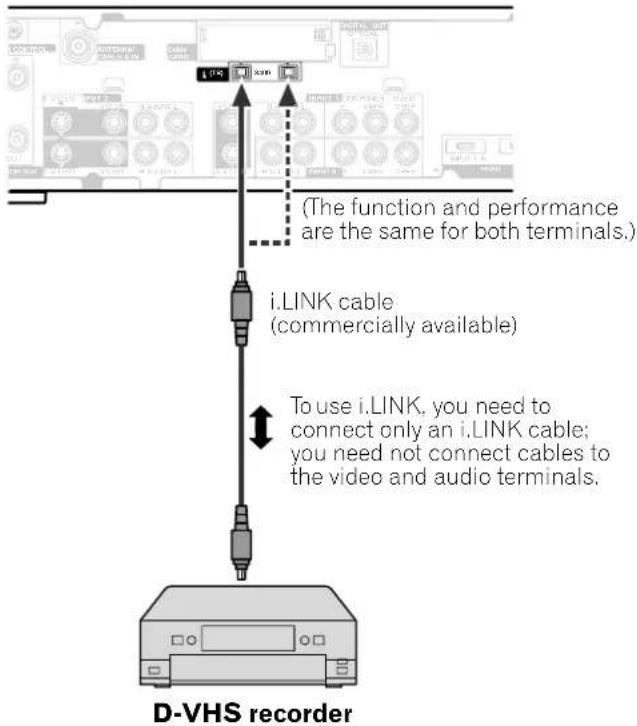

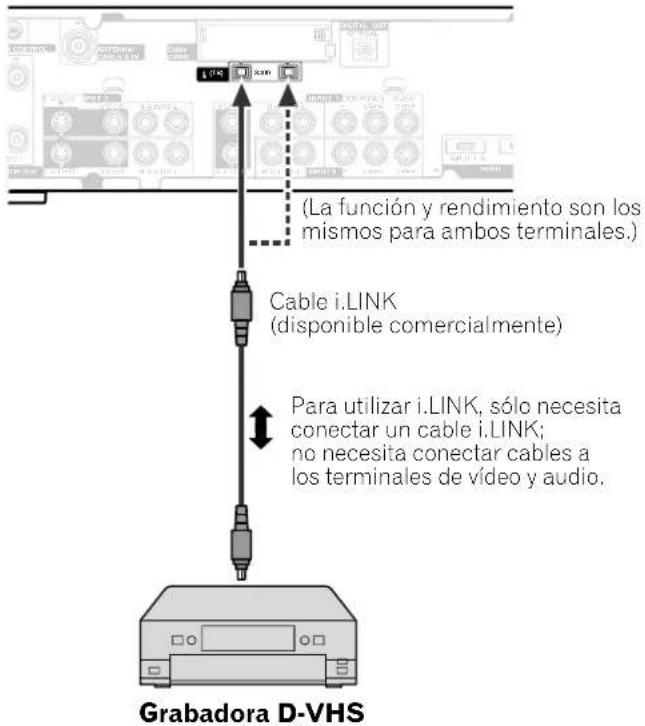

OUT Cable CARD (TS) D-VHS recorder Media Receiver (rear view) (The function and performance are the same for both terminals.) i.LINK cable (commercially available) To use i.LINK, you need to connect only an i.LINK cable; you need not connect cables to the video and audio terminals. When connecting two D-VHS recorders You can connect two D-VHS recorders directly to the i.LINK terminals on the rear of the Media Receiver. Media Receiver D-VHS recorder D-VHS recorder i.LINK cables POWERON STANDBY REC TIMER DATA ACQUISITION12Enjoying through External Equipment English

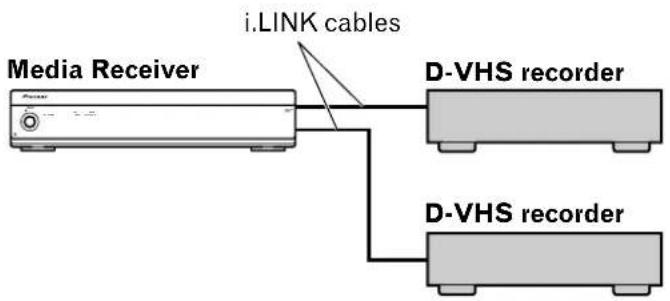

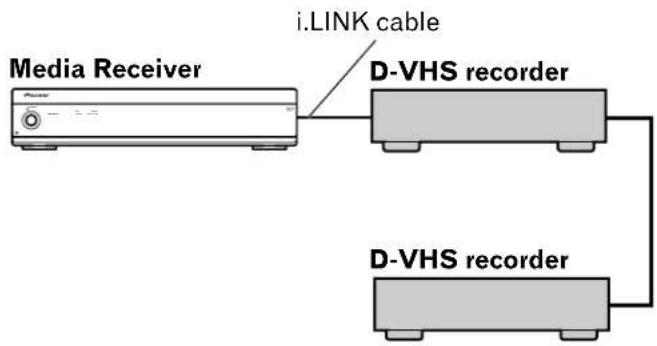

Using i.LINK cables you can also connect up to two D-VHS recorders in a daisy chain. Media Receiver i.LINK cable D-VHS recorder D-VHS recorder POWERON STANDBY REC TIMER DATA ACQUISITION Precautions about i.LINK connections

• Use S400 i.LINK cables that have 4-pin plugs and are shorter than 3.5 m (11.48 feet).

• Some i.LINK devices cannot relay data when their power is off.

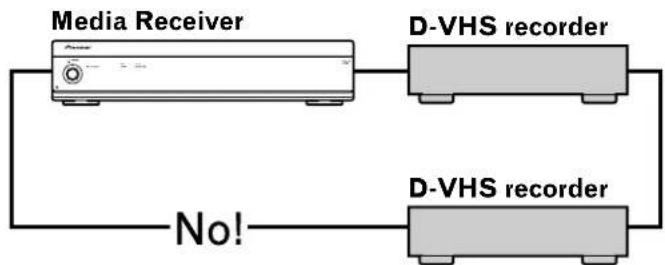

• Do not make the following loop connections: Media Receiver D-VHS recorder D-VHS recorder POWERON STANDBY REC TIMER DATA ACQUISITION Media Receiver D-VHS recorder POWER ON STANDBY REC TIMER DATA ACQUISITION Displaying a D-VHS image To watch a D-VHS image, press i.LINK on the remote control unit or press INPUT on the Plasma Display to select i.LINK. Useful and important notification Useful information

• D-VHS recorders connected through i.LINK can play back digital TV programs recorded using this system.

• D-VHS recorders connected through i.LINK can record only digital TV programs. Using i.LINK, those recorders cannot record conventional TV channels nor contents coming from external input sources.

• This system can be simultaneously connected with up to two D-VHS recorders that support i.LINK. You can control one of these D-VHS recorders (basic functions only).

• Some D-VHS recorders connected through i.LINK may not allow this system to control through the control panel screen or to display images and output sound.

• To record digital TV programs using connected D-VHS recorders, use D-VHS tape. You cannot use VHS tape nor S-VHS tape.

• Some D-VHS recorders connected though i.LINK may not allow this system to play back images and sound recorded on VHS tape, S-VHS tape, or (if with analog signals) D-VHS tape. If this is the case, connect the analog output terminals on the D-VHS recorder to INPUT 1, 2, 3, or 4 terminals on this system. See page 50.

• This system supports the Digital Transmission Content Protection (DTCP) technology. The DTCP is a copy protection technology that presents data coding and device authentication.

• i.LINK may not allow copy-restricted video, audio, and other data to be copied from one i.LINK device to another. It also may not allow video, audio, and other data to be transferred with equipment that does not support the DTCP. Precautions

• While one D-VHS recorder connected through i.LINK is recording or playing back, do not switch on or off the other connected D-VHS recorder (not in use) or do not connect or disconnect the i.LINK cable from that D-VHS recorder. Doing so can result in image and sound interruption.

• Some D-VHS recorders that support i.LINK cannot relay data when their power is off. Check the instruction manual that came with your D-VHS recorder. This system allows you to change the setting for data relay in the standby mode. See “Setting up for i.LINK standby” on page 57.12 Enjoying through External Equipment

Setting up for controlling a D-VHS recorder You can operate the connected D-VHS recorder from the Plasma Display that shows the control panel screen. After making the connections, use the menu to specify the model of the D-VHS recorder to be operated. You can operate only a single D-VHS recorder from the Plasma Display.

Select the D-VHS recorder model to be operated.

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxMove DeleteRenameConnect Exit Home Menu DCBA

Press A to select “Connect”.

• The following information appears at the right end of the i.LINK list to indicate the connection status of the D-VHS recorders: Control: Data connection with the D-VHS recorder has been established and the recorder is ready for control. Link: The D-VHS recorder has been physically con- nected, and can be controlled if it is selected for control. —: Currently not physically connected

• When connected to any device other than a D-VHS, the device is not listed in the i.LINK List. Editing the i.LINK list The i.LINK list shows all devices connected through i.LINK interfaces. In this list, you can change the name or order of devices or delete device information.

The following procedure differs depending on what you want to perform. To change the name of a device:

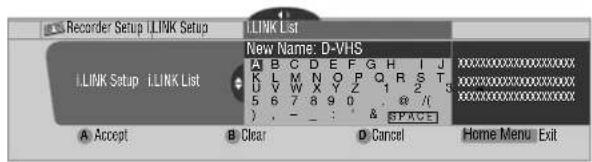

Press B to select “Rename”.

Press HOME MENU to exit the menu. To change the order of devices:

Press C to select “Move”.

• The selected device is moved to the selected position.

Press HOME MENU to exit the menu. To delete information about a device:

Press D to select “Delete”.

• A confirmation message appears.

• A warning message appears if the selected device has been preset for recording with the timer or if its power is on. If this is the case, you cannot delete the device that you have selected.

Press A to execute the deletion.

Press HOME MENU to exit the menu.12Enjoying through External Equipment English

Setting up for i.LINK standby Use the following procedure to enable data transfer between multiple i.LINK devices even when the system is in the standby mode.

• With “Enable” selected, the system relays data between multiplei.LINK devices even when in the standby mode; the i.LINK circuitsare energized in that mode. In standby mode i.LINK device Media Receiver i.LINK device POWERON STANDBY REC TIMER DATA ACQUISITION No data relay Operating the control panel screen The control panel screen appears when you press i.LINK. It disappears when you press i.LINK again. To select a button on the control panel screen, press / or / , and then press ENTER on the remote control. D-VHS4 XXXXXXX XXXNo1394 00:00:00• D-VHS4i.LINK Setup Device ListON/OFF REC

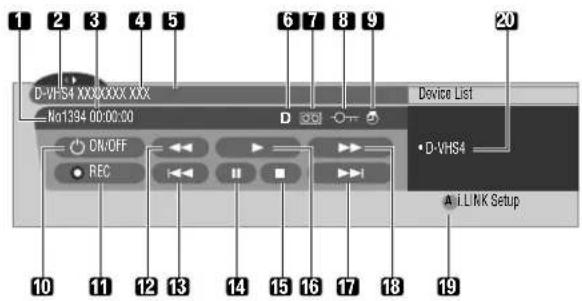

1 Shows the current status of the D-VHS recorder. 2 Shows the name of the currently selected device. 3 Shows counter time output by the D-VHS recorder. 4 Shows the manufacture name of the D-VHS recorder to be operated. 5 Shows the model name of the D-VHS recorder to be operated. 6 Shows the type of inserted video tape; D for D-VHS, S for S-VHS, and no display for VHS. 7 Appears when any tape has been inserted. 8 Appears when the inserted tape has been write protected. The inserted tape cannot be used for recording when this indicator appears. 9 Appears when the D-VHS recorder has been preset for recording and is in the standby mode. 10 Switches on and off the D-VHS recorder. 11 Starts recording. 12 Rewinds to the start of the current program. 13 Rewinds the tape. 14 Pauses the tape. 15 Stops the current tape motion. 16 Starts playing back. 17 Forwards to the start of the next program. 18 Forwards the tape. 19 Exits the control panel screen and displays the i.LINK Setup menu. 20 Allows you to change the D-VHS recorder to be operated. After pressing this button, press / to select the desired model from the list, and then press ENTER.

• If no i.LINK device has been connected, “No i.LINK devices areconnected.” appears. If this is the case, connect i.LINK devices.
• If none of the connected equipment has been supported for control, you cannot execute control.12 Enjoying through External Equipment

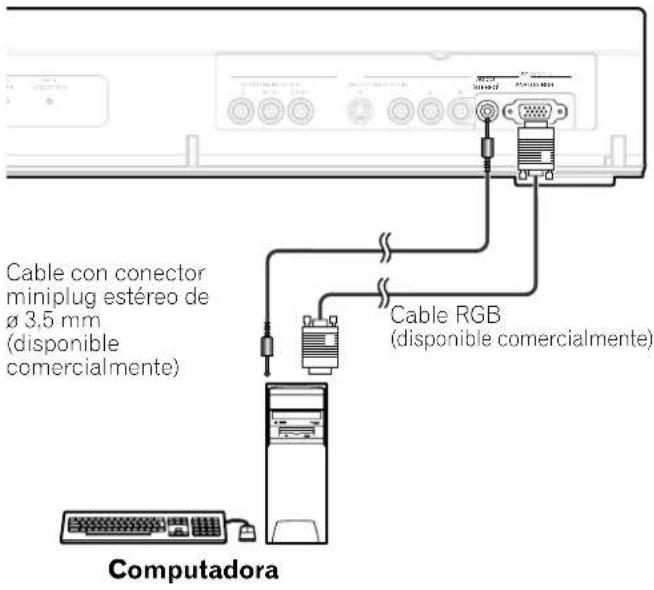

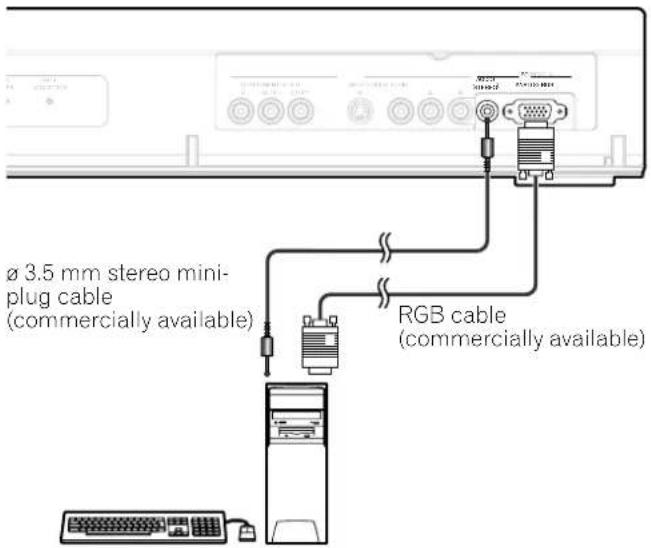

Watching an image from a personal computer Connecting a personal computer Use the PC terminals to connect a personal computer.• The PC input terminals are DDC2B-compatible.• Plug & Play may not correctly function, depending on personalcomputers in use.

Media Receiver (front view) RGB cable (commercially available) Personal computer ø 3.5 mm stereo mini- plug cable (commercially available) Displaying an image from a personal computer When connecting to a personal computer, the input signal typeis automatically identified. If the personal computer image doesnot come in clearly, you may need to use Auto Setup in themenu. See page 45.To watch an image coming from the personal computer, pressPC on the remote control unit or press INPUT on the PlasmaDisplay to select “PC”.• The PC terminals cannot be used for audiovisual equipment. Signal names for 15-pin mini D-sub connecter

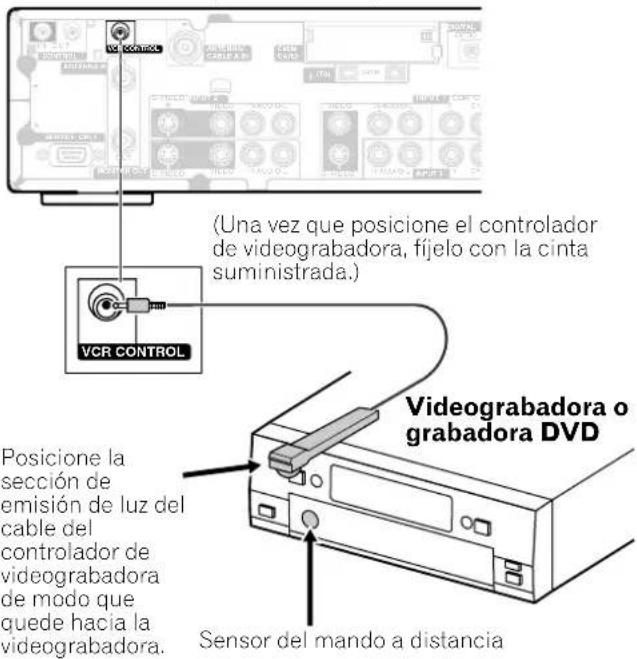

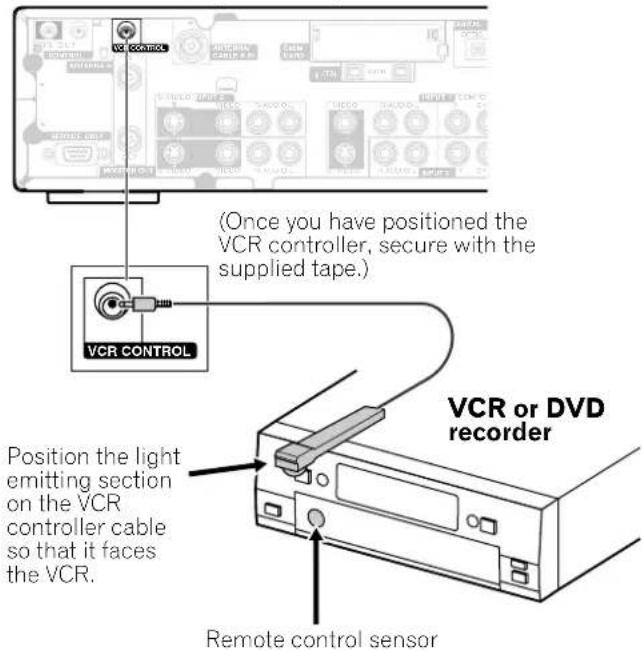

Connecting the VCR controller Connect the supplied VCR controller to the Media Receiver. This allows you to preset digital TV programs for recording; see page

48. When the specified time comes, the system in the standby

mode is automatically switched on and the specified TV program is recorded using the connected VCR or DVD recorder.

• Make sure to leave the VCR power on when presetting TV programsfor recording with the VCR controller.• Be sure to firmly connect the VCR controller to the VCR controlterminal on the rear of the Media Receiver. If you have mistakenlyconnected it to the CONTROL IN or CONTROL OUT terminal, remotecontrol or other operations may be disabled. Media Receiver (rear view) VCR or DVD recorder (Once you have positioned the VCR controller, secure with the supplied tape.)Position the light emitting section on the VCR controller cable so that it faces the VCR.Remote control sensorVCR CONTROL MONITOR OUTVCR CONTROL CableCARDANTENNA/CABLE A INANTENNA BCONTROLIN OUTS-VIDEO INPUT 2INPUT 3S-VIDEOVIDEOVIDEOR-AUDIO-LR-AUDIO-LCOMPO

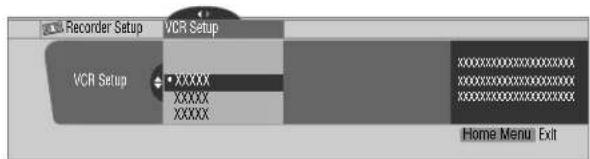

OUT Cable CARD (TS) Use the following procedure to set the manufacture of the recording equipment:

Select the manufacture of the recording equipment.

• The screen for recording test appears.

Check that the power to the recording equipment is on, and insert tape into the slot.

• Insert tape you think it all right to erase its contents. The contents will be erased because Rec and Stop codes are output in the test.

• Check that the light emitting section on the VCR controller cable faces the recording equipment.

Press A to execute recording test.

• If the recording equipment fails to start and stop recording, check and change the specified recording equipment manufacture.

Press A to select “Yes, Store Setting”.

• Even if you correctly specify the manufacture of the recordingequipment, control of some models may be disabled.•Perform the recording test when the recording equipment is not inrecording standby or is not recording.• The recording test takes approximately 10 seconds.• The PIONEER has been set as the factory default.12 Enjoying through External Equipment

The lists of controllable recording equipment manufactures Manufacture Admiral Advantz Adventura Aiko Aiwa Akai American High Asha Audiovox Beaumark Bell & Howell Broksonic CCE Calix Canon Capehart Carver Cineral Citizen Colt Craig Curtis Mathes Cybernex Daewoo Daytron Denon Dynatech Electrohome Electrophonic Emerex Emerson Fisher Fuji Funai

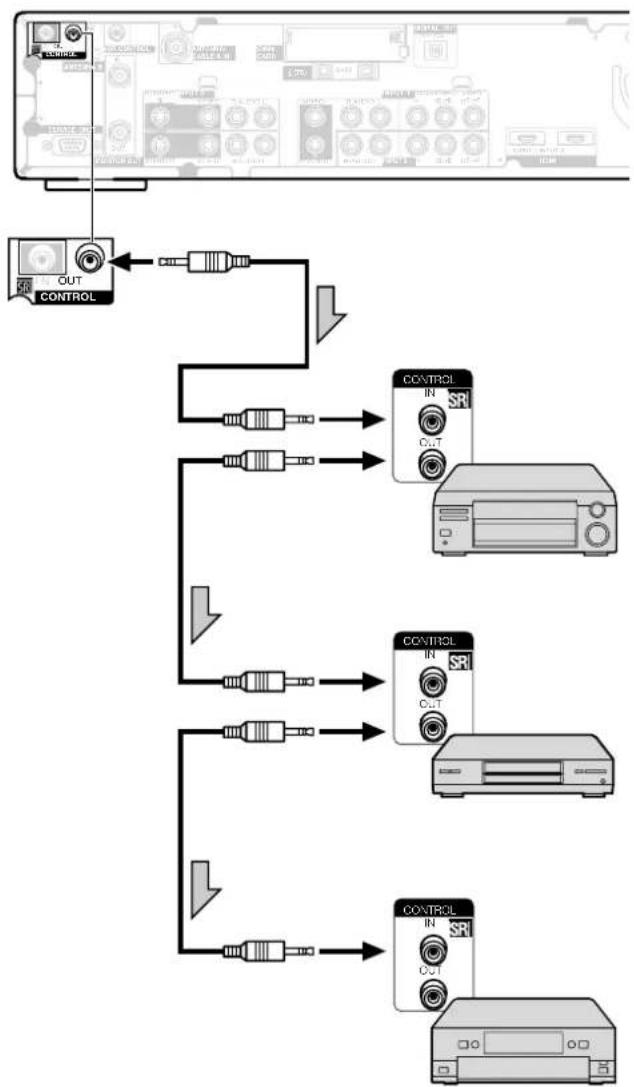

Connecting control cords Connect control cords between the Media Receiver and otherPIONEER equipment having the logo. You can then operatethe connected equipment by sending commands from itsremote control unit to the remote control sensor on the MediaReceiver.After the CONTROL IN terminals have been connected, theremote control sensors on the connected equipment do notaccept commands from the remote control units. Face theremote control units to the remote control sensor on thePlasma Display when operating the connected equipment.• Make sure that the power is turned off when making connections.• Complete all component connections before making control cordconnections. About SR+ The CONTROL OUT terminal on the rear of the Media Receiversupports SR+ that allows linked operations with a PIONEERAV receiver. SR+ presents functions such as the input switchlinkage operation function and the DSP surround mode displayfunction. For more information, see the instruction manual thatcame with the PIONEER AV receiver supporting SR+.• While in connection through SR+, the volume on this system istemporarily minimized. Media Receiver (rear view) CONTROLIN OUTMONITOR OUTVCR CONTROL CableCARDANTENNA/CABLE A INANTENNA BIN OUTS-VIDEO INPUT 2INPUT 3S-VIDEOVIDEOVIDEOR-AUDIO-LR-AUDIO-LCOMPONENT VIDEO

OUT The control cables (commercially available) are mono soundcables with mini plugs (no resistance).13 Useful Remote Control Features

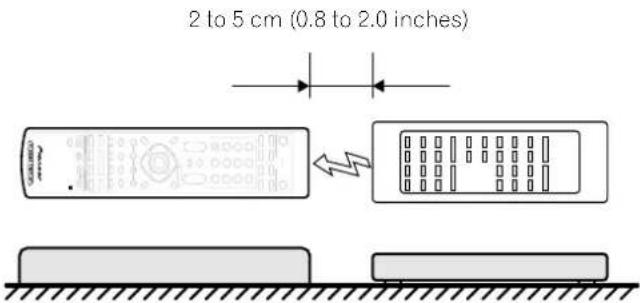

Learning function of the remote control unit You can operate the connected AV products (AV Receiver, Cable Box, SAT tuner, VCR, DVD, DVD recorder, LD) using the learning function of your remote control unit. This remote control unit has a function that can memorize each remote control code. 2 to 5 cm (0.8 to 2.0 inches) Remote control Remote control of (Supplied accessory) AV product Using the learning function

Slide the Mode switch to match the device whose remote control signal you want to be learned.

Press EDIT/LEARN and 2 at the same time.

Press a button to be learned.

• For the functions that can be learned, see pages 64 to

• When learning is finished, the LED starts flashing again.

Press EDIT/LEARN again to exit the Learn mode.

• To exit the Learn mode halfway, press EDIT/LEARN again.
• If the Mode switch selection is changed when in the Learn mode,the Learn mode is cancelled.• If no operation is performed for more than one minute, the Learnmode is cancelled.• It takes about 2 seconds to finish code transmission. Do not interruptit halfway. Wait until the LED flashes again.•You can reset all learned codes to the factory defaults. When not inthe Learn mode, press and hold TV , and then press andVOL + (RECEIVER section) at the same time. Presetting manufacture codes

Slide the Mode switch to match the device to which you want to preset the remote control signal.

Press EDIT/LEARN and 1 at the same time.

Press 0 – 9 to enter the manufacture code. See page 63.

• Preset mode is finished once the LED no longer lights up.
• To exit the Edit mode halfway, press EDIT/LEARN again.• If the Mode switch selection is changed when in the Edit mode, theEdit mode is cancelled.• If no operation is performed for more than one minute, the Edit modeis cancelled.• When you enter a code not listed, the LED flashes quickly.• If the table on page 63 does not include your desired manufacturer orthe remote control does not work, you can make the memory learnits signal by the Learn mode.• The initial mode is “000” (PIONEER).13Useful Remote Control Features English

Using the remote control unit to control other devices

Receiver control buttons When a Pioneer receiver is connected to the display, the receiver can be operated using buttons 1 to 3. When a non-Pioneer receiver is connected to the display, the signals for 1 to 3 must first be learned before operating. See page 62. 1 RECEIVER (STANDBY/ON) Turns the receiver power on and off. 2 RECEIVER INPUT Selects the input source connected to the receiver. 3 RECEIVER VOL +/– Adjusts the receiver volume level. Press VOL + to increase the volume and VOL – to decrease it.

• (RECEIVER) MUTING Allows the remote control unit to learn receiver’s mute signal. Usethis button when the mode switch is set to a position other than TV.• The color-highlighted buttons on the remote control can learn thecontrol signal from another device’s remote control. Mode switch (with “TV” selected)13Useful Remote Control Features English

Cable control buttons When the Mode switch is set to CBL/SAT, the cable converter connected to the display can be operated using 1 to 5. Cable converters made by other manufacturers and not preset can also be operated using the remote control unit if 1 to 5 have learned the functions. See page 62. 10 – 9 Press a button (or buttons) that corresponds to the channel that you want to watch. 2 CH +/– Press CH + or CH – to tune in a higher or lower channel. 3 SOURCE Turns the cable converter power on and off. 4 CH ENTER * Fix the selected channel with the direct channel selection buttons. 5 CH RETURN * Press to switch between the current channel and the channel you were watching immediately before.

• Some manufacturers do not preset CH ENTER and CH RETURN. Use these buttons to learn if necessary.
• CABLE and SAT cannot be selected at the same time.• The color-highlighted buttons on the remote control can learn thecontrol signal from another device’s remote control. Mode switch (with “CBL/SAT” selected)13 Useful Remote Control Features

SAT control buttons When the SAT is preset by the learning function of the remote control, the remote control unit buttons will function as shown below.

• When the Mode switch is set to CBL/SAT, satellite broadcast tuners made by other manufacturers and not preset can also be operated with the remote control unit if 1 to 8 have learned the functions. See page 62. 10 – 9 Press a button (or buttons) that corresponds to the channel that you wish to watch. 2 CH +/– Press CH + or CH – to tune in a higher or lower channel. 3 ENTER, / / / ENTER: Press to activate the selected function. / / / : Press the button to select items on the SAT GUIDE screen or SAT MENU screen. 4SAT INFO When this button is pressed, information on satellite broadcasting will appear.

• Use this button to learn if necessary. 5 SOURCE Turns the Satellite broadcast tuner power on and off. 6 CH ENTER Fix the selected channel with the direct channel selection buttons.

• Use this button to learn if necessary. 7SAT MENU When this button is pressed, the satellite broadcasting menu screen will appear. 8SAT GUIDE When this button is pressed, the satellite broadcasting guide screen will appear.

• CABLE and SAT cannot be selected at the same time.

• The color-highlighted buttons on the remote control can learn the control signal from another device’s remote control. Mode switch (with “CBL/SAT” selected)13Useful Remote Control Features English

VCR control buttons When the VCR is preset by the learning function of the remote control, the remote control unit buttons will function as follows when the Mode switch of the remote control unit is set to VCR.

• When the input selector button having the same number as the input terminal connecting the VCR is pressed, the VCR can be operated using 1 to 8.

• VCR made by other manufacturers and not preset can also be operated using the remote control unit if 1 to 8 have learned the functions. See page 62. 1 CH +/– Press to select the channel of the TV tuner on the VCR. 2 (PLAY) Selects playback. 3 (REW) Rewinds the tape and allows picture search. 4 SOURCE Turns the power of the VCR on and off. 5 (PAUSE/STILL) Sets pauses and still pictures. 6 (FF) Rapidly advances the tape and allows picture search. 7 (REC) Starts recording. 8 (STOP) Stop tape transport.
• The color-highlighted buttons on the remote control can learn thecontrol signal from another device’s remote control. Mode switch (with “VCR” selected)13 Useful Remote Control Features

Mode switch (with “DVD/ DVR” selected)

DVD/DVR control buttons When the DVD/DVR is preset by the learning function of the remote control, the remote control unit buttons will function as follows when the Mode switch of the remote control unit is set to DVD/DVR.

• When the input selector button having the same number as the input terminal connecting a DVD player or DVD recorder is pressed, these players can be operated using 1 to 12.

• DVD players or DVD recorders made by other manufacturers and not preset can also be operated using the remote control unit if 1 to 12 have learned the functions. See page 62. 1 CH +/– (DVD recorder only) Press to change the channel of the tuner built in the DVD recorder. 2 RETURN When the DVD menu is in display, press to restore the immediately previous screen. 3 (PLAY) Selects playback. 4 (SCAN)/ (CHAPTER SEARCH) Continue pressing to go backward. Pressing quickly once takes you to the start of the chapter currently playing. Each time you press it, you move back to the start of the previous chapter. 5 SOURCE Turns the power of the DVD player or DVD recorder on and off. 6 (PAUSE/STILL) Sets pauses and still pictures. 7SAT/DVD MENU (DVD, DVD recorder) When this button is pressed, the DVD menu will appear. 8 ENTER, / / / (DVD, DVD recorder) ENTER:Press to activate the selected function. / / / :Press the button to select items on the DVD MENU screen. 9 DVD TOP MENU (DVD, DVD recorder) When this button is pressed, the DVD top menu will appear. 10 (SCAN)/ (CHAPTER SEARCH) Continue pressing for fast forward. Pressing quickly once takes you to the start of the next chapter. Each time you press it, you move ahead to the start of the next chapter. 11 (REC) Starts recording. 12 (STOP) Playback stops when pressing once. With some DVD players or DVD recorders, pressing the button twice may open the disc tray. 11, 12 REC STOP Press and hold , and then press this button to stop recording. This operation is true of only Pioneer DVD recorders.
• The DVD player or DVD recorder cannot be selected at the sametime.• The color-highlighted buttons on the remote control can learn thecontrol signal from another device’s remote control.14Appendix English

• Green and red rectangles appear on the screen alternately.

• The system cannot be operated.

• Remote control unit does not operate.

• No image and audio is presented.

• Audio is output but no image is presented.

• Images are presented but no audio is output.

• Sound is reversed between the right and left.

• Sound is output from only a single speaker.

• Power is suddenly turned off. Troubleshooting Code Message Check SD04 Powering off. Internal temperature too high. Check if the ambient temperature of the Plasma Display is high. Check temperature around PDP. SD05 Powering off. Internal protection circuits activated, Check the speaker cable connections between the Plasma Display Is there a short in speaker cable?and the speakers. SD11 Powering off. Internal temperature too high. Check if the ambient temperature of the Media Receiver is high. Check temperature around media receiver.

• Make sure the Plasma Display and the Media Receiver are connected correctly. (See page 18.)

• Is the power cord disconnected? (See page 23.)

• Has the main power been turned on? (See page 24.)

• Check if the system cable has been disconnected or almost disconnected? (See page 18.)

• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the system after first turning the power of the Plasma Display and the Media Receiver, or unplugging the power cord and re-plugging it in after 1or 2 minutes.

• Is the Mode switch set correctly? Slide it to the TV setting position. (See page 14.)

• Are batteries inserted with polarity (+, –) aligned? (See page 20.)

• Are batteries worn out? (Replace with new batteries.) (See page 20.)

• Operate the remote control unit while pointing it toward the remote control sensor on the Plasma Display. (See page 20.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Check if the input source for video or PC has been unintentionally selected although you want to watch a TV channel. (See page 25.)

• Check if you have activated the Parental Control function. (See page 33.) Enter a password to temporarily cancel the Parental Control function. (See page 37.)

• Is connection to other components correct? (See pages 50 to 58.)

• Is a non-compatible PC signal being input? (See page 58.)

• Is picture adjustment correct? (See page 41.)

• Check if you have selected “Picture Off” for Energy Save. With this option selected, the screen is deactivated; only audio is output. To restore the screen display, press any button other than VOL +/– and MUTING. (See page 43.)

• Check if you have selected the minimum volume. (See page 26.)

• Check if you have muted sound. (See page 26.)

• When using a video or PC input source, check that the audio terminal is also in connection. (See pages 50 to 54 and 58.)

• Check if the speaker cable connections have been reversed between the right and left or if the speaker cable from either speaker has been disconnected. (See pages 12 and 18.)

• Has the balance been correctly adjusted? (See pages 42 and 43.)

• Is the image position correct? (See pages 44 and 45.)

• Has the correct screen size been selected? (See page 46.)

• Adjust the picture tone. (See page 41.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Is the sleep timer set? (See page 40.)

• Check the power control setting. (See pages 43 and 44.)

• The system’s internal temperature has increased. Remove any objects blocking vent or clean. (See pages 15 and 16.)14 Appendix

The video program that you watch may be high definition (HD) or standard definition (SD). This Plasma Display is designed to scale to each type of definition properly. If the video program’s definition type changes while a menu window is displayed on the screen (for example: HD→SD or SD→HD), the menu size may temporarily shrink or enlarge until the scaling is completed. This may happen, for example, when you switch between television and an external digital video recorder (D-VHS), or when your recorded program switches between different definition types, while the on-screen menu is being shown. If this happens, the menu will return to its normal size after two to three seconds. This action is normal, and does not indicate a problem with your Plasma Display system.14Appendix English

This product in part uses “OpenSSL” software. To the extent the OpenSSL software is being used, the following notification applies: Copyright (c) 1998-2004 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising materials mentioning features or use of this software must display the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)” 4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail]. 5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the OpenSSL Project. 6. Redistributions of any form whatsoever must retain the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)” THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson ([e-mail]). Original SSLeay License Copyright (C) 1995-1998 Eric Young ([e-mail]) All rights reserved. This package is an SSL implementation written by Eric Young ([e-mail]). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]). Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising materials mentioning features or use of this software must display the following acknowledgement: “This product includes cryptographic software written by Eric Young ([e-mail])” The word ‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related :-). 4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: “This product includes software written by Tim Hudson ([e-mail])” THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]14 Appendix

Linux Source Notice The Pioneer Plasma Television integrated with the Media Receiver in part is powered by utilizes the Linux operation system. The machine readable copy of the corresponding source code is available for the cost of distribution. To obtain a copy, please visit http://www.pioneerelectronics.com/ for more information. GNU General Public License Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software—to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow. GNU General Public License TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does. 1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License.14Appendix English

(Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it. 6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.14 Appendix

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. 10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY

OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. <one line to give the program’s name and an idea of what it does.> Copyright (C) yyyy name of author This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA. Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type ‘show w’. This is free software, and you are welcome to redistribute it under certain conditions; type ‘show c’ for details. The hypothetical commands ‘show w’ and ‘show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than ‘show w’ and ‘show c’; they could even be mouse-clicks or menu items— whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program ‘Gnomovision’ (which makes passes at compilers) written by James Hacker. signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.14Appendix English

GNU Lesser General Public License Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software—to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages—typically libraries—of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system. Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library. The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.14 Appendix

GNU Lesser General Public License TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”. A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.) “Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does. 1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices. Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library. 4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange. If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code. 5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License. However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.14Appendix English

When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself. 6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications. You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with. c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy. For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute. 7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work. 8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it. 10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License. 11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.14 Appendix

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation. 14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY

OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. <one line to give the library’s name and an idea of what it does.> Copyright (C) year name of author This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307, USA Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking knobs) written by James Random Hacker. signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice That’s all there is to it!14Appendix English

• Design and specifications are subject to change without notice.14 Appendix

• FOCUS, WOW, SRS and symbol are trademarks of SRS Labs, Inc. FOCUS and WOW technologies are incorporated under license from SRS Labs, Inc.

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• This product includes FontAvenue

fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.

• “i.LINK” and the “i.LINK” logo are trademarks.

• DDC is a registered trademark of Video Electronics Standards Association.

• CableCARD is a trademark of Cable Television Laboratories, Inc.

• The names of the companies or institutions are trademarks or registered trademarks of the respective companies or institutions. Copyright protection

DIGITAL OUTOPTICAL (TS)

KLMNOPQRST UVWXYZ 12 3 4

DIGITAL OUTOPTICAL (TS)
