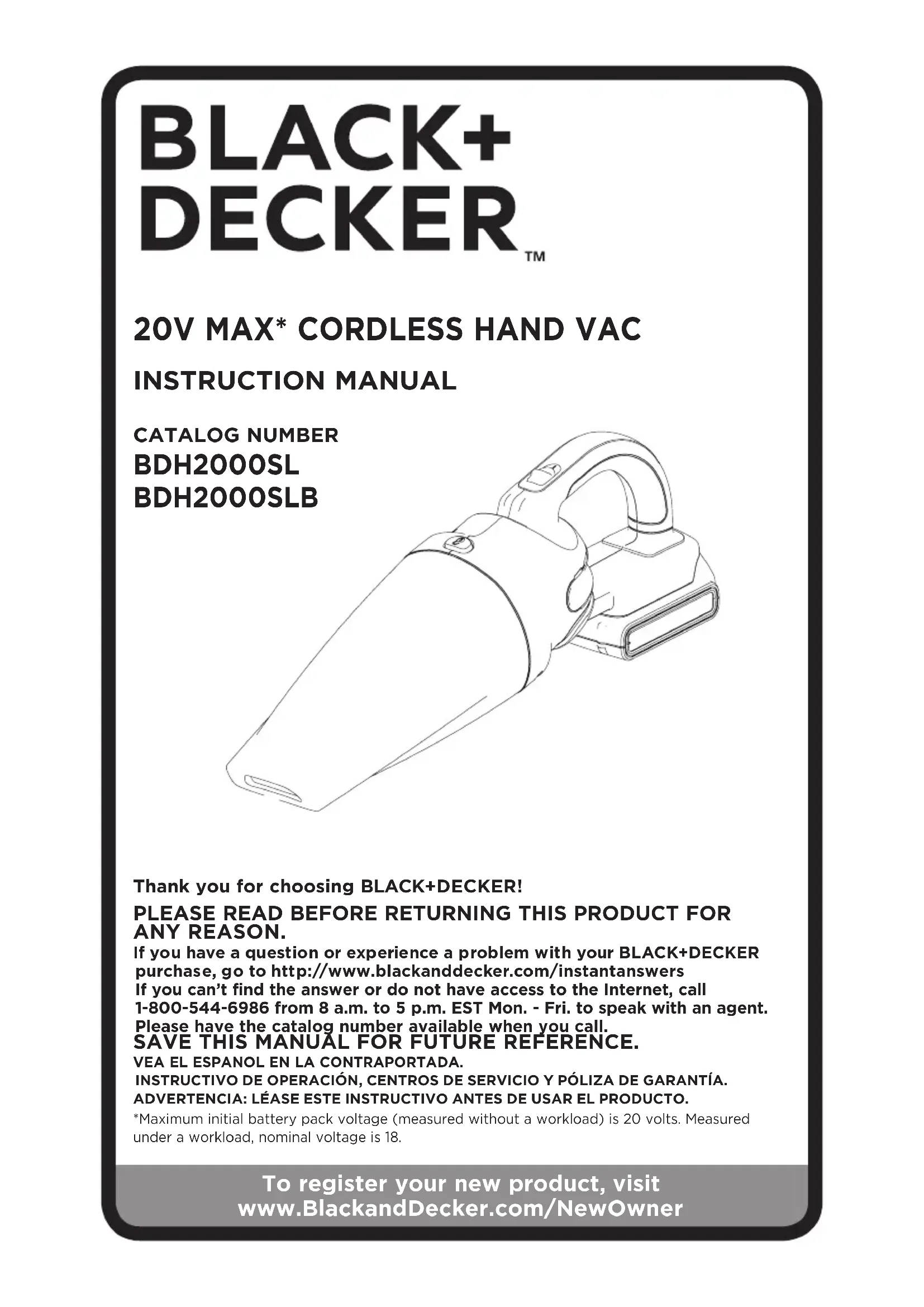

USER MANUAL BDH2000SL BLACK & DECKER

Thank you for choosing BLACK+DECKER! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON. If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers If you can’t find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call. SAVE THIS MANUAL FOR FUTURE REFERENCE. VEA EL ESPANOL EN LA CONTRAPORTADA.INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.*Maximum initial battery pack voltage (measured without a workload) is 20 volts. Measured under a workload, nominal voltage is 18. CATALOG NUMBER BDH2000SL BDH2000SLB To register your new product, visit www.BlackandDecker.com/NewOwner2

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliances, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: Read all safety warnings and all instructions. Failure to follow

the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

WARNING: Some household dust contains chemicals known to the State of

California to cause cancer, birth defects or other reproductive harm such as asbestos and lead in lead based paint.

WARNING: To reduce the risk of fire, electrical shock or injury:

To reduce the risk of electric shock – Do not use outdoors or on wet surfaces.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Useonlyasdescribedinthismanual.Useonlymanufacturer’srecommendedattachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.• Do not handle charger, including charger plug, and charger terminals with wet hands.• Do not put any object into openings. Do not use with any opening blocked; keep free of dust,lint, hair, and anything that may reduce air flow.• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.• Useextracarewhencleaningonstairs.• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.• Do not use without dust bag and/or filters in place.• Do not charge the unit outdoors.• Useonlythechargersuppliedbythemanufacturertorecharge.• Do not incinerate the appliance even if it is severely damaged. The batteries can explodeinafire.• Thisapplianceisintendedforhouseholduseonlyandnotforcommercialorindustrialuse.• ShockHazard.Toprotectagainstriskofelectricalshock,donotputunitorchargingbase in water or other liquid.• Donotallowthecordtohangovertheedgeofatableorcounterortouchhotsurfaces.Theunit should be placed or mounted away from sinks and hot surfaces.• Plugthechargerdirectlyintoanelectricaloutlet.• Usethechargeronlyinastandardelectricaloutlet(120V/60Hz).• Unplugthechargerfromoutletbeforeanyroutinecleaningormaintenance.• ThisproductincludesrechargeableLithium-Ionbatteries.Donotincineratebatteriesastheywillexplodeathightemperatures.

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. TheinformationitcontainsrelatestoprotectingYOURSAFETYandPREVENTING PROBLEMS.Thesymbolsbelowareusedtohelpyourecognizethisinformation.

DANGER: Indicatesanimminentlyhazardoussituationwhich,ifnotavoided,will

result in death or serious injury.

WARNING: Indicatesapotentiallyhazardoussituationwhich,ifnotavoided,

could result in death or serious injury. CAUTION: Indicatesapotentiallyhazardoussituationwhich,ifnotavoided,may result in minor or mod er ate injury. NOTICE: Usedwithoutthesafetyalertsymbolindicatespotentiallyhazardous situation which, if not avoided, may result in property damage.3

If battery contents come into contact with the skin, immediately wash area with mild soap andwater.Ifbatteryliquidgetsintotheeye,rinsewaterovertheopeneyefor15minutes oruntilirritationceases.Ifmedicalattentionisneeded,thebatteryelectrolyteforLithium- Ionbatteriesiscomposedofamixtureofliquidorganiccarbonatesandlithiumsalts.

• Donotlookintotheairventswhentheunitisswitchedon,assometimes there is a possibility of small debris being discharged from the air vents, especially after cleaning / replacement of the filters as debris inside the unit can be disturbed. Symbols

• The label on your tool may include the following symbols. The symbols and their definitions are as follows: V ..................volts A ...................amperes Hz ................hertz W .................. watts min ..............minutes or AC .......alternating current or DC ....direct current

SAVE THESE INSTRUCTIONS

(BDH2000SL ONLY) SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for battery chargers.

WARNING: Beforeusingcharger,readallinstructionsandcautionarymarkingson

charger, battery pack, and product using battery pack.

WARNING: Shock hazard. Do not allow any liquid to get inside charger.

CAUTION: Burn hazard. To reduce the risk of injury, charge only designated BLACK+DECKER batteries. Other types of batteries may burst causing personal injury and damage. CAUTION: Undercertainconditions,withthechargerpluggedintothepower supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup ofmetallicparticlesshouldbekeptawayfromchargercavities.Alwaysunplugthe charger from the power supplywhenthereisnobatterypackinthecavity.Unplug charger before attempting to clean.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.

• These chargers are not intended for any uses other than charging designated BLACK+DECKER rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.

• Do not expose charger to rain or snow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. Recommended Minimum Wire Size for Extension Cords Total Length of Cord 25ft. 50ft. 75ft. 100ft. 125ft. 150ft. 175ft. 7.6m 15.2m 22.9m 30.5m 38.1m 45.7m 53.3m WireSizeAWG

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

• Do not operate charger with damaged cord or plug — have them replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorized service center.

• Do not disassemble charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

• NEVER attempt to connect 2 chargers together.

• The charger is designed to operate on standard household electrical power (120 Volts). Do not attempt to use it on any other voltage.

SAVE THESE INSTRUCTIONS

Important Safety Instruction for Battery Packs

WARNING: For safe operation, read this manual and manuals originally supplied

with tool before using the charger. Thebatterypackisnotfullychargedoutofthecarton.Beforeusingthebatterypackand charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when battery packs are burned.

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Li-ion batteries is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

• Charge the battery packs only in BLACK+DECKER chargers.5

• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 105°F (40˚C) (such as outside sheds or metal buildings in summer).

WARNING: Never attempt to open the battery pack for any reason. If battery pack case

is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to service center for recycling.

WARNING: Fire hazard. Do not store or carry battery so that metal objects can

contact exposed battery terminals. For example, do not place battery in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes (i.e., packed in suitcases and carry-on luggage) UNLESS they are properly protected from short circuits. So when transporting individual batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: LI-ION batteries should not be put in checked baggage. Storage Recommendations 1.Thebeststorageplaceisonethatiscoolanddryawayfromdirectsunlightand excessheatorcold. 2.Longstoragewillnotharmthebatterypackorcharger. Charging ProCedure The standard charger provided will charge a fully depeleted battery in about 4 hours. 1.Plugthechargerintoanappropriateoutletbefore inserting the battery pack. 2.Insertthebatterypackintothechargerasshownin figure B. 3.ThegreenLEDwillflashindicatingthatthebattery is being charged.

4. The completion of charge is indicated by the green

LEDremainingoncontinuously.Thepackisfully charged and may be used at this time or left on the charger. Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished. Leaving the battery in the charger ThechargerandbatterypackcanbeleftconnectedwiththegreenLEDglowing indefinitely. The charger will keep the battery pack fresh and fully charged. Important Charging Notes 1.Longestlifeandbestperformancecanbeobtainedifthebatterypackischarged whentheairtemperatureisbetween65°Fand75°F(18°-24°C).DONOTchargethe batterypackinanairtemperaturebelow+40°F(+4.5°C),orabove+105°F(+40.5°C). This is important and will prevent serious damage to the battery pack. 2.Thechargerandbatterypackmaybecomewarmtotouchwhilecharging.Thisis a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.

3. If the battery pack does not charge properly:

a. Check current at receptacle by plugging in a lamp or other appliance b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. c.Movechargerandbatterypacktoalocationwherethesurroundingair temperatureisapproximately65°F-75°F(18°-24°C). d. If charging problems persist, take the tool, battery pack and charger to your local service center.

4. The battery pack should be recharged when it fails to produce sufficient power on

jobswhichwereeasilydonepreviously.DONOTCONTINUEtouseunderthese conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse affect on the battery pack. 5.Foreignmaterialsofaconductivenaturesuchas,butnotlimitedto,steelwool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities.Alwaysunplugthechargerfromthepowersupplywhenthereisnobattery packinthecavity.Unplugchargerbeforeattemptingtoclean. 6.Donotfreezeorimmersechargerinwateroranyotherliquid.

WARNING: Shock hazard. Do not allow any liquid to get inside charger. Never

attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

Make certain the vac is switched off before removing or installing battery. TO INSTALL BATTERY PACK: Insert battery pack into the vacuntilanaudibleclickisheard(Figure C).Makesure battery pack is fully seated and fully latched into position. TO REMOVE BATTERY PACK: Depress the battery release button(6)asshowninFigure C and pull battery pack out of the vac. OPERATION FIGURE D NOTE: THIS PRODUCT IS FOR DRY PICK-UP ONLY.

• Toswitchthevacon,slidetheon/offswitchforward.

• Toswitchthevacoff,slidetheon/offswitchback. ASSEMBLY FIGURE E

• Removethedustbowlbypressingthedustbowlrelease button and pulling the bowl down and out.

• Removethefilterbypullingitoutofthedustbowl.

• Installthefilterintothedustbowlbyaligningthefilter triangle with the dust bowl triangle and placing it firmly into position as shown in figure F. NOTE: It is very important that the filter is correctly in position before use.

• Toinstallthedustbowl,placeitbackontothefrontoftheunit and click firmly into position. MOUNTING ACCESSORIES

• Thebrushtool(9)hasabrushthatcanbeusedfordusting and upholstery cleaning.

To remove an accessory, pull the accessory out of the dust bowl.

CLEANING THE PRODUCT

WARNING: Never use this cordless hand vacuum

without its filters. NOTE: Thefilterisre-usable,donotconfusethemwithdisposable dust bags, and do not throw it away when the product is emptied. We recommendthatyoureplacethefilterevery6-9months. IMPORTANT: Maximumdustcollectionwillonlybe obtained with clean filters and an empty dust bowl. If dust begins to fall back out of the product after it is switched off, this indicates that the bowl is full and requires emptying.

• Washthefilterregularlyusingwarm,soapywaterasshowninfigure G.Ensurethatitis completely dry before using again.

FNOTE: The cleaner the filter is, the better the product will perform.

• The dust bowl can also be washed in warm soapy water as shown in figure G. Ensurethatitisdrybeforere-attaching.

• Neverimmersetheproductinwater.Adampclothandsoapywatershouldbeused tocleantheexteriorofthemotorsection.Alwaysensuretheproductiscompletelydry beforere-useorstoring. RUN TIME

• Whenfullycharged,theaverageeffectiveusagetimesarebetween10-15minutes.

• Itmaytakeseveralchargingsbeforethesetimescanbeachieved. OTHER INFORMATION If the product does not work, check the following:

• Thechargerispluggedintoaworkingelectricaloutlet. ACCESSORIES Theperformanceofyourapliancedependsontheaccessoryused.BLACK+DECKER accessories are engineered to high quality standards and are designed to enhance the performance of your apliance.

• Batterynotcharged. •Checkbatterycharging requirements.

• Checkcurrentatreceptacle by plugging in a lamp or other appliance.

• Checktoseeifreceptacleis connected to a light switch which turns power off when you turn out the lights.

• Surroundingairtemperature •Movechargerandtooltoa too hot or too cold. surrounding air temperature ofabove40degreeF(4,5°C) orbelow105degreeF (+40,5°C). For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1-800-544-6986.8 facilitatethecollectionofspentlithium-ionbatteries.Helpprotectourenvironmentand conservenaturalresourcesbyreturningthetooltoanauthorizedBLACK+DECKER service center for recycling. You may also contact your local recycling center for information on where to drop off the spent battery, or call 1-800-8-BATTERY. ThisClassBdigitalapparatuscomplieswithCanadianICES-003. Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurin a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiver is connected.

Black&Decker(U.S.)Inc.guaranteesthisproducttobefreefromdefectsinmaterial orworkmanshipforaperiodofthree(3)yearsfollowingthedateofpurchase,provided that the product is used in a home environment. This limited guarantee does not cover failures due to abuse, accidental damage or when repairs have been made or attempted byanyoneotherthanBLACK+DECKERanditsAuthorizedServiceCenters.Adefective product meeting the guarantee conditions set forth herein will be replaced or repaired at no charge in either of two ways: Thefirst,whichwillresultinexchangesonly,istoreturntheproducttotheretailerfrom whomitwaspurchased(providedthatthestoreisaparticipatingretailer).Returnsshould bemadewithinthetimeperiodoftheretailer’spolicyforexchanges.Proofofpurchase mayberequired.Pleasecheckwiththeretailerforitsspecificreturnpolicyregardingtime limitsforreturnsorexchanges.Thesecondoptionistotakeorsendtheproduct(prepaid) toaBLACK+DECKERownedorauthorizedServiceCenterforrepairorreplacement atBLACK+DECKER’soption.Proofofpurchasemayberequired.BLACK+DECKER ownedandauthorizedservicecentersarelistedonlineatwww.blackanddecker.com. This gaurentee does not apply to accessories. This gaurentee gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this guarantee.Allotherguarentees,expressorimplied,areherebydisclaimed. LATIN AMERICA: ThisguaranteedoesnotapplytoproductssoldinLatinAmerica.For productssoldinLatinAmerica,checkcountryspecificguaranteeinformationcontainedinthe packaging, call the local company or see the website for such information. Imported by Black&Decker(U.S.)Inc., 701E.JoppaRd. Towson,MD21286U.S.A.9 Consulter le site Web www.BlackandDecker.com/NewOwner pour enregistrer votre nouveau produit.
