USER MANUAL CHDS 412FWH CANDY

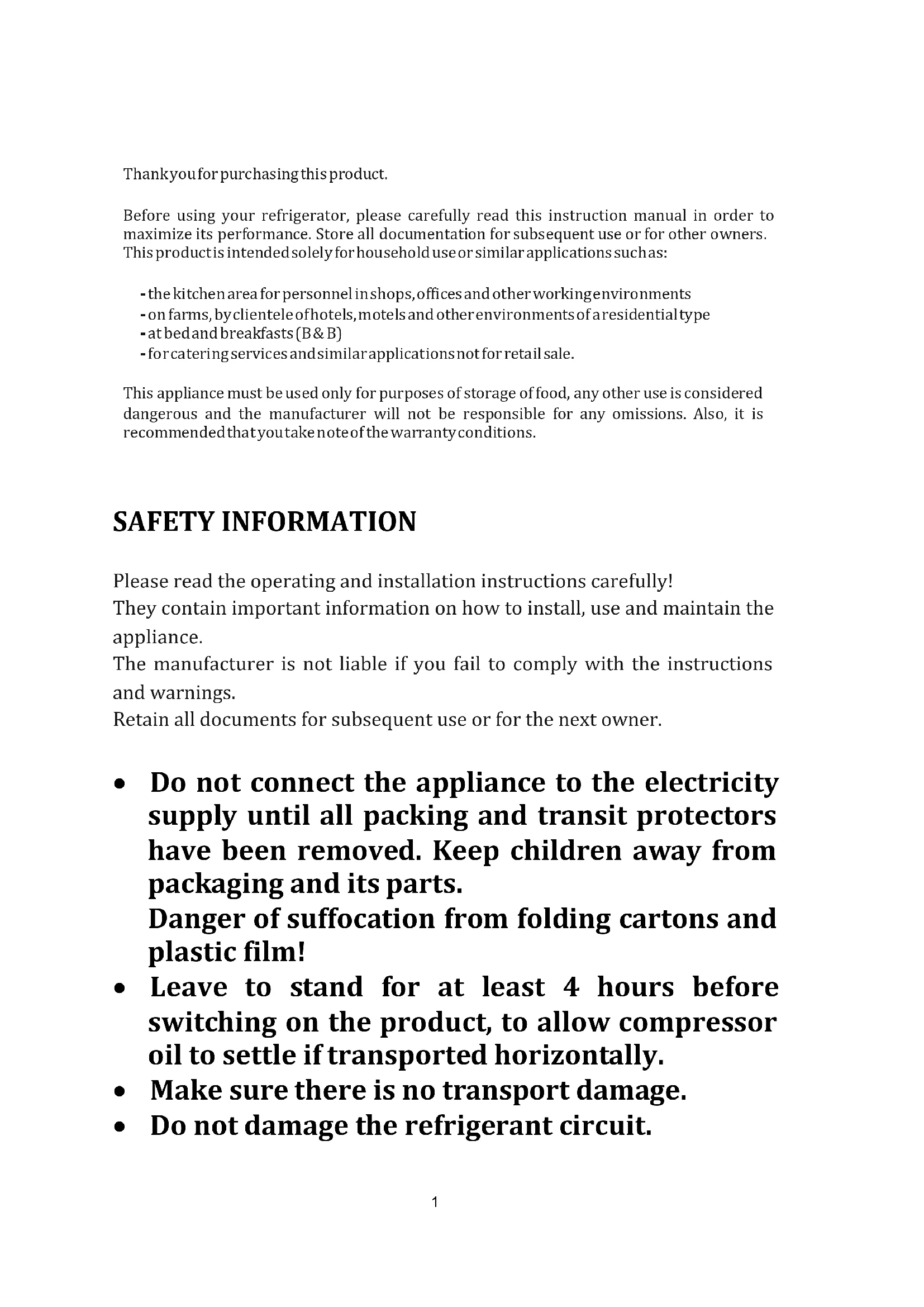

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
  -at bed and breakfasts (B & B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

- Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.

Danger of suffocation from folding cartons and plastic film!

- Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.

• Make sure there is no transport damage.

- Do not damage the refrigerant circuit.

- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

- Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

- Handle the appliance always with at least two persons because it is heavy.

• Install and level the appliance in an area suitable for its size and use.

- Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.

- The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

- Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

• Make sure that mains cable is not caught under the appliance during and after

carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

- Do not install the appliance near heaters or inflammable materials.

- FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

- If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.

- Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures.

- Do not excessively pull or fold the power cord

or touch the plug with wet hands.

- Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!

- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

- At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

- Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance.

• Children should not play with the appliance.

- Children aged from 3 to 8 years are allowed to load and unload this appliance.

- FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!

- FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!

- Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.

- Before performing any operation, unplug the power cord from the power socket.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

- Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.

- Supervise children while the appliance is being cleaned or maintained.

- Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

- WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

- If the refrigerant circuit should be damaged:

• Switch off the appliance and pull out the mains plug,
• Keep naked flames and/or ignition sources away from the appliance,
• Thoroughly ventilate the room for several minutes,
• Inform customer service.

- WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

- WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.

- Do not attempt to sit or stand on the top of the

appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

- The product is designed and built for domestic household use only.

- Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

-Clean regularly surfaces that can come in contact with food and accessible drainage systems.

-Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

-Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments(if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food.

-If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

• FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine
• FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance
• FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs

Scrapping old appliances

Warning sign depicting a flame symbol in a triangular shape

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the C€ mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Guarantee

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Energy Saving

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.
  • Do not excessively stuff foods so as to ensure proper air circulation.
  • Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance

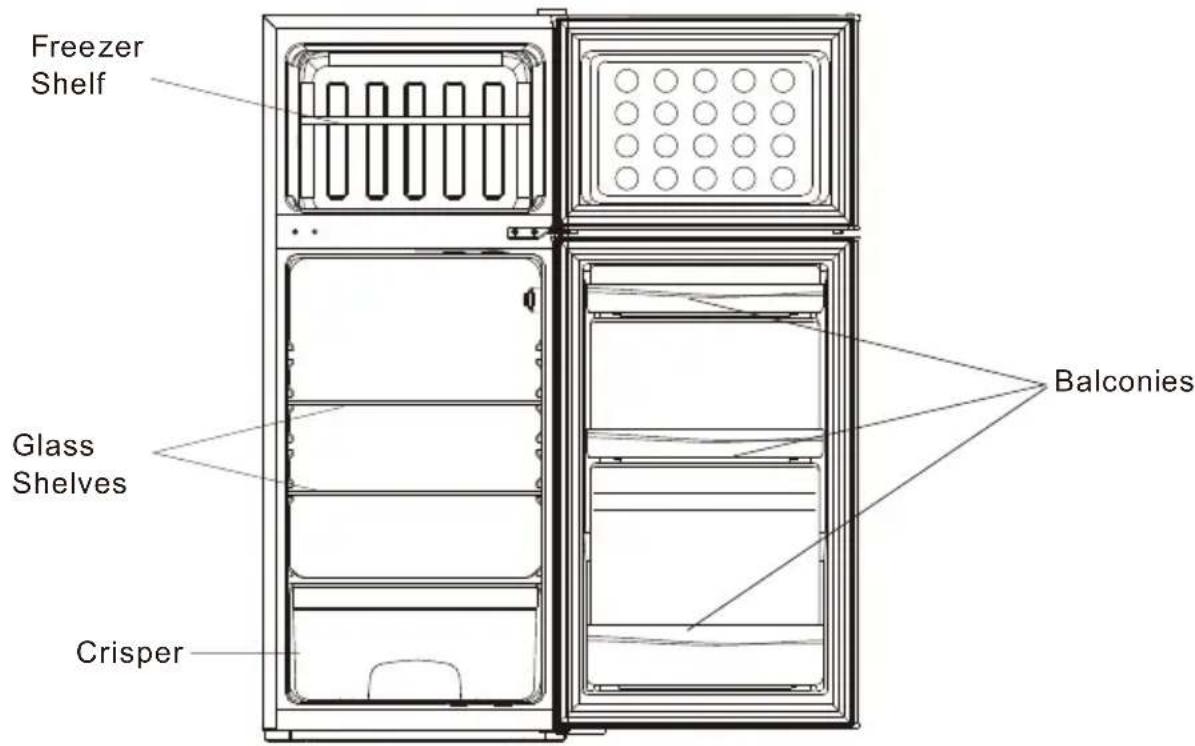

Freezer Shelf Glass Shelves Crisper Balconies

This illustration is only for hinting, the detail please check your appliance.

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid
  so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

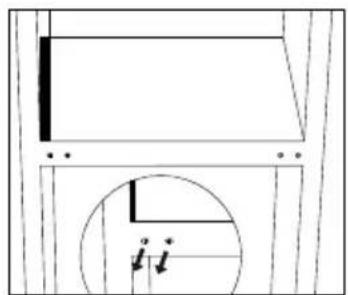

• Carefully remove the top hinge cover with a flat screw driver

Simple line drawing of a mechanical lever with a handle and a load arrow (no text or symbols)

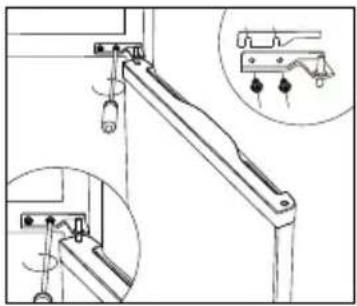

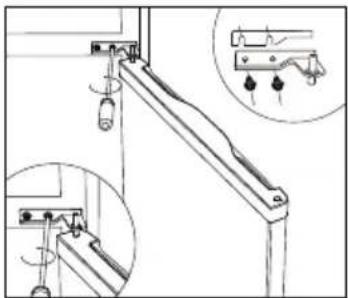

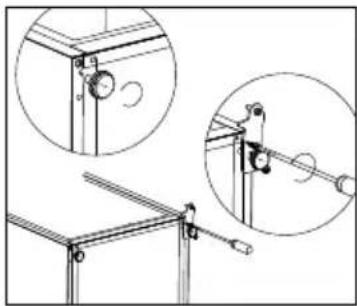

1. Unscrew the top hinge with a philiphs screw driver.

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

1. Remove the hole cover with a flat screw driver.

Pure mechanical diagram showing a lever mechanism with no text or symbols

1. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

Pure technical line drawing of a 3D rectangular block with corner holes and curved lines, no text or symbols present.

Reverse Door

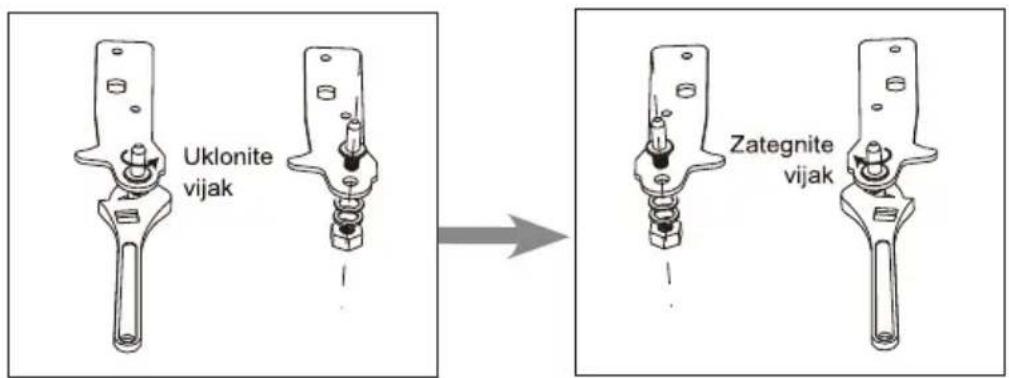

1. Unscrew the middle hinge and then lift the bottom door and put it on a soft pad to avoid scratch.

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

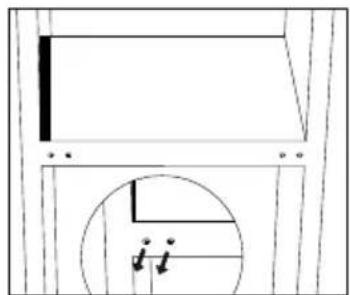

1. Move two middle hole covers from left to right.

Simple line drawing of a basketball court with an oval opening and horizontal bars, no text or symbols present.

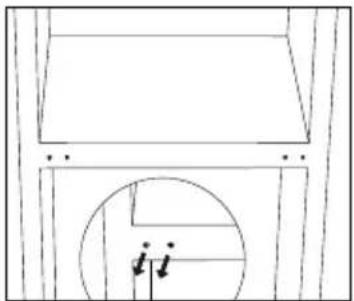

1. Lie down the rear of cabinet on a soft pad. And unscrew the bottom hinge and leveling foot.

Technical line drawing of a mechanical assembly with two views showing components (no text or symbols)

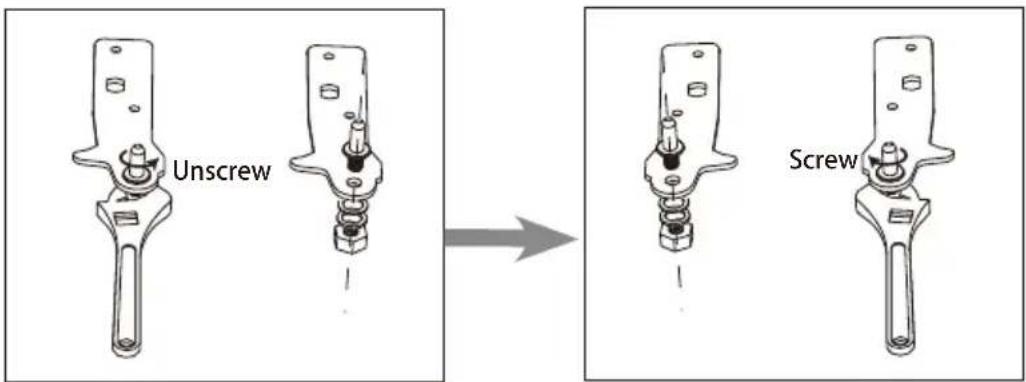

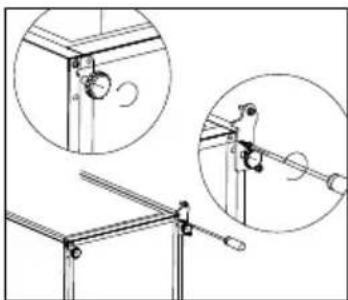

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Unscrew Screw

Reverse Door

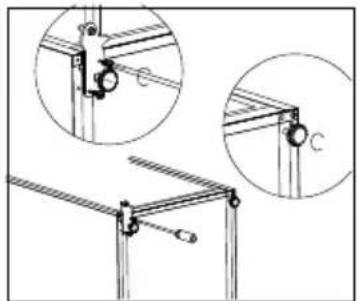

1. Install the hinge at left side and foot base at right side. Then screw two leveling feet with their original parts.

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-ups of components (no text or symbols)

1. Move two middle hole covers from left to right.

Simple line drawing of a basketball court with an oval and horizontal bars, no text or symbols present.

1. Stand up the unit and put the door on the bottom hinge. Make sure the bottom hinge core is inserted in the door hole. Then move the hinge hole cover of bottom door from left side to right side.

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

1. Install the middle hinge.

Pure architectural line drawing of a window frame with no text, numbers, or symbols

Reverse Door

1. Install the upper door with the upper hinge.

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

1. Clap in the hinge cover and hole cover on the top of unit.

Simple line drawing of a rectangular object with two downward arrows indicating measurement or alignment (no text or symbols)

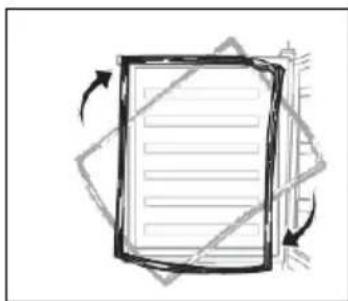

1. Detach the Fridge and the Freezer door gaskets and then attach them

after rotating.

Abstract diagram showing a document with arrows indicating rotational movement (no text or symbols)

Installation

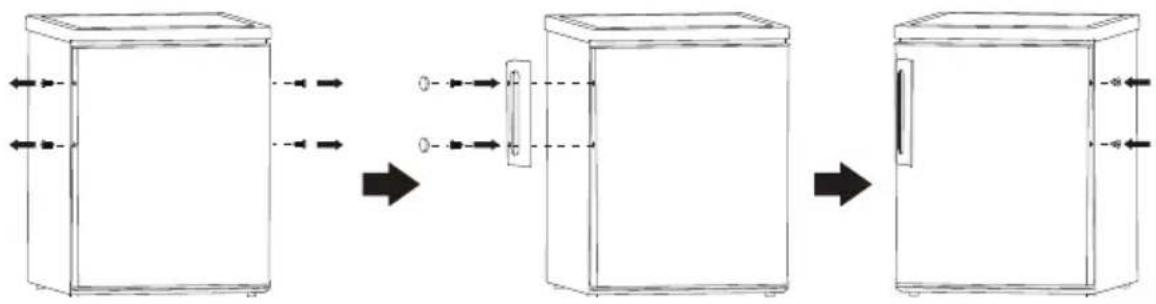

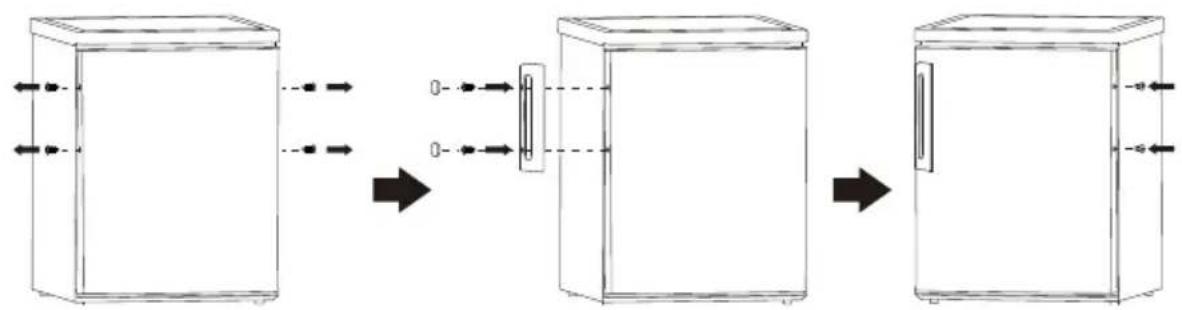

Install door external handle (if external handle is present)


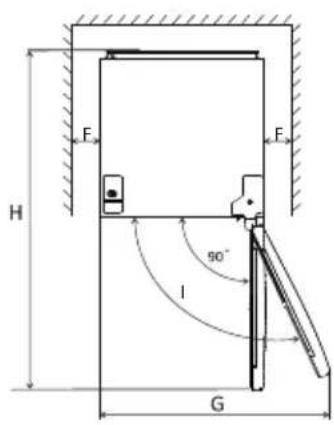

Space Requirement

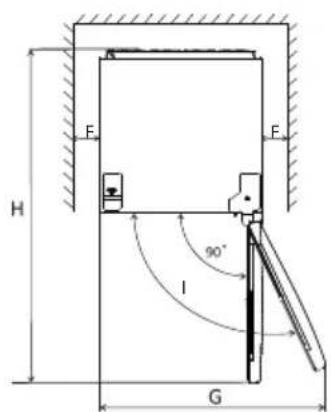

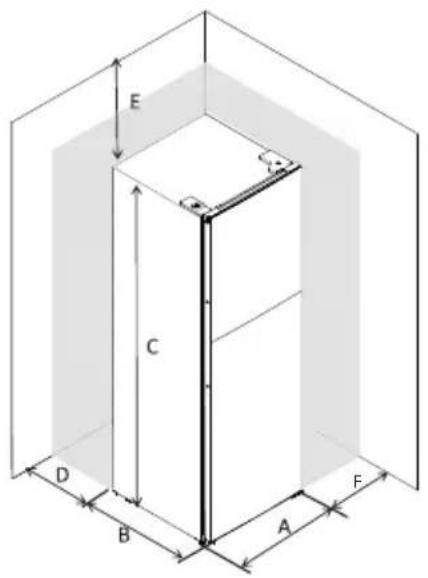

- Keep enough space of door open.

E C D B A F

H F F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

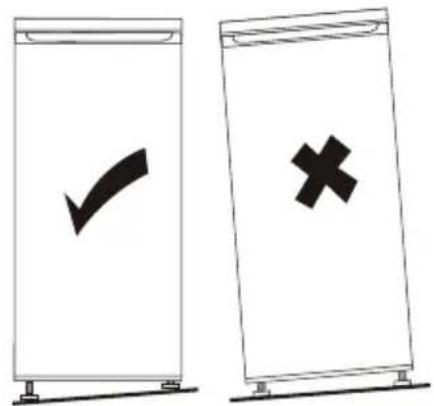

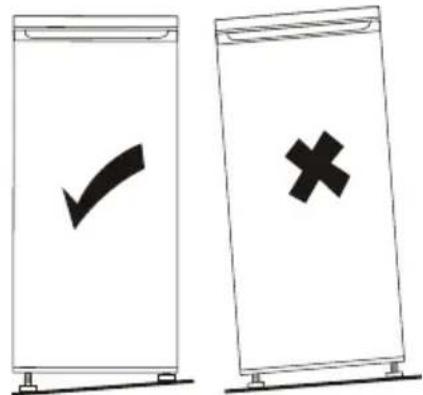

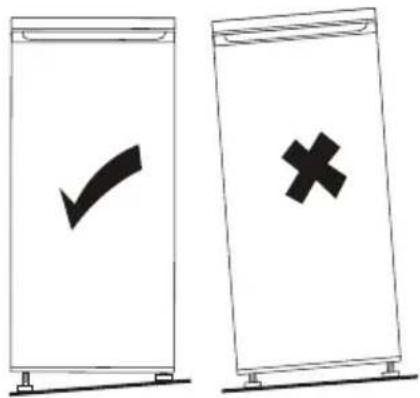

Levelling the unit

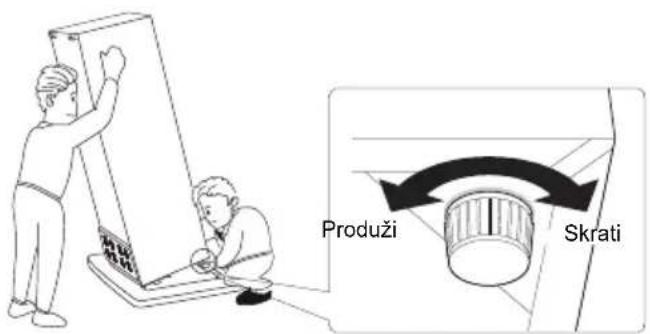

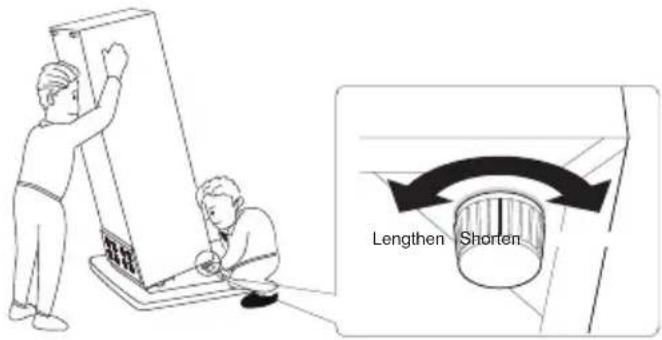

80 do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Lengthen Shorten

Two labeled diagrams showing a checkmark and an 'X' symbol, likely indicating approval or rejection status.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your
domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a
contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a
separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 8 settings. 1 is warmest setting and 7 is coldest when set is 0, the appliance is switched off. When set is max, compressor will not stop
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

4 5 3 6 2 7 1 0

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic inthe refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Freezer compartment	Fridge compartment
Summer	/
		Set on 2~4
Normal	/
		Set on 4-5
Winter	/
		Set on 5-6

• Information above give users recommendation of temperature setting.

Impact on Food Storage

• It's suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment.
• For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.
• For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C)

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
  • The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
  • The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand holding a shelf with a rectangular object on top (no text or symbols)

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
- not open the door frequently or leave it open longer than absolutely necessary.
- once defrosted, food deteriorates rapidly and cannot be re-frozen;
- do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
  • Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc....: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

Clean drain hole

To avoid defrost water overflowing into the fridge, periodically clean the drain hole at back of fridge compartment. Use a cleaner to clean the hole as showed in right picture.

Diagram of a sewing machine needle with arrows indicating rotation and cutting process (no text or labels)

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• pull out the plug from the socket;
- remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
- keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
- when defrosting is completed, dry the interior thoroughly
- replace the plug in the power socket to run the appliance again.

Replace the lamp

- The internal light is a LED type. To replace the lamp, please contact qualified technician.

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

AVAILABILITY OF SPARE PARTS

"Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market".

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at number “0”.	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning section.
Side panel is hot	Condenser is inside the panel.	It's normal.

If the malfunction shows again, contact the Service Center.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

This symbol below indicates the location of the coldest area of the refrigerator. This area is bounded near the fan and above it by the icon or shelf positioned at the same level.

To maintain temperatures in this area, be careful not to move this shelf.

INSTALLING THE TEMPERATURE GAUGE

To help you set up your fridge correctly, it features a temperature gauge that allows you to

monitor the average temperature in the coldest area. WARNING: This ad is only intended for use with the refrigerator. Be careful not to use it in another refrigerator (in fact the coldest area is not the same) or for another use.

Temperature control in the coldest area

Once the installation of the temperature gauge is complete, it is possible

You can periodically check that the temperature of the coldest zone is correct.

If necessary, adjust the thermostat accordingly. The internal temperature of the refrigerator is influenced by several factors such as: B. the ambient temperature in the room, the amount of food stored and the frequency with which the door is opened. Consider these factors when setting the temperature.

Be careful to properly store food in the refrigerator and especially in the coldest area. Make sure the temperature display indicates "OK".

OK

Plain beige circle with black border (no text or symbols)

If "OK" does not appear, the temperature of the zone is too high. Set the thermostat to a higher position. Wait at least 12 hours before resetting the thermostat. After loading fresh food into the appliance or opening the door again (or for a long time), it is normal for the "OK" indicator not to appear on the temperature display.

Návod k použití

Chladnička

Simple line drawing of a mechanical lever with a handle and load, no text or symbols present

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical lever assembly with inset close-ups showing pin connections (no text or symbols)

Pure technical diagram showing a rectangular block and a circular component with internal lines, no text or symbols present.

Technical line drawing of a mechanical clamp or bracket assembly with two circular insets showing close-up views (no text or symbols)

Technical line drawing of a mechanical assembly with two views (closis and side view) showing structural details without any text or symbols.

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure architectural line drawing of a cabinet or cabinet frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

F H F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Vyrovnání zařízení

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Nastavení polohy

Illustration showing a hand cleaning a shelf and pouring liquid into a container with upward arrows (no text or symbols)

Diagram of aircraft wing rotation showing propeller and fuselage (no text or labels)

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

DOSTUPNOST NÁHRADNÍCH DÍLŮ

Warning sign depicting a flame symbol inside a triangle, indicating hazardous or hazardous hazard.

Simple line drawing of a mechanical clamp or lever with a downward arrow indicating force or direction (no text or symbols)

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Pure geometric diagram of a 3D rectangular prism with no text, numbers, or symbols

Bagdør

Technical line drawing of a mechanical lever system with inset detail showing mounting bracket (no text or symbols)

Pure technical diagram showing a mechanical component with internal circular cutout and dimension arrows (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Skru Iøs Skrue

Bagdør

Technical line drawing of a mechanical linkage assembly with two circular insets showing close-ups of components (no text or symbols)

Pure geometric diagram with lines and circles, no text or symbols present

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Simple line drawing of a door with a handle and vertical panel, no text or symbols present

Bagdør

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Line drawing of a rectangular panel with corner brackets and two arrows indicating downward force (no text or symbols)

Abstract diagram of a document with arrows indicating rotation or movement (no text or symbols)

Installation

Pladsbehov

H F E 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Diagram showing two labeled containers with checkmarks and a cross symbol, likely indicating approval or rejection status.

Placering

Illustration showing a hand placing a lid onto a shelf and another container with upward arrows (no text or symbols)

Dagligt brug

Diagram showing a bird cutting a kite inside a heart-shaped container with directional arrows (no text or symbols)

Pure technical line drawing of a rectangular component with a circular hole, no text or symbols present

TILGÆNGELIGHED AF RESERVEDELE

Simple line drawing of a mechanical lever with a handle and load, no text or symbols present

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Αντιστροφή πόρτας

Technical line drawing of a mechanical lever system with inset detail (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical line drawing of a mechanical linkage assembly with two circular insets showing close-ups of components (no text or symbols)

Pure technical diagram showing a rectangular block and a circular cross-section with labeled arrows (no text or symbols)

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure architectural line drawing of a window with no text, numbers, or symbols

Αντιστροφή πόρτας

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Simple line drawing of a rectangular object with two downward arrows indicating orientation or alignment (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Τοποθέτηση

Απαιτήσεις χώρου

F H F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Diagram showing two labeled containers with checkmarks and an 'X' symbol, likely indicating cancellation or rejection status.

Τοποθέτηση

Θέση τοποθέτησης

Illustration showing a hand installing or adjusting a shelf panel above a trash bin with upward arrows (no text or symbols)

Καθημερινή χρήση

Diagram showing aircraft wing rotation and impact direction (no text or labels)

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

ΔΙΑΘΕΣΙΜΟΤΗΤΑ ΑΝΤΑΛΛΑΚΤΙΚΩΝ ΜΕΡΩΝ

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a mechanical clamp or lever with a downward arrow indicating force or direction (no text or symbols)

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Pure geometric diagram of a 3D rectangular prism with internal lines and corner markers (no text or symbols)

Käännettävä ovi

Technical line drawing of a mechanical lever system with inset close-ups showing internal components (no text or symbols)

Pure technical diagram showing a rectangular block and a circular cross-section with internal lines, no text or symbols present.

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-ups of components (no text or symbols)

Pure architectural line drawing of a window with circular cutouts and horizontal lines (no text or symbols)

Simple line drawing of a cabinet or rack with no text, numbers, or symbols

Pure architectural line drawing of a window frame with no text, numbers, or symbols

Käännettävä ovi

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Simple line drawing of a flat panel with two arrows pointing to the edges (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Asennus

Tarvittava tila

F H F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Lengthen Shorten

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

Line drawing of a hand placing a rectangular object on a shelf (no text or symbols)

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Päivittäinen käyttö

Diagram of a sewing machine needle with arrows indicating fabric direction (no text or labels)

Vaihda lamppu

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

Varaosien saatavuus

Plain beige circle with black outline, no text or symbols present

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a mechanical clamp or bracket with a downward arrow indicating force or direction (no text or symbols)

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Technical line drawing of a mechanical lever system with inset close-ups showing internal components (no text or symbols)

Simple line drawing of a basketball court with an oval opening and diagonal lines indicating the court (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Pure geometric diagram with lines and circles, no text or symbols present

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a window with no text, numbers, or symbols

Technical line drawing of a mechanical clamp or bracket assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating force or alignment (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Installation

Encombrement

F H F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Diagram showing two labeled containers with checkmarks and an 'X' symbol, likely indicating cancellation or rejection status.

Installation

Positionnement

Illustration showing a hand placing a shelf item into a container with arrows indicating flow (no text or symbols)

Utilisation

Conseils utiles

Diagram of airplane flying around a globe with directional arrows indicating flight motion (no text or symbols)

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

DISPONIBILITÉ DES PIÈCES DE RECHANGE

Simple line drawing of a mechanical clamp or lever with a downward arrow indicating motion (no text or symbols)

1. Odvrnite gornju šarku odvijačem philiphs.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Technical line drawing of a mechanical linkage assembly with inset detail (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

1. Lezite na stražnji dio ormarića na mekanu podlogu. Odvijte donju šarku i izravnajte stopalo.

Technical line drawing of a mechanical clamp or bracket assembly with two circular insets showing close-up views (no text or symbols)

1. Utknite vijak donje šarke, obrnite nosač i ponovno postavite.

Uklonite vijak Zategnite vijak

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Pure geometric diagram with lines and circles, no text or symbols present

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

1. Postavite srednju šarku.

Pure technical line drawing of a cabinet or lifting mechanism without any text, numbers, or symbols

Technical line drawing of a mechanical component with a circular inset showing a rotating feature (no text or symbols)

1. Ckrug u poklopcu šarke i poklopcu otvora na vrhu jedinice.

Simple line drawing of a rectangular object with two downward arrows indicating orientation or alignment (no text or symbols)

1. Skinite brtve vrata hladnjaka i zamrzivača, a zatim ih pričvrstite nakon rotiranja.

Abstract diagram of a document with arrows indicating rotation or flow, no text or symbols present

Injstalacija

Okolni prostor

F H F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Niveliranje uređaja

Kako biste to učinili, podesite dvije nožice s prednje strane uređaja.

Ako uređaj nije poravnat, vrata i poravnanja magnetskih brtvi neće biti pravilno pokriveni.

Produži Skrati

Two identical diagrams showing a checkmark and a cross symbol on a stand, likely indicating approval or rejection status.

Injstalacija

Smještaj

Postavite uređaj na mjesto gdje temeperatura okoline odgovara klimatskoj klasi navedenoj na natpisnoj pločici uređaja.

• prošireni umjereni: „Ovaj rashladni uređaj namijenjen je uporabi na temperaturama okoline od 10 °C do 32 °C.”;
• umjereni: „Ovaj rashladni uređaj namijenjen je uporabi na temperaturama okoline od 16 °C do 32 °C.”;
• suptropski: „Ovaj rashladni uređaj namijenjen je uporabi na temperaturama okoline od 16 °C do 38 °C.”;
• tropski: „Ovaj rashladni uređaj namijenjen je uporabi na temperaturama okoline od 16 °C do 43 °C.”;

Položaj

Postavite uređaj dalje od izvora topline poput radijatora, bojlera, izravne sunčeve svjetlosti, itd. Osigurajte odgovarajuću ventilaciju oko stražnjeg dijela uređaja. Za optimalan rad, ukoliko je uređaj smješten ispod zidnih polica, minimalna udaljenost između vrha uređaja i police mora biti barem 100 mm. Međutim, uređaj ne bi trebalo postavljati ispod zidnih polica. Pravilno podešavanje visine osigurano je zahvaljujući jednoj ili više podesivih nožica na dnu uređaja.

Illustration showing a hand cleaning a shelf and pouring liquid into a container (no text or symbols)

Svakodnevna uporaba

Diagram of a sewing machine needle and blade mechanism inside a circular frame (no text or symbols)

Zamijenite žarulju

Unutarnje svjetlo je LED tip. Za zamjenu žarulje obratite se kvalificiranom tehničaru.

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

DOSTUPNOST REZERVNIH DIJELOVA

Warning symbol of a flame inside a triangle (no text or numbers)

Freezer Ripiani in vetro Crisper Balconi

Simple line drawing of a mechanical lever with a fulcrum and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

Simple line drawing of a basketball court with an oval cutout showing player positions (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical line drawing of a mechanical assembly with two circular insets showing close-up views of components (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a window with vertical supports and horizontal beams (no text or symbols)

Technical line drawing of a mechanical bracket with a circular inset showing a rotating component (no text or symbols)

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Abstract diagram of a document with arrows indicating rotation or flow, no text or symbols present

Installazione

F H F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Diagram showing two labeled containers with checkmarks and an 'X' symbol, likely indicating cancellation or rejection status.

Installazione

Posizionamento

Illustration showing a hand cleaning a shelf and a close-up of a container with arrows indicating flow (no text or symbols)

Uso quotidiano

Consigli utili

Diagram of aircraft wing rotation showing propeller and airplane (no text or labels)

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

DISPONIBILITA' DEI RICAMBI

Simple circular shape with no text, numbers, or symbols

Warning sign depicting a flame symbol in a triangular shape

Enheten er merket iht. direktiv 2012/19/EU om elektrisk og elektronisk avfall (WEEE).

Pure mechanical diagram showing a lever and pivot with an arrow indicating direction (no text or symbols)

1. Skru av det øverste hengslet med en Philiphs skrutrekker.

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

1. Fjern hulldekselet med en flat skrutrekker.

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Snu dør

Technical line drawing of a mechanical lever system with inset close-ups showing internal components (no text or symbols)

Pure technical diagram showing geometric shapes and lines without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with two views showing components (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Simple line drawing of a rectangular object with two corner notches and arrows indicating direction (no text or symbols)

Abstract diagram of a document with arrows indicating rotation or movement (no text or symbols)

Installasjon

Plasskrav

E C D B A E

H F F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Merk: Bildene over er kun til referanse.

Installasjon

Plassering

Illustration showing a hand placing a shelf item into a rack, and a close-up of a container with arrows indicating flow (no text or symbols)

Daglig bruk

Nyttige tips og råd

Diagram showing aircraft wing rotation and control panel with Chinese label '11.'

TILGJENGELIGHET AV RESERVEDELER

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a mechanical lever with a handle and a downward arrow indicating motion (no text or symbols)

1. Odvijte zgornji tečaj z izvijačem philiphs.

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

1. Premaknite pokrov jedra z leve na desno stran. Nato dvignite zgornja vrata in jih postavite na oblazinjeno površino, da preprečite praskanje.

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Obračanje vrat

1. Odvijte srednji tečaj in nato dvignite spodnja vrata ter jih položite na mehko blazinico, da se izognete praskam.

Technical line drawing of a mechanical lever system with inset diagrams showing force application (no text or symbols)

1. Premaknite dva srednja pokrova lukenj z leve proti desni.

Pure geometric diagram with lines and circles, no text or symbols present

1. Lezite na zadnjo stran omarice na mehko blazinico. Odvijte spodnji tečaj in poravnajte nogo.

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing close-up views of components (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure architectural line drawing of a window with vertical supports and horizontal beams (no text or symbols)

Obračanje vrat

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

1. Ckrog v pokrovu tečaja in pokrovu luknje na vrhu enote.

Line drawing of a mechanical component with two arrows indicating downward forces (no text or symbols)

Abstract diagram of a document with arrows indicating rotation or movement (no text or symbols)

Instalacija

Pritrjevanje ročaja

Mere potrebnega prostora

F H F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Uravnavanje

Two identical diagrams showing a checkmark and a cross symbol on a stand, likely indicating approval or cancellation.

Instalacija

Namestitev

Illustration showing a hand placing a rectangular object onto a shelf, and a close-up of a trash bin with upward arrows indicating flow (no text or symbols)

Dnevna uporaba

Diagram of a mechanical device with rotating arms and blades, no text or symbols present

Menjava svetilke

Notranja lučka je tipa LED. Če želite zamenjati svetilko, se obrnite na usposobljenega tehnika.

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

RAZPOLOŽLJIVOST REZERVNIH DELOV

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a mechanical lever with a handle and load, no text or symbols present

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Vända dörren

Technical line drawing of a mechanical bracket assembly with inset detail (no text or symbols)

Pure geometric diagram with lines and circles, no text or symbols present

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Skruva loss Skruv

Vända dörren

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Pure geometric diagram with lines and shapes, no text or symbols present

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure architectural line drawing of a window frame with no text, numbers, or symbols

Vända dörren

Technical line drawing of a mechanical assembly with a circular inset showing a pin mechanism (no text or symbols)

Simple line drawing of a folded paper or panel with two arrows indicating downward force (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Montering

Montera externt dörrhandtag (om ett externt handtag finns)

Utrymmeskrav

H F F 90° I G

A	480
B	530
C	1160
D	min=50
E	min=50
F	min=50
G	960
H	1010
I	135°

Nivåjustering

Diagram showing two labeled containers with checkmarks and crosses, indicating approval or rejection status.

Illustration showing a hand placing a rectangular object onto a shelf, and a close-up of a container with arrows indicating flow (no text or symbols)

Använd

Diagram showing a bird cutting through a circular shape with arrows indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

TILLGÄNGLIGHET AV RESERVDELAR

Warning sign depicting a flame symbol in a triangular frame

Simple line drawing of a mechanical clamp or lever with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Pure mechanical diagram showing a lever mechanism with a downward arrow, no text or symbols present

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

Simple line drawing of a basketball court with an oval opening and diagonal lines (no text or symbols)

Technical line drawing of a mechanical assembly with two views showing different components (no text or symbols)

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-ups of components (no text or symbols)

Simple line drawing of a basketball court with an oval opening and diagonal lines (no text or symbols)

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure architectural line drawing of a window frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a flat panel with two arrows pointing to the edges (no text or symbols)

Simple line drawing of a rectangular frame with curved arrows indicating rotation or movement (no text or symbols)

H F F 90° I G

A	480
B	530
C	1160
D	мин = 50
E	мин = 50
F	мин = 50
G	960
H	1010
I	135°

Нивелиране на уреда

Two labeled diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

Позициониране

Line drawing of a hand placing a flat surface on a shelf (no text or symbols)

Simple diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

НАЛИЧНОСТ НА РЕЗЕРВНИ ЧАСТИ
