USER MANUAL Akoya P54160 (MD 20360) MEDION

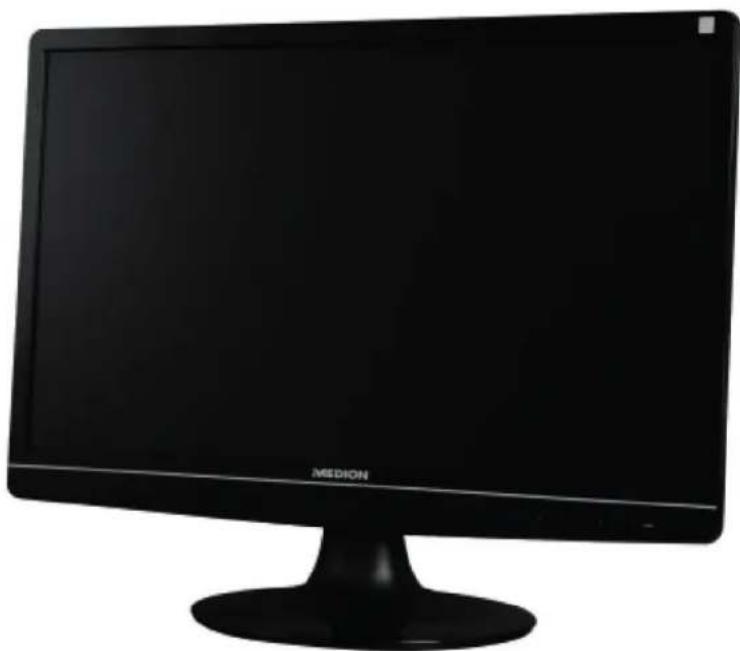

54,6 cm / 21,5" LED Backlight Monitor

MEDION® AKOYA® P54160 (MD 20360)

Black desktop computer monitor with 'MEDION' branding on the front panel (no additional text or symbols visible)

Bedienungsanleitung Instruction manual Mode d'emploi Manual de instrucciones Brugsvejledning Handleiding Istruzioni per l'uso

Inhalt

Inhalt 1

Technical line drawing showing a mechanical component being processed into two views (front and side), with no visible text or symbols.

Technical line drawing showing two views of a device with internal components and a magnified inset (no text or symbols)

Safety warning illustration showing sunlight illuminating a wall-mounted device, with checkmark and crossed-out boxes indicating no protection.

Symbolic image showing a recycling symbol above a crossed-out trash bin and a black prohibition sign below it.

Verpackung

Information about these instructions....2

Target group 2
Service....2
The symbols and signal words used in these Instructions....2

Use in accordance with regulations....2

Contents of package....2

Safety information....3

Caution! Pay attention to operational safety....3
Caution! Pay attention to the set-up location! ....3
Repair 4
Caution! Pay attention to the surrounding temperature!......4
Warning! Pay attention to safety during the connection!....4
Power supply....4
Information about conformity....5

Bringing the device into operation....6

Setup....6
Preparation of your PC....6
Supported monitor settings....7
Monitor settings under Windows XP....8
Monitor settings under Windows Vista ^* 9
Monitor settings under Windows ^4 7....9
Connections on the back 10
Connecting the monitor ....10

1 Connect signal cable....10
2 Connect audio cable....10
3 Connect the power supply....10
4 Switch on the monitor 10

The video workstation....11

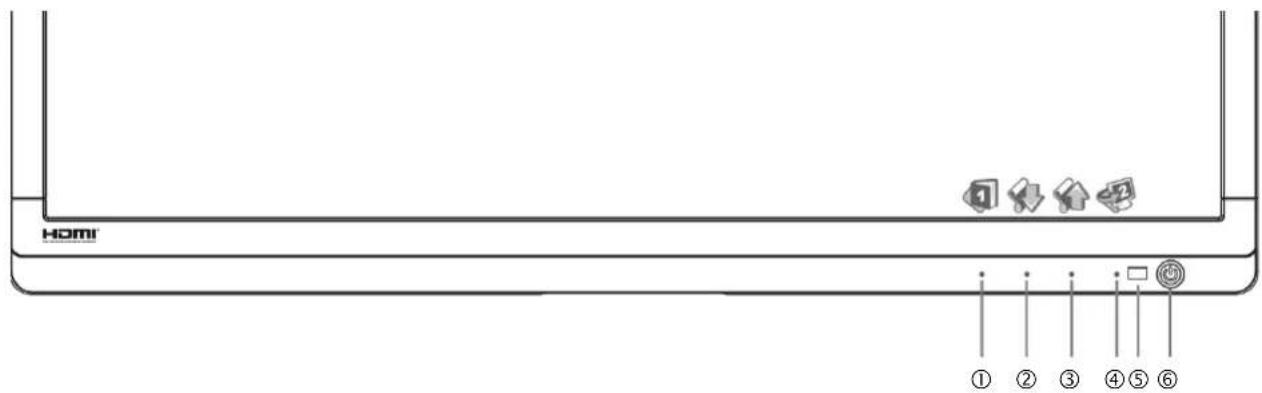

Operating elements....12

Changing the parameters of the TFT monitor 13

Operating the OSD menu 13

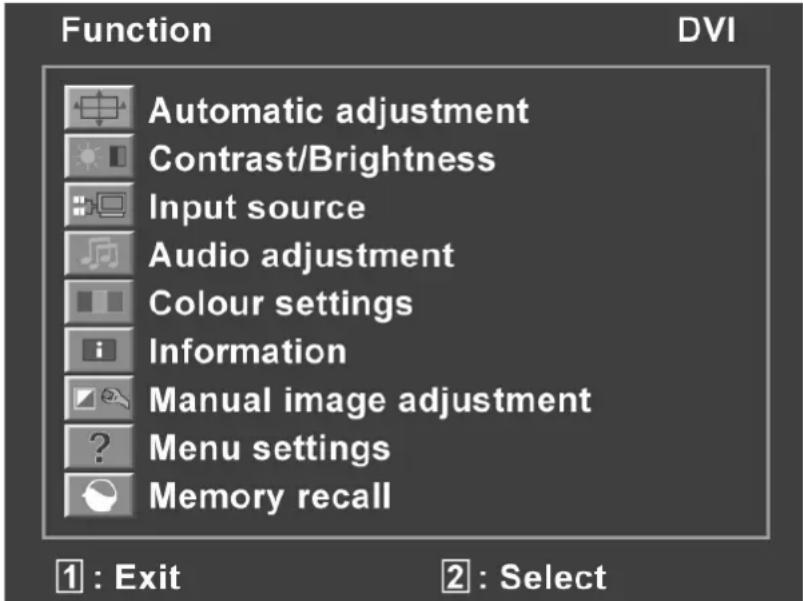

The OSD menu....13

Energy-saving properties....15

Customer Service 16

Solving problems....16
Localisation of the cause 16
Check the connections and cables 16
Faults and possible causes ....16
Driver information 17
Do you need further support?......17

Cleaning....18

Disposal 18

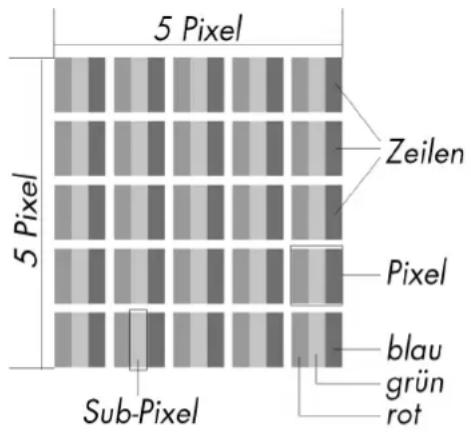

Pixel defects on screens....18

Reproduction of this manual 19

Technical data 20

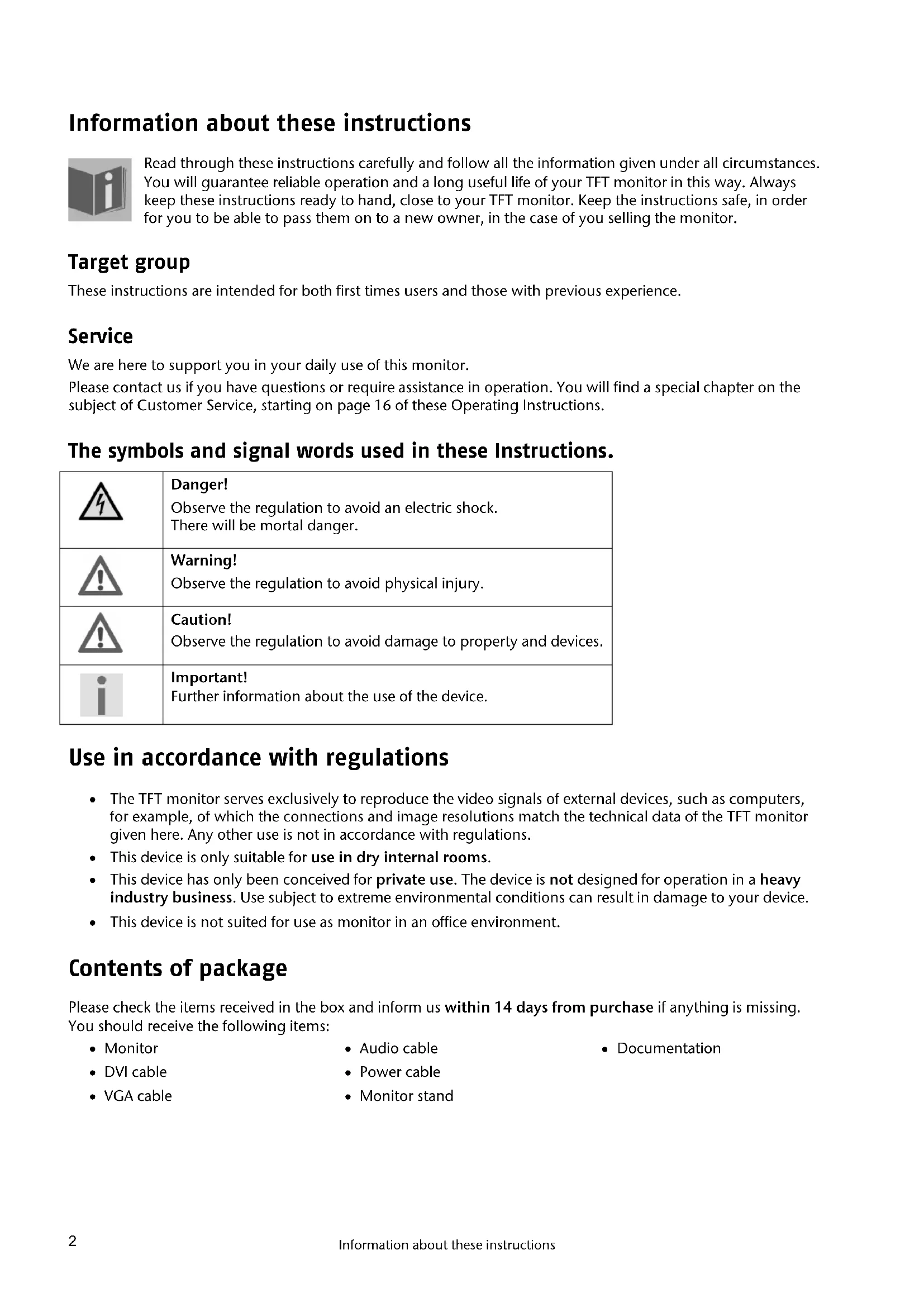

Information about these instructions

Read through these instructions carefully and follow all the information given under all circumstances. You will guarantee reliable operation and a long useful life of your TFT monitor in this way. Always keep these instructions ready to hand, close to your TFT monitor. Keep the instructions safe, in order for you to be able to pass them on to a new owner, in the case of you selling the monitor.

Target group

These instructions are intended for both first times users and those with previous experience.

Service

We are here to support you in your daily use of this monitor.

Please contact us if you have questions or require assistance in operation. You will find a special chapter on the subject of Customer Service, starting on page 16 of these Operating Instructions.

The symbols and signal words used in these Instructions.

	Danger!Observe the regulation to avoid an electric shock.There will be mortal danger.
	Warning!Observe the regulation to avoid physical injury.
	Caution!Observe the regulation to avoid damage to property and devices.
	Important!Further information about the use of the device.

Use in accordance with regulations

• The TFT monitor serves exclusively to reproduce the video signals of external devices, such as computers, for example, of which the connections and image resolutions match the technical data of the TFT monitor given here. Any other use is not in accordance with regulations.
• This device is only suitable for use in dry internal rooms.
• This device has only been conceived for private use. The device is not designed for operation in a heavy industry business. Use subject to extreme environmental conditions can result in damage to your device.
• This device is not suited for use as monitor in an office environment.

Contents of package

Please check the items received in the box and inform us within 14 days from purchase if anything is missing. You should receive the following items:

- Monitor

- Audio cable

- Documentation

- DVI cable

- Power cable

- VGA cable

- Monitor stand

Safety information

Caution! Pay attention to operational safety.

• The device is not intended to be used by individuals with restricted physical, sensory or intellectual abilities (including children), or a lack of experience and/or knowledge, unless they are supervised by an individual responsible for their safety or have received instructions about how the device is to be used from such a person. Children should be supervised to ensure that they do not play with the device.
• Keep the packaging materials, such as plastic film, away from children. The danger of suffocation could arise in the case of misuse.
• Never open the casing of the TFT monitor (electric shock, short circuit and the danger of fire)!
• Do not introduce any objects into the inside of the TFT monitor through the slots and openings (electric shock, short circuit and the danger of fire)!
• The slits and opening of the TFT monitor serve ventilation. Do not cover these openings (overheating, danger of fire).
• Do not exert any pressure on the display unit. There will be the danger of the monitor breaking.
• Attention! There will be the danger of injury if the display unit has been broken. Pack up the broken parts with protective gloves and send them to your service centre for specialist recycling. Then wash your hands with soap, because it cannot be excluded that chemicals can escape.
• Do not touch the display unit with your fingers or with sharp objects, in order to avoid damage.

Contact Customer Service if:

• The mains cable has been contaminated or damaged
  • Liquid has penetrated the monitor
• The TFT monitor is not functioning correctly
• The TFT monitor has been dropped or the casing is damaged

Caution! Pay attention to the set-up location!

• New devices can emit a typical, unavoidable but completely harmless smell, which reduces increasingly in the course of time, in the initial hours of operation. We recommend that you ventilate the room regularly, in order to counter the formation of the smell. We have taken care that the applicable limits are clearly fallen below during the development of this product.
• Keep your TFT monitor and all the connected devices away from moisture and avoid dust, heat and direct solar radiation. Failure to comply with this information can lead to faults or damage to the TFT monitor.
• Do not operate your device in the open air, because external influences, such as rain, snow, etc. could damage the device.
• Do not subject the device to drops of water or spray and do not put any containers filled with liquid (vases or similar) on the device. Liquids penetrating can impair the electrical safety of the device.
• Do not put any open sources of fire (candles or similar) on the device.
• Pay attention to sufficiently large clearances in the wall unit. Maintain a minimum clearance of 10 cm around the device for sufficient ventilation.
• Place and operate all components on a stable, level and vibration-free base, in order to avoid the TFT monitor falling.
• Avoid fading effects, mirror effects and too strong contrasts between light and dark, to save your eyes and to guarantee comfortable workstation ergonomics.
  • Take regular breaks when working at your TFT monitor, to prevent tension and tiredness.

Repair

• Leave the repair of your TFT monitor exclusively to qualified specialist personnel.
• Please contact our authorised Service Partners exclusively in the case of a necessary repair.

Caution! Pay attention to the surrounding temperature!

• The TFT monitor can be operated at a surrounding temperature from 0^ C to +35^ C and at a relative ambient moisture level of <80% (non-condensing).
• The TFT monitor can be stored at -20^ C to +60^ C when it has been turned off.

Danger! Pay attention to the following:

Wait to bring the device into operation until it has reached the surrounding temperature, after the TFT monitor has been transported.

Moisture, which can cause an electrical short-circuit, can form within the TFT monitor in the case of wide variations in temperature or moisture.

⚠ Warning! Pay attention to safety during the connection!

Power supply

Please pay attention: Parts of the device will be subject to voltage, even if the mains switch has been switched off. Pull the mains plug from the socket, to interrupt the power supply to your TFT monitor or to release the device from voltage completely.

• Only operate the TFT monitor at an earthed socket with 100-240V\~, 50/60 Hz. Ask your energy supplier if you are not sure about the power supply at the set-up location.
• We recommend the use of protection against excess voltage for additional safety, in order to protect your TFT monitor against damage because of voltage peaks or electrical flashes on the mains network.
• Pull the mains plug from the socket, in order to interrupt the power supply to your monitor.
• The socket must be located close to the TFT monitor and be easily accessible.
• Lay the cable so that no-one can tread on it or trip over it.
• Do not place any objects on the cable, because it could be damaged otherwise.
• Your device has an On/Off switch. The TFT monitor can be switched on and off by means of it. No power will be consumed if the switch is standing at OFF (0). Put the On/Off switch to OFF or use a master/slave power strip, in order to avoid power consumption when the device is switched off.
• Maintain at least one metre clearance from high frequency and magnetic sources of interference (television device, loudspeakers, mobile phone, cell phone, etc.), in order to avoid disruptions to function and data loss.
• The failure of individual or several scanning spots can arise in rare cases, in spite of the most modern manufacture, because of the highly complex technology.

Information about conformity

The TFT monitor fulfils electromagnetic compatibility and electricity safety requirements.

Your device complies with the European Norm ISO 13406-2 Class II (Pixel error class) (see P. 18).

Your device complies with the basic requirements and the relevant guidelines of the 2004/108/EU EMV Guidelines [electromagnetic compatibility] and the 2006/95/EU Guideline for low voltage devices.

This device fulfils the basis requirements and the relevant regulation of the Ecodesign Guideline 2009/125/EG (Commission Regulation 1275/2008).

This monitor is ENERGY STAR ^® compliant.

As an ENERGY STAR®-Partner, MEDION ensures, that this device complies with the ENERGY STAR® guidelines for optimal power consumption.

Bringing the device into operation

Information

Please read the "Safety information" chapter on page 3 under all circumstances before bringing the device into operation.

Setup

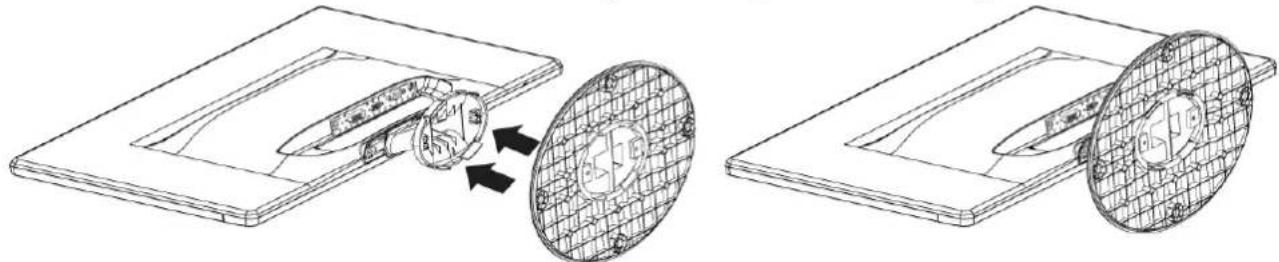

Attach the stand of the TFT monitor as illustrated. Carry out this step before connecting the monitor.

Technical line drawing showing a mechanical component being processed into two views (front and side), with no visible text or symbols.

(III.: Installation of the monitor stand)

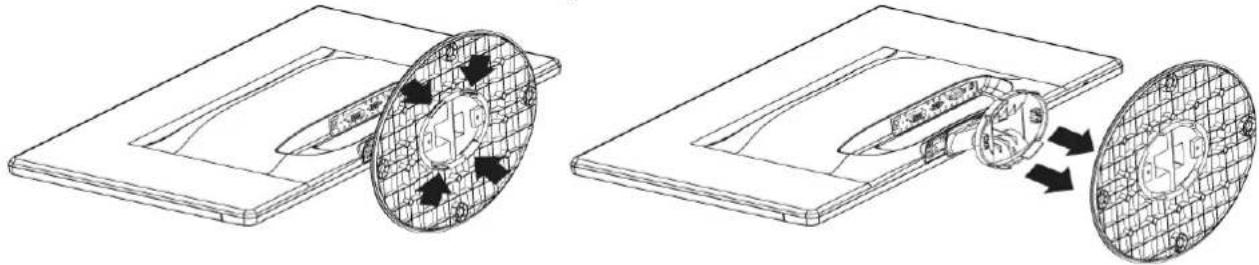

Take the TFT monitor down as shown in the drawing.

Technical line drawing showing two views of a device with internal components and a close-up view of a circular component (no text or symbols)

Taking down the base of the monitor (Ill. similar)

Preparation of your PC

You may have to make some preparations if you have been operating a tubed monitor on your computer up to now. This will be necessary if your current monitor has been operated with settings that are not supported by your new TFT screen.

The screen will represent up to 1920 x 1080 scanning elements. This resolution corresponds to the physical resolution. TFT screens achieve complete image quality with the physical resolution. The display will not appear on the whole area of the screen, under certain circumstances, if you change to a representation with deviating settings.

Distortions can also appear in the representation, particularly in the case of lettering.

Set a resolution and image frequency on the PC supported by both monitors, using the old monitor, before you connect the new monitor.

Shut down the PC and connect the new monitor.

You will be able to adjust the screen settings on the P54160 (MD 20360) as described after restarting.

Supported monitor settings

This TFT monitor supports the following modes.

Resolution	Horizontal	Frequency	Vertical	Frequency
720 x 400 31,47	kHz 70 Hz
640 x 480 31,47	kHz 60 Hz
640 x 480 31,47	kHz 67 Hz
640 x 480 37,8	kHz 72 Hz
640 x 480 37,5	kHz 75 Hz
800 x 600 37,7	kHz 56 Hz
800 x 600 37,8	kHz 60 Hz
800 x 600 48,0	kHz 72 Hz
800 x 600 46,87	kHz 75 Hz
832 x 624 48,67	kHz 75 Hz
1024 x 768 48,	36 kHz 60 Hz
1024 x 768 56,	48 kHz 70 Hz
1024 x 768 60,	0 kHz 75 Hz
1152 x 864 67,	0 kHz 75 Hz
1152 x 870 45,	0 kHz 75 Hz
1280 x 768 47,	0 kHz 60 Hz
1280 x 960 60,	0 kHz 60 Hz
1280 x 1024 63,	98 kHz 60 Hz
1280 x 1024 80,	0 kHz 75 Hz
1440 x 900 56,	0 kHz 60 Hz
1440 x 900 71,	0 kHz 75 Hz
1400 x 1050 65,	1 kHz 60 Hz
1600x 1200 75,	0 kHz 60 Hz
1680 x 1050 65,	0 kHz 60 Hz
1920 x 1080*	67,0 kHz 60 Hz

*Recommended resolution (physical)

Monitor settings under Windows XP

You will make the screen setting in 'Display Properties' in the Windows program under Windows XP. The program can be started as follows:

- Right mouse-click on the Windows interface (Desktop) and left mouse-click on „Characteristics“.

or

- Double-click on the "Display" icon in "System Control".

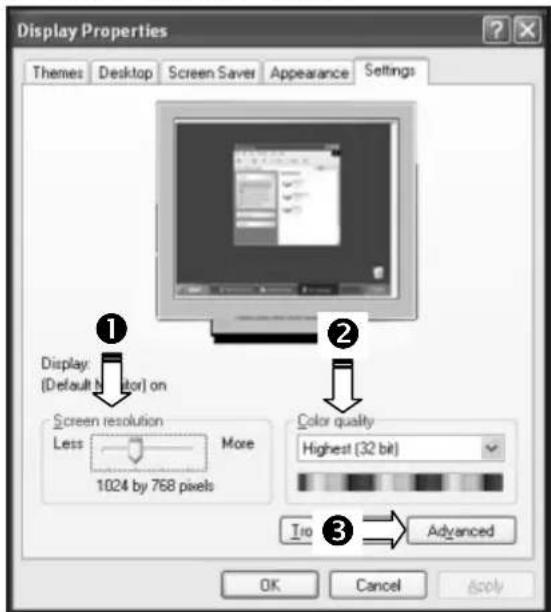

Display Properties Themes Desktop Screen Saver Appearance Settings ① Display: (Default monitor) on Screen resolution Less More 1024 by 768 pixels ② Color quality Highest (32 bit) Tio Advanced OK Cancel Apply

(III.: Display properties)

Set the resolution under "Screen resolution" (①).

You can set the depth of colour (number of the colours represented) under “Colour quality” (②). Your TFT monitor will support a depth of colour of a maximum of 16 million colours, which corresponds to 32 bits or ‘Real Color’.

The image refresh frequency can be set under "Expanded" (③).

A Window with the characteristics of your graphics card will appear, according to the configuration of your computer.

You will be able to set the required value in the "List all modes" field under "Graphics card". The optimal value lies at 60 HZ

in the case of a TFT monitor.

75 Hz can be set as a maximum.

List All Modes... OK Cancel apply

(Ill.: Detail of Display Characteristics)

Important!

You will possibly not receive any images if your setting does not correspond to the values supported by your display unit.

In this case, reconnect your CRT monitor and set the applicable values in correspondence with the options specified above under "Display properties".

Monitor settings under Windows Vista®

You will make the screen settings in 'Personalize appearance and sounds' Windows program under Windows Vista®. The program can be started as follows:

- Right mouse click on the Windows interface (Desktop) and left mouse click on 'Personalize'.

or

- Through Start ⇒ Control Panel ⇒ Personalize appearance and sounds by a double click with the left mouse button.

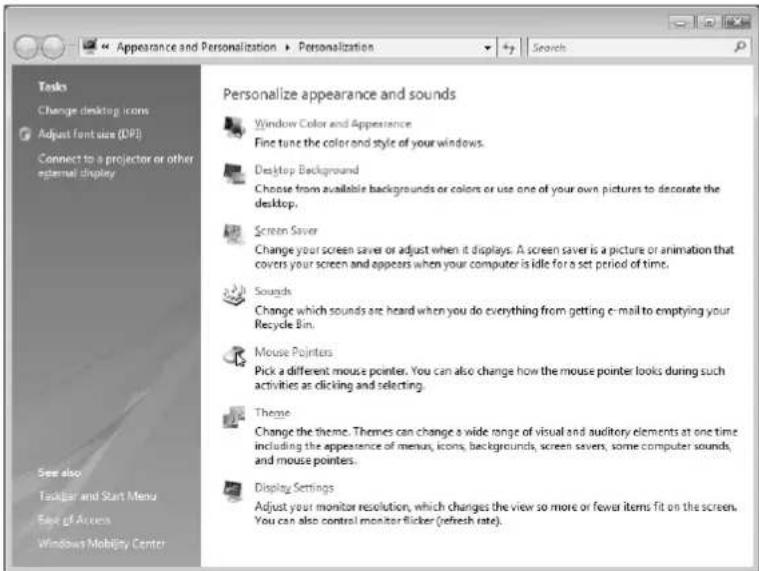

Appearance and Personalization ▶ Personalization Search Tasks Change desktop icons Adjust font size (DPI) Connect to a projector or other external display See also Taskbar and Start Menu Page of Access Windows Mobility Center Personalize appearance and sounds Window Color and Appearance Fine tune the color and style of your windows. Desktop Background Choose from available backgrounds or colors or use one of your own pictures to decorate the desktop. Screen Saver Change your screen saver or adjust when it displays. A screen saver is a picture or animation that covers your screen and appears when your computer is idle for a set period of time. Souchs Change which sounds are heard when you do everything from getting e-mail to emptying your Recycle Bin. Mouse Pointers Pick a different mouse pointer. You can also change how the mouse pointer looks during such activities as clicking and selecting. Theone Change the theme. Themes can change a wide range of visual and auditory elements at one time including the appearance of menus, icons, backgrounds, screen savers, some computer sounds, and mouse points. Display Settings Adjust your monitor resolution, which changes the view so more or fewer items fit on the screen. You can also control monitor flicker (refresh rate).

(III.: Personalize appearance and sounds)

- Open the Display Settings Menu, to adjust the resolution and the frequency.

Monitor settings under Windows® 7

Make the screen settings in the 'Appearance and Personalization' Windows program under Windows® 7. The program can be started as follows:

- Right mouse click on the Windows interface (Desktop) and left mouse click on 'Personalize'

or

- Through Start Control Panel Appearance and Personalization by a double click with the left mouse button.

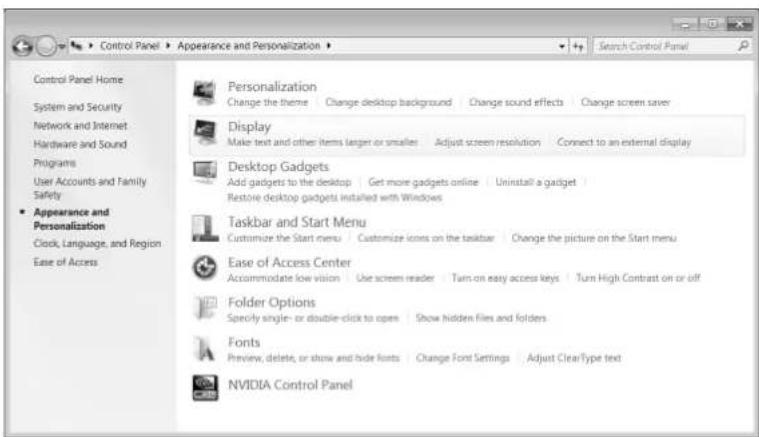

Control Panel Home System and Security Network and Internet Hardware and Sound Programs User Accounts and Family Safety Appearance and Personalization Clock, Language, and Region Ease of Access Personalization Change the theme Change desktop background Change sound effects Change screen saver Display Make text and other items larger or smaller Adjust screen resolution Connect to an external display Desktop Gadgets Add gadgets to the desktop Get more gadgets online Uninstall a gadget Restore desktop gadgets installed with Windows Taskbar and Start Menu Customize the Start menu Customize icons on the taskbar Change the picture on the Start menu Ease of Access Center Accommodate low vision Use screen reader Turn on easy access keys Turn High Contrast on or off Folder Options Specify single- or double-click to open Show hidden files and folders Fonts Preview, delete, or show and hide fonts Change Font Settings Adjust Clear/Type text NVIDIA Control Panel

(III.: Appearance and Personalization)

- Select the Display Adjust screen resolution Menu, to adjust the resolution and the frequency.

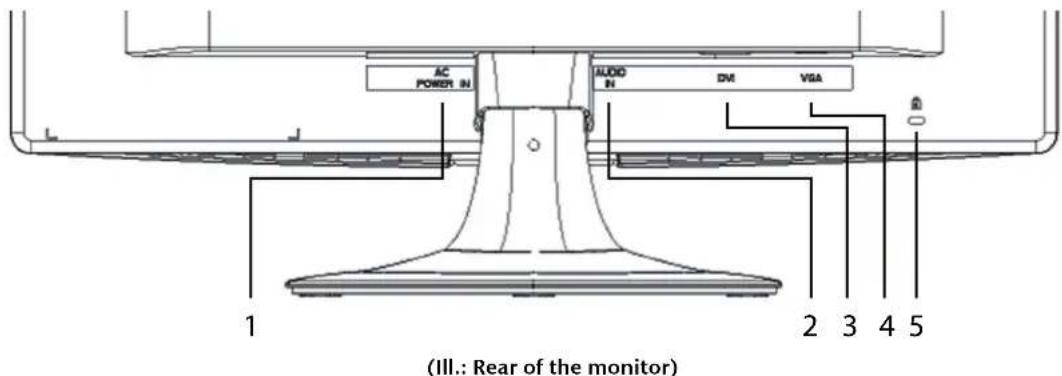

Connections on the back

AC POWER IN HUDO IN DM VISA 1 2 3 4 5 (III.: Rear of the monitor)

1. Power supply (POWER IN)
2. 3.5 mm stereo jack audio connection (AUDIO IN)
3. DVI-D 24-Pin connection (DVI)
4. Mini 15-pin D-sub connection (VGA)
5. Intake device for protection against theft (Kensington lock)

Connecting the monitor

• Ensure that the TFT monitor has not yet been connected to the electricity supply (mains plug not yet plugged in) and that neither the TFT monitor nor the computer has been switched on.
  • Prepare your computer for the TFT monitor if necessary, so that the correct settings for it will be present.

1 Connect signal cable

- Plug the signal cable into the appropriate VGA or DVI connections on the computer and the TFT monitor.

2 Connect audio cable

- Plug the audio cable into the appropriate audio sockets on the computer and the TFT monitor.

3 Connect the power supply

- Now connect one end of the mains cable supplied with the device to TFT power supply connection and then the other end to an appropriate socket. The mains socket must be in the vicinity of the TFT monitor and be easily accessible (use the same electricity circuit as for the PC).

4 Switch on the monitor

- Switch your monitor on at the Standby/On switch on the front of the device. Finally, switch your computer on.

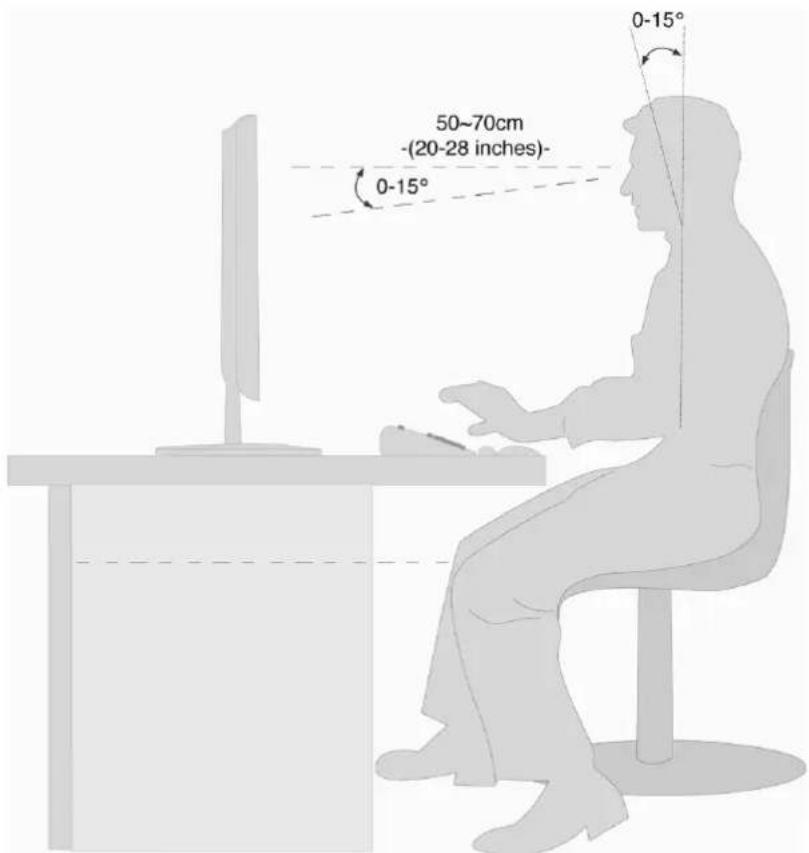

The video workstation

Please pay attention to the following: The monitor device should be set up so that mirror effects, fading and strong contrasts between light and dark are avoided (even if the view from the window is still so attractive!)

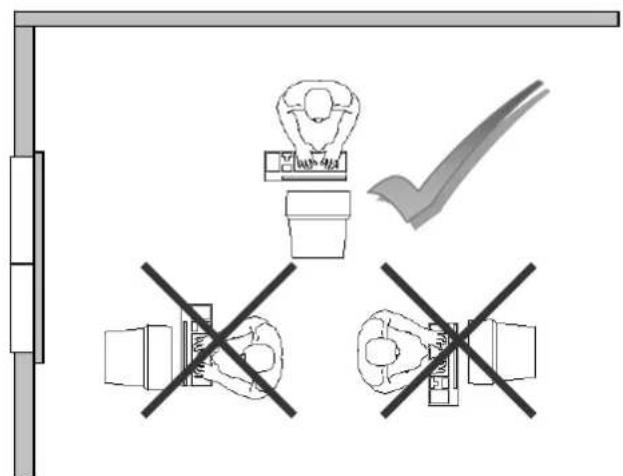

Diagram showing a room with furniture and a checkmark, indicating selection or inspection of items.

(III.: Setting up of the monitor)

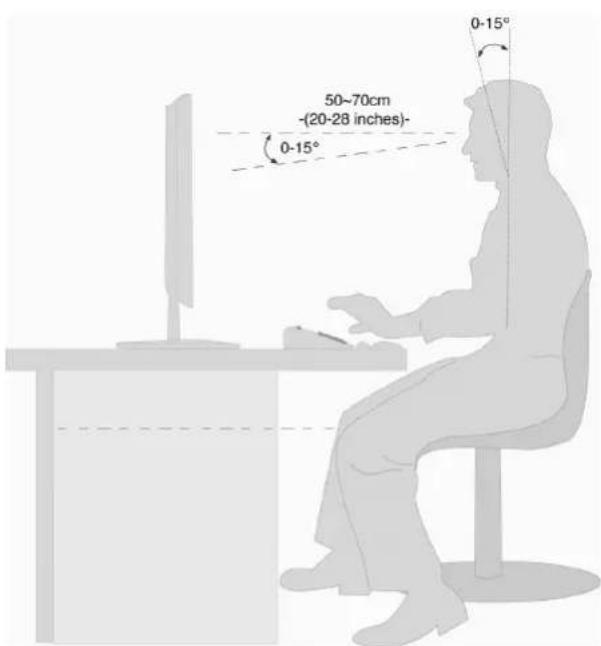

50~70cm -(20-28 inches) 0-15° 0-15°

(III.: Video workstation)

• Surface supporting the hands: 5 - 10 cm
- Highest monitor line at eye level or somewhat below it
• Viewing distance: 40 to 70 cm
• Leg-room (vertical): At least 65 cm
• Leg-room (horizontal): At least 60 cm

Operating elements

HOMI ① ② ③ ④ ⑤ ⑥

(III.: Front operating elements)

Sensor key	Description
1	You will start the OSD (On Screen Display) with this button. Press this button again if you wish to leave the OSD.1 + 2 Power block, when the OSD is not activated1 + 3 OSD block, when the OSD is not activatedHold the key combination until the bar displayed has moved from left to right completely, to activate/de-activate the block. A corresponding message will appear on the screen.
2	Select a parameter and reduce its value with this button, when the OSD is switched on.If you are not in the OSD: Direct call-up of the Contrast/Brightness menu.
3	Select a parameter and increase its value with this button, when the OSD is switched on.If you are not in the OSD: Direct call-up of the Picture Mode menu.
4	Confirm the selection of the parameter to be changed with this button.If you are not in the OSD: choose signal source.
5	Shows the operational state.
6	You can switch the TFT monitor on or to the Standby mode with this button.

Changing the parameters of the TFT monitor

The On Screen Display (abbreviation: OSD) is a menu that is briefly faded in across the TFT monitor. You will be able to set certain parameters of the TFT monitor through the OSD menu.

Operating the OSD menu

1. Touch the sensor key①, to activate the OSD.
2. Select the options from the Main Menu with the sensor keys ②/③.
3. Confirm your selection with the sensor key ④.
4. Touch the sensor key ①, to leave the OSD.

Important!

The OSD will be faded out automatically if you have not operated any button on the TFT monitor for the pre-set time.

The OSD menu

The main functions or possible settings through the OSD are explained in the following.

Function DVI Automatic adjustment Contrast/Brightness Input source Audio adjustment Colour settings Information Manual image adjustment Menu settings Memory recall ① : Exit ② : Select

(III.: OSD menu)

Important!

The menus described here can differ from those on your monitor because of possible technical changes.

Menu point	Function / sub-menu
	Automatic adjustment: Sets the horizontal and vertical position, phase (fine tune) and clock cycle (H size) automatically.
	Contrast: Sets the white value of the monitor foreground.Brightness: To adjust the brightness of the video.DCR: You can switch the DCR function (dynamic contrast) on and off here.ECO: Turn ECO on and off. Contrast and brightness adjustment as well as DCR are deactivated in ECO mode.
	Important!The Standard setting must have been selected in the Picture Mode to be able to make Contrast and Brightness settings.
	Input source: The signal input will be switched.
	Audio adjustment: For setting the audio function.
		Volume: Sets the sound output of the loudspeakers.Mute: Enables the selection between Mute On/Off.
	Colour settings: For the selection of the colours, in order to improve the brightness and the colour saturation. Selection can be made between: Cool, Normal, Warm and user-defined colours.
		Cool: Adds blue to the monitor, creating a cooler white.Normal: Adds red to the monitor, creating a warmer white and a brighter red.Warm: Adds green to the monitor, creating a darker colour tone.User colour: Individual settings for red(R), green(G) and blue(B).
	Information: Displays information about the current input signal of the graphics card of your computer.
	Manual image adjustment
		Horizontal size: Sets the width of the monitor.
		H./V. Position: Sets the horizontal and vertical position of the video image.
		Fine tune: Fine tune to improve the display of the TFT monitor.
		Sharpness: For the adjustment of the clarity in the case of a signal that does not correspond to the physical resolution of the screen.
		Video mode adjustment: An image size from options Full Screen, Over Screen and Aspect Ratio.
		Picture Mode: This mode offers an optimum display environment according to the content displayed.
		Standard is suitable for all the general Windows environments and standard monitor settings.Game is optimum for PC or TV games.Video is optimum for replaying feature films and moving images.Landscape is optimum for displaying pictures of landscapes.Text is optimum for processing texts and text displays in a text processing environment.
	Menu settings: Set the language, OSD position and OSD time out.
		Language: Enables the user to select between the available languages.
		OSD Position: Horizontal and vertical setting of the OSD position.
		OSD time out: For switching off the On Screen Display (OSD) automatically after the expiry of a preset period of time.
		OSD background: Enables the OSD background to be switched on and off.
	Memory recall): To recreate the factory settings for controlling video and audio.

Energy-saving properties

This monitor will switch to various energy-saving statuses set in advance by the respective computer / operating system. This complies with the current requirements to reduce energy consumption.

The monitor supports the following types of energy-saving mode:

Status	Power (nominal value)	Colour of the LED	Readiness (approx.)
ON	< 30 Watts	Blue	-
STAND-BY	< 0,5 Watt	Orange	2 seconds

The monitor will remain in the energy-saving status until you press a key on the keyboard or move the mouse, depending on the operating system.

The monitor will need about 2 seconds to switch from the STAND-BY status to the ON operating mode.

Customer Service

Solving problems

Make sure that the TFT monitor has been installed correctly (read the “Bringing into operation” chapter from Page 5), if problems with your TFT monitor arise. Read the information in this chapter about possible solutions if the problems continue to exist.

Localisation of the cause

Problems with functionality sometimes have commonplace causes but can also arise from defective components. We cannot provide every solution possible in this manual but would be more than happy to help you by telephone. Please call us if you need support.

Check the connections and cables

Start with a careful visual check of all cable connections. Ensure that the TFT monitor and the computer are correctly supplied with electricity, if the indicator lights are not functioning.

Faults and possible causes

The monitor does not display any image:

Check:

• Mains supply: The power supply cord must be sitting firmly in the socket and the mains switch must be switched on.
• Signal input: Please check whether the signal input (computer or other device) is switched on and the connection cables are sitting firmly in the sockets.
• Image refresh frequencies: The current image refresh frequency must be suitable for the TFT monitor.
• Energy-saving mode: Press any button or move the mouse to deactivate the mode.
• Screen saver: Press a button on the keyboard or move the mouse if the screen saver of the computer is activated.
  • Signal plugs: Please contact your respective customer service if pins are bent.
• Set the applicable values for your TFT monitor (see "Preparations on your PC", Page 6).

The image slips or is erratic:

Check:

• Signal plugs: Please contact your respective customer service if pins are bent.
- Signal plugs: The plugs of the signal cable must be sitting firmly in the sockets.
- Graphics card: Check whether the settings are correct (see Page 7).
- Image refresh frequencies: Select the permissible values in your graphics settings.
- Monitor output signal. The monitor output signal of the computer must agree with the technical data of the monitor.
- Remove disruptive devices (mobile telephones, cell phones, loudspeakers, etc.) from the vicinity of your TFT monitor.
- Avoid the use of monitor extension cables.

Symbols are displayed darkly, the image is too small or not centred, etc.:

- Readjust the respective settings (Setting the TFT monitor, Page 13)

Colours are not displayed cleanly:

• Check the signal cable pins. Contact your respective customer service if pins are bent.
• Readjust the colour settings in the OSD menu.
• Avoid the use of monitor extension cables.

The display is too light or too dark:

• Check whether the video output level of the computer agrees with the technical data of the monitor.
• Select Automatique adjustment, to optimise the settings for brightness and contrast. The display unit should show a text page (e.g. Explorer, Word, etc.) for its optimisation.

The image flutters:

• Check whether the operational voltage agrees with the technical data of the monitor.
• Select Automatique adjustment, to optimise the settings for the synchronisation of pixels and phases. The display unit should show a text page (e.g. Explorer, Word, etc.) for its optimisation.

Driver information

No driver installation is necessary for the functioning of your monitor.

You will be able to download the driver program file from the internet website listed below if the operating system nevertheless requests the installation of a monitor driver.

The installation of a driver can differ according to the operating system. Follow the specific instructions for your operating system.

www.medion.com

Do you need further support?

Please contact us if the suggestions in the above sections have not solved your problem. It would help us very much if you make the following information available to us:

• What is your computer's configuration?
• What peripheral devices are you using?
• What messages appear on the monitor?
• What software were you using when the fault arose?
• What steps have you already taken to solve the problem?
- Give us your customer number if you have already received one.

Cleaning

You will be able to extend the useful life of the TFT monitor by the following measures:

Important!

No parts to be maintained or cleaned are located within the monitor casing.

• Always pull out the mains plug and all connecting cables before cleaning.
- Do not use any solvents, corrosive or gaseous cleaning substances.
- Clean the screen with a soft, fluff-free cloth.
- Pay attention that no drops of water remain on the TFT monitor. Water can cause long-lasting discolouring.
- Do not subject the screen to either dazzling sunlight or to ultra-violet radiation.
- Please keep the packaging material and use this exclusively to transport the TFT monitor.

Disposal

Symbolic image showing a recycling symbol above a crossed-out trash bin and a black prohibition sign below it.

Packaging

Your device is in packaging for protection against transport damage. Packaging is made from materials that can be disposed off in an environmentally friendly way and taken to correct recycling.

Device

Do not throw the device into the normal domestic refuse after the end of its useful life under any circumstances. Obtain

information about the possibilities of environmentally friendly and correct disposal.

Pixel defects on screens

For active matrix TFTs with a resolution of 1920 x 1080 pixels, which are each made up of three sub-pixels (red, green, blue), there are a total of approx. 6.2 million control transistors in use. Occasionally one or more pixels can fail or become incorrectly controlled because of this very high number of transistors and the associated extremely complex manufacturing processes used.

In the past, there were consistently a wide variety of approaches available for defining the permitted number of pixel defects. However, these approaches were mostly very complicated and completely different from one manufacturer to the next. In the handling of warranty issues for all of its display products, MEDION adheres therefore to the strict and transparent requirements of the standard ISO 9241-307, class II, which has been briefly summarised below.

The ISO standard ISO 9241-307 defines, amongst other things, generally valid guidelines in relation to pixel defects. Pixel defects are categorised into four classes of defect and three types of defect. Every individual pixel consists of three sub-pixels, each of which is assigned a basic colour (red, green, blue).

5 Pixel 5 Pixel Zeilen Pixel blau grün rot Sub-Pixel

Class of pixel defect	Defect type		1 Defect type 2	Defect type 3
	Continuously lit pixel		Continuously black pixel	Defect to sub-pixel
				lit	black
0 0 0 0 0
I 1 1 2					1
				1	3
				0	5
II	2		2		0 5
				5-n*	2xn*
				0	10
III 5 15 50					0
				50-n*	2xn*
				0	100
IV 50 150 500					0
				500-n*	2xn*
				0	1000

n^*=1.5

The permitted number of defects for every type named above in each class of pixel defect refers to one million pixels and must be converted accordingly to match the physical resolution of the display.

Reproduction of this manual

This document contains legally protected information. All rights reserved. Reproduction in a mechanical, electronic or any other form is forbidden without the written permission of the manufacturer.

Technical data

• Model P54160 (MD 20360)
  • Monitor size 21.5" (approx. 54,6 cm), TFT
• Size ratio 16:9
• Nominal voltage AC 100-240 V \~ 50/60 Hz Nominal electricity 0,7 A
  • Resolution 1920 x 1080
• Brightness 250 cd/m² (typical)
• Contrast 1,000:1 (typical)
  • Dynamic contrast 5,000,000:1
  • Reaction time 5 ms (typical)
  • Viewing angle h/v 160°/160° (typical) CR>10
• RGB input, analog 15-terminal D-SUB connection
• RGB input, digital DVI-D with HDCP decoding
• Audio Input 1 Vrms max. 100Hz\~20KHz
  3.5 mm stereo jack
• Audio Output 2 x 1 W max.
• User control Power ON/OFF, OSD
• Temperatures In operation 0 C \~ +35°C
  Not in operation -20^ +60^
• Moisture In operation < 80%
  (Non-condensing) Not in operation < 90%
  • Weight 3 kg
  • Dimensions (WxHxD) 507 x 390 x 178 mm
  • Power consumption (Stand-by) Less than 0,5 Watt
  • Power consumption (operation) Less than 30 Watt

CE

Copyright © 2011

All rights reserved.

This Handbook is protected by copyright.

The copyright is the property of the Medion® Company.

Trademark:

MS-DOS ^® and Windows ^® are registered trademarks of the Microsoft ^® Company.

Pentium ^® is a registered trademark of the Intel ^® Company.

Other trademarks are the property of their respective owner.

Technical and visual changes and printing errors are reserved.

Sommaire

Sommaire 1

Technical line drawing showing a mechanical component being processed into two views (front and side), with no visible text or symbols.

Technical line drawing showing two views of a mechanical component with internal gear-like features, no text or symbols present.

Safety warning diagram showing sunlight illuminating a wall, with icons for lighting, checkmark, and crossed-out devices.

Technical line drawing showing a mechanical component being processed into two views (front and side), with no visible text or symbols.

(Fig.: Ajuste del Pie del Monitor)

Technical line drawing showing two views of a device with internal components and a magnified inset (no text or symbols)

Safety warning diagram showing sunlight illuminating a wall, with icons for lighting, checkmark, and crossed-out devices.

50~70cm -(20-28 inches) 0-15° 0-15°

Function DVI Automatic adjustment Contrast/Brightness Input source Audio adjustment Colour settings Information Manual image adjustment Menu settings Memory recall ① : Exit ② : Select

(Fig.: Menú OSD)

¡Importante!

Pakkens indhold....2

Technical line drawing showing a device being processed into a grid-patterned cover (no text or symbols)

III.: Montering af monitorens fod

Technical line drawing showing two views of a device with internal components and a close-up view of the internal structure (no text or symbols)

Function DVI Automatic adjustment Contrast/Brightness Input source Audio adjustment Colour settings Information Manual image adjustment Menu settings Memory recall 1 : Exit 2 : Select

(III.: OSD-Menuen)

OBS!

Technical line drawing showing a mechanical assembly with a circular component and its cross-section view (no text or symbols)

Technical line drawings of a device with internal components and a close-up view of its internal structure (no text or symbols)

Appearance and Personalization ▶ Personalization Search Tasks Change desktop icons Adjust font size (DPI) Connect to a projector or other optional display See also Taskbar and Start Menu East of Access Windows Mobility Center Personalize appearance and sounds Window Color and Appearance Fine tune the color and style of your windows. Desktop Background Choose from available backgrounds or colors or use one of your own pictures to decorate the desktop. Screen Saver Change your screen saver or adjust when it displays. A screen saver is a picture or animation that covers your screen and appears when your computer is idle for a set period of time. Sounds Change which sounds are heard when you do everything from getting e-mail to emptying your Recycle Bin. Mouse Pointers Pick a different mouse pointer. You can also change how the mouse pointer looks during such activities as clicking and selecting. Thege Change the theme. Themes can change a wide range of visual and auditory elements at one time including the appearance of menus, icons, backgrounds, screen savers, some computer sounds, and mouse points. Display Settings Adjust your monitor resolution, which changes the view so more or fewer items fit on the screen. You can also control monitor flicker (refresh rate).

Diagram illustrating a workplace safety scenario with crossed-out signs and a checkmark symbol

(Afb.: Ergonomie)

50-70cm -(20-28 inches)- 0-15° 0-15°

Function DVI Automatic adjustment Contrast/Brightness Input source Audio adjustment Colour settings Information Manual image adjustment Menu settings Memory recall 1 : Exit 2 : Select

(Afb.: OSD-menu)

Belangrijk!

Technical line drawing showing two views of a device with internal components and grid-patterned surfaces (no text or symbols)

Technical line drawing showing two views of a device with internal components and directional arrows (no text or symbols)

Safety warning illustration showing sunlight illuminating a wall-mounted device, with icons for lighting, cleaning, and anti-smoking.
