USER MANUAL ProCube2 Hähnel

hähnel quality accessories

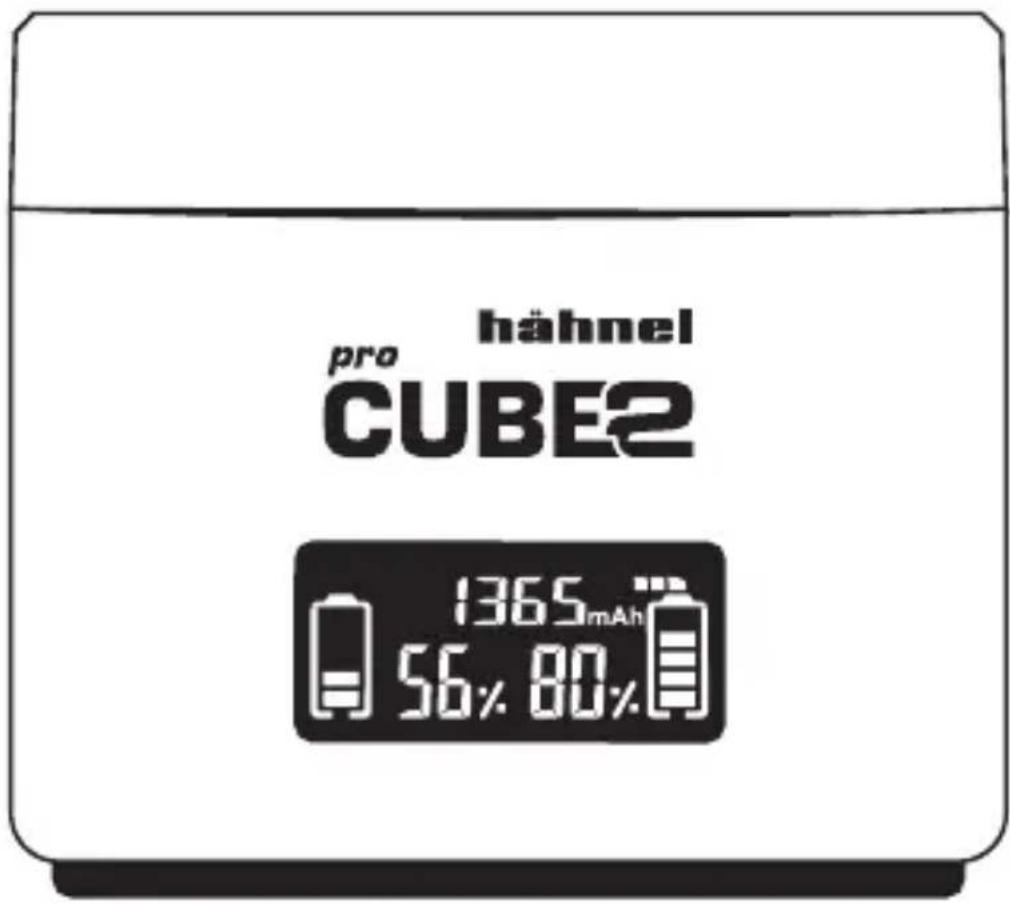

pro CUBE2

hähnel pro CUBE2 1365mAh 56% 80%

Simple black outline of a rounded rectangular object with a horizontal line extending from its end (no text or symbols)

Instruction Manual

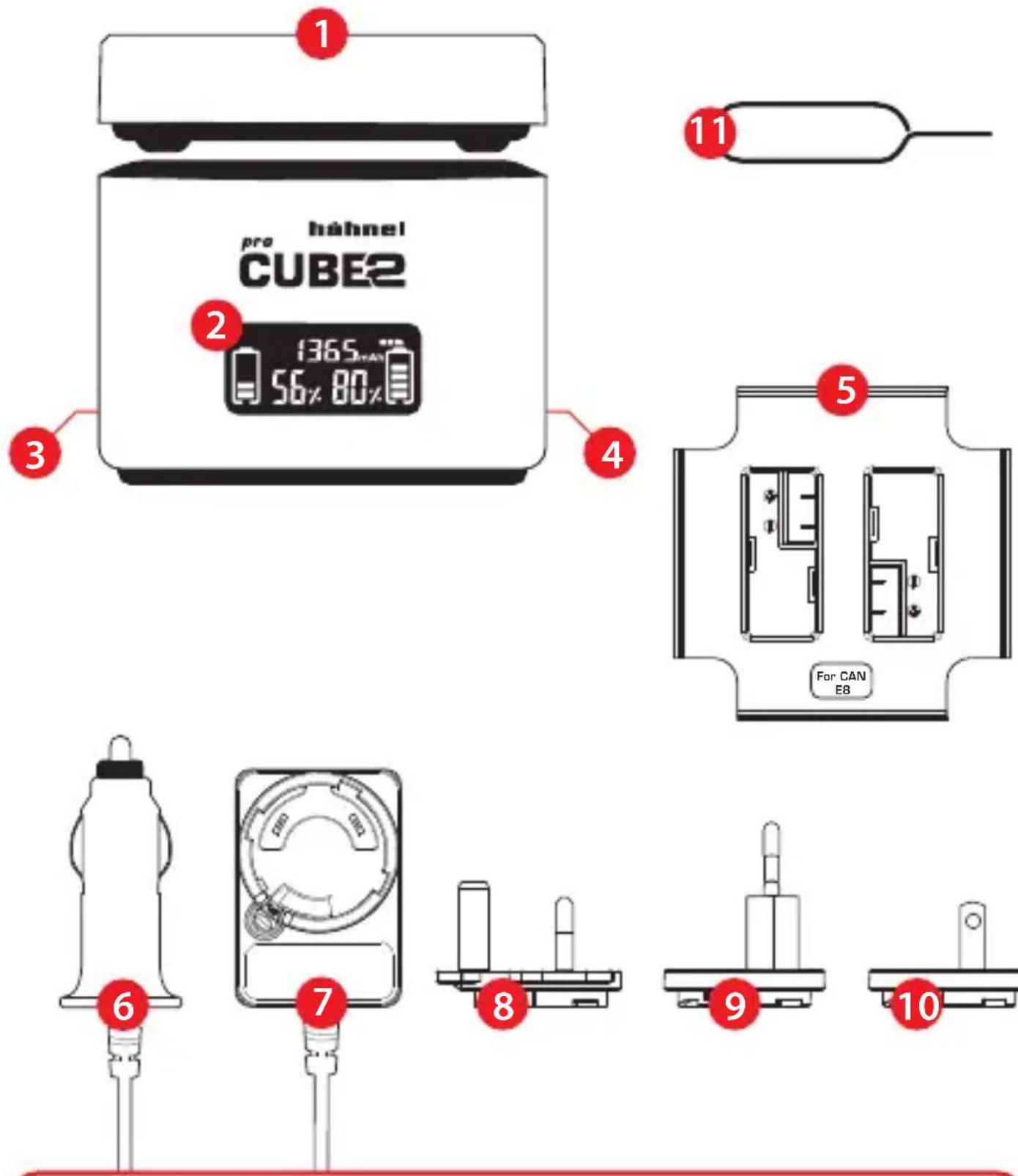

1 pro hahnel CUBE2 1365 56% 80% 2 3 4 5 For CAN E8 6 7 8 9 10

1. AA battery charge plate
2. Digital display
3. USB port
4. 12 V Port

5. Interchangable charge plate

6. 12V car charger

7. Adaptor
8. UK adaptor
9. EU adaptor
10. USA adaptor
11. Plate eject tool

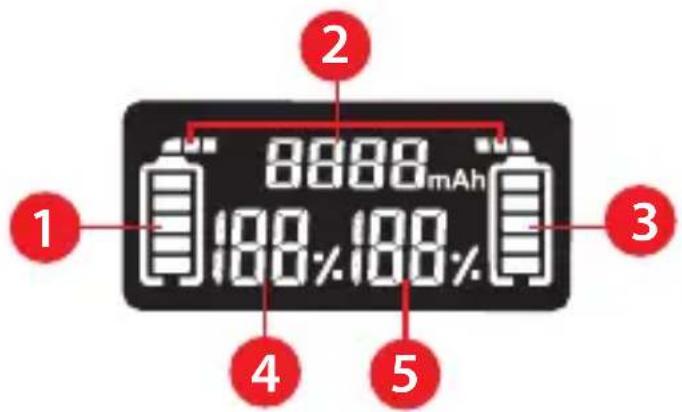

8888mAh 100% 100% 2 3 4 5

1. Left charge bank
2. mAh charge indicators
3. Right charge bank
4. Left charge % value
5. Right charge % value

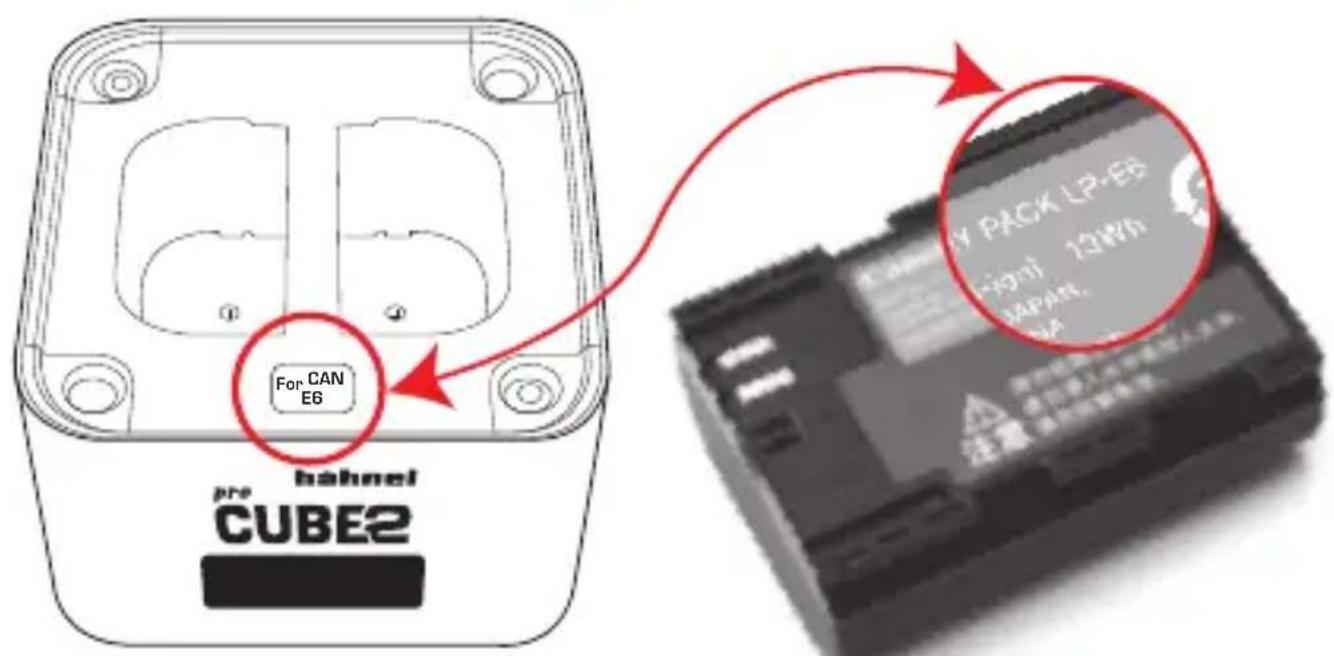

Identify battery and plate

For CAN E6 BY PACK LP-E6 signi 13kWh PAPAN. pre CUBE2

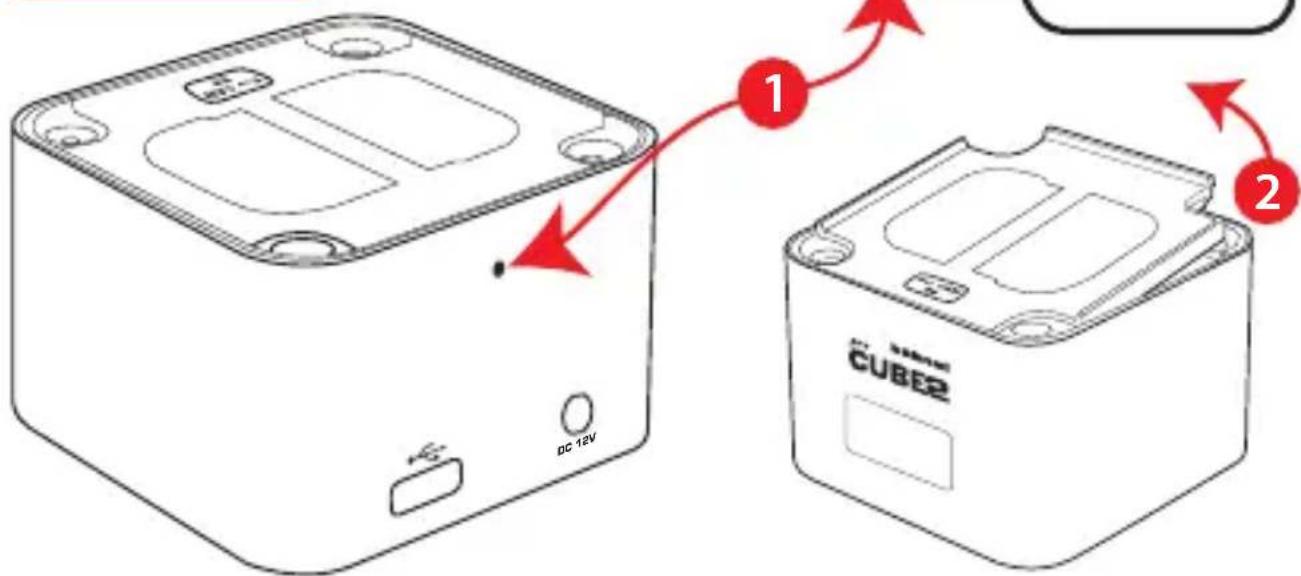

Remove plate

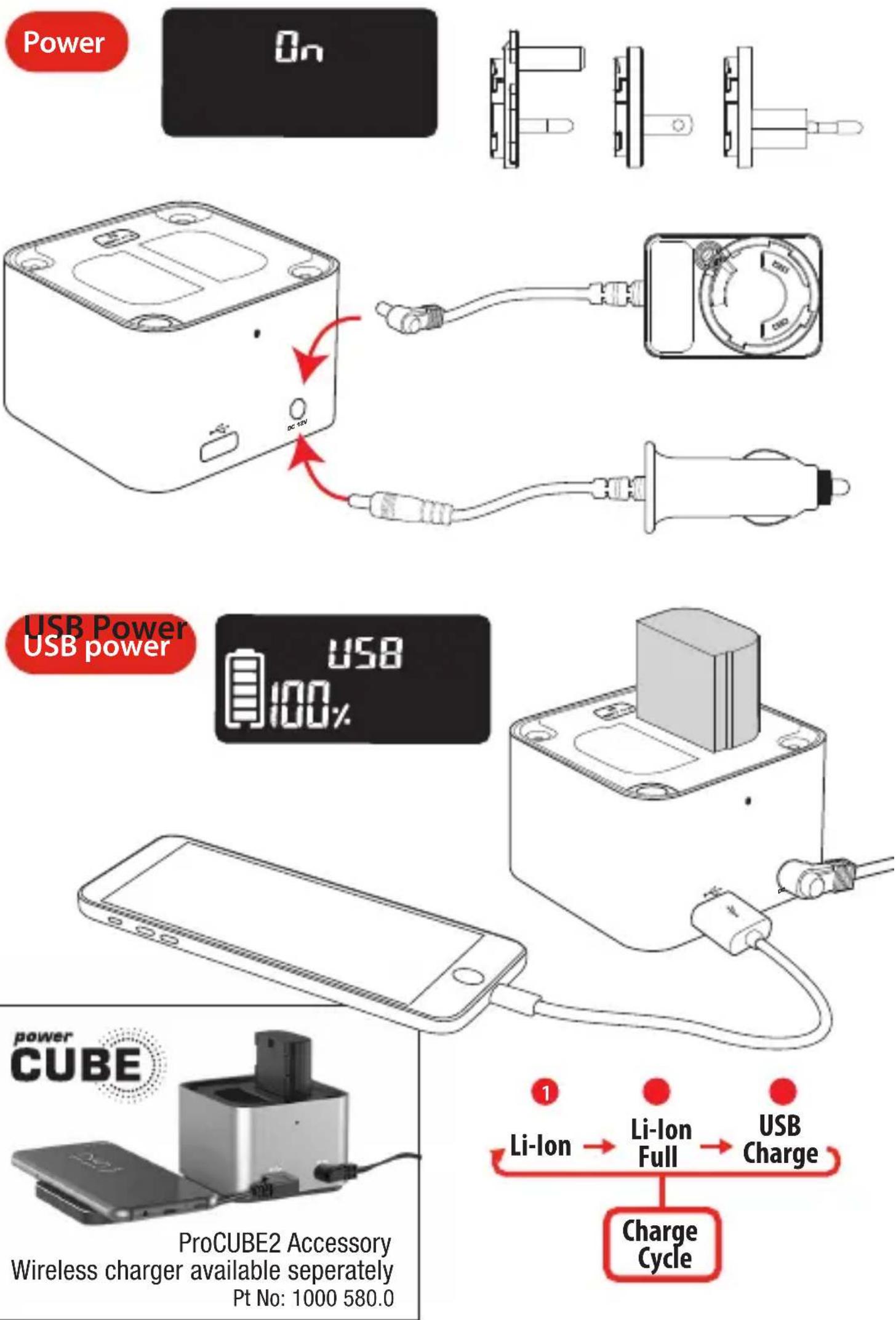

DC 12V ① ② CUBE2

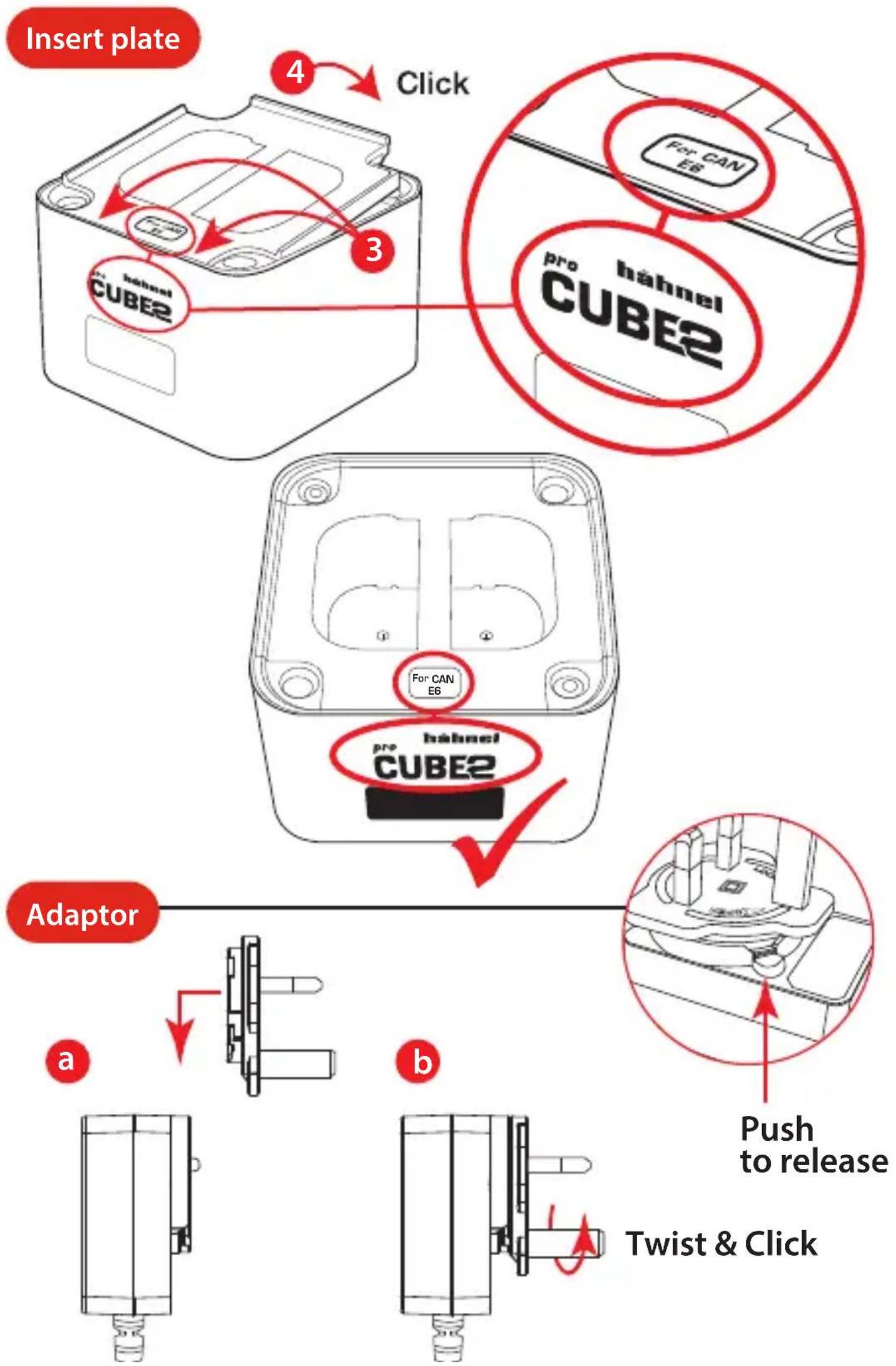

Insert plate 4 Click 3 CUBE2 for CAN E6 for CAN E6 pro hahnel CUBE2 for CAN E6 pro hahnel CUBE2 Adaptor a b Push to release Twist & Click

Li-Ion charge m

Li-Ion x 1

58%

Li-Ion x 2

48% 58%

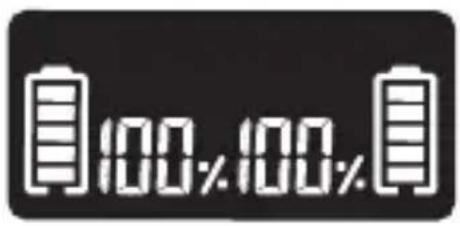

Li-Ion full

100%100%

e

Left bank (4s increments)

300mAh 20%

Right bank (4s increments)

400 mAh 30%

15min = 300mAh = 150 photos*

400mAh = 200 photos*

600mAh = 300 photos*

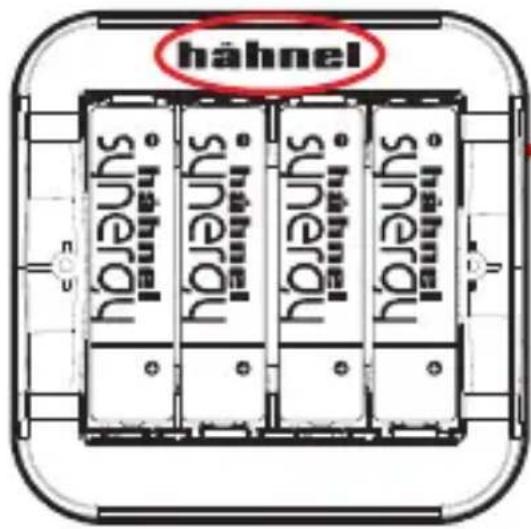

AA battery charge

For CAN E6 CUBE2

EN Warning:

• Top up charge. The ‘mAh’ reading on the LCD display shows how much capacity (mAh) has been added during charging. It does not show what capacity is in the battery already. 15 minutes charge = 300 mAh = 150 photos* (*approximate - this is dependent on camera & amp; usage)
• Only use the Charger to charge the specified batteries
• Do not allow charger to get wet or get exposed to moisture
• Keep the Charger out of reach of children
• Once charging is completed, unplug the charger from power source
• Never apply excessive force when connecting or disconnecting a battery or contact plate.
• Keep all contacts clean.
• Do not force down any of the contacts.
• Do not short-circuit the contacts.
• Never store the battery connected to the charger for an extensive period of time.
• Do not expose to excessive heat or naked flame.
• Do not dismantle or carry out any alteration to the product.
• Use only rechargeable Li-ion/Ni-MH/Ni-Cd batteries. Ordinary non-rechargeable batteries must not be used otherwise there is a danger to batteries and charger
• Do not short circuit, solder or dismantle batteries or charger
• Do not incinerate batteries, danger of explosion
• Do not dispose of batteries in domestic waste. Return batteries to special collection point or point of sale

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

(IEC/EN 60335-1/A2: 2006)

Children should be supervised to ensure that they do not play with the appliance (IEC/EN 60335-1/A2: 2006)

Connection to the supply mains is to be in accordance with the national wiring rules.

Only use the Charger to charge the digital camera Li-ion batteries, not for non-rechargeable batteries or non-Li-ion batteries.

DE Warnung:
