USER MANUAL PNS525 SHARP

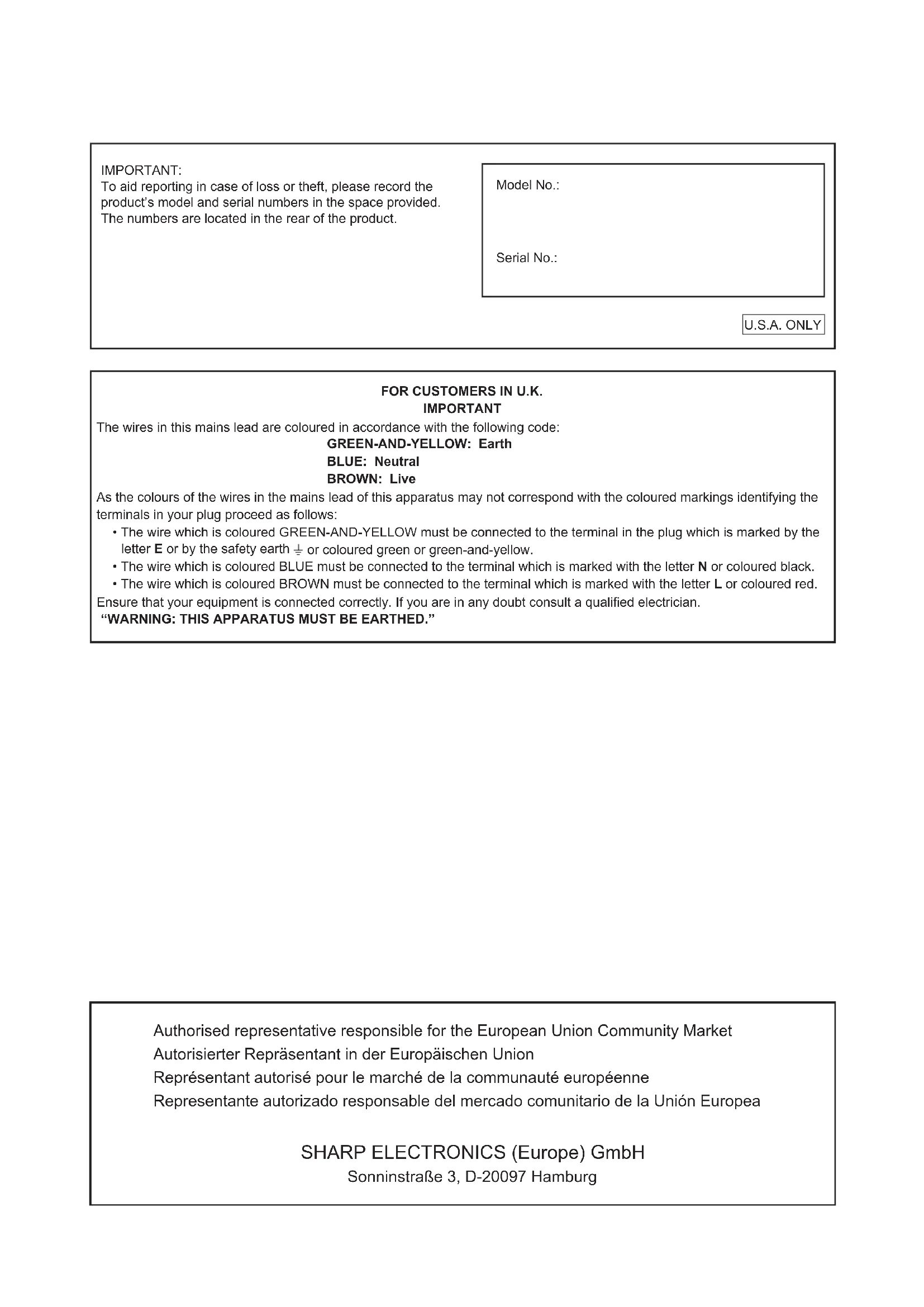

FOR CUSTOMERS IN U.K. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: GREEN-AND-YELLOW: Earth BLUE: Neutral BROWN: Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• ThewirewhichiscolouredGREEN-AND-YELLOWmustbeconnectedtotheterminalintheplugwhichismarkedbythe letter E or by the safety earth or coloured green or green-and-yellow.

• ThewirewhichiscolouredBLUEmustbeconnectedtotheterminalwhichismarkedwiththeletterN or coloured black.

• ThewirewhichiscolouredBROWNmustbeconnectedtotheterminalwhichismarkedwiththeletterL or coloured red. Ensurethatyourequipmentisconnectedcorrectly.Ifyouareinanydoubtconsultaqualiedelectrician. “WARNING: THIS APPARATUS MUST BE EARTHED.”ENGLISH

SERVICE PERSONNEL. Thelightningashwitharrowheadsymbol,within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may beofsufcientmagnitudetoconstituteariskof electric shock to persons. The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: The AC outlet shall be installed near the equipment and shall be easily accessible. CAUTION: Use the supplied power cord as it is. Thisproductutilizesuorescenttubescontainingasmallamountofmercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities.2

IMPORTANT INFORMATION (Continued)

FCCRegulationsstatethatanyunauthorizedchangesormodicationstothisequipmentnotexpresslyapprovedbythemanufacturer could void the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Thisproductutilizestin-leadsolder,anduorescentlampcontainingasmallamountofmercury.Disposalof these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronics Industries Alliance: www.eiae.org,thelamprecyclingorganization:www.lamprecycle.orgorSharpat1-800-BE-SHARP (For U.S.A. Only)

A. Information on Disposal for Users (private households)

1. In the European UnionAttention: If you want to dispose of this equipment, please do not use the ordinary dustbin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. Bydisposingofthisproductcorrectlyyouwillhelpensurethatthewasteundergoesthenecessarytreatment,recoveryand recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.2. In other Countries outside the EUIf you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch. B. Information on Disposal for Business Users 1. In the European UnionIf the product is used for business purposes and you want to discard it:Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.For Spain: Please contact the established collection system or your local authority for take-back of your used products.2. In other Countries outside the EU If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal. Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.ENGLISH

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can resultinelectricshockand/orre.Inordertopreventpotentialdanger,pleaseobservethefollowinginstructionswheninstalling, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future

3. Observe warnings — All warnings on the product and in the instructions must be observed closely.

4. Follow instructions — All operating instructions must be followed.

5. Cleaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result

it.Becarefulofequipmentwhichdrainswatersuchasanair-conditioner.

8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.

Donotcoverorblocktheseventsandopeningssinceinsufcientventilationcancauseoverheatingand/orshortenthelife of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed. 9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. 10. The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact.BecarefulnottobeinjuredbybrokenglasspiecesincasetheLCDpanelbreaks.

the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other

dangerousconditions.Requestaqualiedservicepersontoperformservicing. IMPORTANT INFORMATION (Continued) The battery supplied with this product contains traces of Lead. For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes. For Switzerland: The used battery is to be returned to the selling point. For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.4

SAFETY PRECAUTIONS (Continued)

14. Repair—Ifanyofthefollowingconditionsoccurs,unplugthepowercordfromtheACoutlet,andrequestaqualiedservice

person to perform repairs. a. Whenthepowercordorplugisdamaged. b. Whenaliquidwasspilledontheproductorwhenobjectshavefallenintotheproduct. c. Whentheproducthasbeenexposedtorainorwater. d. Whentheproductdoesnotoperateproperlyasdescribedintheoperatinginstructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls notdescribedintheinstructionscancausedamage,whichoftenrequiresextensiveadjustmentworkbyaqualied technician. e. Whentheproducthasbeendroppedordamaged. f. Whentheproductdisplaysanabnormalcondition.Anynoticeableabnormalityintheproductindicatesthattheproduct needs servicing.

15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement

partsspeciedbythemanufacturer,orthosewiththesamecharacteristicsandperformanceastheoriginalparts.Useof unauthorizedpartscanresultinre,electricshockand/orotherdanger.

16. Safety checks — Upon completion of service or repair work, request the service technician to

perform safety checks to ensure that the product is in proper operating condition.

17. Wallmounting—Whenmountingtheproductonawall,besuretoinstalltheproductaccordingtothemethod

recommended by the manufacturer.

18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating

products(includingampliers).

19. Batteries—Incorrectuseofbatteriesmaycausethebatteriestoburstorignite.Aleakybatterymaycorrodetheequipment,

dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:

• Usethespeciedbatteriesonly.

• Installthebatterieswithdueattentiontotheplus(+)andminus(-)sidesofthebatteriesaccordingtotheinstructionsinthe compartment.

• Ifleakedbatteryuidgetsonyourskinorclothing,rinseimmediatelyandthoroughly.Ifitgetsintoyoureye,batheyour eyewellratherthanrubbingandseekmedicaltreatmentimmediately.Leakedbatteryuidthatgetsintoyoureyeoryour clothing may cause a skin irritation or damage your eye. 20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate counter measures.ENGLISH

- The TFT color LCD panel used in this monitor is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colors or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the monitor. - Do not display a still picture for a long period, as this could cause a residual image. - Never rub or tap the monitor with hard objects. - Please understand that SHARP CORPORATION bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law. - This monitor and its accessories may be upgraded without advance notice. - Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact withoilorsteam,asthiscouldleadtore. - Ensure that the monitor does not come into contact with waterorotheruids.Ensurethatnoobjectssuchaspaper clipsorpinsenterthemonitorasthiscouldleadtoreor electric shock. - Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it. - Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may leadtogenerationofexcessiveheatandoutbreakofre. - Images cannot be rotated on this monitor. Whenusinginverticalorientation,youwillneedtoprepare appropriately orientated content in advance. The Power Cord - Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damagetothecordmayresultinreorelectricshock. - Use only the power cord supplied with the monitor. - Insert the power plug directly into the AC outlet. Addinganextensioncordmayleadtoreasaresultof overheating. - Do not remove or insert the power plug with wet hands. Doing so could result in electric shock. - Unplug the power cord if it is not used for a long time. - Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative. Initialization - This monitor can remember e-mail addresses and other data. Beforetransferringordisposingofthismonitor,initializeall settings by executing ALL RESET 1. (See Operation guide.) Executing ALL RESET 2 will not reset e-mail addresses and similar data. Manual Scope -Microsoft,WindowsandInternetExplorerareregistered trademarks of Microsoft Corporation. - HDMI, the HDMI LogoandHigh-DenitionMultimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. - Adobe, Acrobat, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. -ThisproductcomeswithRICOHBitmapFontsproducedand sold by RICOH COMPANY, LTD. - All other brand and product names are trademarks or registered trademarks of their respective holders. - Language of OSD menu used in this manual is English by way of example. - Illustrations in this manual may not exactly represent the actual product or display. - This manual assumes use in horizontal orientation, except wherespecicallynoted. Fluorescent Tubes ● Theuorescenttubesinthisproducthavealimitedlifetime. *Ifthescreengetsdark,ashes,ordoesnotturnon, changetheuorescenttubeswithnewexclusiveones.

• For more information, please contact your product dealer. ● Becauseofthepropertyofuorescenttubes,thescreen mayashduringtheinitialperiodofuse.Ifthishappens, please turn off the main power switch of the monitor and turnonagainafteratleast5secondstoconrmoperation.

Supplied Accessories If any component should be missing, please contact your dealer. INPUT Liquid Crystal Display: 1 Remote control unit: 1 Cable clamp: 2 Temporary stand: 2 Power cord clamp: 1 Power cord: 1 R-6 battery (“AA” size): 2 CD-ROM (Utility Disk for Windows): 1 Operation manual: 1 Blank sticker: 1Place a blank sticker onto the SHARP logo to cover the logo. Vertical logo sticker: 2

• Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.* For environmental protection! Do not dispose of batteries in household waste. Follow the disposal instructions for your area. Part Names

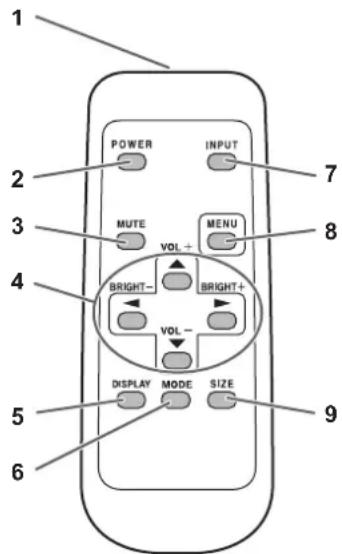

9. SIZE button (See Operation guide.)ENGLISH

How to Install the Monitor Mounting precautions

• Sincethemonitorisheavy,consultyourdealerbefore installing, removing or moving the monitor.

• Wheninstalling,removingormovingthemonitor,ensure that this is carried out by at least 2 people.

• AstandandmountingbracketcompliantwithVESA specicationsisrequired.Donotuseanyscrewholesother than VESA holes for installation.

• Whenmovingthemonitor,besuretoholditwiththe handles both on the rear and the unit bottom. Do not hold the LCD panel. This may cause product damage, failure, or injury.

• Installthemonitorwiththesurfaceperpendiculartoalevel surface. If necessary, the monitor may be tilted up to 20 degrees.

• Mountingthemonitoronthewallrequiresspecialexpertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.

• Thismonitorshouldbeusedatanambienttemperature between 32°F (0°C) and 104°F (40°C). Provide enough space around the monitor to prevent heat from accumulating inside. For the monitor in horizontal orientation 7-7/8 [20] Unit: inch [cm] 2 [5]

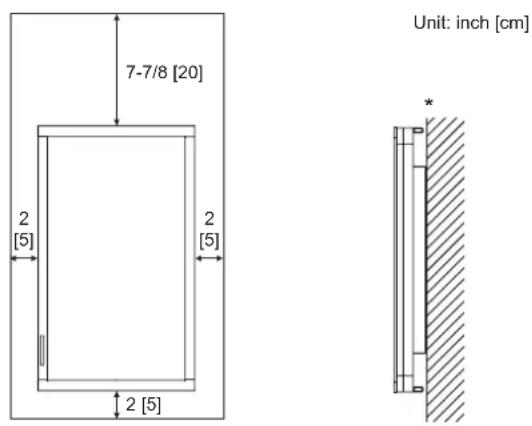

[5] For the monitor in vertical orientation Unit: inch [cm] 2 [5]

• The monitor can be installed close to a wall, etc. However,themonitoremitsheatduringoperation.Be aware that heat emitted from the monitor may discolour or alter the wall.

• Ifitisdifficulttoprovidethismuchspaceforanyreason such as the installation of the monitor inside a housing, or if the ambient temperature may be outside of the range of 32°F (0°C) to 104°F (40°C), install a fan in the housing or take other measures to keep the ambient temperature within the required range.

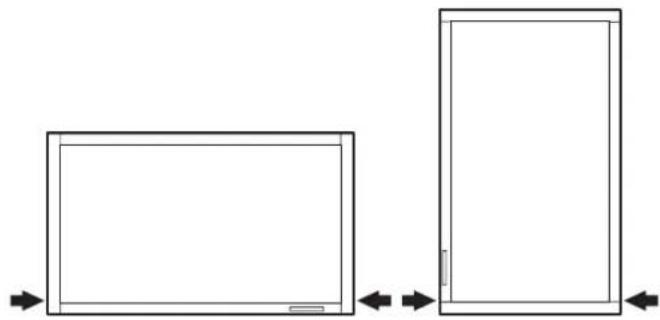

• Adheretothefollowingwheninstallingthemonitorinthe vertical orientation. Failing to adhere to the following may cause malfunctions. - Install the monitor such that the power LED is located on the downside. - Set the MONITOR on the SETUP menu to PORTRAIT. (See Operation guide.)

• Donotblockanyventilationopenings.Ifthetemperature inside the monitor rises, this could lead to a malfunction.

• Aftermounting,itisrecommendedtotakesomemeasures to prevent the monitor from falling down.

• Donotplacethemonitoronadevicewhichgeneratesheat.

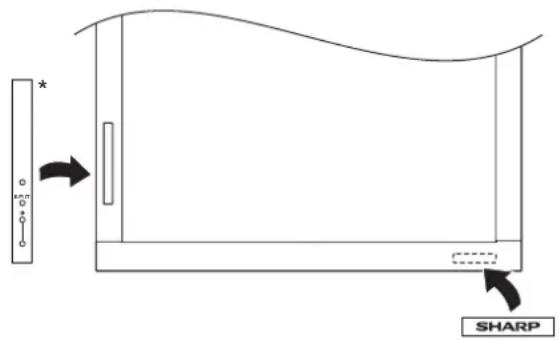

• Usethesuppliedverticallogostickerwhenyouinstallthe monitor in vertical orientation.

• Besuretouseastandorawall-mount/ceilingbracket designed or designated for mounting the monitor.

• Thismonitorisdesignedtobeinstalledonaconcretewall/ ceiling or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation. This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure.10

Connecting Peripheral Equipment Caution

• Besuretoturnoffthemainpowerswitchanddisconnect the plug from the power outlet before connecting/ disconnecting cables. Also, read the manual of the equipment to be connected.

• Becarefulnottomixuptheinputterminalwiththeoutput terminal when connecting cables. Mixing up the input and output terminals may cause malfunctions and the other problems. Connection with a PC Video input PC1 input terminal PC2 input terminal

• Imagesmaynotbedisplayedproperlydependingonthe computer (graphics board) to be connected.

• Ascreenwith1920x1080resolutionmaynotbedisplayed correctly on PC4. In this case, check the settings of your computer (graphics board) to verify that input signals conformtospecicationsofthismonitor.(Seepage17.)

• IfthereisacheckboxtodisableEDIDindisplaycontrol panel, check it when using PC4.

• UsetheautomaticscreenadjustmentwhenaPCscreenis displayedforthersttimeusingPC3orPC4,orwhenthe setting of the PC is changed. (See Operation guide.) The screen is adjusted automatically when SELF ADJUST in the OPTION menu is set to ON. (See Operation guide.) Connection with AV equipment Video input Cr/PrYCb/Pb AV1 input terminal AV2 input terminal AV3 input terminals AV4 input terminal AV5 input terminal Audio input AV audio input terminals

Connecting Peripheral Equipment Other terminals PC/AV audio output terminals

• AudiofromtheequipmentconnectedtotheAVaudioinput terminals or PC audio input terminal is output. Connect to the audio input terminals of the connected equipment using a commercially available audio cable (RCA).

• Theaudiooutputvariesdependingontheinputmode selection. (See Operation guide.)

• Thevolumelevelcanbeadjustedusingthevolume adjustment. (See Operation guide.)

• SelectingFIXEDof“AUDIOOUTPUT”fromtheOPTION menuxesthevolumeofsoundoutputfromtheaudio output terminals. (See Operation guide.)

• AudiosignalsoutputfromthePC/AVaudiooutputterminals cannot be adjusted using the AUDIO menu. PC/AV output terminals Video signals from PC1 and AV1 can be output to external device. Use this terminal when you connect multiple monitors in a daisy chain via DVI cable (commercially available). (See the description on the right.) Outputting images encoded with HDCP requires an HDCP- compatible external device. Images cannot be output in the following situations: - In PC2/AV2 input mode -WhenPIPSOURCEinthePIP/PbyPMenuissettoPC2 HDMI or AV2 HDMI RS-232C input/output terminals You can control the monitor from a PC by connecting a commercially available RS-232 straight cable between this terminal and the PC. (See Operation guide.) LAN terminal You can control the monitor from a PC on a network by connecting a commercially available LAN cable between this terminal and a network. (See Operation guide.) Connecting external speakers Besuretouseexternalspeakerswithanimpedanceof6Ω andaratedinputofatleast7W. (1) (2) 1.Whilepushingthetab,insertthetipofthecable.

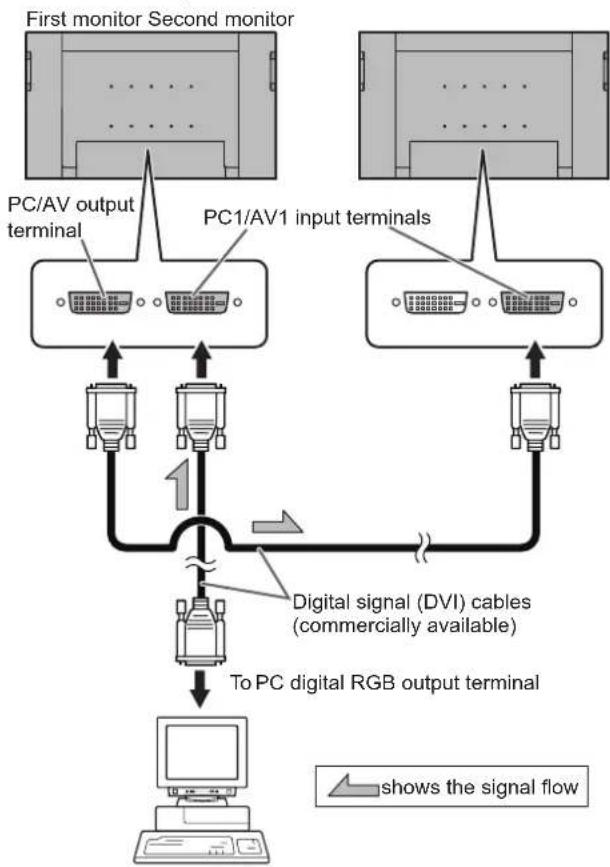

• Avoidshortcircuitingthe+and-terminals. Connecting multiple monitors You can connect multiple monitors (up to 5 monitors) in a daisy chain by using the PC1/AV1 input terminals and PC/AV output terminals of this monitor. Connection example shows the signal flow PC/AV output terminal PC1/AV1 input terminals Digital signal (DVI) cables (commercially available) To PC digital RGB output terminal First monitor Second monitor TIPS

• Thelengthofthesignalcablesorsurroundingenvironment may affect the image quality.

• Thescreenmaynotdisplayproperlywhenusingterminals other than PC1/AV1 for the input mode. In this case, turn off the power to all the monitors connected in a daisy chain and then turn the power on again.

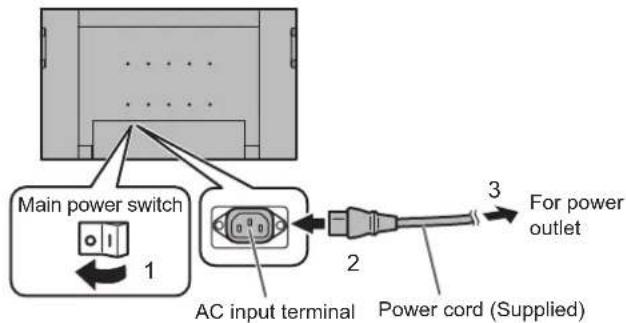

Connecting the Power Cord Caution

• Donotuseapowercordotherthantheonesuppliedwith the monitor.

1. Turn off the main power switch.

2. Plug the power cord (supplied) into the AC input terminal.

3. Plug the power cord (supplied) into the AC power outlet.

Main power switch For power outlet Power cord (Supplied)

• Themonitorisheavy.Makesuretohandlethemonitorwith at least 2 people.

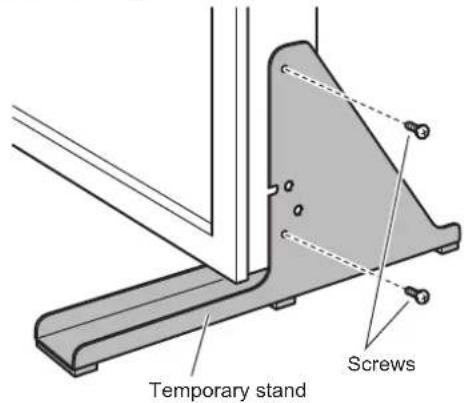

• Pleasenotethatthetemporarystandsarefortemporary use only until the monitor is properly mounted. The temporary stand can be mounted at a position shown in the illustration. Remove the screws from the monitor and mount the temporary stand using the screws. Temporary stand Screws Caution

• Afterdetachingthetemporarystand,besuretore-mount the removed screws on the monitor. Mounting the Temporary StandsENGLISH

Preparing the Remote Control Unit Installing the batteries 1. Press the cover gently and slide it in the direction of the arrow.2. See the instructions in the compartment and put in the suppliedbatteries(R-6(“AA”size)x2)withtheirplus(+)and minus (-) sides oriented correctly.3. Close the cover. TIPS

• Whenthebatteriesbecomeexhaustedreplacethemwith new (commercially available) batteries earlier than specied.• Thesuppliedbatteries(R-6(“AA”size)x2)maybecomeexhausted quickly depending on how they are stored.• Ifyouwillnotusetheremotecontrolforalongtime,remove the batteries.• Usemanganeseoralkalinebatteriesonly. Remote control operation range The operation range of the remote control unit is approx. 16.4 feet (5 m) at an angle of approx 10° from the center to the top/bottom/right/left of the remote control sensor. Remote control sensor 10°

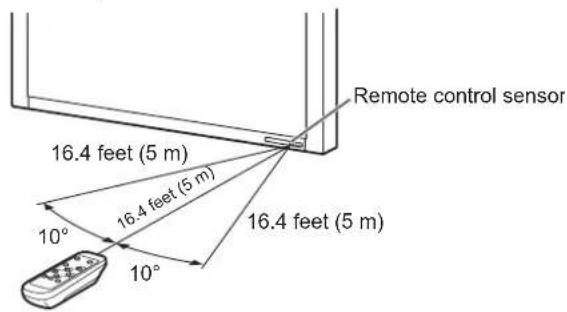

16.4 feet (5 m)16.4 feet (5 m)16.4 feet (5 m)

• Donotexposetheremotecontrolunittoshockbydroppingor stepping on it. This could lead to a malfunction.• Donotexposetheremotecontrolunittoliquids,anddonotplace it in an area with high humidity.• Theremotecontrolunitmaynotworkproperlyiftheremotecontrol sensor is under direct sunlight or strong lighting.• Objectsbetweentheremotecontrolunitandtheremotecontrol sensor may prevent proper operation.• Replacethebatterieswhentheyrunlowasthismayshorten the remote control’s operation range.• Ifauorescentlightisilluminatedneartheremotecontrolunit, it may interfere with proper operation.• Donotuseitwiththeremotecontrolofotherequipmentsuch as air conditioner, stereo components, etc. Binding Cables

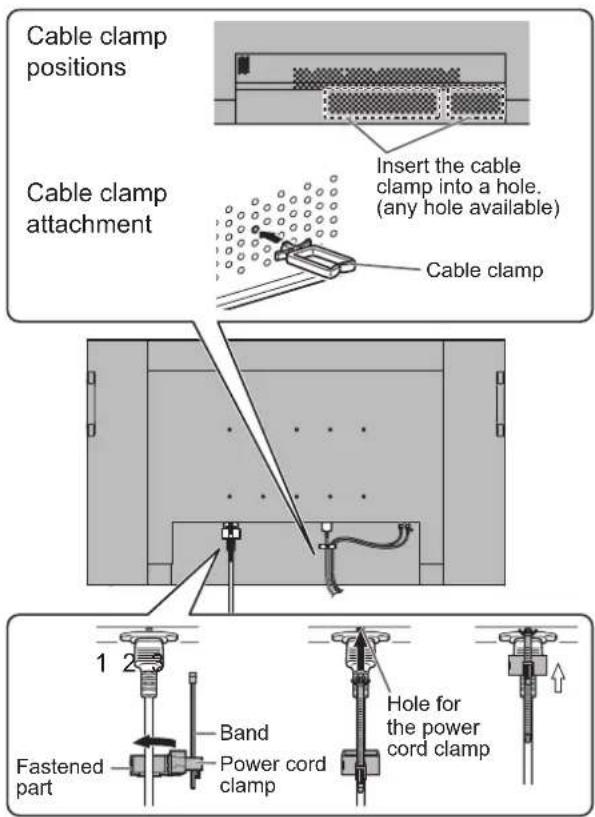

Hole for the power cord clamp Fastened part Band Power cord clampCable clampInsert the cableclamp into a hole.(any hole available) Cable clamp attachment Cable clamp positions

Attaching the cable clamp The cables connected to the terminals on the back of the monitor can be neatly bundled using the supplied cable clamps as shown in the illustration.Caution• Verifythepositionforattachingacableclampinadvance.A cable clamp cannot be removed once it is attached.

Fastening the power cord The power cord can be fastened using the supplied power cord clamp. This will prevent the power cord from being disconnected accidentally.1. Attach the supplied power cord clamp to the power cord, making sure the power cord clamp is circular hole-sidedown.2. Insert the tip of the band into the hole for the power cord clamp.3.Whileholdingthetailoftheband,slidethefastenedparttoward the AC input terminal.14

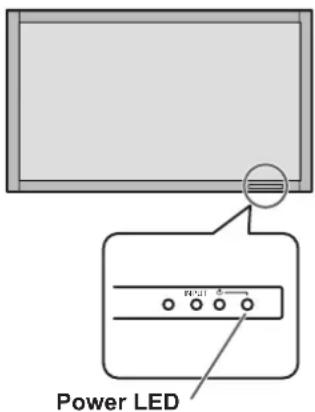

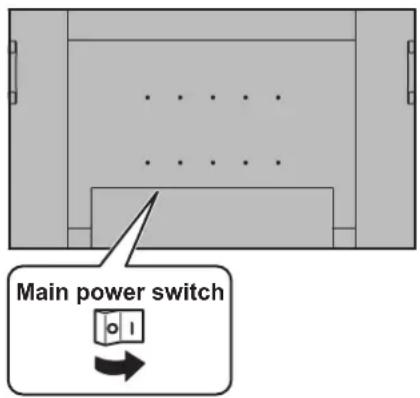

Turning Power On/Off Caution• TurnonthemonitorrstbeforeturningonthePCorplayback device. Turning on the main power Main power switch Whenthemainpowerswitchisoff,themonitorcannotbeturnedonusingthePOWERbuttonontheremotecontrolunit. Turning power on/off PressthePOWERbuttontoturnthepowerON/OFF. INPUTPower LED Status of a power LED Status of the monitorGreen lighting Power “On”Orange lighting Power “Off” (Standby mode)GreenashingInput signal standby mode (input using a PC)Caution• WhenswitchingthemainpowerswitchorthePOWERbutton off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction. TIPS

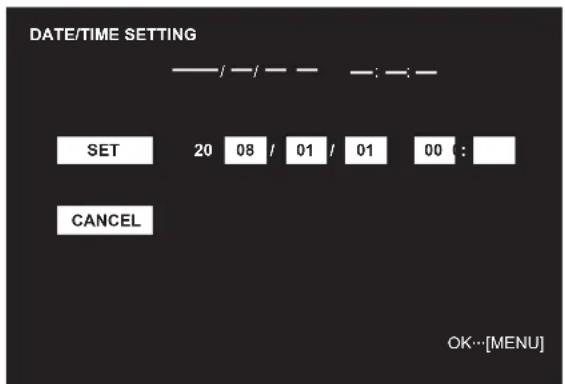

• Ifthetimehasyettobesetwhenthemonitorisrstturnedon, the date/time setting screen appears. Set the date and time.

1. Press , , or to select the date and

time, and press or to change the numerical values.

2. Select SET and then press

• Besuretosetthedateandtime.• Thedate/timesettingscreenwillcloseautomaticallyifnooperation is performed for about 15 seconds. The date and time can be set using DATE/TIME SETTING from the OPTION menu when the date/time setting screen disappears. TIPS

Set the time on a 24-hour basis.

The clock stops after the power-off status continues for approximately 1 week.* The date/time setting screen appearsatpower-on.Besuretosetthedateandtime.

• This is a guide. The power-off status that stops the clock depends on the status of the monitor.) Disabling power on/off operations Power on/power off operations can be disabled in order to protect the monitor from an accidental power off. Set the ADJUSTMENT LOCK in FUNCTION menu to “2”. (See Operation guide.)ENGLISH

Troubleshooting Beforecallingforrepairservices,makesurefollowingchecks for possible remedies to the encountered symptoms. There is no picture or sound.

• Isthepowercorddisconnected?(Seepage12.)

• Ifanyexternalequipmentisconnected,makesurethe equipment is operating (playing back). Remote control does not work.

• Isthemenudisplayhiddenorisoperationdisabled?(See Operation guide.) Sound from left and right speakers is reversed. Sound is heard from only one side.

• Areaudiocablesconnectedproperly?(Seepages10and 11.)

• Makesureaudiocablesforexternalspeakersare connected properly: left and right cables may be reversed or one of the two cables may not be connected. (See page 11.)

• CheckthesettingofBALANCEforAUDIOmenu.(See Operation guide.) There is a picture but no sound.

• Thesignalmaybeincompatible.

• TrytheautomaticscreenadjustmentwhenthePC3input terminal or PC4 input terminals is used. PC1 or AV1 does not appear properly.

• Turnoffthepowertotheconnectedequipmentandthen turn the power on again.

• Ifthemonitorsareconnectedinadaisychain,turnoffthe power to all the monitors connected in a daisy chain and then turn the power on again. PC2 or AV2 does not appear properly.

• IsthesettingofHDMISELECTcorrect?(SeeOperation guide.)

• IstheHDMIcableHDMIstandardcompliant?Themonitor will not work with cables that are not standard compliant.

• Istheinputsignalcompatiblewiththismonitor?(Seepages 10 and 17.) PC4 or AV3 does not appear properly.

• Istheinputsignalcompatiblewiththismonitor?(Seepages 10 and 17.) Control buttons do not work. There is no picture.

• Somekindofloadnoisesfromoutsidemightinterferewith normal operation. Turn off the power and turn it on after waiting at least 5 seconds, and then check the operation. The input mode changes automatically.

• WhentheAUTOINPUTCHANGEisONandnosignal is present in a selected input mode, the AUTO INPUT CHANGE automatically changes the selected mode to a mode where a video signal is present. The input mode may change in the following cases: -Whenacomputerisinstandbymode. -Whenvideoplayisstoppedwithaplaybackdevice. Power LED ashes red. “STATUS [xxxx]” appears in the corner of the screen.

• Hardwarehasaproblem.Turnoffthemonitorandrequest repair from your SHARP dealer. (WhenSTATUSALERTissettoOSD&LED.Thisvaries depending on the setting.) When “AUTO DIMMING” is displayed.

• Whentheinternaltemperatureofthemonitorrises excessively, the brightness of the backlight automatically decreases in order to prevent a further temperature rise. If you attempt to use to adjust the brightness while the monitor is in this state, “AUTO DIMMING” is displayed and you cannot change the brightness.

• Removethecauseoftheexcessivetemperaturerise. The monitor sometimes makes a cracking sound.

• Youmayhearcrackingsoundfromthemonitor.This happens when the cabinet slightly expands and contracts according to change in temperature. This does not affect the monitor’s performance. The Power LED is ashing in red and green alternately. When “TEMPERATURE” is displayed in the corner of the screen.

• Whentheinternaltemperatureofthemonitorrises excessively, the brightness of the backlight decreases automatically in order to prevent high-temperature- relatedproblems.Whenthisoccurs,“TEMPERATURE”is displayedonthescreenandthePowerLEDashesred andgreenalternately.(WhenTEMPERATUREALERTis settoOSD&LED.Thisvariesdependingonthesetting.)

• Iftheinternaltemperaturerisesfurther,themonitor automatically enters standby mode. (The Power LED continuesashingredandgreenalternately.)

• Removethecauseoftheexcessivetemperaturerise. - If the monitor enters standby mode due to a rise in temperature, to return to normal display, turn the power switch off and then back on again. The monitor, however, will enter standby mode again if the cause of the temperature rise is not eliminated. (See page 9.) - Check whether the monitor is placed at a location where a quick rise in temperature is likely. Internal temperature rises quickly if the vents on the monitor are blocked. - Internal temperature rises quickly if dust accumulates inside the monitor or around the vents. Remove dust if possible. Ask Sharp dealer about removing internal dust.16

x 1 Audio RCA pin (L/R) x 1 Serial (RS-232C) D-sub 9 pin x 1 Output terminals PC/AV Digital DVI-D 24 pin x 1 Audio RCA pin (L/R) x 1 Serial (RS-232C) D-sub 9 pin x 1 Speaker 7 W + 7 W [6 Ω] LAN terminal 10 BASE-T/100 BASE-TX Power requirement AC 100 V - 240 V, 50/60 Hz Operating temperature 32°F to 104°F (0°C to 40°C) Operating humidity 20% to 80% (no condensation) Power consumption 275 W (Input signal waiting mode: 12 W

, Standby mode: 2.0 W

Compatible signal timing (PC) VESA

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Analog(PC3/PC4) Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Yes Yes Yes DVI(PC1) HDMI(PC2) Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

• All are compliant only with non-interlaced.
• Depending on the connected PC, images may not be displayed properly even if the compatible signal described above is input.
• The frequency values for the Sun are reference values. Specications

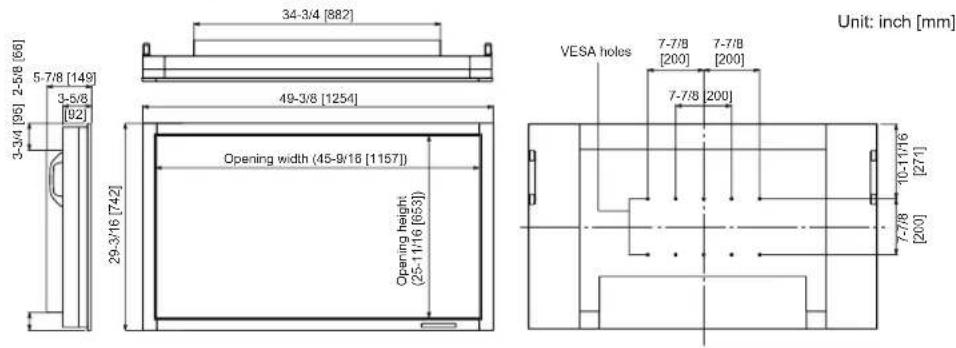

Dimensional Drawings Note that the values shown are approximate values. Unit: inch [mm] 49-3/8 [1254] Opening width (45-9/16 [1157]) 34-3/4 [882] Opening height (25-11/16 [653]) 29-3/16 [742] 7-7/8 [200] 10-11/16 [271] 5-7/8 [149] 3-5/8 [92] 3-3/4 [95] 2-5/8 [66] 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] VESA holes Whenmountingthemonitor,besuretouseawall-mount/ceiling-mountbrackettheycomplywiththeVESA-compatible mounting method. SHARP recommends using M6 screws and tighten the screws. Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose holding may cause the product to fall, resulting in serious personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch (8 mm) length of thread. Use the bracket which applied UL1678 standard, and which can endure at least 4 times or more the weight of the monitor.18

DDC (plug and play) The monitor supports the VESA DDC (Display Data Channel) standard. DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters isexchangedbetweenthetwo.ThisfunctioncanbeusedifthecomputersupportsDDCandithasbeenconguredtodetect plug-and-play monitors. ThereareseveraltypesofDDC,dependingonthecommunicationmethodused.ThismonitorsupportsDDC2B.

RS-232C input terminal pins (D-sub 9 pin) No. Function No. Function 1 N.C. 6 N.C. 2 Transmitted data 7 N.C. 3 Received data 8 N.C. 4 N.C. 9 N.C. 5 GND

RS-232C output terminal pins (D-sub 9 pin) No. Function No. Function 1 N.C. 6 N.C. 2 Received data 7 N.C. 3 Transmitted data 8 N.C. 4 N.C. 9 N.C. 5 GNDDEUTSCH
