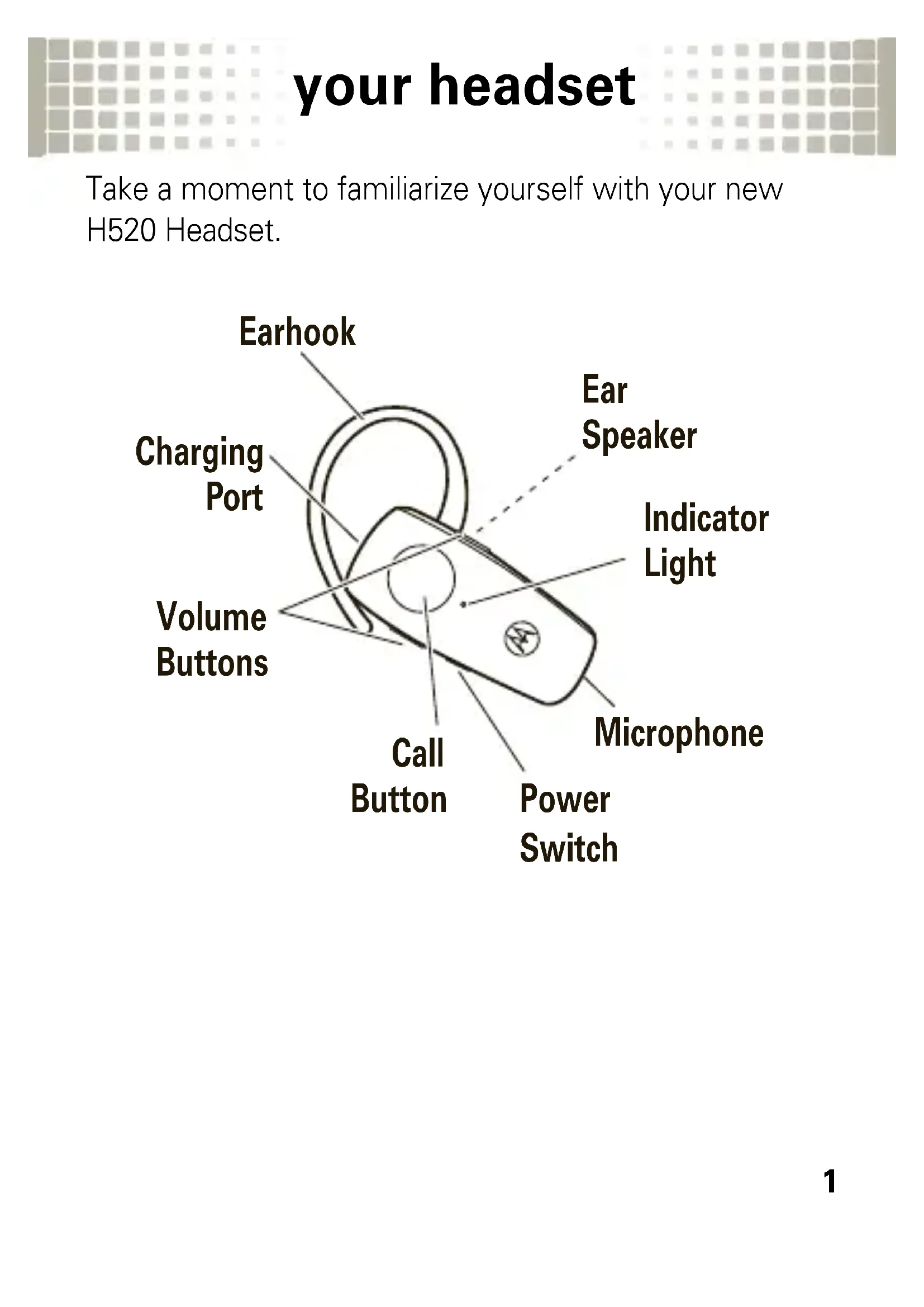

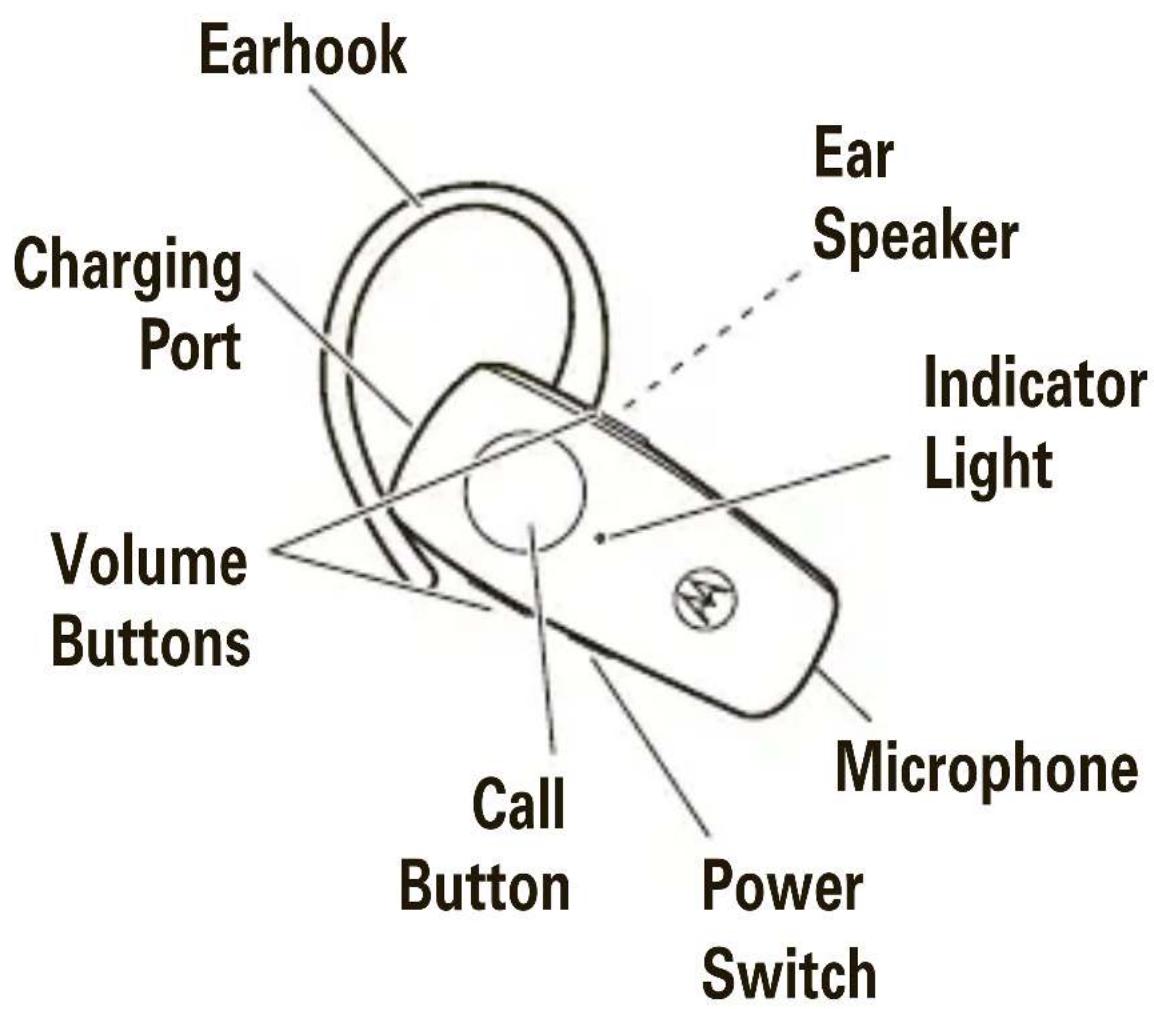

your hea dset Take a moment to familiarize yourself with your new H520 Headset. Earhook Charging Port Volume Buttons Call Button Power Switch Ear Speaker Indicator Light Microphonecharge it

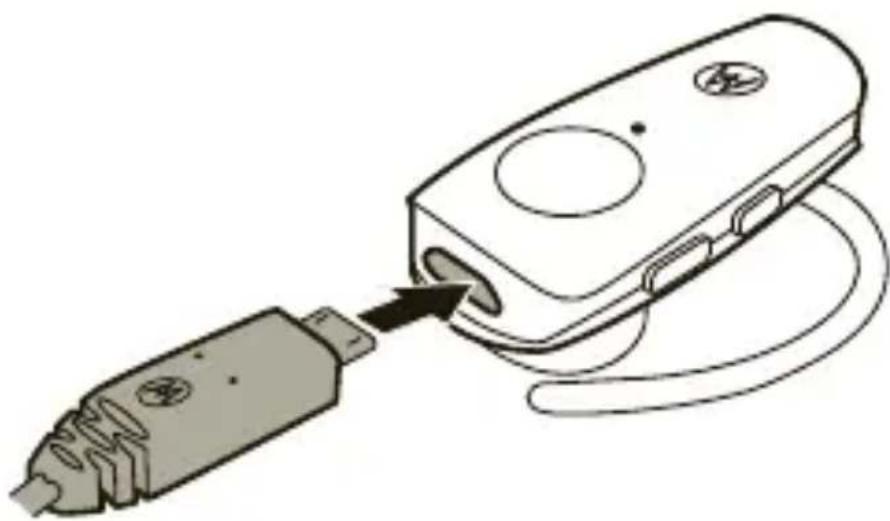

charge i t You’ll need to charge your headset overnight before using it. Plug the charger into the charging port on your headset and a wall outlet. The indicator light is red or purple while the battery is charging. When the battery is fully charged, the indicator light turns blue. Note: Before first time use, leave headset charging overnight. Note: Headset is not functional while charging. Note: Your battery is designed to last the life of your product. It should only be removed by a recycling facility. Any attempt to remove or replace your battery will damage your headphones.pair & connect

pair & connect pair & connect Let’s get your headset paired and connected to your Bluetooth phone.

Turn off any Bluetooth devices previously paired with your headset.

Turn on the Bluetooth feature on your phone.

Turn on your headset (see page 8 for help). The indicator light becomes steadily lit in blue.

Set your phone to search for Bluetooth devices.

Select Motorola H520 from the search results on your phone.

Ye s to pair your headset with your phone. Note: When prompted for the passkey, enter

The indicator light rapidly flashes blue and purple to indicate successful pairing and connecting with your phone.pair & connect

reconnect After initially pairing and connecting your phone and headset, you don’t need to do it again. For daily use, make sure your headset is turned on, and your phone’s Bluetooth feature is on. Your headset and phone will connect automatically! test your connection

Place the headset over your ear.

On the phone, dial a number and press Call/Send key. If your phone and headset are successfully connected, you hear ringing on the headset.put it on

put i t on You can wear your headset using either an earhook or ear cushion. wear with earhook

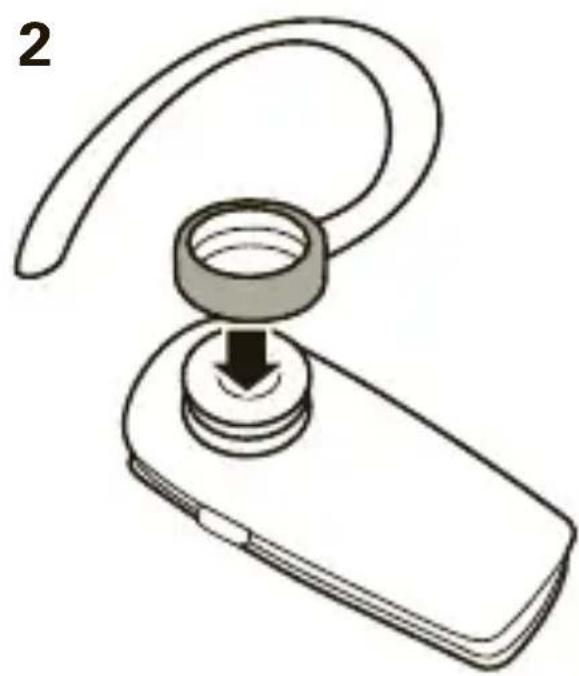

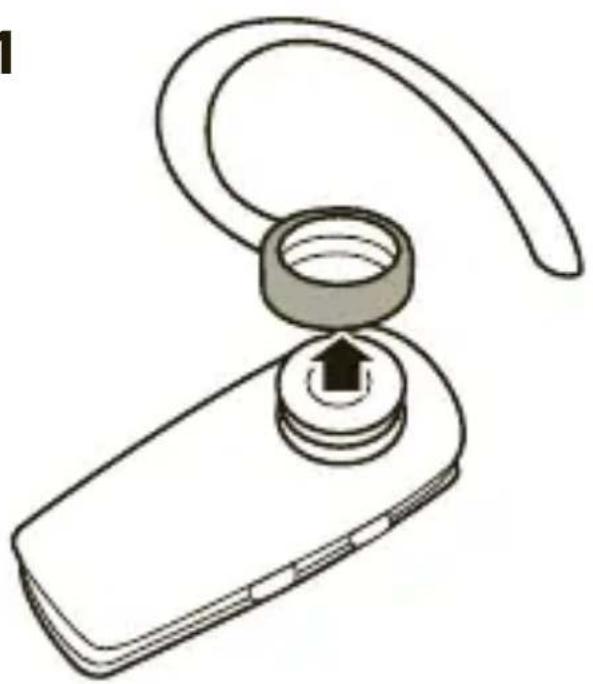

Remove and install all the supplied earhooks to find a good fit.

Your headset comes ready for your right ear. To change for your left ear:

From Right Ear To Left Earput it on

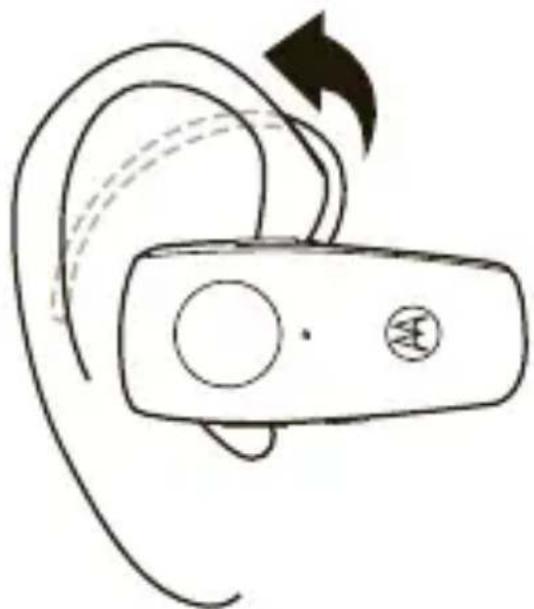

Flex the earhook and loop it over your ear. wear with ear cushion

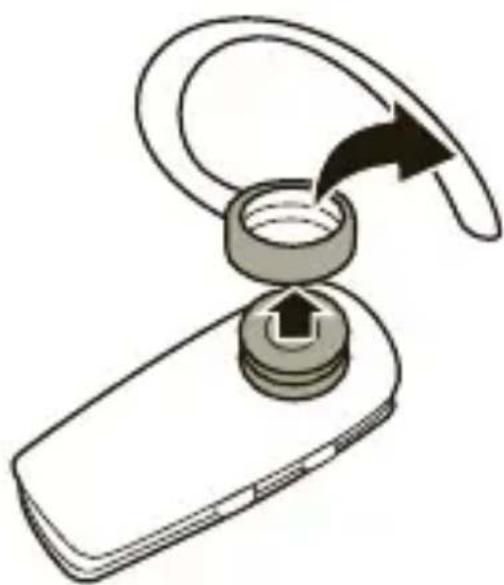

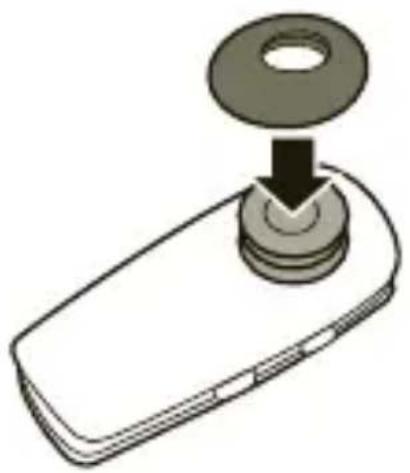

Remove earhook from headset.put it on

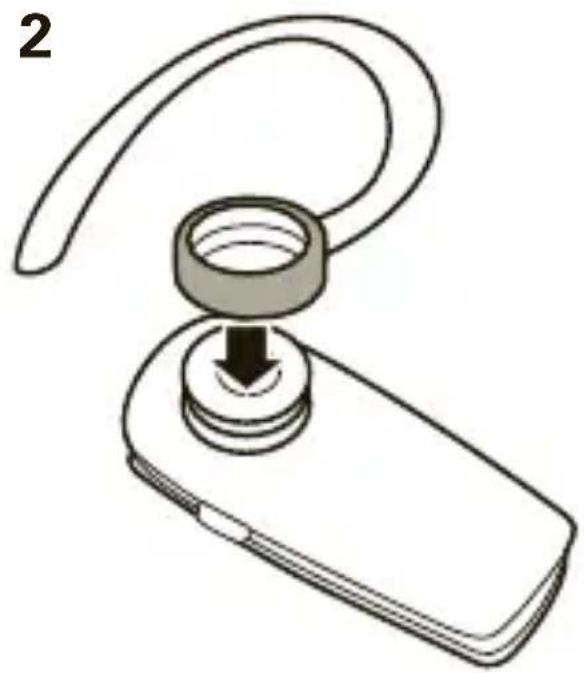

Try out all the supplied ear cushions to get a good fit. set volume buttons

Turn the headset power off.

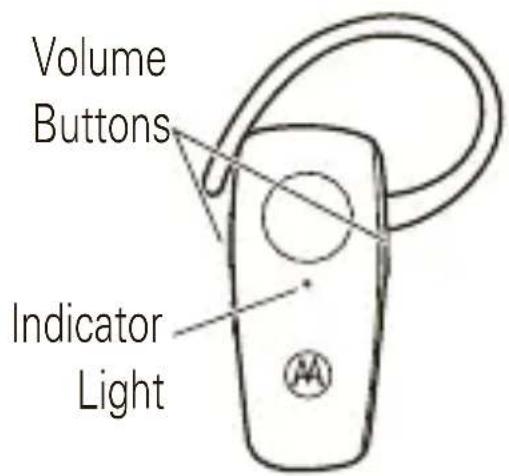

Press and hold the Volume button you want to assign as the "volume up" button and slide the Power switch on. The indicator light flashes blue three times. When connected, it will flash blue/purple. Indicator Light Volume Buttonsturn on & off

turn on & off turn on Slide the Power switch to the on position (no red is shown under the switch). The indicator light flashes blue three times, then flashes in blue and purple (if connected with a device) or is steadily blue (if ready to be paired). turn off Slide the Power switch to the off position (red is shown under switch). The indicator light flashes three times then turns off.battery check

batter y check Press and hold both Volume buttons while not on a call. To save battery power, turn off the headset when you don't use it for an extended time. indicator light available talk time red less than 1.5 hours purple between 1.5 to 3.5 hours blue up to 5 hourscalls

calls Note: Your H520 supports both Handsfree and Headset Profiles. Accessing call functions depends upon which profile your phone supports. See your phone's user's guide for more information. Note: Some features are phone/network dependent. To... answer call Press the Call button. mute or unmute a call Press both Volume buttons. reject call Press and hold a Volume button until you hear a tone. end a call Press the Call button. redial last call Press and hold the Call button until you hear two tones. make a voice dial call Press the Call button and wait for voice prompt. answer or reject second incoming call Use phone to answer/reject second call (follow your phone’s instructions)status indicators

stat us indicat ors indicator light (with charger plugged in) headset indicator headset status red charging (battery level less than 50% charge) purple charging (battery level more than 50% charge) blue charging completestatus indicators

indicator light (with charger not plugged in) Note: After 20 minutes on a call or of inactivity, the light stops flashing to conserve power, but the headset remains on. headset indicator headset status off power off three blue flashes powering on/off steady blue pairing/connect mode rapid blue/purple flashes connection successful quick blue flash incoming/outgoing call slow blue pulse connected (on a call) slow blue flash standby (not on a call) slow red flash idle (not connected to a phone) slow purple pulse connected (call muted) steady red attempting to connect quick red flash low batterystatus indicators

audio tones audio tone headset status ascending tone powering on two descending tones powering off ring tone incoming call two short tones when pressing Volume button volume at maximum or minimum high/low tones repeated every 60 seconds low battery no audio indications; deteriorating quality out of range three ascending tones connected to phone two rapid ascending tones mute enabled two rapid descending tones mute disabled low tone every 10 seconds mute reminderrestore headset

resto re headset Caution: This action erases all pairing information stored in your headset. To restore your headset to original factory settings, with the headset turned on, press and hold both Volume buttons and Call button for 10 seconds until the indicator light is steady blue.troubleshooting

troub leshooti ng My headset will not enter pairing mode. Make sure that any devices previously paired with the headset are turned off. If the indicator light is not steadily lit in blue, turn off both the other device and headset, wait 10 seconds, then turn headset back on. Wait for the indicator light to become steadily lit in blue, indicating the headset is now in pairing mode. My phone doesn't find my headset. Make sure the indicator light on your headset is on (lit in blue) and steady when your phone is searching for devices. My headset worked before but now it's not working. Make sure your phone is on and the Bluetooth feature is turned on in your phone. If the Bluetooth feature was turned off or was turned on only temporarily, you may need to restart the Bluetooth feature and pair your phone and headset again (see “pair & connect” on page 3). Support

If you need more help, contact us at 1-877-MOTOBLU or visit us at www.motorola.com/Bluetoothsupport

www.motorola.com/bluetoothconnect
