USER MANUAL T225 MOTOROLA

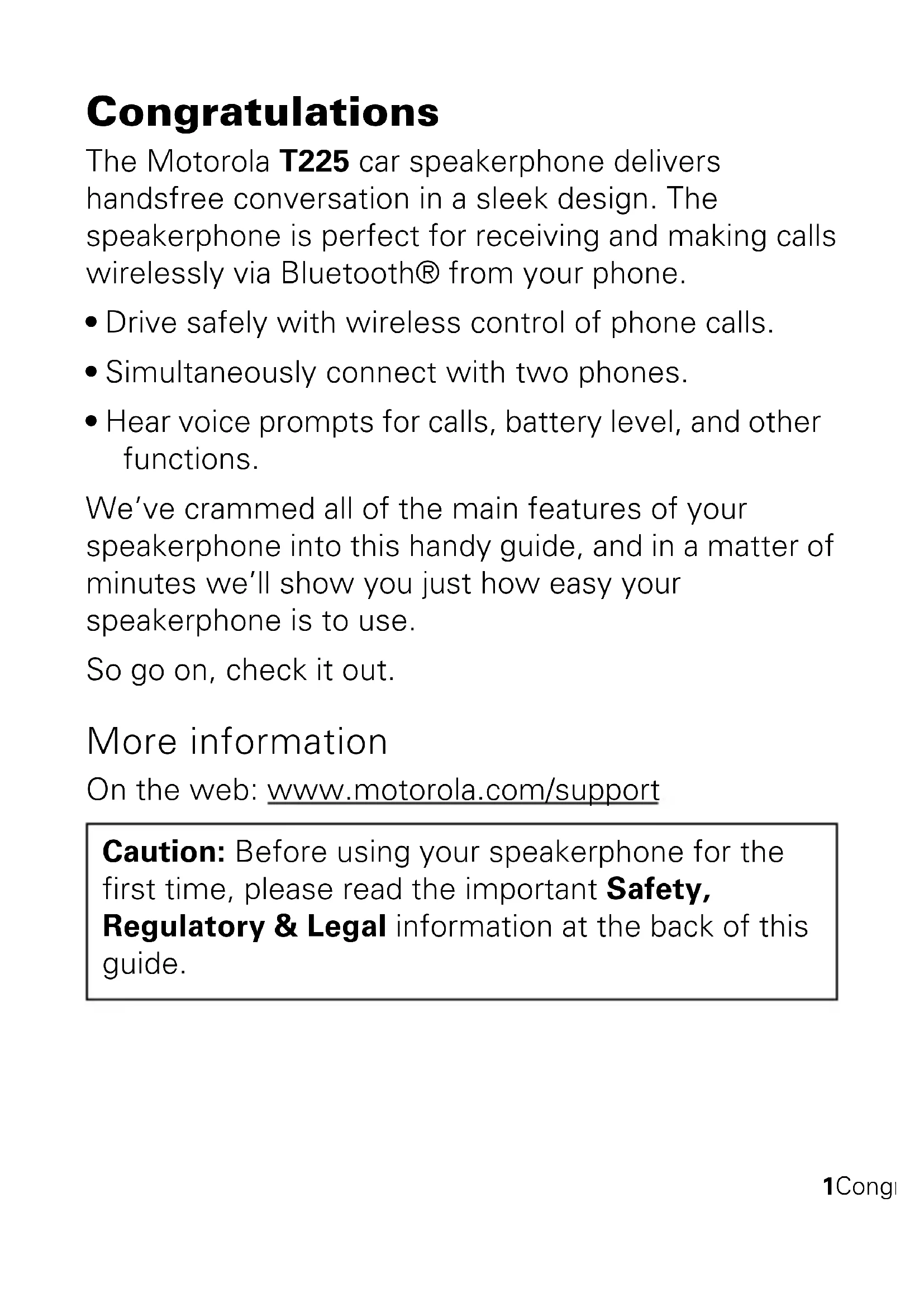

MOTOROLA T2251Congratulations Congratulations The Motorola T225 car speakerphone delivers handsfree conversation in a sleek design. The speakerphone is perfect for receiving and making calls wirelessly via Bluetooth® from your phone.

• Drive safely with wireless control of phone calls.

• Simultaneously connect with two phones.

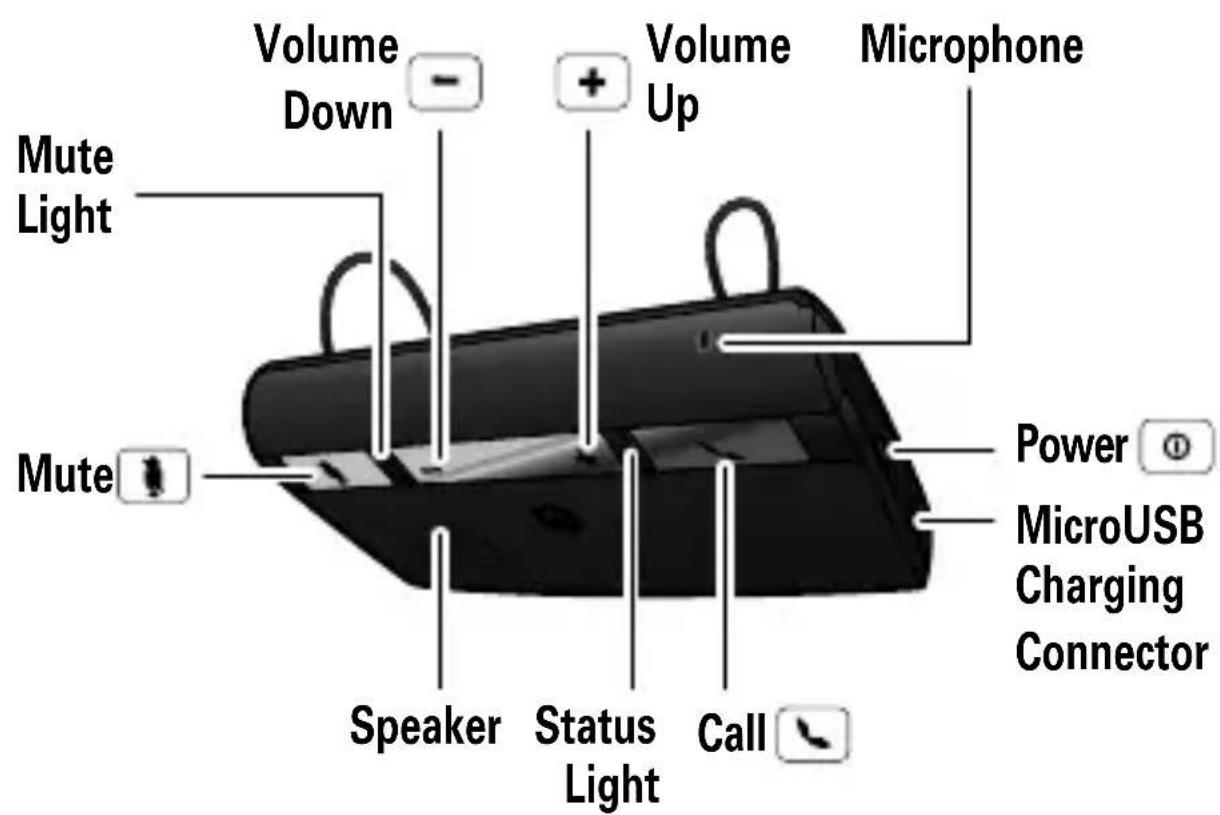

• Hear voice prompts for calls, battery level, and other functions. We’ve crammed all of the main features of your speakerphone into this handy guide, and in a matter of minutes we’ll show you just how easy your speakerphone is to use. So go on, check it out. More information On the web: www.motorola.com/support Caution: Before using your speakerphone for the first time, please read the important Safety, Regulatory & Legal information at the back of this guide.2 Your speakerphone Your speakerphone the important parts Mute Speaker Mute Light Volume Down Volume

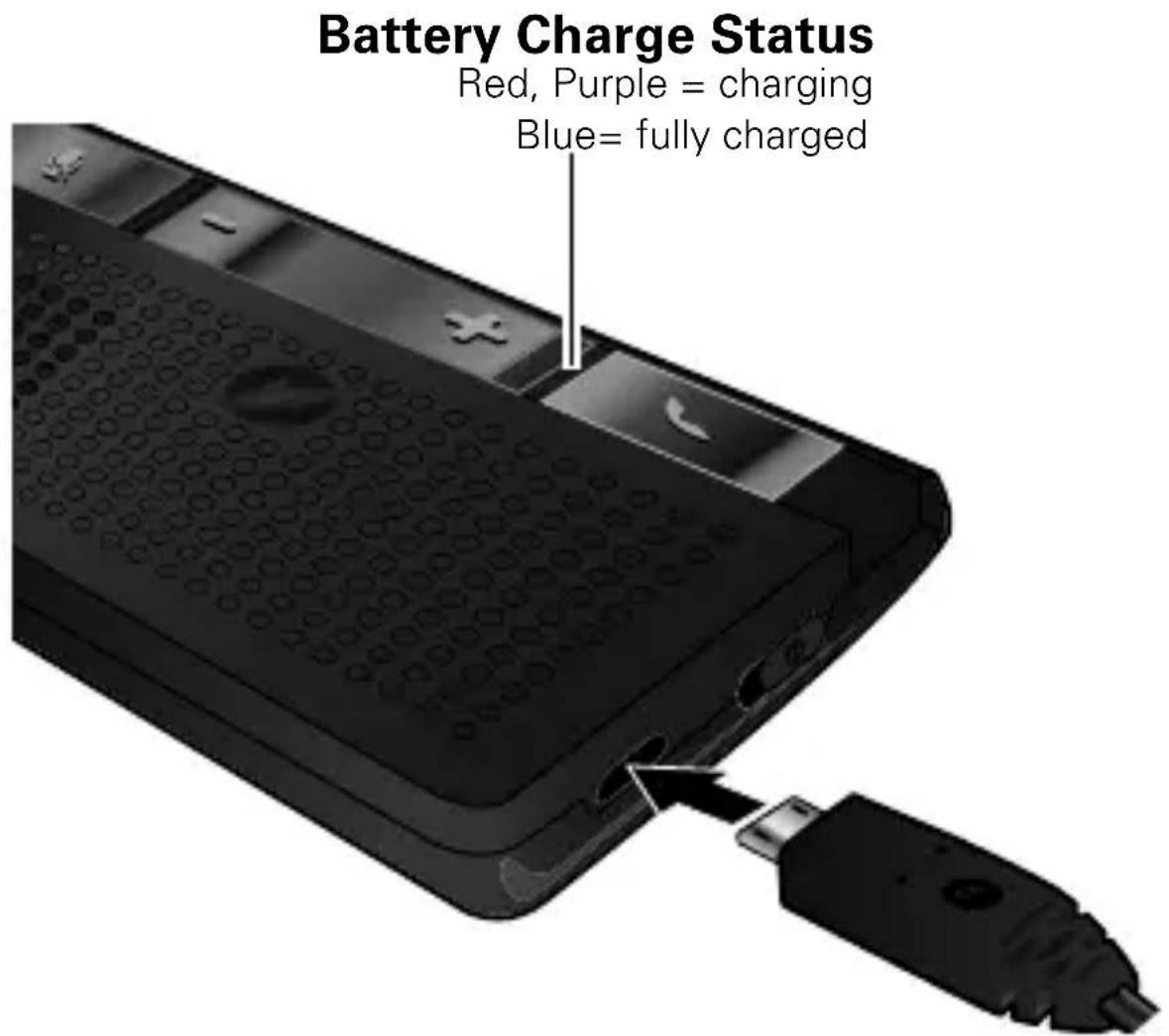

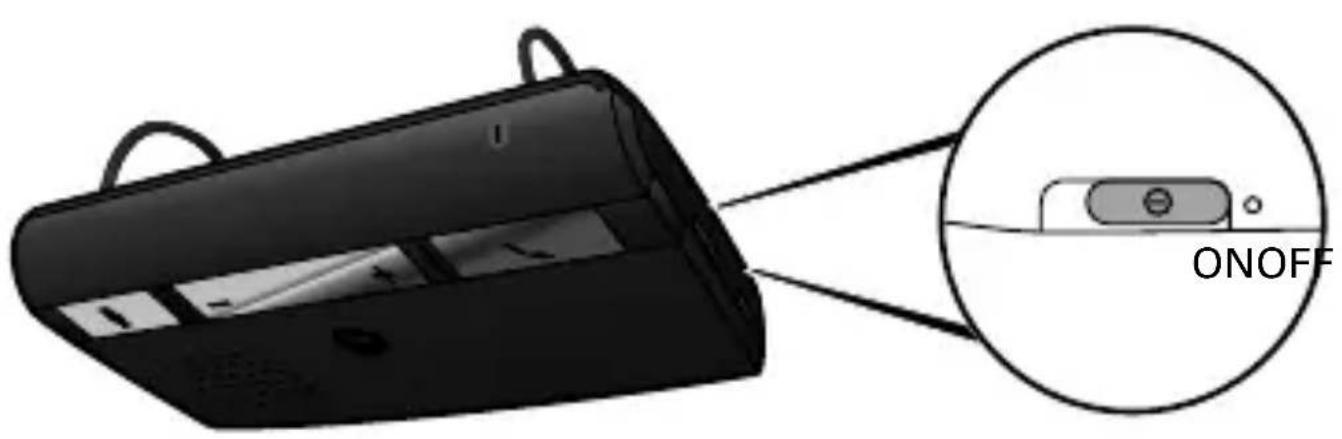

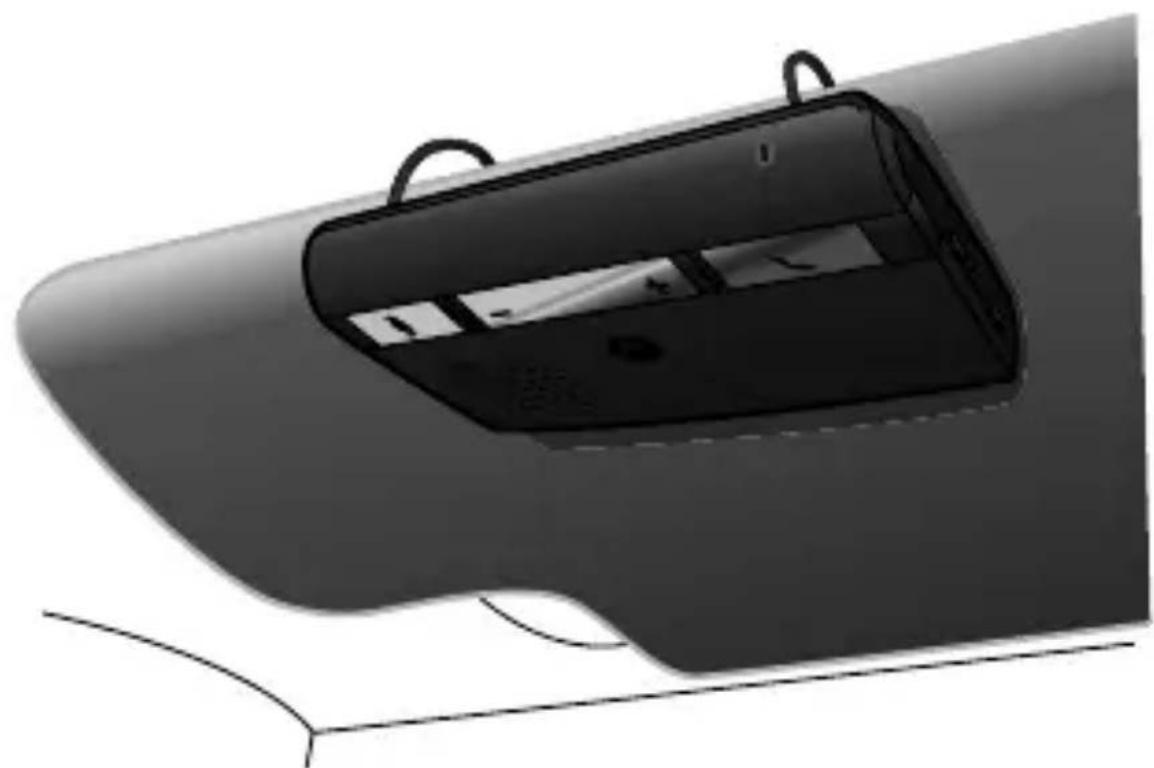

Status Light Call Microphone Power MicroUSB Charging Connector3Charge it Charge it let’s get you up and running You can use your speakerphone while unplugged or plugged into the charger. Note: Your battery is designed to last the life of your product. It should only be removed by a recycling facility. Any attempt to remove or replace your battery will damage your speakerphone. Battery Charge Status Red, Purple = charging Blue= fully charged4 Basics Basics a few essentials to get your started Install it Turn it on & off ONOFF5Basics Voice prompts Voice prompts help you pair and connect, make and answer calls, and check your battery level. Note: The voice prompts are only in English.6 Pair & connect Pair & connect connect and go Note: The voice prompts are only in English. Pair & connect with your phone 1 Turn off any Bluetooth devices previously paired with your speakerphone. 2 Turn on the Bluetooth feature on your phone. 3 Turn on your speakerphone (see “Turn it on & off” on page 4). The status light becomes steady blue to indicate the speakerphone is in discoverable mode and you hear “ready to pair”. 4 Follow the voice prompts to connect your phone to your speakerphone. Note: If prompted for the passkey, enter 0000. When your speakerphone successfully pairs with your phone, the status light flashes in blue and purple and you hear “phone 1 connected”. For daily use, make sure your speakerphone is turned on, and your phone’s Bluetooth feature is on. Your speakerphone and phone will connect automatically.7Pair & connect Pair & connect a second phone 1 Turn off the first phone and any other Bluetooth devices previously paired with your speakerphone. 2 Turn your speakerphone off. 3 Turn on the Bluetooth feature on your phone. 4 Turn on your speakerphone. The status light becomes steady in blue and you hear “ready to pair”. 5 Follow the voice prompts to connect your phone to your speakerphone. Note: If prompted for the passkey, enter 0000. When your speakerphone successfully pairs with your phone, the status light flashes in blue and purple and you hear “phone 2 connected”. To connect both phones, turn them on and then turn your speakerphone off and on. When you hear “phone 1 connected”, and “phone 2 connected”, your speakerphone is ready to go. Test your connection 1 Make sure your speakerphone is on. 2 On your phone, dial a phone number and press the Call/Send key. You hear ringing on the speakerphone when successful.8 Calls Calls it’s good to talk Note: Some features are phone/network dependent. Note: The voice prompts are only in English. To... answer call Press Call . ignore call Press and hold Volume Up or Volume Down until you hear a tone. make a voice dial call Press Call and follow prompts. redial last call Press and hold Call until you hear a tone and follow prompts. mute or unmute a call Press Mute and you hear “mute on”

“mute off” . The mute light is solid red while muted. answer second incoming call Press Call . Current call is placed on hold. reject second incoming call Press Volume Up or Volume Down . end a call Press Call . If call is on hold, it is resumed.9Talk time Talk time check your chat time Press both Volume buttons while not on a call. To save battery power, turn off the speakerphone when not using it for an extended time. Note: The voice prompts are only in English. if light shows... you hear... red “battery is low” purple “battery is medium” blue “battery is high”10 Status light Status light know your speakerphone If status light shows... your speakerphone is... three blue flashes powering on steady blue in pairing/connect mode rapid blue/purple flashes connected to your phone quick blue flash receiving a call on phone 1, or making a call on either phone quick purple flash receiving a call on phone 2 slow blue pulse on a call slow blue flash in standby (not on a call—connected to one phone) slow purple flash in standby (not on a call—connected to two phones)11Status light Note: The status light stops flashing to conserve power after 20 minutes on a call or of inactivity, but the speakerphone remains on. slow red flash idle (not connected to a phone) steady red (status light) trying to connect to your phone steady red (mute light) muted slow red pulse in a low battery state If status light shows... your speakerphone is...12 Settings Settings make some changes Turn voice prompts on & off With the speakerphone turned on and not on a call, press and hold either Volume button and the Call button until you hear “voice instructions on”

“voice instructions off”

Note: The voice prompts are only in English. Reset Caution: This action erases all pairing information stored in your speakerphone. With your speakerphone turned on, press and hold Call , Volume Up , and Volume Down buttons until the mute and status lights begin flashing.

Press and hold Call , Volume Down , and Mute buttons until the lights turn off.

Slide Power switch to OFF then

to restart your speakerphone.13Problems? Problems? we’ve got solutions My speakerphone will not enter pairing mode Make sure that any devices previously paired with the speakerphone are turned off. If the status light is not steady in blue, first turn off the other device, then turn the speakerphone off and on. The status light becomes steady in blue and you hear “ready to pair”

My phone doesn't find my speakerphone when searching Make sure the status light on your speakerphone is steady in blue when your phone is searching for devices. If not, reset the speakerphone to factory condition (see “Reset” on page 12). The speakerphone resets and you hear “ready to pair” and see the status light steady in blue. My speakerphone worked before but now it's not working Make sure your phone is on and the Bluetooth feature is turned on in your phone. If the Bluetooth feature was turned off or was turned on only temporarily, you may need to restart the Bluetooth feature and pair your phone and speakerphone again (see “Pair & connect” on page 6).14 Support Support If you have questions or need assistance, we’re here to help. Go to www.motorola.com/bluetoothsupport

Do not store or use your battery-powered accessory (such as a Bluetooth® headset or other device) in temperatures below -10°C (14°F) or above 60°C (140°F).

Conditions inside a parked car can exceed this range. Do not store your accessory in a parked car.

Do not store your accessory in direct sunlight.

Storing your fully charged accessory in high-temperature conditions may permanently reduce the life of the internal battery.

Battery life may temporarily shorten in low-temperature conditions. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries, antennas, and convertible covers, may cause your mobile device to exceed RF energy exposure guidelines and may void your mobile device’s warranty. For a list of approved Motorola accessories, visit our Web site at: www.motorola.com Driving Precautions Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction. Using a mobile device or accessory may be prohibited or restricted in certain areas, always obey the laws and regulations on the use of these products. While driving, NEVER:

Enter or review written data.

Perform any other functions that divert your attention from driving. While driving, ALWAYS:

Keep your eyes on the road.

Use a handsfree device if available or required by law in your area.

Enter destination information into a navigation device before driving.

Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available.

Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle.

End your call or other task if you cannot concentrate on driving. Responsible driving practices can be found at www.motorola.com/callsmart (in English only). Caution About High Volume Usage

Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. To protect your hearing:

Limit the amount of time you use headsets or headphones at high volume.

Avoid turning up the volume to block out noisy surroundings.

Turn the volume down if you can’t hear people speaking near you. If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked. For more information about hearing, see our Web site at direct.motorola.com/hellomoto/nss/AcousticSafety.asp (in English only). Small Children Keep your mobile device and its accessories away from small children. These products are not toys and may be hazardous to small children. For example:17

A choking hazard may exist for small, detachable parts.

Improper use could result in loud sounds, possibly causing hearing injury.

Improperly handled batteries could overheat and cause a burn. Symbol Key Your battery, charger, or mobile device may contain symbols, defined as follows: FCC Notice to Users FCC Notice The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID:xxxxxx on the product label. Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Symbol Definition Important safety information follows. Do not dispose of your battery or mobile device in a fire. Do not dispose of your battery or product with your household waste. See “Recycling” for more information. For indoor use only. 032374o 032376o18 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. Industry Canada Notice to Users Industry Canada Notice Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.5. This Class B digital apparatus complies with Canadian ICES-003. Privacy & Data Security Privac y & Data Secur ity Motorola understands that privacy and data security are important to everyone. Because some features of your product may affect your privacy or data security, please follow these recommendations to enhance protection of your information:

• Monitor access —Keep your product with you and do not leave it where others may have unmonitored access. Lock your product’s keypad where this feature is available.

• Keep software up to date —If Motorola or a software/application vendor releases a patch or software fix for your product that updates the device’s security, install it as soon as possible.19

• Secure Personal Information —Your product can store personal information in various locations including a SIM card, memory card, and built-in memory. Be sure to remove or clear all personal information before you recycle, return, or give away your product. Note: For information on how to backup or wipe data from your product, go to www.motorola.com/support

• Online accounts —Some products provide a Motorola online account. Go to your account for information on how to manage the account, and how to use security features.

• Applications —Install third party applications from trusted sources only. Applications can have access to private information such as call data, location details and network resources. If you have further questions regarding how the use of your mobile device may impact your privacy or data security, please contact Motorola at privacy@motorola.com , or contact your service provider. Use & Care Use & Care To care for your Motorola product, please keep it away from: liquids of any kind Don’t expose your product to water, rain, extreme humidity, sweat, or other moisture. If it does get wet, don’t try to accelerate drying with the use of an oven or dryer, as this may damage the product. extreme heat or cold Avoid temperatures below -10°C (14°F) or above 60°C (140°F). For battery powered accessories, do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C (113°F). microwaves Don’t try to dry your product in a microwave oven.20 dust and dirt Don’t expose your product to dust, dirt, sand, food, or other inappropriate materials. cleaning solutions To clean your product, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions. shock and vibration Don’t drop your product. Recycling Recycli ng Mobile Devices & Accessories Please do not dispose of mobile devices or electrical accessories (such as chargers, headsets, or batteries) with your household waste, or in a fire. These items should be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted mobile devices and electrical accessories to any Motorola Approved Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at: www.motorola.com/recycling Packaging & Product Guides Product packaging and product guides should only be disposed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details.21 Software Copyright Notice Software Copyright Notice Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Export Law Assurances Export Law This product is controlled under the export regulations of the United States of America and Canada. The Governments of the United States of America and Canada may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and International Trade. Product Registration Registration Online Product Registration: www.motorola.com/us/productregistration Product registration is an important step toward enjoying your new Motorola product. Registering permits us to contact you for product or software updates and allows you to subscribe to updates on new products or special promotions. Registration is not required for warranty coverage. Please retain your original dated sales receipt for your records. For warranty service of your Motorola Personal Communications Product you will need to provide a copy of your dated sales receipt to confirm warranty status. Thank you for choosing a Motorola product.22 Motorola Limited Warranty for the United States and Canada Wa rr a n t y What Does this Warranty Cover? Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its mobile telephones (“Products”), Motorola-branded or certified accessories sold for use with these Products (“Accessories”), and Motorola software contained on CD-ROMs or other tangible media and sold for use with these Products (“Software”) to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to new Motorola Products, Accessories, and Software purchased by consumers in the United States or Canada, which are accompanied by this written warranty: Products and Accessories Products Covered Length of Coverage Products and Accessories

defined above, unless otherwise provided for below. One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below. Decorative Accessories and Cases. Decorative covers, bezels, PhoneWrap™ covers and cases. Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product. Monaural Headsets. Ear buds and boom headsets that transmit mono sound through a wired connection. Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product. Products and Accessories that are Repaired or Replaced. The balance of the original warranty or for ninety (90) days from the date returned to the consumer, whichever is longer.23 Exclusions (Products and Accessories) Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage. Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this limited warranty. Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded from coverage. Use of Non-Motorola Products and Accessories. Defects or damage that result from the use of non-Motorola branded or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage. Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, or its authorized service centers, are excluded from coverage. Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts, are excluded from coverage. Communication Services. Defects, damages, or the failure of Products, Accessories or Software due to any communication service or signal you may subscribe to or use with the Products Accessories or Software is excluded from coverage. Software Products Covered Length of Coverage Software. Applies only to physical defects in the media that embodies the copy of the software (e.g. CD-ROM, or floppy disk). Ninety (90) days from the date of purchase.24 Exclusions (Software) Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in combination with any hardware or software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected. Software NOT Embodied in Physical Media. Software that is not embodied in physical media (e.g. software that is downloaded from the Internet), is provided “as is” and without warranty. Who is Covered? This warranty extends only to the first consumer purchaser, and is not transferable. What Will Motorola Do? Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No data, software or applications added to your Product, Accessory or Software, including but not limited to personal contacts, games and ringer tones, will be reinstalled. To avoid losing such data, software, and applications, please create a back up prior to requesting service. How to Obtain Warranty Service or Other Information You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a Motorola Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if USA All Products, Accessories, and Software: 1-800-331-6456 Canada All Products: 1-800-461-4575 TTY 1-888-390-645625 applicable; (d) the name and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number. What Other Limitations are There? ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW. Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.26 Copyright & Trademarks Motorola Mobility, Inc. Consumer Advocacy Office 600 N US Hwy 45 Libertyville, IL 60048 www.motorola.com Note: Do not ship your product to the above address. If you need to return your product for repairs, replacement, or warranty service, please contact the Motorola Customer Support Center at: 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details. All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. All other product or service names are the property of their respective owners. © 2010 Motorola Mobility, Inc. All rights reserved. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Product ID: Motorola T225 Manual Number: 68014660001-AMOTOROLA T2251Felicitaciones Felicitaciones El altavoz para automóvil Motorola T225 ofrece conversación de manos libres en un elegante diseño. El altavoz es perfecto para recibir y realizar llamadas de manera inalámbrica por Bluetooth® desde el teléfono.
