USER MANUAL MIC201IBT THOMSON

OPERATING THIS UNIT AND RETAIN FOR

• Remove the appliance from the box.

• Remove any packaging from the product.

• Place the packaging inside the box and either or dispose of safely. Safety and Notice Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Safety Warning

• Never place this apparatus on other electrical equipment.

• Keep this apparatus away from direct sunlight, naked Fames or heat.

• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power

• The apparatus shall not be exposed to dripping or splashing and no liquid-lled objects, such as vases, shall be placed on the apparatus.

• To ensure complete disconnection from the power input, the mains plug of the apparatus shall be disconnected from the mains.

• The mains plug of the apparatus must not be obstructed OR must be easily accessed during its intended use.

• Leave a minimum distance of 10 cm around the apparatus for sufcient ventilation

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• No naked ame sources such as lighted candles should be placed on the apparatus

• Attention should be drawn to environmental aspects of battery disposal

• The use of apparatus in moderate climates.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Getting Started 1 Safety and Notice 1 Care for your product 2 Care of the environment 3 What’s in the box 3 Description of Parts 4 Remote 5 Power 5 Clock and Timers 6 Playing a compact disc (CD) 8 Remarks: 12

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including ampliers) that produce heat.

9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience

receptacles, and the Point where they exit from the apparatus.

10. Only use attachments/accessories specied by the manufacturer.

11. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer or sold with

the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

12. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has

been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Apparatus shall not be exposed to dripping or splashing.

15. Do not place any sources of danger on the apparatus (e.g. liquid lled objects, lighted candles).

16. Where the MAINS plug (or AC/DC adaptor) or an appliance coupler is used as the disconnect

device, the disconnect device shall remain readily operable.

17. Make sure there is enough free space around the product for ventilation.

18. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as

sunshine, re or the like.

19. The rating label is placed on the back side of apparatus.

CAUTION Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent battery type. WARNING Do not ingest the battery (chemical burn hazard) The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention. Care for your product

1. Always unplug the appliance when not in use and before cleaning.

2. Do not play music at excessive volume levels as damage to hearing and or the equipment may

3. Do not use this unit in wet or damp conditions.

4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with

a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.- EN 3 - Care of the environment Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

The lightning symbol inside an equilateral triangle warns the user of the presence inside the product of uninsulated hazardous electric voltages powerful enough to represent an electrocution risk. What’s in the box Check and identify the contents of your package:

• Line in cable- EN 4 -

• Press and hold to Power off

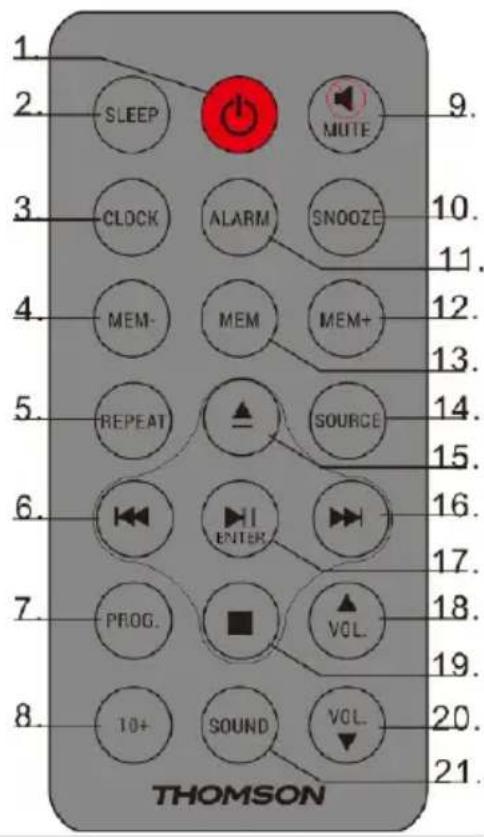

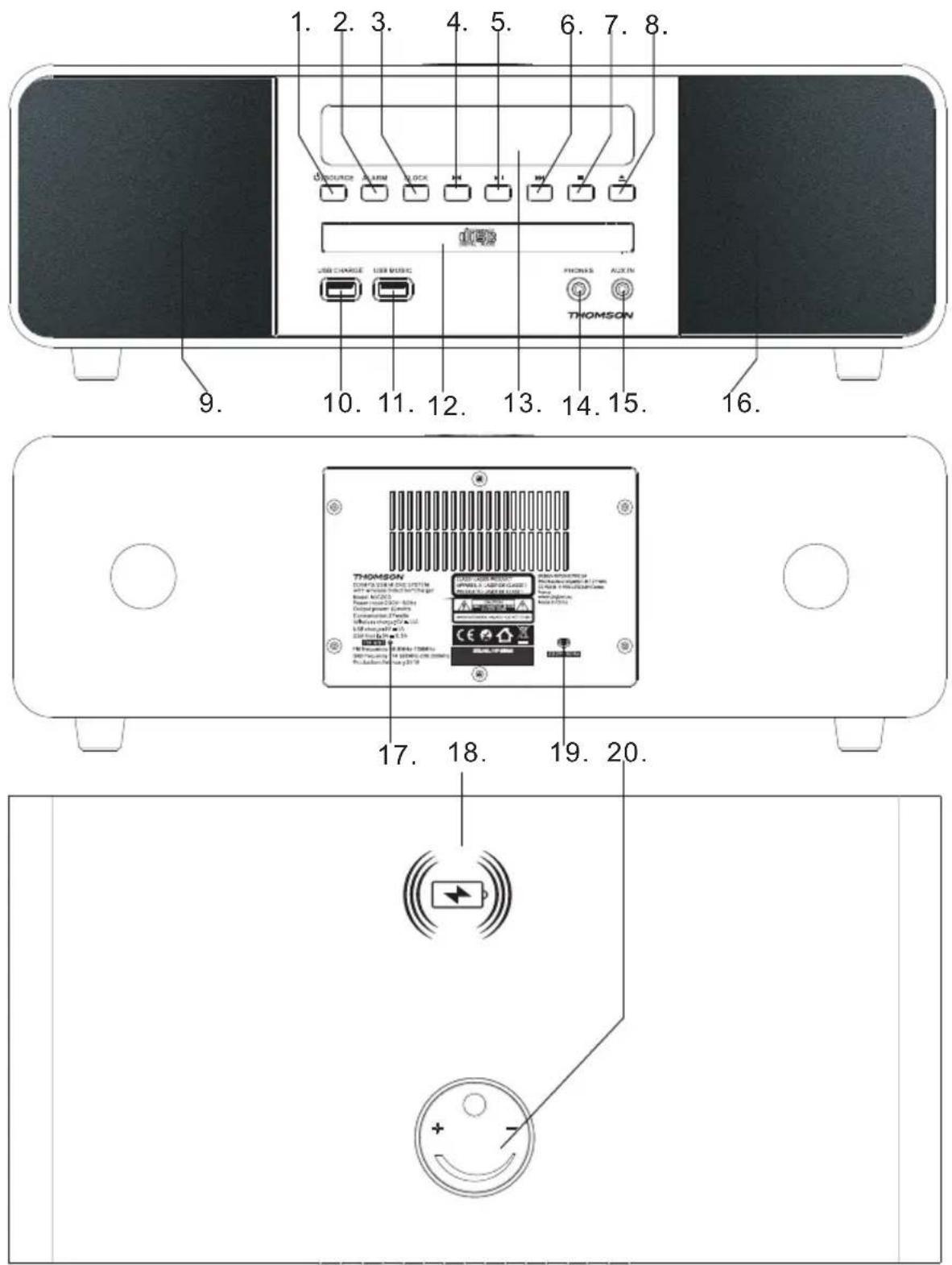

Description of Parts

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.

• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord

• Before connecting the AC power cord, ensure you have completed all other connections Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable. Auto standby When playing media from a connected device, the Tower automatically switches to standby if:

• No button is pressed for 10 minutes,

• No audio from a connected device for 10 minutes. Battery power

• Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

• Use batteries of the same type. Never use different types of batteries together.

• Do not throw the battery into the re, or exposed to sunshine or the like.

• If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor. Unit power supply (mains 230V/50Hz) Connect the power cable plug to the (230V) wall outlet.

• Before using the unit, check that the local mains supply is compatible with the unit 230V (50Hz).

• Do not plug or unplug the power cable when your hands are wet.

• When planning not to use this unit for long periods of time (i.e. vacation etc.), disconnect the plug from the wall outlet.

• When disconnecting the power cord from the wall outlet, grasp the plug; do not pull the cord in order to avoid shock risks caused by the damaged cable. Operation Press the POWER/SOURCE button to turn ON and press and hold to power OFF the unit. Adjusting the volume Rotate the Volume knob clockwise to increase the volume. Rotate the Volume knob anti-clockwise to decrease the volume. Check the display, which will conrm the volume setting. Mute function Press the MUTE button on the remote control. The volume is muted and “Volume Muted” will appear on the LCD display. Press this button again to cancel the mute function. Clock and Timers Setting the clock and date After the unit is plugged into a mains supply or following a mains power failure, the display will show the current time and date on the LCD display. The unit should be in standby mode to set the current clock.

1. Press the CLOCK button. “Time setup” is displayed, press ENTER to conrm and “time wizard

interval” is displayed.

Setting the alarm Note: Check that the radio has the correct time and date before you set an alarm. This unit may be used as an alarm clock. The CD/USB device or FM radio is activated to play at a preset time.

1. Press POWER to switch the unit to standby mode.

2. Make sure that you have set the clock correctly.

3. Press the ALARM button in shutdown state;

4. “Alarm Setup” is displayed. Press the ENTER button to select.

5. “Alarm Wizard On time” is displayed and the hour digits for the alarm will ash.

6. Press / repeatedly to set the hour. Press ENTER to conrm.

7. Press / to set the minutes. Press ENTER to conrm.

8. Press / to select the Alarm volume from 0 to 32. Press ENTER to conrm.

9. Press / to scroll to OFF/CD/FM/USB/BUZZER status. Press ENTER to conrm.

10. Press the / button to scroll to the alarm duration. You can choose from 15, 30, 45 and 60

minutes. Press the ENTER button to select. Press / to select YES and press ENTER to save the alarm.

1. Whenever the alarm comes on, it can be temporarily suspended for a short period of approximately

9 minutes, by pressing the “SNOOZE” key once.

2. The alarm will then automatically come on again after approximately 9 minutes.

3. To deactivate the snooze, press and release the “POWER” key once.

1. Repeatedly press the SLEEP button; you can set 90/80/70/60/50/40/30/20/10 minutes. This is

useful for falling asleep to music at night.

2. If you want to cancel the sleep mode, repeatedly press SLEEP to select OFF; the sleep mode will

cancel. FM Radio Carefully extend the telescopic aerial to its full length. You can program a maximum of 20 preset radio stations (FM) Auto Scan

1. Press the SOURCE key to select “RADIO” mode.

2. Long press the button, and your radio will scan and stop automatically when it nds a

station of sufcient signal strength (30 stations preset).

3. After a few seconds, the display will update. The display will show the station frequency.

4. Press MEM to view the preset radio stations.

5. Press MEM+ or MEM- to listen to the radio.

6. To nd other stations, press and hold the button as before.

7. To scan the FM band in the opposite direction (high frequencies to low frequencies), press the

button and hold for 2 seconds. Manual Scan

1. Press the SOURCE key on the main unit to select “RADIO’’ mode.

2. Press or to tune to a station. Each press on the tuning button will change the

frequency up or down by 100 kHz.

3. Once you nd a station you want to save, press the MEM button on the remote control. “P01”

will be shown on the display; press MEM+/MEM-until the desired memory position number appears on the display. Press the MEM again to conrm and save the current station.

4. Press MEM+ or MEM- to view or listen to the radio station.

(Note: When the waveband end is reached, the radio will recommence tuning from the opposite waveband end. If no stations are found, please ensure the aerial is extended and test the reception by doing another auto scan in a different location.) Bluetooth Mode You must follow several steps to connect your mobile phone:

1. Activate Bluetooth from your mobile phone (please refer to your phone’s user manual)

2. Press the POWER button to turn on the unit, then press the SOURCE button repeatedly until the

“Bluetooth” indicator appears on the LCD display. It will be ready to pair automatically.

3. Use your mobile phone to search for the Bluetooth device named “MIC200IBT”/“MIC201BT”/

4. Your mobile phone will nd “MIC200IBT”/“MIC201BT”/“MIC205BT” and will present the option to

connect or not. Please connect to it using the password “0000” (if any). When you are successfully connected, the Bluetooth indicator “Bluetooth connected” appears on the LCD display. Automatically Connecting with Your Phone Pairing is only needed the rst time the unit and phone are used together. When the unit and phone have been paired once, they will automatically connect when the unit is on and Bluetooth is activated- EN 8 - on the phone. The next time you power on, the unit will automatically connect to the most recently connected mobile phone. Press and hold to disconnect the Bluetooth. Play from a Bluetooth Device After successful Bluetooth connection, press the button to play. Press the or button to skip the tracks backwards or forwards. To pause or resume play, press the button again. Press and hold the button to disconnect Bluetooth. Playing a compact disc (CD) NOTE: Never touch the laser lens inside the CD compartment. Clean the laser lens using a CD cleaner disc if it becomes dirty.

1. Press the POWER button to turn on the unit.

2. Press the SOURCE button repeatedly to select the CD function.

3. Press and hold the button to open the CD door and insert a CD into the tray (with printed label

4. Press and hold the button again to close the CD DOOR and the disc will rotate for a few

seconds, then play the 1st track automatically.

5. To temporarily stop playback, press the button, and to resume playback, press it again.

6. Press the button to STOP play.

1. The and buttons are used to jump to a different track number or to scan disc tracks at

2. Press the button once to hear the beginning of the current track. Press it two or more times to

hear previous tracks on the disc.

3. Press the button to hear the next track on the disc.

4. Press and hold the button. The current track will be scanned and move backwards to the

previous track(s); When the desired track section is found, release the button and normal play will resume.

5. Press and hold the button; the current track will be scanned and move forward to the next

track(s). When the desired track section is found, release the selected button and normal playback will resume. REPEAT FUNCTION The CD REPEAT button may be used to repeat a single track or repeat all tracks on a compact disc.

1. Press the REPEAT button once during playback; the “REPEAT ONE” sign will appear on the LCD

display for about 2 seconds. The same track will be repeated over and over.

2. Press the REPEAT button a second time to repeat all tracks. The “REPEAT ALL” sign will appear

on the LCD display for about 2 seconds.

3. To cancel repeat play, press the REPEAT button repeatedly until “REPEAT OFF” appears on the

LCD display for about 2 seconds. PROGRAM FUNCTION The Program feature may be used to program up to 20 tracks to play in a selected order.

1. While in stop mode only (CD is not playing), press and hold the PROG button for 2 seconds, and

the LCD display will show the wording “P 01” and “T 01” starts to ash.

2. Press the and buttons to allocate the desired track.

3. Press the PROG button to select and store the track into the memory.

4. Repeat step 2 to 3 to select up to 20 tracks.

5. To play the selected tracks (in the program mode), press the button.

6. Press the button to hear the previous programmed track or press the button to hear the

next programmed track. Note: After all programmed tracks have been played, the CD player will return to the stop mode.

1. Press the POWER button to turn on the unit.

2. Press the SOURCE button repeatedly to select CD Mode.

3. Close the CD Door and the disc will rotate for a few seconds and then play the 1st track automatically.

4. Press the and buttons to choose a track .

5. To temporarily stop playback, press the button; to resume, press the button again.

6. Press the button to stop play.

Note: Because MP3 discs have a large capacity, disc access times are a little longer. Repeat Playing Function Single Track Repeat Press the REPEAT button once to repeat a single track. The display appears as “Repeat one”. Whole Disc Repeat In Play mode, press the REPEAT button 2 times to repeatedly play all tracks on the disc. The display will show “Repeat All”. To cancel repeat play, press the REPEAT button repeatedly until the “Repeat off” sign appears. PROGRAM PLAY The tracks on the disc can be programmed to play in any order (up to 20 tracks can be programmed). Note: this can only be done while in Stop mode

1. Press the PROG button while in Stop mode. “P01” “F01” will appear on the display and “T001”

2. Press the or button to select the desired tracks in the album, then press the PROG button

to store in the memory.

3. The rst track number is now stored in the memory, and the program number changes to “P02”,

waiting for your next selection.

4. Repeat Steps 1 – 3 to program additional tracks.

After programming is nished, press the button, and programmed play begins from the rst programmed track. The player stops automatically after all programmed tracks have been played. (Press the button twice to cancel the programmed tracks memory). Playing Music via USB This device has been developed using the latest technical advances in the USB eld. However, given the wide range of USB storage device types that are currently on the market, we unfortunately cannot guarantee full compatibility with all USB storage devices. For this reason, in rare cases, there may be problems in playing back les from USB storage devices. This is not due to device malfunction.

1. Press the POWER button to turn on the unit.

2. Press the SOURCE button repeatedly until ‘USB’ appears on the display.

3. Connect a USB storage device directly to the USB port. The display briey shows the number of

folders and then the total number of tracks. Playback will automatically start after a few seconds.

4. Operation of the control buttons is the same as for MP3 playback. Please refer to MP3 DISC

SECTION operations as described previously. NOTES:

• Always directly connect a USB storage medium to the USB port to prevent any malfunctions.

• The USB port is not designed for charging external devices.

• Important: Switch the device to a different operating mode before you remove the USB storage device. SOUND setting With your unit switched on (not in Standby mode):

1. Press the SOUND button to enter the menu options.

2. Use the / button to set the EQ function (e.g. Normal, Classic, Jazz, Pop, Rock ) according

to your individual preferences.

3. Press the SOUND button twice and use the / button to scroll the Bass setting.

4. Press the SOUND button three times and use the / button to scroll the Treble setting.- EN 10 -

Wireless Charger Function Simply place your wireless charging device on the wireless charger area indicated on the top surface and charging will begin on contact. Output power is 9V 1.1A USB Charging The USB port is designed for charging external devices, such as smart phones. Output power is 5V 1A AUX Input Jack

1. Press the POWER button to turn on the unit.

2. Press the SOURCE button repeatedly to select the Aux-In mode. ‘Aux-In’ will appear on the LCD

3. Connect the AUX connect wire from the line out jack of your personal player (e.g. portable MP3

player) to the AUX input jack.

4. Start playback from your personal player.

1. Rotate the Volume to set a low volume

2. Insert the headphones into the phone jack.

Note the following information: Only use the power supplies listed below. Specication: Power: AC230V~ 50Hz 0.3A Remote control power source: 3 Volt Lithium CR2025 battery (included) Frequency ranges: FM: 88.8 – 108MHz DAB/DAB+: 174 - 239MHz Bluetooth: 2402-2480MHz Max.consumption: 25W Speaker impedance: 4 ohms Total music output: 5W X 2 USB charge port output 5V 1A Wireless induction 9V 1.1A Remark: The maximum connection distance is around 10 meters. Please place your Bluetooth speaker as close as possible to this device to avoid the connection being disturbed.- EN 11 - WARNING! Risk of hearing impairment

• Set a low volume on the playback device before connecting the headphones to the sound source.

• Avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment. About the disks Handling Do not touch the underside of disks. Hold disks by the edges to avoid leaving ngerprints on the surface. Any dust, ngerprints or scratches may cause a malfunction. Never afx a label or sticky tape to the disk. Storage Put disks back in their case after use. Never expose disks to direct sunlight or heat sources. Never leave disks inside a car parked in full sunlight. Cleaning Use a clean, soft, lint-free cloth to clean the disk, working from the centre outwards in a straight line. Do not use solvents such as petrol, thinners, commercially available cleaners or antistatic sprays for vinyl disks.- EN 12 - Made in China Manufactured by BIGBEN INTERACTIVE SA 396, Rue de la Voyette

• Take them to a collection point.

• Some components in these appliances may be hazardous to health and the environment.

• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.

• If there is an incoming call while MIC200IBT/ MIC201BT/ MIC205IBT is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depend on your cell phone.)

• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.

• THOMSON is a trademark of TECHNICOLOR SA or its afliates used under license to Bigben Interactive.

• You can nd the information on the plate located at the back of the unit.

DECLARATION OF CONFORMITY

The undersigned, Bigben Interactive declares that the radio equipment of the MIC200IBT/ MIC201BT/ MIC205IBT type complies with the 2014/53/EU directive. The complete text is available at https://www.bigben-interactive.co.uk/support/CD / BLUETOOTH / FM
