| Product Type | Heavy Duty Breaker Hammer |
| Brand | DeWALT |
| Model | D25872K |
| Category | Hammer |
| Length | 54.3 cm (21.4 in) |
| Width | 11.3 cm (4.5 in) |
| Height | 29.2 cm (11.5 in) |
| Weight | 8.8 kg (19.4 lbs) |
| Power Source | 15 A, 120 V (corded) |
| Chuck Type | SDS MAX |
| Impact Energy | 13.3 J (per EPTA) |
| No Load BPM | 1350–2705 |
| Vibration Control | Yes (anti-vibration system) |
| Variable Speed Dial | Yes (7 positions) |
| Sound Pressure Level | 95 dB(A) |
| Sound Power Level | 106 dB(A) |
| Vibration Values (chipping) | 9.7 m/s² (uncertainty K=1.5) |
| Intended Use | Professional concrete breaking |
| Warranty | 3 years (limited) + 2 years free service |
| Optional Accessories | DEWALT Tool Connect tag, SDS MAX chisels |
Frequently Asked Questions - D25872K DEWALT
User questions about D25872K DEWALT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hammer in PDF format for free! Find your manual D25872K - DEWALT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. D25872K by DEWALT.
USER MANUAL D25872K DEWALT
Heavy-Duty SDS MAX Chipping Hammer
Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(### without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

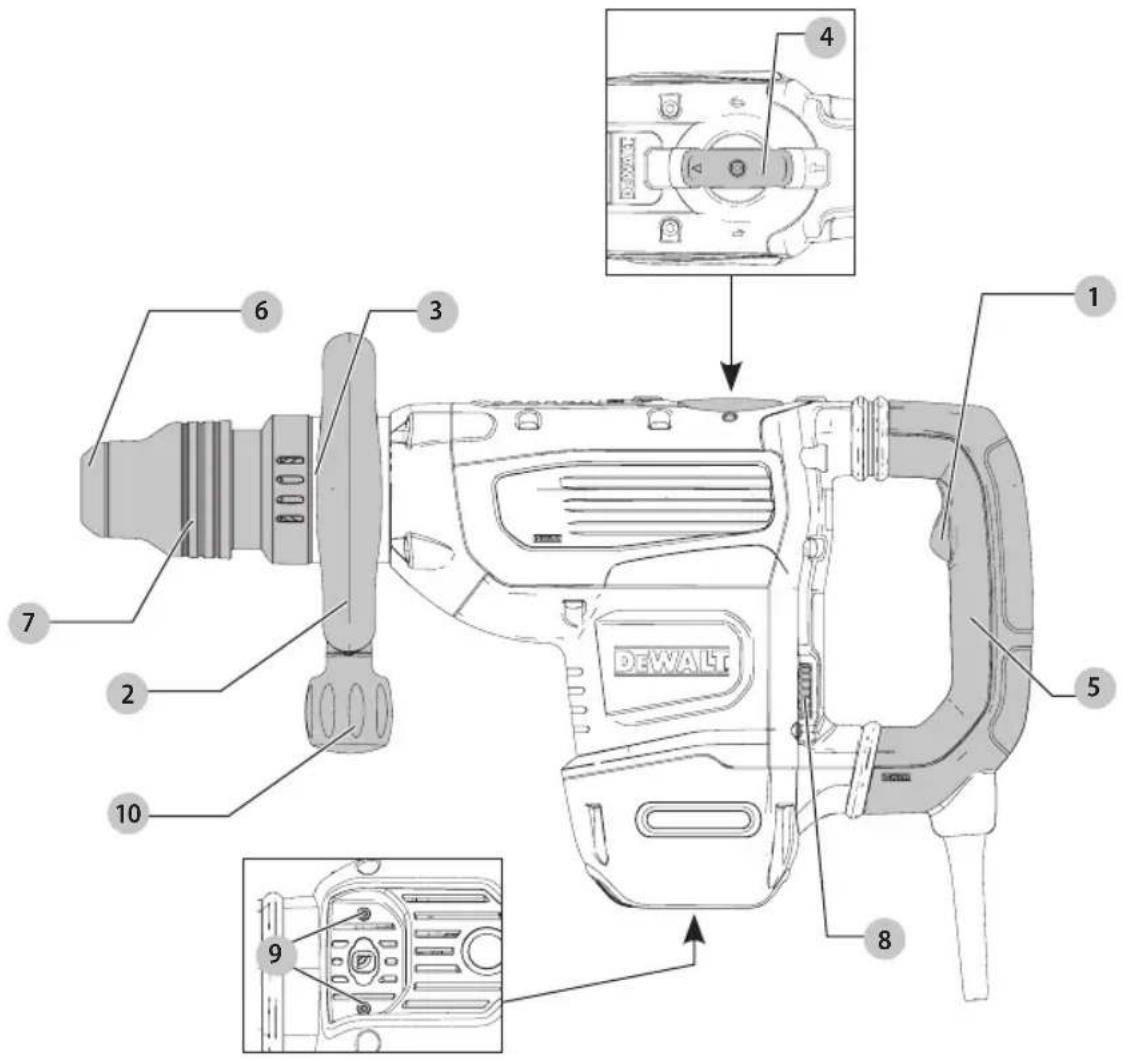

Fig. A
2 Bail/loop style auxiliary handle
3 Front barrel (collar)
4 Mode selector dial
5 Main handle
6 Chisel holder
7 Sleeve
8 Speed dial
9 DEWALT tool tag mounting holes
10 Screw for handle mounting
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: To reduce the risk of injury, read the instruction manual.
If you have any questions or comments about this or any DEWALT tool, call us toll free at: 1-800-4-DEWALT (1-800-433-9258).
English
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work Area Safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical Safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
3) Personal Safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power Tool Use and Care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking
English
into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Specific Safety Rules for Rotary Hammers
- Wear ear protectors. Exposure to noise can cause hearing loss.
- Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Be certain that the material being drilled/ demolished does not conceal electric or gas service and that their locations have been verified with the utility companies.
- Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
- Wear safety goggles or other eye protection. Hammering operations cause chips to fly. Flying particles can cause permanent eye damage. Wear a dust mask or respirator for applications that generate dust. Ear protection may be required for most applications.
- Keep a firm grip on the tool at all times. Do not attempt to operate this tool without holding it with both hands. Operating this tool with one hand will result in loss of control. Breaking through or encountering hard materials such as re-bar may be hazardous as well.
Additional Safety Rules for Rotary Hammers
- Do not operate this tool for long periods of time.
Vibration caused by hammer action may be harmful to your hands and arms. Use gloves to provide extra cushion and limit exposure by taking frequent rest periods. - Do not recondition bits yourself. Chisel reconditioning should be done by an authorized specialist. Improperly reconditioned chisels could cause injury.
- Accessories and tool may get hot during operation.
Wear gloves when handling them if performing heat producing applications such as hammerdrilling and drilling metals. -
Never lay the tool down until the bit has come to a complete stop. Moving bits could cause injury.
-
Do not strike jammed bits with a hammer to dislodge them. Fragments of metal or material chips could dislodge and cause injury.
- Slightly worn chisels can be resharpened by grinding.
- Do not overheat the bit (discoloration) while grinding a new edge. Badly worn chisels require reforging. Do not reharden and temper the chisel.
Additional Safety Information
WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
WARNING: Some dust created by power sanding, sanding, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
- lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/ disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.
WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.
CAUTION: When not in use, place tool on its side can be stable surface where it will not cause a tripping or falling hazard.
• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
ENGLISH
- An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.
Minimum Gauge for Cord Sets
| Volts | Total Length of Cord in Feet (meters) | ||||
| 120 V 25 (7.6) | 50 (15.2) 100 (30.5) 150 (45.7) | ||||
| 240 V 50 (15.2) | 100 (30.5) 200 (61.0) 300 (91.4) | ||||
| Ampere Rating | American Wire Gauge | ||||
| More Than | Not More Than | ||||
| 0 6 18 | 16 16 14 | ||||
| 6 10 18 | 16 14 12 | ||||
| 10 12 | 16 16 14 12 | ||||
| 12 16 14 12 Not Recommended | |||||
The label on your tool may include the following symbols. The symbols and their definitions are as follows:
V....volts
Hz hertz
min minutes
or DC.....direct current
Class I Construction (grounded)
.../min.....per minute
BPM.....beats per minute
⊕ ....earthing terminal
⚠️......safety alert symbol
▲......visible radiation
E......wearrespiratory
protection
weareye
protection
O....wearhearing
protection
readall
documentation
SAVE THESE INSTRUCTIONS FOR FUTURE USE
Motor
Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. DEWALT tools are factory tested; if this tool does not operate, check power supply.
SPECIFICATIONS
D25872 D25892
| Rated Size | 19.4 lbs.(8.8 kg) | 22 lbs. (10 kg) |
| Tool Holder SDS MAX SDS MAX | ||
| Amps | 15 A | 15 A |
| Impact Energy in Joules (EPTA) | 13.3 J | 19.4 J |
| No-Load BPM | 1350–2705 | 1105–2210 |
| Weight | 19.4 lbs.(8.8 kg) | 22 lbs. (10 kg) |
| Length | 21.4" (54.3 cm) | 23.3" (59 cm) |
| Width | 4.5" (11.3 cm) | 4.5" (11.3 cm) |
| Height | 11.5" (29.2 cm) | 11.5" (29.2 cm) |
| Vibration Control | Yes | Yes |
| Variable Speed Dial | Yes | Yes |
| Variable Speed Dial Positions | 7 | 7 |
| Dust Extraction Model # | DWH053 | DWH053 |
| Noise Values [dB(A)] | ||
| L_pA (Emission Sound Pressure Level) | 95 | 96 |
| L_WA (Sound Power Level) | 106 | 107 |
| K (Uncertainty of Given Sound Level) | 3 | 3 |
| Vibration Values (m/2) | ||
| Chipping/Chiselling (Value a_h,Cheq ) 9.7 | 13.5 | |
| Uncertainty K | 1.5 | 1.5 |
COMPONENTS (FIG. A)
WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.
Refer to Figure A at the beginning of this manual for a complete list of components.
Intended Use
Your heavy-duty chipping hammer is designed for professional concrete chiseling applications.
DO NOT use under wet conditions or in presence of flammable liquids or gases.
Your heavy-duty chipping hammer is a professional power tool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use this tool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.
An accidental start-up can cause injury.
Bail/Loop Style Auxiliary Handle (Fig. B)
WARNING: To reduce the risk of personal injury, ALWAYS operate the tool with the bail/loop style auxiliary handle properly installed. Failure to do so may result in the bail/loop style auxiliary handle slipping during tool operation and subsequent loss of control. Hold tool with both hands to maximize control.
The bail/loop style auxiliary handle 2 clamps to the front of the gear case and may be rotated 360° to permit right- or left-hand use.

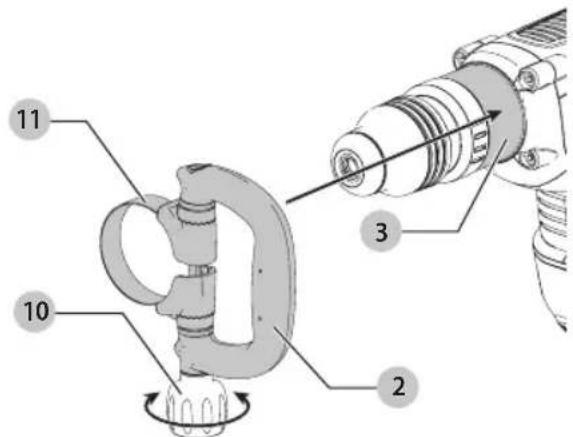

Mounting the Bail/Loop Style Auxiliary Handle (Fig. B)
- Widen the ring opening 11 of the bail/loop style auxiliary handle 2 by rotating the screw for handle mounting 10 counter clockwise.
- Slide the assembly onto the nose of the tool, through the steel ring 11 and onto the collar 3, past the chisel holder and sleeve.
- Rotate the bail/loop style auxiliary handle to the desired position.
- Lock the bail/loop style auxiliary handle in place by securely tightening the screw for handle mounting 10 rotating it clockwise so that the assembly will not rotate. Fig. B
WARNING: Burn Hazard. ALWAYS wear gloves when changing chisels. Accessible metal parts on the tool and chisels may get extremely hot during operation. Small chisels of broken material may damage bare hands.
WARNING: Do not attempt to tighten or loosen drill (or any other accessory) by gripping the front part of the chuck and turning the tool on. Damage to the chuck and personal injury may occur.
The chipping hammer can be fitted with various chisels depending on the desired application. Use sharp chisels only.

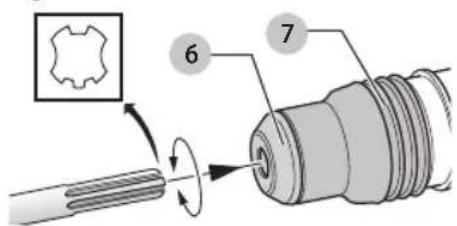

Inserting and Removing SDS MAX Chisels (Fig. C)
NOTE: Accessories and attachments used must be lubricated around the SDS MAX fitment before installation.
- Insert chisel in the chisel holder 6 and apply downward pressure while rotating to secure the chisel into place. The chisel shank must be clean.
- Ensure the chisel is properly engaged. NOTE: The chisel needs to move several centimeters in and out of the chisel holder 6 when properly engaged. Fig. C
Chisel Position Adjustment
Turn the mode selector to chisel adjustment icon (Refer to Mode Selection) to adjust the chisel to the desired position. There are multiple positions to set the angle of the chisel.
NOTE: After finding the desired position, slightly maneuver the chisel back and forth to ensure the chisel is properly engaged.
OPERATION
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

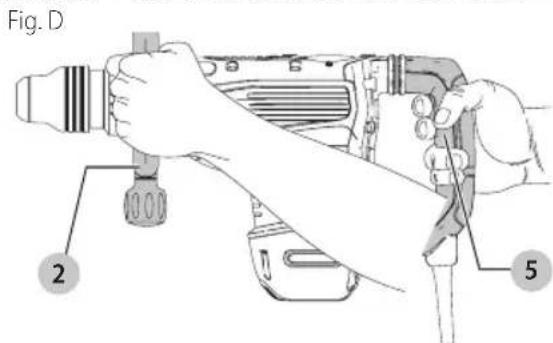

Proper Hand Position (Fig. D)
WARNING: To reduce the risk of serious personal injury, A. R. YS use proper hand position as shown.
WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.
Proper hand position requires one hand on the mounted side handle 2 with the other hand on the main handle 5.
SHOCKS Active Vibration Control® System
For best vibration control, hold the tool as described in Proper Hand Position and apply just enough pressure so the damping device on the main handle is approximately mid stroke. The hammer only needs enough pressure to engage the active vibration control. Applying too much pressure will not make the tool chip faster and active vibration control will not engage.
DEWALT Tool Tag Ready (Fig. A)
Optional Accessory
Your hammer comes with mounting holes 9 and fasteners for installing a DEWALT Tool Tag. You will need a T15 bit tip to install the tag. Only use the screws provided. The DEWALT Tool Tag is designed for tracking and locating professional power tools, equipment, and machines using the DEWALT Tool Connect™ app. For proper installation and use of the DEWALT Tool Tag refer to the DEWALT Tool Tag manual.
Electronic Speed and Impact Control (Fig. A)
The electronic speed and impact control allows the use of smaller chisels without the risk of chisel breakage, chipping into light and brittle materials without shattering and optimal tool control for precise chiseling.
To set the speed dial 8, turn the dial to the desired level. The higher the number, the greater the speed and impact energy. Dial settings make the tool extremely flexible and adaptable for many different applications. The required setting depends on the chisel size and hardness of material being chipped.

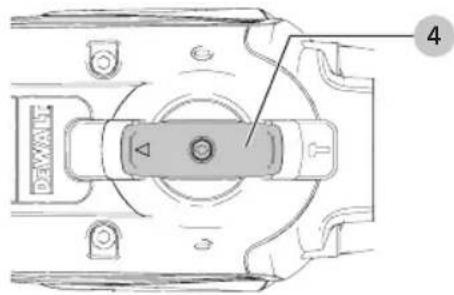

Mode Selection (Fig. E)
WARNING: Do not select the operating mode when the tool is running. Tool must come to a complete stop before activating the mode selector button or damage to the tool may result.
Your tool is equipped with a mode selector dial 4 to select the mode appropriate to desired operation.
Symbol Mode Application
 | Chisel Adjustment | Chisel position adjustment |
 | Chipping | Light chipping, chiseling and demolition |
To select a mode
- Rotate the mode selector dial 4 so that the arrow points to the symbol corresponding for the desired mode.
Fig. E


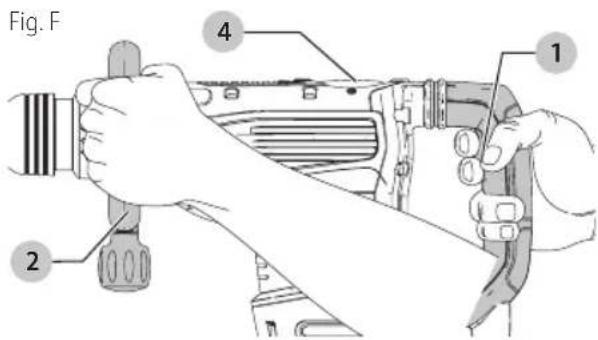

Performing an Application (Fig. F)
WARNING: TO REDUCE THE RISK OF PERSONAL LIFTIPY, ALWAYS ensure workpiece is anchored or clamped firmly.
NOTE: Operating temperature of this tool is 19 ° to 104 °F (-7 ° to +40 °C). Using the tool outside of this temperature range will decrease the life of the tool.
- Insert the appropriate chisel and rotate it by hand to lock it into the desired position. Refer to Chisel and Chisel Holder.
- Using the mode selector dial 4, select chipping mode. Refer to Mode Selection.
- Adjust the side handle 2 as necessary.
- Depress the rocker switch 1.
- To stop the hammer, release the switch.
MAINTENANCE
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.
Cleaning
WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened
English
only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
Accessories
WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.
Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286, call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.
Various types of SDS MAX chisels are available as an option. Accessories and attachments used must be regularly lubricated around the SDS MAX fitment.
Repairs
WARNING: To assure product SAFETY and REEMABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a DEWALT factory service center or a DEWALT authorized service center. Always use identical replacement parts.
Register Online
Thank you for your purchase. Register your product now for:
- WARRAnTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
- COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
- FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
Register online at www.dewalt.com/register.
Three Year Limited Warranty
DEWALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-DEWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces. In addition to the warranty, DEWALT tools are covered by our:
2 YEARs FREE sSERVICE
DEWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first two years after purchase.
90 DAY MOnEY BACK gUARAnTEE
If you are not completely satisfied with the performance of your DEWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.
IATin AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.
FREE WARning IABEI REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258) for a free replacement.
TROUBLESHOOTING GUIDE
BE sURE TO FOLLOW SAFETY RULEs AnD insTRUCTiOns
For assistance with your product, visit our website at www.dewalt.com for a list of service centers, or call DEWALT at 1-800-4-DEWALT (1-800-433-9258).
PROBIEM POssiBIE CAUsE sOIUTiOn
| Tool will not start. | The extension cord and/or plug is defective. | Have the extension cord and/or plug checked by a qualified electrician and replaced if necessary. |
| Internal components too hot. Allow tool to cool down. | ||
| Brushes worn out. Have brushes replaced by an authorized D | LWALT service center. | |
| Reduced Power. The extension cord is too long and/or its gauge is inadequate. | Use an extension cord of an approved length and/or of adequate gauge. | |
| The speed dial is set to a lower setting. Rotate the speed dial to a higher setting suitable for the application. | ||
| The voltage provided by the electric supply is inadequate. | Connect the hammer to an adequate electric supply. | |
| The chisel cannot be released. | The chuck is not pulled back fully. | Pull the chuck back as far as it will go and remove the chisel. Refer to Inserting and Removing SDS MAX Chisels. |
Technical diagram of a mechanical clamp device with numbered parts labeled 10, 11, and 2text_image
Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or forceEje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera
MERIDA, YUC
Calle 63 #459-A - Col. Centro (999) 928 5038
MONTERREY, N.L.
Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro
PUEBLA, PUE
17 Norte #205 - Col. Centro (222) 246 3714
QUERETARO, QRO
Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14
SAN LUIS POTOSI, SLP
DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286
(SEP18) Part No. N550512 D25872, D25892 Copyright © 2018 DEWALT
The following are trademarks for one or more DEWALT power tools: the yellow and black color scheme, the "D" shaped air intake grill, the array of pyramids on the handgrip, the kit box configuration, and the array of lozenge-shaped humps on the surface of the tool.
