USER MANUAL D25314K DEWALT

Technical line drawing of a mechanical device with threaded component and labeled part (9), no readable text or symbols present.

D

Technical diagram of a drill bit with directional arrows indicating movement (no text or symbols)

Technical diagram of a drill bit with labeled parts 8 and 10, showing mechanical assembly and tool path

E

5 7 12 7

F

ROTERENDE BOREHAMMER D25313K/D25314K

Tillykke!

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical data

D25313K D25314K
Voltage V 230 230
(U.K. & Ireland only) V 230/115
Power input W 800 800
No-load speed min	-1 0 - 1,150 0 - 1,150
Load speed min	-1 0 - 830 0 - 830
Impact energy
hammer drilling J 0 - 3.1	0 - 3.1
chiselling	J 0 - 3.4	0 - 3.4
Maximum drilling range in steel/wood/concrete	mm 13/30/26	13/30/26
Chisel positions	51	51
Core drilling capacity in soft brick	mm 65	65
Tool holder	SDS-plus®	SDS-plus®
Collar diameter	mm 54	54
Weight	kg 2.95	3.1
Fuses:
Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs
U.K. & Ireland	115 V tools	16 Amperes, mains

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Fire hazard.

EC-Declaration of conformity

D25313K/D25314K

DEWALT declares that these power tools have been designed in compliance with: 98/37/EC, 89/336/EEC, 73/23/EEC, 86/188/EEC, 2000/14/EC, EN 60745-1, EN 60745-2-6, EN 55014-2, EN 55014-1, EN 61000-3-2 & EN 61000-3-3.

For more information, please contact DEWALT at the address below, or refer to the back of the manual.

Level of sound pressure:

		D25313K	D25314K
L_pA (sound pressure)	dB(A)	85.4	85.4
K_pA (measurement uncertainty)	dB(A)	3.3	3.3
L_WA (acoustic power)	dB(A)	99.4	99.4
K_WA (measurement uncertainty)	dB(A)	3.3	3.3

Tool specifications	2.9 - 3.1 kg, 800 W (230 V/115 V), 3.7 Ah, n_0 = 0 - 1,150/min , BPM = 4,300 (beats per minute)
Laboratory report	AA02Z026
Notified body, delivering	TÜV Rheinland Product and Safety GmbH (TRPS)Am Grauen Stein 1
the certificate	D-51105 Köln, Germany

Weighted RMS acceleration value for tri-axial-measurements:

		D25313K	D25314K
a_h,HD	m/s ^2	18.1	18.1
measurement uncertainty	m/s ^2	1.7	1.7

Director Engineering and Product Development Horst Großmann

X. fopman

D-65510, Idstein, Germany

11/2006

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1 Work area safety

a Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2 Electrical safety

a Power tool plugs must match the outlet.

Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

3 Personal safety

a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

d Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4 Power tool use and care

a Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5 Service

a Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

Additional safety instructions for rotary hammers

• Wear ear protectors. Exposure to noise can cause hearing loss.
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Preferably wear a dust mask.

Chipping and chiselling

• Ensure the chisel is secured in place before operating the tool.
• In cold-weather conditions or when the tool has not been used for a longer period of time, let the tool run with no load for several minutes before use.
• Always hold the tool firmly with both hands and ensure a secure stance. Always operate the tool with the side handle properly mounted.
• When working above ground level ensure the area below is clear.
• To prevent electric shock, check the working area for live wires before operation.
• Do not touch the chisel or the parts close to the chisel immediately after operation, as they may be extremely hot and cause burns to the skin.
• Always direct the power cable to the rear, away from the chisel.

Residual risks

The following risks are inherent to the use of rotary hammers:

- Injuries caused by touching the rotating parts or hot parts of the tool.

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided.

These are:

- Impairment of hearing.

• Risk of squeezing fingers when changing the accessory.
• Health hazards caused by breathing dust developed when working in concrete and/or masonry.

Package contents

The package contains:

1 Heavy duty rotary hammer drill
1 Side handle
1 Depth adjustment rod
1 Kitbox
1 Keyless chuck (D25314K)
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your D25313K/D25314K rotary hammer has been designed for professional hammer drilling and light chipping, chiselling and demolition applications and for carbide tipped core drilling in concrete, brick and stone. The machine is also suitable for rotary drilling in wood, metal, ceramic and plastic and for screw driving and thread cutting.

1 Variable speed switch
2 Forward/reverse slider
3 Mode selector
4 Safety lock
5 Tool holder
6 Dust cover
7 Locking collar (D25314K)
8 Depth adjustment rod
9 Side handle
10 Depth stop clamp

Torque limiting clutch

All rotary hammer drills are equipped with a torque limiting clutch that reduces the maximum torque reaction transmitted to the operator in case of jamming of a drill bit. This feature also prevents the gearing and electric motor from stalling.

The torque limiting clutch has been factory-set and cannot be adjusted.

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

our DEWALT tool is double insulated in accordance with EN 60745-1; therefore no earth wire is required.

115 V units have to be operated via a failsafe isolating transformer with an earth screen between the primary and secondary winding.

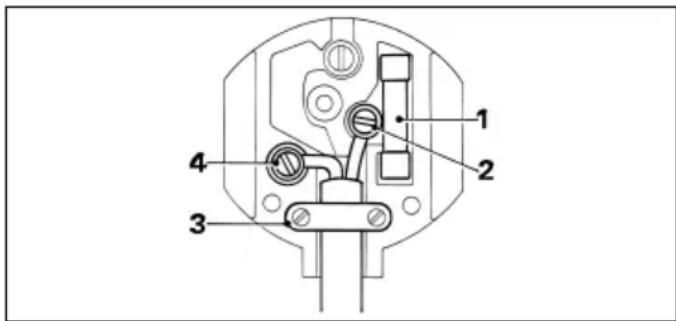

Mains plug replacement

(U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

1 2 3 4

er use a light socket.

connect the live (L) or neutral (N)

wires to the earth pin marked E or 12

For 115 V units with a power rating exceeding 1500 W, we recommend to fit a plug to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this machine (see technical data). The minimum conductor size is 1.5 mm^2 .

When using a cable reel, always unwind the cable completely.

Also refer to the table below.

Conductor size (mm2) Cable rating (Amperes)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
Cable length (m)
7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
115	0 -	2.0	6	6	6	6	6	10
	2.1 -	3.4	6	6	6	6	15	15
	3.5 -	5.0	6	6	10	15	20	20
	5.1 -	7.0	10 10	15 20	20 25
	7.1 -	12.0	15	15	20	25	25	-
	12.1 -	20.0	20	20	25	-	-	-
230	0 -	2.0	6	6	6	6	6	6
	2.1 -	3.4	6	6	6	6	6	6
	3.5 -	5.0	6	6	6	6	10	15
	5.1 -	7.0	10 10	10 10	15 15
	7.1 -	12.0	15 15	15 15	20 20
	12.1 -	20.0	20	20	20	20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

Selecting the operating mode (fig. B)

The tool can be used in the following operating modes:

Rotary drilling: for screwdriving and for drilling into steel, wood and plastics

Hammer drilling: for concrete and masonry drilling operations.

Hammering only: for light chipping, chiselling and demolition applications. In this mode the tool can also be used as a lever to free a jammed drill bit.

Bit rotation: non-working position used only to rotate a flat chisel into the desired position.

• To select the operating mode, press the safety lock (4) and rotate the mode selector switch (3) until it points to the symbol of the required mode.
• Release the safety lock and check that the mode selector switch is locked in place.

Do not select the operating mode when the tool is running.

Indexing the chisel position

The chisel can be indexed and locked into 51 different positions.

• Rotate the mode selector switch (3) until it points to the "bit rotation" position.
• Rotate the chisel in the desired position.
• Set the mode selector switch (3) to the "hammering only" position.
• Twist the chisel until it locks in position.

Inserting and removing SDS-plus ^® accessories (fig. C)

This tool uses SDS-plus® accessories (refer to the inset in fig. C for a cross-section of an SDS-plus® bit shank).

We recommend to use professional accessories only.

• Clean and grease the bit shank.
• Insert the bit shank into the tool holder (5).
• Push the bit down and turn it slightly until it fits into the slots.
• Pull on the bit to check if it is properly locked. The hammering function requires the bit to be able to move axially several centimetres when locked in the tool holder.
• To remove a bit pull back the tool holder locking sleeve (11) and pull out the bit.

Always wear gloves when you change accessories. The exposed metal parts on the tool and accessory may become extremely hot during operation.

Fitting the side handle (fig. D)

The side handle (10) can be fitted to suit both RH- and LH-users.

Do not use the tool without the side handle properly assembled.

• Loosen the side handle.
• For RH-users, slide the side handle clamp over the collar behind the tool holder, handle at the left.
• For LH-users, slide the side handle clamp over the collar behind the tool holder, handle at the right.
• Rotate the side handle to the desired position and tighten the handle.

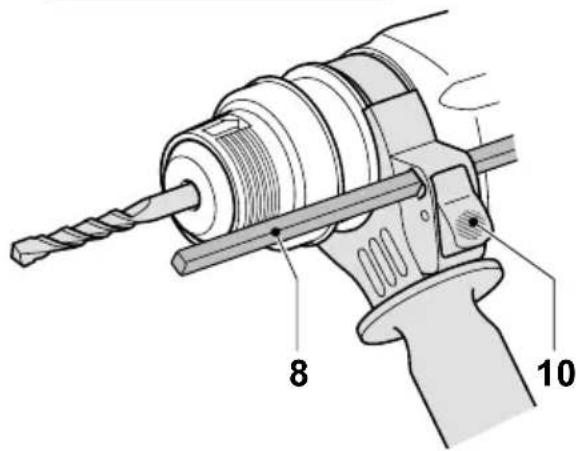

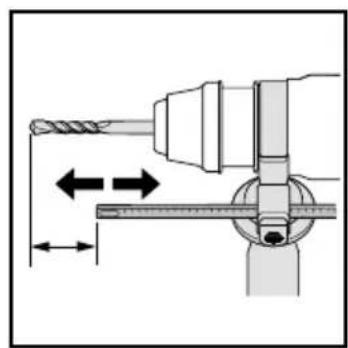

Setting the drilling depth (fig. E)

• Insert the required drill bit as described above.
• Press the depth stop clamp (10) and keep it depressed.
• Fit the depth adjustment rod (8) through the hole in the depth stop clamp.
• Adjust the drilling depth as shown.
• Release the depth stop clamp.

Forward/reverse slider (fig. A)

• Push the forward/reverse slider (2) to the LH-side for forward (RH) rotation. See arrows on tool.
• Push the forward/reverse slider (2) to the RH-side for reverse (LH) rotation.

Always wait until the motor has come to a complete standstill before changing the direction of rotation.

D25313K - Fitting the chuck adapter & chuck

• Screw the chuck onto the threaded end of the chuck adapter.
• Insert the connected chuck and adapter in the tool as though it were a standard SDS-plus® bit.
• To remove the chuck, proceed as for removing a standard SDS-plus® bit.

Never use standard chucks in the hammer drilling mode.

D25314K - Replacing the tool holder with the chuck (fig. F)

• Turn the locking collar (7) into the unlocking position and pull the tool holder (5) off.
• Push the chuck (12) onto the spindle and turn the locking collar into the locking position.
• To replace the chuck with the tool holder, first remove the chuck the same way as the tool holder was removed. Then place the tool holder the same way as the chuck was placed.

Never use standard chucks in the hammer drilling mode.

Replacing the dust cover (fig. C)

The dust cover (6) prevents dust ingress into the mechanism. Replace a worn dust cover immediately.

• Pull back the tool holder locking sleeve (11) and pull the dust cover (6) off.
• Fit the new dust cover.
• Release the tool holder locking sleeve.

Instructions for use

- Always observe the safety instructions and applicable regulations.

• Be aware of the location of pipework and wiring.
• Apply only a gentle pressure to the tool (approx. 5 kg). Excessive force does not speed up drilling but decreases tool performance and may shorten tool life.
• Do not drill or drive too deep to prevent damage to the dust cover.
• Always hold the tool firmly with both hands and ensure a secure stance. Always operate the tool with the side handle properly mounted.

Switching on and off (fig. A)

• To run the tool, press the variable speed switch (1). The pressure exerted on the variable speed switch determines the tool speed.
• To stop the tool, release the switch.
• To lock the tool in off position, move the forward/reverse slider (2) to the central position.

Hammer drilling (fig. A)

Drilling with a solid bit

• Set the mode selector switch (3) to the "hammer drilling" position.
• Insert the appropriate drill bit. For best results use high quality carbide-tipped bits.
• Adjust the side handle (9) as required.
• If necessary, set the drilling depth.
• Mark the spot where the hole is to be drilled.
• Place the drill bit on the spot and switch on the tool.
• Always switch off the tool when work is finished and before unplugging.

Drilling with a core bit

• Set the mode selector (3) to the "hammer drilling" position.
• Adjust the side handle (9) as required.
• Insert the appropriate core bit.
• Assemble the centerdrill into the core bit.
• Place the centerdrill on the spot and press the variable speed switch (1). Drill until the core penetrates into the concrete approx. 1 cm.
• Stop drilling and remove the centerdrill. Place the core bit back into the hole and continue drilling.
• When drilling through a structure thicker than the depth of the core bit, break away the round cylinder of concrete or core inside the bit at regular intervals. To avoid unwanted breaking away of concrete around the hole, first drill a hole the diameter of the centerdrill completely through the structure. Then drill the cored hole halfway from each side.
• Always switch off the tool when work is finished and before unplugging.

Rotary drilling (fig. A)

• Set the mode selector switch (3) to the "rotary drilling" position.

• Depending on your tool, follow either of the following instructions:

• Fit the chuck adapter/chuck assembly (D25313K).

• Replace the tool holder with the chuck (D25314K).
• Proceed as described for hammer drilling.

Never use standard chucks in the hammer drilling mode.

Screwdriving (fig. A)

• Set the mode selector switch (3) to the "rotary drilling" position.
• Select the direction of rotation.

• Depending on your tool, follow either of the following instructions:

• Insert the special SDS-plus® screwdriving adaptor for use with hexagonal screwdriver bits (D25313K).

• Replace the tool holder with the chuck (D25314K).

• Insert the appropriate screwdriver bit. When driving slotted head screws always use bits with a finder sleeve.

• Gently press the variable speed switch (1) to prevent damage to the screw head. In reverse (LH) rotation the tool speed is automatically reduced for easy screw removal.
• When the screw is flush with the workpiece, release the variable speed switch to prevent the screw head from penetrating into the workpiece.

Chipping and chiselling (fig. A)

• Set the mode selector switch (3) to the "hammering only" position.
• Insert the appropriate chisel and rotate it by hand to lock it into one of 51 positions.
• Adjust the side handle (9) as required.
• Switch on the tool and start working.
• Always switch off the tool when work is finished and before unplugging.

Do not use this tool to mix or pump easily combustible or explosive fluids (benzine, alcohol, etc.).

- Do not mix or stir inflammable liquids labelled accordingly.

Optional accessories

Various types of SDS-plus ^® drill bits and chisels are available as an option.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

• This machine is not user-serviceable. Take the tool to an authorised DEWALT repair agent after approximately 40 hours of use. If problems occur before this time contact an authorised DEWALT repair agent.
• The tool will automatically switch off when the carbon brushes are worn.

Lubrication

Your power tool requires no additional lubrication.

Accessories and attachments used must be regularly lubricated around the SDS-plus® fitment.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap.

Protecting the environment

eparate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

parate collection of used products and packaging allows materials to be recycled and used again.

Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE If you are not completely satisfied with the performance of your DeWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

- ONE YEAR FREE SERVICE CONTRACT If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
• Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.

MARTILLO ROTATIVO CON PERCUSIÓN D25313K/D25314K

¡Enhorabuena!

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Alemania 11/2006

L'emballage contient:

(Isolation double) - outils

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Duitsland 11/2006

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Tyskland 11/2006

Stille inn boredybden (fig. E)

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Alemanha 11/2006

Director Engineering and Product Development Horst Großmann

X. fopman

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Tyskland 11/2006
