USER MANUAL SCCC6407N SAMSUNG

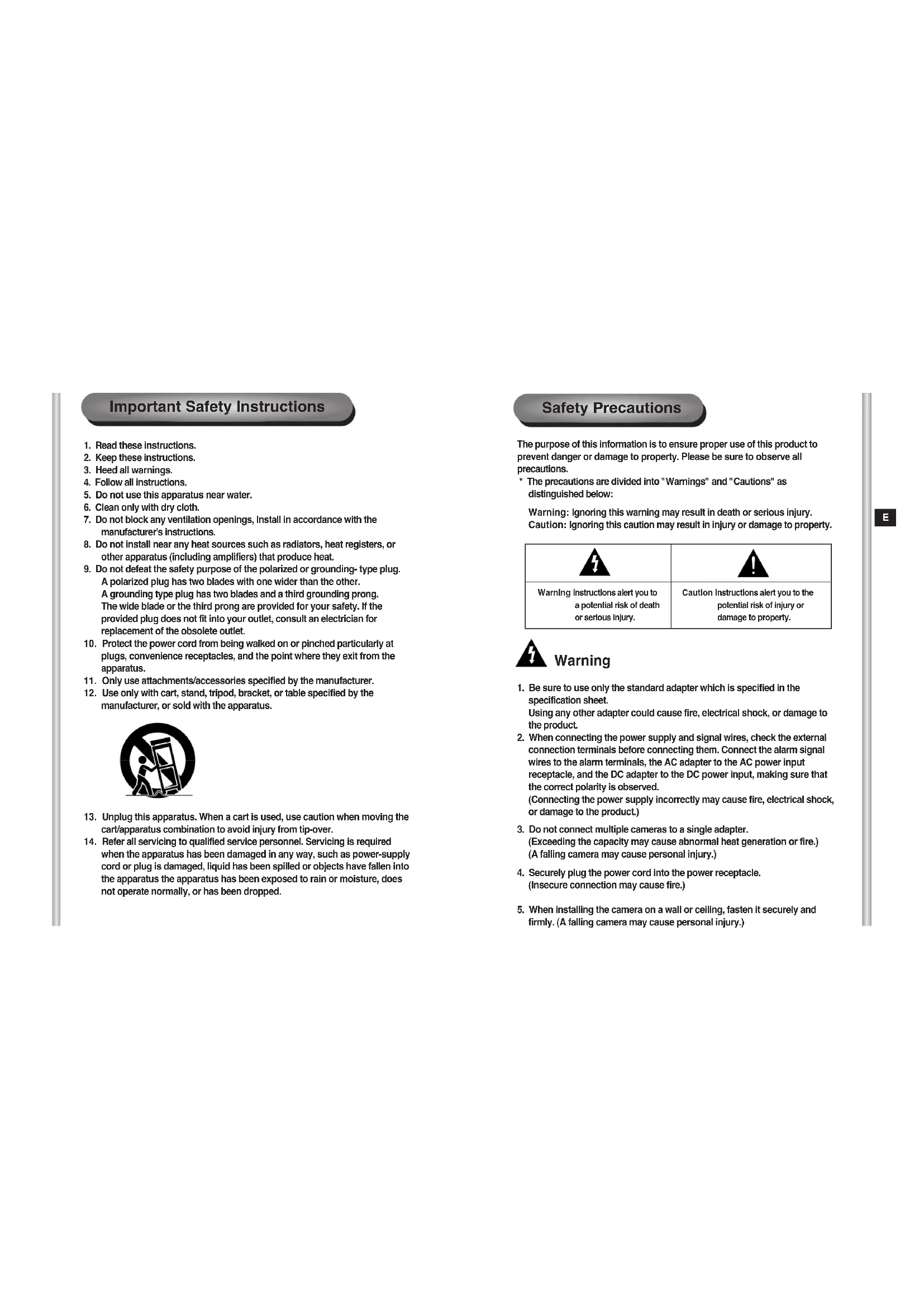

• The precautions are divided into "Warnings" and "Cautions" as distinguished below:

Warning: Ignoring this warning may result in death or serious injury.

Caution: Ignoring this caution may result in injury or damage to property. Warning instructions alert you to a potential risk of death or serious injury. Caution instructions alert you to the potential risk of injury or damage to property. Warning

1. Be sure to use only the standard adapter which is specified in the

specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.

2. When connecting the power supply and signal wires, check the external

connection terminals before connecting them. Connect the alarm signal wires to the alarm terminals, the AC adapter to the AC power input receptacle, and the DC adapter to the DC power input, making sure that the correct polarity is observed. (Connecting the power supply incorrectly may cause fire, electrical shock, or damage to the product.)

3. Do not connect multiple cameras to a single adapter.

(Exceeding the capacity may cause abnormal heat generation or fire.) (A falling camera may cause personal injury.)

4. Securely plug the power cord into the power receptacle.

(Insecure connection may cause fire.)

5. When installing the camera on a wall or ceiling, fasten it securely and

firmly. (A falling camera may cause personal injury.)

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the

manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, or

other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding- type plug.

A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus.

13. Unplug this apparatus. When a cart is used, use caution when moving the

cart/apparatus combination to avoid injury from tip-over.

14. Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.6. Do not place conductive objects (e.g., screwdrivers, coins, and metal things) or containers filled with water on top of the camera. (Doing so may cause personal injury due to fire, electrical shock, or falling objects.)

7. Do not install the unit in humid, dusty, or sooty locations.

(Doing so may cause fire or electrical shock.)

8. If any unusual smells or smoke come from the unit, stop using the product.

In such case, immediately disconnect the power source and contact the service center. (Continued use in such a condition may cause fire or electrical shock.)

9. If this product fails to operate normally, contact the store of purchase or

your nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)

10. When cleaning, do not spray water directly onto parts of the product.

(Doing so may cause fire or electrical shock.) Wipe the surface with a dry cloth. Never use detergents or chemical cleaners on the product, as this may result in discoloration of surface or cause damage to the finish. Caution

1. Do not drop objects on the product or apply strong shock to it. Keep away

from a location subject to excessive vibration or magnetic interference.

2. Do not install in a location subject to high temperature (over

), or high humidity. (Doing so may cause fire or electrical shock.)

3. Avoid a location which is exposed to direct sunlight, or near heat sources

such as heaters or radiators. (Neglecting to do so may result in a risk of fire.)

4. If you want to relocate the already installed product, be sure to turn off the

power and then move or reinstall it.

5. Install in a well-ventilated location.

6. Remove the power plug from the outlet when there is a lightning storm.

(Neglecting to do so may cause fire or damage to the product.) FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.1-2

1-1 Before Usage This is a basic instruction manual for the SCC-C6407(P) user. It contains all the instructions needed to use the SCC-C6407(P) from a simple introduction of the control locations and functions of the SCC-C6407(P) to installation methods in the set up menu. We recommend all users of the SCC-C6407(P) from the advanced user who has used similar cameras before to the general user to read the instruction manual before using. The most frequently used feature in the SCC-C6407(P) would be the SCC-C6407(P) Setup Menu. The SCC-C6407(P) Setup Menu is explained in detailed in "Chapter 3 Setup Menu Overview". The instructional manual is best used when read from beginning to end, but for users wanting to read only the part they need here are the Chapter summaries. "Chapter 1 SCC-C6407(P) Overview" includes a brief introduction of the SCC-C6407(P), part names and functions, and Switch Settings. "Chapter 2 SCC-C6407(P) Installation" explains the installation procedures of the SCC-C6407(P) and provides preparation and installation environment requirements. "Chapter 3 Setup Menu Overview" presents the structure of the Setup menu for the SCC-C6407(P) including a detailed explanation of the functions performed in each submenu. "Appendix SCC-C6407(P) Product Specifications" contains product specifications of the SCC-C6407(P) in itemized categories.1-4

1-5 SCC-C6407(P) Introduction SCC-C6407(P) is a zoom lens built in smart dome camera which provides you with the best monitoring function in connection with CCTV at banks or companies. The SCC-C6407(P) is a high quality surveillance camera using x32 zoom lens and digital zoom IC, it can catch clear images up to 320 times. SCC-C6407(P) has a variety of functions such as; - WDR to cover the full screen irregardless of its brightness, - DAY/NIGHT to improve the sensitivity by automatic conversion into the black and white mode at night or in the environment with low illumination, - White Balance to control the brightness to the illumination, - Backlight Compensation under spotlight or utmost bright illumination, - Auto Focus to automatically adjust the focus to the subject movement, - Privacy zone to hide a specific area for personal privacy, and, - PAN/TILT for precise control at high speed. The SCC-C6407(P) uses an Alarm function for alert situations and moving camera in the direction you want, ZOOM-IN and ZOOM-OUT functions can be remote controlled. In this chapter we will briefly introduce the SCC-C6407(P) and show main functions, locations of control and Switch Setting.

Use SW701, SW702, or 703 for Camera Address setup. You may allocate up to 255 addresses by using SW701 to set the 3rd digit, SW702 the 2nd digit, and SW703 the 1st digit. EX) In case of Camera Address 1, see the following figure for setup. Setting communication Protocol Use number 1~4 PIN of SW704 to set communication Protocol. Baud Rate Setting Use PIN 5 and 6 of SW704. SW701SW702SW7031 2 3 4 5 6 7 8

1-11 Setting RS-422A/RS-485 termination As it is shown in the structure map, when Controller and RS-422A/RS- 485 is connected it should be terminated according to the Cable feature of impedance on the each end of the transmitting line to transfer the signals in long distance by controlling the reflection of the signals to the lowest. <RS-485 Half Duplex Organization> n < 32TerminationSW1-ONDivision Termination: using numbers 1 and 2 PIN, turn to ON and it will be terminated. <RS-422A/RS-485 Full Duplex Organization> DivisionDivisionSW1-ONSW2-ONn < 32 In this chapter, we will check the contents of the package before installing the SCC-C6407(P), and prepare a power adapter suitable for the power supply system. (Power Consumption: 22W; Voltage: AC24V, 1.5A) Then, we will install the SCC-C6407(P) and connect the cables.

Chapter 2 SCC-C6407(P) InstallationTo install and use the SCC-C6407(P), the following cables should be

prepared. Power Adapter Cable The cable that plugs into the SCC-C6407(P) power input receptacle has the rated voltage of AC24V, 1.5A. Check the rated voltage before using the cable. Video Cable The SCC-C6407(P)'s cable is a BNC Cable for connecting the video- output terminal to the video-input terminal of the monitor. Preparing the Cables 2-3

2-2 SCC-C6407(P) Bracket anchor Camera Holder Adapter Board Cover Body Owner’sInstructions Screws Before Installing Checking Package Contents Please check that all components listed below are included in the package:Installing SCC-C6407(P) Installation Precautions

1) Make sure that the installation site can sufficiently support a minimum of

four times the net weight of the SCC-C6407(P) SmartDome Camera and other accessories.

2) Install in an area where the space above the ceiling board is over 18 cm

3) Use the supplied screws to fasten the camera to the bracket assembly.

4) Keep persons away from the installation area, as there is a risk of falling

objects. Also, move valuables to a safe location before installation. Separately Sold Products for Installation Depending on the installation site, it may be convenient to use one of the following products.

1) CEILING MOUNT BRACKET

(SBR-100DCM) This bracket is used for installing the SmartDome CAMERA in the plenum above the drop ceiling.

2) WALL MOUNT ADAPTOR

(SADT-100WM) This adaptor is used for installing the indoor housing or the outdoor housing for the SmartDome Camera on a wall. 2-5

4. Adjust the switch below the Power Adapter to the proper voltage.

Then, connect the Power Adapter's plug to the Power Connector.

5. Connect the Remote Control

Terminal of the SCC-C6407(P) and the external Controller. Controller Adapter BOARD

1. First, connect one end of the

BNC video cable connector to the Video Output Terminal (VIDEO OUT)

2. Then, connect the other end of

the connector to the Video Input Terminal of the monitor.

3. Now connect the Power Adapter

Cable. Use a driver to screw one part of the two lines of Power Adapter to Power Input Terminal of the SCC-C6407(P). Cable Connection5) CEILING MOUNT ADAPTOR (SADT-100CM) This adaptor is used for installing the indoor housing or the outdoor housing for the SmartDome Camera to a concrete ceiling.

6) POLE MOUNT ADAPTOR (SADT-100PM)

This adaptor is used for installing the WALL MOUNT ADAPTOR (SADT-100WM) to a pole that is over 8 cm (2.76 in.) in diameter.

3) INDOOR HOUSING (SHG-120)

This housing is used for installing the SmartDome Camera to an indoor wall or a ceiling.

4) OUTDOOR HOUSING (SHG-220)

This housing is used for installing the SmartDome Camera to an outdoor wall or a ceiling. 2-7

To install and use OUTDOOR HOUSING, remove the Clear Case from the Camera body before installation.2-9

7. [Figure 7] Match the 3 holes on the

back of the CAMERA and the CONNECTOR and turn it left about 15 degrees. (Check the sound of LOCKING and that the LEVER-LOCKING is in place)

• Use the screws (BH M3 x L8) to connect the CAMERA and the ADAPTER so they don't move. [Figure 7]

8. [Figure 8] Assemble the

COVER-BODY onto the DOME. [Figure 8]

5. [Figure 5] Match the

BRKT-ANCHOR and CAMERA ADAPTER and use 4screws (PH M4 x 8) to assemble them. [Figure 5]

6. Pull the safety wire from the case

body, and assembly it to the camera holder. [Figure 6]

3. [Figure 2] Assemble the

BRKT-ANCHOR on the ceiling and screw the 4 bolts in. [Figure 2]

2. Make a hole in the ceiling where the camera will be installed.

(The hole should be about

4. [Figure 3,4] Connect the various cables to the CAMERA ADAPTER.

(See page 2-4) [Figure 4] [Figure 3] [Figure 1] Length of ceiling Hole

1. [Figure 1] Install the structure on the

ceiling. (Refer to Installation reference for the Length of the structure)

• Built in by the builder of the structure Installing the Camera3-2

3-1 Structure of the Setup Menu In this chapter, we will look over the Setup Menu of the SCC-C6407(P), First we'll look over the overall structure of the Setup Menu, and then we'll look at the functions of each menu.

CAMERA ID The CAMERA ID menu assigns an ID to the SCC-C6407(P) to be displayed on the connected monitor.On the CAMERA SET menu screen, select CAMERA ID to ON and press [Enter]. You will see the sub screen for deciding on the ID of the SCC-C6407(P). The Camera ID can have up to 20 alphanumeric characters, along with several special characters. The assigned camera ID may be positioned to any desired location on the screen by using the LOCATION submenu. Use the controller to press the MENU selection key and the following screen will be displayed. In case of

, type in the 4 digit password first. If correct, the MENU selection screen like

will be displayed and you will be able to set up MENU by pressing UP/DOWN/LEFT/RIGHT/[ENTER] key.

• * MAIN MENU * * CAMERA SET...VIDEO SET...PRESET ...ZONE SET...AUTO SET...ALARM SET...OTHER SET...SYSTEM INFO...0 1 2 3 45 6 7 8 9 PASSWORD UNDEFINED ➁ PASSWORD DEFINED✽ ✽ ✽ ✽

If the power is turned off after PRESET, AUTO PAN, SCAN, PATTERN function is activated and no other control is made, camera will do the same function after the power is turned on.

Menu setting is available only when tilt position is under 90°. When tilt position is over 90° and menu-on command is received, pan will automatically rotate 180° and tilt will be move to the corresponding position.

ALARM IN SET ALARM1~8 NO/NC/OFF

RET OTHER SET PROPOTIONAL P/T ON/OFF

SYSTEM INFO The diagram shown above illustrates the overall structure of the Setup Menu. In this section, a description of the Setup menu features will enable users of the SCC-C6407(P) to tailor it to their personal needs.3-5 3-6

COLOR/BW In the COLOR/BW menu, you can switch ON or OFF the IR (infrared) Filter. In a poor illumination environment, the IR filter is turned off in the BW mode the its sensitivity increases as high as a black and white camera. On the other hand, the IR filter is turned on and the sensitivity decreases in the COLOR mode. COLOR : The IR Filter is ON and the screen is normal. You can press the [Enter] key to set the COLOR GAIN LEVEL. And when the AGC function is on, you can set the AGC COLOER LEVEL. BW : The IR Filter is OFF and the screen is black and white. (Sensitivity to low light is increased to a level comparable to a black and white camera.) Select BW and press [ENTER] and the additional menu to select BURST ON/OFF will appear. AUTO : Select to automatically switch between the COLOR mode and BW mode depending on the amount of light. In low light conditions, the IR Filter is turned OFF and the sensitivity to low light is increased by switching to the BW mode, but in bright light conditions, the IR Filter is turned ON and the sensitivity is decreased by switching to the COLOR mode. Select AUTO and press [ENTER] and the additional menu to select BW LEVEL and DURATION will appear. - BURST ON : The color burst signal is output together with black and white composite video signal. - BURST OFF : The color burst signal is not output. - LEVEL : You can set the brightness level that changes from COLOR mode to BW mode in 3 steps : LOW, MEDIUM, and HIGH. - DURATION : Set the HOLDING time for switching between COLOR and BW mode depending the changes in the amount of light. You can set the HOLDING time to 10sec (S), 30sec, 60sec, or 300sec( L).

LOCATION... RET SCC-C6407P........ V-SYNC In the V-SYNC menu, vertical synchronization can be selected. The vertical synchronization signal supported by the SCC-C6407(P) is the INT mode made by clock inside the SCC-C6407(P) and LINE mode adjusting vertical synchronization to the exterior power frequency. Select LINE and press [Enter]. You will see the LINE LOCK submenu where you can adjust the phase of the LINE LOCK. You can use the PHASE menu of the LINE LOCK submenu to assign as much PHASE as you want. (LL-PHASE)

Press [Enter](CAMERA SET)CAMERA ID OFFV-SYNC INTCOLOR/BW AUTO...MOTION DET OFFZOOM SPEED 0DIGITAL ZOOM 0EXIT QUIT In AUTO mode, AGC will operates in high speed mode, and you cannot change it manually, as it is indicated by "---". Caution : If you use an infrared light source while in AUTO mode, AUTO switching malfunction and camera AF malfunction may occur. (AUTO)BURST ONLEVEL LOWDURATION S --|---- LRET Press [Enter] MOTION DET In MOTION DET, you can set the Motion Detection function, Motion Detection Sensitivity, and the Area of Motion Detection. If the Motion Detection function is set, the movement of an intruder can be detected. When motion is detected, it sets off the Alarm signal of the Controller. (CAMERA SET)CAMERA ID OFFV-SYNC INTCOLOR/BW COLORMOTION DET ON...ZOOM SPEED 3DIGITAL ZOOM OFFEXIT QUIT(MOTION DET)AREA PRESET...SENSITIVITY L ---|--- HRET Select ON and press [ENTER] and the MOTION DET additional menu will appear. The AREA menu, selecting the screen area where the MOTION detection function will be applied may be selected by PRESET or USER. Set AREA to PRESET and the MOTION detection function will be applied to the factory default part. If you set the AREA menu to USER and press [ENTER], you may vary the size and position of the area where you want to apply the MOTION detection function by yourself. Press Left, Right, Up, or Down to select an area size. Press ENTER and then Left, Right, Up, or Down to select a position. Press ENTER again to move back to the upper menu. Use [ENTER] and Left, Right, Up, or Down to move and scale the MOTION detection area. Press [ENTER] again and you will escape the AREA setup menu. Use SENSITIVITY to set up the sensitivity of MOTION detection strength. The higher, the more sensitive.

After PAN/TILT movement finishes, MOTION DET function will not work for about 5 seconds to stablize the chage of the screen.

MOTION detection function operates based on the brightness change within the setup region. Therefore, erroneous operation may occur depending on the brightness difference between the background and the object that is being taken, or the status of the area setup, etc. ZOOM SPEED In the ZOOM SPEED menu you can select the speed of the ZOOM Key (Tele/Wide). Use the [Left] or [Right] keys in the ZOOM SPEED menu to select the speed. 1 : Magnification x 32 takes about 22 seconds. Slowest speed 2 : Magnification x 32 takes about 10 seconds. Low speed 3 : Magnification x 32 takes about 7 seconds. High speed 4 : Magnification x 32 takes about 5 seconds. Fastest speed SIZE POSITION3-10

EXIT QUIT DIGITAL ZOOM You may set up the digital zoom magnification ratio in the DIGITAL ZOOM menu. The magnification ratio ranges from OFF to 10. If you set Digital Zoom of SCC-C6407(P) to max. 10 times, the mode will become the 32 time optical zoom and you will be able to enlarge a subject by max. 320 times. Use Left or Right to select a magnification ratio in the DIGITAL ZOOM menu. 3-9 ALC Choose the ALC of the IRIS item and press [ENTER] and set he submenu to the Video Output level and BLC will be shown.The Video Output Level can be set in the level item using the [Left, Right] keys.

IRIS There is a function to automatically adjust IRIS to the incoming light level. Owing to this function, you may set up the brightness level yourself. The ALC(Auto Light Control) menu allows you for video output level setup. The WDR(Wide Dynamic Range) menu allows you to set up the WDR level and the FLICKERLESS function. For items in the BLC menu, the user can set the size and location of the BLC area by pressing [ENTER] key after put the cursor on USER… using the [Left, Right] key. For SIZE items, you can use the [Up, Down, Left, Right] key to designate the SIZE, and then press the [ENTER] key. You can set the location for areas using the [Up, Down, Left, Right] key in the LOCATION.

Press [Enter] BLC (Submenu of the ALC menu) If you use a general camera to photograph a subject under backlight or bright illumination, the subject will be shown dark on the monitor due to the backlight. BLC(Back Light Compensation) is used to prevent such a backlight problem to secure distinct images under bright illumination. Using the [Left, Right] keys, you can set up BOTTOM…, TOP…, LEFT…, RIGHT…, CENTER… 5 preset areas and the USER…function that can directly set the areas. For example, for the items in the BLC menu, you can confirm the preset BOTTOM area by pressing [ENTER] key in the BOTTOM… status. (ALC) BLC BOTTOM... LEVEL (0)----I---- RET3-12

3-11 SHUTTER You may designate both the fast electronic shutter speed and low electronic shutter speed in the SHUTTER menu. The fast electronic shutter supports 7 shutter speeds from 1/100(1/120) to 1/10K second to be used for the bright and fast video image. The AUTO slow electronic shutter supports 10 shutter speeds from x2 to x160 and sets the shutter speed to be slow In order to make the image on the screen more distinct and brighter when you photograph under dark illumination. If you want to sense the light brightness to control the shutter speed to the brightness automatically, select the AUTO slow shutter. Keep pressing both Left and Right in the SHUTTER menu, the speed will change in the following sequence. ➝ OFF ➝ AUTO X2 ➝ AUTO X4 ➝ AUTO X6 ➝ AUTO X8 ➝ AUTO X12 ➝ AUTOX16 ➝ AUTO X20 ➝ AUTO X40 ➝ AUTO X80 ➝ AUTO X160 ➝ OFF ➝ 1/100(1/120) ➝ 1/250 ➝ 1/500 ➝ 1/1000 ➝ 1/2000 ➝ 1/4000 ➝ 1/10K ❈ In case the IRIS mode is set to WDR, only the following modes are available. ➝ OFF ➝ AUTO X2 ➝ AUTO X4 ➝ AUTO X6 ➝ AUTO X8 ➝ AUTO X12 ➝ AUTOX16 ➝ AUTO X20 ➝ AUTO X40 ➝ AUTO X80 ➝ AUTO X160

(VIDEO SET)IRIS ALC...SHUTTER OFF

AGC OFF WHITE BAL ATW1 DIS OFFFOCUS MODE AFSPECIAL ...EXIT QUIT WDR The WDR camera is a state-of-art technology to expand the screen profit, mostly effective when you photograph both indoor and outdoor. In short, this function provides you with the distinct reproduction of not only the indoor but also the outdoor. Press [ENTER] to set up the WDR level and the FLICKERLESS function.

Press [Enter] - LEVEL 1 : Controls the shutter speed while WDR operates. - LEVEL 2 : Controls the whole brightness while WDR operates. - FLIKERLESS : This is for preventing flicker on the screen when NTSC system is used in 50HZ power supply region and PAL system is used in 60HZ power supply region. That is to prevent shaking on the screen resulted from the discordance of the vertical sync frequency and the flicker frequency of the illumination. While this menu is ON, the electronic shutter is fixed to 1/100sec (NTSC) or 1/120 sec (PAL). Press the ENTER button.

(MANUAL)LEVEL (00) ----I----

RET MANU When you press [ENTER] key after selecting MANU in the IRIS item, an additional screen appears in which you can set manually opening or closing the IRIS. (VIDEO SET)IRIS MANU...SHUTTER OFFAGC OFFWHITE BAL ATW1DIS OFFFOCUS MODE AFSPECIAL ...EXIT QUIT3-14

3-13 WHITE BAL Lights are generally denoted as color temperatures and expressed in Kelvin (

SPECIAL ... EXIT QUIT AGC The AGC menu was designed to provide you with brighter screen supposed you photographed any subject in the dark resulting in less brighter image than regulated. AGC menu setup is available only when the SHUTTER menu is set to Fast Shutter or Off. Press either Left and Right to go to LOW or HIGH and the AGC function will be activated. LOW is use to lower the maximum AGC GAIN and HIGH raise the maximum AGC GAIN. When the COLOR/BW menu of the camera set is set to AUTO, the AGC menu item is left dotted and the maximum AGC GAIN is fixed to HIGH. MOTION The MOTION function is available only when the SHUTTER men is set to Slow Shutter AUTO, being composed of 5 steps, S.SLOW, SLOW, NORM, FAST, F.FAST. ● S.SLOW reduces the amount of AGC as much as possible to monitor subjects with no immobility in the dark. ● SLOW reduces the amount of AGC to monitor subjects with little immobility in the dark. ● NORM sets the amount of AGC to the middle to monitor mobile subjects in the dark. ● FAST raises the amount of AGC to monitor fast subjects in the dark. ● F.FAST reduces the amount of AGC as much as possible to monitor very fast subjects in the dark. When the SHUTTER menu is set to AUTO, press Down to locate the cursor in the MOTION menu and press Left and Right for MOTION function setup. Press Left to the SLOW side and Right to the FAST side. (VIDEO SET) IRIS ALC... SHUTTER OFF AGC LOW

3-15 FOCUS MODE In the FOCUS MODE MENU, the Focus method can be set to AF, MF, or ONEAF. - AF : With AUTO FOCUS MODE, you can monitor the screen continuously and it will focus automatically. While moving the zoom keys, it will automatically focus so FOCUS key input is not necessary. - MF : In MANUAL FOCUS MODE the user adjusts the Focus manually. - ONEAF : The ONEAF Mode performs Auto-focusing only when the SCC-C6407(P) stops after moving and when the SCC-C6407(P) is not moving it is same as MF mode.

When in the MF/ONEAF Mode, press the NEAR and FAR keys on the Controller (SSC-1000) at the same time to perform AUTO FOCUS.) Use the left/right keys to select AF, MF or ONEAF in the FOCUS MODE menu.

(VIDEO SET)IRIS ALC...SHUTTER

OFF AGC OFF WHITE BAL ATW1 DIS OFFFOCUS MODE AFSPECIAL ...EXIT QUIT EXIT It's the same as the EXIT function of the CAMERA SET menu. SPECIAL In SPECIAL menu, you can directly adjust REVERSE, Y-LEVEL, C-LEVEL, and DETAIL functions. - REVERSE : Mirrors the screen horizontally, vertically, or in all directions. - Y-LEVEL : It is used to set the levels for the Sync signal and the entire brightness signal of the video signal. - C-LEVEL : It is used to set the levels for the Burst signal and the entire colour signal of the video signal. - DETAIL : Controls both horizontal and vertical distinction.

Press [Enter] (VIDEO SET)IRIS ALC...SHUTTER OFFAGC ONWHITE BAL ATW1DIS ONFOCUS MODE AFSPECIAL ...EXIT QUIT(SPECIAL)REVERSE OFFY-LEVEL (0)I--------C-LEVEL (0)I--------DETAIL (0)--I- RET DIS The DIS(Digital Image Stabilization) function compensates the camera screen shaking incurred from vibration. It is recommended to deactivate the DIS function in the no vibration environment.

WHITE BAL MANU... DIS ONFOCUS MODE AFSPECIAL ...EXIT QUIT You can select one of four modes for white balance adjustment as follows: - ATW1/ATW2(Auto-Tracing White Balance Mode): In these modes, the color temperature is monitored continuously and thereby white balance is set automatically. The following are the approximate supported color temperature ranges in these modes.

ATW2 : 2000K ~ 10000K(Mode recommended for sodium lighting)(

1. If the color temperature is out of this range in ATW1 mode, proper

white balance may not be obtained. In that case, select ATW2 mode.

2. In ATW2 mode, if one color is dominated in the shooted area, the

color can be displayed differently. Therefore, select the mode which is appropriate for the environment. - AWC(Auto-Tracing White Balance Control): In this mode, accurate white balance is obtained by pressing [ENTER] while having a white paper in front of the camera. White Balance data will be maintained after set it once. AWC mode is best in locations where the color temperature of light source is constant. - MANU : If WHITE BAL menu is set to MANU mode, the user can set the white Balance considering the current illumination. Select MANU item and press [ENTER], the sub screen where you can select Manual White Balance will be shown. Use the left/right keys to select 3200K, 5600K or OFF(USER) mode in the PRESET menu.

- USER : Choose out a proper value from the RED and BLUE graph for color and temperature setup.3-18

3-17 POSITION SET From "POSITION SET..." press [ENTER] to get into the PAN/TILT, FOCUS/ZOOM SET screen to set the PAN/TILT location and FOCUS/ZOOM condition then press [ENTER] to return to a higher menu. PRESET ID This is the ID set up function for each PRESET. It can be set up to 12 characters using the left, right, up, and down keys. The ID location can be set in the submenu of "LOCATION..." VIDEO SET This is the screen setting function for each PRESET. Refer to the explanation under "VIDEO SET menu". PRESET SPEED This function sets up the speed of PAN or TILT by 8 steps from 1(SLOW) to 8(FAST). - PRESET SPEED 1 : Maximum PAN moving speed of 240°/sec - PRESET SPEED 8 : Maximum PAN moving speed of 400°/sec DWELL TIME This is a function setting for the DWELL TIME of the PRESET location in "SCAN" motion. It can set DWELL TIME From 1 ~ 60 Sec. IMAGE HOLD Pauses the image when PRESET is in movement, If you set the IMAGE HOLD menu to ON, the screen will be paused until PRESET finishes moving. EXIT "QUIT" : Does not save the selected information and returns to a higher menu. "SAVE" : Do saves the selected information and returns to a higher menu. "DEL" : Deletes the selected information and restores the DEFAULT. Then returns to a higher menu.

This is the menu that user sets the PAN/TILT location, Zoom/Focus, and screen condition, so the camera can monitor the presetting area on demand. A total of 128 presets are available.

Set the PRESET position at the TILT which ranges from 0° to 90°. Beyond this range, PRESET setup is not available.

When you try to set the Preset position by using the Controller(SSC-1000 or SSC-2000) beyound the range of TILT 90°, the text, “SET AGAIN” will be displayed. In such a case, please retry in the area below TILT 90°.3-20

The available angle for setup ranges from OFF/0/-10 to -90 and the area below a set angle will be regarded as the ZONE area.

Press [ENTER] to enter the PRIVACY ZONE MAP screen from “PRIVACY ZONE MAP ON..”. Select a privacy zone number and press [ENTER] from the PRIVACY ZONE MAP screen to enter the PRIVACY ZONE setup screen.

The available angle for setup ranges from OFF/0/-10 to -90 and the area above a set angle will be regarded as the ZONE area. STYLE In the STYLE menu, you may the shape of the PRIVACY ZONE area on the screen. - MOSAIC1 : The privacy zone is displayed with the mosaic of 16 X 16 pixel. - MOSAIC2 : The privacy zone is displayed with the mosaic of 32 X 32 pixel.

The ZONE SET menu includes the setup of PRIVACY ZONE, ZONE DIRECTION, and ZONE AREA. PRIVACY ZONE Move PAN/TILT/ZOOM to select an area that can infringe someone privacy, then this function will hide the area if it can be involved in the photograph to protect his privacy. The number of area reaches up to 12.

Set to the PRIVACY ZONE section, the mosaic screen will not be recovered after recording.3-22

3-21 REVERSE The REVERSE function applies PRIVACY MASK to the other area than set as a privacy zone. ON/OFF is available.

ZONE DIR SET/ZONE AREA SET

This function indicates the ID or direction depending on the set value when PAN of SCC-C6407(P) is located in a specific area. If set to AREA, it indicates the ID of the selected area and if set to N(NORTH), NE(NORTH- EAST), E(EAST), SE(SOUTH-EAST), S(SOUTH), SW(SOUTH-WEST), W(WEST), NW(NORTH-WEST. EXIT "QUIT" : Does not save the selected information and returns to a higher menu. "SAVE" : Do saves the selected information and returns to a higher menu. "DEL" : Deletes the selected information and restores the DEFAULT. Then returns to a higher menu. PRIVACY ZONE SET 0SET ZONE AREA ON...SET ZOOM ...REVERSE ONEXIT QUIT SET ZOOM Press [ENTER] at the “SET ZOOM...” position to enter the ZOOM setup screen. After ZOOM setup, the PRIVACY ZONE function will be in action only at the higher magnification than the Zoom magnification as set.

Press [ENTER] at the “SET ZONE AREA...” position to enter the PRIVACY ZONE setup screen. Control PAN/TILT/ZOOM to select 4 apexes of the PRIVACY ZONE area and the rectangular PRIVACY ZONE area will be completed.

For the safer privacy protection, select about 10 % more than the actual size to hide when you set up the PRIVACY ZONE area.

4 points of PRIVACY ZONE area are in the middle of the screen. Therefore, when the tilt is positioned at upside limit(0° or 180°), PRIVACY ZONE cannot be set in the area which is displayed above center.

If the points becomes X shape, it means PRIVACY ZONE cannot be set due to the size limitation.

3-23 LOCATION The “LOCATION...” menu designates the left/right LIMIT positions of ZONE AREA. Enter the setup screen to move PAN, then select a start position and press [ENTER]. Move PAN again to select a end position and press [ENTER]. Now, ZONE AREA setup is complete.

Press [Enter] After PAN control, press [ENTER] to finish. SET START!

This function is used to allocate as many as 12 IDs to each zone area. Use Left , Right, UP, or DOWN for this purpose. You may select the ID position from the additional menu of “LOCATION...”. ZONE ENABLE This function turns on or off the ZONE AREA ID indication.

Press the [Enter] key in the “ZONE DIR SET ON…” mode to enter the NORTH SET screen. MAP. Move PAN to set the NORTH position and press [ENTER]. Based on the North position,the direction of N(North), NE(North-East), E(East), SE(South-East), S(South), SW(South-West), W(West), NW(North-West) is displayed whenever you move PAN. ZONE AREA Press [ENTER] to enter the ZONE AREA MAP screen from “ZONE AREA SET...”. Select a ZONE AREA number from the ZONE AREA MAP screen and press [ENTER] to enter the ZONE AREA setup screen.

Press [Enter] (ZONE AREA MAP)

3-25 DIRECTION This sets up the movement direction of the START to END location (PAN location standard) "RIGHT " : "LEFT " : ENDLESS This is a 360-degree rotation function that stops for the DWELL TIME only in the START and END positions without running between the START and END positions. It can be set to "ON" or "OFF". SPEED This is a setting function for movement speed setup. It can be set from STEP1 to STEP64. DWELL TIME This is a function for setting up the time to stay in the START to END position. PATTERN This is a replay function so that the MANUAL functions such as PAN, TILT, ZOOM, and FOCUS are played for 2 minutes. ❈ When the PATTERN is saved/executed, the PAN/TILT is operated with PROPORTIONAL ON, TURBO OFF. ❈ If the SSC-1000 or SSC-2000 is used when uploading/downloading the menu setup, reset the PATTERN because it may be different with the first setting. AUTO PAN After selecting the locations of two points (PAN/TILT) of START and END, it loops continuously in the set up SPEED. The number of AUTO PAN is up to 4.

The AUTO SET menu includes AUTO PAN, PATTERN, and SCAN and it is able to set up the AUTO PLAY motion.

3-27 AUTO PLAY AUTO PLAY executes SCAN, AUTO PAN, PATTERN, and PRESET when there is no camera action after AUTO RETURN finishes. AUTO RETURN This menu sets up the time during which AUTO PLAY repeats. AUTO PLAY This function sets up the motion which will be repeatedly performed by SCC-C6407(P) whenever the time set by AUTO RETURN elapses. It covers SCAN, AUTO PAN, PATTERN, and PRESET setup. PLAY NUMBER This menu allocates a number to the motion set by AUTO PLAY. The numbers range from 1 to 4 for SCAN AND AUTO PAN, 1 to 3 for PATTERN, and 0 to 127 for PRESET.

AND ENTER PATTERN can be set upto 3. Choose 1, 2, or 3 with the left or right key in the "PATTERN SET" and press [ENTER] to get into the PATTERN set up screen. From the moment "PATTERN 1 SET" is gone for 2 minutes, it memorizes the MANUAL movements and after 2 minutes it will return to a higher menu. If you want to finish set up before the 2-minutes ends, press [ENTER]. If you enter the SCAN SET screen, SCAN MAP will be displayed. Move the cursor to the number marked * where PRESET is saved and press [ENTER] and S will appear and a PRESET will be included in SCAN. SCAN SCAN sets the direction of PRESET movement during “SCAN” operation. The number of SCAN is up to 4 and each SCAN is able to allocate 32 PRESETs as a maximum. (SCAN MAP 1) 0*S 1* 2 3 4

This function controls the PAN/TILT speed to the ZOOM magnification ratio during the manual operation of PAN/TILT. If you set PROPORTIONAL P/T to ON, the PAN/TILT speed will increase in the ZOOM WIDE mode and decrease in the ZOON TELE mode even in the same manual operation. AUTO SET This menu designates what to do at the time of ALARM input. Once an alarm is given, the camera will shortly move to the PRESET position corresponding to the respective alarm as follows. PRESET1 to ALARM1~8 PRESET9 to MOTION After DWELL TIME at a PRESET position, PATTERN or SCAN will be in action according to the AUTO SET setup. Setup of OFF/1/2/3/HALF1/HALF2/FULL/SCAN1~4 is available. OFF dues not perform PATTERN or SCAN after moved to PRESET and each menu has its own function as follows. PATTERN 1~3 : Preset PATTERN action, HALF1 : Continuous operation of PATTERN1 + PATTERN2 HALF2 : Continuous operation of PATTERN2 + PATTERN3 FULL : Continuous operation of all the aboves SCAN 1~4 : Scanning as set

This sets the ALARM OUT motion to continue or act only when the ALARM is working. If it is set to OFF the ALARM OUT motion will operate only when the ALARM is working. (Active "Low"), and if it's set to ON, the ALARM OUT will always operate regardless of the ALARM.

It consists of 8 ALARM INPUTs and 3 ALARM OUTs.It can sense an ALARM input from exterior SENSORs and it performs with PRESET or PATTERN function and outputs the ALARM OUT signals. The Alarm will be recognized only when its input lasts more than 150ms and the alarm operation time depends on the Preset Dwell time corresponding to the alarm and whether AUTO is involved.

This sets the priority of the 8 ALARM inputs so ALARM can work corresponding to the priority. The priority of the DEFAULT is ALARM1, ALARM2, ALARM3, ALARM4, ALARM5, ALARM6, ALARM7, ALARM8. If the ALARM is working at the same time and the priority is the same, it will operate according to the DEFAULT priority. While the ALARM is working, it cannot detect MOTION.

This sets the input TYPE to "NO" (Normal Open), "NC" (Normal Close), or "OFF" depending on the features of the SENSOR connected.

Each ALARM input corresponds to one of the 3 ALARM OUT.

This menu allows you to check S/W version, communication protocol, baud rate, and address of SCC-C6407(P). Press UP/DOWN/LEFT/RIGHT key to locate the cursor on a number and press [ENTER] for password setup. After you finish inputting the 4 digits password and the 2nd row of the 4 digits PASSWORD input screen, input the selected password again for reassurance. If correct, the cursor will move to RET. Press [ENTER] at RET, and the selected password will be saved, returning to the OTHER SET screen. Default password is 0123. (OTHER SET)

Press [Enter] (PASSWORD)

This function doubles up the speed of PAN/TILT movement by manual operation of PAN/TILT. The speed may go up to 180°/sec(PAN). AUTO CAL This function turns on or off Auto Calibration. SCC-C6407(P) has the Auto Calibration function to improve the precision of LENS and PAN/TILT motor. You may set to OFF/6H/12H/18H/24H. Without user’s key input for the time designated by the user, A.C. will appear on the screen while initializing LENS and PAN/TILT. D-FLIP When D-FLIP is off, TILT movement ranges from 0° to 90°. When D-FLIP is on, TILT movement ranges from 0° to 180°. When D-FLIP is on, images mirror vertically and horizontally in the area beyond TILT 90°. CAM RESET CAM RESET clears all the settings made so far and restores the factory default settings. "CAMERA RESET?" message appears when you select CAM RESET. Select "CANCEL" to return to the menu setup display or select OK to restore the factory default settings. ❈ Be careful when performing a CAM RESET operation, as it deletes all setup values. LANGUAGE This function selects a language for MENU setup. Press UP/DOWN key to choose English, French, German, Spanish, or Italian, and the selected language will be applied to the full screen. PASSWORD This function selects or cancels the MENU setup password. Press [ENTER] at the state of PASSWORD ON, and the following screen will appear for password setup.3-34

• SCC-C6407(P) has two FANs inside for preventing overheating. If FAN doesn't work properly, messages below will be displayed. In those case, replace the FAN. - CAMERA FAN ERROR ! : This message is displayed when the FAN which is connected with camera of SCC-C6407(P) does not work properly. - ALARM FAN ERROR ! : This message is displayed when the FAN which is located bottom of SCC-C6407(P) does not work properly. Contact your nearest Samsung Electronics Service Center or designated retailer before replacing the FAN.

• The copyright of the manual belongs to Samsung Electronics Co., Ltd.

Without the permission of Samsung Electronics it cannot be reproduced electronically, mechanically, audibly, or by any other method.

This manual will be modified according to product enhancements. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.SCC-C6407(P)

MEMOIRE IMAGE ON/OFF

(ALC)CJOUR OFFNIVEAU (0)----I ----

(ALC)CLUZ OFFNIVEL (0)----I ----

(ALC)CLUZ ARRIBA...NIVEL (0)----I----

ACTIVITY DET ON.../OFF

BIL BIANCO MANU... DIS ON

USCITA ESCI IMPOSTA NORD
