Product Type	Color Digital Dome Camera
Brand	Samsung
Model	SCCB5352N
Power Supply	12 VDC / 24 VAC
Power Consumption	Approx. 1.7 W
Imaging Device	1/3-inch Super-HAD CCD
Horizontal Resolution	540 TV lines
Lens	Auto Iris (DC), focal length 2.5 – 6.0 mm, F1.2
Pan Angle	0 to 355°
Tilt Angle	0 to 90°
Weight	327 g
Dimensions	128 mm (diameter) x 91 mm (height)
Operating Temperature	-10°C to +50°C
Operating Humidity	Up to 90%
Main Functions	Line Lock (LL), Sens-up (OBV), Horizontal/Vertical Reverse (REV-H/V), Back Light Compensation (BLC), No Flicker (NFLK), Day/Night Switching (D/N), Auto White Balance (AWB), Digital Noise Reduction (DNR), Dynamic CCD Defect Compensation
Video Output	Composite 1 Vp-p, 75 ohms, BNC; monitor output (cable harness)
Broadcast System	NTSC (525 lines, 60 fields) or PAL (625 lines, 50 fields) depending on model
Safety	Use only specified adapter; do not expose to rain or moisture; disconnect during storms; do not disassemble
Maintenance and Cleaning	Clean with a dry cloth; do not spray water directly
Compliance	FCC Class A, ICES-003
Product Color	White (SCC-B535xN)

Frequently Asked Questions - SCCB5352N SAMSUNG

How to install the camera on the ceiling?

Remove the dome cover and inner cover. Attach the mounting bracket to the ceiling with the three provided screws. Align the notch of the main body with the wide groove and rotate to LOCK position. Then connect the cables.

How to adjust focus and zoom?

Connect the camera to a monitor. Use the zoom lever and focus lever to adjust the image. Screw the levers to secure them.

What to do if the image is inverted?

Use the REV-H (horizontal reverse) and REV-V (vertical reverse) switches on the control panel to restore normal image orientation.

How to activate automatic day/night function?

Set the D/N switch (No. 7) to ON. The camera will automatically switch between color and black and white based on ambient light.

Which power adapter to use?

Use only a 12 VDC or 24 VAC adapter that meets specifications. Incorrect power may damage the product or cause a fire.

How to clean the camera?

Clean with a dry, soft cloth. Never spray water directly onto components. Avoid harsh solvents.

What to do if there is abnormal odor or smoke?

Stop using immediately, disconnect power, and contact Samsung customer service. Continued use may cause fire or electric shock.

What is the maximum resolution of this camera?

Horizontal resolution is 540 TV lines, with a CCD sensor of 380,000 effective pixels (NTSC) or 440,000 pixels (PAL).

How to adjust line lock phase?

Set the LL switch to ON. Use the UP (increase) or DOWN (decrease) buttons on the control panel to adjust the phase in 1-degree steps until the image roll is eliminated.

Where to find spare parts?

Contact authorized Samsung service center. Do not attempt to replace internal parts yourself; this will void the warranty and may be hazardous.

USER MANUAL SCCB5352N SAMSUNG

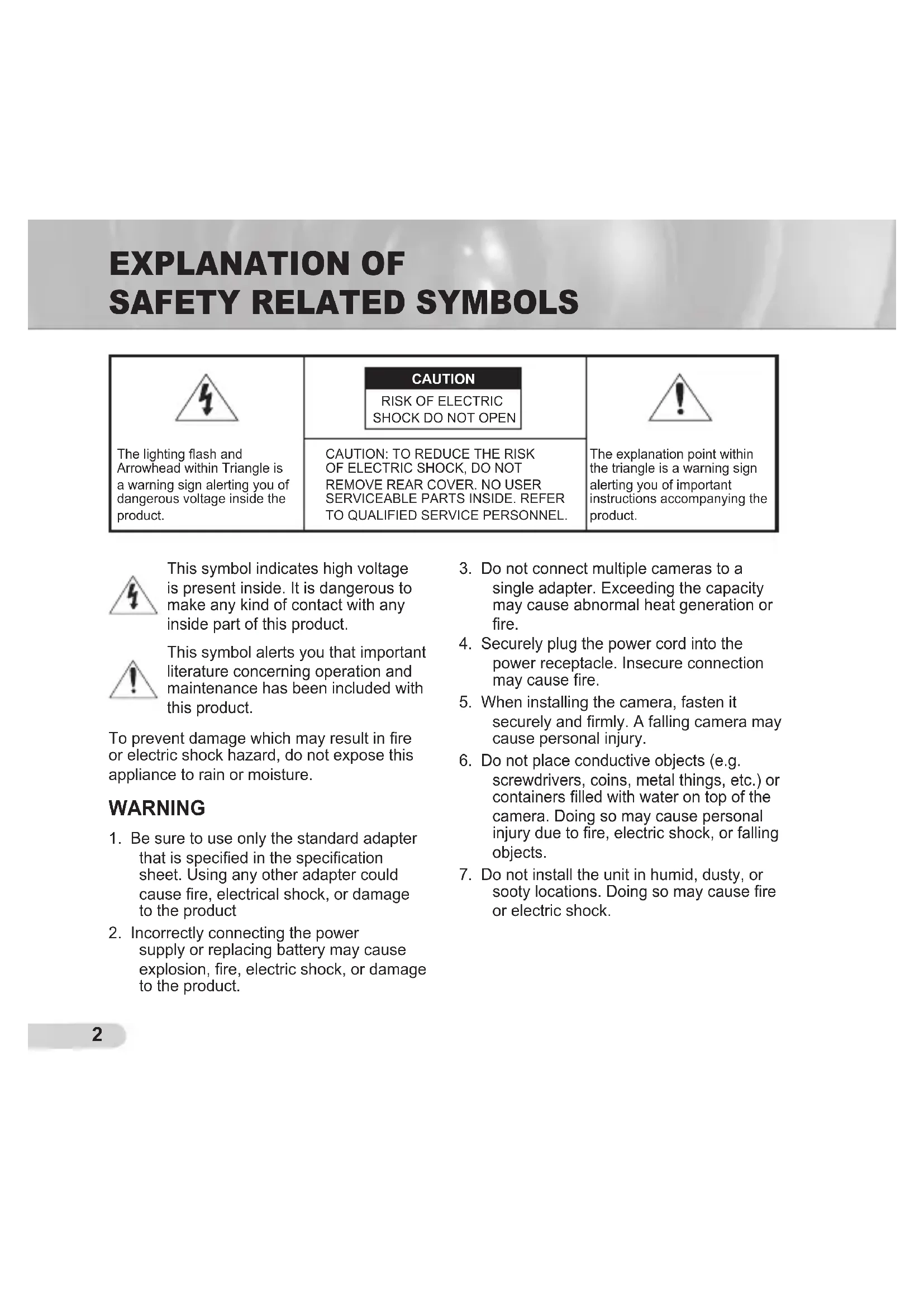

Explanation of Safety Related Symbols

The lightning flash and arrowhead within a triangle is a warning sign alerting you of dangerous voltage inside the product.

Caution

Risk of Electric Shock. Do Not Open.

Caution: To reduce the risk of electric shock, do not remove the rear cover. No user-serviceable parts inside. Refer to qualified service personnel.

The exclamation point within a triangle is a warning sign alerting you of important instructions accompanying the product.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

To prevent damage that may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

Warning

1. Be sure to use only the standard adapter specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing the battery may cause explosion, fire, electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.

1. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
2. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)
3. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.

CAUTION

1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference.
2. Do not install in a location subject to high temperature (over 122°F, 50°C), low temperature (below 14°F, -10°C), or high humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
4. Remove the power plug from the outlet when there is lightning. Neglecting to do so may cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as the sun, as this may damage the CCD image sensor.

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian interference-Causing Equipment Regulations of ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

1. Read Instructions – All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions – The safety and operating instructions should be retained for future reference.
3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions – All operating and use instructions should be followed.
5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

1. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization – This product may be equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternate Warnings – This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

1. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
2. Protective Attachment Plug – The product is equipped with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.
3. Outdoor Antenna Grounding – If an outside antenna or cable system is

connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

NEC - NATIONAL ELECTRICAL CODE

16) Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17) Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 18) Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 19) Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 20) Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 21) Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls

that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service.

22) Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 23) Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 24) Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 25) Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus

Contents

Overview 8

About this guide ....8

Product overview 8

Main features ....8

Components ....8

Checking components in the package ....8

Components of your camera 9

Installation 10

Setting switches ....10

Setting function switches ....10

Connecting cables and changing the settings ....12

Installing camera 13

Before installation ....13

Installation procedure ....13

Adjusting the camera direction ....14

Appendix A: Specifications for NTSC Standard .....15

Appendix B: Specifications for PAL Standard .....16

Overview

About this guide

This user guide includes basic instructions for the product. It is recommended that all users read this guide before use.

This guide is divided as follows:

■ Chapter 1, "Overview," introduces the user guide and product related information. (This chapter) ■ Chapter 2, "Installation," explains how to set and install the product. ■ Appendix, "Specifications," provides the specifications of the product.

Product overview

This is the high resolution (540 TV lines) dome camera equipped with a Vari-focal lens, which has no dynamic delay when implementing motion pictures, and provides the features such as digital noise reduction (DNR) by real-time CCD defect compensation, low speed shutter (LSS: Auto x128) to implement clear picture quality, Day/Night color compensation, and the like.

Main features

■ Power: DC 12V/AC 24V ■ Special functions • Line lock (LL) control • Auto white balancing • Horizontal/vertical image reversing • Flickerless control • Low shutter speed control • Backlight compensation control • Automatic switching between color and black & white modes • Equipped with vari-focal lens • Auto Iris function • Digital noise reduction (DNR) • Dynamic CCD defect compensation

Components

Checking components in the package

Please check that your camera and accessories are included in the package. Those components are as shown below:

Camera Test Monitor Cable

Tab screw User's Guide

Note

The test monitor cable is used to test the camera by connecting to a portable display. If you really want to connect the camera to a monitoring display, use the BNC cable.

Components of your camera

Your camera has the following components:

1. Cover dome: Covers the inner cover, lens, and main body to protect them.
2. Inner cover: Covers the main body to protect it.
3. Wing locker: Push a long thin screwdriver into its narrow spot and press it outward when you want to remove the inner cover.
4. Main body: Includes a lens, a switch board, a PCB board, screws, and such.
5. Mount bracket: Used as a ceiling or wall fixture. It is fixed using three long tab screws provided in the package.
6. Ceiling mount opener: Remove it for line connection to the ceiling when it is installed on the ceiling.
7. Zoom lever: Using this lever, the lens zoom can be adjusted and fixed.
8. Focus lever: The lens focus can be adjusted by rotating it left or right. Rotate it clockwise for fixing.
9. Tilt fixing screw: Using this screw, the slope of the lens can be adjusted and fixed.
10. Switch board: Includes two kinds of control switches such as function switches and phase-control switches. The board has eight function switches in the middle and two phase-control buttons on each side of the function switch area.
11. Groove mark: To attach the Main body to the Mount bracket, align this groove mark on the Main body with the wide groove in the CAMERA FRONT side on the Mount bracket.
12. Locker. Used to open or close the Cover dome. To open the cover dome, press the locker.
13. Lock releaser Push it outward and rotate the main body in UNLOCK direction when you want to remove the Mount bracket from the Main body or to remove the installed camera from the Mount bracket.
14. Cable: Connect the Video connector to BNC cable and Power connector to power adapter.

Installation

Setting switches

Setting function switches

To set the available functions on your camera, adjust eight switches as shown below:

No	Name Brief	description
1	LL Line lock	ON/OFF
2	LSS Sens-up	or Low speed shutter ON/OFF
3	H-REV Horizontal reverse ON/OFF
4	V-REV Vertical reverse ON/OFF
5	BLC Backlight compensation ON/OFF
6	FL Flickerless ON/OFF
7	D/N	Automatic switching between color and black & white ON/OFF
8	AWB Automatic white balance ON/OFF

1. Switch 1 (LL): When this switch is set to OFF, the camera operates in the internal synchronization mode, while when it is set to ON, the camera operates in the line lock mode. In the internal synchronization mode, the camera always uses an inside crystal oscillator for synchronization. However if multiple cameras are connected to a sequential switcher, picture rolling or flickering may occur when switching from one camera to another. In this case, you can set this switch to ON to solve this problem.

The line lock mode allows the camera to use the phase of the AC power as the synchronization reference. In this mode, you can use the phase control buttons(INC/DEC).

Note

When using DC 12V power, set this switch to OFF. The line lock feature will not normally operate even when the switch is set to ON.

Set the LL switch to ON while AC power is connected. If any picture roll occurs, adjust the phase using the phase-control buttons. Press the INC or DEC button to increase or decrease the phase by one degree.

1. Switch 2 (LSS): This sens-up mode accumulates image fields in memory to reduce noise but increase brightness and contrast. When this switch is set to ON, the camera automatically switches to a maximum of 128 times image acquisition speed to produce a clear picture in darker conditions.
2. Switch 3 (H-REV): When this switch is set to ON, the camera image is reversed horizontally. If you want to monitor your site using a mirror, you can use this feature to see the correct image.
3. Switch 4 (V-REV): When this switch is set to ON, the camera image is reversed vertically. If your camera displays a vertically reversed image, you can use this feature to see the correct image.
4. Switch 5 (BLC): When this switch is set to ON, you can view a clear image even if the camera faces excessive light such as sunlight or fluorescent light. When set to OFF, subjects with excessive light are not clearly shown.
5. Switch 6 (FL): When this switch is set to ON, the shutter speed is fixed to 1/100 sec (for NTSC) or 1/120 sec (for PAL) to prevent screen flicker caused by the mismatch between vertical synchronous frequency (50Hz for NTSC, 60Hz for PAL) and the on-and-off frequency of a light.
6. Switch 7 (D/N): When this switch is set to ON, the camera automatically switches between color and B&W according to the brightness of the surroundings.
7. Switch 8 (AWB): This switch adjusts white balance. When set to ON, the camera operates in ATW mode; when OFF, it operates in AWC mode.

- ATW (Auto Tracking White Balance): The color temperature is automatically adjusted according to environmental changes. (Approx. 2000°K to 11,000°K)

- AWC (Auto White Balance Control): It stores the color temperature at the moment the switch is changed to OFF. Accordingly, color temperatures are adjusted based on the stored value.

Caution

- The IRIS setting range for the camera is approximately 80 to 120 IRE. This means the camera does not provide full open/close IRIS but a restricted variation range. Use the camera after setting to the proper level (80 IRE or above) because IRIS hunting may occur when the level is 75 IRE or below.

■ Connecting cables and changing the settings

Before installing your camera, you have to adjust the lens focus, zoom, and switch settings.

To connect cables

1. Connect the BNC cable to the Video connector attached on your camera.
2. Connect the BNC cable to the Video Input on a monitor.
3. Connect the power adapter to the Power connector attached on your camera. When the monitor is turned on, the camera image appears.

To adjust the lens focus, zoom, and function settings

1. Remove the Cover dome and Inner cover. For more details about the removing procedures, see "Installation procedure," in the Installing camera section on the next page.
2. Adjust the focus, zoom, and function settings of your camera using the Focus lever, Zoom lever, and Switch board while you are viewing the image on the screen.
3. If you want to fix the adjusted focus and zoom, screw up the levers.

Installing camera

Before installation

Before installing your camera, you have to read the following cautions:

• You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.
• Don't let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.
• When installing your camera, don't allow any person to approach the installation site. If you have any valuable things under the place, move them away.

Installation procedure

To install your camera

1. Press the Locker button on the bottom of your camera and remove the Cover dome from the Main body using the other hand. The Main body and Inner cover will be exposed to you.
2. To install and adjust your camera, you have to first remove the Inner cover. To remove the Inner cover from the Main body, push a long thin screwdriver into the narrow spot of the Wing locker and press it outward to remove the cover.
3. Remove the Mount bracket from the Main body by rotating the Main body in the UNLOCK direction while pushing the Lock releaser outward. If it is not easily done, rotate the Mount bracket in the LOCK direction while holding small holes on the Mount bracket.
4. Fix the Mount bracket to the location (ceiling or wall) with supplied three screws.

Note

The CAMERA FRONT sign on the Mount bracket should face the camera monitoring area.

1. When you install the Mount bracket on the ceiling, remove the Ceiling mount opener by pressing it hard to connect the line attached on your camera through the hole in the ceiling. Otherwise, you can use the empty space opposite to the CAMERA FRONT sign for line connection.
2. Now attach the Main body to the Mount bracket by rotating it in the LOCK direction after aligning the Groove mark on the Main body with the wide groove around the CAMERA FRONT inlay.
3. Adjust the camera direction. For more details on the direction control, see "Adjusting the camera direction," on the same page. When required to adjust the zoom and focus for your camera, see "Connecting cables and changing the settings," on page 10.
4. Attach the Inner cover to the Main body by pressing it until a "click" sound is heard after aligning two screw holes on the Wing lockers of the Inner cover with two screw holes on the Main body's left and right sides.
5. Finally attach the Cover dome to the Main body by pressing it until a "click" sound is heard after aligning the bump inside the Cover dome with the Groove mark on the Main body.

■ Adjusting the camera direction

When the camera is fixed on the ceiling, you can adjust the camera viewing angle. You can rotate your camera leftward or rightward (Panning), and can change the slope of your camera upward or downward (Tilting).

In case of panning, the rotation limit of your camera is set to 355 degrees (100 degrees clockwise and 255 degrees counterclockwise). The rotation is stopped by the stopper inside the camera. For panning control, first unfasten two screws located on the bottom, rotate in the desired direction, and then fasten them to fix the camera.

In case of tilting, you can change the slope of your camera from zero to 90 degrees. However, if the slope angle is under 17 degrees, you may encounter partial image hiding.

problem. To fix the location after adjusting the tilting angle, use the tilt fixing screws.

To adjust the focus and zoom of your camera, use the zoom lever and focus lever. When you install the camera on an inclined ceiling or wall, you can rotate the camera lens to see a correctly oriented image.

Appendix A: Specifications for NTSC Standard

Item Details
Product type CCTV color dome camera
Power input AC 24V ± 10% (60Hz ± 0.3 Hz), DC 12V +10%/-5%
Broadcast type NTSC Standard System (525 Lines, 60 Fields)
Power consumption Approx. 1.7W
Image device 1/3 inch IT Type Super-HAD CCD
Pixels	Total: 811(H) x 508(V), 410,000 pixelsEffective: 768(H) x 494(V), 380,000 pixels
Scanning mode 525 Lines, 2:1 Interlace
Scanning line frequency	Horizontal: 15.734Hz(INT)/15.750Hz(LL)Vertical: 59.94Hz(INT)/60Hz(LL)
Synchronization mode IN T/Line Lock (Adjusting the phase using INC/DEC button)
Horizontal resolution 540 TV Lines
Min. object illumination				SCC-B53X3 (Color/BW) $CC-B53X2 (Color/BW)
	F1.2	Sens-up Off	50IRE 0	4/0.04Lux 0.4/0.4Lux
			30IRE 0	24/0.024Lux 0.24/0.24Lux
			15IRE 0	12/0.012Lux 0.12/0.12Lux
		Sens-up x128	50IRE 0	0031/0.00031Lux 0.0031/0	.0031Lux
			30IRE 0	0019/0.00019Lux 0.0019/0	.0019Lux
			15IRE 0	0009/0.00009Lux 0.0009/0	.0009Lux
Signal output	COMPOSITE Video(1.0 Vp-p, 75ohm, BNC), Test Monitor OUT(1.0 Vp-p, 75ohm, Harness cable)
Lens	Auto Iris (DC) / Focal length: 2.5 to 6.0mm / Aperture ratio: 1.2
PAN function	Range: 0 to 355° (100 degree clockwise and 255 degree counterclockwise)
TILT function	Range: 0 to 90°
Controls	Line Lock (LL)Sens-Up; Low Speed Shutter(LSS)Horizontal Reverse (H-REV)Vertical Reverse (V-REV)Backlight compensation (BLC)Flickerless (FL)Switching between color and B&W modes (D/N)Auto white balancing (AWB)Digital noise reduction (DNR)Dynamic CCD defect compensation
Product color	SCC-B535xN : White / SCC-B535xSN : Dark Silver
Operation temperature	-10°C to +50°C
Operation humidity	Up to 90%
Size	128(∅) x 91(H)mm
Weight	327g

Appendix B: Specifications for PAL Standard

Item Details
Product type CCTV color	dome camera
Power input AC 24V ± 10% (50Hz ± 0.3 Hz), DC 12V +10%/-5%
Broadcast type PAL Standard System (625 Lines, 50 Fields)
Power consumption Approx. 1.7W
Image device 1/3 inch IT	Type Super-HAD CCD
Pixels	Total: 795(H) x 596(V), 470,000 pixelsEffective: 752(H) x 582(V), 440,000 pixels
Scanning mode 625 Lines, 2:1 Interlace
Scanning line frequency	Horizontal: 15.625Hz(INT)/15.625Hz(LL)Vertical: 50Hz(INT)/50Hz(LL)
Synchronization mode IN	T/Line Lock (Adjusting the phase using INC/DEC button)
Horizontal resolution 540	TV Lines
Min. object illumination				SCC-B53X3 (Color/BW)	$CC-B53X2 (Color/BW)
	F1.2	Sens-up Off	50IRE 0	4/0.04Lux 0.4/0.4Lux
			30IRE 0	24/0.024Lux 0.24/0.24Lux
			15IRE 0	12/0.012Lux 0.12/0.12Lux
		Sens-up x128	50IRE 0	0031/0.00031Lux	0.0031/0.0031Lux
			30IRE 0	0019/0.00019Lux	0.0019/0.0019Lux
			15IRE 0	0009/0.00009Lux	0.0009/0.0009Lux
Signal output	COMPOSITE Video(1.0 Vp-p, 75ohm, BNC), Test Monitor OUT(1.0 Vp-p, 75ohm, Harness cable)
Lens	Auto Iris (DC) / Focal length: 2.5 to 6.0mm / Aperture ratio: 1.2
PAN function	Range: 0 to 355° (100 degree clockwise and 255 degree counterclockwise)
TILT function	Range: 0 to 90°
Controls	Line Lock (LL)Sens-Up; Low Speed Shutter(LSS)Horizontal Reverse (H-REV)Vertical Reverse (V-REV)Backlight compensation (BLC)Flickerless (FL)Switching between color and B&W modes (D/N)Auto white balancing (AWB)Digital noise reduction (DNR)Dynamic CCD defect compensation
Product color	SCC-B535xP : White / SCC-B535xSP : Dark Silver
Operation temperature	-10°C to +50°C
Operation humidity	Up to 90%
Size	128(∅) x 91(H)mm
Weight	327g

SAMSUNG

SAMSUNG

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

3

4

SAMSUNG

SAMSUNG

3

4

SAMSUNG

SAMSUNG

Safety Precautions

Caution

Camera Installation

Before Installation

3

4

Ceiling Mount Opener

To Install the Camera
