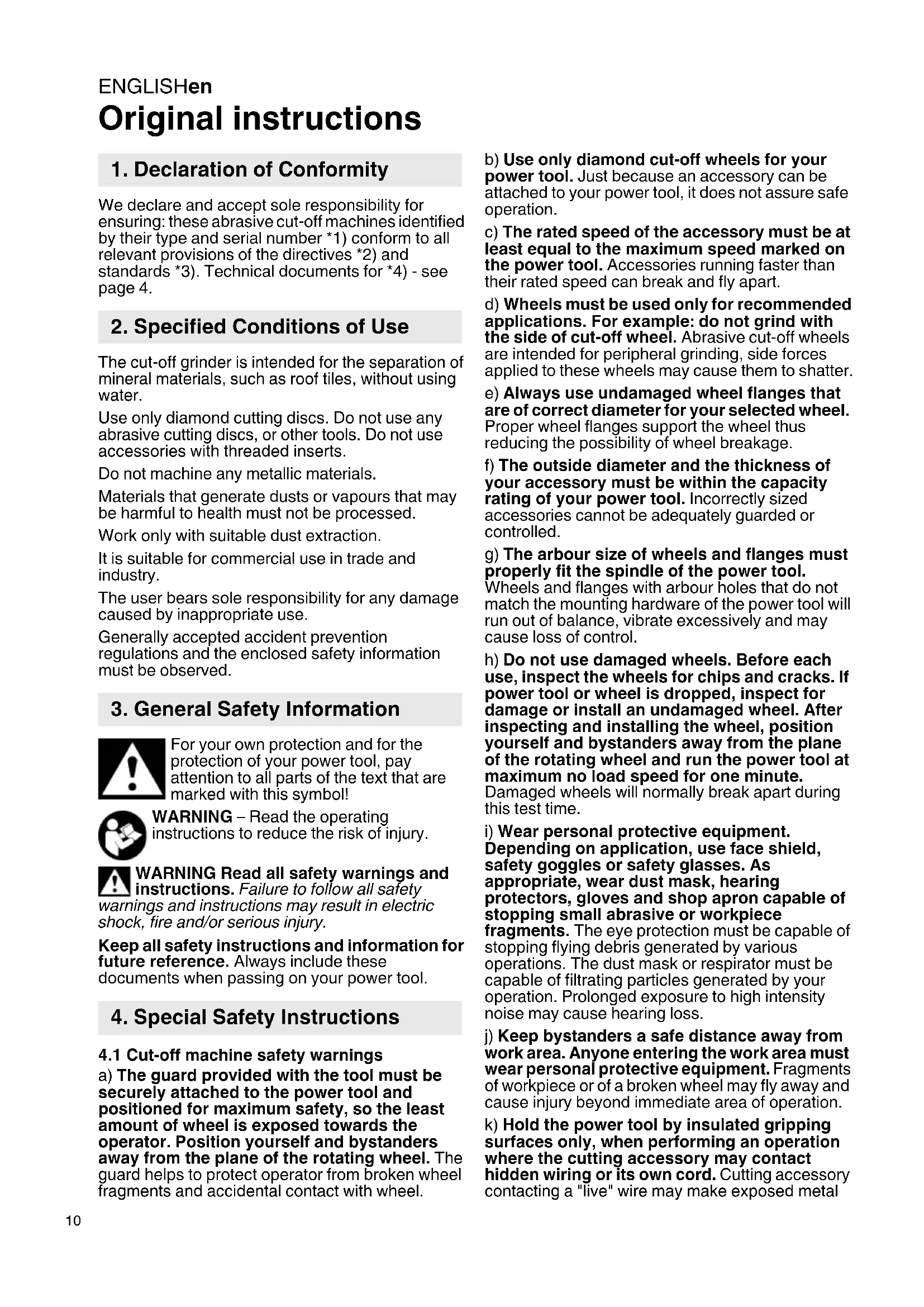

Original instructions We declare and accept sole responsibility for ensuring: these abrasive cut-off machines identified by their type and serial number *1) conform to all relevant provisions of the directives *2) and standards *3). Technical documents for *4) - see page 4. The cut-off grinder is intended for the separation of mineral materials, such as roof tiles, without using water. Use only diamond cutting discs. Do not use any abrasive cutting discs, or other tools. Do not use accessories with threaded inserts. Do not machine any metallic materials. Materials that generate dusts or vapours that may be harmful to health must not be processed. Work only with suitable dust extraction. It is suitable for commercial use in trade and industry. The user bears sole responsibility for any damage caused by inappropriate use. Generally accepted accident prevention regulations and the enclosed safety information must be observed. For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol! WARNING – Read the operating instructions to reduce the risk of injury. WARNING Read all safety warnings and instructions. Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury. Keep all safety instructions and information for future reference. Always include these documents when passing on your power tool.

4.1 Cut-off machine safety warnings

a) The guard provided with the tool must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. Position yourself and bystanders away from the plane of the rotating wheel. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel. b) Use only diamond cut-off wheels for your power tool. Just because an accessory can be attached to your power tool, it does not assure safe operation. c) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter. e) Always use undamaged wheel flanges that are of correct diameter for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. f) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. g) The arbour size of wheels and flanges must properly fit the spindle of the power tool. Wheels and flanges with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. h) Do not use damaged wheels. Before each use, inspect the wheels for chips and cracks. If power tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute. Damaged wheels will normally break apart during this test time.

i) Wear personal protective equipment.

Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. j) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken wheel may fly away and cause injury beyond immediate area of operation. k) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal

1. Declaration of Conformity

2. Specified Conditions of Use

parts of the power tool "live" and could give the operator an electric shock. l) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning wheel. m) Never lay the power tool down until the accessory has come to a complete stop. The spinning wheel may grab the surface and pull the power tool out of your control. n) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. o) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. p) Do not operate the power tool near flammable materials. Sparks could ignite these materials. q) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

4.2 Kickback and related warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging causes rapid stalling of the rotating wheel which in turn causes the uncontrolled power tool to be forced in the direction opposite of the wheel’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in line with the rotating wheel. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain, woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control.

Do not “jam” the wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage. g) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding. h) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

i) Support panels or any oversized workpiece

to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel. j) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

4.3 Additional Safety Instructions:

WARNING – Always wear protective goggles. Wear a suitable dust protection mask. Use only diamond cutting discs. You must not use several diamond cutting discs. Do not use bonded discs. Wear ear protectors. WARNING – Always operate with two hands. Use elastic cushioning layers if they have been supplied with the grinding media and if required. Observe the specifications of the accessory manufacturer! Protect the accessories from grease and physical impact.ENGLISHen

Accessories must be stored and handled with care in accordance with the manufacturer's instructions. The workpiece must lay flat and be secured against slipping, e.g. using clamps. Large workpieces must be sufficiently supported. Damaged, eccentric or vibrating tools must not be used. Ensure that the spot where you wish to work is free of power cables, gas lines or water pipes (e.g. using a metal detector). Avoid damage to gas or water pipes, electrical cables and load-bearing walls (static). Pull the plug out of the socket before making any adjustments, converting or servicing the machine. A damaged or cracked additional handle must be replaced. Never operate a machine with a defective additional handle. Prior to each use, check if there are parts missing, worn, broken, torn or damaged. Do not use a defective or incomplete guard. Use only the supplied clamping devices. Reducing dust exposure: WARNING - Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: - Lead from lead-based paints, - Crystalline silica from bricks and cement and other masonry products, and - Arsenic and chromium from chemically treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well- ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. This also applies to dust from other materials such as some timber types (like oak or beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory diseases. Do not let dust enter the body. Observe the relevant guidelines and national regulations for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal). Collect the particles generated at the source, avoid deposits in the surrounding area. Use suitable accessories for special work. In this way, fewer particles enter the environment in an uncontrolled manner. Use a suitable extraction unit. Reduce dust exposure with the following measures: - do not direct the escaping particles and the exhaust air stream towards yourself or nearby persons or towards dust deposits, - use an extraction unit and/or air purifiers, - ensure good ventilation of the workplace and keep it clean using a vacuum cleaner. Sweeping or blowing stirs up dust. - Vacuum or wash protective clothing. Do not blow, beat or brush protective gear. See page 2. 1 Angle grinder lever (for attaching and adjusting the protective cover) 2Extraction guard 3 Pull machine only in direction of arrow 4 Angle grinder handle * 5 Pushbutton switch* 6 Electronic signal indicator * 7 Extractor connection piece 8 Side handle (of the angle grinder) * 9 Extension piece 10 Spindle locking button (of the angle grinder) * 11 Wheels (for placing on the workpiece) 12 Arrow indicating direction of rotation (direction of rotation of the diamond cutting disc) 13 Spindle (of the angle grinder) * 14 Support flange (of the angle grinder) * 15 two spacer discs 16 Diamond cutting disc * 17 two-hole adjusting nut 18 two-hole spanner

• not in scope of delivery/ depends on equipment Prior to any conversion work: pull the mains plug out of the socket. The machine must be switched off and the spindle at a standstill. Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply. Always install an RCD with a maximum trip current of 30 mA upstream.

6.1 Attaching the extraction guard to the

2. Place the extraction guard (2) in the position

shown on the angle grinder (see page 2, Fig. A).

3. Press the lever (1) and turn the extraction guard

(2) so that the angle grinder is pointing in the direction shown (see page 2, Fig. B).

4. Release the lever (1) and turn the extraction

guard (2) until the lever (1) engages.

5. Make sure that the guard is placed securely: The

lever (1) must engage and you should not be able to turn the extraction guard (2). Attaching the additional handle Always work with the additional handle (8) attached! Firmly screw in the additional handle (8) together with the extension piece (9) on the angle grinder.

6.2 Attaching the dust extraction

Only work with adequate dust extraction: Connect a suitable vacuum (in line with national regulations) to the extraction sockets (7). To ensure optimum extraction, use connection sleeve 6.30796 and a vacuum with automatic filter cleaning. We recommend using an antistatic suction hose Ø 35 mm. Prior to any conversion work: pull the mains plug out of the socket. The machine must be switched off and the spindle at a standstill.

7.1 Attaching the diamond cutting disc

1. Press in the spindle locking button (10) and turn

the spindle (13) until the spindle locking button engages noticeably.

2. Fit the support flange (14) (scope of delivery of

the angle grinder) on the spindle. The flange should not turn on the locked spindle when properly attached.

3. Place the 2 spacer discs (15) onto the support

4. Put the diamond cutting disc (16) on the spacer

disc (15). Make sure the direction of rotation is correct. The direction of rotation is indicated by arrows on the diamond cutting disc and extraction guard (direction of rotation arrow (12)).

5. Ensure that the two-hole adjusting nut (17) and

the spindle (13) of the angle grinder match: lettering on the two-hole adjusting nut and thread details on the identification plate of the angle grinder must match (M14 or 5/8”).

6. Screw on two-hole adjustment nut (17).

7. Push spindle locking button (10) and keep

8. Firmly tighten the two-hole adjustment nut (17)

using a two-hole spanner (18).

9. Check for secure connection.

10.Turn the diamond cutting disc (16) by hand - it must not touch the extraction guard (2) or grind on it.

8.1 Switching on and off

Always guide the machine with both hands. Switch on first, then guide the accessory towards the workpiece. Avoid inadvertent starts: always switch the tool off when the plug is removed from the mains socket or if there has been a power cut. Avoid the machine swirling up or taking in dust and chips. After switching off the machine, only place it down when the motor has come to a standstill. Torque activation (with dead man's lever) Switching on: Slide the trigger switch (5) forwards and then push the trigger switch (5) upwards. Switching off: Release the trigger switch (5).

Always hold and guide the tool by the main handle (4) of the angle grinder and side handle (8), using both hands. Pull machine only in direction of arrow (3) (See page 2, Fig. C.)

1. Position the guard with the wheels (11) on the

workpiece without the diamond cutting disc (16) touching the workpiece.

2. Switch on machine and wait until the full speed

3. Slowly and carefully pivot the machine down

around the wheel axle: The diamond cutting disc (16) will penetrate the workpiece.

4. Pull machine only in direction of the arrow (3)

(work in reverse rotation). Otherwise the machine may kick back from the cut in an out of control manner. Guide the machine evenly at a speed suitable for the material being processed. For optimum extraction, ensure that the wheels (11) are in contact with the workpiece.

5. Once the cut is complete, switch off the tool and

hold it steady until the diamond cutting disc comes to a stop. Never attempt to remove the cutting disc from the cut while the wheel is in motion otherwise kickback may occur.

6. Put machine aside.

Prior to each use, check if there are parts missing, worn, broken, torn or damaged. Do not use a defective or incomplete guard. Significantly reduced work progress and increased feed force are signs for blunt diamond cut-off wheels. Sharpen blunt diamond cut-off wheels by carrying out short cuts into abrasive materials such as sand-lime brick. Particles may become deposited inside the power tool during operation. This impairs the cooling of the power tool. Conductive build-up can impair the protective insulation of the power tool and create an electrical hazard. The power tool should be cleaned regularly, often and thoroughly through all front and rear air vents using a vacuum cleaner or by blowing in dry air. Prior to this operation, separate the power tool from the power source and wear protective glasses and

7. Attaching the accessory

dust mask. Ensure appropriate suction is available when blowing out vents. The machine does not start.The electronic signal indicator (6) flashes. Restart protection is active. If the mains plug is inserted with the machine switched on or if the power supply is restored following an interruption, the machine does not start up. Switch the machine off and back on again. Use only genuine Metabo accessories. Use only accessories that fulfil the requirements and specifications listed in these operating instructions. The maximum permitted thickness of the diamond cutting disc is 3 mm (1/8"). Do not use any segmented diamond cutting discs with segment slits >10 mm. If using segmented diamond cutting discs, only a negative segment cutting angle is permitted. For a complete range of accessories, see www.metabo.com or the catalogue. Repairs to electrical tools must only be carried out by qualified electricians! A defective mains cable must be replaced only with a special, original mains cable from Metabo available from the Metabo service. Contact your local Metabo representative if you have Metabo power tools requiring repairs. See www.metabo.com for addresses. You can download a list of spare parts from www.metabo.com. Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories. Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/19/EU on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner. Explanatory notes on the specifications on page 3. Changes due to technological progress reserved. Ø = max. permitted diameter of the diamond cutting discs

max = max. permitted thickness of the diamond cutting discs M=Spindle thread l = Length of the sanding spindle

max = maximum cutting depth n = No-load speed (maximum speed)

= Power output m = Weight without mains cable Measured values determined in conformity with EN 60745. Machine in protection class II ~ AC power The technical specifications quoted are subject to tolerances (in compliance with relevant valid standards). Emission values These values make it possible to assess the emissions from the power tool and to compare different power tools. The actual load may be higher or lower depending on operating conditions, the condition of the power tool or the accessories used. Please allow for breaks and periods when the load is lower for assessment purposes. Arrange protective measures for the user, such as organisational measures based on the adjusted estimates. Total vibration value (vector sum of three directions) determined in accordance with EN 60745:

= vibration emission value

= uncertainty (vibration) Typical A-weighted sound levels

=Sound-pressure level

= Acoustic power level

= Uncertainty Wear ear protectors!

= vibrationsemission
