USER MANUAL Mega 520200 D METABO

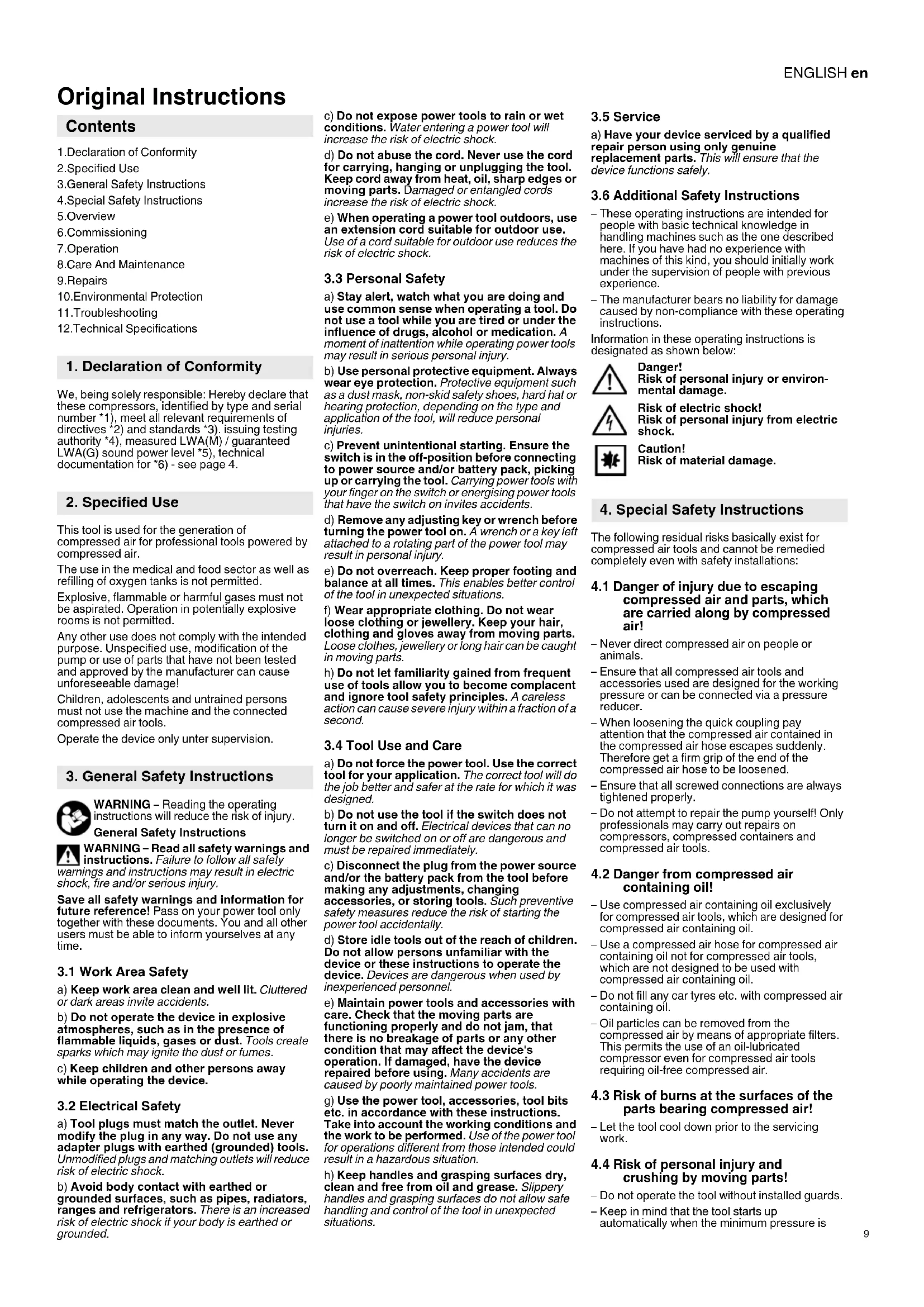

Original Instructions

Contents

1.Declaration of Conformity
2. Specified Use
3.General Safety Instructions
4.Special Safety Instructions
5.Overview
6. Commissioning
7. Operation
8.Care And Maintenance
9.Repairs
10.Environmental Protection
11.Troubleshooting
12. Technical Specifications

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these compressors, identified by type and serial number *1),meet all relevant requirements of directives 2) and standards *3). issuing testing authority *4),measured LWA(M)/guaranteed LWA(G) sound power level *5),technical documentation for *6)- see page 4.

2. Specified Use

This tool is used for the generation of compressed air for professional tools powered by compressed air.

The use in the medical and food sector as well as refilling of oxygen tanks is not permitted.

Explosive, flammable or harmful gases must not be aspirated. Operation in potentially explosive rooms is not permitted.

Any other use does not comply with the intended purpose. Unspecified use, modification of the pump or use of parts that have not been tested and approved by the manufacturer can cause unforeseeable damage!

Children, adolescents and untrained persons must not use the machine and the connected compressed air tools.

Operate the device only unter supervision.

3. General Safety Instructions

WARNING - Reading the operating instructions will reduce the risk of injury. General Safety Instructions

WARNING - Read all safety warnings and instructions. Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Save all safety warnings and information for future reference! Pass on your power tool only together with these documents. You and all other users must be able to inform yourselves at any time.

3.1 Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate the device in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Tools create sparks which may ignite the dust or fumes.
c) Keep children and other persons away while operating the device.

3.2 Electrical Safety

a) Tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, hanging or unplugging the tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3.3 Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a tool. Do not use a tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection, depending on the type and application of the tool, will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations.
f) Wear appropriate clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

3.4 Tool Use and Care

a) Do not force the power tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it was designed.
b) Do not use the tool if the switch does not turn it on and off. Electrical devices that can no longer be switched on or off are dangerous and must be repaired immediately.
c) Disconnect the plug from the power source and/or the battery pack from the tool before making any adjustments, changing accessories, or storing tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle tools out of the reach of children. Do not allow persons unfamiliar with the device or these instructions to operate the device. Devices are dangerous when used by inexperienced personnel.
e) Maintain power tools and accessories with care. Check that the moving parts are functioning properly and do not jam, that there is no breakage of parts or any other condition that may affect the device's operation. If damaged, have the device repaired before using. Many accidents are caused by poorly maintained power tools.
g) Use the power tool, accessories, tool bits etc. in accordance with these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow safe handling and control of the tool in unexpected situations.

3.5 Service

a) Have your device serviced by a qualified repair person using only genuine replacement parts. This will ensure that the device functions safely.

3.6 Additional Safety Instructions

• These operating instructions are intended for people with basic technical knowledge in handling machines such as the one described here. If you have had no experience with machines of this kind, you should initially work under the supervision of people with previous experience.
  The manufacturer bears no liability for damage caused by non-compliance with these operating instructions.

Information in these operating instructions is designated as shown below:

Danger! Risk of personal injury or environmental damage.

Risk of electric shock! Risk of personal injury from electric shock.

Caution! Risk of material damage.

4. Special Safety Instructions

The following residual risks basically exist for compressed air tools and cannot be remedied completely even with safety installations:

4.1 Danger of injury due to escaping compressed air and parts, which are carried along by compressed air!

• Never direct compressed air on people or animals.
• Ensure that all compressed air tools and accessories used are designed for the working pressure or can be connected via a pressure reducer.
• When loosening the quick coupling pay attention that the compressed air contained in the compressed air hose escapes suddenly. Therefore get a firm grip of the end of the compressed air hose to be loosened.
• Ensure that all screwed connections are always tightened properly.
• Do not attempt to repair the pump yourself! Only professionals may carry out repairs on compressors, compressed containers and compressed air tools.

4.2 Danger from compressed air containing oil!

• Use compressed air containing oil exclusively for compressed air tools, which are designed for compressed air containing oil.
• Use a compressed air hose for compressed air containing oil not for compressed air tools, which are not designed to be used with compressed air containing oil.
• Do not fill any car tyres etc. with compressed air containing oil.
  Oil particles can be removed from the compressed air by means of appropriate filters. This permits the use of an oil-lubricated compressor even for compressed air tools requiring oil-free compressed air.

4.3 Risk of burns at the surfaces of the parts bearing compressed air!

• Let the tool cool down prior to the servicing work.

4.4 Risk of personal injury and crushing by moving parts!

• Do not operate the tool without installed guards.
• Keep in mind that the tool starts up automatically when the minimum pressure is

ENGLISHen

reached! - Ensure the tool is disconnected from power before servicing.

• Ensure that when switching on (e.g. after servicing) no tools or loose parts are left on or in the tool.

4.5 Hazard generated by insufficient personal protection gear!

Wear hearing protection.
Wear protective goggles.
Wear a breathing mask for applications generating dust or when harmful gases, mist or vapours are generated.
Wear suitable work clothes.
- Wear non-slip footwear.

4.6 Hazard generated by tool defects!

• Keep tool and accessories in good repair.
  Observe the maintenance instructions.
• Prior to each use check the tool for any eventual damage: Before continuing to use the tool, safety devices, protective devices or lightly damaged parts must be carefully inspected for correct and proper operation. A damaged device must only be reused after it has been correctly repaired.
• Check to see that all moving parts work properly and do not jam. All parts must be correctly installed and fulfil all conditions necessary to ensure perfect operation of the unit.
• Damaged protection devices or parts must be repaired or replaced by a qualified specialist.

4.7 Additional Safety Instructions

• Please also observe the special safety instructions in the respective chapters.
• Observe any particular health and safety or accident prevention regulations governing the use of compressors and compressed air tools.
• Observe the legal provisions for the operation of systems requiring monitoring.

• Keep in mind that escaping condensate and other consumables contaminate the surrounding area and may trigger damage to the environment during operation and storage of the tool.

• Consider environmental conditions:

4.8 Symbols on the machine (depends on model)

Read the operating instructions.

Warning of personal injury by touching hot parts.

Wear eye goggles

Wear ear protectors.

Warning of automatic startup.

Danger - electrical voltage.

Guaranteed sound power level.

Observe direction of rotation.

4.9 Safety devices

Safety valve

The spring-loaded valve (4) reacts if the permitted maximum pressure is exceeded.

5. Overview

See page 2.

1 compressor 2 pressure vessel

3 condensateoutlet

4 safety valve
5 manometer control pressure
6 pressure regulator
7 manometer boiler pressure
8ON/OFFSWi tch
9 air filter / air filter housing
10 oil sealing plug
11 oil inspection glass
12 oil discharge plug
13 connection for compressed air (quick coupling, not pre-mounted), unregulated compressed air
14 V-belt protective grid
15 transport handle
16 Filter pressure reducer
17 Compressed air inlet (quick coupling), controlled, filtered, oil-free compressed air
18 motor protection switch
* depends on model / equipment

6. Commissioning

6.1 Assembly (depending on model)

1. Mount the tyres as shown (see fig. A, page 3).
2. Mount the compressed air connection (13) as shown (see fig. B, page 3).

6.2 Check condensate outlet

Ensure that the condensate outlet (3) is closed.

6.3 Check oil level

Check the oil level of the compressor at the inspection glass (11). If necessary fill the oil until the middle of the oil inspection glass (11). Oil quality see chapter 12. Technical Data.

1. Unscrew the oil plug (10).
2. Fill the oil until the middle of the oil inspection glass (11) or the marking.
3. Screw back in the oil plug (10).

6.4 Installation

The positioning site of the device has to meet the following requirements:

Dry, protected from frost
- Stable, horizontal and even surface

ger!

Wrong positioning might cause serious accidents.

• Secure the device against rolling away, tilting and slipping.
• Safety installations and operating elements have to be easily accessible at any time.
• Do not place the device on its side. Oil might leak!

6.5 Transport

• Do not place the device on its side. Oil might leak!
• Do not pull the device from the hose or mains cable. Transport the device at the transport handle (15).

7. Operation

7.1 Power-supply connection

Danger! High voltage.

Operate the device in dry surroundings only.

Operate the device only at a power source meeting the following requirements: Wall sockets installed according to regulations, earthed and tested; fuse protection according to the technical data.

Position power supply cable so it does not interfere with the work and is not damaged.

Check every time if the device is switched off, prior to plugging the mains plug into the socket outlet.

Protect power supply cable from heat, aggressive liquids and sharp edges.

Use only extension cables with sufficient core cross-section (see chapter 12. Technical Data).

Use extension cables for outdoor areas. When working outdoors, only use the correspondingly marked extension cable approved for this purpose.

Do not switch off the compressor by pulling the mains plug, but use the ON/OFF switch.

Always install an RCD with a maximum trip current of 30mA upstream.

Depending on the phase configuration it is possible that the motor rotates in the wrong direction. This may damage the device. Therefore, check the direction of rotation after every new connection: The pulley of the compressor has to rotate in direction of the arrow (on the V-belt protective grid (14)).

In case of wrong direction of rotation, the phases at the mains plug have to be swapped.

1. Disconnect the mains plug.
2. Swap the phases as shown using a screwdriver (see fig. C, page 3): Push the switch a bit inwards using a screwdriver and turn by 180!

7.2 Generate compressed air

1. Switch on the device using the ON/OFF switch (8) and wait, until the maximum boiler pressure has been reached (compressor switches off). The boiler pressure is shown at the boiler pressure manometer (7).

Attention!

The set control pressure must not exceed the maximum operating pressure of the connected compressed air tools!
2. Set the control pressure at the pressure reducer (6). The current control pressure is shown at the control pressure manometer (5).
3. Connect the compressed air hose at the compressed air inlet:

• Compressed air inlet (13) for uncontrolled, unfiltered compressed air

• Compressed air inlet (17) for controlled, filtered, oil-free compressed air

• Connect the compressed air tool. Now you can work with the compressed air tool.

• Switch off the tool if you don't want to continue working immediately. Afterwards pull the mains plug.
• Drain the condensed water of the pressure vessel at the condensate outlet (3) on a daily basis.

8. Care And Maintenance

Danger!

Prior to all servicing:

Switch machine off. Disconnect the mains plug. Wait until the device has stopped. Ensure that there is no more pressure on the device and all used compressed air tools and accessories.

Leave the device and all used compressed air tools and accessories to cool down.

After to all servicing:

Put back into operation and check all safety installations. Ensure that there are no tools or similar at or in the device.

Repair and maintenance work other than described in this section should only be carried out by qualified specialists.

8.1 Important information

Maintenance and test have to be planned and carried out in accordance with the legal

provisions in line with the setup and mode of operation of the device.

Regulatory authorities may ask to view respective documentation.

8.2 Regular maintenance

Attention!

Check the torque of the cylindrical head screws at the new compressor (1) (see chapter

1. Technical Data) after the first 50 and 250 operating hours.

Prior to every start

• Check compressed air hoses for damage and replace, if necessary.
• Check that all screw fittings are seated securely, and tighten if necessary.
• Check connection cables for damage, and, if necessary, have it replaced by a qualified electrician.

Daily

• Drain the condensed water of the pressure vessel at the condensate outlet (3).

Every 50 hours of operation

• Clean air filter (9) (see fig. E, page 3).
• Check the oil level of the compressor at the inspection glass (11), if necessary refill oil. (See chapter 6.)
• Drain the condensed water at the filter pressure reducer (16).

Every 250 hours of operation

• Clean air filter (9) or replace (see fig. E, page 3).
• Clean air filter in the filter pressure reducer or replace. (see fig. D, page 3).

Every 500 hours of operation

• Completely drain the oil at the oil outlet plug (12) and replace. (See chapter 6.)
• Check V-belt (see fig. F, page 3): Unscrew V-belt protective grid (14). Check V-belt, retighten if required or replace. In order to adjust the V-belt tension, loosen four screws at the foot of the motor and shift motor. Retighten the screws at the foot of the motor. Remount the V-belt protective grid (14).

Every 1000 hours of operation

• Have an inspection carried out in an authorised service centre. This significantly increases the service life of the compressor.

8.3 Storage of device

1. Switch off the device and pull mains plug.
2. Depressurise the pressure vessel and all connected compressed air tools.
3. Drain the condensed water of the pressure vessel at the condensate outlet (3).
4. Store the device in such a way that unauthorised persons cannot start it.
5. Do not place the device on its side. Oil might leak!

Attention!

Do not store the tool outdoors or in damp conditions without protection.

Danger of frost

Attention!

Frost (< 5^) destroys the pump and accessories as both always contain water! If there is a danger of frost disassemble pump and accessories and store in frost-free conditions.

9. Repairs

Danger!

Repair of tools must be carried out by qualified electricians only!

If you have Metabo devices that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.

You can download a list of spare parts from www.metabo.com.

10. Environmental Protection

Danger!

The condensed water from the pressure vessel contains oil residue and/or contaminations hazardous to the environment. Dispose of the condensed water in an environmentally-friendly manner using respective collection sites!

Danger!

The condensed water from the filter pressure reducer contains oil residues and/or contaminations hazardous to the environment. Dispose of the condensed water in an environmentally-friendly manner using respective collection sites!

Danger!

Dispose of the old oil from the compressor in an environmentally-friendly manner using respective collection sites.

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: Never dispose of devices in your household waste! In accordance with European Guideline 2002/10, ion used electronic and electric equipment is implementation in national legal systems, devices must be collected separately and used for environmentally compatible recycling.

11. Troubleshooting

Danger!

Prior to all servicing:

Switch machine off. Disconnect the mains plug. Wait until the device has stopped. Ensure that there is no more pressure on the device and all used compressed air tools and accessories. Leave the device and all used compressed air tools and accessories to cool down.

Any works other than the ones described in this chapter, must be carried out only by a qualified electrician or the service branch in your country.

After to all servicing:

Put back into operation and check all safety installations. Ensure that there are no tools or similar at or in the device.

Compressor does not run:

No mains voltage.
- Check cables, plug, outlet and mains fuse.
- Mains voltage too low.
- Use only extension cables with sufficient core cross-section (see chapter 12. Technical Data). For cold device: Avoid extension cable. For cold device: Depressurise the pressure vessel.
- Compressor was switched off by pulling the mains plug while it was running.
-First, switch off the compressor using the ON/OFF switch (8), then switch on again.
- Motor overheated, e.g. due to insufficient cooling (cooling ribs covered).
- Switch off the compressor using the ON/OFF switch (8).
- Remedy the cause for overheating. Leave to cool for about ten minutes.
-Only three-phase motor model: Check motor protection switch (18), if required, reset by pressing it. (see fig. J, page 3).
- Switch on the compressor again using the ON/OFF switch (8).

Compressor runs without building up sufficient pressure.

• Condensate outlet leaking.

• Ensure that the condensate outlet (3) is closed.

• Check the seal of the drainage plug, if required, replace.

• Check valve leaking.
• Have check valve serviced in authorised service centre.

Compressed air tool does not get enough pressure.

Pressure controller not open enough.
- Open pressure controller (6) further.
- Hose connection between compressor and compressed air tool leaking.
- Check hose connection; if required replace damaged parts.

12. Technical Data

Explanatory notes on the specifications on page 3. Changes due to technological progress reserved.

A=suction capacity

F =filling capacity

L_eff =Effective output volume at 80% max. pressure

p = max. pressure

V=vesse1 size

a = number of air outlets

z = number of cylinders

Nm = Torque of the cylindrical head screws

n0 =max.torque

P=rated input power

U = c o n e
=rated power
F =min. fuse protection
IP =protection c
G =maximum overall length and core cross-section of extension cables

A=dimensions (lwxh)

Tmax=max. storage / operating temperature
Tmin =min. storage / operating temperature
Oil =oil quantity and quality for oil change (depends on model)
m =w e i g h t
* = The service life of some components e.g. seal in check valve is significantly reduced, if the compressor is operated at high temperatures (max. storage / operating temperature and higher).
= At temperature below the min. storage / operating temperature, there is danger of frost for the condensate in the pressure vessel.
The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).

A Emission values

These values make it possible to assess the emissions from the device and to compare different devices. The actual load may be higher or lower depending on the operating conditions, the condition of the device or the accessories. Please allow for breaks and periods when the load is lower for assessment purposes. Arrange protective measures for the user e.g. organisational measures based on the adjusted estimates.

Typical A-effective perceived sound levels:

Lp =sound-pressure level

LWA =acoustic power level

L_WA(M) = Measured acoustic power level as per 2000/14/EG

L_WA(G) =guaranteed acoustic power level as per 2000/14/EC

K_pA K_WA = uncertainty

Wear ear protectors!

ENGLISHen

Information on the nameplate:

A Manufacturer
B Item, version, serial number
C Machine designation
D Connection voltage / frequency
E Rated input power
F Rated power / protection type
G Max. torque
H Max. pressure
ICE mark - This machine conforms to the EC directives as per Declaration of Conformity
J Year of manufacture
K Suction capacity
L Filling capacity
M Compressor speed
N Number of cylinders
Boiler size
P Disposal symbol (see chapter 10.)

Notice originale

Sommaire

Varning for livsfarlig elspanning!

Garanterad ljudeffektniva.

Reparation: tv has a superbubligation elektriker!

Opate npootateutika yuaia

PnoeioiOn ano evxoeyn autouatn kivnon.

Ppoeiiooan ano Eriikivnu nAektpk taon.

Eyyunuevnotaunn xntuknc ano8oooc

PnooEETm npopa npiotpOphc

4.9 IataEic aooaaleias

Baβiδa ααφαλειας

H eupiaokóevn uno iian Eaatnpoiu,baaibda niec (4) vepyonietov,otv yivetai unepBaTnTc nntipenoeu neyioTnc nieonc.

5. Entokon

Bλeπσηελiδa2.

1Zumukwntns
2Doxio nien
3 Ekkvwoon oumukvawato
4Baβiδaασφαλεια
5 Mavóετρο πεοης ρύθμιασς
6 Puθμiοτης πεόης

IP = Katnyopia.npootaiac

He pa3pe7aeeTcNcNoB3oBaTb erO B MeDnUHcKoN NPiueeBOI PnOMblNeHHOCtN, a TaHKe IJr HAnOIHeHn6 BaJIIOHOB BO3dyXOM dIbIbIXaHnR.

3anpeaaetcBAcBbHaHHe B3pbBoONaChbIX, ROPOHX INI ONaCHbIX T3DOpOBra3OB. 3anpeaaetcKcnPlyaTPOBaBb TpN6oB Bo B3pbBOONaCHbIX NOMEUeHNHX.

JIIO6OE dpyroE hCNOJb3OBAHHe RAJIeTcR HeNDOnyCTHMbIM. HcN0JIb3OBAHHe He No HA3NaEHINIO, hM3MeHENr PnIbOpaH NcN0JIb3OBAHHe DEtaLei, KOtOpBie He bblIn pIOBepHeH NIO ODO6PeHb IPOIN3BOdITeLEM, MOYr IOBLeu 3a COoH NepeDbUdEHb MATEpHaNbHbI yue6o!

TeN,IOpOCTKNIIMUa,HeIPOWEDHnE HnCTpyKTtak,HeDOnyCKAOTCR PaOBTe C daHHbIM PnB6OpOM NcPnCOeDiHNHbIMn K HemyTHBEmatNUeKmMn HnCTpyMeHTAmn.

IcnoB3yIte np6op TOnbNo no npncMOTpOM.

3. 06uhe yka3aHnno TeXHHe 6e3OnacHOCTn

PNEyPENKHEHNE!BueJx

CHINKENH PnCKa NOLyueHnTeLECbIX

NOBpeKdHn npOyTnte daHHoe

pyKOBOCTBO NO 3KcNlyatauH.

06uHyHa3AHnNoTexHHKe 6e3oNaCHOCTN

IPEyIpyEHEHNE-BHMaTeJbHo npOHTTE BcYyKa3aHHNo TExHHe

6e3oNaCHOCTN HnCTpyHcH. HecobIOJeHne HnCTpyKuH N yHa3aHN NO TexHKe
6e3oNaCHOCTN MOKET nPbBeCtN K nopAKeHIO
3NeIeTpIyCeCHM TOKOM, BO3HMHOBHeHIO NOkapa
WnK N pOlyeHIO TReEkbx TpaBM.

CoxpaHnte Bce HNCTpyKun N yKa3aHHn NO texHNHe 63oJACHOIN DnAICNoB3OBAHHN B 6dyuem! IpeepaBaIte np6Op TBJko BMcTe C 3TmIM NoKymeHTAm. Bbl N BCE pUyne NoB3OBATeIN DOJIKNHb IMETb BO3MOKHOCtB JIOBOe BpEmaNOJYHtB HkyHIO NHOpMaNUO.

3.1 Bezonaachoctb Ha pa6oem MecTe

a) CJIeIHTe 3a YHCTOTOn H NOPJAnKOM Ha Baewem pa6oYem MeTe. BeCnOpaOK Ha

pa6oyem MeCTe H IIOXoe OCEueHne MOryT npNBecTu K HeCuaCTHbIM ClyqaM.
6) He pa6oTaIe c np6opom Bo B3pbBOONaCHO 3OHe, B HOTOPo HaxoJrTcR TOpOHy XnHKnOCTn, Ra3bI NII PbIb. PnP pa6oTe np6pO nKpNT, a NCKpbl MOryt BOcPJIaMeHHTb NII NII napbl.
c) He donychaie Te dTe H nprynx Jnue R Baewmy paOoemy Mecty npa6ote c npnbopom.

3.2 ΘeKtpnuecka 6e3oNaChOCTb

a) BnHa ceteBoro Ka6eI np60pa DOnHnA COOTBETCTBOBaT 3JeKTPnueChn PO3eTHe. He NImeHae Te KOCHpyKUHNn Hn. He npimehnTe wTeHepNbe aadntpebI nI np60OB C 3auHTbM 3a3EmHeM. IcNoIb3OBAHne OpunHnAbHbIX BNIOK IN COOTBETCTByIOuNX IM PO3EoK CHnKaet PnCK IopakHeHn 3JeKTPnueChm TOKOM.
6)I36eRaTe KOHTaHTc 3a3eMJIeHHbIMN NOBepXHOCTMaTakHMn KAty6bl, HArpeBaTEHn, NIIbTIu XJOIoHNbHKaMn). I0bIeHHaOnaChOCTb nopaxKeHnA 3JIeKTPnueCKm TOKOM, eCNI Baue TeNo 3a3eMlHo.
B) 06cepebte 3aunty npn6opob otdojna BO3dienTBBAIg. IPOHMHOBEHNE BObl BHTpb np6opa yBeHnYBaET pNCH nopaJHexHH 3JIeKTPOTOKOM.
r) He nCnoJb3yIe CoeHnHTeBHyIO npOBoKy He No H3HaueHnO, HAnpHmep, IaI nepeHoCKn npB6opa, erO NOBeWuBaHN IIN IaI BbITRnBaHN BnIKN H3 PO3eTN. PImpHMe MEPbNo 3aUHTe KAbEaT O Bo3dienCTBn BbICOHX TemNepaTp, MaCna, OCTpbIX KpOMOK NIN NOBbNKbIX YAcTei npB6opa. NOBpeKDeHHaN NIN CNYTaHNA CoeHnHTeBnHn IPOBoKa NOBbIIaET PnCK NopAKeHnra 3JIeKTPNCECHN TOHOM.
I)Pn pa6ote c npnsbopom Ha OTKpbITOM BO3dyxe hCNOJb3yTe TOJIbHO TY yDHHHTeBHyIO npOBoHy, KOTOpYIO pa3peWEO hCN0N3BOaTB bNe NOMEueHNIcNoIb3OBAHHe yDHHHTeBHO INpOBoHN, npeHa3NaHEHHO JnPaOToH NaOtKbTlOM BO3dyxe, CHNkaet pNc NK PopaKeHnI 3JIeKTPNueChk NM TOKOM.

3.3 Bezonachoctb nepcohana

a) EbytBe BHNMaTeIbHbI, CneJeITe 3a CBOHMn DeCTBnMn H cepbe3HO OTHOCHTecb K pa6ote c np6obOpm. He noJIb3yItecb np6obOpm, ecNn BblcTaN, haxoJNTecb NpO deICTBHeM hapOTnKOB, anHorOJa HnI lekapCTb.MomeHT HeBHnMaTeIbHOCTH npI pa6ote c np6obOpm Moket npuBecTN K Cep6b3HbIM TpaBMam.
6)Поль�уITEcB cpeCTBamn
HININBUNyALbON 3aunTbI N BCerda
HadeBaIte 3aunTHbIe OCHN. CpeCTBA
HININBUNyALbON 3aunTbI, PnIMEHReMbIe B
3aBNCIMOCTN OT bUdA H NCIOB3OBAHN
PnIPoBa, HApnIMep, nbIe3aunTHbI,
pecnnpaTOp, OBybC HeCKOJIb3RJeuE N IODOuBOi,
3aUnTHaK KaKa H N CpeCTBa 3aunTbI CnyXa,
CHINKAOT PnCK NIOUYehN TPABM.
B)ИЗбeraиTe HENpeДнAmepeHnHO BnIoueHn Inp6Opa.IPexde Yem IOdHIIOuayI np6Op K HcToHnky NITaHn, 6BaTb erO bPyKn HnpeHocNTb. y6eHTeB TOM,уTO OH BbIKIoUeH.EcNb Bby II npNoHoEHNII np6Opa dExnite NaJIbciHa BByIKIOuAteNe IIN cEnBbI pOnHIOuaete BnIKIOuHbI np6Op K JIeHtPOnITaHnO,TO 3TO MoJcET npHBecTHN HeCuaCThMb CnYaAM.
r)Y6epntpepylnpOBOHbIe HNCTpyMeHtBu IraeHbIe HIOUnepeB KIIIOueHHem np6opa. IVCHTpymEHTN RAeHbI KIOU, HaxoJaIcH B0 BpaAIOeC JaCTn Pnp6opa, MOKET pINBECTN K TpABMaM.
d) CLeIHTe 3a npabHbHO NOCTAHOBKOI npOyca npn paObe c npHbOpOM. IpHMnTe yToHnBOE noLoKHeN He oecneYbTe hadeHHb3 axBt npHbOpA dJe COxPAHenn paBHObecn B IIObO paOoey CNTyaun. B TaHOM noLoKHeHN Bbl CMOKeTe lyuue depKaTb ND KOHTPOeM npHbOp B HEOHNdaHHbIX CNTyaunX.
e) NcnoIb3yIte noxOaIyIO oJeHy.He nolb3yIrecb npocToPHO OeJdoHn

yKpaSeHnM. DepKeTBe BOLOcb N OeJdy Ha 6eOanChom pacCTOBHM OT NOBbHXbIX Detanei.CbO6DHa oEJa, yKpaSeHnHn DNHHBc BOLOcb MoTy 6bIb 3aXBaVeHb NmI.

K) He ycnohanBaIte ce6a loXbI m YyBCTBOM 6e3oNaCHOCTn OT OCHOBATEbHoro 3HaHnra np6bopa B cny ermo MHOROKpaTHoro nCNoBbOBAHn H ne ycTpaHnTeCB ot co6IHOENn paNBn 6e3oNaCHOCTn npna pa6ote c np6pOpm. Bceroe HcNbHOceHyd NEHBMaTEbHOCTn B pa6ote MoJET npNEBCTN TRAHEblm TpaBMam NIN MaTePnaJIbHOMy Uyep6y

4.2 Coephaaun MacJcHbI Bo3dYx RbIeTcH NCTOHHOM onaCHOCTH!

CkaTbB03dyx,coepKaunMacoNo, Heo6XoNDMOHCnOJb3OBaTBTObKOdI INHEBMATNuecknxHCTpymEHTOB, npedHa3HaehHHbIXdPaaboTbICtAHM BO3DyXOM.
-ⅢnHa, KOtOpbI nCNoIb3OBaIcRdIeCoDEpHaaJeroMACaIcKaTOroB3DyXa,HeJIb3I pIIMeHHTb dIyI INHEMaTHUeCKHXHCTpyMeHTOB, He npEJa3HaueHHbIX dIypa60bITc BO3DyXOM, CoDEpHaaImM MaCIO.
-3anpeaetcncnoIb3oBaTbcoepkaunMacNo CkAtbB03dyIJIHAnOJIHeHNA BATOMOBNbBHIXHNI T. D.
-COOTBETCTBYOUINEФHbTbI NO3BOJIAOT YdaJIaTB YaCTNcIbMaCnA IN3 CKaTOrO BO3dyxa.TaHM O6pA30M，MOHHO NcPOnJIb3OBaTb KOMPpeCCOP CMaCLHNO CMa3KoN TaKHe JnR NHEBMATNUeCHNX HnCTpyMENTOB, JnKOTOpBX Tpe6yEtCAkTaBIO3DyX 6e3MaCna.

4.3 OnachocTb OKOROB npH KOHTaHTe c NOBepxHOCTAMN KOMNOHEHTOB, NPOBOdAUX CHaTbI BO3dyX!

-PepeHauaIOMpaobnoTexOcnyKunBaHHIO np60pdoJKeHOctbTb.

4.4 OnacHOCTb TpaBmI 3aueMJIeHnnoDBrHHbIMn DeTALAMN!

-3anpeuaetcBBODHTb npn60B 3KCNyatauHIO 6e3 yCTaHOBLeHHORO 3auTHORO yCTPOCTBa.
—CleNyTe IMeTb B vNdy, YTO pIpy DoCTHKeHnMHNMaJIbHOrO DAJIeNpIPON3BODHTcA BtOMaTIueckn 3aynck npn6opar！-Ipepe

PnOBeHHeM pa60T NO TExO6cLyHNBaHHo y6eHTecb B TOM,TO pNp6op OTOceHHeNOT 3JIeKTPocETn.
-PepeB BnIOUeHEm 3NEKTPueckoro npbOba (hnpimep, nocse 3abepeHnpa6o TEOxobcIyHNBaHHO y6EHTecB TOM, cTO BHyTPO HeO HcTALOCb HNKaHX HCTpyMeHToB HnHe3aKpEnHbX DeTaJIeN.

4.5 OnacHOCTb BCLeECDTBHe HeIOCTaTOHORO OCHaUeHNr CpeDCTBAMn INHINBHyaJIbHOJ 3auNTbI!

-IncnoIb3yIte 3aunTHbIe HayuHnKn.
-Pa6oTaIeB3aunTHbIXOHHKx.
-BbIOJHpa60TbI，CB3aHHbIe c o6p3O8aHHeM NblnnNnONaChbIX dJIr 3dOpOBBa rAOB，TymaHa Nn napOB, HadeBaTe DbXaTeJbHyO MaCy.
-Pa6oTaIeB CneuaJIbHoN OeJHcIe.
- IcnoIb3yIte HeckoIb3aIyUO 06yBb.

4.6 Onachoctb, obycnoBleHHa defeKTam np6opa!

-3JIeKTPoPnp6OpI npHnHaJLeXHoCTN Tpe6yIOT TuateIbHOrO yxOJa. Heo6xoHMo c6bIOaTb npEINcAHn IO TexHueCKOMy 06CNYKBAHHIO.
-NepeKaHdbIMNcNoIb3ObaHNEMnpi6bopa npoBepBeTe rOHa BO3MOKHOCTb NOBPeJDeHN:PepeKaHdbIMnpHMHeHNEM npi6bopaTuataleJBHo npoBepReTeNCpPaBHOCb HpaOBtocNoc6bHOCTb PpeOxpaHteJBhXyCTpoCTb 1aazHTbIXnPCNOC6beHN, a TaKHe NERHO NOBPeJDAeMbx DetAnei. NobTOphoe NcNoJIb3OBAHHe NOBpeKdEHHORo HacocA DonyCkaeTc TOnbIO NoCle OcyueCTBHeHnpeMOHTa KBaINfNuproBOAHbIMn CneuaJANCTAMn.
-Поберпг.ИСпразьнол pa60taOT NOBnHbIe DetaII, He 3aKaTbI IIN OHN. He6xOdmo npabInbHO MOHTpoBaTb BCE DeTaII N BbIOJIHaRte Bce YCJIOBnIЯ O6ecneYehn6 BeCpe6oHOn Ho pa60tI 3JIeKTPuYeCKOrO np6Opa.
-Поврждение зашипные устpojectаилдоталл полескат ремоHTулл замеье Всетцаллзшювано мостерсков.

4.7 DOnONHnTeIbHbIe yHa3aHnNo TExHHke 6e3oNaCHOCTN

TAnke cneJeYcOBeIOaIb TceNaeJIbHbIe Yka3aHaHNoTexHKe6eOanacOHTN, N3LOXHeHNbIE B COOTBeTCTBMyINrIaBaX.
-Пи Heo6xmoCTn C6IOaJaTe
PpeHncaHnNo 6e3OanCHOt TpyDa
Ob6beHNHeHn OTPacNEbBix CTpaXOBbIX COK03OB
IIN PpAIBJNe PpeDyPrEckHeHn HecCACTbHix
ClyuAeB npi paboTe C KOMPeeCCopamn I
NHEBMATNUeCKHMn INCHPTyEMHTAMn.
-Co6IIOaIte HOpMaTHBbIe IpeDnHcAHNnno paBoTe C O6OpYDoBaHem, HyDaouMmC B KOHTpOJe.
-Пиэкслуataunn XpaHelen npnbopa cIeIne 3a TeM, YTObI bIcTynaouoi KOnDEHCAT n Dpyrme kCnlyatauHOHbIe MaTepeNaJIbHe 3aqr3HJI N OkpyHaOJyIO cpeyN He HaHocNIe EeBPe.
- YuHTbIaIe BO3dEInCTBnA OKpyHaIOUeI cpebl.

4.8 CnmbOJIbHa np6ope (B 3aBnCHMOCTN OT MOeJIH)

PpOueCTb pyKOBoDcTBo nO hKcIyatauN.

PpeDynpexHHe 6 onaCHOCTn TpaBMbl npKaacann pa30rpeTbix qacten.

HocHTe 3aunTHbIe OUKN.

IcnoB3yTe cpeCTBa 3aunTbI opraHOB cnLyxa.

PpeynpeKdene 6abTomaTneckOM 3anycke.

PpEynpeJHdHeNcO6 OpaCHOM 3JeKTPnuecHOM HaprrKeHHI

TapaHTnPOBaHHbI yPOBeHb 3ByKOBO MOUHOCTN.

YHTbBaTb HappaBHeHne Bpaaehna.

4.9 PpeoxpanTeNbHbIe ycTpoIcTBA PpeoxpanTeNbHbI Klanan

PpyHHHbI ppeOxApaHnteIbHbIKaIaH (4) cpaBaTaBbAeT BcIyIpeBbIeHnRA MAKcHMAbHo DOnyCTHMoro DaJIeHnA.

5.063op

CM. ctp. 2.

1 Komnpeccop
2 HanopbippeepByap
3 OTOBOD KOHDeHCata
4 PpeoXpaHHTeBhI Klaanah
5 MaHometppeIpyeMOro daBHeHHa
6 PeryIaTOp daBneHnIa

7 MaHometp daBneHnB KOtne
8 BbIKIOHcATEIb (BKN./BbIKI.)
9 Bo3dyuHbI HnIbTp/ Kopnyc Bo3dyuHoro HnIbTp a

10 Pe3b608 np6ka maclohaHnBHO TOBEPCTHAR
11Ima3OK MacNooyka3aTeJIa
12 PpO6Ka dIa cIbBa MaCna
13 POBoD CKaTOrO Bo3Dyxa (6bICTPpOa3BeMnHAA MyΦTa, 6e3 npeBAPInTeNbHOrMO TOnTaHa), HepeYInHpYeMbI CKaTbI Bo3Dyx
14 3aunTHa peWetKa KInHOBnHOro pEmHa
15PyuKa dIa TpaHcnOpTnpOBKn
16ΦnIbTp-peyKTop
17ПодклоченсKaTOrO Bo3dYxa (6bICTPpOa3bEMHaMyΦTa),peryIINpyEmbI, OfHnIbTPOBaHnBHe,He CoDEpKaUm MacLa CkAtbI B03dYx
18 3aunTHbI aBtOMaT dBHraTeIa
B 3aBcHMOCTN OT MOeJI IN KOMJIeKTAUIN

6. BbOaB 3HcnpnyatauHIO

6.1 C6opha(B3aBNCHMOCTNOT MOeJIH)

1. YCTaHOBtE KOJecA, KaK NOKa3aHo Ha pncyHKe (cm.pnc.A, cTp.3).
2. YctaHOBtne npaty60k noaun cHatoTO BO3dyxa, (13) kak noka3aHa npCynHe (CM. pnc.B, Ctp. 3).

6.2 Поверпа OTвда снDHссаТa

Y6eHTecb, YTO OTBOK KOHcHcTa (3) 3aKpbT.

6.3 IpoBepHa yPoBHa Macla

IpoBepntb ypOBeHb Macna B KOMnPecCope nMoACNOyKa3aTeJIU (11).PnI Heo6xOdNIMOCTHdoJIbMCTBO DO cepeINbI MaCNOyKa3aTeJIa(11).KaeCTBO MaCNo - CM. rIaby

1. TexHHueckne daHHbIe.

2. Otkpytnb pe3b6oby np6ky macloHaJIbHOrO 0TBePcTnA (10).
   2.3aIbMaCNo Do cepeHbMaCIOyKa3aTeJI (11)nn Do mapKnipOBKn.

3. CHOba 3aBHTnTb pe3b60byu npo6ky MacloHaiBHOrO OTBepCTn (10).

6.4 YCTaHOBKa

MeTO yCTaHOBKn npnbopa doJHKo COOTBeTCTBOBaTb CNeDyIOUm Tpe6OBAHnM:

-CyxoE n 3aunueHnoe OT MOpO3a
-Почhoe，rOpHOTaJIbHoeиpoBHOe OCHOBAHne

Onachoctb!

HenpaBbHO BbINOHeHHa YcTaHOBKa MoKeT CTaTb PnUHHO CepBe3hIx abapM.
-He donyckaTe OTkata, onpOKnDbIBaHnI cKoJIbKeHnI np6opa.

-He6xoJMO 06eCNEHTb NOCTOHHBHy ydoHbN DcTNK NpeoXpAHTeJIbHbIM ycPoIHCTBAM N3JeMeHTaYnpaBEHn.
-He Klaactb np6op Ha 6ok. Bo3moXHO BbITEkAHne Macla!

6.5 TpaHcnpTIpOBbHa

-He Klaactb np6op Ha 6ok.Bo3moKHO BblTeKaHne Macla!
-He TnHITe npH6Op 3a WnAHR Nn 3a cTeBcO KaBeIb. NpeMeuAsTe np6Op 3a pyKU dIra TpaHcnpotnpOBKn (15).

7.3Kcnnyataun

7.1 NpHIOeHn CcTeH 3/NTaHH

Anachoctb!3JeHTpruechoe HanpJHHeH.

NcnoB3yTe np60p TOnbko B cyxnx nOmeueHnX.

IpoHnOuHaTe np6Op ToIbHo K nCTOuHNy
PHTAHN, COOTBETCTBYUoSeMy CLeDyUoIIM
TpeBOAHNm: PO3eTHn HaNJIeKaUIM Opa3OM
YctAHOBLeHbI, 3aEMLneHbI N pOBepeHbI;
PpeOxPAHnTEbHO bCtPOJrTO Bo DJIKHO
COOTBTCTBOBaTb TEXHnueckHM DaHHbIM.

TeBoHNaBeHHeo6XOdMnIPOKHaDbIbA TbKIMOBp3OM,HTo6BHOHEMeuAnIE6blNobpeKJHDeXOeCHKnYatauIN

PpeJde YemCTabJIaTb 1tTeNceJIbHyIO BnIKyB pO3eTHY, Heo6xoIIMO BCerJa nPoBeRtB, BByIKJouChen IIN pIbn6Op.

CneyET npEoXpAHrBcTeBOH Ka6eJbOT HArpeBa,BeOeCTBnA rPeCCNBbIX HmKOCTeH N KOHTaTcOCTpbMn KpOMKaMn.

B KaueCTBe ydInHInTeIbHorO KaebIaNcNoIb3ObaTb ToIbHO KaebIc DocTaToUHbIMCeueHHeM Jnbl (Cm. rnaBy 12. TexHHueckne daHHble).

ДярабовиВHEnomeшENHcNoIb3yIte ydlnHNTeIN.ПЯ раobTAX BHEnomeSHEN HcNoJIb3yTEToTJbHOdOnyUeHHBIEK 3KcNPyaTaUNy dYdlnHNTeIN c COOTBeTCTByOuEe MapKnpoBOKn.

He paaeTaCBAHIOaTb KOMPecCop, nBnEka WTeNceBHyO BnIky NpO3eTKn,ДТЗTO CNEyETNCNoB3OBaBb BbHIOaTeBb.

NepHINCTpyMeHTOMBcTaNOHIOUaTeYcTPOCTBO3aUNTHOROTKJIOUeHnY（Y3O）CMAKC.TOKOMOTKIOUeHnY30MA.

IcnoJHHe nJ Tpexfo3HOro ToHa: IpoBepuHnpaBJIeHne BpaueHn!

B3aBnCmOCTOn oPacnpedeHEnHnFa3
DbIrAteIb MOHeT BpaAtbCn B HENpABINbHOM
HaNPaBJeHnN. 3To MoHeT npBecTe K
NoBpeJHnO np6oBa.PoTOMy nocLe
KaHIOHO HOBOr NOdKIOUcHEnn PPOBepRnTe
HaNPaBJeHne BpaUeHn: peMeHHb IuKB
KOMnPceCCopa DOJIKeH BpaAtbCn IO
HaNPaBJeHnO CTpeJn (Ha 3aunTHoPeWtke
KInHOBNDHO rpeMn(14)).

PnHnENoBbHOM HnpaBHeHH BpaeHnHaEO6XoHMO NmEHObMbMeTaMnFa3bHa UTENcEbHOB BNKe:

1. H3BneHbTencelbHyu BnIky n3 po3eTHN.
   2.C NOMOJIbIO OTBepTHN NOMeHATb MecTAMn faa3bI, KAK NOKa3aHO Ha pncyHKe (CM. pnc. C, ctp. 3). CNeRka BdaNtB bblHIOuHaTeNb I NOBepHyTb Ha 180^

7.2 HarheTaHne cHaTOro Bo3dyxa

1.BKIOHHTb npIN6Op C NOMOUBBO BIKIOUOATEJI (8)N DOXDA TBc DOCTNKEHNA MAKCMALNBHO O DAJBNEHNA B KOTNE (KOMPecccop OTKIOUaETc).DAJBNEHNE B KOTNE OTOBpaKaAeTcHa MaHometpe DaJIeHn（7）B KOITne.

BHHMaHHe!

YcTaHOBJIeHHoepeRyInpyEmoe daJIeHHe He DOJIKHO pReBbIaTb MaKcIMaJIbHoe pa6OHee daJIeHHe npICoEiINHEHbIX nHEBMATNueCcknx HHCTpyMeHToB!

1. UcTaHOBnTb peryIpyEmoe daJIeHne npn nOmoOn peryJrToPA (6).TeKyuiepe peYIpyEmoe daJIeHne OTobpaKaaeTcHa COOTBTCTByoHcEM MaHOMeTpe (5).
2. NpOcOeHINHTb NHeBMaTnueCkN IaHaN K natapy6ky npdaun CnAToR OBaDyxa:

PoiKIOHcHHe CHTaTOrO Bo3dyxa (13)IJI HepeyIHyPeMOrO, HeOTΦHbTpPoBaHHo TcHAtOrO Bo3dyxa
PdKnHIOeHHe CxHatoro Bo3Dyxa (17) dny peYnIpyeMOrO,OTfNtBtroBaHnHO, He cOpdrJaueero MaCna CxHtoro Bo3Dyxa

1. PnHcOeDHNHTb NHEBMaTHUeCKN INCTpyMeHT. Iocne 3TOFOMOHO pNCTpyNAtB KpABoTe C INHEBMATuNECKM INHCTpyMeHTOM.
   5.EcnnBbHeCobupaTeceb npoDoJkaTb paOby CnpoBpOM, Heo6xOdmo BbHIOCHHTb erO. Iocne 3TOrO nBnEh bTEnCeIbHyIO BnIKy n3 pO3eTKn.
2. EkehdheBHO cnyckatb KOHeHcCat n3 HanopHOro peepByapa yepe3 OTbOD KOHeHcata (3).

8. TexHnuechoe 06cIyHHBaHHe n yxo

Onachoctb!

Ipeep npoBeHHeM IIO6bIX pa60T ha npin6ope:

BbHIOCHHTb np6Op. N3BNEe bIeNceJIbHyo BnIKy n3 pO3eTKn. DoKDaTbcra NoHOJ OCTAHOBKn pIN6Opa. Y6eNtBCBa TOM, qTO B np6Opbe, a TaKke BO BCex IcNoIb3YeMbx INHEBMATUeCCHNX INHCTpymEHTax INpHaIeHHoCTx OTCyTCTByET DaBHeHne.

DOnKaTbCry OxlaHKeHnI npHbopa, a TaHoKe
BEX cNIOJIb3yEmbIX INHEBMaTHNeCHKx
HHCTyDMTOB N pINHADJIeKHOCTei.

Iocne npoBeHnJIIO6bIX pa60T Ha npnbope:

CHOBA BBeDnTe B 3KcNpyaTaunH No npObePbTe BCE npDoXpaHnTeBnHe yCTpOCTBa. Y6eDnCBa TOM To B nPiOpE h He HxOaTcH INCTpymENTbI N TOM NIOo6bHe ppeMeTbI.
OncaHbIe B HactoIeMaPazIe pa60TbI NO Tex6CnyBaHnIO pEmCHy DoJIHHbBy BBOINIRCTbO TOJIbHO CNEHNACTAMn.

8.1 BaxnHaI HΦopMaun

Планроваиме И побendeиме Тхического бocунваян И спытайдошно пponьдся соглacho зakohodateleblhIM HOPmB COOTBETCTBM C yctahOBKoi n pehhimom paobot npnbopa.

OpraHbHa3opaMoryTnotpe6oBaTb npEdbBHeHHcoOTBeTCTByUoSei DOKyMeHTaUcN.

8.2 PerylaepHoe texnuechoe 06cnykubahne

BHHMaHHe!

Ha HOBOM KOMNpeccope (1) npoBepnTb MOMENTbl 3aTJHKH NBIHTOB C uINH DpueeCHOI FOBOBHOK (cm. Taby 12. TexHueckne daHhbe) nocJe nepBbX 50 n 250 cacob pa6Obl.

HaHdbpa3pepeHaayamopap60tbI

-Поверпь ПЕВМATУСЕЧКЕ 施ан Ha NaIuNHe NOBpeKdEHN, pRn Heo6xOdMmOCTn 3aMeHNTb.
-Поберпь почнocь peьбовыx
CoeHHeHH, npn Heo6xOaMOCtN 3aTMyTb.
-Поверпь соедингелыкабл haHaHnue noBpeKdEHH,prn Heo6xOIMocTn npoyuHT ero 3aMeH cyneuaNCTy-3JIeKTPNK.

EeHHeBHO

• Cnyctntb KOHdeHcAT n3 HAnOpHoro pe3epByapa uepe3 OTBOD KOHdeHcata (3).

Yepe3 KaHdbie 50 yacob pa6oTbI

He pa6oTaet HOMnpeccop:

Cetbeoe HapnKeHne OTCyTCTByET.
-Поверпь Кабь, ВИнку, розтку ИnpedoxpaHNTeIb.
- CTeBoe HnpanKeHne CInuKOM Hn3Koe.
-BKaueCTBe yDnHHTeBHO Ka6eJN CNOJb3OBaTb ToBko Ka6eJb C DoCTaTOUHbIM CeEHm KInbIc (cm. rnay 12. TexHnueChne daHbIe).PnHnOpRpTeom pnp6ope: N36eRaTb NcNoJIb3OBAHmry DnHnHTeBHO Ka6eJN.PnHnOpRpTeom pnp6ope: CtpaHtB DaBHeHne B HAnOpHOM pe3epByape.
KOMPecocp6blIbIKJIOueH BO BpeMpaObTbI nOpeCTBOM 3BJIeHnA WTEncelbHOB BNHN H03PO3ETKN.
- Chayana OTHIOHTb KOMTpeCCOP C NOMOJIbBO BHKIOHTeIa (8), 3aTEM CHOB BKIOHTb.
- NpeperpeB DnHrataTeIa, HApnpMeP, BCJeCTBHe HeoctatoUHO OxlanKeHnE (OxlanDaOnne pe6pa 3akpbTbI).
-OTKIOHTb KOMPpeccop C NOMOsbBbIKIOVATeIa8.
YcTpaHnTe npMHHy nepepeBa. DaTb DBaIATENo OXnAHTBcR B TeueHHe npMepHO DEcTn MHyT.
ToIbHOI INCNOJIHHeNc D BnIRATEENm nepemEHNOrTOKa: IPOBepNTb 3aunTHbI bAOTomat DBnIRATeJIa (18), pni Heo6XoDMOCtN BInOJINHITb C6poc nOpceDCTBOM BdABJIINBAHn. CM.pnc.J,CTp. 3.
-IOBTOPOB BKNIOHHTb KOMPpeCCOP C NOMOuBHO BBKIOHATeTn (8).

Homnpeccop pa6oTaet, He harhetan doCTaTOHoe daBHeHne

HerepmetuHOCb OTbOa KOHehcaTa.

• Y6eIHTecb, YTO OTBOD KOHDeHCata (3) 3aKpblT.
  -Поверпь уллгене pe3ббови npбнИТВЕСТНДСЛСИКОДЕССТА; рпн Heo6xOДMOCNt 3aMeHNTb.

HapyeHne repMeTHuHOCTn 6paTHoro KlaanaHa.

• BbINOJIHHTb KaNTaJIbHbI peMOHT o6paTHO
  Klanana B cneuaIIN3npoBaHOH
  MaCTepCKOJ.

B INHEBMATMueChn HNCTpyMeHT He NOaetcdoCTaTOUHoe DaJIeHne

HeoctatoHOn WnpoKo OTKpbIT peryIaTOp daBHeHn.
-OTKpbITbpeyIaTOp daBHeHn6 (6) Wnpe.
HapyuheHa repMeTHNHOCTbIaHrOBOcoeDInHeHn MEKdy KOMPecCOPOM INHEBMATNUeCKHM IHCTPymeHTOM.
-Пповернть Шанговoe-coeДиЕнHe;пн HeO6xOДИМОCTN 3aMeHnTb NOBpeHDeHHbIe DeTaII.

12. TexHueckne xapaKTepeNCTHNH

IorcheHnK daHHbIM, npBedeHHbIM Ha cTp. 3. Octabnaem 3a coob npabo Ha texHueckne n3MeHHeN.

A = npoH3BODHTeJIbHOCTb BcAcBBAHH
F = np0n3BODInTeBbHOCTb HANOJIHeHINAR Loff =3ΦΦeKTHBnA np0n3BODInTeBbHOCTb npn 80% OT MaKc, DaJIeHNH
p = MaKc.ДaBLeHne V = 06bempeCnBepa
a =KoJIInueCTBOIHHNOTBODa BO3dyXa
Z = KOJIYUeCTBO UJIINHJDPOB Nm =MOMEHT 3aTJHKINBHTOB C UJIINHJDPUNECKOH JGLOBKO
n0 =MaHC. YNCSIO O6OPOTOB
P1 =HOMINAHbNAIOTpeBnHEMa MOUHOCTb
U =HapnpeHne nntaoue ceTN
HOMINHaJIbHbIIN TOK
F = MHN.3aunTa

IP=Klacc3aunTbI

G =MaKcNMaHbHaOBuaq DaJINa H nOpeneuHoe CeeyHe JnIbI VdJIINHTeJIbHbIX Ka6BeJeI
A =pa3Mepb1（xUxB）
Tmax =MaKc.TemepaTypa noDshnHHka/
paoboua TemnepaTypa
Tmin =MNH.Temnepatypa noDumHnHnKa/paOchay TEmnpaTpy
Oel =KOJIUNIECTBOI KUAECTBO MACCIAI PRN 3AMEHE (B 3AIBNCMOCTO MT ODEJIIN)

m =Bec

*=CpOK cnykbbl HeKOTbIX KOMNOHEHTOB, HAnPmHep, yNLOTHHeN B O6paTHOM HANAnaHe, 3HaYeTHeBIO COKpaTaETCR, ECIN KOMPpeCCOP 3KcIpyaTnPyE TCR pRb BICOKHX TempeType (MaKcIMAbHOH NII BoJee BICOKOH TempeType NOuHHnHa/pa6oey TempeType).

** Pn TemnepaType NOdunnHnka/pa6ooye TemnepaType HNKe MNHMalbHo DOnyCTmblx 3HaueHn BO3HNKaET OAnCHOTb 3Amep3aHnHOHcHcTaB HAnOpHOM pe3epByape.

Ha ykaa3hHbte TexnHecKeX xapaKTepeCTNKn paacpOcTpaHrOToC dyOnCyn, npedyCMOTpeHHbIe DeHCTBYOUIMCTAHDaPTAMi.

3NaueHnA 3MnCCnWyma

3TN 3NaHueHnno3B0JLIOUeHNBaTbN
cpaHBnBaTb 3MnCCnIO Uyma Pa3IHybIX
Pnp6OB.B 3abucmoctnOT yCNOBNI
3KcIpyatau, COCTOHRn Pnp6oHa NIN
CNoIb3yEmoH NcHTpyMeHTaBHO OCHACTKN
PAkTHueckar Harpy3Ka MoKet 6bTB BbIe NIN
HNKe JAn oEHHn pImpeHrOуpOBH 3MnCCnY
yHtBbAte nepepbIBb IB pa6OeN aHa3blpa6ObTc
C noHNHeHHo (WymBOoi) Harpz3KO.
OnpeJeNTe pepeHbOpraHn3aUMOHbIX Mep
No 3aUnTe NoJIb3OBeTaJI CyETOM Tex ININ HbIX
3HaueHHn 3MnCCnn WyMa.

TINNHbAMNITyHNO-B3BeWeHeHHbIyPoBeHb 3BYKOBO DAJIeHnE:

LpA =yPOBHeB 3BYKOBO BADeHNEIA LWA =yPOBHeB 3BYKOBO MOUHOCTN
LWA(M) =3aMepeHnHHy UpoBeH 3bYHOBOI MoUHOCHTc corLaCHO 2000/14EG
LwA(G) = rapaHTnoBaHbH ypOBeB 3yKOB0 MouHCTn corlacho 2000/14/EG

KDA，KA=KO3ΦΦHNEHTNORpeHHOCTN

NcnoIb3yIte cpeIcTBA 3aunIbI opraHOB cnlyxa!

DaHHbIe Ha 3aBOdCHO Ta6mUHe:

metabo
01532XX0 9998812345
Basic 250-24 W OF
1~230 V 50 Hz	220 l/min K
P1 1,50 kW S 3	120 l/min L
I = 6,0 A IP 20	2850 min-1 M
2850 min-1	1 N
8 bar / 116 psi	24 I O

A PpOn3BODnTeJIb

B Homep apTnkyna, moDenu, cepnn
C HAnMeHOBaHne npnbopa
D HanpKaHeHne nHTaIOSeI cTeN / YaCTota
E HomnHaJIbHaNoTpe6IeMaJ MoUHOCtB
F HOMHaJIbHbI TOK / KJIaCC 3aUHTbI
G MaKc. YnCNo O6OpOTOB
H MaKc. DaBHeHne

1 MapKnoPbBa CE —daHnhI npHobop COOTBETCTBYET Tpe6oBaHnM dIpeKTNB EC COrJaCHO DeHJIaapauu COOTBETCTBnI
JToN3rTOBJIeHnI
K MoUHOCTb BCaCbBaHHa
L IpoH3BOIDHTbHOCTb HANOJIHeHHA
M Yactota BpaueHn KOMnpecccopa
N KoJIInueCTBO UINHApOB
0ObempecnBepa
P CnMbON yTnHn3aun (cm. rnaBy 10.)

EAC

HOpmaaJn noynateJr:

Ceptnfikat COOTBETCTBNA:

Дeнлараши cootBeTCTBnR: No TC N RUД-DE.5Л08.B.00754, cpoN DeiCTBnC 23.09.2016 no19.09.2021.r., aperHcTprpOba a proHOM no septHfKnAunnpoDyKUn «IBAHOBO

CEPTNΦHKAT"OOO«IbAHOBCKMΦOHCdEcpTnΦkauuH;Adpec(lop.npaKT.):153032,

PoccnckaAeepauH,HaHOBCKa 06n.

IbahoBO, yI. CtaHKOcTpOTeJIe, I. 1; TeI.

[phone]; faKc [phone]; E-mail:

[e-mail];ATTecTaT aKpeuNTaun N2 RA.RU.115J08 ot 24.03.16 r.,BbIaH

ΦeepaIbHOH clyK6oN no aKKpeiTaun

CtpaHa n3rToBnEHHa: MtaHn

CpOK cnYK6bI INCTpyMeHTa:5JeTc DaTbI H3ROTOBHeHn

Metabowerke GmbH

Metabo-Allee 1

72622 Nuertingen

Germany

www.metabo.com
