USER MANUAL WPB 3618 LTX BL 110 IK METABO

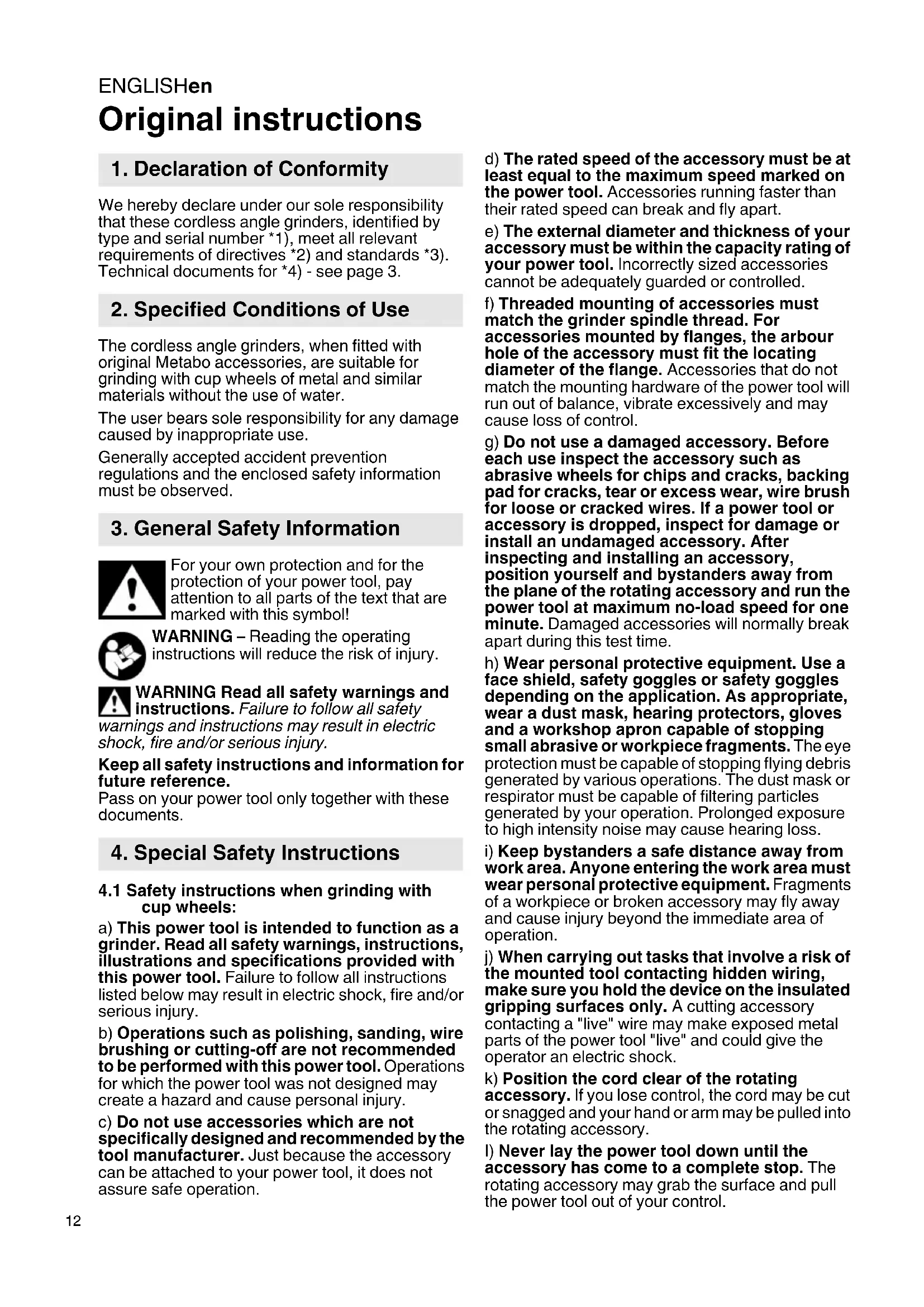

Original instructions We hereby declare under our sole responsibility that these cordless angle grinders, identified by type and serial number *1), meet all relevant requirements of directives *2) and standards *3). Technical documents for *4) - see page 3. The cordless angle grinders, when fitted with original Metabo accessories, are suitable for grinding with cup wheels of metal and similar materials without the use of water. The user bears sole responsibility for any damage caused by inappropriate use. Generally accepted accident prevention regulations and the enclosed safety information must be observed. For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol! WARNING – Reading the operating instructions will reduce the risk of injury. WARNING Read all safety warnings and instructions. Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury. Keep all safety instructions and information for future reference. Pass on your power tool only together with these documents.

4.1 Safety instructions when grinding with

cup wheels: a) This power tool is intended to function as a grinder. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. b) Operations such as polishing, sanding, wire brushing or cutting-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury. c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. e) The external diameter and thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If a power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time. h) Wear personal protective equipment. Use a face shield, safety goggles or safety goggles depending on the application. As appropriate, wear a dust mask, hearing protectors, gloves and a workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtering particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from

work area. Anyone entering the work area must wear personal protective equipment. Fragments of a workpiece or broken accessory may fly away and cause injury beyond the immediate area of operation. j) When carrying out tasks that involve a risk of the mounted tool contacting hidden wiring, make sure you hold the device on the insulated gripping surfaces only. A cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. k) Position the cord clear of the rotating accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the rotating accessory.

I) Never lay the power tool down until the

accessory has come to a complete stop. The rotating accessory may grab the surface and pull the power tool out of your control.

1. Declaration of Conformity

2. Specified Conditions of Use

m) Do not run the power tool while carrying it at your side. Accidental contact with the rotating accessory could snag your clothing, pulling the accessory into your body. n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. o) Do not operate the power tool near flammable materials. Sparks could ignite these materials. p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

4.2 Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged grinding wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory. which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The abrasive wheel may either jump toward or away from the operator, depending on direction of the disc’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided if suitable precautionary measures are taken as described below. a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in the area where the power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the grinding wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

4.3 Safety Warnings Specific for Grinding

and Cut-Off Grinding: a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. b) The grinding surface of the centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted grinding wheel that projects through the plane of the guard lip cannot be adequately protected. c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel and sparks which could ignite clothing. d) Grinding media must be used only for recommended applications. For example: Do not grind with the side of cutting disc. Cutting discs are intended for peripheral grinding. Side forces applied to these wheels may cause them to shatter. e) Always use undamaged wheel flanges that are of correct size and shape for your selected grinding wheel. Proper wheel flanges support the grinding wheel thus reducing the possibility of grinding wheel breakage. Flanges for cutting discs may be different from grinding wheel flanges. f) Do not use worn down grinding wheels from larger power tools. Grinding wheels intended for larger power tools are not suitable for the higher speed of a smaller tool and may break.

4.4 Additional safety instructions:

WARNING – Always wear protective goggles. Check the isolation of the handle for damage prior to use. Do not use any damaged side handles! Use elastic cushioning layers if they have been supplied with the sanding media and if required. Observe the specifications of the tool or accessory manufacturer! Protect the discs from grease or impact! Cup wheels must be stored and handled with care in accordance with the manufacturer's instructions. Do not use machines with cutting or grinding discs. The workpiece must lay flat and be secured against slipping, e.g. using clamps. Large workpieces must be sufficiently supported. If accessories with threaded inserts are used, the end of the spindle may not touch the base of the hole on the sanding tool. Make sure that the thread in the accessory is long enough to accommodate the full length of the spindle. The thread in the accessory must match the thread on the spindle. See page 2 and chapter 15. Technical Specifications for more information on the spindle length and thread.ENGLISHen

When working in dusty conditions, ensure that ventilation openings are not blocked. If it becomes necessary to remove dust, first remove the battery pack (use non-metallic objects) and avoid damaging internal components. Damaged, eccentric or vibrating tools must not be used. Avoid damage to gas or water pipes, electrical cables and load-bearing walls (static). Remove the battery pack from the machine before making any adjustments, changing tools, maintaining or cleaning. Make sure that the tool is switched off before fitting the battery pack. A damaged or cracked additional handle must be replaced. Never operate the machine with a defective additional handle. A damaged or cracked safety guard must be replaced. Never operate a machine with a defective safety guard. Secure small workpieces. For example, clamp in a vice. Reducing dust exposure: Some of the dust created using this power tool may contain chemicals known to cause cancer, allergic reaction, respiratory disease, birth defects or other reproductive harm. Some of these substances include: lead (in paint containing lead), mineral dust (from bricks, concrete etc.), additives used for wood treatment (chromate, wood preservatives), some wood types (such as oak or beech dust), metals, asbestos. The risk from exposure to such substances will depend on how long the user or nearby persons are being exposed. Do not let particles enter the body. To reduce exposure to these substances: work in a well ventilated area and wear protective equipment, such as dust masks that are specially designed to filter out microscopic particles. Observe the relevant guidelines for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal). Collect the particles generated at the source, avoid deposits in the surrounding area. Use suitable accessories for special work (see

chapter 12.), thus less particles enter the

environment in an uncontrolled manner. Use a suitable extraction unit. Reduce dust exposure with the following measures: - do not direct the escaping particles and the exhaust air stream at yourself or nearby persons or on dust deposits. - use an extraction unit and/or air purifiers. - ensure good ventilation of the workplace and keep clean using a vacuum cleaner. Sweeping or blowing stirs up dust. - Vacuum or wash the protective clothing. Do not blow, beat or brush.

4.5 Safety instructions for battery packs:

Protect battery packs from water and moisture! Do not expose battery packs to fire! Do not use faulty or deformed battery packs! Do not open battery packs! Do not touch or short circuit battery pack contacts! A slightly acidic, flammable fluid may leak from defective Li-ion battery packs! If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately! If the machine is defective, remove the battery pack from the machine. Remove the battery pack from the machine to transport the machine. Transport of li-ion battery packs: The shipping of li-ion battery pack is subject to laws related to the carriage of hazardous goods (UN 3480 and UN 3481). Inform yourself of the currently valid specifications when shipping li-ion battery packs. If necessary, consult your freight forwarder. Certified packaging is available from Metabo. Only send the battery pack if the housing is intact and no fluid is leaking. Remove the battery pack from the machine for sending. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape). See page 2. 1 Support flange 2 Spindle 3 Spindle locking button 4 Electronic signal indicator 5 Capacity indicator button 6 Capacity and signal indicator 7 Side handle 8 Cup wheel safety guard 9 Screws to adjust the safety guard 10 Clamping nut 11 two-hole spanner 12 Battery pack release button 13 Battery pack 14 Lock (against accidental activation) 15 Trigger (for switching on and off) 16 Main handle 17 Button (to turn the main handle) 18 Screws to fix the safety guard

6.1 Attaching the additional handle

Always work with the additional handle (7) attached! Firmly screw in the additional handle with the screw and spring washer in the left or right threaded hole (depending on requirements) using an Allen key.

6.2 Attach the safety guard

For safety reasons, always use the safety guard provided for the respective wheel! See also chapter 12. Accessories! Safety guard for grinding Designed for working with cup wheels See illustration E on page 2. - Loosen the screws (18). - Mount the safety guard (8) in the position indicated. - Tighten again the screws (18) firmly. Loosen the safety guard in reverse order.

Set the safety guard in such a way that the cup wheel protrudes by max. 3 mm. -Loosen the screws (9). -Push the safety guard (8) downwards until the cup wheel protrudes max. 3 mm over the safety guard. -Tighten screws (9).

6.4 Pivotable main handle

Only work with the main handle (16) engaged. See illustration C on page 2. - Push in the button (17). - The main handle (16) can now be turned 90° to both sides and can be engaged. - Make sure that it is securely positioned: the main handle (16) must be engaged and it should not be possible to move it.

Charge the battery pack (13) before use. Recharge the battery pack if performance diminishes. The ideal storage temperature is between 10°C and 30°C. Li-Ion battery packs “Li-Power, LiHD“ have a capacity and signal indicator (6): - Press the button (5), the LEDs indicate the charge level. - The battery pack is almost flat and must be recharged if one LED is flashing. WPB 36-18 ...: - Use always two Metabo 18-Volt slide-on battery packs. - Recommended capacity 4.0 Ah and greater. - We recommend the use of battery packs with identical item number. - The use of battery packs with different capacity (Ah) is permitted. In this case, the battery pack with the smaller capacity (Ah) determines the useful life.

6.6 Removing and inserting the battery pack

See illustration A on page 2. Removing: Press the battery pack release (12) button and remove the battery pack (13). Inserting: Slide in the battery pack (13) until it engages. Prior to any conversion work: remove battery pack from machine. The machine must be switched off and the spindle at a standstill. For reasons of safety, attach the cut-off grinding guard before performing cut-off grinding work (see Chapter 12. Accessories).

7.1 Locking the spindle

- Press in the spindle locking button (3) and turn the spindle (2) by hand until the spindle locking button engages.

7.2 Position / fix cup wheel

See illustration D on page 2. - Fit the support flange (1) on the spindle. The flange should not turn on the spindle when properly attached. - Place the cup wheel on the support flange (1). The cup wheel must lay flat on the supporting flange. - Screw on the cup wheels with threaded insert.

7.3 Fix/loosen two-hole nut or cup wheel

with threaded insert Fix two-hole nut (10) / cup wheel with threaded insert: The 2 sides of the two-hole nut are different. Screw the two-hole nut onto the spindle as follows: See illustration D on page 2. - The edge of the two-hole nut (10) faces downwards so that the two-hole nut can be attached securely to the spindle. - Lock the spindle. Turn the two-hole nut (10) / cup wheel with threaded insert clockwise using the two-hole spanner (11) to secure. at least 20 Nm! - Note: as an alternative to fastening using the two- hole wrench (11), you can tighten the two hole nuts (10) as follows: Lock the spindle. Firmly screw on the two-hole nut (10) / cup wheel with threaded insert by hand. Hold the edge of the cup wheel and manually rotate it clockwise by at least 1/2 a rotation.

6. Initial Operation

Loosen two-hole nut (10) / cup wheel with threaded insert: - Lock the spindle (see chapter 7.1). Turn the two- hole nut (10) / cup wheel with threaded insert anti- clockwise using the two-hole spanner (11) to secure. Always guide the machine with both hands. Switch on first, then guide the accessory towards the workpiece. Avoid switching on the machine accidentally: always switch it off when the battery pack is removed from the machine. Always hold the machine with both hands on the designated handles, take a secure stance and concentrate on the work. Avoid the machine swirling up or taking in dust and chips. After switching off the machine, only place it down when the motor has come to a standstill. See illustration B on page 2. Torque activation: Switching on: Slide the lock (14) in the direction of the arrow and press the trigger switch (15). Switching off: Release the trigger switch (15).

8.1 Working Directions

Grinding: Press down the machine evenly on the surface and move back and forth so that the surface of the workpiece does not become too hot. Rough grinding: position the machine at an angle of 30° - 40° for the best working results. Button (17) for adjusting the handle: Occasionally blow compressed air through the button (when pressed, in all 3 main handle positions). Prior to this operation, separate the power tool from the power source and wear protective goggles and a dust mask. Transport of li-ion battery packs: The shipping of li-ion battery pack is subject to laws related to the carriage of hazardous goods (UN 3480 and UN 3481). Inform yourself of the currently valid specifications when shipping li-ion battery packs. If necessary, consult your freight forwarder. Certified packaging is available from Metabo. Only send the battery pack if the housing is intact and no fluid is leaking. Remove the battery pack from the machine for sending. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape). Remove the battery pack from the machine to transport the machine. The electronic signal indicator (4) lights up and the load speed decreases. The temperature is too high! Run the machine in idling until the electronic signal indicator switches off. The electronic signal display (4) flashes and the machine does not start. The restart protection is active. The machine will not start if the battery pack is inserted while the machine is on. Switch the machine off and back on again. The electronic signal display (4) flashes and the machine does not start. Press the button (5), the LEDs indicate the charge level. When the battery pack is empty it must be recharged. Electronic safety stop: The electronic signal display (4) flashes and the machine was SWITCHED OFF automatically. If the slew rate of the current is too high (for example, if the machine suddenly seizes or kickback occurs), the machine switches off. Switch off the machine. Switch it on again and continue to work as normal. Try to prevent the machine from seizing. See chapter 4.2. Only use original Metabo battery packs and Metabo accessories. See page 4. Use only accessories that fulfil the requirements and specifications listed in these operating instructions. Fit accessories securely. If the machine is operated in a holder: secure the machine well. Loss of control can cause personal injury. See page 2. A Chargers B Battery pack C Safety cover D Cup wheel (without threaded insert) E Two-hole spanner (offset - to fix / loosen the cup wheels with threaded insert or the two-hole nut (10) for cup wheels) F Adjusting nut (10) For a complete range of accessories, see www.metabo.com or the catalogue. Repairs to electrical tools must ONLY be carried out by qualified electricians! Contact your local Metabo representative if you have Metabo power tools requiring repairs. See www.metabo.com for addresses. You can download a list of spare parts from www.metabo.com. The sanding dust generated may contain hazardous materials: do not dispose of with the

household waste, but at a special collection point for hazardous waste. Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories. Battery packs must not be disposed of with regular waste! Please return faulty or used battery packs to your Metabo dealer! Do not throw battery packs into water. Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/96/EU on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner. Discharge the battery pack in the power tool before disposal. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape). Explanatory notes on the specifications on page 2. Subject to change in accordance with technical progress. U =Voltage of battery pack

max =max. diameter of accessory

max,1 =max. permitted thickness of the clamping shank on accessory when using two-hole nut (10)

max,3 =cup wheel: max. permitted thickness of accessory M =Spindle thread l =Length of the sanding spindle n =No-load speed (maximum speed)

=Power output m =Weight (with smallest battery pack) Measured values determined in conformity with EN

direct current The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards). Emission values These values make it possible to assess the emissions from the power tool and to compare different power tools. The actual load may be higher or lower depending on the operating conditions, the condition of the power tool or the accessories. Please allow for breaks and periods when the load is lower for assessment purposes. Arrange protective measures for the user, such as organisational measures based on the adjusted estimates. Vibration total value (vector sum of three directions) determined in accordance with EN 60745:

h,SG/DS = Uncertainty (vibration) Typical A-effective perceived sound levels:

= Sound-pressure level

= Acoustic power level

= Uncertainty During operation the noise level can exceed 80 dB(A). Wear ear protectors!
