HL 6040 CB - Air Conditioning BOMANN - Free user manual and instructions

Brand	BOMANN
Model	HL 6040 CB
Product type	Fan heater (air conditioning)
Power supply	220-240 V ~ 50-60 Hz
Power consumption	2000 W (max), 1000 W (min)
Net weight	Approx. 0.95 kg
Protection class	II
Warranty	24 months
Main functions	Ventilation only, heating 1000 W and 2000 W, adjustable thermostat
Safety	Anti-tilt safety switch, overheating protection
Cleaning	Dry cloth, soft brush or vacuum nozzle for grilles
Storage	Store in a dry, well-ventilated place, out of reach of children
Control type	Mechanical thermostat
Number of power levels	2 heating levels + ventilation only
Recommended cable cross-section for extension cord	At least 1.5 mm²

Frequently Asked Questions - HL 6040 CB BOMANN

What is the maximum power of the device?

The maximum power consumption is 2000 W. The device also has a 1000 W mode and a ventilation only mode.

Can the device be used as a simple fan?

Yes, by turning the function control knob to the fan icon and setting the temperature control to the highest position, the device operates in ventilation mode without heating.

How to set the desired temperature?

First set the temperature control to the highest setting. When the desired temperature is reached, slowly turn the control towards off until the heating turns off audibly. The thermostat then maintains that temperature.

What to do if the device turns off automatically?

This may be due to overheating. Set the switch to 0, unplug the cord, let it cool for about 10 minutes before reuse. If the problem persists, have the device checked.

How to clean the device?

Unplug it and wait for it to cool down. Use a dry cloth for surfaces. For dust on the grilles, use a soft brush or the furniture nozzle of your vacuum cleaner.

Can I use an extension cord?

Yes, but the extension cord must have a cable cross-section of at least 1.5 mm². Do not plug other high-power devices into the same circuit.

Where can I find the manufacturer's contact information?

You can find the contact details on the back of the manual: C. Bomann GmbH, Heinrich-Horten-Straße 17, 47906 Kempen, Germany. Website: www.bomann-germany.de

Does the device have tip-over protection?

Yes, it is equipped with a safety switch that cuts off the power if it falls over. It turns back on automatically once placed upright.

Can I use the device in a bathroom?

No, the manual advises against use in the immediate vicinity of a bathtub, shower, or swimming pool. It must not be used in humid rooms.

How to store the device when not in use?

Let it cool down, coil the cable loosely, and store it in a dry, well-ventilated place, preferably in its original packaging, out of reach of children.

USER MANUAL HL 6040 CB BOMANN

= Ventilator
I = 1000 Watt
I = 2000 Watt

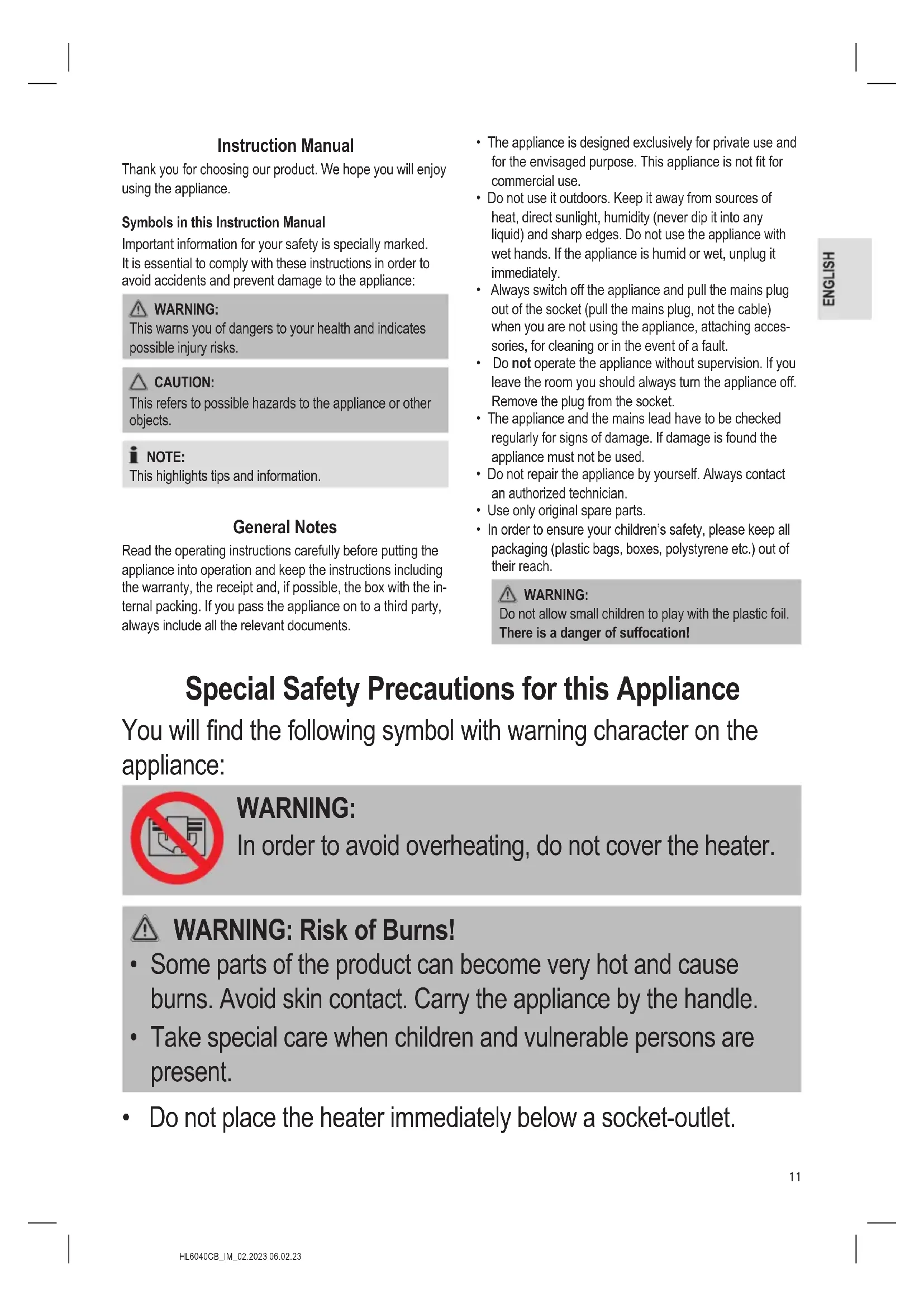

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you pass the appliance on to a third party, always include all the relevant documents.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• Always switch off the appliance and pull the mains plug out of the socket (pull the mains plug, not the cable) when you are not using the appliance, attaching accessories, for cleaning or in the event of a fault.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Do not repair the appliance by yourself. Always contact an authorized technician.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil.

There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING:

In order to avoid overheating, do not cover the heater.

WARNING: Risk of Burns!

• Some parts of the product can become very hot and cause burns. Avoid skin contact. Carry the appliance by the handle.
• Take special care when children and vulnerable persons are present.

• Do not place the heater immediately below a socket-outlet.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1m from the air outlet.
• Children younger than 3 years of age should be kept away from the appliance, unless they are supervised at all times.
• Children from the age of 3 and younger than 8 years of age may only turn the appliance on and off if they are supervised, or have been instructed with regard to the safe use of the appliance, and if they have understood the risks resulting from it, provided that the appliance has been placed and installed in its normal position of use.
• Children from the age of 3 and younger than 8 years of age may not insert the plug into the socket, may not regulate the appliance, may not clean the appliance and / or may not perform the maintenance by the user.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Under no circumstances may the fan heater be used in rooms with explosive gas (e. g. petrol) or while work is being carried out with inflammable adhesives or solvents (e. g. when gluing or painting parquet, PVC etc.).

• Do not insert any objects into the fan heater.
• Ensure that a safety distance is maintained between the power cord and the housing.
• Do not use the fan heater in the open air.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the appliance for possible transport damage to avoid hazards. Do not operate a damaged appliance. Return it to the dealer immediately.

NOTE:

There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components

1 Temperature control
2 Handle
3 Function control knob

0=Off

=Fan

I=1000Watt

I=2000 Watt

4 Safety switch
5 Grille for heating elements
6 Indicator lamp

Notes for Use

Safety Switch

Your fan heater features a safety switch that disconnects the power supply in case the appliance falls over. The safety switch prevents hazards caused by overheating.

WARNING:

Place the appliance on a smooth, horizontal and stable surface. Avoid carpets in order to prevent failure of the safety switch.

NOTE:

The appliance turns on automatically once back in an upright position.

Connected Load

The appliance supports a power input of 2000 W.

CAUTION: Overload

• When using an extension cord, it must have a cable cross-section of at least 1.5mm^2
• Do not use a multiple socket as this appliance is too powerful.
• Do not connect any other powerful devices to the same electric circuit.

Operation

Electric Connection

1. Make sure the voltage of the appliance (see rating label) matches the mains voltage to be used.
2. Set the function control knob to 0.
3. Unwind the mains cable completely.
4. Only connect the mains plug with a properly installed earthed socket.

Setting the Temperature

The thermostat constantly switches the fan heater on and off, thereby keeping the temperature at the desired level. Set the desired temperature as followed:

1. Set the temperature control to its highest setting.
2. Once the desired temperature has been reached, slowly turn the temperature control back, until the fan heater switches off audibly. The indicator lamp turns off.

NOTE:

The audible position of the temperature control depends on the ambient temperature.

1. The fan heater will then keep the desired temperature level.

CAUTION:

When not using the appliance, disconnect the mains plug.

Fan Operation

If you want to use the appliance as a fan, turn the function control knob to the fan icon and turn the temperature control to highest position.

End Operation

If you want to end the operation, set the function control knob to the position 0. The indicator lamp turns off. Then disconnect the mains plug from the socket.

Overheat Protection

The appliance features an overheat protection mechanism causing the device to switch off automatically in case of overheating.

1. Set the function control knob to position 0 and pull the mains plug out of the socket.
2. Let the appliance cool down for approx. 10 minutes before using it again.

NOTE:

If the overheat protection mechanism causes the appliance to switch off again after a short period, this might indicate a defect.

1. Switch off the appliance and disconnect it from the mains.
2. Have the appliance checked by your dealer or our customer service.

Cleaning

WARNING:

Always unplug the appliance from the mains before cleaning and wait until the appliance has cooled down.
- Never immerse the appliance in water to clean it. This may lead to electrical shock or fire.

CAUTION:

• Do not use wire brushes or other abrasive materials.

• Do not use caustic or scouring agents.

• Wipe away dust with a dry cloth.

• Flecks can be removed with a suitably damp cloth.

Dust on the Protective Grilles

Accumulation of dust on the protective grilles can lead to overheating.

• Remove the dust by careful brushing.
  or
• Use the upholstery nozzle of your vacuum cleaner to remove the dust.

Storage

• Let the appliance cool down before putting it away!
• Wind the mains cable loosely.
• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.
  Always store the appliance out of the reach of children in a well-ventilated and dry place.

Technical Data

Model: .HL 6040 CB

Power supply: 220-240 V\~, 50-60 Hz

Power consumption: 2000 W

Protection class: II

Net weight: approx. 0.95kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Notice of Directive Conformity

The appliance meets the European standards and directives in the current version at delivery:

Low Voltage Directive (LVD) 2014/35/EC
- Electromagnetic Compatibility (EMC) Legislation Directive 2014/30/EC
RoHS-directive 2011/65/EU & (EU) 2015/863
- Ecodesign-directive (ErP) 2009/125/EC
Commission Regulation (EU) 2015 / 1188 (Product Data Sheet see page 15)

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

Product Data Sheet

Model identifier HL 604	0 CB
Item Symbol Value Unit	Item Unit
Heat output Type of heat input, for electric storage				age local space heaters only
Nominal heat output Pnom	2.0 kW manual			heat charge control, with integrated thermostat N.A.
Minimum heat output (indicative)	Pmin	1.0 kW		manual heat charge control with room and / or outdoor temperature feedback	N.A.
Maximum continuous heat output	Pmax,c	2.0 kW		electronic heat charge control with room and / or outdoor temperature feedback	N.A.
Auxiliary electricity consumption				fan assisted heat output N.A.
At nominal heat output	eI max	0.000	kW Type	of heat output / room temperature control
At minimum heat output	eI min	0.000	kW	single stage heat output and no room temperature control	no
In standby mode	eI SB	0.000	kW	Two or more manual stages, no room temperature control	no
				with mechanic thermostat room temperature control	yes
				with electronic room temperature control	no
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	no
				Other control options
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option	no
				with adaptive start control	no
				with working time limitation	no
				with black bulb sensor	no
Contact details	C. Bomann GmbH, Heinrich-Horten-Straße 17, 47906 Kempen, Germany
N. A. = not applicable

Gebruiksaanwijzing

WAARSCHUWING: Verbrandingsgevaar!

Notification de accomplishment de directiva

Yka3bIbaeT Ha BO3MOxHyO ONaCHOCTb IJIyN3dEINr IN dpynx OKpyKaIOxN ppeDMeTOB.

ПРМЕЧАнЯ:

Jaet COBebi INHOpMaIIO.

067aHΦopMaζη

Ipeed Haayanom 3KcNpyataunn np6opba BHmameIbHO npouHTaTe npnaRaemyu HCTpykunno no 3KcNpyataunn coxpaHNTe ee BHaDexKHOM MeCTe, BMeCTe C rapaHTnHBIM TaHOHOM, KaccOBbIM YekOM N, NO BO3MOXHOCTN, KAPTOHHO KOp6KOc yNAKOBOyHM MaTePnAonM. Ecnn Bbl nepe-daeTe np6oBp TpeTbeMy LNuy, BCerda npNKlndlbaiTe K HeMy BCE COOTBeTCTByUOune DOKymeHTbl.

-Поьзуйтесь пибором только чаТьим образим и по ha3haЧeMu. Пибор He пpeДha3HaЧeн ДЯ КOMМерчecKOrO ИСпОьЗOBaHЯ.
He nonb3yntecb np6bopom noT OKpbITbIM he6bOM. Ppe doxpanHnTe np6bOp OT kapbl, prrMbIX COIHeuHbIX nyueB, BnaXHOCTN (Hn B KOem Cnyuae He nOprpykaTe ero B Body) n yapob 06 ocTpble yrbl. He npKacaiTeCk np6bOpByBaXHbIM pykam. Ecn np6bOp yBaXHnICn IIN HAMOK, Tt X K Ee BBInbTe BuJky n3 po3eKn.
- Pocne 3KcnIpyataun, MOnTaKe npHaIeXHocTeuNCTke nn INI POJOMKe npBopa BcERda BbIHMaIte BnIKy n3 po3ETKn (TaNHTe 3a BnIKy, a He 3a Ka6eJIb).
He octabnTBe BkIoueHHbe 3NeKtpoPnp6Opb6e3 npn-CmToPa.BbIXoJa n3 NOMEuEHNBcerda BbIKIOuayTe np6Op.BbHbTe wTekep n3 po3eKn.
- Pn6b np KabeB cTeBO rntaHnHeoXoHmO peryIrpHo 06cneIOBaTb Ha Hauuue CneIOB NOpeKdHn. Pn6 OhapUkeHn IOpeXdHn IOnb3OBaTbcr np6bopom 3anpeuaetc.
He pemontnyte npnbop camoctoTbHo. Bcerda obpaaainTeCb K yIOnHomOeHHOMy TexHueckomy cneuaJInty.
- Icnoj3yIte ToJIbKO opuHaHaJIbHbIe 3aIaCTN.
- IV3 coo6paXeHn 6e3oNaChOCTn dIy DeTe H e OCTaBJIaIte JExaTb ynaKOBky (PiNactNKOBbIe MeWKIn, KapTOH, neHONlact n T.D.) 6e3 npICMOTpa.

IPEDYIPPEKDEHNE:

He no3B0JnTe DeTm nIpaTb C nOIN3TNHeHOBOI nIeHko. OnachocTb ydyuBa!

CneuNbHbIe yka3aHnNo 6e3OnacHOCTN DnA 3TOro npnbopa

Ha n3dennn nmeoTcra cneyuOu npedynpeKdaUoUsn CmBOJ:

ПЕДУПЕЖДЕНЕ:

Bo n36eXaHne nepeRpeBa He hakpbIbaiTe TePiIOBeHTnJIaTOp.

He noKnIOaHTe Dpyrme MOuHbIe np6Opbl K Toi Xe 3NeKtpnuecko Uen.

3Kcnnyatauia

3Jektpueecko noKnHoueHne

1. Y6eHntecb, yTo HnpanpkeHne npnbopa (cM. Ta6nnyC TExHNueCKMN XapakTePncNTkAMN) COOTBeTCTByETNCNoJIb3yEMOMy HnpanpkeHnIO CetN.
2. YctaHOBIne pyuKy ynpabJIeHnI cyHKIaMn Ha 0.
   3.ПОЛНOCTHIO pa3MOTaIte cTeBOI Ka6eIb.
   4.Подкночаite ceTeByIO BUNky TOJbko K npaBnIbHO yCTaHOBNeHHO 3a3eMJIeHHo PO3EKe.

YcTaHOBka TemnepaTypbI

Tepmoctat NOCTOARHNO BKNIOUaET N BbIKIOUaET TEPNBOHTINIATOP, TEM CAMBIM NOIDepKINBAI TEMNEPAtpy Ha XeNAEMOM yPOBHe. YcTAHOBITE XeNAeMyTO TEMNEPAtpy CNeDyUoMm Oba3OM:

1. YctaHOBInTe peRyIaTOp TempePaTypbHa MaKcImaJIbHoe 3HaueHne.
   2.Послесдснженяжenaemо TemnepaTpybIMeHNOBepHNTpepyJATOP TemnpaTpybIHa3ad, noka He npoIN3OJET 3ByKOBOE OTKNIOUHe NTeNIOBEHTUNTAToPA. INdikatopHna lamna BbIKIOHITcR.

IINPIMEUYAHNA:

3BykoBoe noIoxKeHne peryIaTopa TempeaTypbl 3aBnCIT OT TempeaTypbl OkpyKaIoUe CpeDbI.

1. Nocne 3TOro TeNIOBHeHTnIaTOp 6yJeT NoIePxNBaTb KeIaembI yPoBeHb TempePaTypbl.

BHIMAHNE:

Korda np6op He nCnoJIb3yETc, OTCoeDnHInTe ceTeByIO BnIKy.

Pa6ota BeHTnIaTopa

EcnBbXOTHe NcNoIb3OBAb np6Op B KaueCTBe BeHTnJIaTopa, NOBepHnte pyky ynpabIeHna FyHKUmaN Ha 3HaQOK BEHTnJIaTopa n NOBepHnte pepyIaTOp TempepaTypbIB Bepxhee NoIOKeHne.

Koneu pa6oTbI

EcnBbXOTNE3aBepuNTbpaOTo,yCTaHOBnTEpyKy ynpabneHnaFyHKpMaN BnoLoXeHne0.NHdkaTOpHaJ lamna norachET.3aTeM OTCoeDInHTe ceTeByIO BUNKy OT po3eTKn.

3aunra ot neperpba

Pn6op ochaen MexaHm3MOM 3aunbI OT neperpeBa, KOtOpBn abTomatueckn OTKJIOyaeT np6op B cnUyae neperpeBa.

1.YcTaHOBnTe pyKy ynpaBHeHnApyHKUmM B NOIOKeHne 0 N BBInbTe CeTEByIO BuNkY n3 pO3eTKn.
2.ДаTe np6Opy ocTbTB TeueHne npImepHO 10 MmHyT, npExe Yem NcNoJIb3OBaTb erO CHOBA.

I PIMMEUHNA:

Ecnn MexaHm3 3aunTb ot neperpeBa 3actabnre np6op cHOba BbIKIouaTbcyepe3 HeKOTOpoe Bpemr, 3TO MOKeT yKa3bIBaTb Ha HcnpaBHOctb.

1. BbIKJIIOUHTe IpiN6Op INOTCOEIMHITe ERO OT CETN.
2. 06paTntecb K dIepe npn B hauy cepBnchHy cnxk6y nnpoBepkn npn6opa.

UHCTka

I PEPDyIPPEXJEHNE:

• Ipeed uctkoi Bcerda otKIOUaHTe np6op OT cetn IOxNTecb, noka OH OCTbHET.
  HkoIa He norpykaTe np6op B Body nOChTkn. 3To moKet npBecTu K nopaxKeHHIO 3NeKTPueckm TOKOM nn noKapy.

BHIMAHNE:

He nCnoB3yIte npOBIoUHbIe 1eTKn nn Dpyrne a6pa3NBbIe MaTePnaJIbI.
He nCnoNb3yIte eKnE uNtYnCTaIe cpeCTBa.

• BbItupaTne nbInb cyXoT TkaHbI.
• PIAI HAO MOXHO YDANITb C NOMOULIO DOCTAOTUHO BNAKHOI TKAH.

Пьлн ha 3aunThbIX peWEkax

CkONnHeHne NblIn Ha 3aunTHbIX peWetKax MoKeT npuBecTN K nepepeBy.

• YdaNTe nbInb octopoxHOn 1eTKoN.
  NIM
  -ИспόньзуйTe HacaДу Ду obиВкn nbInecoca Ду ydaJIeHЯ nbIIn.

XpaHeHne

JaTe np6bpy octb, npexde yem y6paTb ero Ha xpanehne!
- HamatbaiTe ceTeBoi Ka6eJb CBO6OdHO.
MbI peKOMeHnyem xpaHnTB npnbOp B opmHaJIbHOy ynakOBKe, ecNbI He cO6npaTeEc bncOJb3OBA Tb erO B TeueHne dInTeBHorO nepNoDa BpeMeHn.
Bcerda xpaHnte npnbop B heNoctynHom dTeT, xopoio npoBeTpnaemom n cyxom MeCTe.

TexHnueckne daHHbIe

MoeJIb: HL 6040 CB

3JIeKIpOnItaHHe: 220-240V\~,50-60Tc
ITopeBlaemar MoUHocTb: 2000BT

Klacc 3aunTbI: II

Bec HeTTO: npu6J. 0,95 K

CoxpaHeNo npaBo Ha TexHnueckne I KOHCTpyKUHOHHbIe H3MeHeHnB B pAMkax npoDoJIkaUOSeIcR pa3pa60TKI npOdykTa.

JaHHbI npH6op 6bJI npOTecnpoBaH B COOTBeTCTBm CO BCEMI pIMHeMblIM N DeNCTByOuIM N DpeKTHBaMn CE I3ROTOBJIe H COOTBeTCTBm C NOCJIeHNMM IpaBNIaMn Be30NaCHOCTn.

yTNIN3aun

3HaueHne CNMBOJa KOp3Na

3aunita okpykaiouei cpebl: He donyckaetcyaTIN3aunna 3neKtpnpnbopOB BmecTe C 6bITOBIM NTODAMN.

Yttnn3auny yctapeBwei TeXnKIn HEnCnpabHBbIX 3IeKtpoPnp6OpOB npOn3BOintc B ropOdcknx npEhMbix NyHkTax.

He donyckaIte He npabunbHoi yTuIN3aun OTxOIOB. 3To HahocIT Bpe OkpykaIOSe Cpe Ne OKa3bIBaET HerATNBHOe BO3dEICTBne Ha 3DopOBBe IIOde.

Oka3bIaBte coaeCTBne nporpamme yTuIN3aunn n dpyrMM fopmam nepepa60TKn 3NeKtpoHHoN 3NeKtpuueckoTexHKn.

HOpMaIIO O NyHKTx yTNIN3aIIN 6bITOBoTexNIKMOxHO pOlyuHTB B MeCTbIX oPRAHAX BnactN. BaW dIJIepI napTHeP NO DOROBOPy TaIOKe O6ra3H 6ecpNaTHo npInrTaBcABy Inp6op.

joo jie jlll l 100g g y 00d e a d 00

A.2gJyJg 1uJyJyJU 1uJyJyJU

jaoalzill jSc gill jSloilly aalekbi llogleki Jgssll jSe

jaiuuiygbullgluea auaaaagaiyao 1y jgallb

L

g jg jll aalgl g gjg jlaol g jqll li

J 1

jglj jolal

（aolalgio）jor

y_1 =

1. .d slu! dsl

30 2

gabig. g 1 gaa 1 g a 1 1 1 1 1 1 1

2015年全国春季学业水平考试卷

:diOxu

0jydo jdo 0jydo jdo jdo jdo jdo

.

11 baa 3. aIgabla oJ, all

:

gjll jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil

aogjbl J

aillgll 90Soll ccko jao gos jolal ool

a 10000000000000000000000000000000000000

J

abibio.0gogllde gaoiIe bdo Jdo Jdo

a 1 a

oJjJdiGooJooAololl

gaiy gai ydi jgiy jgiy jgiy

.5j, jll a 2j 1j0 j0 j0 j0

0gollll 1.

.

.5jfoaolal 10d jgl2

:ab

o jaojol Jaiy jaoaill b jao aolll J

a. d. 1234567890

j1yjgJ jI jI J 1

aJoo 3o aou oJoo Joo 0oo oJoo goloo

j4

aalil jaeiill alniabll aowll aaiill iiei

ogallu giooo baa

JlJg 10000000000000000000000000000000000000000000000000000000000000000000000

1. .g 1

:abol 1 jglll a,b, yogj iJ. jgal lde tiiy cIaloo gJ Jg jg .

Uigslde aoleo

$$ \therefore \text {a l l} g _ {1} \text {与} g _ {2} \text {a l l} 3 $$

$$ \left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$

$$ 3 0 0, 6 1 = 4 $$

$$ 1 0 0 0 = \mid $$

$$ \text {C} _ {\text {与}} 2 0 0 0 = \text {I I} $$

$$ j o l \hat {e} i z e 4 $$

$$ \text {a d} \text {s a l l}, \text {p o l i s} \text {a d} \text {s a l l} 5 $$

$$ \dot {w} \dot {w} \dot {b} \dot {b} z h a o 6 $$

Jz

$$ j u l y c l i a n $$

a 10000000000000000000000000000000000000000000000000000

$$ . \ddot {o} j _ {1} r o l l $$

y = - ( x - 2) ^2 + 9 = - x^2 + 4x + 5

i j 1000000000000000000000000000000000000000000

:ddso

aennn ennnn nnnnne nnne

Jogjbj Joojj

2000 153

wJj Joo:4

J5U 1030 0gS Jy dll pluul u

111 111 111 111 111 111 111 111 111 111

a5y8y10y11 y 5y8y4 y8y9 y8y9

3j0 JbU jy

8 j0 8 1 g 1/9 jlaa jg y

pduuubly aolal alalal aog 1r! jg 8 jw jolj bU jks

J 1

a 1

15 1uJ5g aioI aoyjy jayy

.aaaab1 bla6b1 150

jLJI JlabJU Pd

aLgog 1jabplpuc

.0a d 1

j00000000000000000000000000000000000000

pJyJyJyJyJyJyJyJyJyJy

U 1
