Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING: Hot surface! Danger of burns!

The temperature of accessible surfaces can be very hot during and after operation.

• For this reason, always touch the appliance by its handle and controls. If necessary, use pot holders.
• Do not carry or lift the appliance during operation, but turn it off first and then disconnect the mains plug. Wait until the appliance has cooled down.

• Always operate the appliance under supervision. Very dry bread can catch fire inside the appliance!

• Make sure that the function switch is in the OFF position.

• Place the appliance on a heat resistant surface!
• Keep sufficient distance (30 cm) to highly flammable objects such as furniture, curtains, etc.! Never place the appliance inside a cabinet!
  • Install the appliance with its back panel facing the wall.
• Due to rising heat and vapours do not place the appliance under wall cupboards.
• Ensure that the mains cord does not touch hot parts of the appliance during operation.
• Do not operate the appliance with an external timer or separate remote control system.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

CAUTION:

This appliance is not intended for immersion in water during cleaning. Please refer to the instructions provided in the chapter, "Cleaning".

Unpacking the Appliance

1. Take the appliance out of its packaging.
2. Remove all the packaging material such as plastic foil, filling material, cable ties and cardboard packaging.
3. Check that all parts are supplied in the box.
4. In case of incomplete delivery or damage, do not operate the appliance. Return it to your dealer immediately.

i NOTE:

There may still be dust or production residues on the appliance. We recommend to clean the appliance as described under “Cleaning”.

Overview of the Components / Scope of Delivery

1 Temperature switch
2 Function switch
3 Time/main switch
4 Operation indicator light
5 Heating element
6 Glass door
7 Door handle

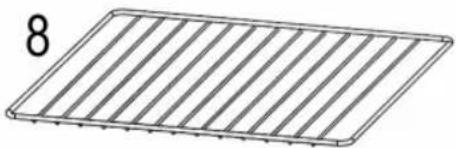

8 Grill rack

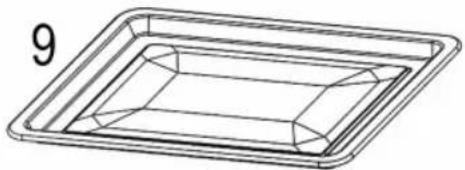

9 Baking tray/drip pan
10 Crumb tray
11 Removal tool for grill rack and baking tray
12 Revolving spit 12a Spit forks
13 Removal tool for revolving spit

Controls

Top Control: Temperature Switch

Select a temperature between 100 and 230 °C.

Centre Controls: Function Switch

OFFOff

Top heat and bottom heat with convection

Top heat with convection

Top heat and bottom heat

Top heat with revolving spit

Top and bottom heat with revolving spit and convection

Bottom Control: Time / Main Switch

Select an operating time of up to 60 minutes.

The oven is switched off at position OFF. The control lamp is off.

Notes for Use

Before Initial Use

There is a protective layer on the heating element. To remove this, operate the appliance for about 15 minutes without any contents. Set the function switch to ☐.

i NOTE:

Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

Electrical Connection

1. Make sure that the function switch is in the OFF position.
2. Check whether the mains voltage that you want to use matches the one of the appliance. You will find the information about this on the type plate.
3. Insert the plug in a duly installed protective contact socket.

CAUTION: Overload

When using extension cords, these should have a cable cross-section of at least 1.5 mm ^4 .

Removal Tool (11 / 13)

a) To remove the baking tray
b) To remove the grill rack

If you want to remove the revolving spit, use the removal tool (13).

Operation

WARNING:

• Never use containers made from plastic, cardboard, paper, or similar. Risk of fire!
• Do not use roasting bags or glass containers. These may burst.
• Also, when using the handles for the baking sheet or the revolving spit, protect yourself from the heat by using gloves or pot cloths.

CAUTION:

Do not overload the baking tray and the grill rack! (max. 3,5 kg)

i NOTE:

• Always slide the crumb tray under the bottom heating element.
  • We recommend to preheat the oven for approx. 5-10 minutes.
• Save energy by using the switch settings with convection. In doing so, the heated air is distributed quicker and evenly via the fan inside the oven.
• Always use the inserted drip pan when grilling or roasting. This prevents grease from dripping onto the bottom heating element.

Your oven offers you a number of settings. You can select a temperature and a time according to your recipe.

Here are a Few Examples of How You Can Use the Functions:

Top heat: For grilling
Functions with the revolving spit:	Poultry and large joints of meat are cooked evenly.
Top heat and bottom heat:	E. g. for pizza, pastries etc.

Overview of Baking Times

	Temperature in °C	Time in min.	Function	Rack level
Pizza 150-180 15-20				Middle
Toast 120-150 3-5				Middle
Pastries 120-180 10-15				Middle
Cakes 150-180	According to recipe			Bottom/ Middle
Roasts 200-230 60-80				Middle
Poultry 200-230 40-60				Middle
Steak 220 25-30				Top
Fish 180 20-25				Top

The times given are only guidelines and vary depending on weight. We recommend that you use a roasting thermometer for meat and fish.

i NOTE:

• When selecting 6 minutes or less, please select 10 minutes with the time switch first. Turn it back to your desired time afterwards again.
• After the set time has elapsed, the appliance automatically switches off and a short bell signal will sound.

Revolving Spit

i NOTE:

Do not select a roast which is too large. The food being grilled must be far enough away from the internal walls and the heating elements and must not touch them.

1. Insert the baking tray / drip pan into the bottom guide ridge of the oven.
2. Rub edible oil on to the revolving spit and spit forks.
3. Poultry has to be dressed before grilling. To do so, tie the wings and the legs closely to the body using kitchen yarn.

Diagram of a mechanical or electrical setup with two identical components connected by wires, no visible text or symbols.

1. Place the dressed poultry or the piece of roast meat carefully on to the revolving spit. Push the spit forks on to the revolving spit and use them to fix the roast meat in place. Tighten the fixing clips by means of the screws.

2. Place the prepared revolving spit in the oven with the help of the removal tool (13). Put the end of the revolving spit without the notch into the motor on the right side of the oven first. Then hook the other end of the revolving spi hand side of the oven.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or system.

1. Select a temperature and the function 📋. Set the operating time. The revolving spit begins to turn. Please ensure that the piece of roast meat can turn freely.
2. After the set time has expired a sound is heard and the appliance switches off automatically. When the meat is cooked remove the revolving spit using the handle.

End Operation

1. Set both switches to OFF.
2. Disconnect the mains plug from the socket.
3. Allow the appliance to cool before cleaning!

Cleaning

WARNING:

• Always disconnect the mains plug before cleaning.
- Wait until the appliance has cooled down.
- Never immerse the appliance in water. It could result in an electric shock or fire.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.

Crumb Tray, Baking Tray, Grill Rack, Revolving Spit, Spit Forks

Clean these parts in hot water by adding some washing-up detergent. Then dry the parts well.

Interior

Keep the interior of the oven clean.

1. Remove splashes and food remains on the oven wall with a damp cloth together with some detergent.
2. Wipe dry with a dry towel.

Base Unit

• Clean the housing after use with a slightly damp cloth.
• Put the crumb tray and other accessories back.

Storage

• Clean the appliance as described and let it completely dry.
• We recommend storing the appliance in the original packaging if you do not want to use it for long periods of time.
  • Always store the appliance out of the reach of children in a well-ventilated and dry place.

Technical Data

Model: MBG 3727

Power supply: 220 - 240 V\~, 50 - 60 Hz

Power consumption: 1500 W

Protection class:....I

Net weight: .... approx. 7 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
