USER MANUAL CTP644MC CANDY

Instructions Manual For Induction Hob ENGLISH

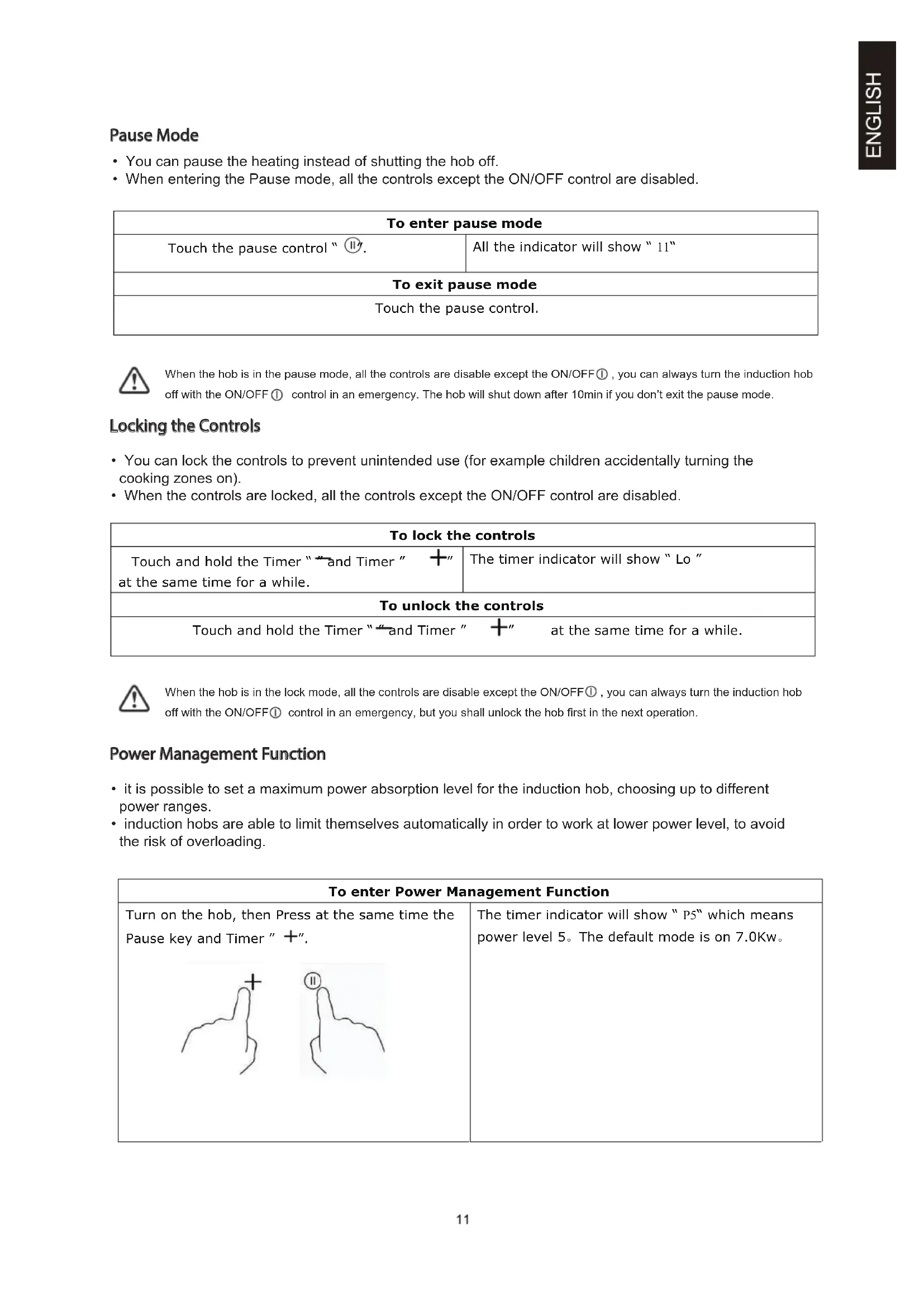

CTP644MC / CMC644TPFlush installation: Feasible only if the oven is not installed under the counterPausePause Mode

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).

• When the controls are locked, all the controls except the ON/OFF control are disabled. Locking the Controls

• it is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges.

• induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading. Power Management Function When the hob is in the pause mode, all the controls are disable except the ON/OFF , you can always turn the induction hob off with the ON/OFF control in an emergency. The hob will shut down after 10min if you don’t exit the pause mode. When the hob is in the lock mode, all the controls are disable except the ON/OFF , you can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation. To lock the controls Touch and hold the Timer “ ” and Timer ”

at the same time for a while. The timer indicator will show “ Lo ” To unlock the controls Touch and hold the Timer “ ” and Timer ” ” at the same time for a while. To enter pause mode Touch the pause control “ ”. All the indicator will show “ 11“ To exit pause mode Touch the pause control.

• You can pause the heating instead of shutting the hob off.

• When entering the Pause mode, all the controls except the ON/OFF control are disabled. To enter Power Management Function Turn on the hob, then Press at the same time the Pause key and Timer ”

The timer indicator will show “ P5“ which means power level 5。The default mode is on 7.0Kw。You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

• You can set it to turn one or more cooking zones off after the set time is up. The timer of maximum is 99min. Timer control a) Using the Timer as a Minute Minder If you are not selecting any cooking zone Make sure the cooktop is turned on. Note: you can use the minute minder even if you’re not selecting any cooking zone. Touch “+” the controls of the timer. The minder indicator will start flashing and “10” will show in the timer display.

Set the time by touching the “-” or “+” control of the timer Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute. Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes. Touching the “-” and "+” together, the timer is cancelled, and the “00” will show in the minute display.

To switch to another level press +/- of the timer There are 5 power levels, from “P1” to “p5”. The timer indicator will show one of them. “P1” : the maximum power is 2.5Kw. “P2” : the maximum power is 3.5Kw. “P3” : the maximum power is 4.5Kw. “P4” : the maximum power is 5.5Kw. “P5” : the maximum power is 7.0Kw. Confirmation and Exit Power Management Function Press at the same time Pause key and Timer ”

Then the hob will be turned off.b) Setting the timer to turn one or more cooking zones o Set one zone Touching the heating zone slider control Set the time by touching the or control of the timer Hint: Touch the “-“ or “+” control of the timer once will decrease or increase by 1 minute. Touch and hold the ”-“ or “+”control of the timer will decrease or increase by 10 minutes. Touching the “-” and “+” together, the timer is cancelled, and the “00” will show in the minute display.

When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

When cooking timer expires, the corresponding cooking zone will be switched off automatically.

When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds. Buzzer will beep for 30 seconds and the timer indicator shows “- - “ when the setting time finished.

Other cooking zone will keep operating if they are turned on previously. 13set more zones: The steps for setting more zones are similar to the steps of setting one zone; When you set the time for several cooking zones simultaneously, decimal dots of the relevant cooking zones are on. The minute display shows the min. timer. The dot of the corresponding zone flashes. The shown as below: (set to 15 minutes)

(set to 45 m inutes) Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash. The shown as right:

(set to 30 minutes) Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator.

The base diameter of induction cookware Cooking zone 1 & 2 140

1803 & 4 Minimum Maximum Flexi zone 250 400 The above may vary according to the size of the pan and the material it is made from.16171819
