USER MANUAL VC13M3110VG SAMSUNG

Before operating this unit, please read the instructions carefully.
For indoor use only.

PREPARATION

Safety information 3

Important safety instructions 4

INSTALLATION

Name of the parts 12

Accessories 13

OPERATIONS

Using the vacuum cleaner 14

Using the body 14

Using the handle 14

Storing the vacuum cleaner 14

Using the brushes 15

Cleaning the brush 15

Cleaning the hose 15

MAINTENANCE

Cleaning and maintaining 16

When to empty the dustbin 16

Cleaning the dustbin 16

Cleaning the dust filter 17

Cleaning the outlet filter 17

Cleaning the pipe 17

APPENDICES

Notes and cautions 18

In use 18

Cleaning and maintenance 18

Troubleshooting 19

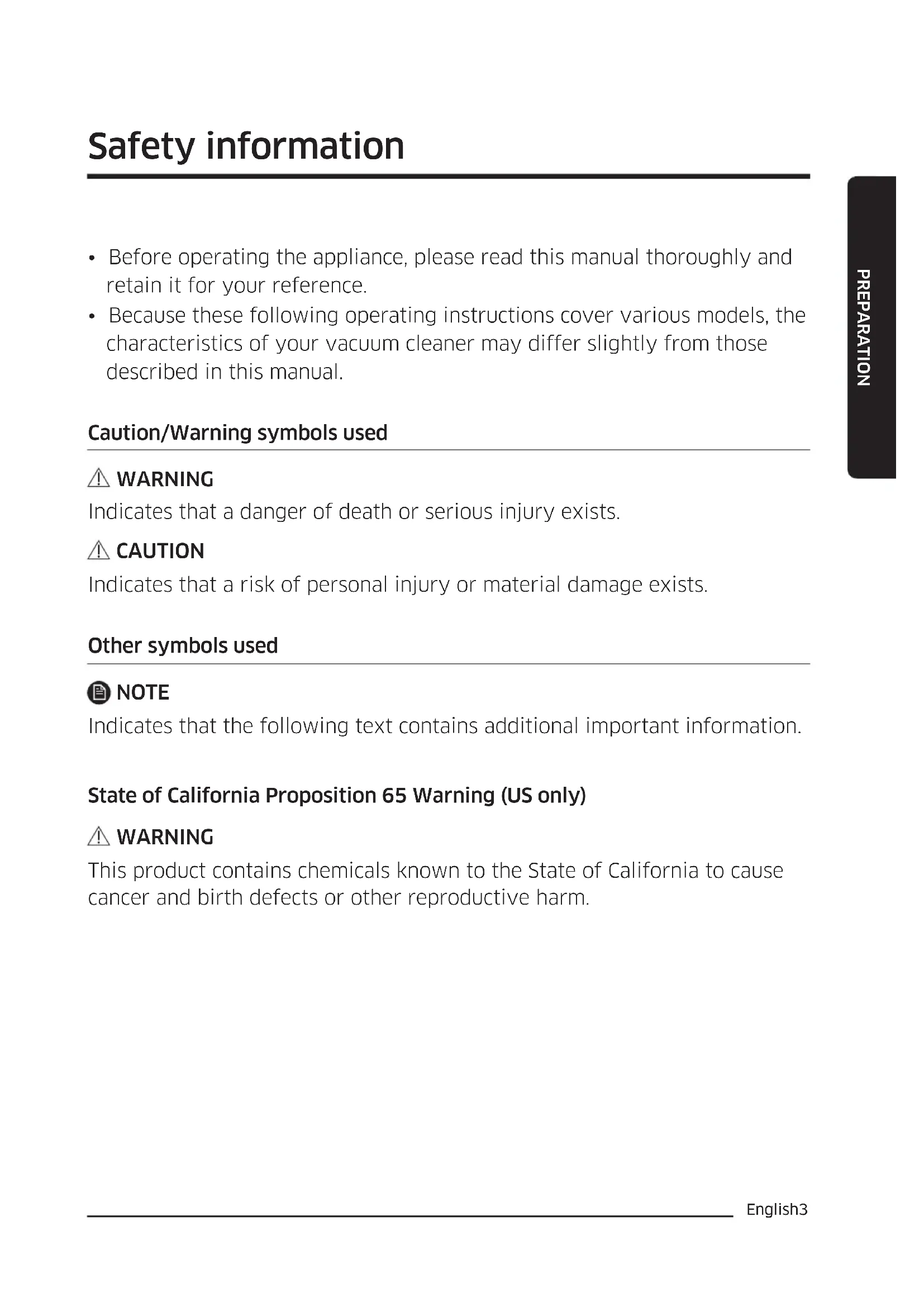

Safety information

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Caution/Warning symbols used

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

Other symbols used

NOTE

Indicates that the following text contains additional important information.

State of California Proposition 65 Warning (US only)

WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Important safety instructions

When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

This vacuum cleaner is designed for household use only.

Use the vacuum cleaner only for its intended use as described in these instructions.

Always install the filters in the correct position as shown in this manual.

Failure to meet these requirements could cause damage to the internal parts and void your warranty.

Please contact the manufacturer or service agent for a replacement.

General

• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance. Do not allow the vacuum cleaner to run unattended at any time.

Power related

• Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before emptying the dustbin. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.

• Please prevent any risk of electric shock or fire.

• Do not damage the power cord.

• Do not pull the power cord too hard or touch the power plug with wet hands.
• Do not use a power source other than the national rated voltage and also do not use a multi-outlet to supply power to number of devices at the same time.
• Do not leave the power cord carelessly on the floor.
• Do not use a damaged power plug, power cord or loose power outlet.
• Turn off the power before connecting or disconnecting the power plug to the power outlet and make sure your fingers don't come in contact with the pins of the power plug.
• Do not disassemble or modify the vacuum cleaner. When power cord is damaged, contact the manufacturer or service agent to get it replaced by certified repairman.

• Clean dust or any foreign matters on the pin and contact part of the power plug.

• Unplug the cleaner when not in use. Turn off the power switch before unplugging.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

In use

• Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set for lifting or carrying vacuum cleaner.
• Unplug the cleaner when not in use. Turn off the power switch before unplugging.
• Do not use outdoors, or on wet rugs or surfaces.

• Do not use this product outdoors since it's designed for household use only.

• There is a risk of malfunction or damage.

* Outdoor cleaning : Stone, Cement
A billiard room : Powder of a chalk
An aseptic room of a hospital

• Do not use the vacuum cleaner to suction up liquids(such as water), blades, pins or embers.

• There is a risk of malfunction or damage.

• Be sure children do not touch the vacuum cleaner when you use it.

• The children may get burned if the body is overheated.

• Do not mount or make any physical impacts on the body.

• It may result in injury or damage.

• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.
• Do not block the suction or the exhaust port.
• Do not use the vacuum cleaner without a dustbin and filters in place.

• Do not use worn, deformed or damaged filters. Insert filter properly.

• It can be a reason of penetration of dust and debris into motor.

• If there's any gas leak or when using combustible sprays such as a dust remover, do not touch the power outlet and open the windows to ventilate the room.

• There is a risk of explosion or fire.

• Do not use this vacuum cleaner to clean building waste and debris, toner of laser printer. Regularly keep the filters in clean conditions to prevent of collecting fine dust in them.

• Dry carpet cleaners or fresheners, powders and fine dust such as flour should be only vacuumed in very small amounts.
• Use extra care when cleaning on stairs.
• Do not use to suction up water.
• Do not immerse in water for cleaning.
• The hose should be checked regularly and must not be used if damaged.
• Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

Cleaning and maintenance

• Do not lift or carry the vacuum cleaner putting a brush in the groove for storage.

• Never twist dust filter after washing.

• It can be a reason of deformation or damage filter.

• Use a dry cloth or towel to clean the body and make sure to unplug the vacuum cleaner before cleaning. Do not spray water directly or use volatile materials (such as benzen, thinner or alcohol) or combustible sprays (such as a dust remover) for cleaning.

• If water or other liquid gets into the product and causes malfunction, turn off the vacuum cleaner, unplug the power plug and then consult a service agent.
• Do not use alkaline or industrial detergents, air fresheners or (acetic) acids to clean the washable parts of the vacuum cleaner. (Refer to the following table.)
• It may cause damage, deformation or discoloration of the plastic parts.

The washable parts Dustbin of the body, Dust filter
Available detergent Neutral	detergent Kitchen cleaner
Unavailable detergent Alk	alkine detergent Bleach, Mold cleaner, etc.
	Acid detergent Paraffin oil, Emulsifier, etc.
	Industrial detergent NV-I, PB-I, Opti, Alcohol, Acetone, Benzene, Thinner, etc.
	Air freshener Air freshener(Spray)
	Oil Animal or vegetable oil
	Etc.	Edible acetic acid, Vinegar, Glacial acetic acid, etc.

• Do not stand on the hose assembly. Do not put weight on the hose.

CAUTION

In use

• Do not use the pipe for anything other than its intended purpose.
• It may result in injury or damage.

• Do not pull the power cord beyond the yellow mark and hold the power cord with one hand when rewinding it.

• If you try to pull it beyond the yellow mark, power cord can be damaged and if you don't hold the power cord while rewinding, it may lose control and cause injury or damage to people or objects around it.

• If any abnormal sounds, smells or smoke come from the vacuum cleaner, immediately unplug the power plug and contact a service agent.

• There is a risk of fire or electric shock.
• Do not use the vacuum cleaner in any places near heating appliances (such as stove), combustible spray or flammable materials.
• It may cause fire or deformation of the product.
• Empty the dustbin before it is full in order to maintain the best efficiency.

Cleaning and maintenance

• Unplug the vacuum cleaner if you do not use it for a long time.
• It may cause electric shock or fire.

REGULATORY NOTICE

1. FCC Notice

CAUTION

• Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:

1 This device may not cause harmful interference, and
2 This device must accept any interference received including interference that cause undesired operation.
- For product available in the USA/Canada market, only channel 1 11 can be operated. Selection of other channels is not possible.

FCC STATEMENT:

• This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

• This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a different circuit from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

• This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.

2. IC Notice

• The term "IC" before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet apparéil numérique de la classe B est conforme à la norme NMB-003 du Canada.
• For product available in the USA/Canada market, only channel 1 11 can be operated. Selection of other channels is not possible.

IC RADIATION EXPOSURE STATEMENT:

• This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.

Open Source License Notice

• This device uses open source software. Open Source Licenses are available on the product menu.
• Tap "Settings > Network > Software Update > Legal Information" on the device for more details.

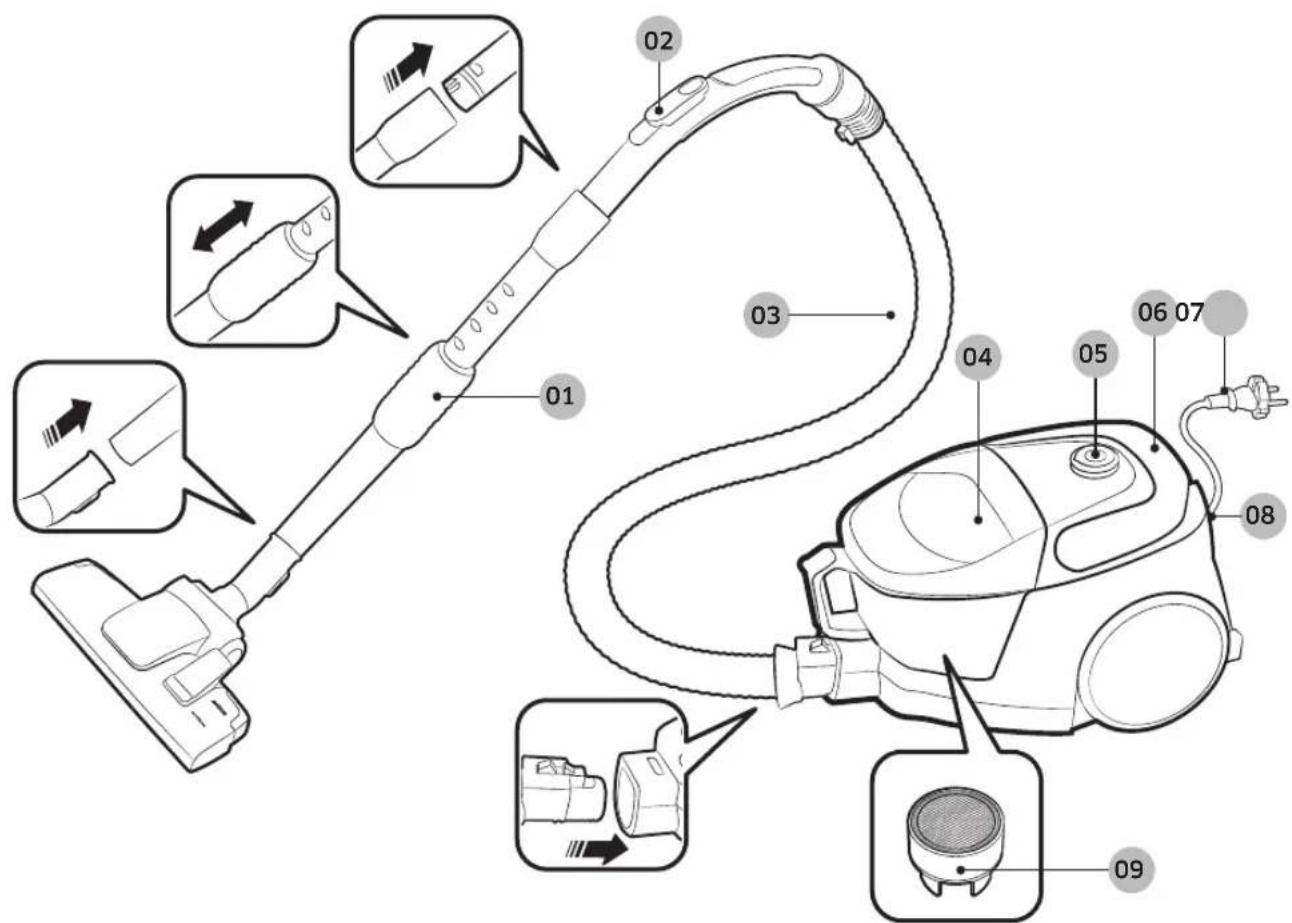

Name of the parts

Product design may differ depending on the models.

01 Pipe
02 Handle control
03 Hose
04 Dustbin
05 Power button

06 Cord rewind button / Carry handle
07 Power cord
08 Outlet filter
09 Anti-Tangle Turbine (Cyclone Force)

Accessories

Accessories may differ depending on the models.

Hose Pipe 2-step brush

2-in-1 accessory User manual

Using the vacuum cleaner

Suction control may differ depending on the models.

Using the body

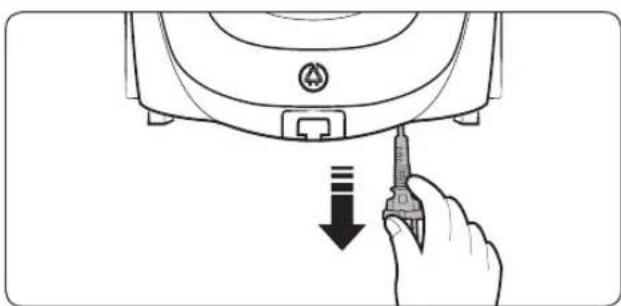

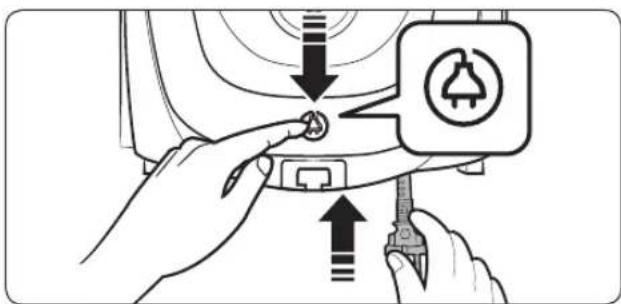

Power cord

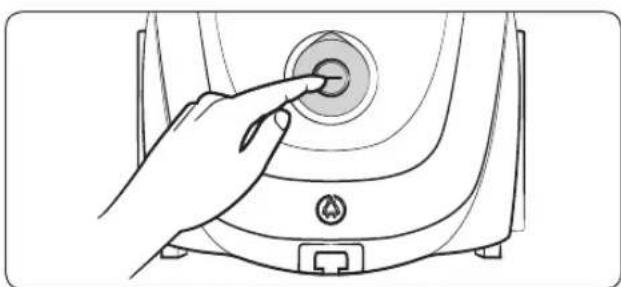

On/Off

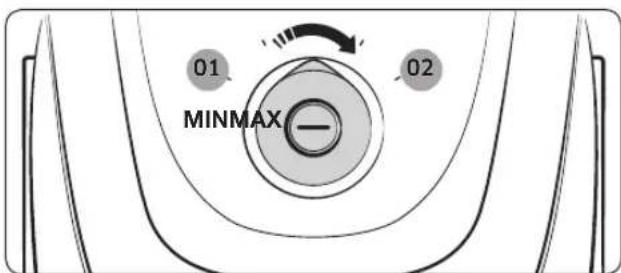

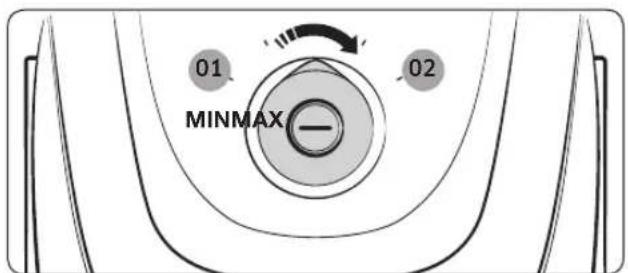

Suction control

01 Low suction power
02 High suction power

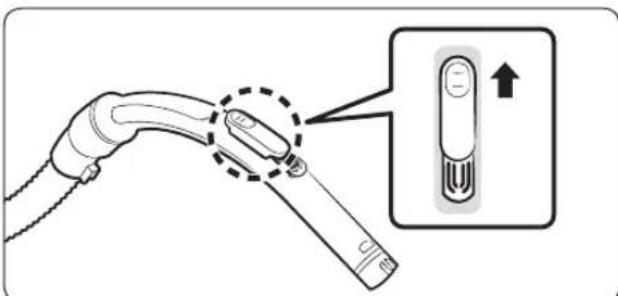

Using the handle

NOTE

• To vacuum fabrics, push the cover downward to reduce suction.
• The handle does not control the power of the product.

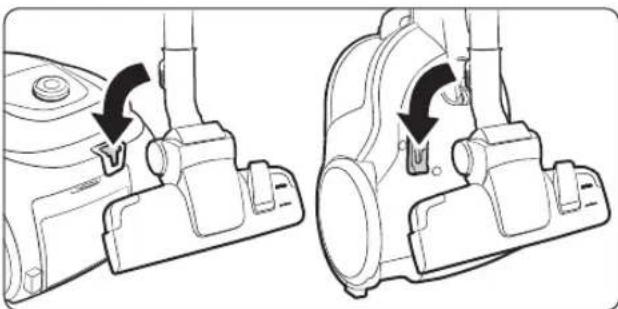

Storing the vacuum cleaner

Using the brushes

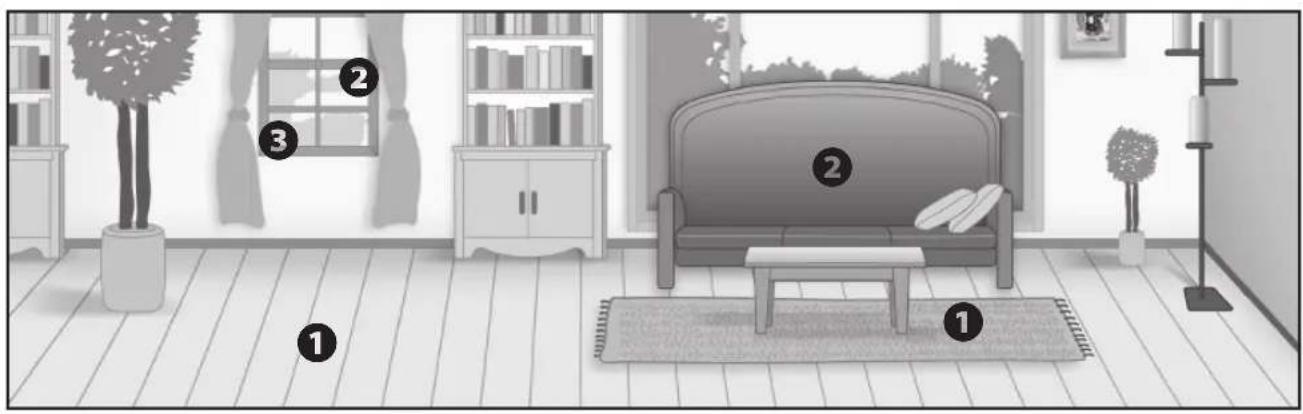

Where to use the brushes

1 2-step brush

* Floor

Carpet

Dusting brush Crevice tool

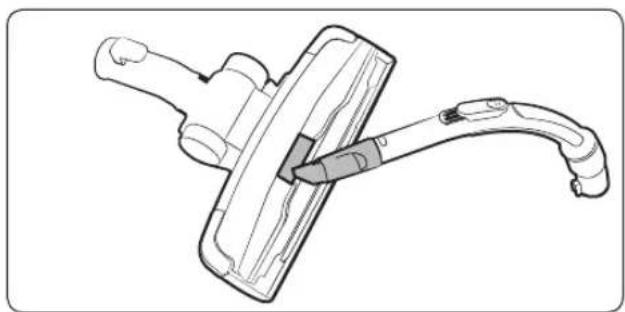

Cleaning the brush

2-step brush

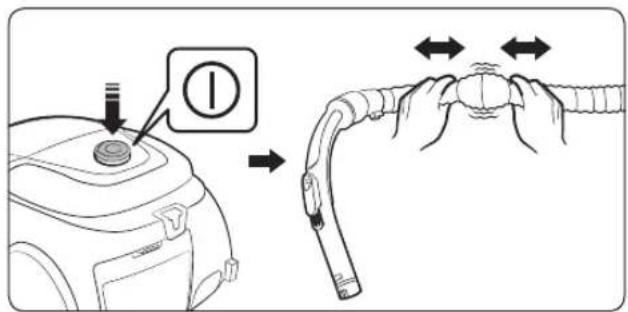

Cleaning the hose

Cleaning and maintaining

You must unplug the vacuum cleaner before cleaning it.

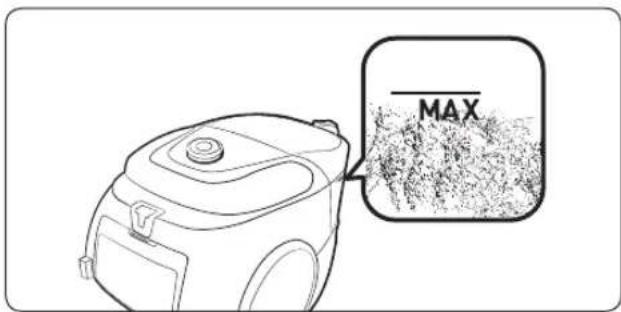

When to empty the dustbin

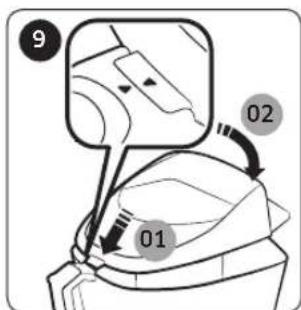

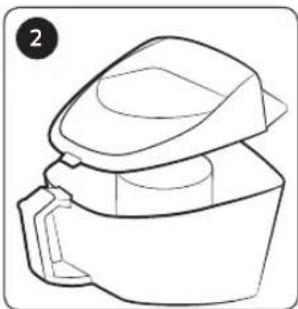

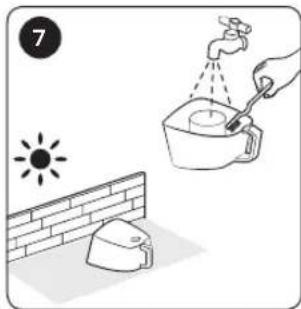

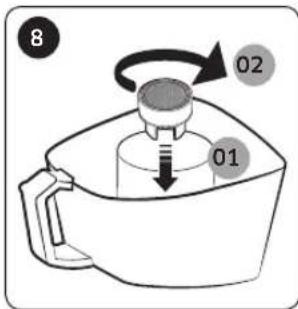

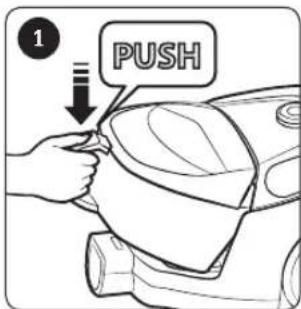

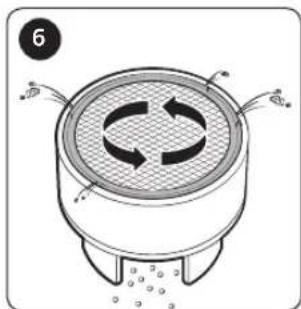

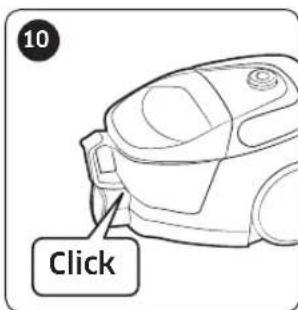

Cleaning the dustbin

Clean the dustbin if there is a lot of dust in the bin.

• Anti-Tangle Turbine(Cyclone Force) - Based on internal testing. Tested at the turbine fan using a mix of hair, pet hair on Floor.

CAUTION

• If tool is required for cleaning, please be careful not to damage the mesh.

How to empty the dustbin easily

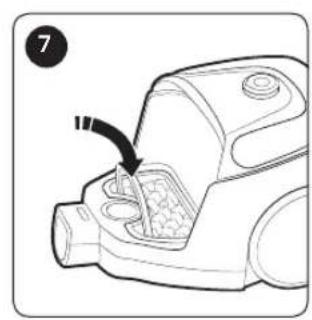

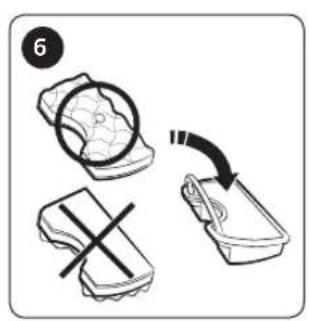

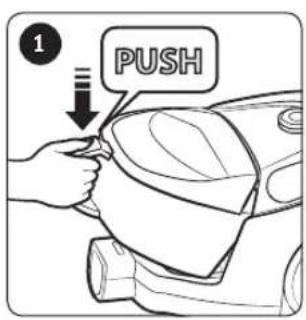

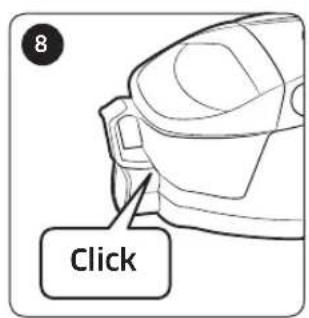

Cleaning the dust filter

CAUTION

• Make sure the dust filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

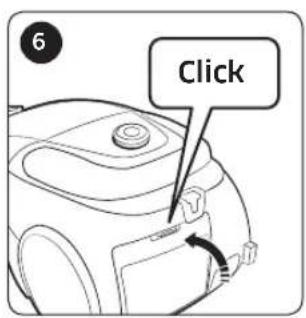

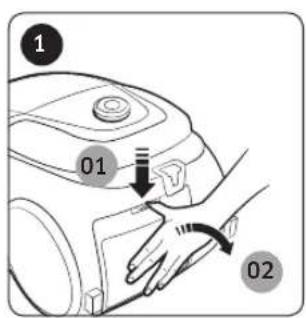

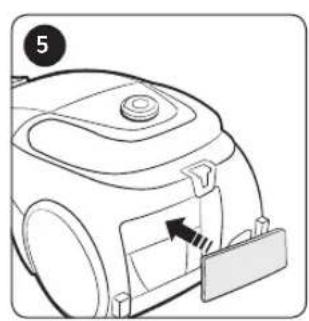

Cleaning the outlet filter

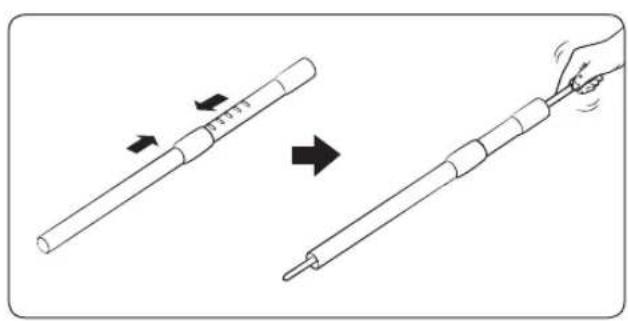

Cleaning the pipe

In use

NOTE

• Product features may vary according to model.
• When you use the dusting brush or crevice tool, you may feel vibration from the vacuum cleaner.

CAUTION

• When removing the power plug from the electrical outlet, grasp the plug, not the cord.
• Please do not press the button of dustbin handle when carrying the vacuum cleaner.
• For storage of the product, park the floor nozzle in the small groove on the bottom of the body.

Cleaning and maintenance

NOTE

• To clean the dust filter, add neutral detergent into lukewarm water and soak the filter for 30 minutes before washing it.
• Do not wash the outlet filter with water.
• To maintain the best performance of the outlet filter, replace it once a year.
• To prevent floors from scratches, inspect condition of the brush and replace it if it is worn down.

• Replacement filters are available at your local Samsung service agent.

• Hold the power cord and then press the Cord rewind button since you can get injured if the power cord may lose control while rewinding it.

• If the power cord is not rewinding well, press the Cord rewind button again after pulling the power cord about 2 3m .
• To empty and clean the dustbin, you may rinse the dustbin with cold water.
• When suction power is noticeably reduced continuously, please clean the dust filter by referring to the "Cleaning the dust filter" section.

CAUTION

• Make sure the dust filter is completely dry before putting it back into the vacuum cleaner.
• Allow 12 hours for it to dry.
• Dry the dust filter in the shade, not under sunlight, to prevent transformation or discoloration.
• When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats, please clean the outlet filter.
• Suction may reduce noticeably due to wrong reassembling of the dust filter.
• Please contact a nearest service agent if you cannot remove foreign matters from the hose.
• Store the vacuum cleaner in the shade to prevent deformation or discoloration.

Symptom Checklist
Motor does not start. · Check the cable, the power plug and outlet.
Suction force is gradually decreasing.	·Check if there is any blockage, and remove it if required. ·Please check the filters, and if required, clean as illustrated in this manual. -If filters are out of condition, replace them with new ones.
Cord does not rewind fully.	·Pull the power cord out 2 - 3 m and press the Cord rewind button.
Body overheating	·Check the filters, and clean as illustrated in this manual if required.
Static electricity discharge.	·Reduce suction. ·This may also occur when air in the room is very dry. Ventilate the room so that air humidity becomes normal.
During using, stop the unit	·This vacuum cleaner has a special thermostat that protects the motor in case of its overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dustbin, a blocked hose, pipe, or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner.

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Customer Care Center Web Site
CANADA 1-800-SAMSUNG(726-7864)		www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French)
U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us/support

Aspirateur

Guide d'utilisation

Série SC13M3110**

State of California Proposition 65 Warning (US only)

AVERTISSEMENT

Commanded aspiration
