USER MANUAL MDSJE520 SONY

WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. The laser component in this productis capable of emitting radiationexceeding the limit for Class 1.This appliance is classified as a CLASS 1LASER product. The CLASS 1 LASERPRODUCT MARKING is located on therear exterior.The following caution label is locatedinside of the unit.IN NO EVENT SHALL SELLER BELIABLE FOR ANY DIRECT,INCIDENTAL ORCONSEQUENTIAL DAMAGES OFANY NATURE, OR LOSSES OREXPENSES RESULTING FROMANY DEFECTIVE PRODUCT ORTHE USE OF ANY PRODUCT. Precautions On safety Should any solid object or liquid fallinto the cabinet, unplug the deck andhave it checked by qualified personnelbefore operating it any further. On power sources

• Before operating the deck, check thatthe operating voltage of the deck isidentical with your local powersupply. The operating voltage isindicated on the nameplate at the rearof the deck.• The unit is not disconnected from theAC power source (mains) as long as itis connected to the wall outlet, even ifthe unit itself has been turned off.• If you are not going to use the deckfor a long time, be sure to disconnectthe deck from the wall outlet. Todisconnect the AC power cord, graspthe plug itself; never pull the cord.• AC power cord must be changed onlyat the qualified service shop. On operation If the deck is brought directly from acold to a warm location, or is placed in avery damp room, moisture maycondense on the lenses inside the deck.Should this occur, the deck may notoperate properly. In this case, removethe MD and leave the deck turned onfor about an hour until the moistureevaporates. On the MiniDisc cartridge
• Do not open the shutter to expose the MD.
• Do not place the cartridge where itwill be subject to extremes ofsunlight, temperature, moisture ordust. On cleaning Clean the cabinet, panel and controlswith a soft cloth slightly moistened witha mild detergent solution. Do not useany type of abrasive pad, scouringpowder or solvent such as alcohol orbenzine.If you have any questions or problemsconcerning your deck, please consultyour nearest Sony dealer. Welcome! Thank you for purchasing the SonyMiniDisc Deck. Before operating thedeck, please read this manualthoroughly and retain it for futurereference. About This Manual Conventions
• Controls in the instructions are thoseon the deck; these may, however, besubstituted by controls on the remotethat are similarly named or, whendifferent, appear in the instructionswithin brackets.• The following icons are used in thismanual: Indicates a procedure thatrequires use of the remote. Indicates tips for making thetask easier and hints.3

ç: Signal flow What cords will I need?

• Audio connecting cords (supplied) (2)

• Optical cables (only one supplied) (2)

• Coaxial digital connecting cable (not supplied) (1) Getting Started Hooking Up the System Overview This section describes how to hook up the MD deck to an amplifier or other components such as a CD player or DAT deck. Be sure to turn off the power of each component before connection. to a wall outlet (or to a timer during timer recording or playback) You can connect two digital components at a time. White (L) Red (R) White (L) Red (R) Amplifier CD player CD player, DAT deck, or MD deck, etc. Unpacking Check that you received the following items:

• Audio connecting cords (2)

• Remote commander (remote) RM-D15M (1)

• Sony R6 (size-AA) batteries (2) Inserting batteries into the remote You can control the deck using the supplied remote. Insert two R6 (size-AA) batteries by matching the + and – on the batteries. When using the remote, point it at the remote sensor g on the deck. z When to replace batteries With normal use, the batteries should last for about six months. When the remote no longer operates the deck, replace all the batteries with new ones. Notes

• Do not leave the remote near an extremely hot or humid place.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.

• If you don’t use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

DIGITAL COAXIAL OUT DIGITAL OPTICAL OUT DIGITAL OPTICAL IN LINE

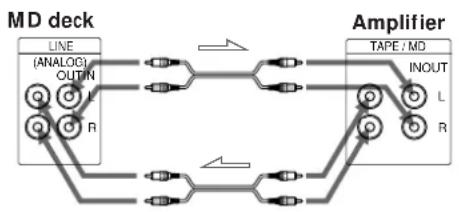

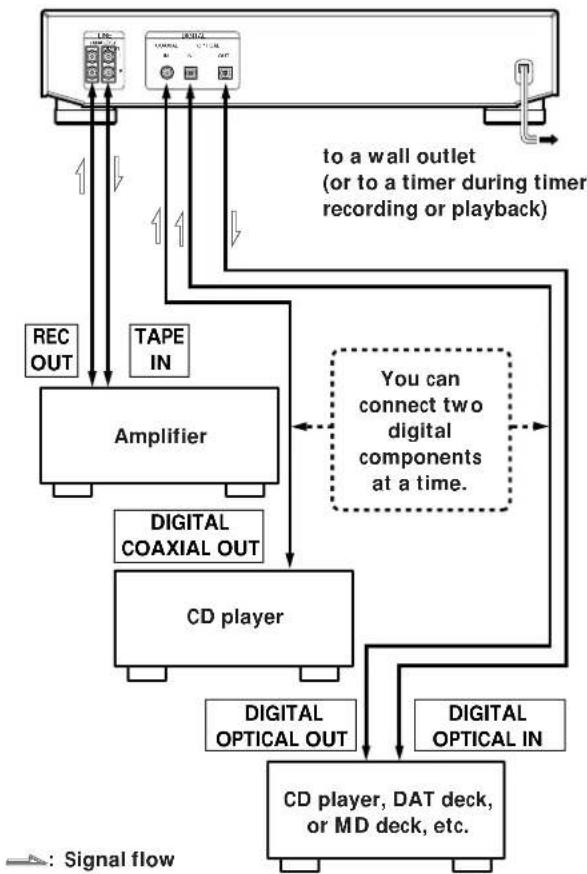

Getting Started Hookups Connecting the deck to an amplifier Connect the amplifier to the LINE (ANALOG) IN/ OUT jacks using the audio connecting cords (supplied), making sure to match the color-coded cords to the appropriate jacks on the components: red (right) to red and white (left) to white. Be sure to make connections firmly to prevent hum and noise.

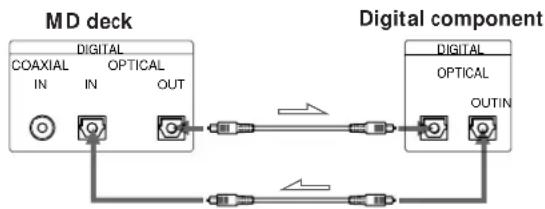

ç: Signal flow Connecting the deck to a digital component such as a CD player, DAT deck, digital amplifier, or another MD deck Connect the component through the DIGITAL OPTICAL IN/OUT or DIGITAL COAXIAL IN connectors with two optical cables (only one supplied) and/or a coaxial digital connecting cable (not supplied). When using the optical cables Take the caps off the connectors and then insert the plugs parallelly until they click into place. Be sure not to bend or tie together the optical cables.

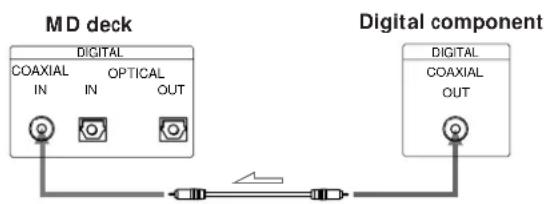

ç: Signal flow When using the coaxial digital connecting cable

ç: Signal flow Note If the optical cables and/or the coaxial digital connecting cable are not connected properly, “Din Unlock” and “C71” may alternate in the display. MD deck Amplifier

z Automatic conversion of digital sampling rates during recording A built-in sampling rate converter automatically converts the sampling frequency of various digital sources to the 44.1 kHz sampling rate of your MD deck. This allows you to record sources such as 32- and 48- kHz DAT or satellite broadcasts, as well as compact discs and other MDs. Note If “Din Unlock” alternates with “C71”, or “Cannot Copy” appears in the display, recording through the digital connector is not possible. In this case, record the program source through the LINE (ANALOG) IN jacks with the INPUT switch set at ANALOG. Setting the voltage selector (only on models supplied with a voltage selector) Check that the voltage selector on the rear panel of the deck is set to the local power line voltage. If not, set the selector to the correct position using a screwdriver before connecting the AC power cord to an AC outlet. Connecting the AC power cord Connect the AC power cord to a wall outlet or to the outlet of a timer. MD deck Digital component MD deck Digital component DIGITALOUTINOPTICALDIGITAL OUT ININ OPTICALCOAXIAL

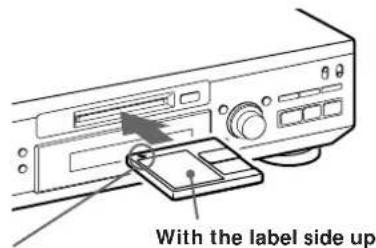

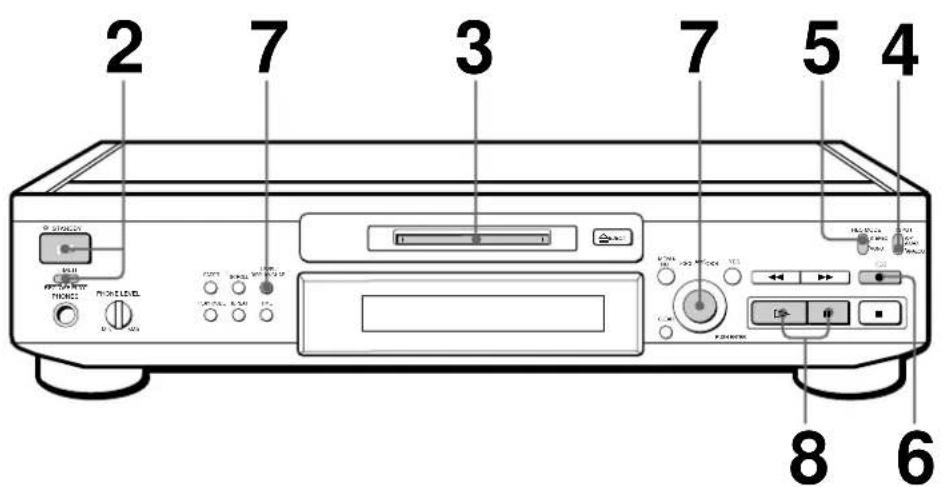

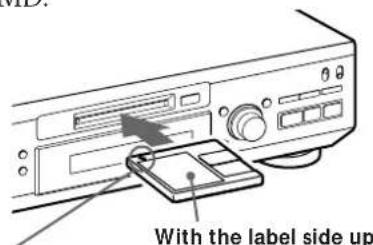

With the label side upWith the arrow pointing this way Recording on an MD

Turn on the amplifier and play the program source you want to record.

Insert a recordable MD. If the MD has a recorded material on it, the deck will automatically start recording from the end of the last recorded track.

Set INPUT to the corresponding input connector. To record through Set INPUT to

DIGITAL OPTICAL IN OPT

DIGITAL COAXIAL IN COAX

Set REC MODE to the mode you want to record in. To record in Set REC MODE*

If you switch REC MODE during recording or recording pause, recordingstops.

In the monaural recording, you can record about two times longer than inthe stereo recording. Monitor audio during recording Even if you set REC MODE toMONO, the monitor signal doesnot become monaural.≠ ± REC INPUT MONO PHONES PHONE LEVEL PLAY MODE SCROLL AMS YES MENU/

4Basic Operations Basic Operations

Press r REC. The deck becomes ready to record.

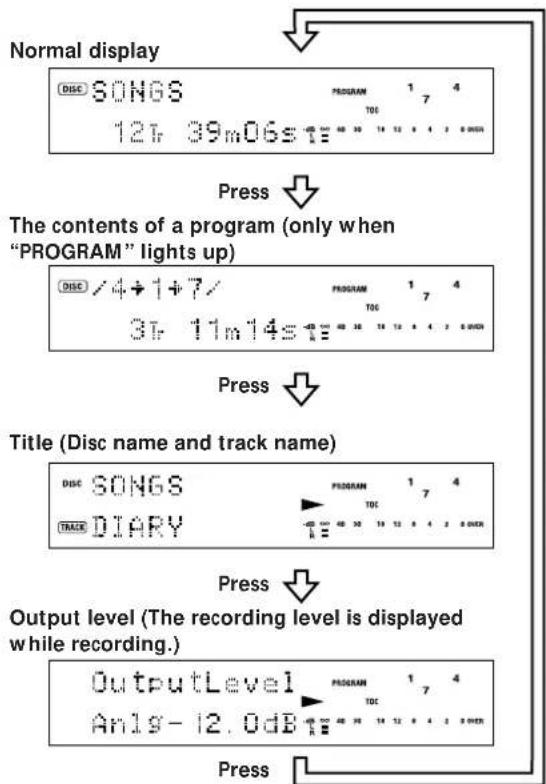

Press LEVEL/DISPLAY/CHAR to change the display, then turn AMS to adjust the recording level. For details, see pages 12 and 13.

Press · or P. Recording starts.

Start playing the program source. Do not disconnect the deck from the power source immediately after recording If you do, recorded material may not be saved to the MD. To save the material, after recording, press § EJECT to take out the MD or change the deck to standby by pressing 1/u. “TOC Writing” will flash in the display at this time. After “TOC Writing” stops flashing and goes out, you can pull out the AC power cord. To Press Stop recording p Pause recording* P. Press the button again or press · to resume recording. Take out the MD § EJECT after stopping

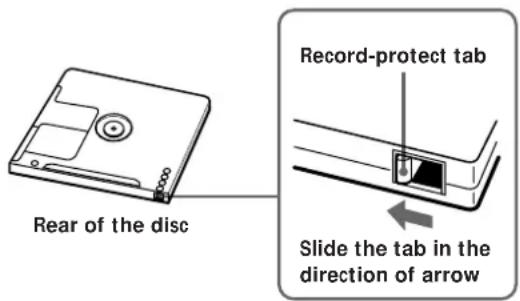

• Whenever you pause recording, the track number increases by one. For example, if you paused recording while recording on track 4, the track number increases by one and recording continues on the new track when restarted. To protect an MD against accidental erasure To make it impossible to record on an MD, slide the tab in the direction of arrow, opening the slot. To allow recording, close the slot. Rear of the disc Record-protect tab Slide the tab in the direction of arrow When “TOC Writing” flashes in the display The deck is currently updating the Table Of Contents (TOC). Do not move the deck or pull out the AC power cord. Changes to an MD made through recording are saved only when you update the TOC by ejecting the MD or changing the deck to standby by pressing the 1/u switch.Basic Operations

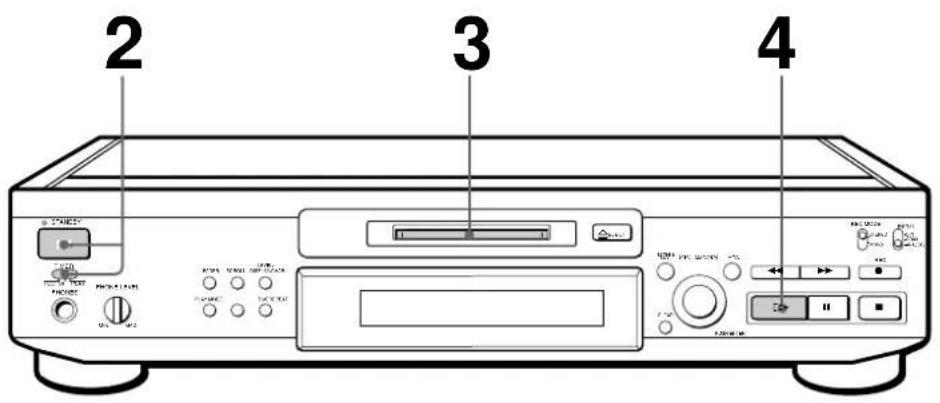

Turn on the amplifier and set the source selector to the position for MD deck.

Press ·. The deck starts playing. Adjust the volume on the amplifier. To Do the following: Stop playing Press p. Pause playing Press P. Press the button again or press

• to resume playing. Go to the next track Turn AMS clockwise (or press + on the remote). Go to the current track Turn AMS counterclockwise (or press = on the or the preceding track remote). Take out the MD Press § EJECT after stopping playing. z You can locate and play back a track while the deck is stopped 1 Turn AMS (or press = or+) until the number of thetrack you want to playappears.2 Press AMS or ·. z To use headphones Connect them to PHONES jack.Use PHONE LEVEL to adjustthe volume. z You can adjust the analog signal level output to the LINE (ANALOG) OUT jacks 1 While the deck is playing,press LEVEL/DISPLAY/CHAR repeatedly until theline output adjustmentdisplay appears.2 Turn AMS (or press LEVEL+/–) to adjust the outputsignal level. Notes
• The output level for thePHONES jack is alsochanged.• When you eject the MD orturn off the power bypressing the 1/u switch, theoutput level is reset to theinitial setting (0.0dB).With the label side upWith the arrow pointing this way≠ ± REC INPUT MONO

PHONESPHONE LEVELPLAY MODESCROLL

Recording on MDsRecording on MDs

• When recording from DAT or satellite broadcasts with the INPUT switch set at the respective digital position, the deck automatically marks a track number whenever the sampling frequency of the input signal changes regardless of the Setup Menu 02 setting. z You can mark track numbers during or after recording For details, see “Marking Track Numbers While Recording” (page 13) and “Dividing Recorded Tracks” (page 31). When “TOC Writing” flashes in the display The deck is currently updating the Table Of Contents (TOC). Do not move the deck or pull out the AC power cord. Changes to an MD made through recording are saved only when you update the TOC by ejecting the MD or changing the deck to standby by pressing the 1/u switch. The MD deck uses the SCMS (Serial Copy Management System on page 41) MDs recorded through digital input connector cannot be copied onto other MDs or DAT tapes through the digital output connector. When the deck is recording or in recording pause, digital signals input through one of the digital input connectors are output to the DIGITAL OPTICAL OUT connector with the same sampling rate To change the digital input signal to another sampling rate for output (without recording it to an MD), use Input Monitor Function (see page 10). Notes on Recording If “Protected” alternates with “C11” in the display The MD is record-protected. Close the slot to record on the disc (see “To protect an MD against accidental erasure” on page 7). If “Din Unlock” alternates with “C71” in the display

• The digital program source is not connected as you set with the INPUT switch in Step 4 on page 6. To continue, connect the program source properly.

• The program source is not on. Turn on the program source. Depending on the menu settings and source being recorded, track numbers are marked in following ways:

• When recording from a CD or MD with the INPUT switch set at a digital position (OPT or COAX) and the source connected through the digital input (DIGITAL OPTICAL IN or DIGITAL COAXIAL IN) connector: The deck automatically marks track numbers in the same sequence as the original. If, however, a track is repeated two or more times (e.g. by single-track repeat play) or two or more tracks with the same track number (e.g. from different MDs or CDs) are played, the track or tracks are recorded as part of a single, continuous track with a single track number. If the source is an MD, track numbers may not be marked for tracks of less than 4 seconds.

• When recording from some CD players and multi disc players connected through one of the digital input connectors with the INPUT switch set at the respective digital position: The deck may not automatically mark track numbers. In these cases, mark the track numbers after recording, using the deck’s Divide Function (see “Dividing Recorded Tracks” on page 31).

• When recording from a source connected through the LINE (ANALOG) IN jacks with the INPUT switch set at ANALOG or when recording from a DAT or satellite broadcast connected through one of the digital input connectors with the INPUT switch set at the respective digital position and “T.Mark Off” selected in Setup Menu 02: The source will be recorded as a single track.

• Even while recording an analog source or a DAT or satellite broadcast, you can mark track numbers if “T.Mark LSyn” is selected in Setup Menu 02 (see “Marking Track Numbers While Recording” on page 13).Recording on MDs

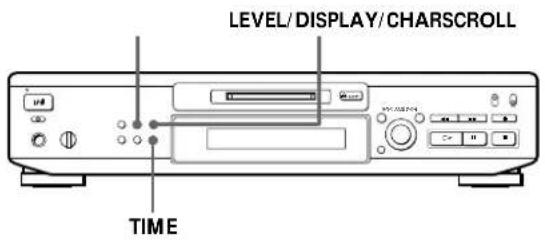

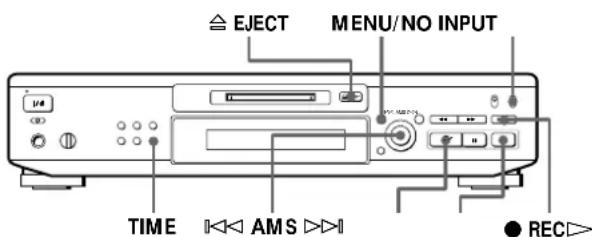

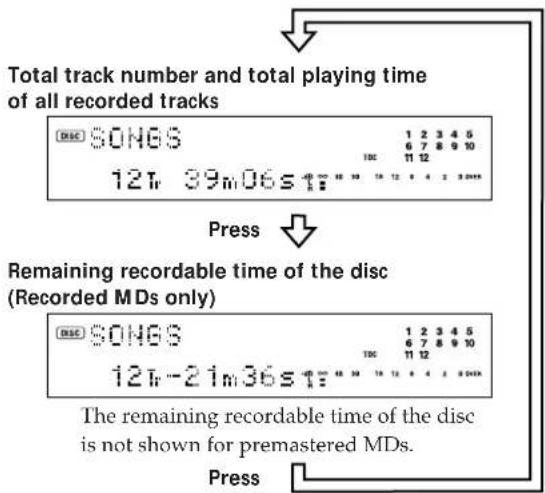

Useful Tips for Recording Checking the remaining recordable time on the MD Press TIME.

• When you press the TIME button repeatedly while recording, the display alternates between the recording time of the current track and the remaining recordable time on the MD.

• When you press the TIME button repeatedly while the deck is stopped, the display alternates between total disc playing time and remaining recordable time on the MD (see page 19). Monitoring the input signal (Input Monitor) Before starting recording, you can monitor the selected input signal through the deck’s output connectors. 1 Press § EJECT to remove the MD. 2 Set INPUT according to the input signal you want to monitor. When the INPUT switch is set at ANALOG The analog signal input through the LINE (ANALOG) IN jacks is output to the DIGITAL OPTICAL OUT connector after A/D conversion, and then to the LINE (ANALOG) OUT jacks and the PHONES jack after D/A conversion. When the INPUT switch is set at OPT or COAX After passing through the sampling rate converter, the digital signal input through the respective digital input connector is output to the DIGITAL OPTICAL OUT connector, and after D/A conversion to the LINE (ANALOG) OUT jacks and PHONES jack. 3 Press r REC. If the INPUT switch is set at ANALOG, “AD-DA” appears in the display. If the INPUT switch is set at OPT or COAX, “-DA” appears in the display. If “Auto Cut” appears in the display (Auto Cut) There has been no sound input for about 30 seconds during recording. The 30 seconds of silence are replaced by a blank of about 3 seconds and the deck changes to recording pause. If the deck continues pausing for about 10 minutes after the Auto Cut Function activated, recording stops automatically. Note that this function does not activate even if there has been no sound input for about 30 seconds when the deck started recording from the blank portion. z You can turn off the Auto Cut Function For details, see “To turn off the Smart Space Function and Auto Cut Function” below. Note that when you turn off the Auto Cut Function, the Smart Space Function is turned off automatically. If “Smart Space” appears in the display (Smart Space) There has been an extended silence of 4 to 30 seconds in length during recording. The silence is replaced with a blank of about 3 seconds and the deck continues recording. Note that new track numbers may not be marked for portions recorded while this function is activated. Also, the Smart Space Function does not activate even if there has been an extended silence of 4 to 30 seconds in length when the deck started recording from the blank portion. To turn off the Smart Space Function and Auto Cut Function 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 05”, then press AMS. 3 Turn AMS to select “S.Space Off”, then press AMS. 4 Press MENU/NO. To turn on the Smart Space Function and Auto Cut Function again 1 Do Steps 1 and 2 in “To turn off the Smart Space Function and Auto Cut Function” above. 2 Turn AMS to select “S.Space On”, then press AMS. 3 Press MENU/NO. ≠ AMS ±p

Recording on MDs Notes

• When you turn off the Smart Space Function, the Auto Cut Function is also turned off automatically.

• The Smart Space Function and Auto Cut Function are factory set to on.

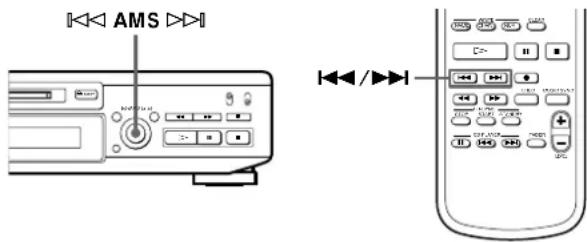

• If you turn off the deck or disconnect the AC power cord, the deck will recall the last setting (On or Off) of the Smart Space and Auto Cut Functions the next time you turn on the deck. Playing back tracks just recorded Do this procedure to immediately play back tracks that have just been recorded. Press · immediately after stopping recording. Playback starts from the first track of the material just recorded. To play from the first track of the MD after recording 1 Press p again after stopping recording. 2 Press ·. Playback starts from the first track of the MD. Recording Over Existing Tracks Follow the procedure below to record over existing material just as you would on an analog cassette tape. 1 Do Steps 1 to 5 in “Recording on an MD” on page 6. 2 Turn AMS (or press = or +) until the number of the track to be recorded over appears. 3 To record from the start of the track, continue from Step 6 in “Recording on an MD” on page 7. z While “Tr” flashes in the display The deck is recording over an existing track, and stops flashing when it reaches the end of the recorded portion. z To record from the middle of the track 1 After Step 2 above, press · to start playback. 2 Press P where you want to start recording. 3 Continue from Step 6 in “Recording on an MD” on page 7. Note You cannot record from the middle of an existing track when the “PROGRAM” or “SHUFFLE” is on.

LEVEL =/+Recording on MDs

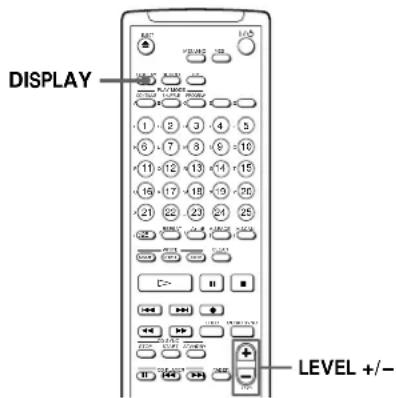

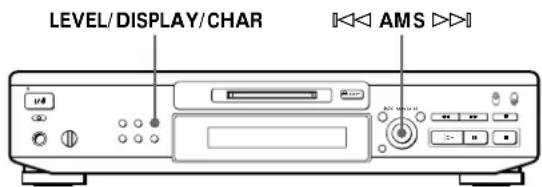

4 While monitoring the sound, turn AMS (or press LEVEL +/– repeatedly) to adjust the recording level so that the peak level meters reach their highest point without turning on the OVER indication. Occasional lighting of “OVER” is acceptable. The volume can only be increased up to +12.0 dB. Therefore, if the digital signal level of the program source is low, it may not be possible to set the recording level to maximum. 5 Stop playing the program source. 6 To start recording, do the procedure starting from Step 8 in “Recording on an MD” on page 7. z You can use Setup Menu 11 or 12 to adjust the digital recording level 1 While recording or in recording pause, press MENU/ NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 11”or “Setup 12”, then press AMS. The dB display flashes. Select “Setup 11” with the INPUT switch set at OPT and “Setup 12” with the INPUT switch set at COAX. 3 Turn AMS to adjust the recording level, then press AMS. The dB display changes from flashing to lighted steadily. 4 Press MENU/NO. z The Peak Hold Function freezes the level meter display at the highest level reached by the input signal 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 06”, then press AMS. 3 Turn AMS to select “P.Hold On”, then press AMS. 4 Press MENU/NO. To turn off the Peak Hold Function, select “P.Hold Off” in Step 3 above. Adjusting the Recording Level You can adjust the recording level before starting recording. Adjusting the digital recording level

Do Steps 1 to 6 in “Recording on an MD” on pages 6 and 7. Set INPUT to OPT or COAX in Step 4. 2 Play the portion of the program source with the strongest signal level. 3 Press LEVEL/DISPLAY/CHAR (or DISPLAY) repeatedly until the recording level adjustment display appears. OVER indication ≠ AMS ±

CONTINUE DISPLAY NAME

Recording on MDs Adjusting the analog recording level 1 Do Steps 1 to 6 in “Recording on an MD” on pages 6 and 7. Set INPUT to ANALOG in Step 4. 2 Play the portion of the program source with the strongest signal level. 3 Press LEVEL/DISPLAY/CHAR (or DISPLAY) repeatedly until the recording level adjustment display appears. 4 While monitoring the sound, turn AMS (or press LEVEL +/– repeatedly) to adjust the recording level. The volume can only be increased up to +12.0 dB. Therefore, if the output level of the connected component is low, it may not be possible to set the recording level to maximum. 5 Stop playing the program source. 6 To start recording, do the procedure starting from Step 8 in “Recording on an MD” on page 7. z You can use Setup Menu 10 to adjust the analog recording level 1 While recording or in recording pause, press MENU/ NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 10”, then press AMS. 3 Turn AMS to adjust the recording level, then press AMS. 4 Press MENU/NO. Marking Track Numbers While Recording (Track Marking) You can mark track numbers either manually or automatically. By marking track numbers at specific points, you can quickly locate the points later using the AMS Function, or use various Editing Functions. Marking track numbers manually (Manual Track Marking) You can mark track numbers at any time while recording on an MD. Press r REC at the place you want to add a track mark while recording. Marking track numbers automatically (Automatic Track Marking) The deck adds track marks differently in the following cases:

• When recording from CDs or MDs with the INPUT switch set at OPT or COAX: The deck marks track numbers automatically. However, the Automatic Track Marking Function does not activate when recording from some CD players and multi disc players.

• In all other cases: If “T.Mark LSyn” is selected in Setup Menu 02, the deck marks a new track number whenever the signal drops to the specified level or below for about

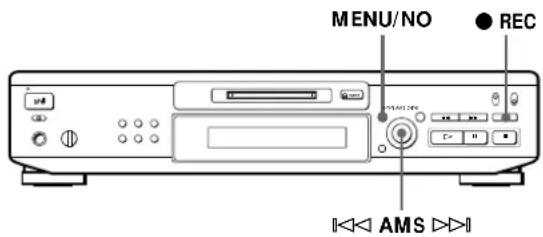

≠ AMS ± MENU/NO r RECRecording on MDs

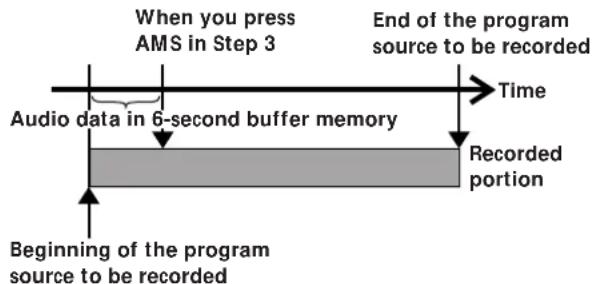

Recorded portion Beginning of the program source to be recorded When you press AMS in Step 3 End of the program source to be recorded Time To select “T.Mark Off” or “T.Mark LSyn” in Setup Menu 02, do the procedure below: 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 02”, then press AMS. 3 Turn AMS to select “T.Mark Off” or “T.Mark LSyn”, then press AMS. “L.SYNC” lights up when you select “T.Mark LSyn”. 4 Press MENU/NO. z You can set the reference level that must pass before a rise marks a new track number In Automatic Track Marking, the input signal must remain at or below a given reference level for

1.5 seconds or longer before a rise above the reference

level will mark a new track number. Do the following procedure to specify the reference level. Note that “T.Mark LSyn” should be selected in Setup Menu 02. 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 03”, then press AMS. 3 Turn AMS to set the reference level. You can set the reference level at –72 dB to 0 dB in 2 dB steps. 4 After selecting the reference level, press AMS. 5 Press MENU/NO. Note If you turn off the deck or disconnect the AC power cord, the deck will recall the last settings of the Automatic Track Marking Function (“T.Mark LSyn” or “T.Mark Off”) the next time you turn on the deck. Starting Recording With 6 Seconds of Prestored Audio Data (Time Machine Recording) When recording from an FM or satellite broadcast, the first few seconds of material are often lost due to the time it takes you to ascertain the contents and press the record button. To prevent the loss of this material, the Time Machine Recording Function constantly stores 6 seconds of the most recent audio data in a buffer memory so that when you begin recording the program source using this function, the recording actually begins with the 6 seconds of audio data stored in the buffer memory in advance as shown in the illustration below. 1 Do Steps 1 to 6 in “Recording on an MD” on pages 6 and 7. The deck changes to recording pause. 2 Start playing the program source you want to record. The most recent 6 seconds of audio data is stored in the buffer memory. 3 Press AMS (or T.REC) to start Time Machine Recording. Recording of the program source starts with the 6 seconds of audio data stored in the buffer memory. Audio data in 6-second buffer memory

REPEAT WRITE CLEAR NAME

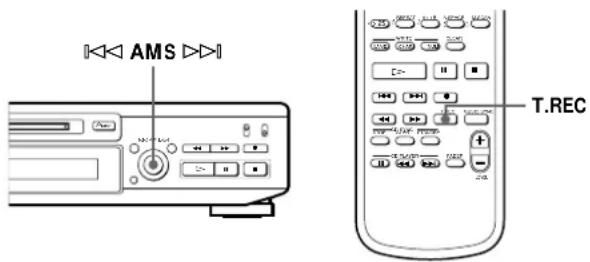

Recording on MDs To stop Time Machine Recording Press p. Note The deck starts storing audio data when the deck is in recording pause and you start playing the program source. With less than 6 seconds of playing of the program source and audio data stored in the buffer memory, Time Machine Recording starts with less than 6 seconds of audio data. Synchro-Recording With Audio Equipment of Your Choice (Music Synchro-Recording) Z By using the MUSIC SYNC button on the remote, you can automatically start recording in sync with the signal input from the program source. The method of marking track numbers differs, depending on the program source being recorded and the setting of the Setup Menu 02 (see “Notes on Recording” on page 9). 1 Do Steps 1 to 5 in “Recording on an MD” on page 6. 2 Press MUSIC SYNC. The deck changes to recording pause. 3 Start playing the program source you want to record. The deck starts recording automatically. To stop Music Synchro-Recording Press p. Note When Music Synchro-Recording, the Smart Space Function and the Auto Cut Function turn on automatically regardless of their setting (On or Off) and type of input (digital or analog).

CONTINUEDISPLAY NAME

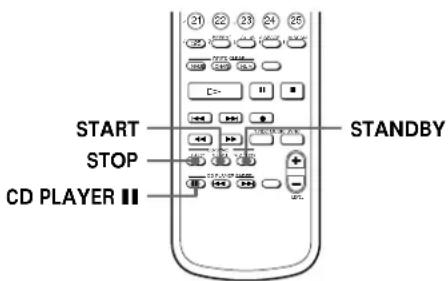

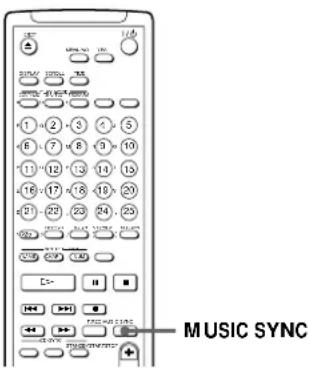

Synchro-Recording With a Sony CD Player Z By connecting your deck to a Sony CD player or Hi-Fi Component System, you can easily dub CDs onto MDs using the CD synchro buttons on the remote. If your deck is connected to a Sony CD player by a digital input cable, track numbers are automatically marked as appear on the original even when “T.Mark Off” is selected in Setup Menu 02. If your deck is connected to a Sony CD player by audio connecting cords through the LINE (ANALOG) IN jacks, track numbers are automatically marked when you set Setup Menu 02 to “T.Mark LSyn” (see page 13). As the same remote controls both the CD player and the deck, you may have trouble operating both units if they are far from each other. If you do, place the CD player close to this deck. 1 Set the source selector on the amplifier to CD. 2 Do Steps 2 to 5 in “Recording on an MD” on page 6 to prepare the deck for recording. 3 Insert a CD into the CD player. 4 Select the playback mode (Shuffle Play, Program Play, etc.) on the CD player. 5 Press STANDBY. The CD player pauses for playing and the deck pauses for recording. 6 Press START. The deck starts recording and the CD player starts playback. The track number and elapsed recording time of the track appear in the display. If the CD player does not start playing Some CD player models may not respond when you press START on the remote of the deck. Press P on the remote of the CD player instead. 7 Press STOP to stop synchro-recording. To pause recording Press STANDBY or CD PLAYER P. To restart recording, press START or CD PLAYER P. A new track number is marked each time you pause recording. Notes

• When the deck’s remote controls the CD player with a mode selector, set the selector to CD1.

• The deck may not automatically mark track numbers when recording from some CD players and multi disc players. z You can use the remote of the CD player during synchro-recording When you press p, the CD player stops and the deck pauses for recording. When you press P, the CD player pauses and the deck pauses for recording. To restart synchro-recording, press ·. z You can change CDs during synchro-recording Do the following steps instead of Step 7 above. 1 Press p on the remote of the CD player. The deck pauses for recording. 2 Change the CD. 3 Press · on the remote of the CD player. Synchro-recording restarts. z You can also do synchro-recording with a Sony video CD player Using the procedure for synchro-recording with a Sony CD player, you can do synchro-recording with a Sony video CD player also. To select the video CD player, press button number 2 while pressing down the 1/u button on the remote before starting the procedure. To select the CD player again, press button number 1 while pressing down the 1/u button. The deck is factory set to a CD player for synchro- recording. z You can check the remaining recordable time on the

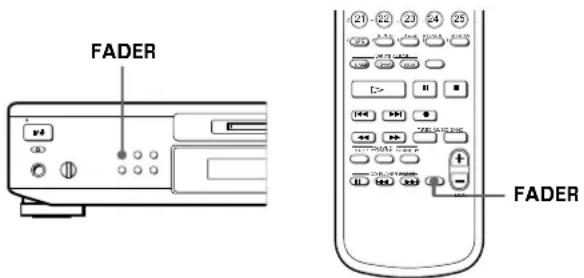

Recording on MDs Fading In and Out (Fader) You can gradually increase the recording level at the beginning of a recording (fade-in recording) or gradually decrease the recording level at the end of a recording (fade-out recording). This function is convenient when, for example, you don’t want the track cut off abruptly when the disc reaches to its end. Fade-in recording During recording pause, press FADER at the position where you want to start fade-in recording. Z in “Fade Z 3.2s” flashes and the deck performs the fade-in recording until the counter reaches “0.0s”. Fade-out recording During recording, press FADER at the position where you want to start fade-out recording. z in “Fade z 3.2s” flashes and the deck performs the fade-out recording until the counter reaches “0.0s”. The deck changes to recording pause when fade-out recording finishes. z You can set the duration of fade-in and fade-out recording independently 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 To set the duration of fade-in recording: Turn AMS to select “Setup 08”, then press AMS. To set the duration of fade-out recording: Turn AMS to select “Setup 09”, then press AMS. 3 Turn AMS to set the duration. Both the fade-in and fade-out recording durations can be set in 0.1 second steps. 4 After selecting the duration, press AMS. 5 Press MENU/NO. FADER

FADERRecording on MDs

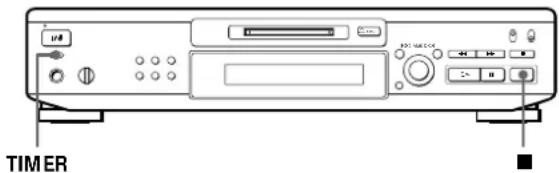

Recording on an MD Using a Timer By connecting a timer (not supplied) to the deck, you can start and stop recording operations at specified times. For further information on connecting the timer and setting the starting and ending times, refer to the instructions that came with the timer. 1 Do Steps 1 to 7 in “Recording on an MD” on pages 6 and 7. 2 • If you want to specify the time for the start of recording, press p.

• If you want to specify the time for the end of recording, do Steps 8 and 9 in “Recording on an MD” on page 7.

• If you want to specify the time for both start and end of recording, press p. 3 Set TIMER on the deck to REC. 4 Set the timer as required.

• When you have set the time for the start of recording, the deck turns off. When the specified time arrives, the deck turns on and starts recording.

• When you have set the time for the end of recording, recording continues. When the specified time arrives, the deck stops recording and turns off.

• When you have set the time for both the start and end of recording, the deck turns off. When the starting time arrives, the deck turns on and starts recording. When the ending time arrives, the deck stops recording and turns off. 5 After you have finished using the timer, set TIMER on the deck to OFF. Then place the deck in standby status by plugging the AC power cord of the deck into a wall outlet or set the timer to continuous operation.

• If TIMER is left at REC, the deck will automatically start recording the next time you turn the deck on.

• If you do not change the deck to standby status for more than a week after timer recording has finished, the recorded contents may disappear. Make sure to change the deck to standby status within a week after timer recording is completed The TOC on the MD is updated and recorded contents are written to the MD when you turn the deck on. If the recorded contents have disappeared, “Standby” flashes when you turn the deck on. Notes

• It may take about 30 seconds after the deck is turned on until recording starts. When recording at a specified time using the timer, be sure to take this time into account when setting the recording start time.

• During timer recording, new material is recorded from the end of the recorded portion on the MD.

• Material recorded during timer recording will be saved to the disc the next time you turn the deck on. “TOC Writing” will flash in the display at that time. Do not move the deck or pull out the AC power cord while “TOC Writing” is flashing.

• Timer recording will stop if the disc becomes full. ≠ AMS ±p

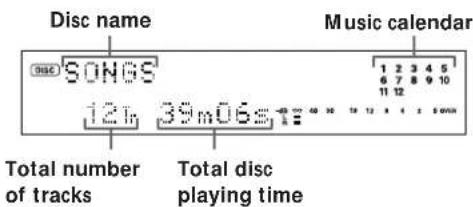

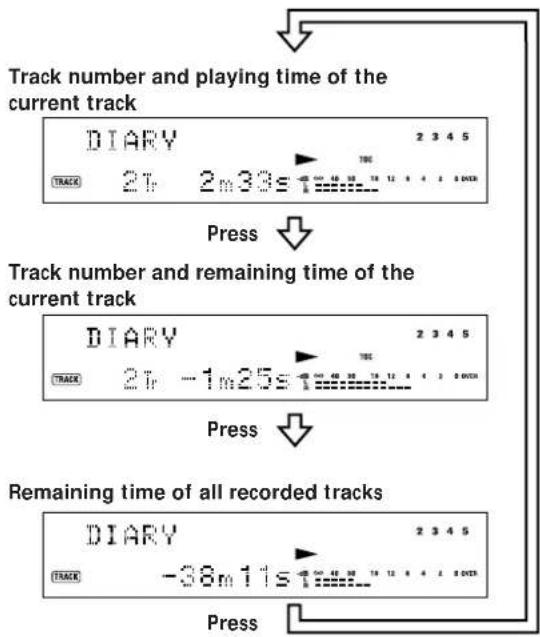

Disc name Music calendar Total number of tracks Total disc playing time Total track number and total playing time of all recorded tracks Remaining recordable time of the disc (Recorded MDs only) Press Press The remaining recordable time of the disc is not shown for premastered MDs. Track number and playing time of the current track Track number and remaining time of the current track Remaining time of all recorded tracks Press Press Press ≠ AMS ±

YES TIME SCROLL DISPLAY Playing MDs A music calendar shows all the track numbers within a grid if the MD is a premastered disc, or without a grid if the MD is a recordable disc. If the total track number exceeds 15, z appears to the right of number 15 in the music calendar. Note When you insert a new MD or turn off the deck and turn it on again, the last item displayed will reappear. Checking the playing time, remaining time, and track number Each time you press TIME while playing an MD, you can change the display as shown below. The track numbers in the music calendar disappear after they are played. z The track name and disc name are displayed as follows: The disc name appears whenever the deck is stopped, and the name of the current track appears when the track is playing. If no title is recorded, “No Name” appears instead of a title. To label a recordable disc and its tracks, see “Labeling Recordings” on page 33. (Continued) Using the Display You can use the display to check disc and track information such as the total track number, total playing time of the tracks, remaining recordable time of the disc and disc name. Checking the total track number, total disc playing time and remaining recordable time of the disc Each time you press TIME while the deck is stopped, you can change the display as follows: When you insert an MD, the disc name, total number of tracks, total disc playing time, and the music calender appear in the display as follows:Playing MDs

z You can scroll a title of more than 12 characters Press SCROLL. Since the display shows up to 11 characters at a time, press SCROLL to see the rest of the title if the title has 12 characters or more. Press SCROLL again to pause scrolling, and again to continue scrolling. Changing the display Each time you press LEVEL/DISPLAY/CHAR (or DISPLAY) while the deck is stopped or playing, you can change the display as follows: Locating a Specific Track You can quickly locate any track while playing a disc by using the AMS (Automatic Music Sensor) control, = and + buttons, number buttons, or M.SCAN button on the remote. The next or succeeding tracks During playback, turn AMS clockwise (or press + repeatedly) until you find the track. The current or preceding tracks During playback, turn AMS counterclockwise (or press = repeatedly) until you find the track. A specific track directly Z Press number buttons to enter the track number. A specific track by using AMS 1 Turn AMS until the track number you want to locate appears while the deck is stopped. (The track number is flashing.) 2 Press AMS or ·. By scanning each track for 6 seconds (music scan) Z 1 Press M.SCAN before you start playing. 2 When you find the track you want, press · to start playing. z When you directly locate a track with a number over 25 Z You must press >25 first, before entering the corresponding digits. Press >25 once if it is a 2-digit track number, and twice if it is a 3-digit track number. To enter “0”, press button 10. Examples: • To play track number 30 Press >25 once, then 3 and 10.

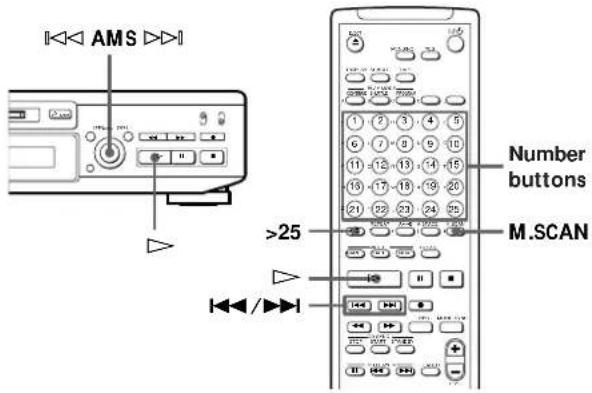

• To play track number 100 Press >25 twice, then 1, 10 and 10. To locate Do the following: Output level (The recording level is displayed while recording.) Press Press Press Press Normal display The contents of a program (only when “PROGRAM” lights up) Title (Disc name and track name) Number buttons

CONTINUE DISPLAY NAME

z You can extend the playing time during music scan 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 07”, then press AMS. 3 Turn AMS to select the playing time within a range of 6 to 20 seconds (in 1 second steps), then press AMS. 4 Press MENU/NO. z To pause playing at the beginning of a track Turn AMS (or press = or +) after pausing playback. z To go quickly to the beginning of the last track Turn AMS counterclockwise (or press =) while the display shows the total track number, total disc playing time or remaining recordable time of the disc (recordable disc only), or disc name (see page 19). Locating a Particular Point in a Track You can also use the 0 and ) buttons to locate a particular point in a track during playback or playback pause. To locate a point Press z If “—Over—” appears while you are pressing ) during playback pause The disc has reached to its end. Press 0 (or =) or turn AMS counterclockwise to go back. Notes

• If the disc reaches the end while you are pressing ) during sound monitoring, the deck stops.

• Tracks that are only a few seconds long may be too short to scan using the search function. For such tracks, it is better to play the MD at normal speed. While monitoring the sound ) (forward) or 0 (backward) and keep pressing until you find the point. Quickly by observing the display during playback pause ) or 0 and keep pressing until you find the point. There is no sound output during this operation. ≠ AMS ±

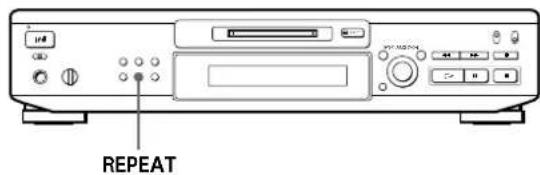

Playing Tracks Repeatedly You can play tracks repeatedly in any play mode. Press REPEAT. “REPEAT” appears in the display. The deck repeats the tracks as follows: When the MD is played in The deck repeats Normal play (page 8) All the tracks Shuffle Play (page 23) All the tracks in random order Program Play (page 23) The same program To cancel repeat play Press REPEAT several times until “REPEAT” disappears. The deck returns to the original playing mode. Repeating the current track While the track you want to repeat is playing in normal, Shuffle, or Program Play, press REPEAT several times until “REPEAT 1” appears in the display. Repeating a specific portion (A-B Repeat)

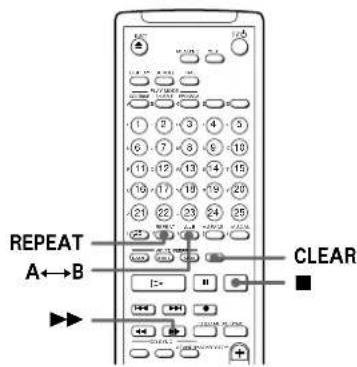

You can play a specific portion of a track repeatedly. This might be useful when you want to memorize lyrics. Note that you can only repeat a portion within the boundaries of a single track. 1 While playing a disc, press A˜B at the starting point (point A) of the portion to be played repeatedly. “REPEAT A-” appears and “B” flashes in the display. 2 Continue playing the track or press ) until you reach the ending point (point B), then press A˜B again. “REPEAT A-B” lights continuously. The deck starts to play the specified portion repeatedly. To cancel A-B Repeat Press REPEAT, CLEAR or p. Setting new starting and ending points You can repeat the portion immediately after the currently specified portion by changing the starting and ending points. 1 Press A˜B while “REPEAT A-B” appears. The current ending point B becomes the new starting point A, “REPEAT A-” lights continuously, and “B” flashes in the display. 2 Continue playing the track or press ) until you reach the new ending point (point B), then press A˜B again. “REPEAT A-B” lights continuously and the deck starts playing repeatedly the newly specified portion.

CONTINUEDISPLAY NAME

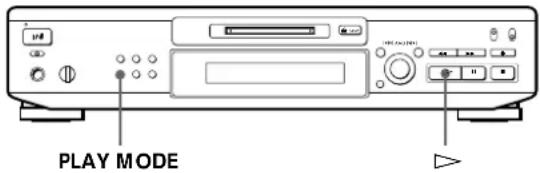

Playing in Random Order (Shuffle Play) You can have the deck “shuffle” tracks and play them in random order. 1 Press PLAY MODE repeatedly (or SHUFFLE once) until “SHUFFLE” appears in the display when the deck is stopped. 2 Press · to start Shuffle Play. “—Shuffle—” and “J” appear in the display while the deck is “shuffling” the tracks. To cancel Shuffle Play Press PLAY MODE repeatedly (or CONTINUE once) when the deck is stopped until “SHUFFLE” disappears. z You can specify tracks during Shuffle Play

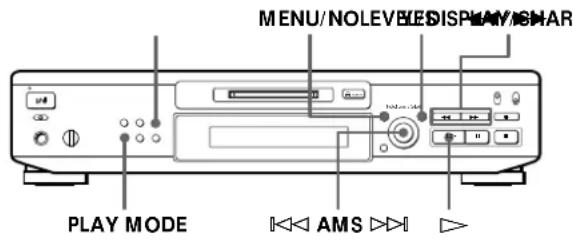

• To play the next track, turn AMS clockwise (or press+).• To play from the beginning of the current track again,turn AMS counterclockwise (or press =). Youcannot use AMS (or =) to go to tracks that havealready been played. Creating Your Own Program (Program Play) You can specify the playback order of the tracks on an MD and create your own programs containing up to 25 tracks. 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to display “Program ?”, then press AMS (or YES). 3 Do either a) or b): a) When using the controls on the deck 1 Turn AMS until the track number you want appears in the display. 2 Press AMS. If you enter the wrong track number Press 0 or ) until the wrong track number flashes, turn AMS to set the correct track number, then press AMS. If “0” flashes, press 0. (Continued) Numberbuttons≠ AMS ±

CONTINUE DISPLAY NAME

b) When using the remote Press the number buttons to enter the tracks you want to program in the order you want. To program a track with a number over 25, use the >25 button (see page 20). If you enter the wrong track number Press 0 or ) until the wrong track number flashes, then enter the correct track number with the number buttons. If “0” flashes, press 0. 4 Repeat Step 3 to enter other tracks. The entered track is added to the location where the “0” flashes. Each time you enter a track, the total program time is added up and appears in the display. 5 After finishing programming, press YES. “Complete!!” appears and programming is completed. 6 Press PLAY MODE repeatedly (or PROGRAM once) until “PROGRAM” appears in the display. 7 Press · to start Program Play. To cancel Program Play Press PLAY MODE repeatedly (or CONTINUE once) when the deck is stopped until “PROGRAM” disappears. z The program remains even after Program Play ends When you press ·, you can play the same program again. Notes

• The display shows “- -m - -s” instead of the total playing time when the total playing time of the program exceeds 199 minutes.

• “ProgramFull” appears when you program over 25 tracks. Erase the unnecessary tracks to enter other tracks. Checking the track order While the deck is stopped and “PROGRAM” is on, press LEVEL/DISPLAY/CHAR (or DISPLAY) several times. The track numbers appear in the order they were programmed as follow: “/3 / 5 / 8 / 1 / 2/” To check the rest of the track order Turn AMS. You can scroll the display to check all the track numbers you programmed. Changing the track order You can change the order of the tracks in your program before you start playing. To Do the following procedure after Steps 1 and 2 in “Creating Your Own Program”: Erase Add a track Press 0 or ) until the track number you want to erase flashes, then press CLEAR. Keep pressing CLEAR until all programmed track numbers disappear. 1 Press 0 until “0” flashes at the left of the first track. 2 Do Steps 3 to 5 on pages 23 and 24. a track the whole program to the beginning of the program Change a track in the program in the middle of the program 1 Press 0 or ) until the track which precedes the track to be added flashes. 2 Press AMS so that “0” flashes, then do Steps 3 to 5 on pages 23 and 24. 1 Press 0 until “0” flashes at the right of the last track. 2 Do Steps 3 to 5 on pages 23 and 24. to the end of the program 1 Press 0 or ) until the track number you want to change flashes. 2 Do Steps 3 to 5 on pages 23 and 24.Playing MDs

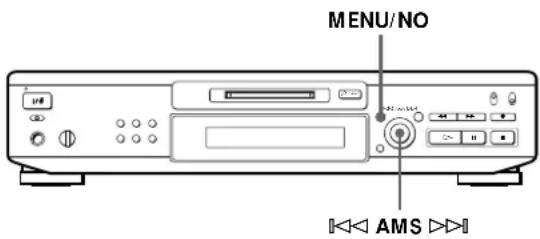

Useful Tips When Recording From MDs to Tape Inserting blank spaces while recording to tape (Auto Space) The Auto Space Function inserts a 3-second blank space between each track while recording from MDs to tapes, allowing you to use the AMS function during later playback. 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 04”, then press AMS. 3 Turn AMS to select “Auto Space”, then press AMS. 4 Press MENU/NO. z You can turn on the Auto Space Function using the remote Z While the deck is stopped, press A.SPACE repeatedly until “Auto Space” appears in the display. To cancel Auto Space Cancelling the function through menu operation on the deck 1 Do Steps 1 and 2 in “Inserting blank spaces while recording to tape” on this page. 2 Turn AMS to select “Auto Off”, then press AMS. 3 Press MENU/NO. Cancelling the function using the remote Z While the deck is stopped, press A.SPACE repeatedly until “Auto Off” appears. Note If the Auto Space Function is on while recording a selection containing multiple track numbers, (for example, a medley or symphony), blank spaces will be inserted within the selection whenever the track number changes. Pausing after each track (Auto Pause) When the Auto Pause Function is on, the deck pauses after playing each track. Auto Pause is convenient when recording single tracks or multiple, nonconsecutive tracks. Select “Auto Pause” instead of “Auto Space” in Step 3 on “Inserting blank spaces while recording to tape” on this page. z You can turn on the Auto Pause Function using the remote Z While the deck is stopped, press A.SPACE repeatedly until “Auto Pause” appears in the display. To restart playback Press · or P. To cancel Auto Pause Cancelling the function through a menu operation on the deck Do Steps 1 to 3 in “To cancel Auto Space” on this page. Cancelling the function using the remote Z While the deck is stopped, press A.SPACE repeatedly until “Auto Off” appears. Note If you turn off the deck or disconnect the AC power cord, the deck will recall the last setting of the Auto Space and Auto Pause Functions the next time you turn on the deck. Adjusting the analog signal level You can adjust the level of an analog signal for output to an amplifier connected through the LINE (ANALOG) OUT jacks. 1 While the deck is stopped, press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 13”, then press AMS. 3 Turn AMS to adjust the analog output level. 4 Press AMS. 5 Press MENU/NO. To return to the initial setting (0.0dB) Press CLEAR. Notes

• The analog signal level for output to the headphones connected through the PHONES jack is also changed.

• When you eject the MD or turn off the power by pressing the 1/u switch, the output level is reset to the initial setting (0.0dB). ≠ AMS ±

≠ AMS ± MENU/NOPlaying MDs

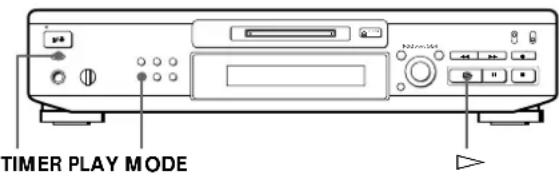

Fading In and Out (Fader) You can gradually increase the playback level of the signal output to the LINE (ANALOG ) OUT jacks and the PHONES jack at the beginning of a playback (fade- in playback) or gradually decrease the playback level at the end of a playback (fade-out playback). This function is convenient when, for example, you want to start or end playback in the middle of the track. Fade-in playback During playback pause, press FADER at the position where you want fade-in playback to start. Z in “Fade Z 3.2s” flashes and the deck performs fade- in playback until the counter reaches to “0.0s”. Fade-out playback During playback, press FADER at the position where you want fade-out playback to start. z in “Fade z 3.2s” flashes and the deck performs fade- out playback until the counter reaches “0.0s”. The deck changes to playback pause when fade-out playback finishes. Note The signal level output to the DIGITAL OPTICAL OUT connector does not change. z You can set the duration of fade-in and fade-out playback independently Do Steps 1 to 5 in “You can set the duration of the fade- in and fade-out recording independently” on page 17. Playing an MD Using a Timer By connecting a timer (not supplied) to the deck, you can start and stop playback operations at specified times. For further information on connecting the timer or setting the starting and ending times, refer to the instructions that came with the timer. 1 Do Steps 1 to 3 in ”Playing an MD” on page 8. 2 Press PLAY MODE repeatedly (or one of the PLAY MODE buttons once) to select the play mode you want. To play only specific tracks, create a program (see page 23). 3 • If you want to specify the time for the start of playback, go to Step 4.

• If you want to specify the time for the end of playback, press · to start playback, then go to Step 4.

• If you want to specify the time for both start and end of playback, go to Step 4. 4 Set TIMER on the deck to PLAY. 5 Set the timer as required.

• When you have set the time for the start of playback, the deck turns off. When the specified time arrives, the deck turns on and starts playing.

• When you have set the time for the end of playback, playback continues. When the specified time arrives, the deck stops playing and turns off.

• When you have set the time for both the start and end of playback, the deck turns off. When the starting time arrives, the deck turns on and starts playing. When the ending time arrives, the deck stops playing and turns off. 6 After you have finished using the timer, set TIMER on the deck to OFF. FADER

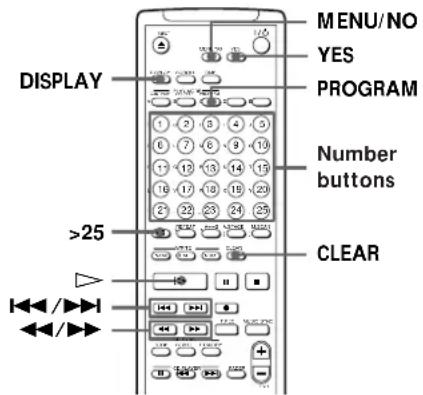

Note You can select Program Play in Step 2. Note, however, that programs eventually fade away when the standby status is off, and therefore if you set the time too far in the future, the program may be gone when the specified time arrives. If this has occurred, the deck enters normal play mode at the specified time and the tracks play in consecutive order. Falling Asleep to Music You can let the deck turn off at the specified time, so you can sleep to the music. You can specify the time to be turned off by 30 minutes. 1 Press MENU/NO twice to display “Setup Menu”. 2 Turn AMS to select “Setup 14”, then press AMS. 3 Turn AMS to select the time. The minutes display changes as follows: 30min ˜ 60min ˜ 90min ˜ 120min 4 Press AMS. 5 Turn AMS to select “Setup 15”, then press AMS. 6 Turn AMS to select “Sleep On”, then press AMS. “SLEEP” lights up in the display. 7 Press MENU/NO. To change the time to turn off Start over from Step 1 above. To cancel the Sleep Timer Function Select “Sleep Off” in Step 6 above, then press AMS. ≠ AMS ±

≠ AMS ± MENU/NOEditing Recorded MDs

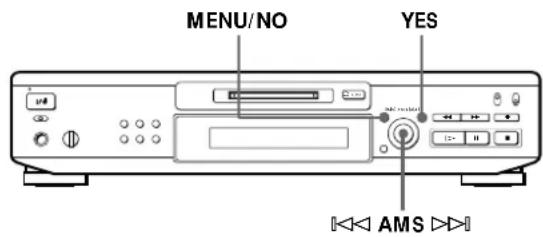

Editing Recorded MDs Erasing Recordings (Erase Function) Do the procedures below to erase following:

• All tracks Erasing a single track You can erase a track simply by specifying the respective track number. When you erase a track, the total number of tracks on the MD decreases by one and all tracks following the erased one are renumbered. Since erasing merely updates the TOC, there is no need to record over material. z To avoid confusion when erasing multiple tracks, you should proceed in order of high to low track number to prevent the renumbering of tracks that have not been erased yet. Example: Erasing B 1 While the deck is stopped, playing, or pausing, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Tr Erase ?” appears in the display. 3 Press AMS or YES. The display for erasing tracks appears and playback of the displayed track starts. 4 Turn AMS to select the track to be erased. ≠ AMS ±

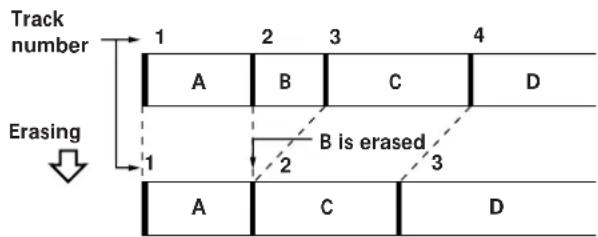

Track number Erasing B is erased Notes on Editing You can edit the recorded tracks after recording, using the following functions:

• Erase Function allows you to erase recorded tracks simply by specifying the corresponding track number.

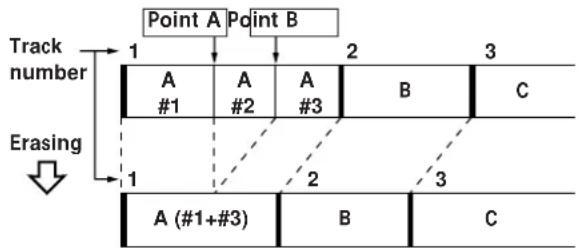

• A-B Erase Function allows you to specify a portion within a track to erase it.

• Divide Function allows you to divide tracks at specified points so that you can quickly locate those points afterwards, using the AMS function.

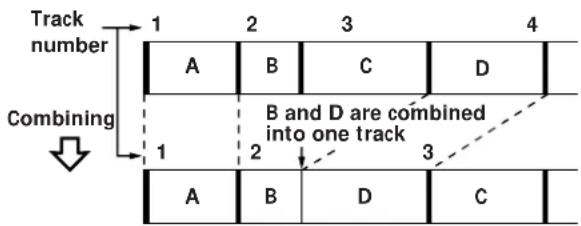

• Combine Function allows you to combine two consecutive tracks into one.

• Move Function allows you to change the order of tracks by moving a specific track to a track position you want.

• Title Function allows you to create titles for your recorded MDs and tracks. If “Protected” alternates with “C11” in the display The deck could not edit because the record-protect slot on the MD is open. Edit after closing the slot. When “TOC” and “TOC Writing” flash in the display Do not move the deck or pull out the AC power cord. After editing, “TOC” lights continuously until you eject the MD or turn off the power. “TOC” and “TOC Writing” flash while the deck is updating the TOC. When the deck finishes updating the TOC, “TOC” goes off.Editing Recorded MDs

5 Press AMS or YES. When the track selected in Step 4 has been erased, “Complete!!” appears for a few seconds and the total number of tracks in the music calendar decreases by one. The track following the erased track begins playing. (If you erase the last track, the track preceding the erased track starts playing.) 6 Repeat Steps 1 to 5 to erase more tracks. To cancel the Erase Function Press MENU/NO or p. Note If “Erase ???” appears in the display, the track was recorded or edited on another MD deck and is record-protected. If this indication appears, press AMS or YES to erase the track. Erasing all tracks on an MD Erasing a recordable MD deletes the disc name, all recorded tracks, and titles. 1 While the deck is stopped, playing, or pausing, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “All Erase ?” appears in the display. 3 Press AMS or YES. “All Erase??” appears in the display and all tracks in the music calendar start flashing. 4 Press AMS or YES. When the disc name, all recorded tracks, and titles on the MD have been erased, “Complete!!” appears for a few seconds and the music calendar disappears. To cancel the Erase Function Press MENU/NO or p to turn off the “All Erase ?” or “All Erase??” indication. z You can undo the Erase Function Use the Undo Function immediately after you erased the track (see page 37).Editing Recorded MDs

5 While monitoring the sound, turn AMS to find the starting point of the portion to be erased (point A). You can select the unit by which the starting point is shifted. Press the 0 or ) button to select frame*, second, or minute. For frame, the number of frames appears when you turn the AMS control; for second and minute, “s” or “m” flashes in the display.

• 1 frame is about 12 ms. 6 If the point A is still incorrect, repeat Step 5 until it is correct. 7 Press AMS or YES if the position is correct. “Point B set” appears in the display and playback for setting the end point of the portion to be erased (point B) starts. 8 Continue playback (or press 0 or )) until the deck reaches point B, then press AMS or YES. “A-B Ers” and “Point B ok?” alternates in the display while the deck repeats a portion of a few seconds before point A and after point B successively. 9 Repeat Step 5 if point B is not correct. 10 Press AMS or YES when the position is correct. “Complete!!” appears for a few seconds and the portion between point A and B is erased. To cancel the A-B Erase Function Press MENU/NO or p. Note If “Impossible” appears in the display, this means: – You specified point B comes before point A. Point B should be specified after point A. – The specified portion cannot be erased. This sometimes happens when you’ve edited the same track many times, and is due to a technical limitation of the MD system, not a mechanical error. Erasing a Part of a Track (A-B Erase Function) You can specify a portion within a track and erase the portion with ease. It is convenient when erasing unnecessary sections after recording satellite broadcast or FM broadcast. Example: Erasing a part of track A 1 While the deck is stopped, playing, or pausing, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “A-B Erase ?” appears in the display. 3 Press AMS or YES. 4 Turn AMS to select the number of the track, then press AMS or YES. “-Rehearsal-” and “Point A ok?” alternates in the display while the deck plays back the selected track from the beginning. Track number Erasing Point A Point B

0/)Editing Recorded MDs

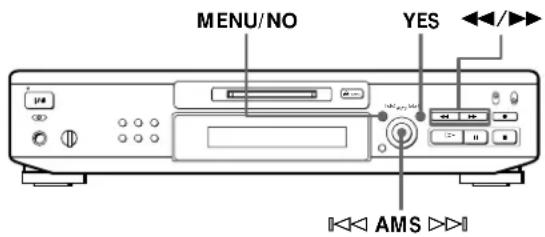

4 While monitoring the sound, turn AMS to find the point to divide the track. You can select the unit by which the starting point is shifted. Press the 0 or ) button to select frame, second, or minute. For frame, the number of frames appears when you turn the AMS control; for second and minute, “s” or “m” flashes in the display. 5 Press AMS or YES when the position is correct. “Complete!!” appears for a few seconds and the newly created track begins playing. The new track will have no track title even if the original track was labeled. The total number of tracks in the music calender increases by one. To cancel the Divide Function Press MENU/NO or p. z You can undo the Divide Function Use the Undo Function immediately after you divided the track (see page 37). z You can divide a track while recording Use the Track Marking Function (see page 13). Dividing a track after selecting the dividing point

While playing the MD, press AMS at the point where you want to create a new track. “—Divide—” and “-Rehearsal-” alternate in the display and playback continues from the position you selected. 2 To make fine adjustment on the dividing position, do Step 4 in “Dividing a track after selecting the track” on this page. 3 Press YES. “Complete!!” appears for a few seconds and the newly created track begins playing. To cancel the Divide Function Press AMS, MENU/NO or p. Dividing Recorded Tracks (Divide Function) With the Divide Function you can mark a track number at places that you want to randomly access afterwards. Use this function to add tracks to MDs recorded from an analog source (and therefore contain no track numbers), or to divide an existing track into multiple portions for locating positions in the middle of a track. When you divide a track, the total number of tracks on the MD increases by one and all tracks following the divided track are renumbered. Example: Dividing track 2 to create a new track for C Dividing a track after selecting the track

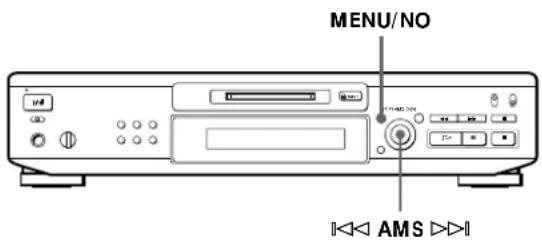

While the deck is stopped, playing, or pausing, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Divide ?” appears in the display, then press AMS or YES. 3 Turn AMS to select the track to be divided and press AMS or YES. “-Rehearsal-” appears in the display and the deck plays back the selected track from the beginning.

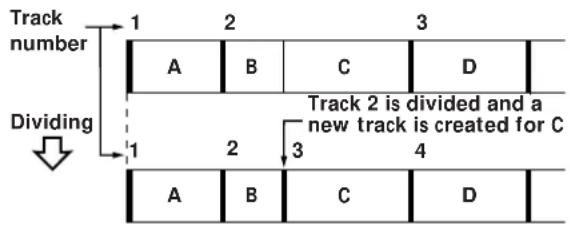

Track 2 is divided and a new track is created for C

≠ AMS ± 0/) MENU/NO YESEditing Recorded MDs

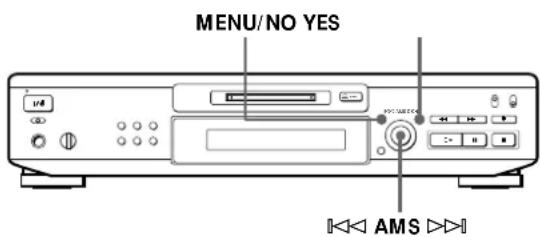

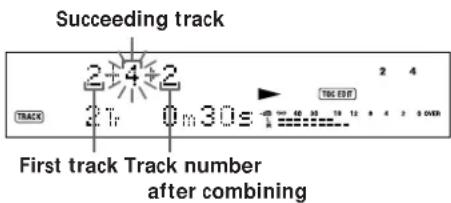

4 Turn AMS to select the first track of the two to be combined and press AMS or YES. The display for selecting the second track appears and the deck repeats the portion where the two tracks will join (i.e., the end of the first track and the beginning of the succeeding track). 5 Turn AMS to select the second track of the two to be combined and press AMS or YES. “Complete!!” appears for a few seconds and the total number of tracks in the music calendar decreases by one. If both of the combined tracks have track titles, the title of the second track is erased. To cancel the Combine Function Press MENU/NO or p. z You can undo the Combine Function Use the Undo Function immediately after you combined the tracks (see page 37). Note If “Impossible” appears in the display, the tracks cannot be combined. This sometimes happens when you’ve edited the same track many times, and is due to a technical limitation of the MD system, not a mechanical error. Combining Recorded Tracks (Combine Function) Use the Combine Function to combine tracks on a recorded MD. The two tracks to be combined need not to be consecutive and the latter track to be combined can be the track which comes before the former one in the track number order. This function is useful for combining several songs into a single medley, or several independently recorded portions into a single track. When you combine two tracks, the total number of tracks decreases by one and all tracks following the combined tracks are renumbered. Example: Combining B and D 1 While the deck is stopped, playing, or pausing, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Combine ?” appears in the display. 3 Press AMS or YES. First track Track number after combining Succeeding track ≠ AMS ±

B and D are combined into one track

AEditing Recorded MDs

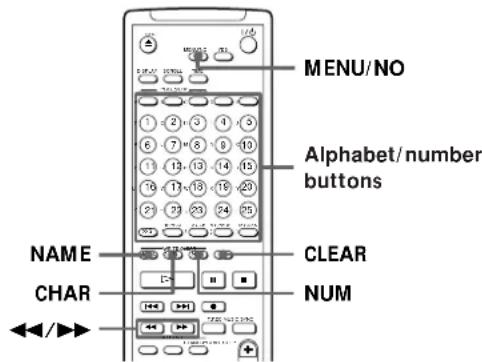

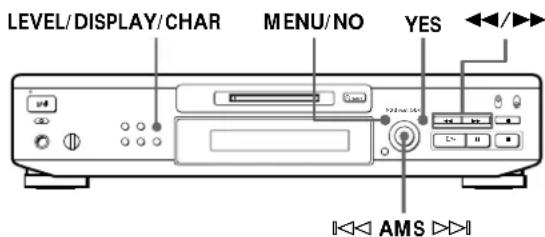

Labeling Recordings (Title Function) You can create titles for your recorded MDs and tracks. Titles — which may consist of uppercase and lowercase letters, numbers and symbols for a maximum of about 1,700 characters per disc — appear in the display during MD operation. You can also use the remote to label a track or an MD (see “Labeling tracks and MDs with the remote” on page 35). Use the following procedure to label a track or an MD. You can label a track while it is playing, pausing or recording. If the track is recording, be sure to finish labeling before the track ends. If the track ends before you’ve completed the labeling procedure, the characters already entered are not recorded and the track will remain unlabeled. 1 Press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Name ?” appears in the display and press AMS or YES. Skip this step while recording. 3 Turn AMS until “Nm In ?” appears in the display, then press AMS or YES. 4 Turn AMS to select “Disc” to label an MD, or to specify the track to label. While recording, go to Step 6. 5 Press AMS or YES. A flashing cursor appears in the display. (Continued) Moving Recorded Tracks (Move Function) Use the Move Function to change the order of any track. After you move a track, the track numbers between the new and old track positions are automatically renumbered. Example: Moving track C to track position 2 1 While the deck is stopped, playing, or pausing, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Move ?” appears in the display. 3 Press AMS or YES. 4 Turn AMS to select the track to be moved and press AMS or YES. 5 Turn AMS until the new track position appears. 6 Press AMS or YES. “Complete!!” appears for a few seconds and the moved track begins playing back. To cancel the Move Function Press MENU/NO or p. New track position Track number to be moved

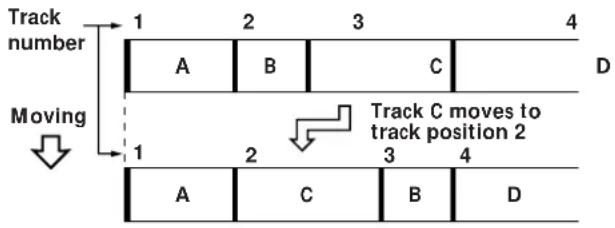

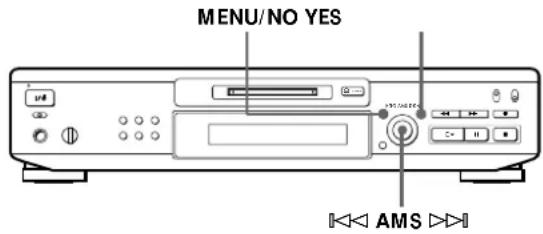

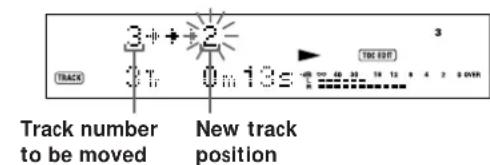

Moving Track C moves to track position 2

0/)Editing Recorded MDs

6 Press LEVEL/DISPLAY/CHAR to select the character type as follows: To select Press LEVEL/DISPLAY/CHAR repeatedly until Uppercase letters “A” appears in the display Lowercase letters “a” appears in the display Numbers “0” appears in the display 7 Turn AMS to select the character. The selected character flashes. Letters, numbers, and symbols appear in sequential order as you turn AMS. You can use the following symbols in titles: ! ” # $ % & ’ ( ) * + , – . / : ; < = > ? @ _ ` You can press LEVEL/DISPLAY/CHAR to change the character type at any time during Step 7 (see Step 6). 8 Press AMS to enter the selected character. The cursor shifts rightward and waits for the input of the next character. 9 Repeat Steps 7 and 8 until you have entered the entire title. If you entered the wrong character Press 0 or ) until the character to be corrected starts flashing, and repeat Steps 7 and 8 to enter the correct character. To erase a character Press 0 or ) until the character to be erased starts flashing, then press CLEAR. To enter a space Press AMS while the cursor is flashing. 10 Press YES. This completes the labeling procedure and the title appears in the display. To cancel labeling Press MENU/NO or p. Note You cannot label a track or an MD while you are recording over an existing track.Editing Recorded MDs

Copying a track or disc title You can copy a track or disc title to use it as a title of another track or the disc title within a disc. Note that you can do this operation by using the controls on the deck only. 1 Press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Name ?” appears in the display and press AMS or YES. 3 Turn AMS until “Nm Copy ?” appears in the display. 4 Press AMS or YES. 5 Turn AMS to select “Disc” to copy the disc title, or the track whose title you want to copy and press AMS or YES. If “No Name” appears in the display The disc or the track has no name. 6 Turn AMS to select “Disc” for disc title or to specify the track number to copy a title, and press AMS or YES. “Complete!!” appears for a few seconds to indicate that the copying operation is completed. If “Overwrite?” appears in the display The disc or track you selected in Step 6 above has a title. If you continue the title copying, press AMS or YES. To cancel title copying Press MENU/NO or p. Labeling tracks and MDs with the remote

Press NAME repeatedly until a flashing cursor appears in the display, then do the following: To label Make sure that the deck is A track Playing, pausing, recording the track to be labeled, or stopped after locating the track to be labeled An MD Stopped with no track number appearing in the display 2 Select the character type as follows: To select Press Uppercase letters CHAR repeatedly until “Selected AB” appears in the display Lowercase letters CHAR repeatedly until “Selected ab” appears in the display Numbers NUM repeatedly until “Selected 12” appears in the display 3 Press an alphabet/number button to enter a character. After you enter a character, the cursor shifts rightward and waits for the input of the next character. You can change the character type at any time during Step 3 (see Step 2). (Continued) Alphabet/number buttons

+ r P p CD-SYNC CLEAR MENU/NO NUM NAME CHAR 0/)Editing Recorded MDs

4 Repeat Step 3 until you have entered the entire title. If you entered the wrong character Press 0 or ) until the character to be corrected starts flashing. Press CLEAR to erase the incorrect character, then enter the correct one. 5 Press NAME again. This completes the labeling procedure and the title appears in the display. To cancel labeling Press MENU/NO or p. Changing an existing title Z

Press NAME, then do the following: To change Make sure that the deck is A track title Playing, pausing the track whose title is to be changed, or stopped after locating the track whose title is to be changed A disc name Stopped with no track number appearing in the display 2 Hold down CLEAR until the current title is erased. 3 Enter the new title. Do Steps 6 to 9 of “Labeling Recordings” on page 34, or Steps 2 to 4 of “Labeling tracks and MDs with the remote” on page 35 and this page. 4 Press NAME. Erasing a title on a disc (Name Erase) Use this function to erase a title on a disc. 1 While the deck is stopped, playing, or pausing, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Name ?” appears in the display and press AMS or YES. 3 Turn AMS until “Nm Erase ?” appears in the display and press AMS or YES. 4 Turn AMS to select “Disc” to erase the disc title, or the track whose title you want to erase and press AMS or YES. “Complete!!” appears for a few seconds and the title is erased. To cancel Name Erase Function Press MENU/NO or p. Erasing all titles on a disc (Name All Erase) Use this function to erase all titles on an MD simultaneously. 1 While the deck is stopped, playing, or pausing, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Name ?” appears in the display and press AMS or YES. 3 Turn AMS until “Nm AllErs?” appears in the display and press AMS or YES. “Nm AllErs??” appears in the display. 4 Press AMS or YES. “Complete!!” appears for a few seconds and all titles are erased. To cancel the Name All Erase Function Press MENU/NO or p. z You can undo the Name All Erase Function See “Undoing the Last Edit” on page 37. z You can erase all recorded tracks and titles See “Erasing all tracks on an MD” on page 29.Editing Recorded MDs

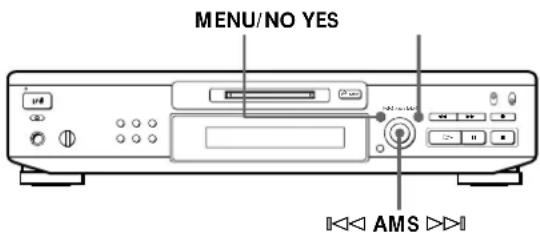

Undoing the Last Edit (Undo Function) You can use the Undo Function to cancel the last edit and restore the contents of the MD to the condition that existed before editing was done. Note, however, that you cannot undo an edit if you do any of the following after the edit:

• Press the r REC button on the deck.

• Press the r button, the MUSIC SYNC button, or the CD SYNC STANDBY button on the remote.

• Update the TOC by turning off the power or ejecting the MD.

• Disconnect the AC power cord. 1 With the deck stopped and no track number appearing in the display, press MENU/NO to display “Edit Menu”. 2 Turn AMS until “Undo ?” appears in the display. “Undo ?” does not appear if no editing has been done. 3 Press AMS or YES. One of the following messages appears in the display, depending on the type of editing to be undone: Editing done: Message: Erasing a single track Erasing all tracks on an MD “Erase Undo?” Erasing a part of a track Dividing a track “DivideUndo?” Combining tracks “CombinUndo?” Moving a track “Move Undo?” Labeling a track or an MD Changing an existing title Erasing all titles on an MD “Name Undo?” Copying a title 4 Press AMS or YES again. “Complete!!” appears for a few seconds and the contents of the MD are restored to the condition that existed before the edit. To cancel the Undo Function Press MENU/NO or p. ≠ AMS ±

Additional Information System Limitations The recording system in your MiniDisc deck is radically different from those used in cassette and DAT decks and is characterized by the limitations described below. Note, however, that these limitations are due to the inherent nature of the MD recording system itself and not to mechanical causes. “Disc Full” lights up even before the MD has reached the maximum recording time (60 or 74 minutes) When 255 tracks have been recorded on the MD, “Disc Full” lights up regardless of the total recorded time. More than 255 tracks cannot be recorded on the MD. To continue recording, erase unnecessary tracks or use another recordable MD. “Disc Full” lights up before the maximum number of tracks is reached Fluctuations in emphasis within tracks are sometimes interpreted as track intervals, incrementing the track count and causing “Disc Full” to light up. The remaining recording time does not increase even after erasing numerous short tracks Tracks under 12 seconds in length are not counted and so erasing them may not lead to an increase in the recording time. Some tracks cannot be combined with others Track combination may become impossible when tracks are edited. The total recorded time and the remaining time on the MD may not total the maximum recording time (60 or 74 minutes) Recording is done in minimum units of 2 seconds each, no matter how short the material. The contents recorded may thus be shorter than the maximum recording capacity. Disc space may also be further reduced by scratches. Tracks created through editing may exhibit sound dropout during search operations. Track numbers are not recorded correctly Incorrect assignment or recording of track numbers may result when CD tracks are divided into several smaller tracks during digital recording. Also, when the Automatic Track Marking Function is activated during recording, track numbers may not marked as in the original depending on the program source. Display Messages The following table explains the various messages that appear in the display. Also, the deck has a Self-Diagnosis Function (see page 45). Message Meaning Blank Disc A new (blank) or erased MD has been inserted. Cannot Copy An attempt was made to make a second copy from a digitally dubbed MD (see page 41). Cannot Edit An attempt was made to edit the MD during Program or Shuffle Play. Disc Full The MD is full (see “System Limitations” on this page). Impossible The deck cannot do the specified editing operation. Name Full The titling capacity of the MD has reached its limit (about 1,700 characters). No Disc There is no MD in the deck. Premastered An attempt was made to record on the premastered MD. Standby (flashing) The contents recorded by timer have disappeared over time and are not be available for saving to disc, or Program Play could not be activated since the program has disappeared over time.Additional Information

“TOC Reading” appears for a long time If the inserted recordable MD is brand new, “TOC Reading” appears in the display longer than for MDs that have been used. Limitations when recording over an existing track

• The correct remaining recording time may not be displayed.

• You may find it impossible to record over a track if that track has been recorded over several times already. If this happens, erase the track using the Erase Function (see page 28).

• The remaining recording time may be shortened out of proportion to the total recorded time.

• Recording over a track to eliminate noise is not recommended since this may shorten the duration of the track.

• You may find it impossible to label a track while recording over it. The correct recorded/playing time may not be displayed during playback of monaural-format MDs. Troubleshooting If you experience any of the following difficulties while using the deck, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer. The deck does not operate or operates poorly. /The MD may be damaged (“Disc Error” appears). Take the MD out and insert it again. If “Disc Error” remains, replace the MD. The deck does not play back. /Moisture has formed inside the deck. Take the MD out and leave the deck in a warm place for several hours until the moisture evaporates. /The deck is not on. Press 1/u to turn the deck on. /The MD is inserted in the wrong direction. Slide the MD into the disc slot with the label side up and the arrow pointing towards the opening. /The MD may not be recorded (the music calendar does not appear). Replace the disc with one that has been recorded. The deck does not record. / The MD is record-protected (“Protected” alternates with “C11” in the display). Close the record-protect slot (see page 7). / The deck is not connected properly to the sound source. Make connections properly to the sound source. / The recording level is not adjusted properly. Adjust the recording level properly (see pages 12 and 13). / A premastered MD is inserted. Replace it with a recordable MD. / There is not enough time left on the MD. Replace it with another recordable MD with fewer recorded tracks, or erase unnecessary tracks. / There has been a power failure or the AC power cord has been disconnected during recording. Data recorded to that point may be lost. Repeat the recording procedure. The deck does not work during synchro-recording. / The currently selected CD player type (CD player or video CD player) does not match the CD player being used. Reset the CD player type (see page 16). If the CD player being used has a mode selector, set the selector to CD1. The sound has a lot of static. / Strong magnetism from a television or a similar device is interfering with operations. Move the deck away from the source of strong magnetism. The three-digit display appears. / The Self-Diagnosis Function is on. Check the table on page 45. Note If the deck does not operate properly even after you’ve attempted the prescribed remedies, turn off the power, then reinsert the plug into the power outlet.Additional Information

Specifications System MiniDisc digital audio systemDisc MiniDiscLaser Semiconductor laser (λ = 780 nm)Emission duration: continuousLaser output Less than 44.6 µW** This output is the value measured at adistance of 200 mm from the objectivelens surface on the Optical Pick-upBlock with 7 mm aperture.Laser diode properties Material: GaAIAsRevolutions (CLV) 400 rpm to 900 rpmError correction Advanced Cross Interleave ReedSolomon Code (ACIRC)Sampling frequency 44.1 kHzCoding Adaptive Transform Acoustic Coding(ATRAC)Modulation system EFM (Eight-to-Fourteen Modulation)Number of channels 2 stereo channelsFrequency response 5 to 20,000 Hz ±0.3 dBSignal-to-noise ratio Over 96 dB during playbackWow and flutter Below measurable limit General Power requirementsWhere purchased Power requirementsContinental Europe and UK 220 – 230 V AC, 50/60 HzOther countries 110 – 120, 220 – 240 V AC,50/60 HzPower consumption 18 WDimensions (approx.) (w/h/d) incl. projecting parts and controls 430 × 95 × 280 mm Mass (approx.) 3.4 kg Supplied accessories See page 4. Optional accessories Recordable MDs MDW-60 (60 min), MDW-74 (74 min) US and foreign patents licensed from Dolby Laboratories Licensing Corporation. Design and specifications are subject to change without notice. Inputs 500 mVrms RatedinputMinimuminput 125 mVrms Inputimpedance 47 kilohms Jack type Phono jacks LINE (ANALOG)

DIGITALOPTICAL IN Square optical connector jack Optical wave length: 660 nm Outputs Load impedanceJack type Rated outputDIGITALOPTICAL OUTLINE (ANALOG) OUT PHONES 32 ohms Over 10 kilohms Optical wave length: 660 nm 28 mW 2 Vrms (at 50 kilohms) –18 dBm Stereo phone jack Phono jacks Square optical connector jackAdditional Information

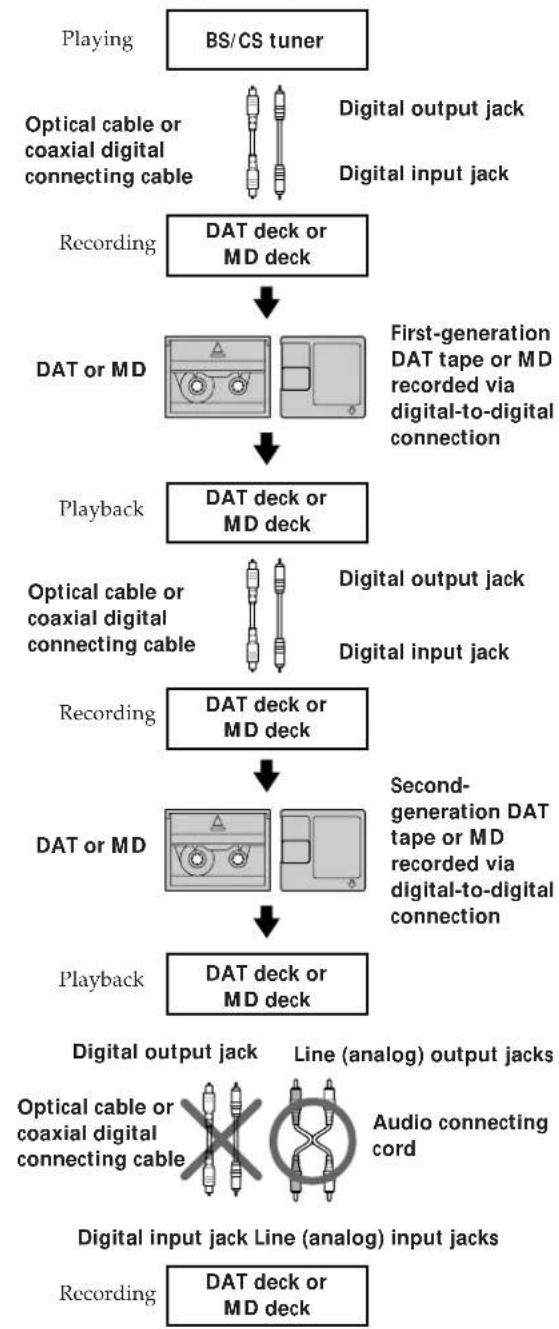

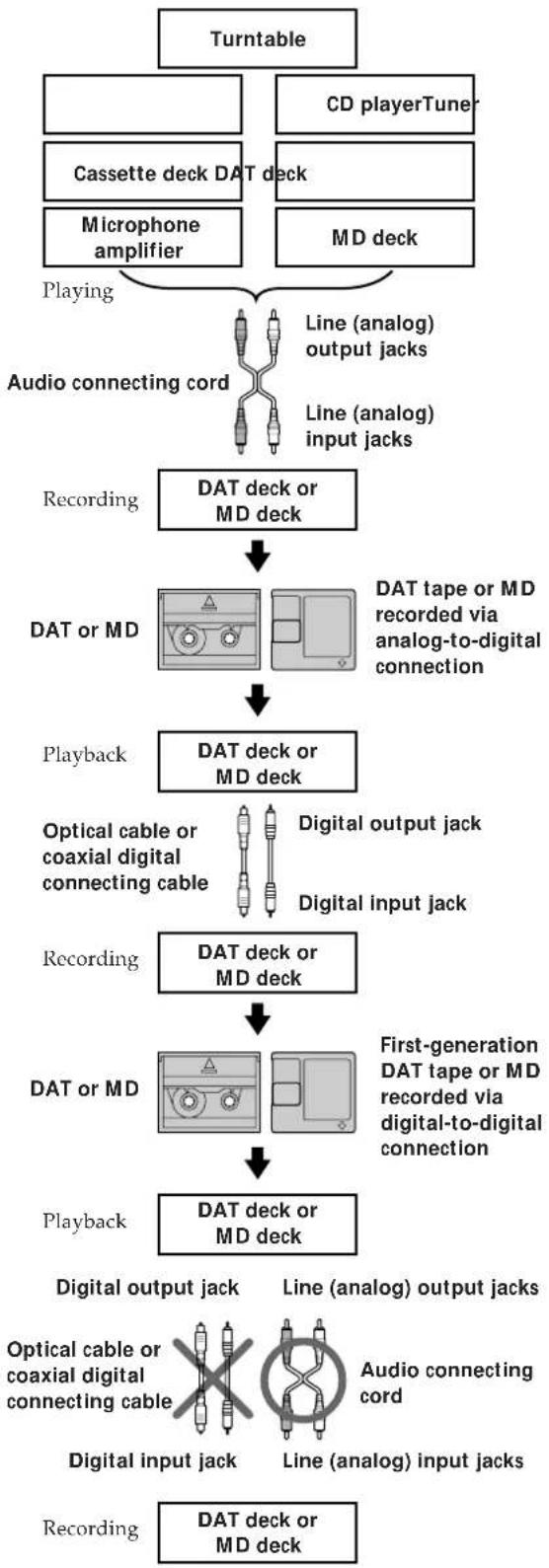

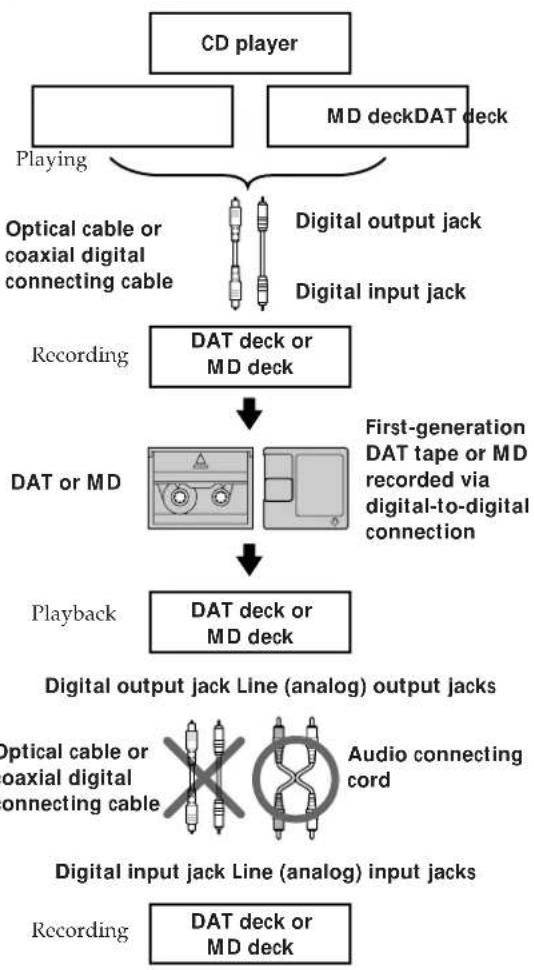

Guide to the Serial Copy Management System This MD deck uses the Serial Copy Management System, which allows only first-generation digital copies to be made of premastered software via the deck’s digital input jack. An outline of this system appears below: 1 You can record from digital program sources (CDs, DATs or premastered MDs) onto a DAT tape or recordable MD via digital input jack on the DAT or MD deck. You cannot, however, record from this recorded DAT tape or MD onto another DAT tape or recordable MD via the digital input jack on the DAT or MD deck. 2 You can record the digital input signal of a digital satellite broadcast onto a DAT tape or recordable MD via the digital input jack on the DAT or MD deck which is capable of handling a sampling frequency of 32 kHz or 48 kHz. You can then record the contents of this recorded DAT tape or MD (first-generation) onto another DAT tape or recordable MD via digital input jack on the DAT or MD deck to create a second-generation digital copy. Subsequent recording from the second-generation copy onto another recordable DAT tape or MD is possible only through the analog input jack on the DAT or MD deck. Note, however, that on some BS/CS tuners, second- generation digital copying may not be possible. MD deckDAT deck CD player Digital output jack Digital input jack DAT deck or MD deck First-generation DAT tape or MD recorded via digital-to-digital connection DAT or MD DAT deck or MD deck Digital output jack Line (analog) output jacks DAT deck or MD deck Digital input jack Line (analog) input jacks Playing Playback Recording Optical cable or coaxial digital connecting cable Recording Audio connecting cord Optical cable or coaxial digital connecting cable Playing Optical cable or coaxial digital connecting cable Recording DAT deck or MD deck First-generation DAT tape or MD recorded via digital-to-digital connection Playback Recording DAT deck or MD deck Digital input jack Digital output jack Digital input jack Optical cable or coaxial digital connecting cable DAT or MD Second- generation DAT tape or MD recorded via digital-to-digital connection Playback DAT deck or MD deck DAT deck or MD deck Audio connecting cord Optical cable or coaxial digital connecting cable DAT deck or MD deck DAT or MD BS/CS tuner Digital output jack Line (analog) output jacks Recording Digital input jack Line (analog) input jacks Digital output jack (Continued)Additional Information

3 You can record a DAT tape or MD recorded via the DAT or MD deck’s analog input jack onto another DAT tape or MD via the DAT or MD deck’s digital output jack. You cannot, however, make a second-generation DAT tape or MD copy via the DAT or MD deck’s digital output jack. Digital input jack Index A, B A-B erase 30 A-B repeat 22 Adjusting analog recording level 13 analog signal level 8, 25 digital recording level 12 AMS (Automatic Music Sensor) 20 Audio connecting cord 4, 5, 41, 42 Auto cut 10 Auto pause 25 Auto space 25

CD synchro-recording 16 Changing an existing title 36 display 20 order of programmed tracks 24 Checking order of programmed tracks 24 remaining time 10, 19 playing time 19 total number of tracks 19 track number 19 Cleaning 2 Coaxial digital connecting cable 4, 5, 41, 42 Combining 32

Display messages 38 Dividing after selecting the dividing point 31 after selecting the track 31

Erasing all titles 36 all tracks 29 a part of a track 30 a single track 28 a title 36 F, G Fade-in playback 26 recording 17 Fade-out playback 26 recording 17

Hooking up a digital component 5 an analog component 5 MD deck CD playerTuner Turntable Cassette deck DAT deck Line (analog) output jacks Audio connecting cord Recording Playback Recording Playback Digital output jack DAT deck or MD deck DAT deck or MD deck DAT deck or MD deck Recording DAT deck or MD deck DAT deck or MD deck Microphone amplifier DAT or MD Optical cable or coaxial digital connecting cable DAT or MD First-generation DAT tape or MD recorded via digital-to-digital connection Line (analog) output jacks Line (analog) input jacks Digital output jack Digital input jack Audio connecting cord Optical cable or coaxial digital connecting cable Playing Line (analog) input jacks DAT tape or MD recorded via analog-to-digital connectionAdditional Information

Labeling an MD 33 a track 33 copying a title 35 with the remote 35 Locating a particular point in a track

a specific track 20 M, N

inserting 6, 8 premastered 19 recordable 6, 19 taking out 7, 8 Moving 33 Music scan 20 synchro-recording 15

Optical cable 4, 5, 41, 42 Optional accessories 40 P, Q Pausing playback 8 recording 7 Playing normal play 8 program play 23 repeat play 22 shuffle play 23 tracks just recorded 11

Recording normal recording 6, 7 over existing tracks 11 time machine recording 14 Record-protect tab 7 Remote commander (remote) 4

Timer playing 26 recording 18 sleep timer 27 Track marking automatic track marking 13 manual track marking 13 Troubleshooting 39 U, V, W, X, Y, Z Undoing the last edit 37 Names of controls Buttons A˜B 22 Alphabet/Number 20, 24, 35 A.SPACE 25

CD PLAYER =/+ CHAR 35 CLEAR 22, 24, 34 CONTINUE 23, 24 DISPLAY 12, 13 § EJECT 7, 8, 10 FADER 17, 26 LEVEL +/– 12, 13 LEVEL/DISPLAY/CHAR 7, 12, 20, 24, 33 MENU/NO 10, 13, 23, 25, 27, 28, 30 to 33, 35 to 37 M.SCAN 20 MUSIC SYNC 15 NAME 35 NUM 35 PLAY MODE 23, 24, 26 PROGRAM 24 r REC (recording) 7, 10, 13, 37 REPEAT 22 SCROLL 20 SHUFFLE 23 STANDBY 16 START 16 STOP 16 TIME 10, 19 T.REC 14 YES 28 to 33, 37

• (play) 7, 8, 11, 20, 23, 26 P (pause) 7, 8 p (stop) 7, 8, 11, 18, 22, 29 to 37 r (recording) 37 0/) (manual search) 21 to 24, 30, 31, 34 =/+ (AMS: Automatic Music Sensor) 8, 20, 21, 23 >25 20, 24 Connectors

DIGITAL COAXIAL IN 5, 6, 9

DIGITAL OPTICAL IN/OUT

5, 6, 9, 10, 26 Controls ≠ AMS ± 8, 11, 12, 14, 20, 23, 25, 27, 28 to 33, 35 to 37 PHONE LEVEL 8 Indicator STANDBY 6, 8 Jacks

Table of Setup Menus You can make various settings on this deck by using Setup Menus. Operation related to each menu were explained in the previous sections. The table below outlines each menu, including the various parameters and initial settings. To enter the Setup Menu While the deck is stopped, press MENU/NO twice to display “Setup Menu”,

press MENU/NO to display “Edit Menu” and turn AMS until “Setup ?” appears in the display, then press AMS. Menu number Function Parameters Initial setting See 01 Creates a program. page 23—— 02 Sets the track marking function. T.Mark Off, T.Mark LSyn T.Mark LSyn page 14 03 Sets the reference level of the input signal when “T.Mark LSyn” is selected in Setup Menu 02. LS(T) –72 to –0dB LS(T) –50dB page 14 04 Turns the Auto Space and Auto Pause Functions on and off. Auto Off, Auto Space, Auto Pause Auto Off page 25 05 Turns the Smart Space and Auto Cut Functions on and off. S.Space Off, S.Space On S.Space On page 10 06 Turns the Peak Hold Function on and off for the peak level meters. P.Hold On, P.Hold Off P.Hold Off page 12 07 Sets the playing time during music scan. M.Scan 6 to 20s M.Scan 6s page 21

Sets the duration of fade-in recording and playback. F.in 1.0 to 15.0s F.in 5.0s page 17 09 Sets the duration of fade-out recording and playback. F.out 1.0 to 15.0s F.out 5.0s page 17 10 Adjusts the analog signal level input through the LINE (ANALOG) IN jacks. Ain –∞ to +12.0dB Ain 0.0dB page 13 11 Adjusts the digital signal level input through the DIGITAL OPTICAL IN connector. Opt –∞ to +12.0dB Opt 0.0dB page 12

Adjusts the digital signal level input through the DIGITAL COAXIAL IN connector. Coax –∞ to +12.0dB Coax 0.0dB page 12 13 Adjusts the analog signal level output to the LINE (ANALOG) OUT and PHONES jacks. Aout –20.0 to 0.0dB Aout 0.0dB page 25 14 Sets the duration of the Sleep Timer. Sleep 30 to 120min Sleep 60min page 27 15 Turns the Sleep Timer Function on and off. Sleep On, Sleep Off Sleep Off page 27Additional Information

Self-diagnosis display Self-Diagnosis Function The deck has a self-diagnosis display. This function shows a three-digit display (a combination of a letter and figures) and the corresponding message alternately, so you can check the deck’s condition. If such a display appears, check the following table in order to resolve the problem. Should any problem persist, consult your nearest Sony dealer. Three-digit display/Message Cause/Remedy C11/Protected The inserted MD is record-protected. / Take out the MD, and close the record-protect tab (page 7). C13/REC Error The recording was not made properly. / Set the deck in a stable place, and repeat the recording procedure. The inserted MD is dirty (with smudges, fingerprints, etc.), scratched, or not up to standards. / Replace the disc, and repeat the recording procedure. C13/Disc Error The deck could not read the TOC of the MD properly. / Take out the MD, and insert it again. C14/Disc Error The deck could not read the TOC of the MD properly. / Insert another disc. / If possible, erase all tracks on the MD using the All Erase Function on page 29. C71/Din Unlock A moment’s lighting is due to the signals of the digital program being recorded. This does not affect the recorded material. While recording from a digital component connected through the digital input connector, the digital connecting cable was unplugged or the digital component turned off. / Connect the cable or turn the digital component back on. C11 Protected2

DIGITAL COAXIAL OUT DIGITAL OPTICAL OUT DIGITAL OPTICAL IN LINE

CONTINUE DISPLAY NAME

REPEAT WRITE CLEAR NAME

CONTINUEDISPLAY NAME

CONTINUE DISPLAY NAME

CONTINUEDISPLAY NAME

CONTINUE DISPLAY NAME

Division BC D ≠ AMS ±

DIGITAL OPTICAL IN/OUT

DIGITAL COAXIAL OUT DIGITAL OPTICAL OUT DIGITAL OPTICAL IN LINE

DIGITAL OPTICAL IN OPT

DIGITAL COAXIAL IN COAX

CONTINUE DISPLAY NAME

REPEATWRITE CLEAR NAME

CONTINUEDISPLAY NAME

REPEATWRITE CLEAR NAME

CONTINUE DISPLAY NAME

CONTINUE DISPLAY NAME

CONTINUE DISPLAY NAME

DIGITAL OPTICAL IN/OUT

DIGITAL COAXIAL OUT DIGITAL OPTICAL OUT DIGITAL OPTICAL IN LINE

OUT ININ OPTICALCOAXIAL

DIGITAL OPTICAL IN OPT

DIGITAL COAXIAL IN COAX

CONTINUE DISPLAY NAME

REPEAT WRITE CLEAR NAME

CONTINUEDISPLAY NAME

CONTINUEDISPLAY NAME

CONTINUE DISPLAY NAME

CONTINUE DISPLAY NAME

CD PLAYER =/+ CHAR 35 CLEAR 22, 24, 34 CONTINUE de 23, 24 DISPLAY 12, 13 § EJECT 7, 8, 10 FADER 17, 26 LEVEL +/– 12, 13 LEVEL/DISPLAY/CHAR 7, 12, 20, 24, 33 MENU/NO 10, 13, 23, 25, 27, 28, 30 a 33, de 35 a 37 M.SCAN 20 MUSIC SYNC 15 NAME 35 NUM 35 PLAY MODE 23, 24, 26 PROGRAM 24 r REC (de gravação) 7, 10, 13,

DIGITAL OPTICAL IN/OUT

5, 6, 9, 10, 26 Controlos ≠ AMS ± 8, 11, 12, 14, 20, 23, 25, 27, de 28 a 33, de 35 a

Sony Corporation Printed in Japan
