Backpack 1809 - Sprayer Eurom - Free user manual and instructions

Product Type	Backpack Sprayer
Brand	Eurom
Model	Backpack 1809
Tank Capacity	18 liters
Maximum Working Pressure	4 bar
Tank Material	Acid, alkali and corrosion resistant plastic
Dimensions (L x W x H)	42 x 19.5 x 57.5 cm
Net Weight	3.2 kg
Pump Body Diameter	45 mm
Maximum Liquid Temperature	45 °C
Main Uses	Gardening, pest control, weeding, fertilization, household cleaning (windows, car)
Nozzles Supplied	Flat jet nozzle, misting nozzle, double misting nozzle, adjustable four-hole nozzle + spray guard
Transport System	Back strap (backpack)
Operating Principle	Manual pumping (pump arm) with pressure accumulation in an integrated air chamber
Maintenance and Cleaning	Rinse with clean water after use, apply vaseline to seals and moving parts, store dry
Important Safety Instructions	Do not spray flammable liquids, do not open under pressure, wear PPE (mask, gloves, clothing), avoid wind, do not leave filled unattended
Repairability / Spare Parts	Seals and replacement gaskets supplied, diaphragm, sealing ball replaceable
Warranty and Liability	Improper use or modifications void warranty

Frequently Asked Questions - Backpack 1809 Eurom

What type of liquid can I use with the Eurom Backpack 1809 sprayer?

You can spray pesticides, herbicides, liquid fertilizers as well as water for cleaning. Never use flammable liquids or liquids at temperatures above 45 °C. Cleaning vinegar is also not recommended.

How do I pressurize the sprayer?

After filling the tank and closing the lid, operate the pump arm up and down several times until you feel resistance. Do not pump too long before spraying, as overpressure could damage the device (max pressure 4 bar).

How do I spray continuously without holding the trigger?

On the control handle, slide the slider backwards to lock the trigger in the open position. This allows uninterrupted spraying.

How do I clean the sprayer after use?

Empty the tank, fill it with clean water, pump lightly and spray the water to rinse the circuit. Repeat if necessary. Let it dry before closing. Apply vaseline to the seals and moving parts to prevent wear.

What nozzles are supplied and what are they used for?

Four nozzles are included: flat jet nozzle (for low plants and herbicides), misting nozzle (for pesticides and insecticides), double misting nozzle (same), and adjustable four-hole nozzle (for tall plants and fruit trees). A spray guard is also supplied to reduce wind drift.

What safety precautions should I take?

Always wear protective clothing, a mask and gloves when using chemicals. Never spray against the wind or onto other people or animals. Release pressure before any work on the device. Keep the sprayer out of reach of children.

What should I do if the sprayer leaks or does not atomize properly?

Check that the diaphragm is not damaged or screwed incorrectly. If pump arm resistance is too high, the nozzle or filter may be clogged: clean them. If pressure remains low, the seals (gasket, ball) may be worn: replace them.

How do I store the sprayer in winter?

Completely empty the tank and circuit. Clean with clean water and dry thoroughly. Apply vaseline to the seals. Store the device in a dry and frost-free place, ideally in its original packaging.

Can I use the backpack sprayer for daily professional use?

No, the device is designed for domestic or semi-professional use. Intensive daily use may reduce its lifespan. For professional use, ask about suitable models.

Where can I find spare parts?

Seals and replacement gaskets are supplied with the device. For other parts (diaphragm, sealing ball), contact Eurom customer service via [e-mail] or visit www.eurom.nl.

USER MANUAL Backpack 1809 Eurom

Exterior view of a UROM spray sprayer with attached hose and control panel (no text or symbols visible)

Backpack 1809

Art. nr. 25.019.0

Two Urom brand spray sprayers with attached hoses and connectors, shown from different angles (no text or symbols visible)

Inleiding

Assorted mechanical components including washers, clips, and a plastic housing (no text or symbols visible)

1. Nozzle
2. Deksel vloeistofcontainer
3. Luchtkamer
4. Pomparm
5. Spuitlans

6. Vloeistofcontainer

7. Bedieningshandgreep

8. Slang
9. Bodem
10. Spuitkap

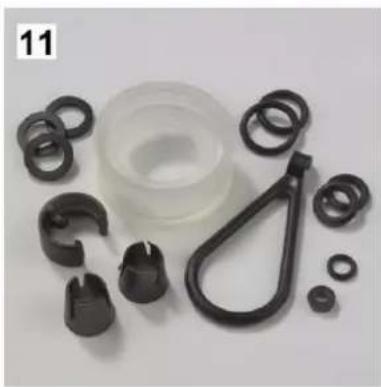

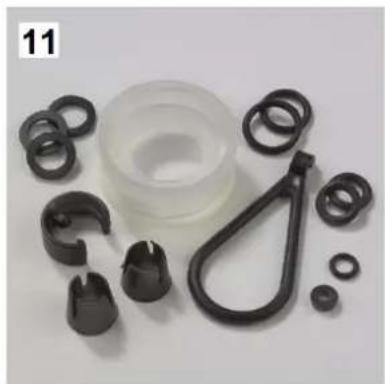

11. Diverse reserve ringen en rubbers

Black industrial welding torch with attached clamp and cable (no text or symbols visible)

Two LRAOM air purifiers with attached sensors and connectors, shown from different angles (no text or symbols visible)

Einleitung

Assorted mechanical components including washers, seals, and plastic parts arranged on a plain background (no text or symbols visible)

Close-up of a black industrial welding torch with adjustable handle and cable (no text or symbols visible)

Description and operating principle.... 21

Operating instruction 22

Trouble shooting 23

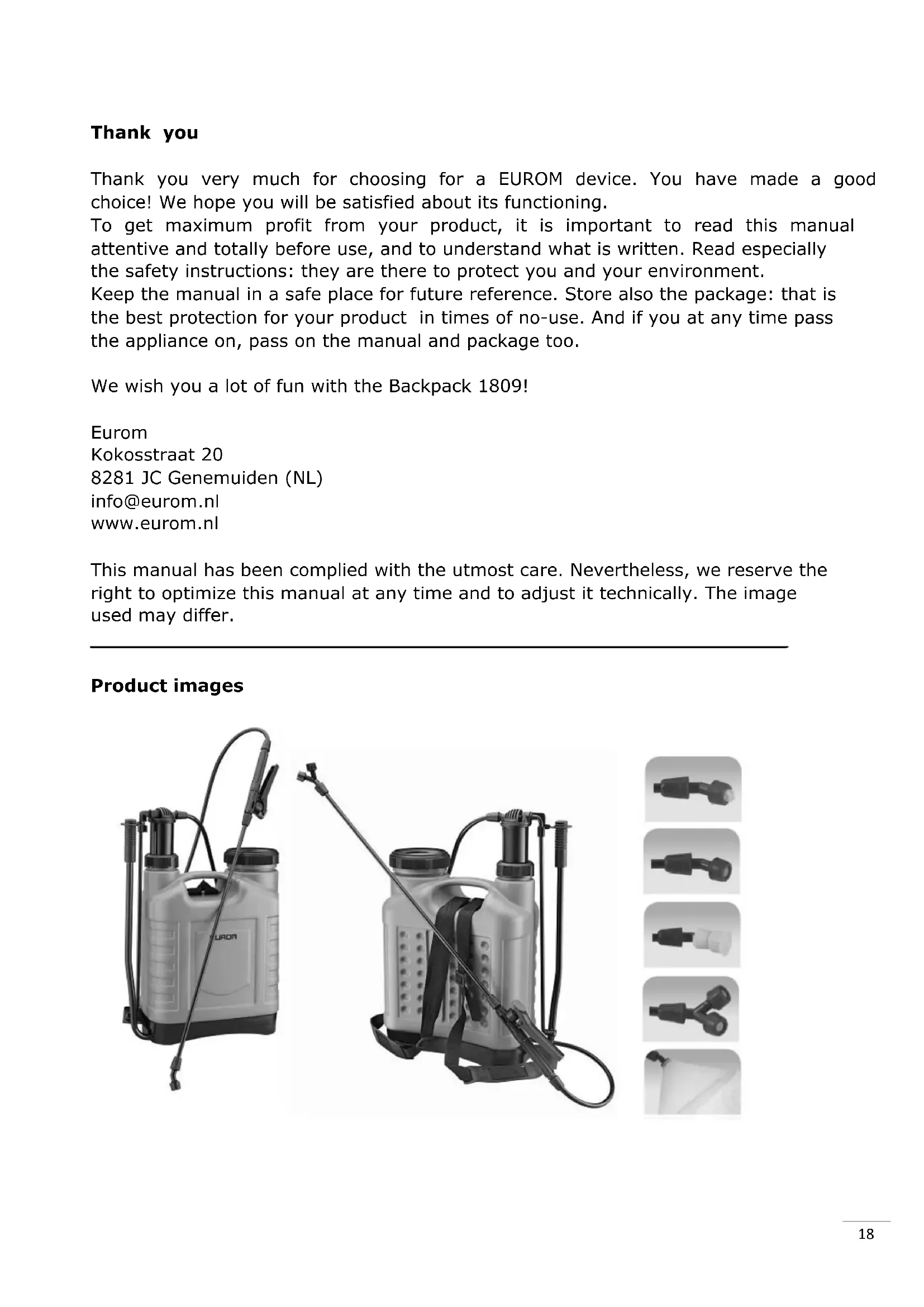

Thank you

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Backpack 1809!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

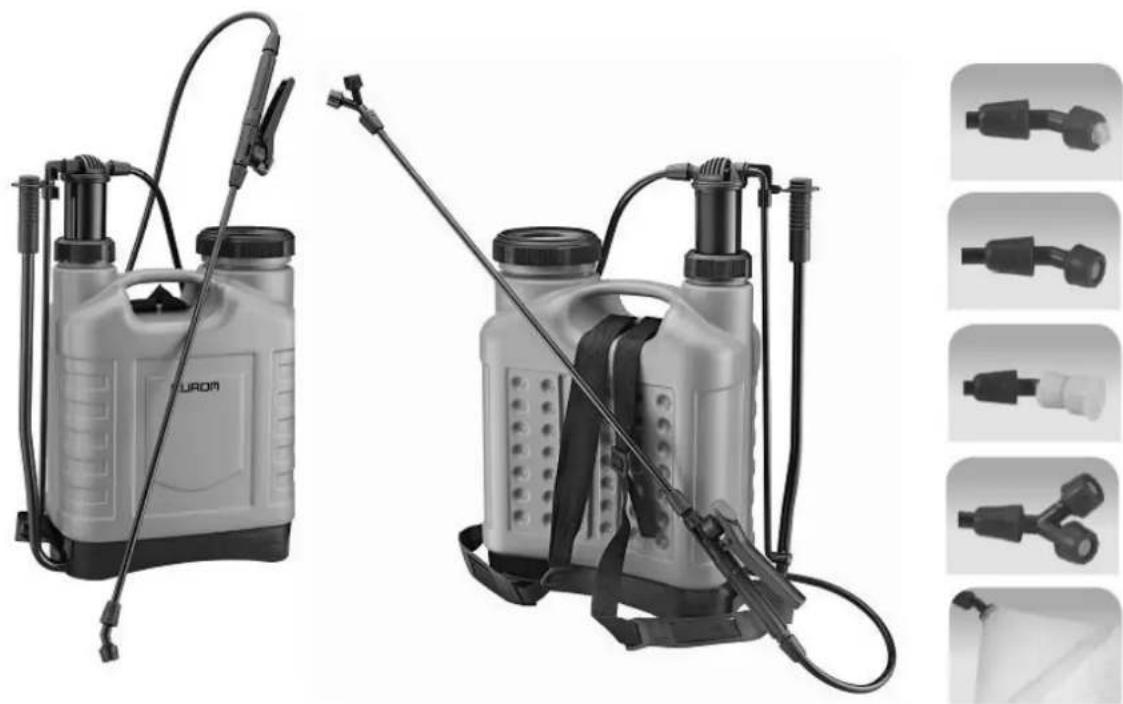

Product images

Two agricultural sprayers with attached hoses and connectors, shown alongside a series of small electronic components (no visible text or symbols on the sprayers themselves)

Introduction

The EUROM BACKPACK SPRAYER 1809 is a newly developed sprayer that can be used safely, economically and efficiently. It can be carried comfortably, can be operated smoothly and sprays uniformly.

The BACKPACK SPRAYER1809 is especially suitable for spraying liquid pesticides, herbicides, fertilizers and agents of plant disease control on crops and plants (whether or not flowering plants) and in gardens, sanitary rooms of public buildings, etcetera and for preventive treatment of cattle and poultry stables against epidemics. It can also be used for domestic jobs such as washing windows, cars, etc.

Only adults, who are familiar with the device and know how to operate it safely, are allowed to use and maintain it. Improper use and maintenance of the device as well as modifying the sprayer will cancel the supplier's liability and the warranty.

The device is not suitable for daily professional use.

Technical data

Operating pressure	Maximum 4 bar
Tank content	18 litres
Diameter of the pump housing	45 mm
Material of the tank	Plastic
Dimensions	42 x 19.5 x 57.5 cm
Net weight	3.2 kg

Warnings

1. Before each use, check the backpack sprayer for damage, leakage, etc. First, spray once with clean water.
2. This backpack sprayer is not suitable for spraying flammable materials. These materials can cause explosions, fire or damage to the backpack sprayer!
3. Do not swing the pump handle up and down forcefully for too long before you squeeze the operating handle to start spraying. This creates overpressure, which can damage the device.
4. Do not leave the backpack sprayer filled (whether or not pressurised) without supervision.
5. Release the pressure if you take a break during the work activities. Leaving the device too long without operating it can cause damage!

6. When spraying pesticides, the user must wear protective clothing, a mask and gloves to prevent pesticides from coming into contact with the skin and causing injury.

7. Never spray pesticides against the direction of the wind! Never spray pesticides towards people, animals or food items. Always closely follow the safety regulations related to the agent that you are spraying.

8. Do not work for a long time at high ambient temperatures.
9. It is strictly forbidden to spray toxic agents on food items!
10. The backpack sprayer does not tolerate hot liquids (maximum 45^ C) and no (cleaning)vinegar.
11. Do not open the backpack sprayer as long as it is pressurised!
12. Stop using the backpack sprayer immediately, if you observe damage or wear & tear to the container or hose or if the device leaks.
13. After use, you should release the pressure, clean the backpack sprayer and flush it with clean water to prevent aggressive contents from impairing the backpack sprayer or blocking the nozzle. This way, you also prevent residual materials from getting mixed with new and/or other contents, which may cause a chemical reaction that impacts the operation or damages the crops. Dry the backpack sprayer before storing it.
14. Keep the device (and the agents that you spray, of course) out of reach of children!
15. Follow the instructions of the manufacturer when using or storing pesticides. Deviating from these instructions can result in serious consequences for people, animals and plants!
16. Residual chemicals may never wind up in the environment. Collect them in a tank and drop them at a collection point. Never pour and mix different agents!

17. If by accident you

18. inhale the hazardous agents: leave the hazardous area, look for a well-ventilated room and consult a doctor (taking the packaging along).

19. come into contact with the hazardous agents: rinse with plenty of water immediately.

20. swallow the hazardous agents: try to vomit using clean or salty water and go as soon as possible to a hospital (taking the packaging along).

21. People, who are tired, have poor health, are injured, are allergic to pesticides, have consumed alcohol or drugs or are pregnant, may not come into contact with pesticides. Do not drink alcohol immediately after spraying pesticides.

22. Never use to strong hazardous agents on food items and make sure that the period between spraying and harvesting is sufficiently long.

23. After working with pesticides, you should change clothing and wash yourself and the clothing thoroughly.

24. If the backpack sprayer is not used for a long period or if it is used almost continuously for several days, grease the sealing rings and the moving parts with some Vaseline to reduce the wear & tear and to ease the operation of the device.

25. After use, the backpack sprayer should be stored in a dry place inside a building.

Description and operating principle

Description

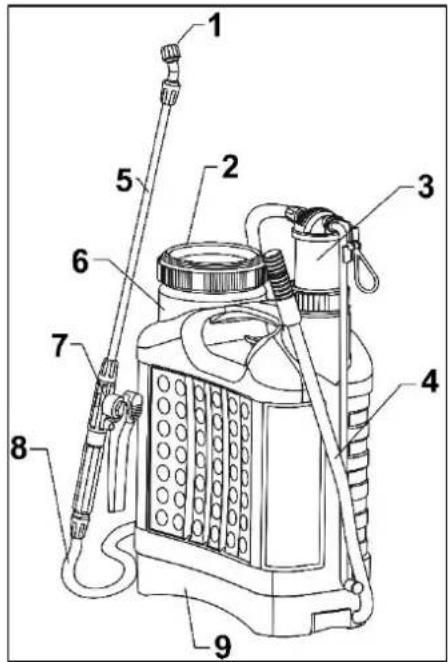

Assorted mechanical components including washers, clips, and a plastic housing (no text or symbols visible)

1. Nozzle

2. Liquid container cover

3. Air chamber

4. Pump handle

5. Jet lance

6. Liquid container

7. Operating handle

8. Hose

9. Base

10. Spray cap

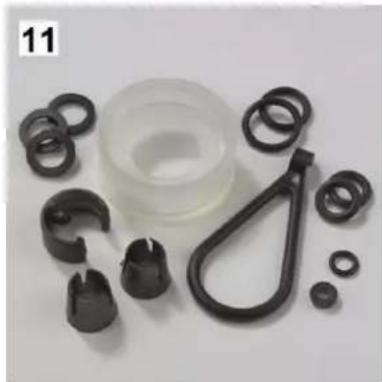

11. Operating rings and rubbers

The device has carrying strap (backpack system). The air chamber is built into the device and is therefore safe and leakage-proof. Using the operating handle, you can regulate the spraying according to your requirements.

The materials used in the device are acid, alkaline and corrosion resistant. The device is not suitable for use with (cleaning) vinegar. The device closes hermetically and is very durable.

You can attach various nozzles to the lance for different tasks to obtain a very fine spray or a sprinkler effect, for example (see: Operating procedure).

The spray cap can be attached on the flat jet nozzle to prevent atomizing pesticides, etc.

Operating principle

By moving the pump handle up and down, the liquid is pumped from the container to the pump housing where pressure is created. By subsequently squeezing the operating handle, the liquid is released via the nozzle.

Operating instruction

Remove all the packaging material and keep it out of reach of children. Check that all the parts are present. Screw the lance onto the operating handle. Select a nozzle and screw it on top of the lance.

- Unscrew the cover of the container and slowly pour the liquid, including the

dissolved pesticide, into the container through the filter. Subsequently, close the cover tightly and put the device on to your back. Create pressure by swinging the pump handle. You can now start spraying by squeezing the operating handle of the jet lance. You can opt for continuous spraying or spray a little bit directly on a certain spot for a short time. By sliding the red slide on the handle backwards, you can lock the handle for uninterrupted spraying.

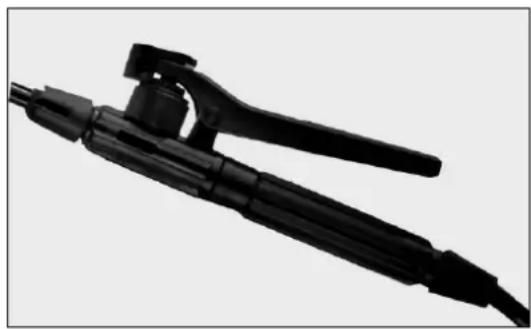

Close-up of a black industrial welding torch with attached clamp (no text or symbols visible)

Select a nozzle that is suitable for the job at hand. The device is supplied including four different nozzles:

1. Flat jet nozzle
2. Single atomization nozzle
3. Double atomization nozzle
4. 4-holes nozzle

A spray cap is also included.

Flat jet nozzle:

Sprays uniformly and is suitable for spraying low-growing, short and creeping crops and for spraying pesticides. Hold the jet lance steady and spray in the same direction as the wind is blowing. You can use the spray cap with this nozzle.

Close-up of a spray gun spraying water, no text or symbols visible

Single atomization nozzle and double atomization nozzle:Are suitable for spraying pesticides (against diseases) and insect repellents. Spray in the same direction as the wind is blowing!
4-holes nozzle (adjustable):Is suitable for spraying high-growing climbing crops, fruit trees, etc. Monitor that the liquid continues to come out of the nozzle uniformly! By rotating the nozzle, you can adjust the jet from a straight jet to a spray mode.
Spray cap:It is intended only for use on the flat jet nozzle and it prevents spray-drifting of the liquid. The spray cap simply slides over the nozzle. Pay attention that the slot of the flat jet nozzle is aligned with the wide outlet of the spray cap!

Trouble shooting

Leakage and spraying poorly	The membrane is damaged or is not twisted tightly. Replace it or twist it tightly.
The pump handle has too much resistance	The nozzle or filter is blocked. Clean the nozzle and filter. Grease the moving parts using Vaseline.
The pressure stays too low	The bush and/or the sealing bullet at the bottom of the air chamber is slightly rubbed down. Replace them.
There is no pressure created when moving the pump handle	The sealing bullet is missing/removed. Reinstall it.
