STRIXGTX950DC22GD5GAMING - Graphic card ASUS - Free user manual and instructions

Product Type	Graphics Card
Brand	ASUS
Model	STRIXGTX950DC22GD5GAMING
Graphics Processor	NVIDIA GeForce GTX 950
Video Memory	2 GB GDDR5
Interface	PCI Express 3.0 x16
Display Connectors	1 x DVI, 1 x HDMI, 1 x DisplayPort
Cooling Technology	DirectCU II with dual fan
Dimensions	Approximately 26 x 12 x 4 cm
Weight	Approximately 600 g
Power Requirement	1 x 6-pin auxiliary power connector, recommended 350 W power supply
Key Features	ASUS GPU Tweak for overclocking and monitoring, ASUS Streaming, 0dB mode, DirectCU II
Supported Operating System	Windows 8.1, 8, 7, Vista (32/64-bit)
Package Contents	Graphics card, support CD (drivers and utilities), installation guide
Maintenance	Regularly clean the fins and fans with compressed air; avoid humidity and extreme temperatures
Safety	Follow electrical safety instructions; disconnect power before handling; use an antistatic surface
Warranty	See manufacturer warranty provided with the product

Frequently Asked Questions - STRIXGTX950DC22GD5GAMING ASUS

What to do if there is no display after installing the graphics card?

Check that the card is properly installed in its slot, the monitor is correctly connected, the auxiliary power is plugged in, and your power supply is sufficient. Refer to the troubleshooting section in the manual.

How to install the graphics card drivers?

Insert the included support CD, enable autorun or run UI.exe from the CD. Click on "Display Driver" then "Install". Restart after installation.

How to uninstall the graphics driver?

Go to Control Panel > Programs > Programs and Features. Select the graphics driver and click Uninstall.

How to use the ASUS GPU Tweak utility?

Install it from the support CD. It allows you to monitor and optimize the graphics card parameters, such as frequencies and voltage.

The graphics card has two fans, are they always running?

No, the 0dB technology allows the fans to stop at low load for silent operation. They only spin when the temperature exceeds a threshold.

What are the display connectors available on the card?

The card has a DVI connector, an HDMI, and a DisplayPort. Use the appropriate cable for your monitor.

Can I overclock the graphics card?

Yes, with the ASUS GPU Tweak utility, you can gradually increase the GPU and memory frequencies. Restore default settings in case of instability.

How to clean the graphics card?

Disconnect the power. Use a dry cloth or compressed air to remove dust from the fins and fans. Avoid liquids.

My computer does not detect the graphics card. What to do?

Check that the card is properly seated, the auxiliary power connector is plugged in, and your motherboard supports PCI Express. Try reinstalling the drivers.

Does the card require external power?

Yes, it requires a 6-pin auxiliary power connector. Make sure your power supply is powerful enough (at least 350 W recommended).

USER MANUAL STRIXGTX950DC22GD5GAMING ASUS

Drivers and Utilities

Installation Guide

Index

English 1 繁體中文 22 簡体中文 42 Čeština 62 Nederlands 82 Français 102 Deutsch 122 Ελληνικά 142 Italiano 162 日本語 183 한국어 203 Polski 223 Português 243 Español 263 Українська 283 Hrvatski 303

E9733

Third Edition

September 2014

Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Contents

Notices 4 Safety information 5 About this guide 6

1. Support CD information 7
2. VGA drivers 8

2.1 Installing the VGA driver 8 2.2 Uninstalling the VGA driver 9

1. ASUS GPU Tweak utility 10

3.1 Installing ASUS GPU Tweak 10 3.2 Uninstalling ASUS GPU Tweak 11

1. ASUS APRP 12

4.1 Installing ASUS APRP 12 4.2 Uninstalling ASUS APRP 13

1. ASUS Streaming 14

5.1 Installing ASUS Streaming 14 5.2 Uninstalling ASUS Streaming 15

1. Other information 16

6.1 Browse the Support CD 16 6.2 Contact Information 16 6.3 Viewing the Read Me file 17

Appendix: Basic troubleshooting 18

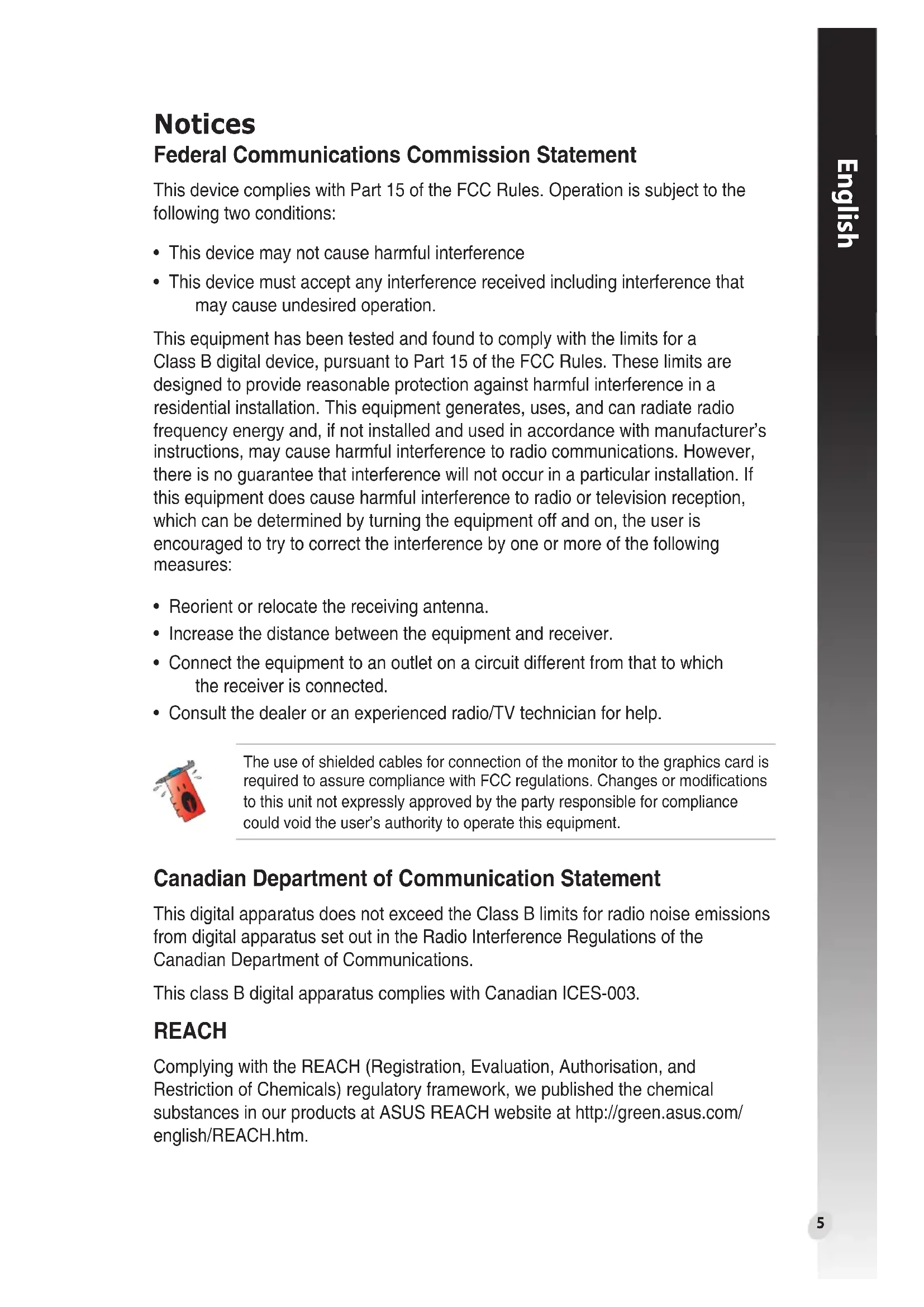

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at the ASUS REACH website at http://green.asus.com/english/REACH.htm.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety information

Electrical safety

• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing devices on your motherboard, carefully read all the manuals that came with the package.
• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and extreme temperature. Do not place the product in any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Useful tips and additional information for completing a task.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS Websites

The ASUS websites worldwide provide updated information on ASUS hardware and software products. The ASUS websites are listed in the ASUS Contact Information on the inside front cover of this installation guide.

2. Optional Documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

1. Support CD information

The support CD contains the drivers and utilities for your VGA card. Click the icons on the support CD's main menu to install software, obtain ASUS contact information, browse CD contents, or view the Read Me file.

• The screens in this manual are for reference only and may not exactly match what you see on your screen.
• The device driver and utility in the support CD apply only to specific ASUS VGA card models.
• You may need administrator rights to install the drivers and utilities. See your Windows® 8.1 / 8 / 7 / Vista documentation for details.
• The contents of the support CD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

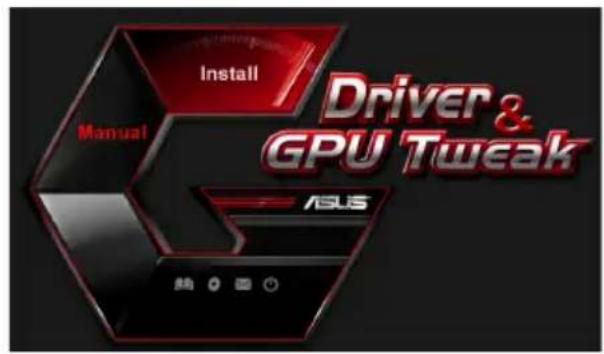

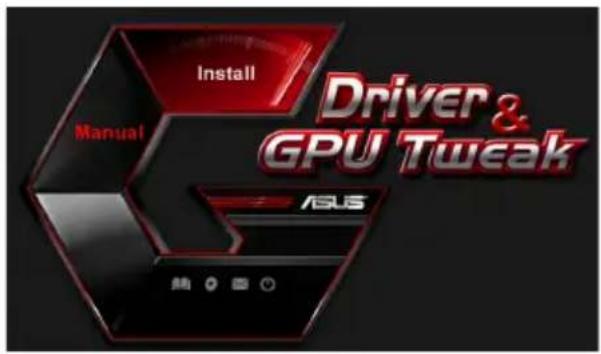

Insert the CD into your computer's optical drive. If Autorun is enabled, the Main Menu launches automatically.

If Autorun is NOT enabled on your computer, browse the contents of the support CD to locate the file UI.exe. Double-click the UI.exe to run the support CD installation program.

2. VGA drivers

The VGA driver is the software program that makes the device work with your operating system. After physically installing your graphics card, use any of the recommended methods in this section to install, update, or remove the VGA driver.

If you are replacing an old graphics card with a new ASUS graphics card, uninstall the old display driver from your system.

2.1 Installing the VGA driver

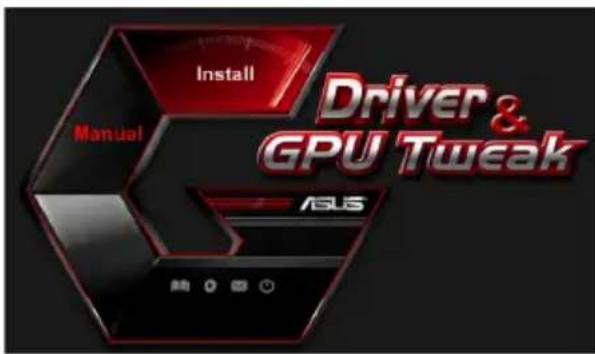

2.1.1 Installing the VGA Drivers in Windows Vista and Windows 8.1 / 8 / 7 (32/64 bit)

To install the VGA driver in Windows® 8.1 / 8 / 7 / Vista:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.
3. From the main menu, click Install.

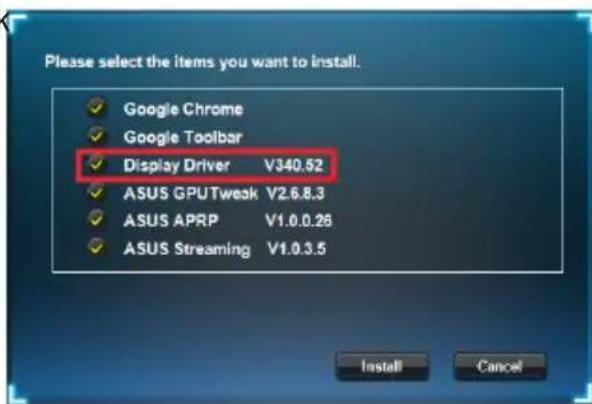

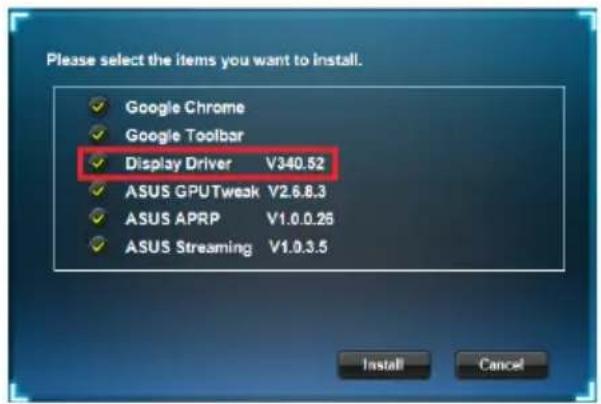

4. Select Display Driver and click the Install button.

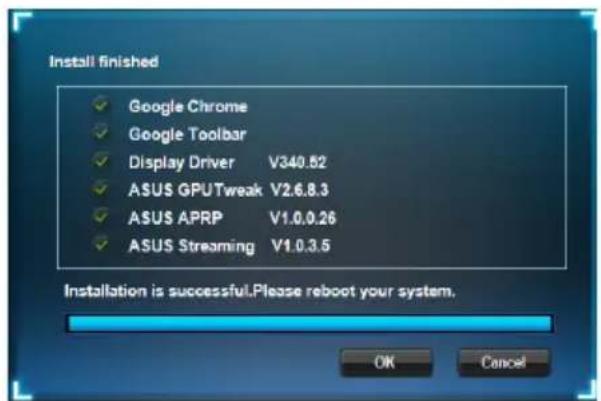

1. Once installation is complete, click OK to reboot the system.

2.2 Uninstalling the VGA driver

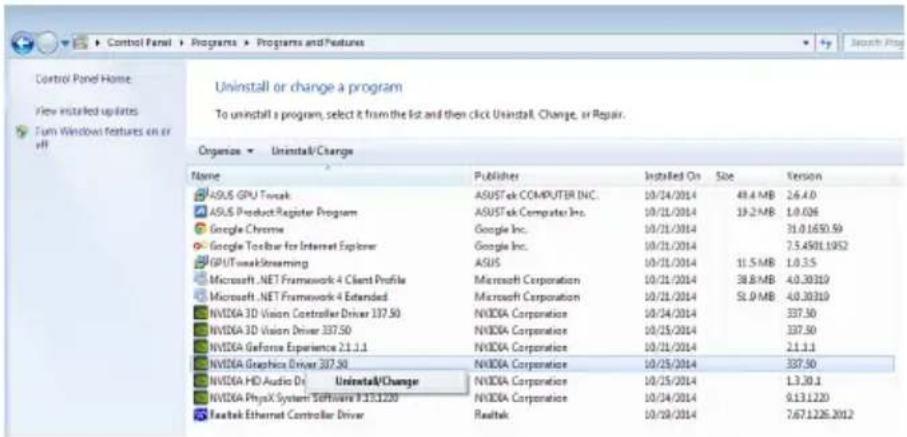

2.2.1 Uninstalling VGA drivers in Windows 8.1/8/7/Vista

To remove the VGA driver in Windows® 8.1 / 8 / 7 / Vista:

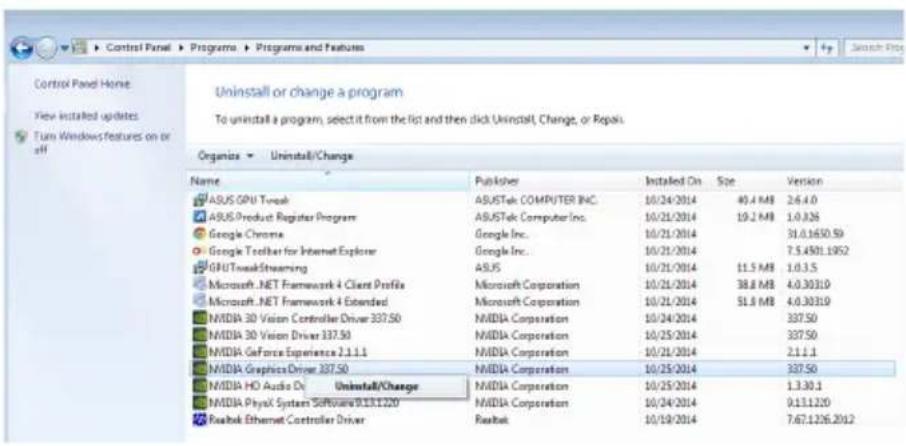

• Click Start > Control Panel > Programs > Programs and Features, select graphics driver. Click Uninstall.

3. ASUS GPU Tweak utility

ASUS GPU Tweak utility allows you to monitor and optimize the settings of your ASUS Graphics card.

3.1 Installing ASUS GPU Tweak

3.1.1 Installing ASUS GPU Tweak in Windows Vista and Windows 8.1 / 8 / 7 (32/64 bit)

To install ASUS GPU Tweak:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

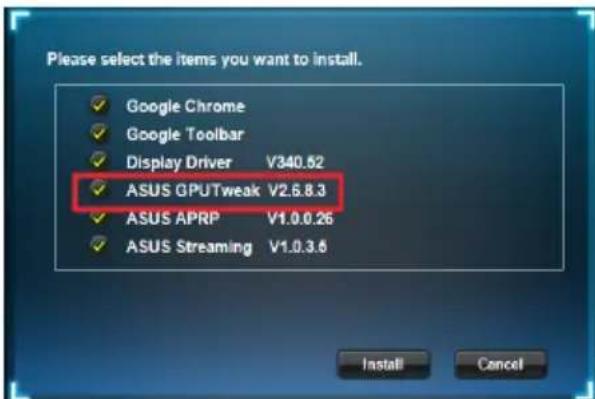

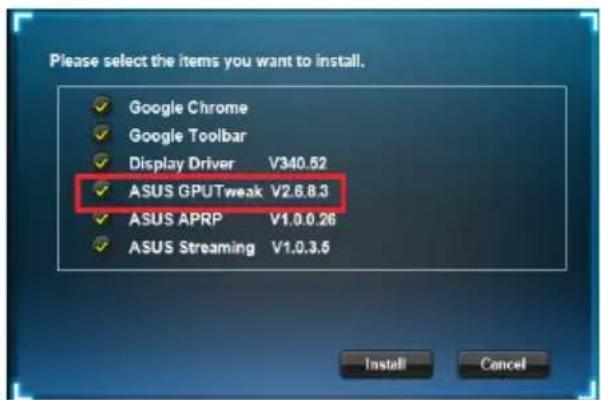

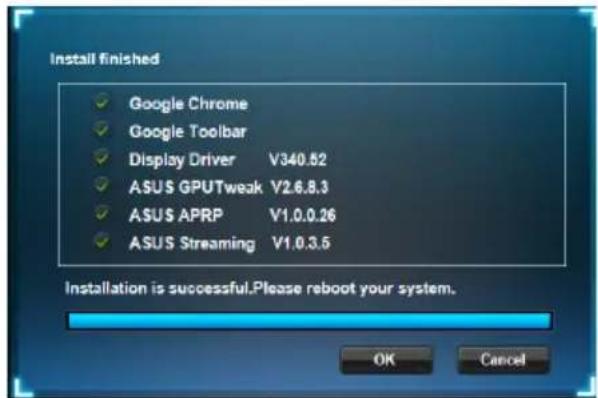

1. From the main menu, click Install. Select ASUS GPU Tweak and click the Install button.

1. Once installation is complete, click OK.

3.2 Uninstalling ASUS GPU Tweak

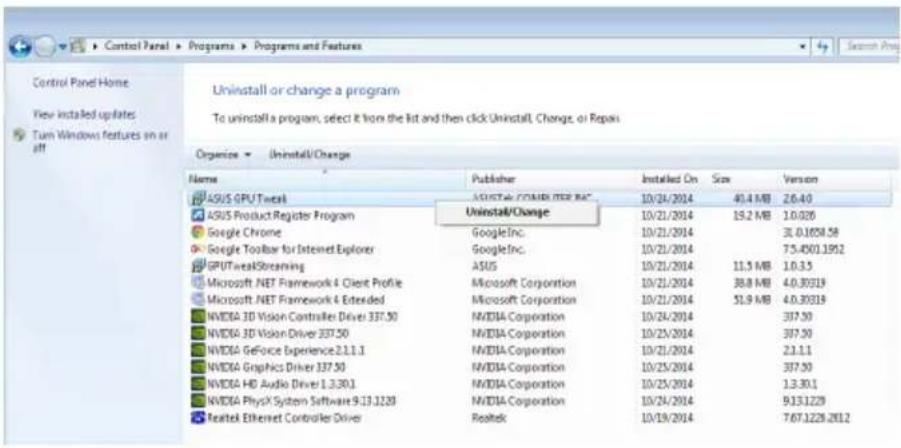

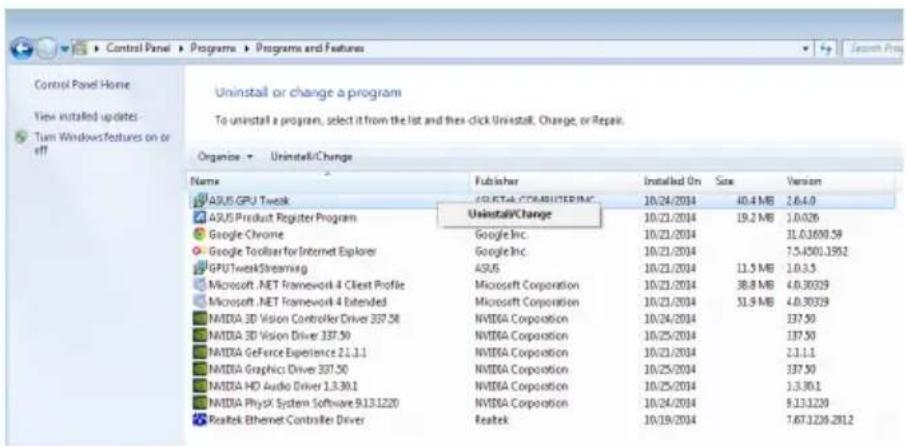

3.2.1 Removing ASUS GPU Tweak in Windows 8.1/8/7/Vista

To remove ASUS GPU Tweak in Windows® 8.1 / 8 / 7 / Vista:

• Click Start > Control Panel > Programs > Programs and Features, select ASUS GPU Tweak. Click Uninstall.

4. ASUS APRP

4.1 Installing ASUS APRP

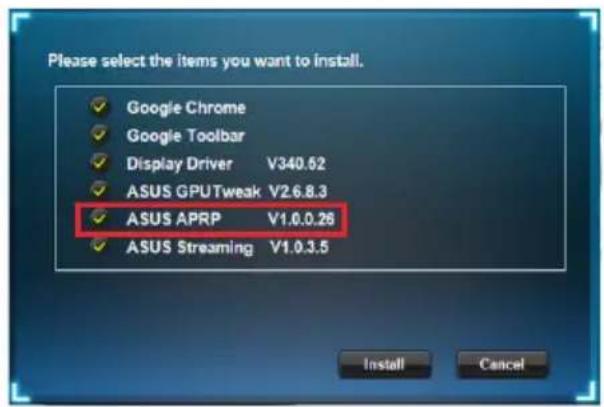

4.1.1 Installing ASUS APRP in Windows /8/7 (32/64 bit)

Vista and Windows 8.1

To install ASUS APRP:

1. Insert the support CD into your optical drive.

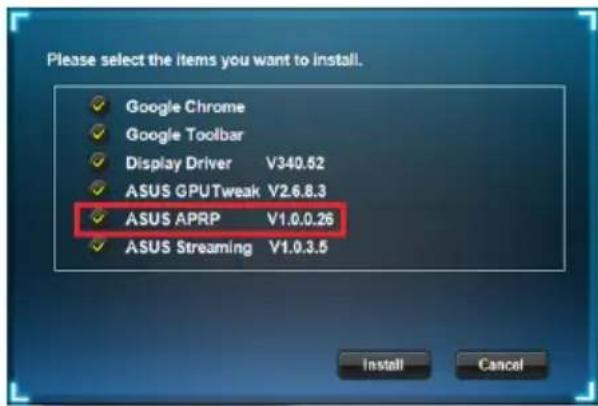

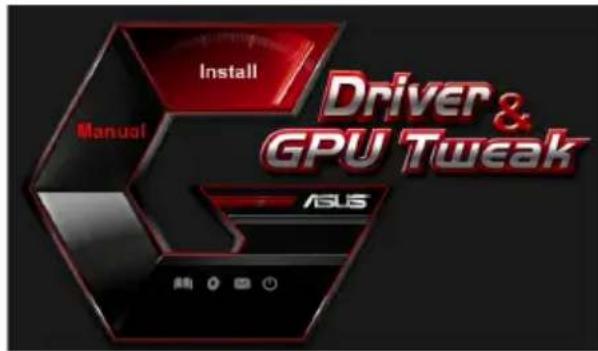

2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Install.

Select ASUS GPU Tweak and click the Install button.

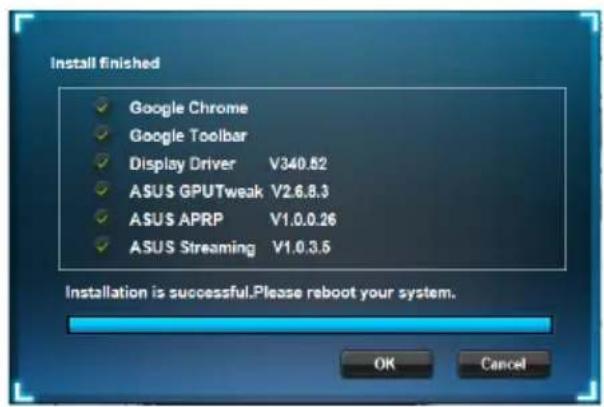

1. Once installation is complete, click OK.

4.2 Uninstalling ASUS APRP

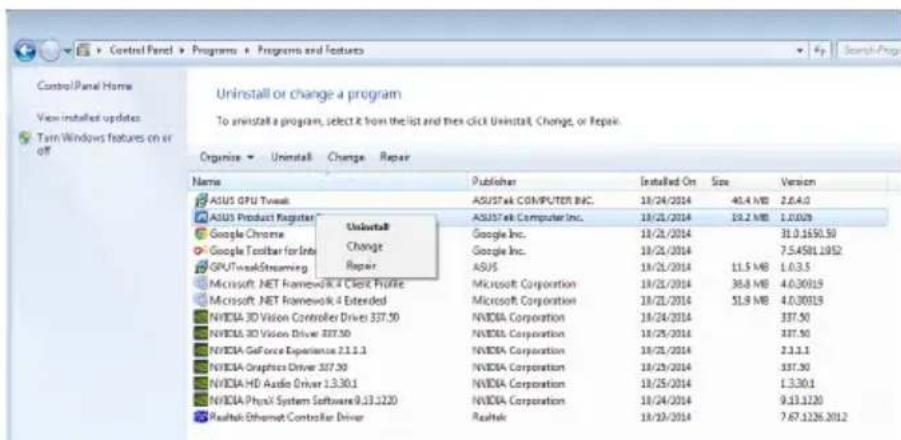

4.2.1 Removing ASUS APRP in Windows 8.1/8/7/Vista

To remove ASUS APRP in Windows 8.1/8/7/Vista:

• Click Start > Control Panel > Programs > Programs and Features, select ASUS APRP. Click Uninstall.

5. ASUS Streaming

5.1 Installing ASUS Streaming

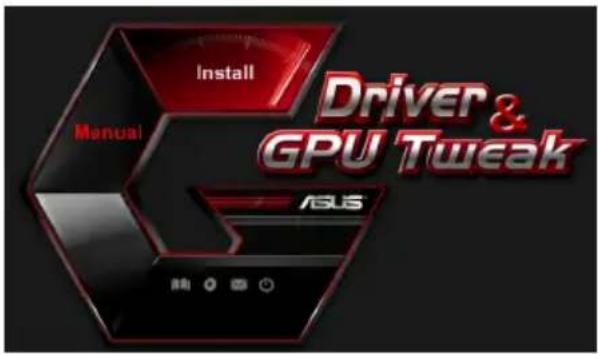

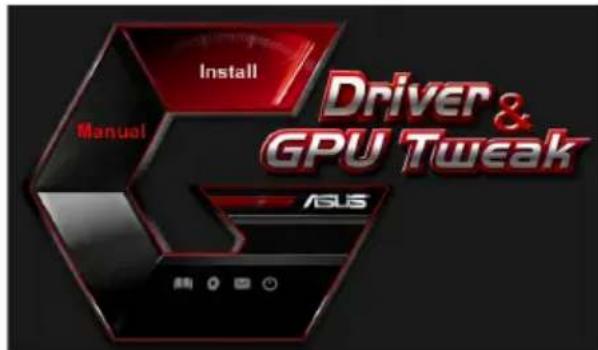

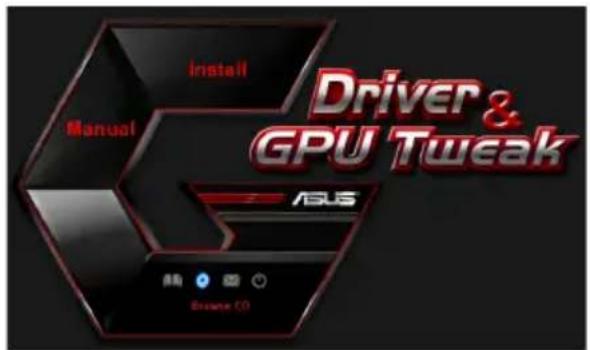

5.1.1 Installing ASUS Streaming in Windows 8.1/8/7 (32/64 bit) and Vista

To install ASUS Streaming:

Insert the support CD into your optical drive.

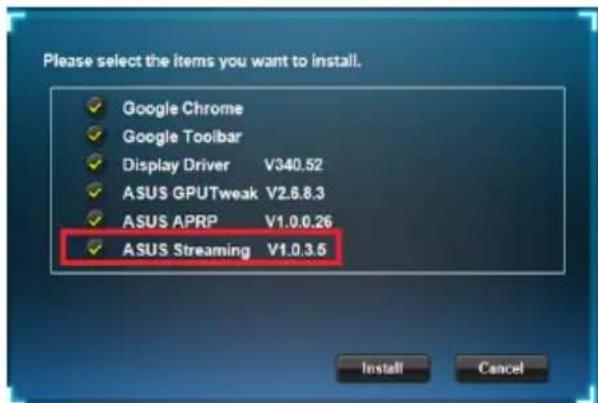

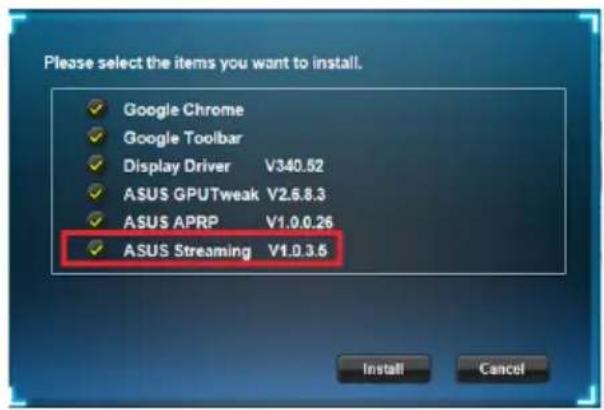

1. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.
3. Select ASUS GPU Tweak and click the Install button.

Select ASUS GPU Tweak and click the Install button.

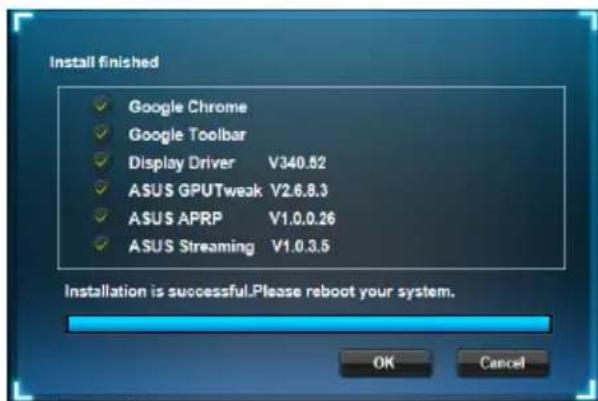

1. 5.2 Uninstalling ASUS Streaming

5.2 Uninstalling ASUS Streaming

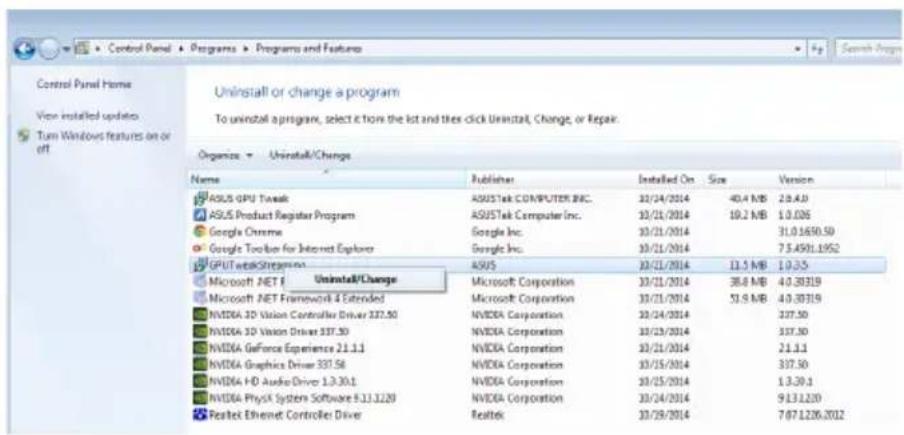

5.2.1 Removing ASUS Streaming in Windows 8.1/8/7/Vista

To remove ASUS Streaming in Windows® 8.1 / 8 / 7 / Vista:

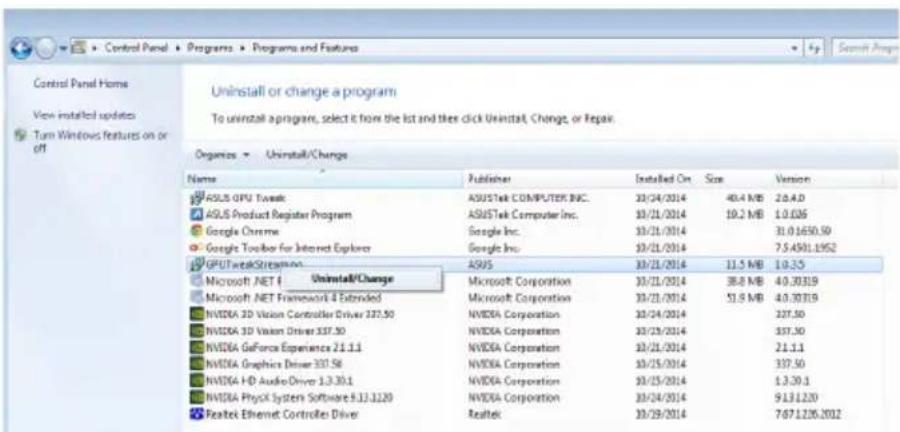

• Click Start > Control Panel > Programs > Programs and Features, select GPU Tweak Streaming. Click Uninstall.

6. Other information

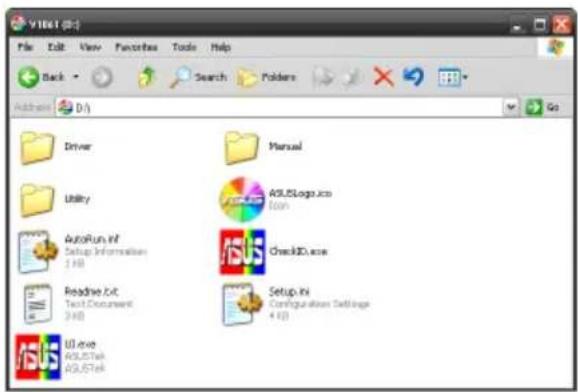

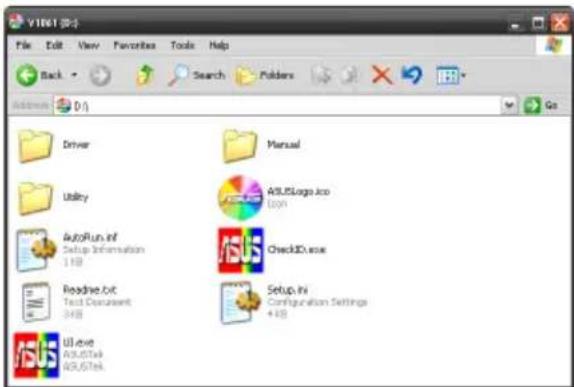

6.1 Browse the Support CD

To browse the support CD:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Browse CD to view the contents of the CD.

6.2 Contact Information

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically.

If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Contact Us to open the ASUS website for additional information.

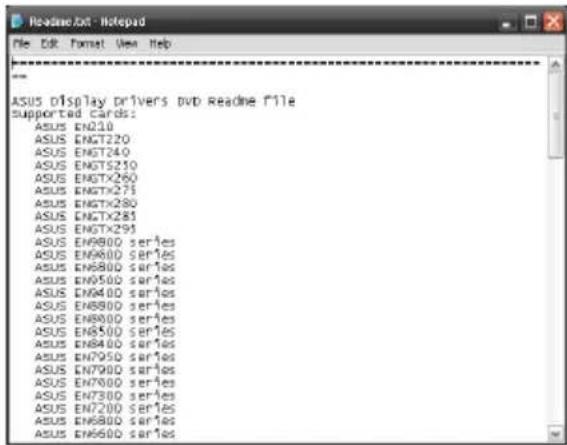

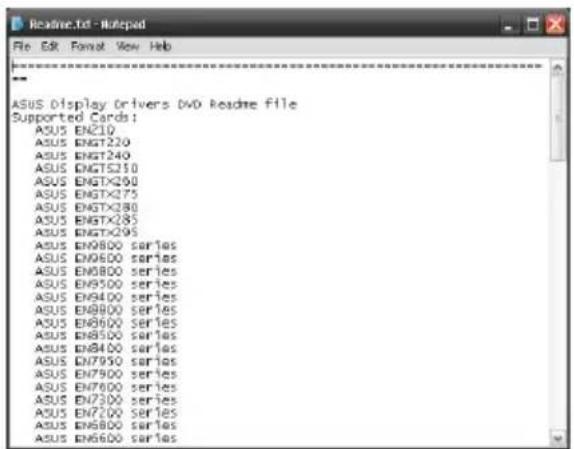

6.3 Viewing the Read Me file

To view the readme file:

1. Insert the support CD into your optical drive.

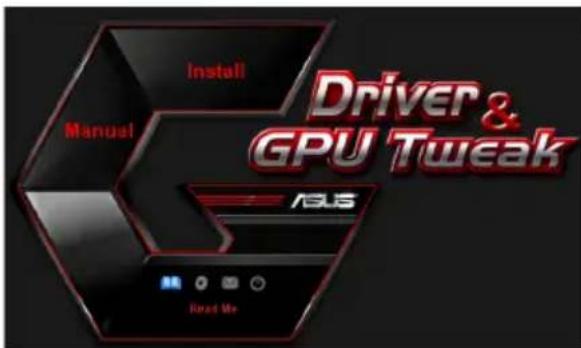

2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Read Me to display the Readme text file.

Appendix: Basic troubleshooting

If you encounter any of the following scenarios after installing your graphics card, try performing one of the possible solutions before calling for technical support.

Problem No display after the card is installed

Cause Your card might not be properly installed. Solution Make sure that the card is not tilted or skewed on the slot.

Cause Your monitor might not be properly connected. Solution Make sure that the signal cable is properly connected to your monitor and graphics card.

Cause Your graphics card is not supported by your motherboard. Solution Check the technical documentation that came with your motherboard and check the required specifications for your graphics card (e.g. AGP voltage requirement).

Cause The graphics card's auxiliary power is not connected. Solution Make sure that the auxiliary power cables are properly connected with the power supply unit.

Cause Insufficient power supply. Solution Make sure that your power supply unit can provide the minimum power requirement to your system.

Cause Incorrect motherboard hardware system settings (e.g. system control panel connections). Solutions • Make sure that the system control panel cables are connected properly (e.g. power switch, reset). • Make sure that your CPU, CPU fan and/or memory DIMMs are in good working condition and are connected properly.

Problem Wrong color balance

Cause Your card might not be properly installed. Solution Make sure that the card is not tilted or skewed on the slot.

Cause Your video controls might not be properly set. Solution • Manually configure your video controls to your desired settings. • Configure your graphics card display resolution in Dis-play properties.

Cause There may be unsupported graphics card drivers installed in your system. Conflicts may occur with graphics card drivers from different vendors. Solution • Remove any unused graphics card drivers installed on your system. • Install the graphics card driver from the support CD that came with your graphics card package.

Cause The graphics card's auxiliary power is not connected. Solution Make sure that the auxiliary power cables are properly connected to the power supply unit.

Cause If your monitor comes with BNC connectors, the port con-nections may be incorrect. Solution Make sure that all BNC connectors are connected properly to its corresponding port.

Cause Your monitor software settings might be incorrect. Solution Configure your monitor to supported display settings.

Cause Your monitor might not be properly connected. Solution Make sure that the signal cable is properly connected to your monitor and graphics card.

Problem The screen image is garbled

Cause Your monitor cannot support the selected display setting. Solution Make sure that your monitor can support your desired display setting. Refer to the technical documentation that came with your monitor.

Cause Your graphics card cannot support the desired system setting. Solution Make sure that your graphics card can support your desired display setting. See the specifications table that came with this graphics card package.

Cause Some graphics driver files might be corrupt. Solution Remove your current graphics drivers and reinstall the graphics drivers from the support CD.

Cause Poor heat dissipation inside the chassis. Solution Make sure that the chassis fan, CPU, and heatsink with fan, and/or the graphics card GPU fan are working properly.

Cause GPU or VGA memory overclocked beyond optimal working conditions. Solutions Restore default frequency settings of GPU and VGA memory.

Other problems that you might encounter can be related to other parts or accessories (e.g., motherboard, power supply unit, LCD/CRT) of your system.

ASUS

Graphics Card

Drivers and Utilities

Installation Guide

T9733

Third Edition

September 2014

Copyright © 2014 ASUSTeK Computer Inc. All rights reserved.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

6.1 Radio operation on CD 16

Warranty: Limited warranty of products 18

Notices

Copyright © 2014 ASUSTeK Computer, Inc.

FCC (Federal Communications Commission) Declaration

Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.

Federal Communications Commission Statement (Original)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://green.asus.com/ english/REACH.htm.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety Precautions

Electrical Handling

Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.

본재	화면 이머지가 죽내로 펟서울지 옷을
원신 해결非常高 approval	모니터가선목한다斯几乎所有이 죽plet을 jo원 하지 옷을고다. 모니터가 jo원 하는다斯几乎所有이 죽plet일지 펟서울지 옷을 jo원 하지 옷을 jo원 하. 모니터와 힘과 죽保證는 기울운서울 죽조하심시오.
원신 해결非常高 approval	그래ophil 카드가 jo원 하는 사료严格落实 죽plet을 jo원 하지 옷을고다. 그래ophil 카드가 jo원 하는다斯几乎所有이 죽plet일지 펟서울지 펟서울目的在于 jo원 하지 펟서울目的在于 jo원 하. 개심지오. 그래ophil 카드 힘과 썼 기지와 힘과 죽保證는 사형을 jo원 하지 옷을 jo원 하. 개심지오.
원신 해결非常高 approval	일부 어래ophil 카리버 힠일이 course of being called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be called to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling to be calling到 ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. ->. -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> -> ->

Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Contents

Warranty service will not be extended if: (1) the product has been repaired, modified, or altered without ASUS's written permission, or (2) the serial number is missing or defaced.

ASUS PROVIDES THE SOFTWARE "AS IS" AND WITH ALL FAULTS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF FUNCTIONALITY OR DATA, OR INTERRUPTION OF BUSINESS), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS SOFTWARE OR PRODUCT.

The technical specifications and information contained in this manual are for reference only; they are subject to change without notice. They should not be construed as commitments by ASUS. ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual, including the products and software described therein.

Product names and trademarks mentioned in this manual may or may not be registered trademarks or copyrighted by their respective companies. They are used for identification purposes only and do not infringe upon the rights of their owners.

Contents

Notices 285 Safety information 286 About this manual 287

1. Information about the support CD 288
2. VGA drivers 289

2.1 Installing the VGA driver 289 2.2 Uninstalling the VGA driver 290

1. ASUS GPU Tweak 291

3.1 Installing ASUS GPU Tweak 291 3.2 Uninstalling ASUS GPU Tweak 292

1. ASUS APRP 293

4.1 Installing ASUS APRP 293 4.2 Uninstalling ASUS APRP 294

1. ASUS Streaming 295

5.1 Installing ASUS Streaming 295 5.2 Uninstalling ASUS Streaming 296

1. Information 297

6.1 Compact Flash Card 297 6.2 Compact Information 297 6.3 Online Help 298

Appendix. Troubleshooting 299

Notes

Federal Communications Commission (FCC)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference; and - This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable for connection of the monitor to the graphics card is required to ensure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

This digital apparatus complies with Canadian standard CAN ICES-3(B)/NMB-3(B).

REACH

In accordance with the requirements of the REACH regulation (Registration, Evaluation, Authorization, and Restriction of Chemicals), we disclose the chemical substances in our products on the ASUS REACH website at http://green.asus.com/english/REACH.htm.

Macrovision Corporation. All rights reserved.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights holders. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety Information

Electrical Safety

- When connecting or disconnecting cables, always grip the connector, not the cable. If possible, disconnect all cables from the existing system before adding a new device. - Ensure that the device is installed on the correct power source and that it is within your voltage range. If you are unsure about the electrical outlet you are using, contact your local electric company. Do not attempt to repair any electrical malfunction yourself. Contact a qualified technician or your dealer.

Operational Safety

• Before installing the device, carefully read all instructions included in the package.
• Before using the product, check that all cables are connected correctly and that there are no damaged cables. If any damage is found, contact your dealer immediately.
• To prevent short circuits, keep screws, screws, and brackets away from connectors, sockets, and electronic circuits. Do not expose the device to dust, moisture, or extreme temperatures. Do not place the device in a location where it can get wet. Place the device on a stable surface.
• If technical problems occur with the product, contact a qualified technician or your dealer.

About This Manual

Symbols used in this manual.

To ensure correct execution of certain tasks, pay attention to the following symbols used in this manual.

CAUTION: Information intended to prevent injury during task execution.

WARNING: Information intended to prevent damage to components when attempting to perform a task.

NOTE: Information to be taken before performing the task.

NOTE: Initial information to help perform the task.

To know the initial information

To obtain initial information and update the test and software, refer to the following sources.

1. ASUS website.

ASUS websites worldwide provide updated information on ASUS hardware and software products.

If autorun is not enabled, run the Setup.exe file from the root directory of the support CD.

1. In the main menu, click Drivers.
2. Select Display Driver and click Install.
3. When installation is complete, click OK, then restart the system.

2.2 Uninstalling the VGA driver

2.2.1 Uninstalling the VGA driver in Windows 8.1/8/7/Vista

To uninstall the VGA driver for Windows 8.1/8/7/Vista:

• Click Start > Control Panel > Programs > Programs and Features, select the item you want to uninstall, then click Uninstall.

3. ASUS GPU Tweak

ASUS GPU Tweak allows you to adjust and optimize the parameters of your ASUS graphics card.

1. In the main menu, click Install.

Select ASUS GPU Tweak and click the Install button.

1. When the installation is complete, click OK.

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Uninstalling ASUS GPU Tweak in Windows 8.1/8/7/Vista

To uninstall ASUS GPU Tweak in Windows 8.1/8/7/Vista:

• Click Start > Control Panel > Programs > Programs and Features, select ASUS GPU Tweak, and click Uninstall.

4. ASUS APRP

4.1 Installing ASUS APRP

4.1.1 Installing ASUS APRP in Windows Vista/Windows 8.1/8/7 (32/64-bit)

To install ASUS APRP:

1. Insert the CD into the optical drive. 2. If autorun is enabled, the main menu will appear automatically.

If autorun is disabled, run UI.exe from the root menu on the CD.

1. In the main menu, click Install.

Select ASUS APRP and click Install.

1. When the installation is complete, click OK.

4.2 Uninstalling ASUS APRP

4.2.1 Uninstalling ASUS APRP in Windows 8.1/8/7/Vista

To uninstall ASUS APRP in Windows 8.1/8/7/Vista:

• Click Start > Control Panel > Programs > Programs and Features, select ASUS APRP, and click Uninstall.

5. ASUS Streaming

5.1 Installing ASUS Streaming

5.1.1 Installing ASUS Streaming in Windows Vista / Windows 8.1/8/7 (32/64-bit)

To install ASUS Streaming:

1. Insert the CD into the optical drive.
2. If autorun is enabled, the main menu appears automatically.

If autorun is disabled, run UI.exe from the root menu on the CD.

1. In the main menu, click Install.

Select ASUS Streaming and click Install.

1. When the installation is complete, press OK.

5.2 Uninstalling ASUS Streaming

5.2.1 Uninstalling ASUS Streaming in Windows 8.1/8/7/Vista

To uninstall ASUS Streaming in Windows® 8.1 / 8 / 7 / Vista:

• Press Start > Control Panel > Programs > Programs and Features, select ASUS Streaming. Press Uninstall.

If autorun is not enabled, run Setup.exe from the root directory of the support CD.

1. In the main menu, press Browse CD to view the contents of the CD.

6.2 Contact Information

1. Insert the support CD into the optical drive. 2. If autorun is enabled, the ASUS VGA driver installation screen appears automatically.

If autorun is not enabled, run Setup.exe from the root directory of the support CD.

1. In the main menu, press Contact Us to go to the ASUS website and learn more.

6.3 ASUS Contact Information

To view the contact information:

1. Insert the support CD into the optical drive.
2. If autorun is enabled, the ASUS VGA driver installation screen appears automatically.

If automatic start is not configured, run Setup.exe from the root directory of the supplied compact disc.

1. Read the Read Me file in the root directory.

The main window will appear on the screen.

Appendix. Troubleshooting

If problems occur after installing the graphics adapter, try one of the following operations before calling technical support.

Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
