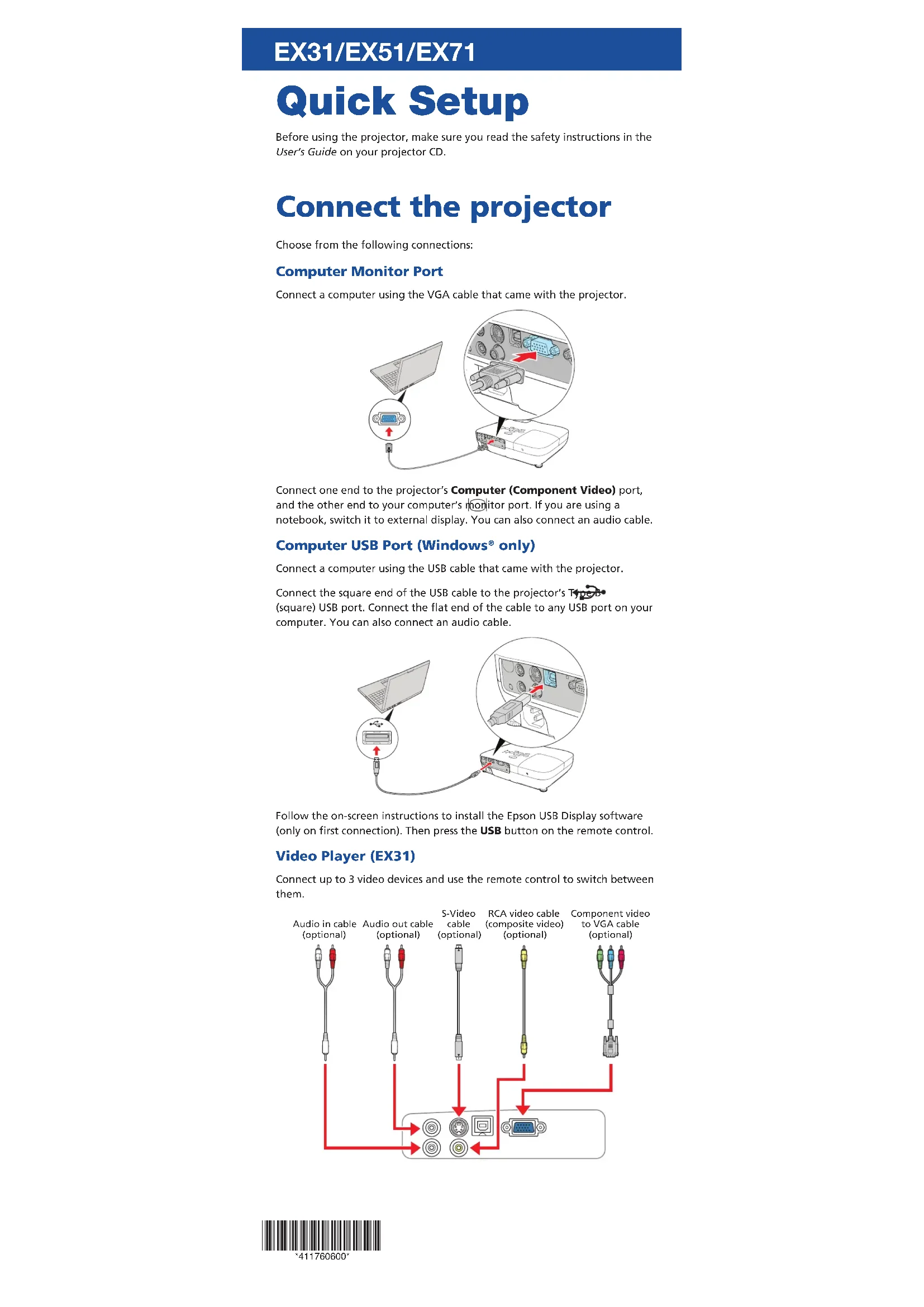

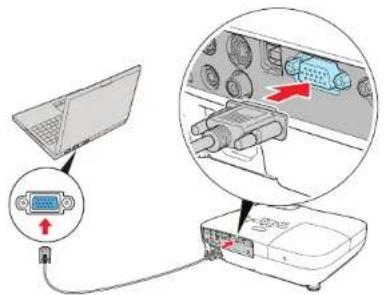

Quick Setup Before using the projector, make sure you read the safety instructions in the User’s Guide on your projector CD. Connect the projector Choose from the following connections: Computer Monitor Port Connect a computer using the VGA cable that came with the projector.Connect one end to the projector’s Computer (Component Video) port, and the other end to your computer’s monitor port. If you are using a notebook, switch it to external display. You can also connect an audio cable. Computer USB Port (Windows

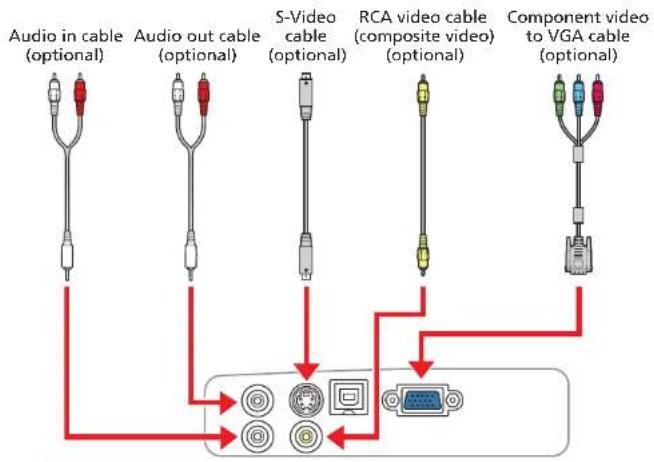

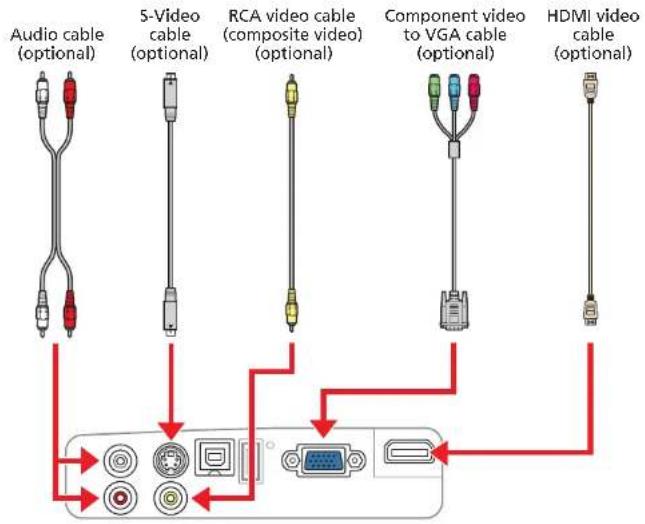

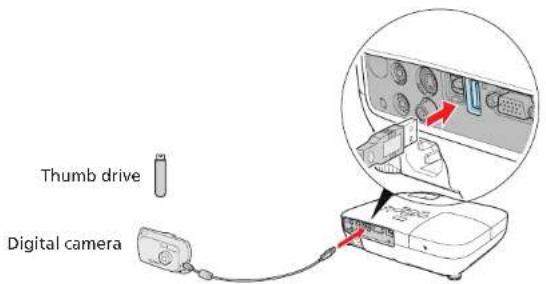

only) Connect a computer using the USB cable that came with the projector.Connect the square end of the USB cable to the projector’s Type B (square) USB port. Connect the flat end of the cable to any USB port on your computer. You can also connect an audio cable. Follow the on-screen instructions to install the Epson USB Display software (only on first connection). Then press the USB button on the remote control. Video Player (EX31) Connect up to 3 video devices and use the remote control to switch between them.RCA video cable (composite video)(optional)S-Video cable(optional)Component video to VGA cable(optional)Audio out cable (optional)Audio in cable (optional) Video Player (EX51/EX71) Connect up to 4 video devices and use the remote control to switch between them.RCA video cable (composite video)(optional)S-Video cable(optional)Component video to VGA cable(optional)Audio cable (optional)HDMI video cable(optional) Camera or USB Device (EX51/EX71) Connect a digital camera or other USB device to the projector’s Type A (flat) USB port.Digital cameraThumb drive You can use the projector’s Slideshow feature to project JPEG images. See the User’s Guide on your projector CD. Turn on your equipment
Turn on your computer or video source.
Plug in the projector.
Open the A/V Mute slide all the way.
Press the power button on the projector or remote control. Power lightPower button The power light flashes green, then stays on. NOTE: To shut down the projector, press the power button twice, then unplug it. You don’t have to wait for the projector to cool down. Adjust the image

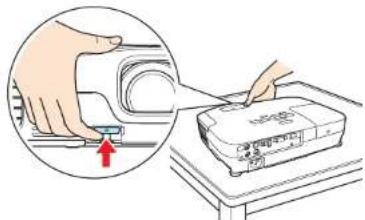

To raise the image, press the foot release button and lift the front of the projector. Release the button to lock the foot in position.
Turn the focus ring to sharpen the image.
EX51/EX71: To reduce or enlarge the image, turn the zoom ring. EX31: to reduce or enlarge the image, press the Tele (reduce) or Wide (enlarge) button on the projector. You can also use the Zoom option in the projector’s Settings menu. See the User’s Guide on your projector CD.
If your image looks like or , you’ve placed the projector off to one side of the screen at an angle. Place it directly in front of the center of the screen, facing the screen squarely.

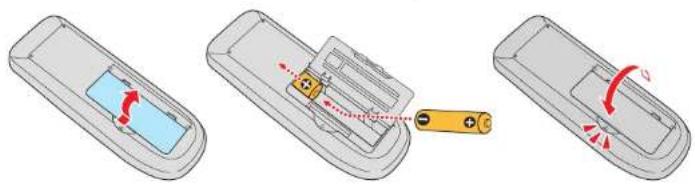

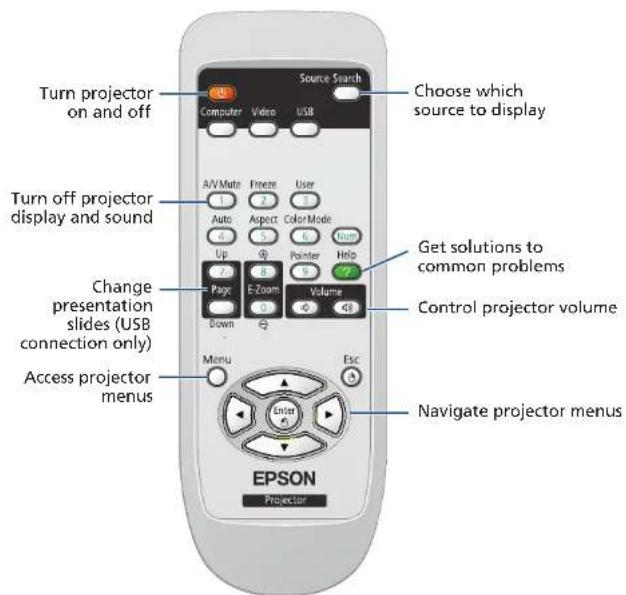

If your image looks like or , press the or buttons on the projector to correct it. Using the remote control Make sure the batteries are installed as shown (two included AA batteries). Change presentation slides (USB connection only)Access projector menusChoose which source to displayControl projector volume Turn projector on and off Turn off projector display and soundGet solutions to common problemsNavigate projector menus You can use the remote control to operate the projector. With the USB cable, you can use the remote as a wireless mouse. For more information on using the remote control, see your User’s Guide. Where to get help Manual For more information about using the projector, install the User’s Guide from your projector CD. Telephone Support Services To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card included with your projector. This service is available 6 AM to 6 PM, Pacific Time, Monday through Friday, for the duration of your warranty period. You may also speak with a projector support specialist by dialing one of these numbers: U.S.: (562) 276-4394, 6 AM to 6 PM, Pacific Time, Monday through Friday Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time, Monday through Friday Days and hours of support are subject to change without notice. Toll or long distance charges may apply. Internet Support Visit Epson’s support website at epson.com/support and select your product for solutions to common problems. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions. Registration Register today to get product updates, special promotions, and customer-only offers. You can use the CD included with your projector, or register online at www.epson.com/webreg. EX31/EX51/EX71 *411760600* *411760600* Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PrivateLine is a registered trademark of Epson America, Inc. General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks. This information is subject to change without notice. © 2009 Epson America, Inc. 7/09 Printed in XXXXXX CPD-27597Quick Setup Before using the projector, make sure you read the safety instructions in the User’s Guide on your projector CD. Connect the projector Choose from the following connections: Computer Monitor Port Connect a computer using the VGA cable that came with the projector. Connect one end to the projector’s Computer (Component Video) port, and the other end to your computer’s monitor port. If you are using a notebook, switch it to external display. You can also connect an audio cable. Computer USB Port (Windows only) Connect a computer using the USB cable that came with the projector. Connect the square end of the USB cable to the projector’s Type B (square) USB port. Connect the flat end of the cable to any USB port on your computer. You can also connect an audio cable. Follow the on-screen instructions to install the Epson USB Display software (only on first connection). Then press the USB button on the remote control. Video Player (EX31) Connect up to 3 video devices and use the remote control to switch between them.RCA video cable (composite video)(optional)S-Video cable(optional)Component video to VGA cable(optional) Audio out cable (optional)Audio in cable (optional) Video Player (EX51/EX71) Connect up to 4 video devices and use the remote control to switch between them.RCA video cable (composite video)(optional)S-Video cable(optional)Component video to VGA cable(optional)Audio cable (optional)HDMI video cable(optional) Camera or USB Device (EX51/EX71) Connect a digital camera or other USB device to the projector’s Type A (flat) USB port.Digital cameraThumb driveYou can use the projector’s Slideshow feature to project JPEG images. See the User’s Guide on your projector CD. Turn on your equipment
Turn on your computer or video source. Plug in the projector. Open the A/V Mute slide all the way. Press the power button on the projector or remote control.Power lightPower button The power light flashes green, then stays on. NOTE: To shut down the projector, press the power button twice, then unplug it. You don’t have to wait for the projector to cool down. Adjust the image
To raise the image, press the foot release button and lift the front of the projector. Release the button to lock the foot in position.
Turn the focus ring to sharpen the image.
EX51/EX71: To reduce or enlarge the image, turn the zoom ring. EX31: to reduce or enlarge the image, press the Tele (reduce) or Wide (enlarge) button on the projector. You can also use the Zoom option in the projector’s Settings menu. See the User’s Guide on your projector CD.
If your image looks like or , you’ve placed the projector off to one side of the screen at an angle. Place it directly in front of the center of the screen, facing the screen squarely.
If your image looks like or , press the or buttons on the projector to correct it. Using the remote control Make sure the batteries are installed as shown (two included AA batteries). Change presentation slides (USB connection only)Access projector menusChoose which source to displayControl projector volume Turn projector on and off Turn off projector display and soundGet solutions to common problemsNavigate projector menus You can use the remote control to operate the projector. With the USB cable, you can use the remote as a wireless mouse. For more information on using the remote control, see your User’s Guide. Where to get help Manual For more information about using the projector, install the User’s Guide from your projector CD. Telephone Support Services To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card included with your projector. This service is available 6 AM to 6 PM, Pacific Time, Monday through Friday, for the duration of your warranty period. You may also speak with a projector support specialist by dialing one of these numbers: U.S.: (562) 276-4394, 6 AM to 6 PM, Pacific Time, Monday through Friday Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time, Monday through Friday Days and hours of support are subject to change without notice. Toll or long distance charges may apply. Internet Support Visit Epson’s support website at epson.com/support and select your product for solutions to common problems. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions. Registration Register today to get product updates, special promotions, and customer-only offers. You can use the CD included with your projector, or register online at www.epson.com/webreg. EX31/EX51/EX71 *411760600* *411760600* Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PrivateLine is a registered trademark of Epson America, Inc. General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks. This information is subject to change without notice. © 2009 Epson America, Inc. 7/09 Printed in XXXXXX CPD-27597Quick Setup Before using the projector, make sure you read the safety instructions in the User’s Guide on your projector CD. Connect the projector Choose from the following connections: Computer Monitor Port Connect a computer using the VGA cable that came with the projector. Connect one end to the projector’s Computer (Component Video) port, and the other end to your computer’s monitor port. If you are using a notebook, switch it to external display. You can also connect an audio cable. Computer USB Port (Windows only) Connect a computer using the USB cable that came with the projector. Connect the square end of the USB cable to the projector’s Type B (square) USB port. Connect the flat end of the cable to any USB port on your computer. You can also connect an audio cable. Follow the on-screen instructions to install the Epson USB Display software (only on first connection). Then press the USB button on the remote control. Video Player (EX31) Connect up to 3 video devices and use the remote control to switch between them.RCA video cable (composite video)(optional)S-Video cable(optional)Component video to VGA cable(optional) Audio out cable (optional)Audio in cable (optional) Video Player (EX51/EX71) Connect up to 4 video devices and use the remote control to switch between them.RCA video cable (composite video)(optional)S-Video cable(optional)Component video to VGA cable(optional)Audio cable (optional)HDMI video cable(optional) Camera or USB Device (EX51/EX71) Connect a digital camera or other USB device to the projector’s Type A (flat) USB port.Digital cameraThumb drive You can use the projector’s Slideshow feature to project JPEG images. See the User’s Guide on your projector CD. Turn on your equipment
Turn on your computer or video source.
Plug in the projector.
Open the A/V Mute slide all the way.
Press the power button on the projector or remote control. Power lightPower button The power light flashes green, then stays on. NOTE: To shut down the projector, press the power button twice, then unplug it. You don’t have to wait for the projector to cool down. Adjust the image
If you don’t see an image, press the Source Search button on the projector or the remote control to select the image source. To raise the image, press the foot release button and lift the front of the projector. Release the button to lock the foot in position. Turn the focus ring to sharpen the image. EX51/EX71: To reduce or enlarge the image, turn the zoom ring. EX31: to reduce or enlarge the image, press the Tele (reduce) or Wide (enlarge) button on the projector. You can also use the Zoom option in the projector’s Settings menu. See the User’s Guide on your projector CD. If your image looks like or , you’ve placed the projector off to one side of the screen at an angle. Place it directly in front of the center of the screen, facing the screen squarely.
If your image looks like or , press the or buttons on the projector to correct it. Using the remote control Make sure the batteries are installed as shown (two included AA batteries).Change presentation slides (USB connection only)Access projector menusChoose which source to displayControl projector volumeTurn projector on and offTurn off projector display and soundGet solutions to common problemsNavigate projector menusYou can use the remote control to operate the projector. With the USB cable, you can use the remote as a wireless mouse. For more information on using the remote control, see your User’s Guide. Where to get help Manual For more information about using the projector, install the User’s Guide from your projector CD. Telephone Support Services To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card included with your projector. This service is available 6 AM to 6 PM, Pacific Time, Monday through Friday, for the duration of your warranty period. You may also speak with a projector support specialist by dialing one of these numbers: U.S.: (562) 276-4394, 6 AM to 6 PM, Pacific Time, Monday through Friday Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time, Monday through Friday Days and hours of support are subject to change without notice. Toll or long distance charges may apply. Internet Support Visit Epson’s support website at epson.com/support and select your product for solutions to common problems. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions. Registration Register today to get product updates, special promotions, and customer-only offers. You can use the CD included with your projector, or register online at www.epson.com/webreg. EX31/EX51/EX71 *411760600* *411760600* Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PrivateLine is a registered trademark of Epson America, Inc. General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks. This information is subject to change without notice. © 2009 Epson America, Inc. 7/09 Printed in XXXXXX CPD-27597Quick Setup Before using the projector, make sure you read the safety instructions in the User’s Guide on your projector CD. Connect the projector Choose from the following connections: Computer Monitor Port Connect a computer using the VGA cable that came with the projector. Connect one end to the projector’s Computer (Component Video) port, and the other end to your computer’s monitor port. If you are using a notebook, switch it to external display. You can also connect an audio cable. Computer USB Port (Windows only) Connect a computer using the USB cable that came with the projector. Connect the square end of the USB cable to the projector’s Type B (square) USB port. Connect the flat end of the cable to any USB port on your computer. You can also connect an audio cable. Follow the on-screen instructions to install the Epson USB Display software (only on first connection). Then press the USB button on the remote control. Video Player (EX31) Connect up to 3 video devices and use the remote control to switch between them.RCA video cable (composite video)(optional)S-Video cable(optional)Component video to VGA cable(optional) Audio out cable (optional)Audio in cable (optional) Video Player (EX51/EX71) Connect up to 4 video devices and use the remote control to switch between them.RCA video cable (composite video)(optional)S-Video cable(optional)Component video to VGA cable(optional)Audio cable (optional)HDMI video cable(optional) Camera or USB Device (EX51/EX71) Connect a digital camera or other USB device to the projector’s Type A (flat) USB port.Digital cameraThumb drive You can use the projector’s Slideshow feature to project JPEG images. See the User’s Guide on your projector CD. Turn on your equipment
Turn on your computer or video source.
Plug in the projector.
Open the A/V Mute slide all the way.
Press the power button on the projector or remote control. Power lightPower button The power light flashes green, then stays on. NOTE: To shut down the projector, press the power button twice, then unplug it. You don’t have to wait for the projector to cool down. Adjust the image
To raise the image, press the foot release button and lift the front of the projector. Release the button to lock the foot in position.
Turn the focus ring to sharpen the image.
EX51/EX71: To reduce or enlarge the image, turn the zoom ring. EX31: to reduce or enlarge the image, press the Tele (reduce) or Wide (enlarge) button on the projector. You can also use the Zoom option in the projector’s Settings menu. See the User’s Guide on your projector CD.
If your image looks like or , you’ve placed the projector off to one side of the screen at an angle. Place it directly in front of the center of the screen, facing the screen squarely.
If your image looks like or , press the or buttons on the projector to correct it. Using the remote control Make sure the batteries are installed as shown (two included AA batteries). Change presentation slides (USB connection only)Access projector menusChoose which source to displayControl projector volume Turn projector on and off Turn off projector display and soundGet solutions to common problemsNavigate projector menus You can use the remote control to operate the projector. With the USB cable, you can use the remote as a wireless mouse. For more information on using the remote control, see your User’s Guide. Where to get help Manual For more information about using the projector, install the User’s Guide from your projector CD. Telephone Support Services To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card included with your projector. This service is available 6 AM to 6 PM, Pacific Time, Monday through Friday, for the duration of your warranty period. You may also speak with a projector support specialist by dialing one of these numbers:U.S.: (562) 276-4394, 6 AM to 6 PM, Pacific Time, Monday through Friday Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time, Monday through Friday Days and hours of support are subject to change without notice. Toll or long distance charges may apply. Internet Support Visit Epson’s support website at epson.com/support and select your product for solutions to common problems. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions. Registration Register today to get product updates, special promotions, and customer-only offers. You can use the CD included with your projector, or register online at www.epson.com/webreg. EX31/EX51/EX71 *411760600* *411760600* Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PrivateLine is a registered trademark of Epson America, Inc.General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.This information is subject to change without notice. © 2009 Epson America, Inc. 7/09 Printed in XXXXXX CPD-27597Installation rapide Avant d’utiliser le projecteur, assurez-vous de lire les instructions de sécurité dans le Guide de l’utilisateur sur le CD de votre projecteur. Branchez le projecteur Choisissez parmi les connexions suivantes : Port moniteur de l’ordinateur Branchez un ordinateur en utilisant le câble VGA qui est fourni avec le projecteur.Branchez l’une des extrémités dans le port Computer (Component Video) [Ordinateur [vidéo en composantes]) du projecteur et l’autre extrémité dans le port du moniteur de votre ordinateur. Si vous utilisez un ordinateur bloc-notes, sélectionnez le mode d’affichage externe. Vous pouvez aussi brancher un câble audio. Port USB de l’ordinateur (Windows
