USER MANUAL OKP9654IS AMICA

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING

DISPOSAL OF OLD APPLIANCE 10

OPERATION

COOKER HOOD CONTROLS 11

OFF-TIMER 12

THE OZONE GENERATOR 12

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 14

CLEANING AND MAINTENANCE 15

MAINTENANCE

GREASE FILTER 15

ACTIVATED CHARCOAL FILTER 15

LIGHT 15

WARRANTY AND AFTER SALES SERVICE 16

WARRANTY

15

16

PL- Spis tresci

WSKAZÖWKI DOTYCZACE BEZPIECZENSTWA 18

ROZPAKOWANIE

USUWANIE ZUZYTYCH URZA DZEN 22

OBSLUGA

STEROWANIE OKAPEM

TIMER (OPOZNIONE WYŁACZENIE OKAPU)

FUNKCJA OZONATORA

INNE WAZNE INFORMACE DOTYCZACE OBSLUGI OKAPU

CZYSZCZENIE I KONSERWACJA

KONSERWACJA

OBE3BPEXKAHE HA N3HOCEHN YPEIN 81

OBCJNUKBAHE 82

YINPABJIEHNE HA ABCOPBATOPA 82

TAIMEP (N3KJIIOUBAHE HA ABCOPBATOPA Cbc 3AKbcCHEHNE) 83

ФУHKUЯ O3OHATOP 84

ДРУГВАЖИИНФОМALUIN 3A OБСЛУЖBAHETO HA ABCOPBATOPA 86

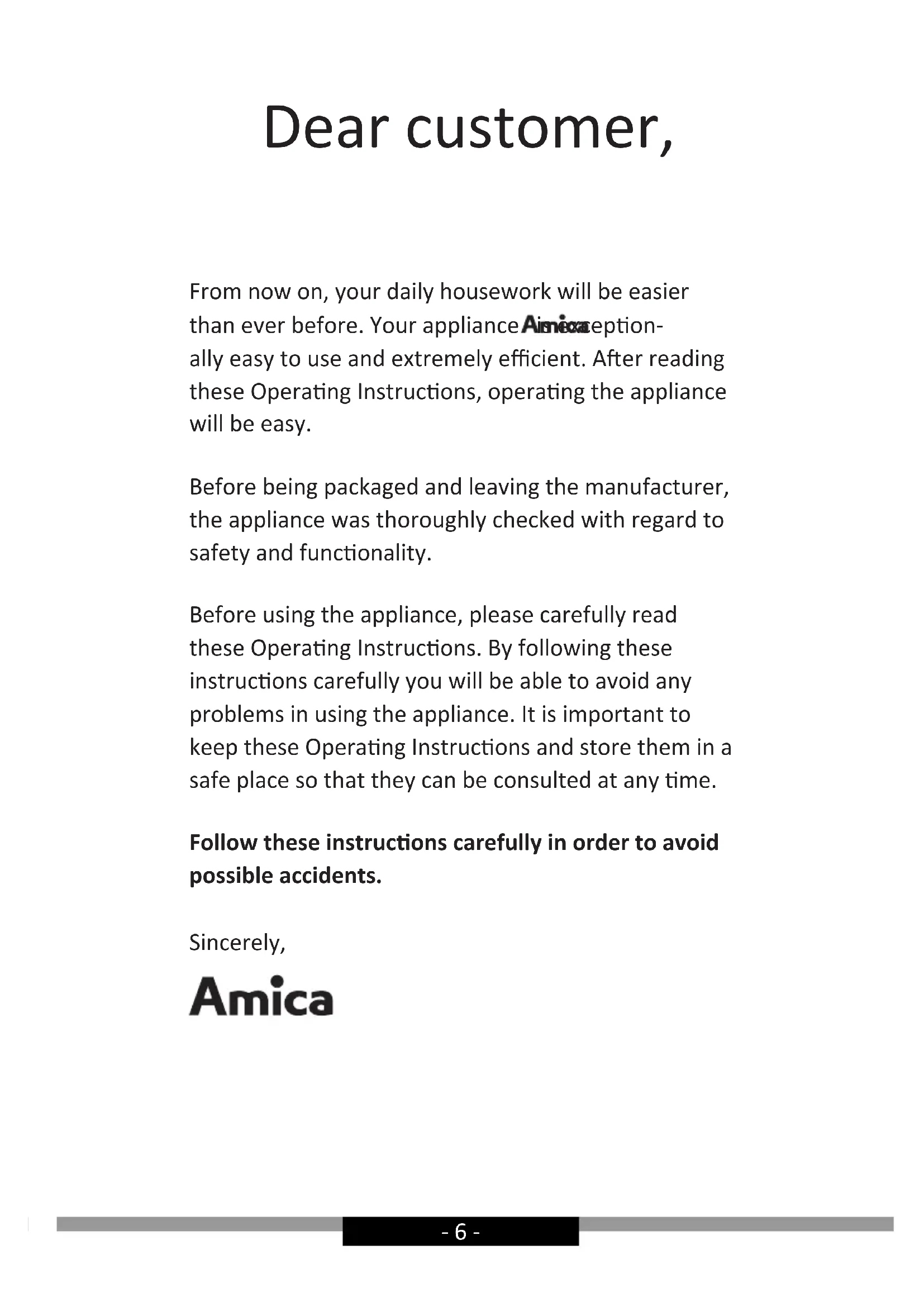

From now on, your daily housework will be easier than ever before. Your appliance Air-conditionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of 120 or 150~mm ) should not be longer than 4 - 5m . An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.
• When cooking on fat, supervise the pans constantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replacing the filter or repair work.
• Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.
• Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter).
• Do not lean on the hood.
• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)...Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.
• If the power cord is damaged it should be replaced by a specialised service centre.
• Ensure that it is possible to disconnect the ap

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste

after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

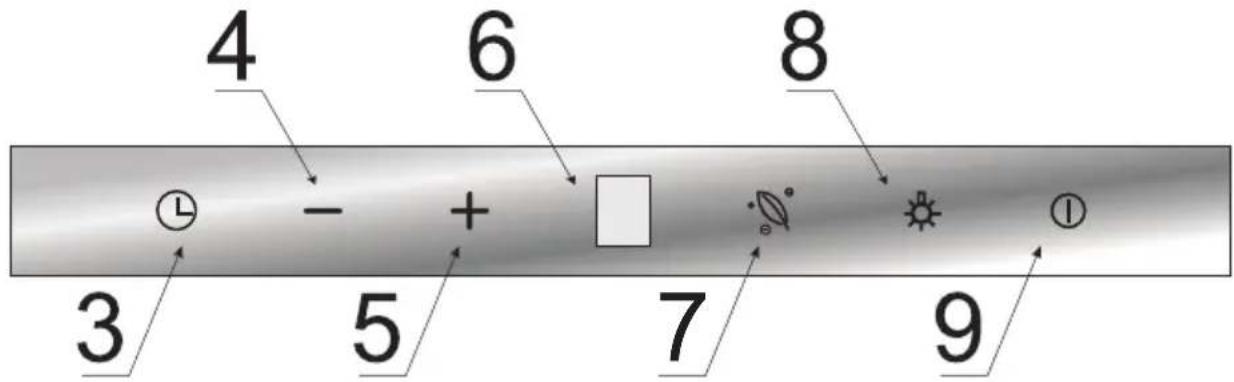

Control Panel is shown in Figure 4, for reference it is also shown below:

The control panel is equipped with touch controls: Control functions are described below:

3-Off-Timer sensor
4- Reduce fan speed sensor
5- Increase fan speed sensor
6-Display
7- Ozone generator on/off
8- Light control sensor
9- StandBy mode sensor

When you plug in your appliance, will be shown on the display for a fraction of a second, then the display will go off. Touch to activate the appliance - the pictogram will light up

When activated, touch to start the fan.

Available fan speeds:

• Low speed (1). Use this speed when cooking a little food with hardly any fumes.
• Medium speeds (2 - 3). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
• Turbo ( )— use this speed when frying or grilling with large amount of fumes.

Use the and sensors to increase or reduce fan speed.

Note: The Turbo speed is active only for 5 minutes (the dot on the display flashes), then the fan speed will be reduced. Turbo speed operation is time limited. By activating the Turbo speed again and again, you can use it for a maximum of 30 minutes (including the Turbo off intervals if shorter than 5 minutes). After this time, Turbo speed will not be available for the next 30 minutes — during this time, the maximum possible fan speed is 3.

To turn off the fan, touch repeatedly until fan speed is reduced to zero or touch

Touch to turn the lighting on. Touch again to turn the lighting off. The lighting operates independently of the on/off sensor.

Off-Timer

Use Off-Timer to turn off the hood after a specified time. Use Off-Timer to filter the fumes out of the air after cooking. The Off-Timer can be set to 5, 10 or 15 minutes. Touch to activate the Off-Timer at any time. The sensor will flash and the display will show. Now use the and + sensors to select the Off-Timer delay:

Display indication Delay time [min]
8	15
8	10
8	5

Touch to confirm your Off-Timer setting (according to the above table). A flashing dot will appear by the fan speed on the display and the sensor will flash. Touch to deactivate the Off-Timer at any time — the dot by the fan speed and will stop flashing.

The ozone generator

When this function is active, ozone is generated. Ozone has bactericidal, viricidal and fungicidal properties, it destroys mites and germs. In addition, it removes and neutralizes organic and inorganic odours and disinfects rooms. Thanks to ozone, the odours of cooking and frying are removed faster and more effectively.

The ozone generator function can be used independently of the kitchen hood operation in the air extraction or the recirculation mode.

The ozone generator function is only available when the hood fan operates.

The ozone is emitted by the kitchen hood in regular cycles, programmed in such a way that the ozone concentration does not exceed the permissible and safe doses, ensuring full safety of use.

NOTE! Before using the ozone generator function for the first time, set the appropriate ozonation programme, adapted to the size of the room (for open kitchens, the kitchen area with the directly connected room should be taken into account) to avoid the risk of a high ozone concentration, which can be harmful to health.

In order to set the appropriate ozonation programme:

• Touch to activate the appliance and will be shown on the display.
• Touch and hold the sensor for 8 seconds, and the display will show the number 1, 2 or 3, which will reflect the currently set programme.
• Now use the and sensors to select the desired ozonation programme suitable for the room size:

Display indication	The surface area of the room where the ozone generator function is used [m2]
8	< 6m2
9	6-10m2
8	> 10m2

• Touch again to confirm your choice and will be shown on the display.

The selected ozonation programme is stored and will not be lost even in the event of a power outage.

When the suitable ozonation programme is set you can start using the ozone generator function. To do this, turn on the kitchen hood and set any fan speed. Touch to activate the ozone generator function. You can smell ozone in the air much like just after the storm. Touch the sensor again to turn off the ozone generator function.

This function deactivates automatically after 3 hours or when you turn off the fan.

Excessive concentration of ozone in the air is harmful to health, therefore use the suitable programme, and also, please observe these guidelines:

• Do not inhale the ozone directly from ozone generator housing outlets.
• Do not obstruct or block the air outlet grilles,
• Ozone generator function must not be used by persons suffering from olfactory disorders.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120mm , and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

Low Voltage Directive 2014/35/EC
- Electromagnetic Compatibility (EMC) Directive 2014/30/EC
ErP Directive 2009/125/EC
- Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
