ZeBuds Lite - Smartwatch MYKRONOZ - Free user manual and instructions

Product type	Wireless earphones
Brand	MyKronoz
Model	ZeBuds Lite
Dimensions (earphones)	17.8 x 43 x 19 mm
Weight (earphones)	5 g each
Dimensions (case)	46.6 x 22.5 x 56.5 mm
Weight (case)	40 g
Earphone battery	40 mAh (Li-ion)
Earphone battery life	Up to 4 hours
Case battery	400 mAh
Case battery life	Up to 16 additional hours
Earphone charging time	1h30 (20 min for 1 hour of listening)
Case charging time	1h30
Connectivity	Bluetooth 5.0
Water resistance	IPX4
Frequency	20 Hz - 20 kHz
Impedance	32 Ω
Compatibility	iOS and Android
Warranty	1 year international
Box contents	ZeBuds Lite, charging case, USB-C cable, quick start guide
Main functions	Play/Pause (double tap), Next track (double tap), Voice command (triple tap), Answer/Reject/End calls (double tap or long press)
Safety	Do not use at high volume for long periods, avoid moisture, do not immerse
Maintenance and cleaning	Clean with a soft, dry cloth
Repairability	Do not attempt to repair yourself, contact customer service
General information	Manufacturer: Kronoz LLC, Switzerland

Frequently Asked Questions - ZeBuds Lite MYKRONOZ

How to pair the ZeBuds Lite with my smartphone?

Download the MyKronoz app from the App Store or Google Play. Open the app, create an account or log in, enable Bluetooth on your smartphone, then follow the on-screen instructions. The white LED on an earbud will light up for one second to confirm pairing.

What is the battery life of the earphones and case?

The earphones provide up to 4 hours of listening. The charging case provides an additional 16 hours, for a total of about 20 hours.

How to charge the earphones and case?

Place the earphones in the charging case. Connect the supplied USB-C cable to the case. A full charge of the earphones takes about 1h30, and the case also recharges in 1h30. The case LEDs indicate the charge level.

Are the earphones water resistant?

Yes, they are certified IPX4, which protects against splashes and sweat. However, do not immerse them and do not use them in the shower or while swimming.

How to control playback and calls?

Double-tap the earbud for play/pause, answer or end a call. Triple-tap to activate voice command. A 3-second long press allows you to reject a call. You can use either earbud.

Can I use a single earbud?

Yes, you can use a single earbud for calls or listening. The controls work the same way on each earbud.

How to pair with another smartphone?

On Android, unpair the earphones via the MyKronoz app. On iOS, forget the device in Bluetooth settings. Then repeat the pairing procedure with the new phone.

What to do if the earphones do not connect?

Check that Bluetooth is enabled, the earphones are charged and in the case. Reset the connection by forgetting the device and restarting pairing via the MyKronoz app.

How to clean the earphones?

Use a soft, dry cloth to clean the earphones and case. Avoid liquids and abrasive products.

What is the warranty for the ZeBuds Lite?

The ZeBuds Lite come with a one-year international warranty from the date of purchase. For any claims, contact MyKronoz customer service.

USER MANUAL ZeBuds Lite MYKRONOZ

Line drawing of a hand pressing a smartphone with a download icon (no text or symbols)

DOWNLOAD

MyKronoz App

Red square icon with a white abstract symbol resembling a stylized letter or symbol (no text or numbers)

Téléchargez l'app

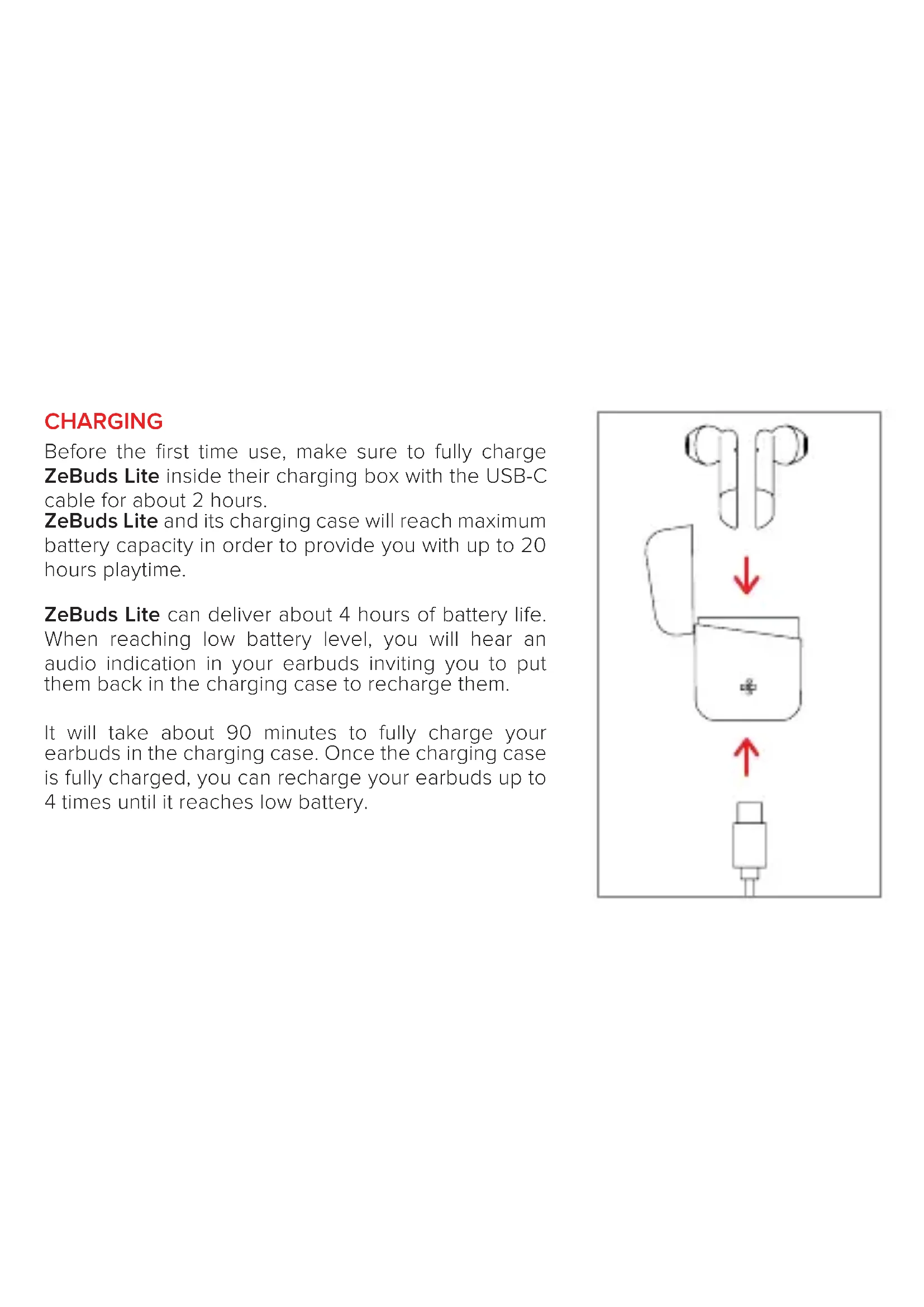

Before the first time use, make sure to fully charge ZeBuds Lite inside their charging box with the USB-C cable for about 2 hours.

ZeBuds Lite and its charging case will reach maximum battery capacity in order to provide you with up to 20 hours playtime.

ZeBuds Lite can deliver about 4 hours of battery life. When reaching low battery level, you will hear an audio indication in your earbuds inviting you to put them back in the charging case to recharge them.

It will take about 90 minutes to fully charge your earbuds in the charging case. Once the charging case is fully charged, you can recharge your earbuds up to 4 times until it reaches low battery.

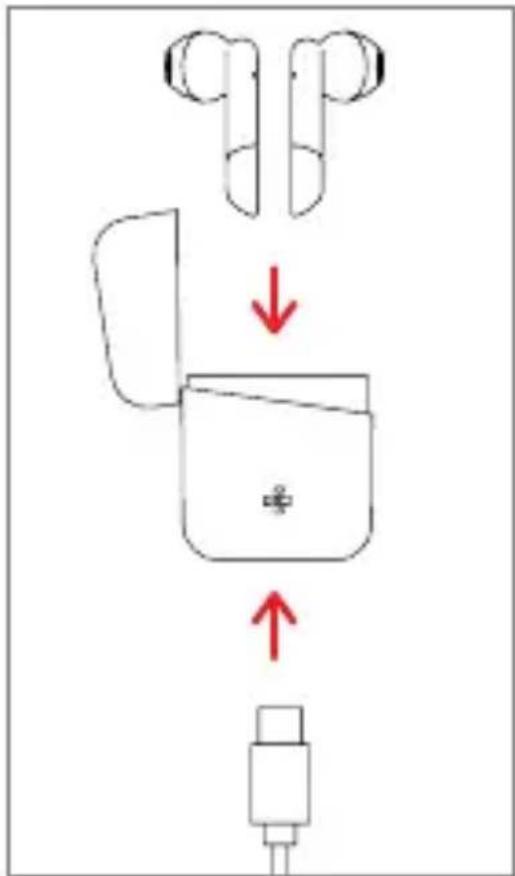

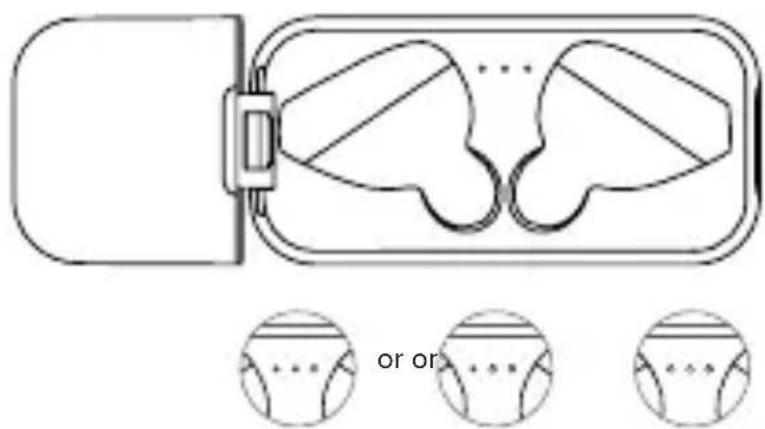

LED INFORMATION

There are 3 LED indicators in the charging case to indicate its built-in battery level.

3 LEDs ON = between 75% and 100%

2 LEDs ON = between 25% and 75%

1 LED ON = below 25% and requires your attention

LED OFF = 0% battery

or or...

PAIRING

In order to pair your ZeBuds Lite with your smartphone, please follow the below instructions:

- Search for the MyKronoz App in the App store or Google Play store, download and install the App on your mobile device.

- Open the MyKronoz App on your mobile device. Sign up if you are a new member or login with your existing account.

- Ensure the Bluetooth® is enabled on your mobile smartphone.

- Then follow the on-screen instructions.

- When your ZeBuds Lite are successfully paired, you will be notified on your mobile device's screen and white LED on either earbud will stay solid state for one second then turn off.

- You're now ready to enjoy your new ZeBuds Lite.

Note: Thanks to the MyKronoz mobile app you'll also enjoy new features and performance improvements.

HOW TO PAIR WITH ANOTHER SMARTPHONE

Android user: To pair your ZeBuds Lite with another phone, please unpair ZeBuds Lite from MyKronoz mobile app first, then perform a new pairing procedure with another smartphone as mentioned above.

iOS user: To pair your ZeBuds Lite with another phone, please forget ZeBuds Lite from your iOS device's Bluetooth list, then perform a new pairing procedure with another smartphone as mentioned above.

OPERATIONS

LEFT RIGHT

Play / Pause	x2
Next track			x2
Voice control	x3	or*	x3
Answer call	x2	or*	x2
Reject call	Press & hold for 3 seconds	or*	Press & hold for 3 seconds
End call	x2	or*	x2

use either earbud to conduct these operations

TECH SPECS

I EARBUDS:

Bluetooth® 5.0 - Dimensions: 17.8*43*19mm - Weight: 5 g each - Battery type: 40 mAh Battery life: up to 4h of playtime - Charging time: 20 min for 1h listening / 1h30 full charge Dual microphone - Speaker impedance: 32Ω - Frequency: 20Hz/20KHz - IPX4 water resistant - Operating temperature: -10°C to +60°C

CHARGING CASE:

Dimensions: 46.6*22.5*56.5mm - Weight: 40 g - Battery type: 400 mAh - Battery life: 16h of extra playtime - Charging time: 1h30 for full charge - USB-C charging port

Compatible with iOS and Android devices.

1 year international warranty.

WHAT'S IN THE BOX

ZeBuds Lite with charging case
1x USB-C charging cable
1x Quick start guide

FRANÇAIS

VUE D'ENSEMBLE

Simple line drawing of a vertical cylindrical device with two ports and a circular top (no text or symbols)

Simple line drawing of a handheld device with three buttons and a circular head (no text or symbols)

Simple line drawing of a square with a horizontal line and a small cross at the bottom (no text or symbols)

ÉCOUTEUR GAUCHE BŒÎTOURTEER CHARGE

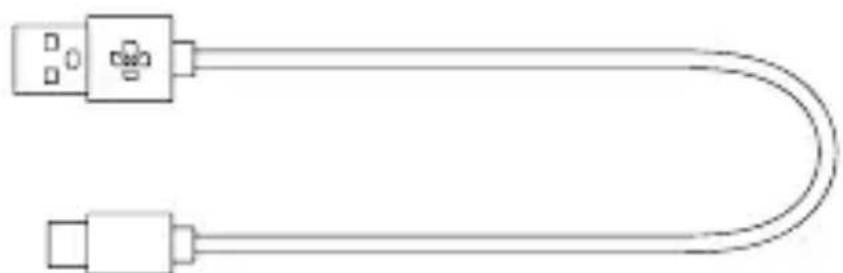

Line drawing of a USB cable with two connectors and a U-shaped connector (no text or symbols)

CÂBLE DE CHARGE USB-C

CHARGEMENT

INDICATEURS LUMINEUX

QR code image containing encoded data, no visible human-readable text

Or visit www.mykronoz.com/support

- SAFETY & REGULATORY NOTICES -

SAFETY INSTRUCTIONS

• To prevent possible hearing damage, do not listen at high volume levels for long periods of time.

• Use of earbuds will prevent your ability to hear other sounds.

- Use your earbuds with caution when engaging in any activity that requires your full attention.

- This package contains small parts that may be hazardous to children and should be kept out of reach from children. This product is not a toy never allow children to play with this product.

- Never try to dismantle the product yourself, or push objects of any kind into the products, as this may cause short circuits, which could result in a fire or electric shock.

- None of the components can be replaced or repaired by users. Please contact customer service for any assistance.

- Avoid exposing your product to rain, moisture or other liquids to protect against damage to the product or injury to you.

• Do NOT submerge the earbuds in water.
• Do NOT expose the earbuds to moving water (e.g., from a faucet, etc.).
• Do NOT wear the earbuds while showering or bathing, or when participating in water sports, e.g., swimming, waterskiing, surfing, etc.
  • Leaving the product in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the earbuds.
• Read all the instructions before using the charging case.
• Do not expose charging case to water, rain, liquids or snow.
  • Use of a power supply or charger that is not recommended may result in a risk of fire or injury.
• Do not use the charging case in excess of its output range.

INFORMATIONS DE SÉCURITÉ

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTIONS

Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
FCC ID: 2AA7D-ZEBDSLE

RF EXPOSURE STATEMENTS

This equipment complies with FCC radiation exposure requirement set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

CANADA ISED STATEMENT

This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-0003.

RF EXPOSURE STATEMENTS

This device complies with the ISED RSS-102 RF exposure requirement set forth for an uncontrolled environment and are safe for intended operation as described in this manual.

DISPOSAL AND RECYCLING INFORMATION

After the implementation of the European Directive 2012/19/EU in the national legal system, the following applies: electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by law to return electrical and electronic device at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices, you are making an important contribution to protecting our environment.

Designed in Switzerland - Assembled in China

MYKRONOZ

WEARABLE DESIGNED IN SWITZERLAND

JOIN US @MYKRONOZ

© 2019 KRONOZ LLC. All rights reserved.
