USER MANUAL Mon Soleil 720 WiFi Eurom

Wi-Fi thermostat (OPTIONAL)

Wi-Fi thermostat	Product code: 365764
Wi-Fi thermostat (Swiss plug)	Product code: 365771
Wi-Fi thermostat USB-C	Product code: 365788

Please read and understand these safety instructions. Incorrect use can cause injury and will void EUROM's warranty.

WARNING

• Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1m from the air outlet.

CAUTION

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

CAUTION

In order to avoid overheating, do not cover the heater.

Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Heater must not be located immediately below a socket-outlet.
- If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.
- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage to the heater.

When using the Mon Soleil heater in combination with the Freestanding support (article number 361278):

• Use this heater on a horizontal and stable surface.

The device is equipped with an overheating protection, which switches it off automatically in case of internal overheating. Switch the device off, unplug the power plug, remove the source of overheating, let it cool down and use as normal. Do not use the device if the source of overheating cannot be traced or if the problem persists, but always contact your supplier.

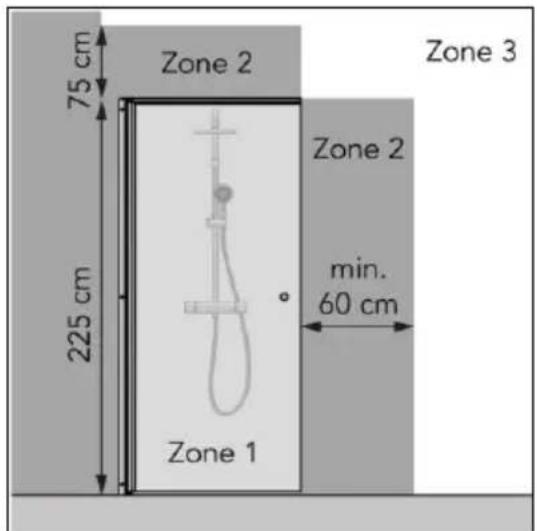

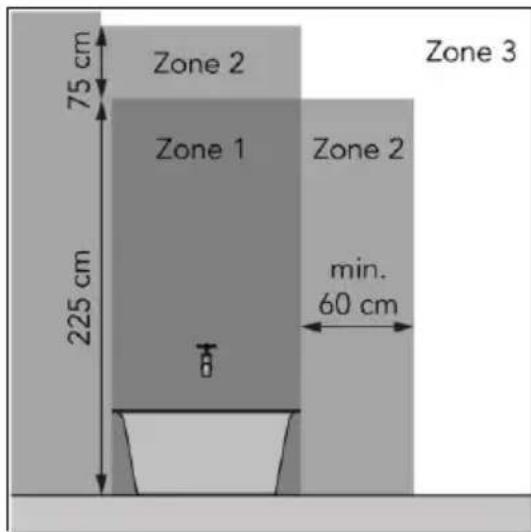

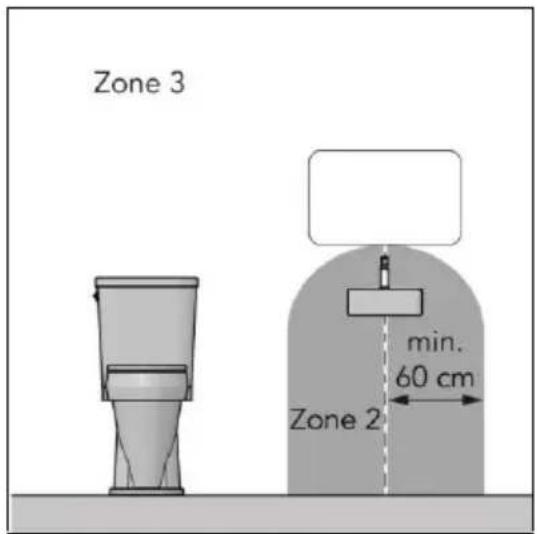

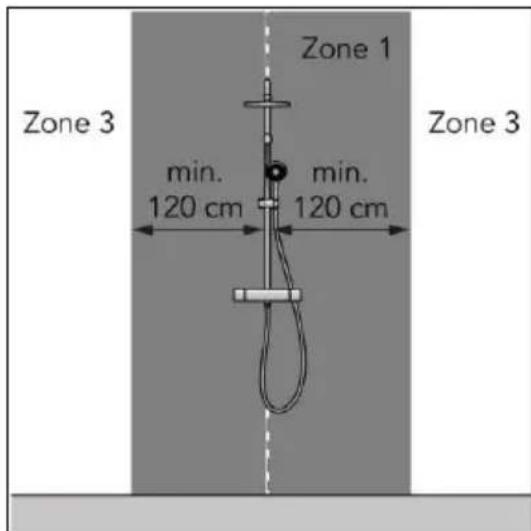

This device is safe to use in the bathroom when it is mounted:

In zone 3 of a toilet room or a bathroom with a bath, a shower with a screen or a shower without a screen (Figure 1);
- in a fixed position;
out of reach for operation by a person in a bath or shower.

Figure 1

General safety instructions

WARNING

• Prevent splashing water on or in the device.
• Do not immerse any part of the device in water or other liquids.
• Never insert fingers or other objects into the openings of the device.
• Do not expose the device to strong vibrations or mechanical stress.

WARNING

The device becomes very hot during use. Do not touch the device during use or within five minutes after use.

CAUTION

Do not cover the device during usage or after use while the device is still hot. To reduce the risk of fire, keep textiles, curtains, tent canvasses and other flammable material at a minimum distance of 1 meter from the device.

Safety during operation

WARNING

Do not use the device:
- outdoors or in a small space (< 7m^3)
- lying, leaning or standing;
- if any parts are dirty or wet;
- near large objects, like behind a door, under a shelf or near a cupboard;
- near or in a dusty or dirty environment, like a construction site;
- near flammable materials, liquids or fumes, like in a shed, stable or green house;
- near other heat sources or open fire;
with an appliance that automatically switches the device on, such as a timer, dimmer or any other device.

If the device, the electric cable or plug shows damage or is malfunctioning, immediately take the appliance out of use and disconnect the power supply.

Warranty

EUROM offers a 60-month warranty on this device from the date of purchase. The warranty does not cover wear and tear from normal use. The warranty expires if a defect is the result of unintentional or careless use of the device. The manufacturer, importer and supplier are not liable for incorrect connections.

Introduction

Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION

It is important to read and understand this instruction manual before assembling, installing and using the device.

This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ.

The following symbols and terms are used in this manual to alert the reader on safety issues and important information:

WARNING

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders, light and/or moderate damage to the product or to the environment.

CAUTION

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

Identification

EUROM

POWERFULPRODUCTS SINCE1974

Mon Soleil *** Wi-Fi

Art.nr. ***** Batch

230V~50-60Hz - *** Watt

IP24

Figure 2

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - THE NETHERLANDS

EUROM Mon Soleil ** Wi-Fi Swiss plug Art.nr. ***** POWERFUL PRODUCTS SINCE 1974 Batch

230V~50-60Hz - *** Watt

IP24

Figure 3

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - THE NETHERLANDS

Specifications

Type:	Mon Soleil 350 Wi-Fi	Mon Soleil 601 Wi-Fi	Mon Soleil 720 Wi-Fi
Product size:	60 x 60 cm	60 x 100 cm	60 x 120 cm
Weight:	8.9 kg	14.5 kg	18.0 kg
Voltage:	230V~ / 50-60Hz	230V~ / 50-60Hz	230V~ / 50-60Hz
Power:	350W	600W	720W
Protection rating:	IP24	IP24	IP24
Protective class:	Class I	Class I	Class I

Hereby, Euromac b.v. declares this product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.eurom.nl/declaration-of-conformity.

Wi-Fi and Bluetooth Frequency Band: 2.400 2.4835GHz

Maximum radio-frequency power transmitted in this frequency band(s):

Wi-Fi:17,5dBm

-Blue Tooth:6.5 dBm

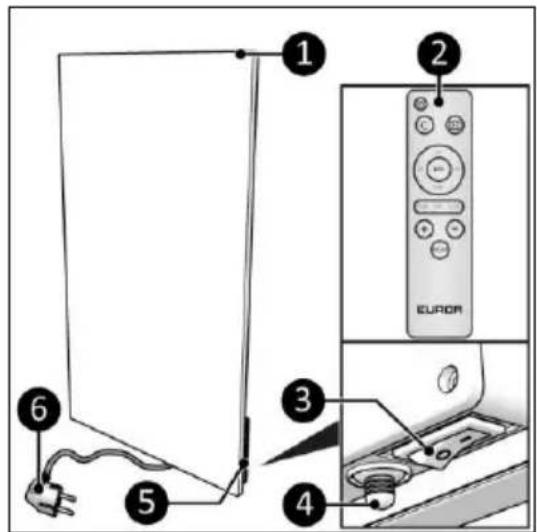

Description

The Mon Soleil Wi-Fi is an easy-to-use electric heater for indoor use, see (Figure 4). The device can be mounted on a wall or ceiling. The Mon Soleil Wi-Fi can be used with the Eurom Smart App and can be programmed on a day and a week timer.

1. Main body
2. Remote Control
3. ON/OFF switch
4. Internal temperature sensor
5. Control panel and LED display
6. Power plug

Figure 4

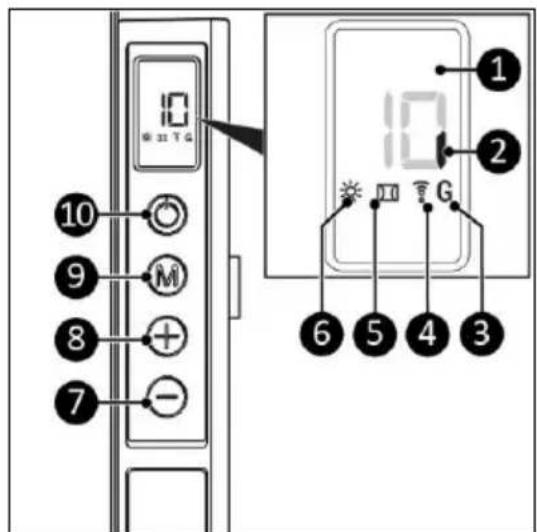

Control panel and LED display

1. Display
2. Power indication
3. Wi-Fi thermostat indication
4. Wi-Fi indication
5. Open window indication
6. Heating indication
7. Minus button
8. Plus button
9. Mode button
10. ON/OFF button

Figure 5

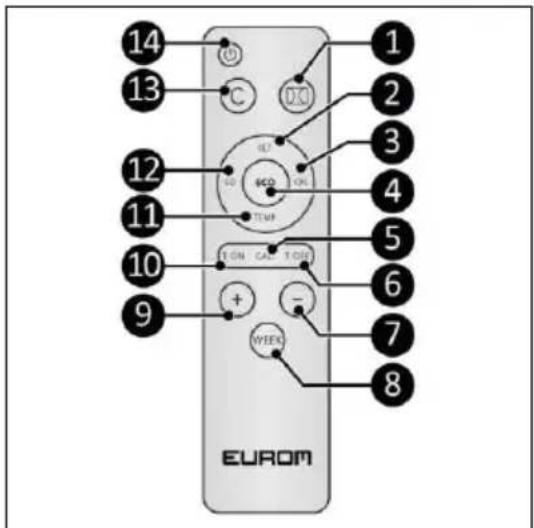

Remote control*

1. Open window detection button
2. SET button
3. OK button
4. ECO button
5. Calibration button
6. TIME OFF button
7. Minus button
8. WEEK button
9. Plus button
10. TIME ON button
11. Temperature button
    12.EDIT button
12. Cancel button

13. ON/OFF button

14. Batteries not included

Figure 6

Transport and storage

• Clean the device before storing it.
• Transport the device upright.
• Store the device upright in its original packaging in a cool, dry and dust-free area.

Assembly

WARNING

Plastic bags can be dangerous. To avoid danger of suffocation, keep this bag away from babies and children.

The device is packed in one box. Remove all packaging materials and verify that the device is not damaged. Do not use the device if it is damaged, but always contact your supplier. Keep the packaging for safe storage and transport.

Mounting

WARNING

The wall or ceiling used for mounting must be made from non-flammable material and should be able to withstand a minimum temperature of 125^ .

CAUTION

Make sure to use suitable fastening materials, depending on the surface. The provided anchor bolts are suitable for a brick wall. Never block the space between the device and the wall or ceiling.

This device can be mounted in 3 ways:

• vertically to a wall;
• horizontally to a wall;
  to a ceiling.

In all 3 cases, the control panel should be visible and operable.

Wall mounting

1. Place the device on a non-flammable and solid wall.

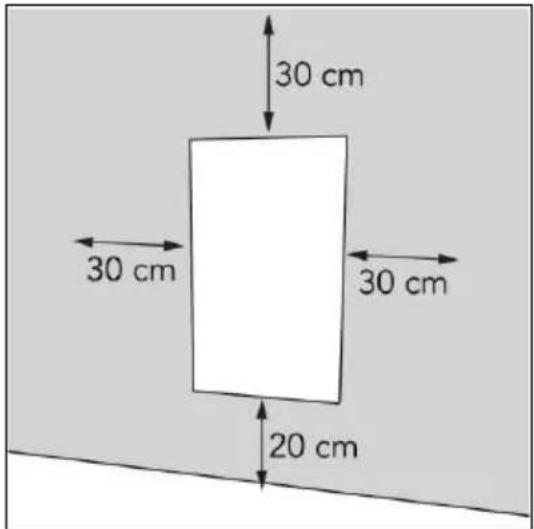

2. Place the device with a minimum distance (Figure 7) of:

3. 30 cm from the side walls:

4. 30 cm from the ceiling;
5. 20 cm from the floor.
6. Maintain 50~cm clearance on the front side.
7. Do not mount the device immediately over, near or below a power outlet.

Figure 7

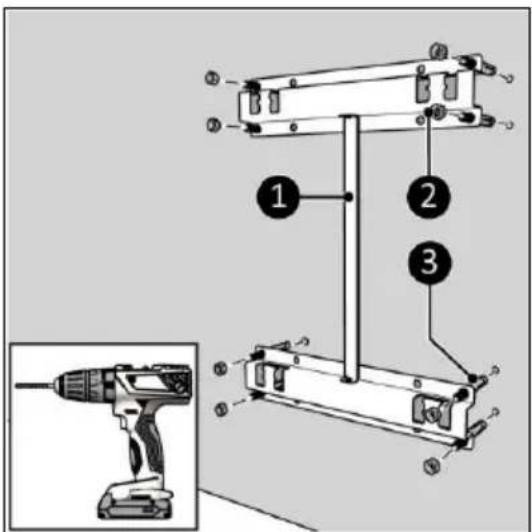

Vertical placement

1. Place the bracket against the wall, with the bracket openings at the top, and mark the eight holes (Figure 8).
2. Drill eight 10 mm holes at the marked spots.
3. Place the anchor bolts (Figure 8, pos. 3).
4. Tighten the wall bracket (Figure 8, pos. 1) to the wall with the eight nuts (Figure 8, pos. 2).

Figure 8

Figure 9

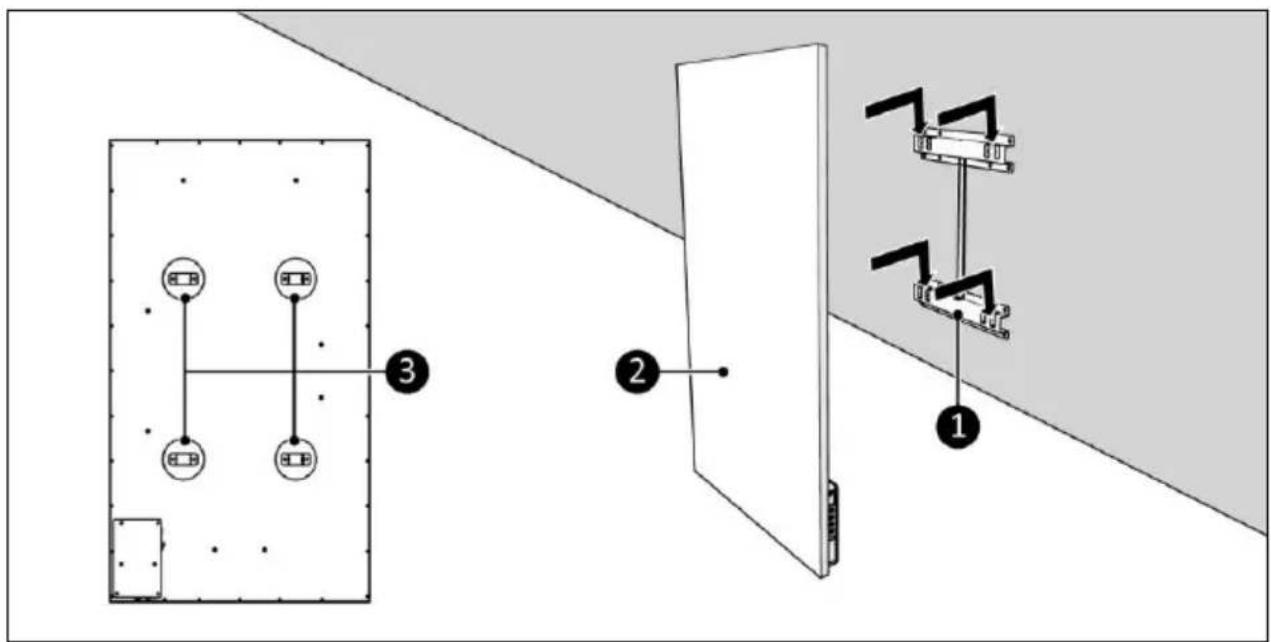

1. Place the device brackets (Figure 9, pos. 3) over the wall bracket (Figure 9, pos. 1).
2. Slide the device (Figure 9, pos. 2) into the openings of the wall bracket (Figure 9, pos. 1).
3. Make sure the control panel is located at the bottom of the device.
4. To remove the device, lift and slide it in the opposite direction.

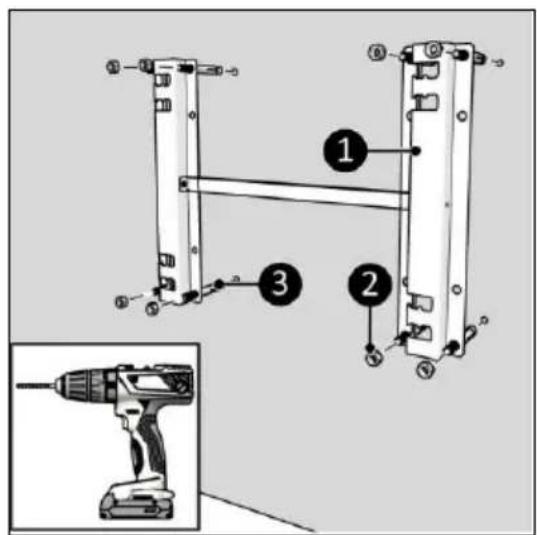

Horizontal placement

1. Place the bracket against the wall, with the bracket openings at the left, and mark the eight holes (Figure 10).
2. Drill eight 10mm holes at the marked spots.
3. Place the anchor bolts (Figure 10, pos.3).
4. Tighten the wall bracket (Figure 10, pos. 1) to the wall with the eight nuts (Figure 10, pos. 2).

Figure 10

Figure 11

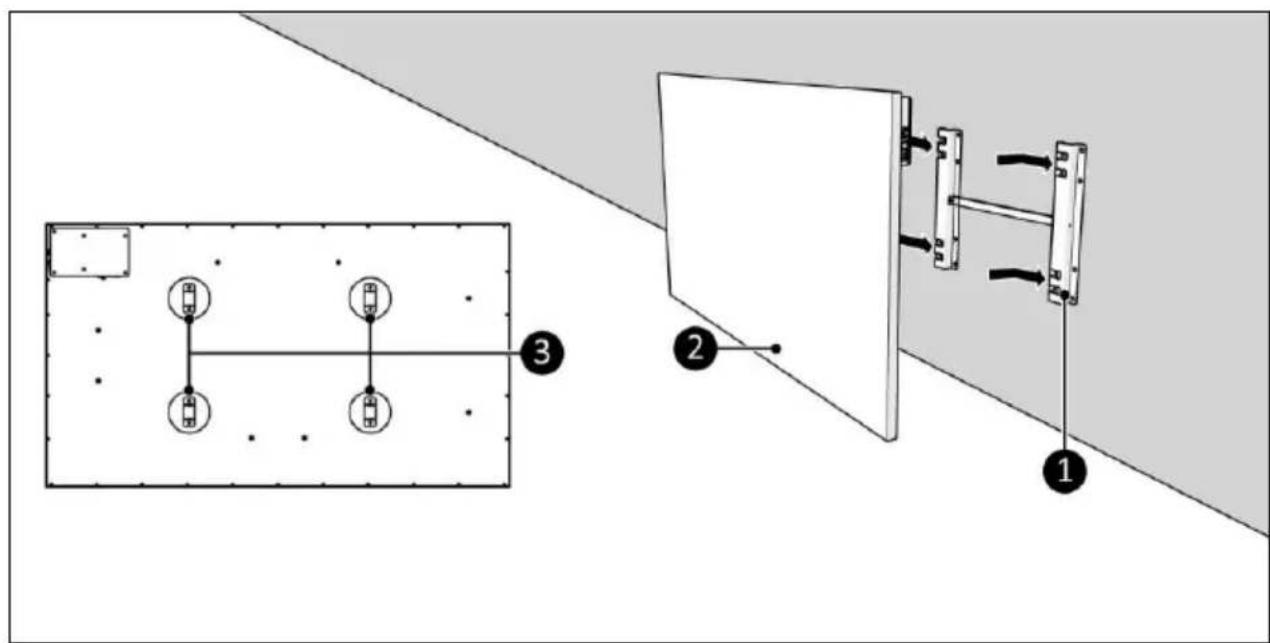

1. Place the device brackets (Figure 11, pos. 3) over the wall bracket (Figure 11, pos. 1).
2. Slide the device (Figure 11, pos. 2) into the openings of the wall bracket (Figure 11, pos. 1).
3. Make sure the control panel is located at the topside of the device.
4. To remove the device, lift and slide it in the opposite direction.

Ceiling mounting

CAUTION

When mounting the device to the ceiling, it is strongly recommended to use the Wi-Fi thermostat for optimal temperature control.

CAUTION

When mounting the device to the ceiling, it is absolutely necessary to calibrate the device panel. See chapter "Temperature calibration" for explanation on the calibration function.

1. Place the device on a non-flammable and solid ceiling.

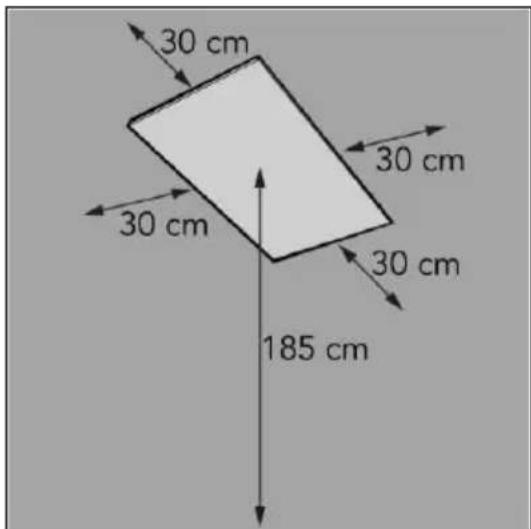

2. Place the device with a minimum distance (Figure 12) of:

3. 30~cm from the side walls;

4. 185 cm from the floor.
5. Do not mount the device immediately over, near or below a power outlet.

Figure 12

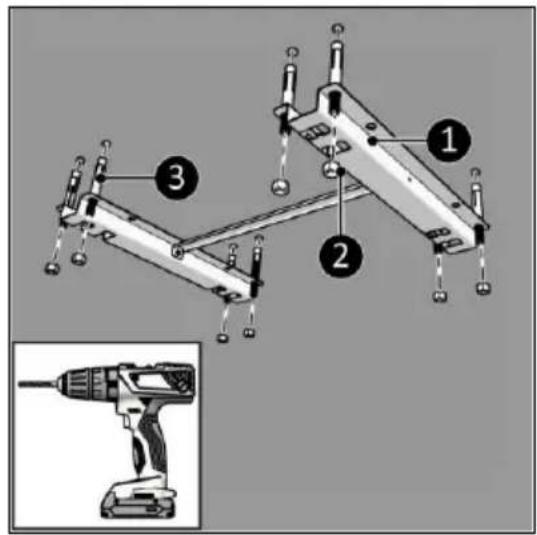

1. Place the bracket against the ceiling and mark the eight holes (Figure 13).
2. Drill eight 10mm holes at the marked spots.
3. Place the anchor bolts (Figure 13, pos. 3).
4. Tighten the bracket (Figure 13, pos. 1) to the ceiling with the eight nuts (Figure 13, pos. 2).

Figure 13

Figure 14

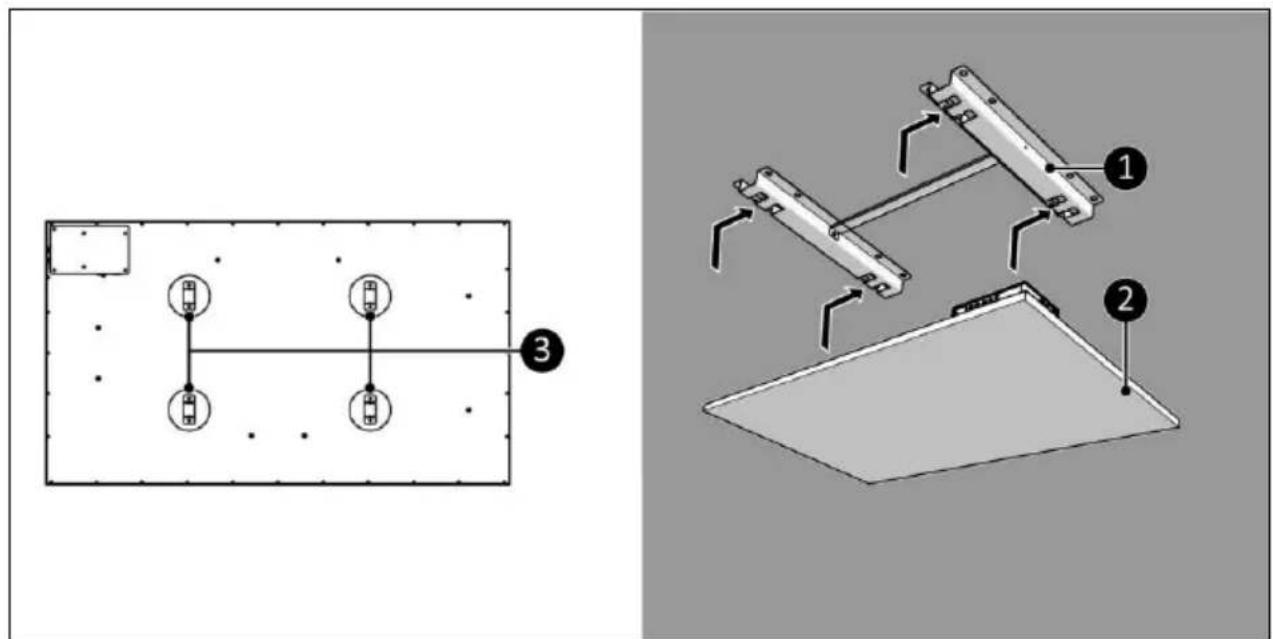

1. Place the device brackets (Figure 14, pos. 3) over the ceiling bracket (Figure 14, pos. 1).
2. Slide the device (Figure 14, pos. 2) into the openings of the ceiling bracket (Figure 14, pos. 1).
3. Make sure the heater is properly secured in the ceiling bracket.
4. To remove the device, lift and slide it in the opposite direction.

Temperature sensor

CAUTION

Use the external temperature sensor for an accurate temperature measurement.

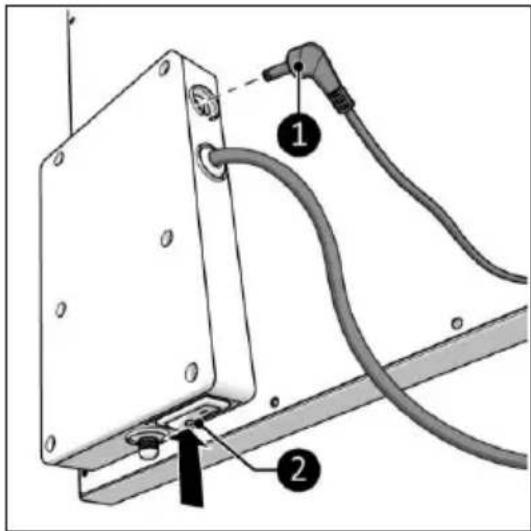

1. Make sure the ON/OFF switch is in the OFF position (Figure 15, pos. 2)
2. Connect the temperature sensor connector (Figure 15, pos. 1) to the sensor plug.
3. Place the temperature sensor approximately 2 meters away from the device.

Figure 15

Installation

WARNING

Do not put the power plug into the wall socket before having mounted the device correctly.

Do not use an extension cable; this can cause overheating and fire. If using an extension cable is unavoidable, make sure it is undamaged and earthed. Use an extension cable with a minimum power of 1000 Watt. Always unwind the extension cable completely to prevent overheating.

CAUTION

Make sure that the main voltage is the same as indicated on the identification label of the device. All electrical connections must stay dry under all circumstances.

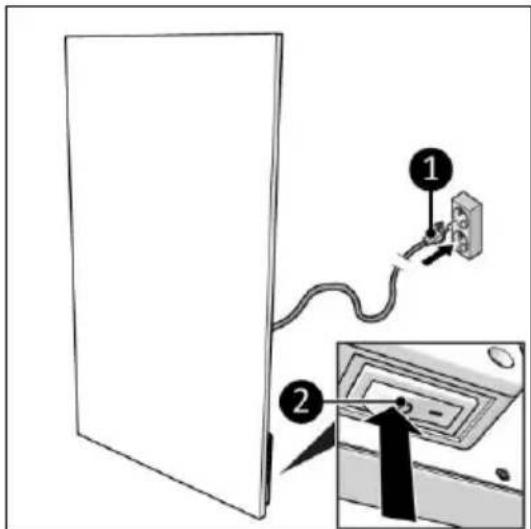

1. Make sure the device is correctly mounted.
2. Make sure the ON/OFF switch is in the OFF position (Figure 16, pos. 2).
3. Place the power plug (Figure 16, pos. 1) into an earthed wall socket that is easily accessible. Use an earthed wall socket with a minimum power of 1000 Watt.
4. Make sure the power cable does not come into contact with the device.

Figure 16

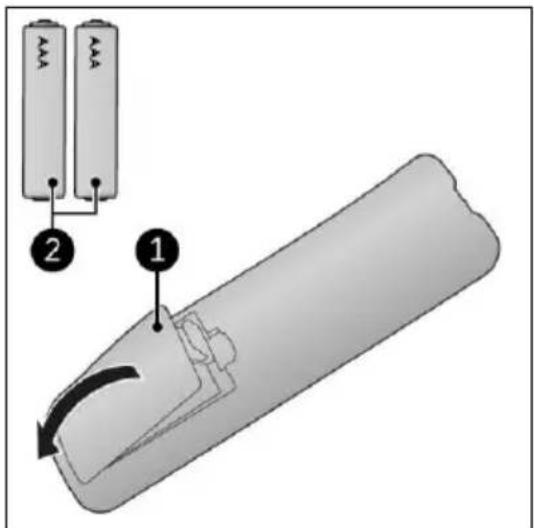

Remote control

1. Remove the cover (Figure 17, pos. 1).
2. Remove the batteries (if present).
3. Insert two batteries (AAA 1.5V) (Figure 17, pos. 2) as indicated in the battery compartment. Make sure to insert the batteries correctly.
4. Replace the cover.

Figure 17

Operation

WARNING

Before every use, make sure that:
- you operate the device with dry hands;
- the device is clean and dry;
the device is not damaged;
the device is not covered or blocked;
- the device is securely mounted to the wall or ceiling.

CAUTION

When the device is turned on or off, it may emit a sound. This is caused by material expanding and shrinking during heating and cooling down.

CAUTION

The day and time settings will be reset to default if the device is switched off by, using the ON/OFF switch, or by unplugging it. The week timer set via the remote control is automatically set to OFF.

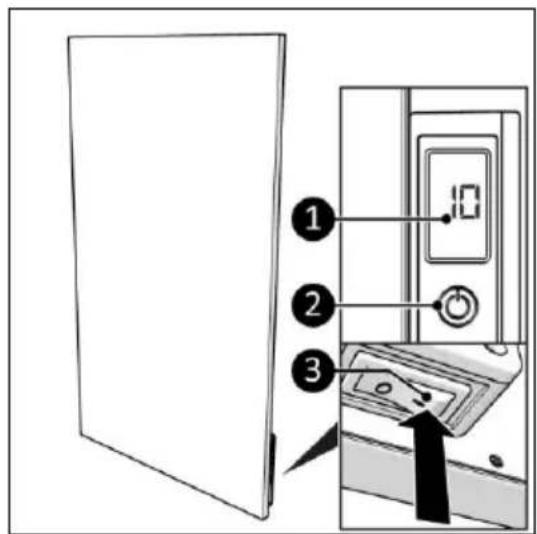

1. Set the ON/OFF switch to the ON position (Figure 18, pos. 3).
2. Press the ON/OFF button on the control panel (Figure 18, pos. 2) or on the remote control.
3. The display (Figure 18, pos. 1) will first show the set temperature for 3 seconds followed by the ambient temperature.

Figure 18

Device control

Set the temperature

1. Press the Plus or Minus button to set the desired temperature, from 0^ to 45^ .
2. The device starts heating when the set temperature is higher than the ambient temperature and stops heating when the ambient temperature reaches the set temperature. The heating indicator will appear and disappear accordingly.
3. The display shows the ambient temperature.

Set the day and time

1. Make sure the heating indicator is not visible. The device should not be heating.
2. Press the Mode button, HH appears on the display.
3. Press the Plus or Minus button to select the current day, from 1 (Monday) to 7 (Sunday).
4. Press the Mode button, H1 appears on the display.
5. Press the Plus or Minus button to select the current hour, from 1 to 23.
6. Press the Mode button, H2 appears on the display.
7. Press the Plus or Minus button to select the current minute, from 1 to 59.
8. Press the Mode button, the ambient temperature appears on the display, the day and time are set.

Checking the day and time

1. Make sure the heating indicator is visible, the device should be heating.
2. Press the Mode button briefly and repeatedly to check:

the day - HH;
the hour-H1;
the minutes - H2.

Remote control

Direct the remote control towards the display to operate the device using the remote control.

Set the temperature

1. Press the Plus or Minus button to set the desired temperature, from 0^ to 45^ .

2. The device starts heating when the set temperature is higher than the ambient temperature and stops heating when the ambient temperature reaches the set temperature. The heating indicator will appear and disappear accordingly.

3. The display shows the ambient temperature.

Set the day and time

1. Make sure the heating indicator is not visible. The device should be ON but not heating.
2. Press and hold the SET button until HH appears on the display.
3. Press the Plus or Minus button to select the current day, from 1 (Monday) to 7 (Sunday).
4. Press the SET button, H1 appears on the display.
5. Press the Plus or Minus button to select the current hour, from 1 to 23.
6. Press the SET button, H2 appears on the display.
7. Press the Plus or Minus button to select the current minute, from 1 to 59.
8. Press the SET button, the ambient temperature appears on the display, the day and time are set.

Check the day and time

1. Make sure the heating indicator is visible, the device should be heating.
2. Press the SET button briefly and repeatedly to check:

the day-HH;
the hour-H1;
the minutes-H2.

Open window mode

1. Press the Open window detection button to activate. The Open window indicator appears on the display.
2. When the ambient temperature decreases 8^ or more within 15 minutes, the device will go in standby mode and the Open window indicator starts flashing on the display.
3. Press the Open window detection button to deactivate.

ECO mode

The remote control has an ECO button for an energy-efficient mode, meaning the device maintains the room temperature at 16^ .

1. Press the ECO button to activate; EC appears on the screen.
2. Press the ECO button to deactivate.

If the heater is working in ECO mode and a timer setting becomes active, the device will start to work according to the timer setting. When the timer setting ends and the device goes off, the device will not return to the ECO mode.

Set the week timer

The week timer can be set via the remote control, but is easier to set using the Eurom Smart App (when no button is pressed in the week timer setting for 10 seconds, it will reset, meaning you have to start all over again). Make sure to not create any contradicting timer settings.

1. Press and hold the WEEK button until UU appears and flashes on the display.

2. Press the SET button; ON/OFF starts flashing on the display.

3. Press the Plus or Minus button to select:

ON-Timer on;
OFF-Timer off.

1. Press the OK button; UU appears on the display.
2. Press the SET button.

3. Press the Plus or Minus button to select:

4. 01 - all timer settings are executed once only. This can only be planned for the current week (U1 to U7). On Sunday (U7) right after 23:59, all 01 timer settings are deleted;
   99 - all timer settings are executed limitlessly.

5. Press the OK button; UU appears on the display.

6. Press the SET button; U1 appears on the display.
7. Press the Plus or Minus button to select the current day, from U1 (Monday) to U7 (Sunday).
8. Press the OK button; the selected day appears on the display.
9. Press the EDIT button; 01 appears on the display.
10. Press the Plus or Minus button to select a number for this timer, from 1 to 4. Four means the maximum timer settings per day. If a new timer is set with the same number, the old timer will be overwritten.
11. Press the OK button; the selected number appears on the display.
12. Press the Temperature button; HP appears on the display.
13. Press the Plus or Minus button to select the desired temperature, from 0^ to 37^ .
14. Press the OK button; the selected temperature appears on the display.
15. Press the TIME ON button; HE appears on the display.
16. Press the Plus or Minus button to select the desired start time, from 00:00 to 23:00 in whole hours.
17. Press the OK button; the selected start time appears on the display.
18. Press the TIME OFF button; HF appears on the display.
19. Press the Plus or Minus button to select the desired stop time, from 00:00 to 23:00 in whole hours.
20. Press the OK button; the selected stop time appears on the display.
21. Repeat as desired.

Remove all week timer settings

1. Press and hold the WEEK button until UU appears and flashes on the display.
2. Press the Cancel button to erase all timer settings.

Remove all week timer settings for a specific day

1. Press and hold the WEEK button until UU appears and flashes on the display.
2. Press the SET button; ON/OFF appears on the display.
3. Press the SET button; 01/99 appears on the display.
4. Press the SET button; U1 appears on the display.
5. Press the Plus or Minus button to select the desired day, from 1 (Monday) to 7 (Sunday).
6. Press the Cancel button to erase all timer settings for the selected day.

Remove a specific timer setting

1. Press and hold the WEEK button until UU appears and flashes on the display.
2. Press the SET button; ON/OFF appears on the display.
3. Press the SET button; 01/99 appears on the display.
4. Press the SET button; U1 appears on the display.
5. Press the Plus or Minus button to select the desired day, from 1 (Monday) to 7 (Sunday).
6. Press the Edit button.
7. Press the Plus or Minus button to select the desired timer setting, from 1 to 4.
8. Press the Cancel button to erase the selected timer setting.

Check the timer settings

1. Make sure the heating indicator is visible. The device should be heating.

2. Press the WEEK button briefly and repeatedly to check:

3. timer ON or timer OFF;

4. once only (01) or endlessly (99);
   U1-U7, day of the week;
5. timer setting number of the day concerned (1, 2, 3 or 4);
6. set temperature;
7. start time in hours;
8. stop time in hours;
9. this is repeated for the next timer setting.

All 28 timer settings are shown, including the timer settings that have not been configured. The temperature for the timer settings that are not configured is 20^ .

Eurom Smart App

CAUTION

Timer settings made with the remote control are not visible in the Eurom Smart App and timer settings made with the app are not visible on the device. As soon as the Eurom Smart App is used, the remote control can no longer be used to make new timer settings. The Eurom Smart App automatically updates the time.

The device can be operated using an app on a smartphone or tablet. The Eurom Smart App can be used:

to switch the device on or off (without anticipation);
- set the temperature;
- activate the ECO mode.

The app can also be used to set on and off timer settings daily, on the weekly timer.

1. Open the Eurom Smart App manual with the QR code (Figure 19) or go to www.eurom.nl/nl/manuals.
2. Complete the Eurom Smart App manual.
3. When the device is connected with Wi-Fi, the Wi-Fi symbol appears on the screen.
4. If the Wi-Fi symbol is blinking there is no connection.

Figure 19

Smart Timer

1. Create a schedule with days and times in the Eurom Smart App. Timer settings set in the app:
   will be stored on the device;
   will not be visible on the device;
2. will remain available if Wi-Fi disconnects;
   will remain available if the device is switched off or unplugged;
3. can only be removed via the app.
4. Check the data in the app regularly.

AP mode

1. Verify that the heating indicator is not visible. The device should be ON but not heating.
2. Press and hold the Mode button. The Wi-Fi symbol will start blinking slowly and the Wi-Fi connection is in AP mode.

Reset Wi-Fi connection

1. Verify that the heating indicator is not visible. The device should be ON but not heating.
2. Press and hold the Mode button. Existing connections will be deleted, the Wi-Fi symbol will start blinking and a new connection will be made.

Switching on and off Wi-Fi connection

1. Verify that the heating indicator is not visible. The device should be ON but not heating.

2. Press and hold the ON/OFF button for three seconds to toggle between:

3. Wi-Fi on - Wi-Fi indicator flashes;
   Wi-Fi off - no Wi-Fi indicator visible.

Wi-Fi thermostat ready (optional)

This device can be connected with the optional Wi-Fi thermostat. The temperature is measured at the Wi-Fi thermostat instead of the device. This ensures an optimized comfort

level. The device will keep heating until the set temperature of the Wi-Fi thermostat is reached.

It is possible to connect multiple devices to a single Wi-Fi thermostat. All the connected devices will switch on- and off simultaneously.

To use the Wi-Fi thermostat:

1. Connect the Wi-Fi thermostat to a power outlet.
2. Download the Eurom Smart App on a (mobile) device.
3. Open the Eurom Smart App.
4. Add the Wi-Fi thermostat and other devices to the Eurom Smart App.
5. Go to the device(s) and press the Pairing button to pair the device(s) to the Wi-Fi thermostat.

The device is connected to the Wi-Fi thermostat. The G-sign illuminates in the Eurom Smart App and on the device. Now you can enjoy the optimized comfort level of permanent electric heating.

Temperature calibration (Optional)

CAUTION

When the device is mounted on the ceiling, the internal temperature sensor (Figure 3, pos. 4) is not able to measure the temperature in the room correctly due to the fact that heat rises. Therefore, it is absolutely necessary to calibrate the device panel when it is mounted on the ceiling.

Calibrating the device

1. Set the desired temperature to 45^ (max. temperature).
2. Let the device heat without interruptions for 120 minutes.
3. Place a digital room thermometer (not included) at a central place where the desired temperature should be achieved; recommended is 150~cm from the floor.
4. After 120 minutes, calculate the difference between the external thermometer and the temperature shown on the display of the heater (press any button to make it reappear). For example: if the display shows 36^ and the thermometer 20^ , then the calibration number is 16.
5. Press the Calibration button on the remote control; a number appears on the display.
6. Press the Plus or Minus button to select the calibration number, from 00 to 25. In our example this is 16.
7. Press the OK button; the calibration number is now set. The temperature measurement on the heater is now corrected with the set calibration value.
8. Set the ON/OFF switch to the OFF position (Figure 11, pos. 2) to activate the calibration process. When the calibration value is changed, the device has to be turned off and then on to active the new calibration value.

Calibration mode

• Every time the device is turned on and starts heating, the calibration process will start. The device display will show CL and the Eurom Smart App will show Calibration in progress. The calibration process uses the calibration number to gradually adjust the

measured temperature to the calibrated room temperature. This can take up to 90 minutes. The Eurom Smart App shows the progress of the calibration process. When the calibration is ready the display and the Eurom Smart App will show the calibrated room temperature. When the calibration value is correctly measured the calibrated room temperature will be approximately the same as the real room temperature.

• When the heater stops heating, the calibration process will start in opposite direction (cooling calibration). The device display will show CL and the Eurom Smart App will show Calibration in progress. The cooling calibration process can take up to 150 minutes.
• Do not switch off the heater during the calibration process. Interrupting the calibration process will cause a temporary difference between the calibrated room temperature and the actual room temperature. In this case the heater will not heat up to the set temperature. If by accident the calibration process is cancelled, the difference will resolve itself over time.

For ceiling-mounted use it is recommended to use the Eurom Wi-Fi thermostat (365764 & 365771 (Swiss plug) or 365788 (USB-C version)) for optimal temperature control. The Wi-Fi thermostat measures the room temperature and communicates the information via Wi-Fi to the device.

After operation

CAUTION

Do not use the power cable to unplug or carry the device. Do not wind the power cable too tightly or in sharp corners. Do not wrap the power cable around the device.

1. Make sure the ON/OFF switch is in the OFF position (Figure 16, pos. 2).
2. Disconnect the power plug from the power outlet (Figure 16).
3. Let the device cool down before touching it.
4. Wind the power cable.
5. Remove the batteries from the remote control (Figure 17).

Maintenance

WARNING

Do not perform any repairs or modifications to this device.

Maintenance and repairs must be carried out by a EUROM authorized professional.

Cleaning

WARNING

The device becomes very hot. Make sure the device is turned off, unplugged and completely cooled down.

CAUTION

Do not use:

scouring pads;
- hard brushes;
- flammable, aggressive or chemical cleaning products.

Prevent water from entering the device. Do not immerse any part of the device in water or other liquids.

It is recommended to clean the device after each use and prior to storage.

1. Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.
2. Let the device dry completely prior to use and storage.

Disposal

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Attachments

The CE declaration can be found at the end of this manual.

Information requirement for the electric local space heaters
Model identifier(s): Mon Soleil 350 Wi-Fi
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0,4	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	0,4	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	0,366	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0	kW	single stage heat output and no room temperature control	No
In standby mode	eLSB	0,228 (Wi-Fi off) 0,774 (Wi-Fi on)	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands
Model identifier(s): Mon Soleil 601 Wi-Fi
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0,6	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	0,6	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	0,626	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0	kW	single stage heat output and no room temperature control	No
In standby mode	eSB	0,228 (Wi-Fi off) 0,774 (Wi-Fi on)	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands
Model identifier(s): Mon Soleil 720 Wi-Fi
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0,7	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	0,7	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	0,703	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0	kW	single stage heat output and no room temperature control	No
In standby mode	eSB	0,228 (Wi-Fi off) 0,774 (Wi-Fi on)	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands

www.eurom.nl/declaration-of-conformity.

Frekyencné paso Wi-Fi a Bluetooth: 2.400 až 2.4835GHz

Maximalny vsieleny radiosfrekvencnv ykon v toto frekvencnom pasme / tieto frekvencnpe pasma:

-Wi-Fi:17.5dBm
Bluetooth:6.5dBm

Popis

declares the following device in sole responsibility:

Product: Electrical infrared heating panel

Brand name: EUROM

Model: Mon Soleil 350 / 601 / 720 Wi-Fi

Item number: 350 W Art.nr. 361612 361629 (Swiss Plug)

601 W Art.nr. 361636 361643 (Swiss Plug)

720 W Art.nr. 361650 361667 (Swiss Plug)

Complies with the following harmonization rules:

Low Voltage Directive: LVD 2014/35/EU

Electromagnetic Compatibility Directive: EMC 2014/30/EU

Radio Equipment Directive: RED 2014/53/EU

Restriction of Hazardous Substances RoHS Directive:2011/65/EU&(EU)2015/863

Framework Directive Ecodesign requirements: ERP 2009/125/EC

Regulation Ecodesign requirements for

individual room heaters: (EU) 2015/1188

Regulation Ecodesign requirements Electricity

consumption in standby and off state: 1275/2008/EC

Applied harmonized standards:

EN 60335-1:2012+A11+A13+A1+A14+A2

EN 60335-2-30:2009+A11

EN 62233:2008

AfPS GS 2019:01 PAK

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-3:2013+A1

EN IEC61000-3-2:2019

EN 300328 V 2.2.2:2019

EN 301489-1 V 2.2.3:2019

EN 301489-17 V 3.2.2:2019

EN 62311:2008

Genemuiden, 15-04-2021

W.J. Bakker, alg. Dir.

Kokosstraat 20, 8281 JC Genemuiden, The Netherlands

T: ([phone]

E: [e-mail]

I: www.eurom.nl

Model: Mon Soleil Wi-Fi

Date: 20/06/2023

Version: v5.0
