USER MANUAL HPBT5052BK NEDIS

ned.is/hpbt5052bk Fully Wireless Earphones with wireless chargeable case HPBT5052B Ka Quick start guide 5

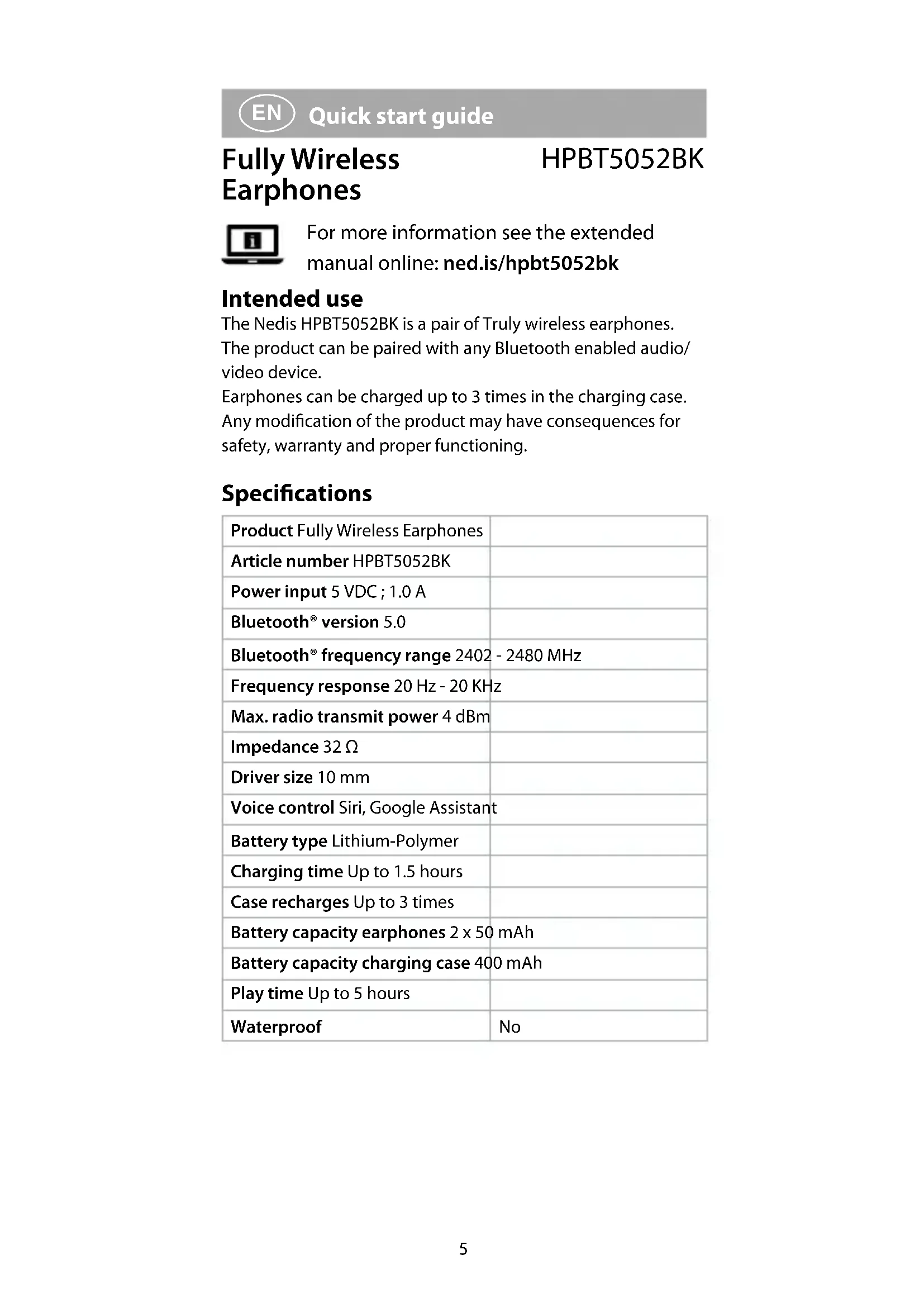

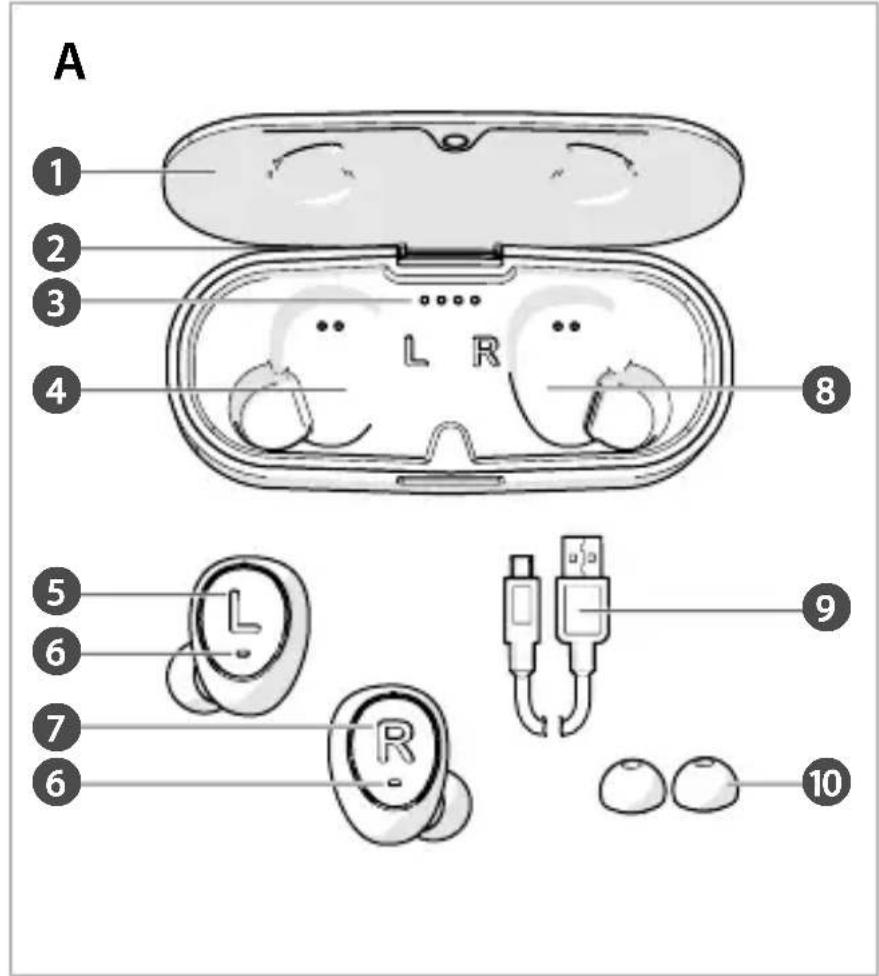

Quick start guide Fully Wireless Earphones HPBT5052BK For more information see the extended manual online: ned.is/hpbt5052bk Intended use The Nedis HPBT5052BK is a pair of Truly wireless earphones. The product can be paired with any Bluetooth enabled audio/ video device. Earphones can be charged up to 3 times in the charging case. Any modication of the product may have consequences for safety, warranty and proper functioning. Specications Product Fully Wireless Earphones Article number HPBT5052BK Power input 5 VDC ; 1.0 A Bluetooth® version 5.0 Bluetooth® frequency range 2402 - 2480 MHz Frequency response 20 Hz - 20 KHz Max. radio transmit power 4 dBm Impedance 32 Ω Driver size 10 mm Voice control Siri, Google Assistant Battery type Lithium-Polymer Charging time Up to 1.5 hours Case recharges Up to 3 times Battery capacity earphones 2 x 50 mAh Battery capacity charging case 400 mAh Play time Up to 5 hours Waterproof No6 Main parts (image A)

Charging indicator LED

Left earphone button

Right earphone button

3 Pairs of ear tips (S/M/L) Safety instructions

• Only use the product as described in this manual.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not expose the product to direct sunlight, naked ames or heat.

• Do not expose the product to water or moisture.

• Do not drop the product and avoid bumping.

• Do not open the product.

• Keep the product out of reach from children.

• Using earphones with both ears covered while participating in trac is discouraged and may be illegal in some areas.

• This product is not a toy. Never allow children or pets to play with this product.

• Listening on high volume for a long time will damage your hearing.

• Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.

• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.

• Do not short circuit.

• Do not repair the product. If damaged, it must be properly disposed of.

• Only use the product as described in this manual.7 Pairing the earphones to a Bluetooth audio source

1. Take out the earphones from the charging case, the

earphones will switch on automatically.

Press and hold both earphone buttons A

for 3 seconds to switch the earphones on manually.

on the left earphone starts to blink blue/red while the right earphone blinks blue to indicate the earphones are pairing.

3. Enable bluetooth on the device you want to pair the

4. Select "HPBT5052BK" from the list of available Bluetooth

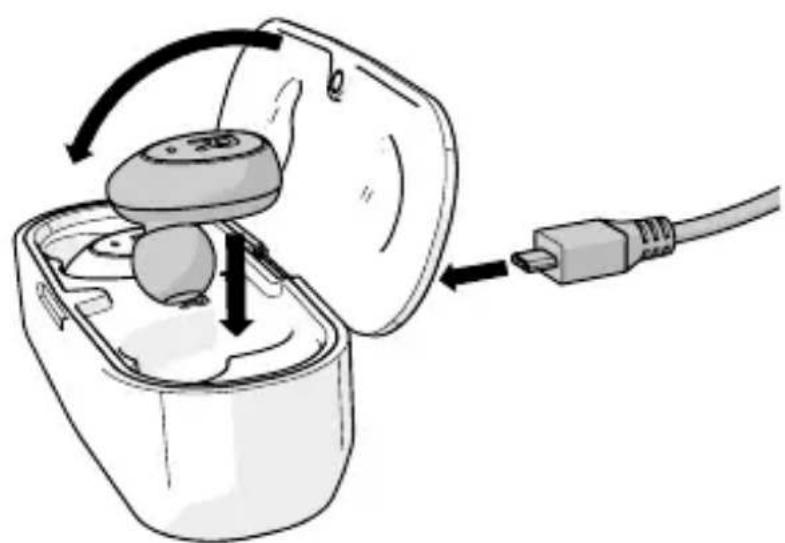

devices on your device. Charging the product (image B)

into the micro USB port

2. Plug the other end of A

into a computer or power adapter.

3. Plug the power adapter into a power outlet.

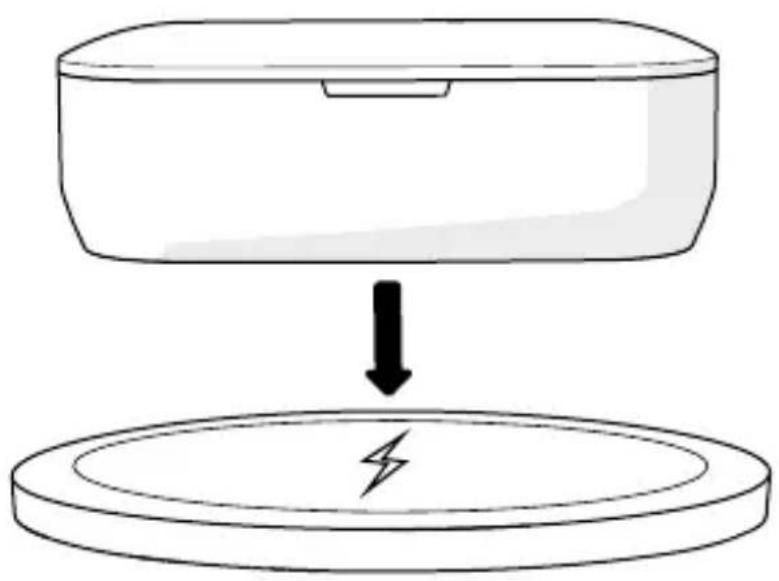

Or use a wireless charging pad to charge the charging case.

4. The charging indicator LEDs A

indicate the charging progress of the battery.

5. Place the earphones into the respective slots A

to charge the earphones.

on the earphones lights up red.

will switch o when the earphones are fully charged.

The earphones and the charging case can charge simultaneously. Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product HPBT5052BK from our brand Nedis

, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via webshop.nedis.com/hpbt5052bk#support For additional information regarding the compliance, contact the customer service: Web: www.nedis.com8 E-mail: [e-mail] Phone: [phone] (during oce hours) Nedis B.V., de Tweeling 28 5215 MC ’s-Hertogenbosch, the Netherlands
