USER MANUAL NFE 910 X TEKA

ELECTRONIC NO FROST MULTIDoor Refrigerator

Instruction booklet

ELEKTRONISCHERN O FROST KUHLSCHRANK

Bedienungsanleitung

RéFRIGÉRATEUR ÉLECTRONIQUE A FROID VENTILE

Guide d'utilisation

General features of your appliance

1.2 freezer compartments are temperature adjustable thanks to multizone function, it can be used as freezer or cooler as required. (Page 15; Item 2.2.16 should always be considered.)
2. Thanks to patented trizbar design, fracture risk occurring due to misuse by users, which is common for opponent manufacturers has been eliminated.
3. A door handle illumination with light sensor control is available. In an dark ambient door handle LEDs will light on, and that will automatically light off in an bright ambient. (Door light on/off is an optional feature.)
4. Air circulation of cooler and freezer compartments are not mixed with other compartments thanks to new No-Frost technology. By this smart solution, no odor passes through compartments, and vegetables remain fresh for longer periods.
5. The fan ensuring energy efficiency maintains air circulation by running independently even if the compressor does not run. Thus, a uniform and balanced air circulation is created between cooler shelves.
6. Hidden LEDs and hidden air conduit holes have given the cooler an aesthetical appearance.
7. Through specific air conduit design, fans give the cooler cold air from multiple outlets on all shelf levels.
8. By special patented application, display edges and corners form a smooth surface against the door and ensure a perfect aesthetical appearance. Thanks to touch-operated electronic instrument panel, temperature controls can be carried out easily and an even view is ensured aesthetically.
9. A LED application that light on gradually instead of an sudden flashing is available in interior body illumination. The LEDs lights up to 100% brightness within a few seconds after the door is opened.
10. Telescopic rail used in chiller compartment ensures that the chiller operates easily and quietly.
11. In order to avoid the chiller from slamming the door when it stays open, a self-closing function has been provided to the chiller. This function has eliminated the risk of staying open for the chiller.
12. Anti-finger inox doors never leave finger prints thanks to a special sheet layer coated over stainless door sheet.

Index

General features of your appliance 3

BEFORE USING YOUR FRIDGE 6

1.1 Old and Out-of-Order Fridges 6
1.2 SafetyWarnings 7
1.3 Installing and Operating your Fridge 8
1.4 Before Operating your Fridge 9
1.5 General information about new NO FROST Technology 10

USE OF APPLIANCE 11

2.1 Introducing parts 11
2.2 Electronic display and usage 12

2.2.1 Beverage cooling (QDRINK) 13
2.2.2 Economic mode (ECO). 13
2.2.3 Holiday mode (H) 13
2.2.4 Quick freezing (SF SUPERFREEZE) 13
2.2.5 Quick cooling (SC SUPERCOOL) 13
2.2.6 Door lights On/Off (DOOR LIGHT ON/OFF) 14
2.2.7Cooler(COOLER). 14
2.2.8 Freezer / Cooler 1 (ZONE 1) 14
2.2.9 Freezer / Cooler 2 (ZONE 2) 14
2.2.10 Child lock (Key Symbol). 14
2.2.11 Screenshotaver (SCREENSAVER) 14
2.2.12 Night sensor (NIGHT SENSOR) 14
2.2.13 Dealer Demo mode 14
2.3.14 Alarm 14
2.2.15 Compartment On-Off mode 15
2.2.16 Using a Freezer Compartment as Cooler Compartment Based On Demand 15
2.3Warnings about Temperature Adjustments 15
2.4 Accessories 16

2.4.1 Icebox 16

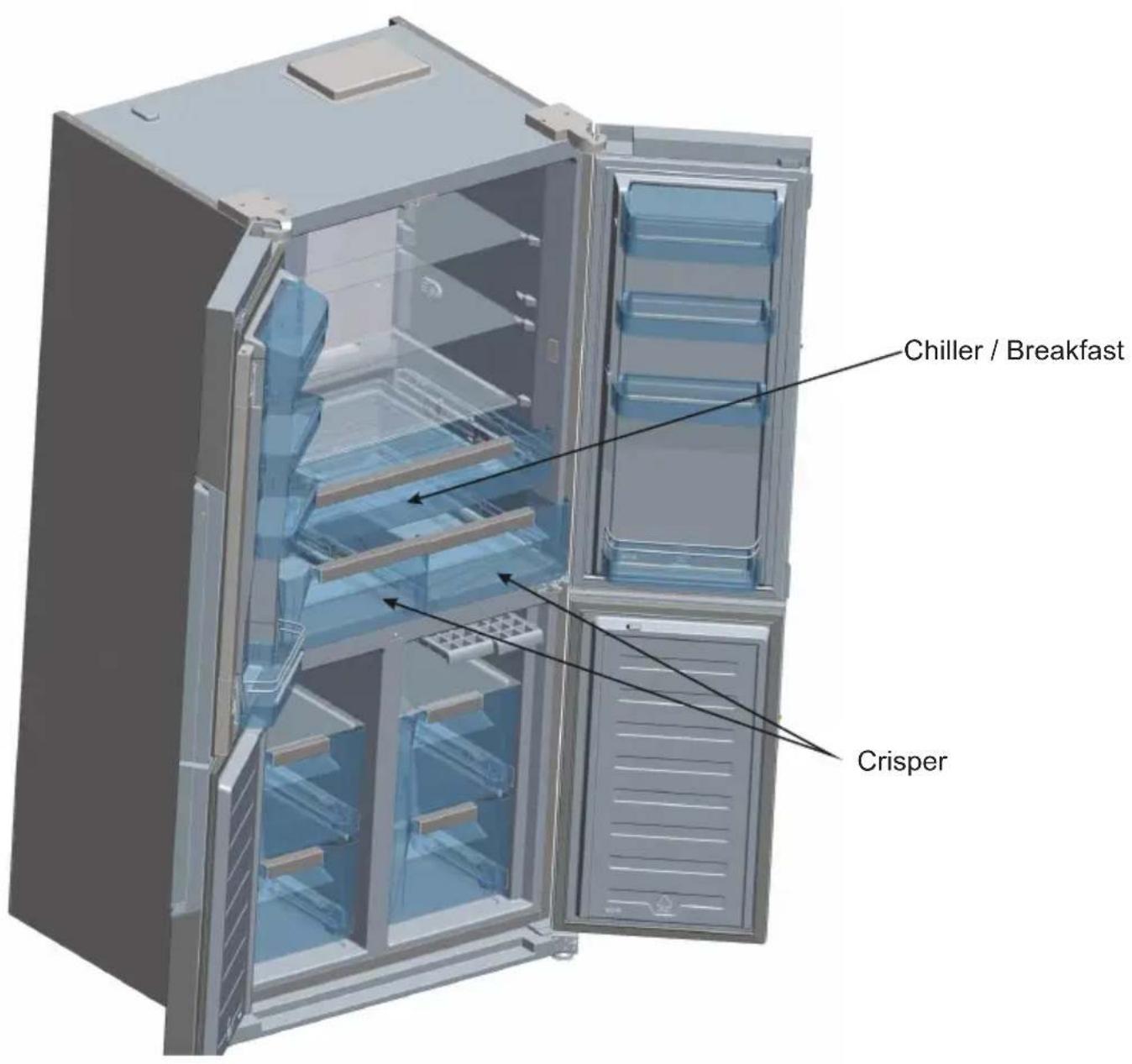

2.4.2 Vegetable Bowl and Chiller (Breakfast) 17

PLACING THE FOOD 19

3.1Cooler Compartment 19
3.2 Deep-Freeze Compartments 20

CLEANING & MAINTENANCE. 24

4.1 Replacing LED lights used for illumination 24

SHIPMENT AND REPOSITIONING 25

BEFORE CALLING SERVICE 26

6.1 Recommendations for Energy Saving 28

PART 1. BEFORE USING YOUR FRIDGE

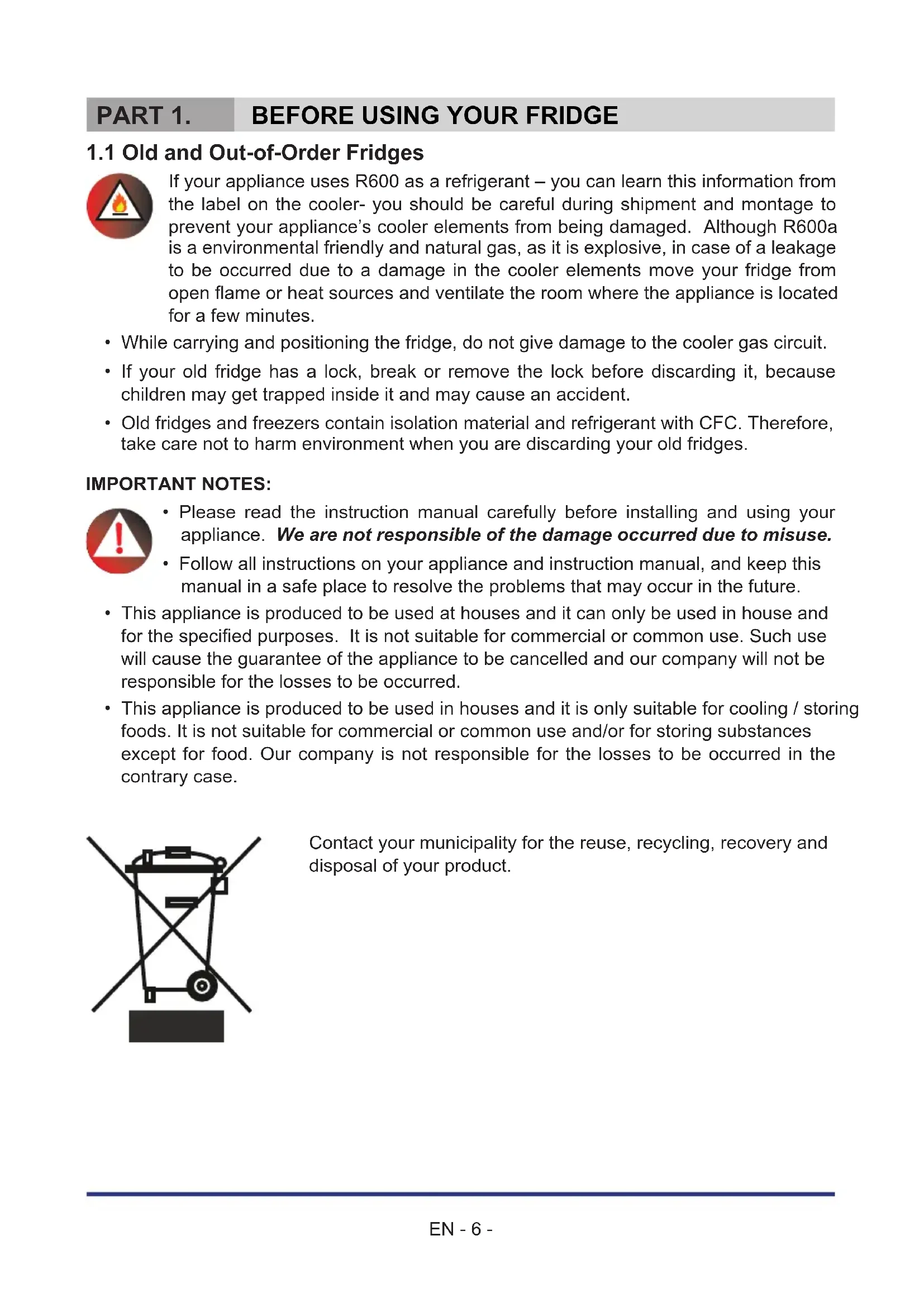

1.1 Old and Out-of-Order Fridges

If your appliance uses R600 as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance's cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not give damage to the cooler gas circuit.
• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

IMPORTANT NOTES:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Contact your municipality for the reuse, recycling, recovery and disposal of your product.

BEFORE USING YOUR FRIDGE

1.2 SafetyWarnings

Warning: Do not use mechanical devices or other artificial methods to quicken to the defrosting.

Warning: Do not use electrical devices on the food storage areas of your appliance.

Warning: Keep the ventilation areas of your appliance open.

Warning: Do not damage your fridge's refrigerant circuit.

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

• In case your supply cord is damaged, it should be replaced by authorized service in order to avoid any danger.
• This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.
• Do not break or scrape the ice with a sharp object like a knife or suchlike.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause iceburns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you take them out of the freezer department!
• Do not re-freeze the frozen goods after being melted. This may cause health issues like food poisoning.
  Fix the accessories in the fridge during transportation to prevent damage to accessories.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or given instructions concerning use of the appliance by a person responsible for their safety. Supervise the children to prevent them playing with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person.

1.3 Installing and Operating your Fridge

Before starting to use your fridge, you should pay attention to the following points.

• Operating voltage for your fridge is 220 - 240V at 50Hz .
• Before starting to use your fridge, please call the nearest authorized service from the "Vestel White Goods Authorized Services Manual" supplied with your fridge, and get free help on the installation, operation and usage of your fridge.
• CAUTION! Never replace any electrical parts inside the refrigerator. In cases requiring replacement, contact Authorized Technical Service.
• Mains cord of your fridge has a grounded plug. This plug should be used with a grounded receptacle that has a 16 ampere fuse minimum. If you don't have a receptacle confirming with this, please have it done by a qualified electrician.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.
• Your appliance should be at least 50~cm away from stoves, ovens and heater cores, and should be at least 5cm away from electrical ovens.
  It should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at least 2cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15cm is available on the upper side.
• The adjustable front legs should be stabilized in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.
• No carpets, rugs, etc. which may obstruct air circulation should be laid under the refrigerator.

BEFORE USING YOUR FRIDGE

1.4 Before Operating your Fridge

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

BEFORE USING YOUR FRIDGE

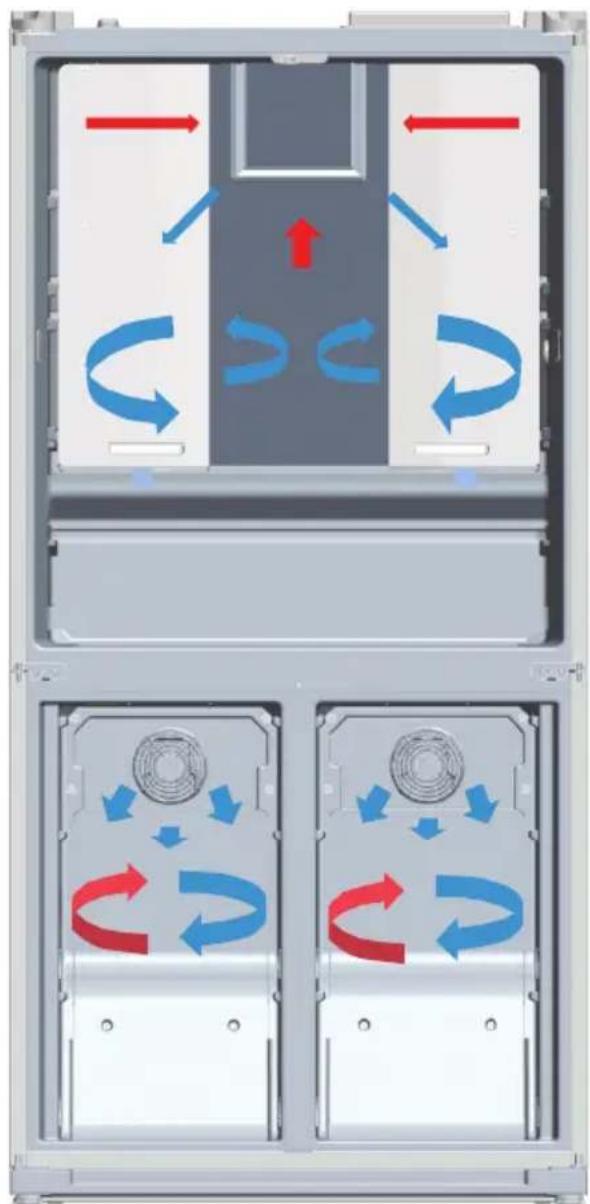

1.5 General information about new NO FROST Technology

New No-Frost fridges differ from other static fridges in their operating principle.

In normal fridges, the humidity entering the fridge in the door openings and the humidity of the food causes freezing in the freezer compartment. To defrost the snow and ice in the freezer department, you should turn off the fridge, take the food that needs to be kept in a constant temperature off the fridge, and remove the ice gathered in the freezer department periodically.

The situation in the freezer compartment is completely different in no-frost fridges. Dry and cool air is blown through the freezer compartments via fan. Cold air dispersed homogeneously between the shelves cools all your food equally and uniformly, thus prevents humidity and freezing. The freezer compartment is cooled by statically. The air is distributed homogeneously between the racks in the cooling section with the fan, and all your foods can be cooled evenly and properly.

As there is no air passage between the sections, the smells on the 3 different parts of your refrigerator do not mix.

Therefore your New No-Frost fridge allows you ease of use, besides its huge volume and stylish appearance.

PART 2. USE OF APPLIANCE

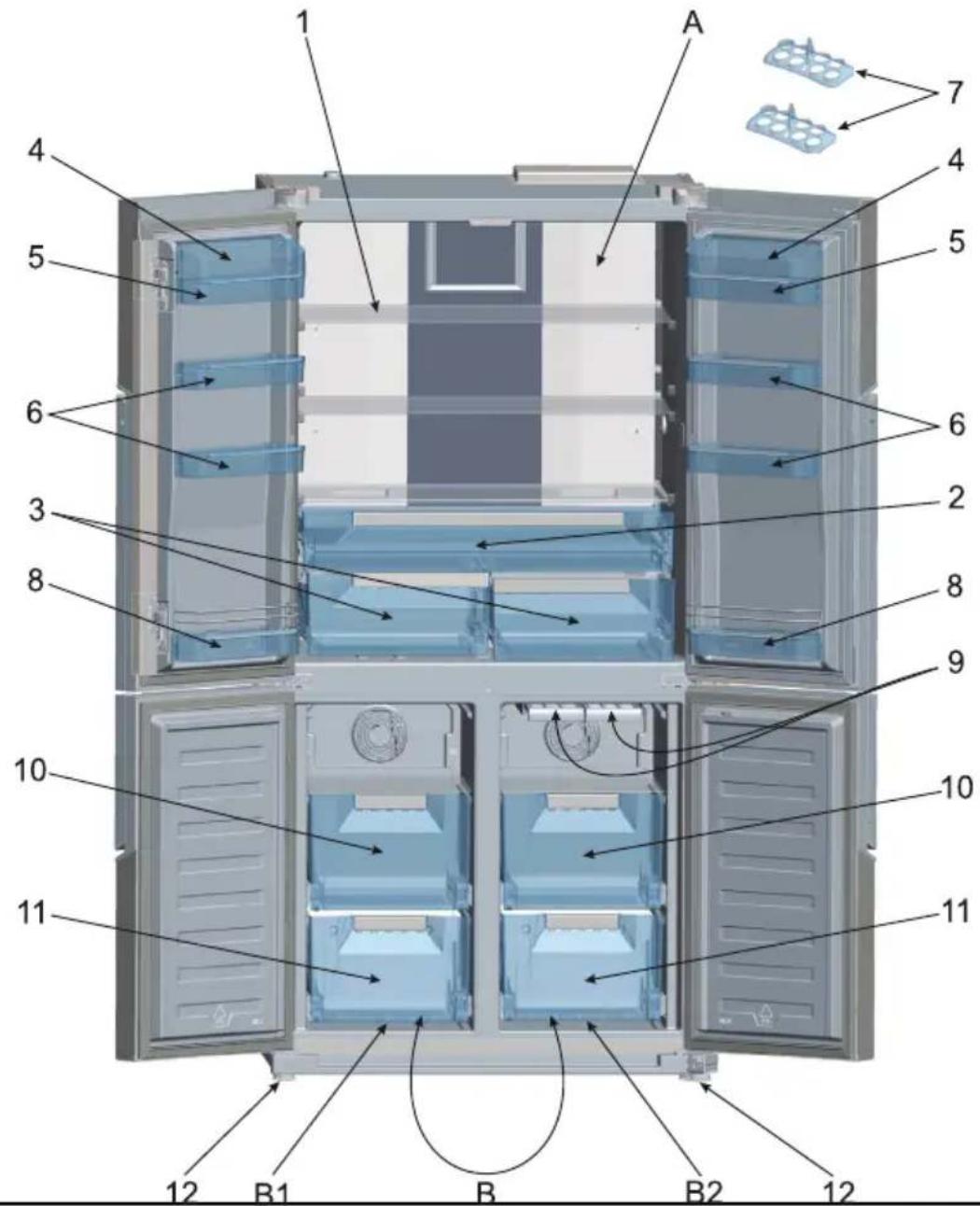

2.1 Introducing parts

The purpose of this presentation is informing you about the parts of your appliance. The parts may vary depending on the model of the appliance.

A)Cooler Compartment
B) Fridge / Freezer Compartment
B1. Zone-1 / B2. Zone-2
1) Fridge compartment shelves
2) Chiller (breakfast) compartment
3) Crispers
4) Cheese-Butter shelf covers
5) Cheese, butter shelf

6) Door shelves
7) Eggcups
8) Door bottle shelves
9) Iceboxes
10) Freezer / Cooler top baskets
11) Freezer / Cooler bottom baskets
12) Adjustable stays

USE OF APPLIANCE

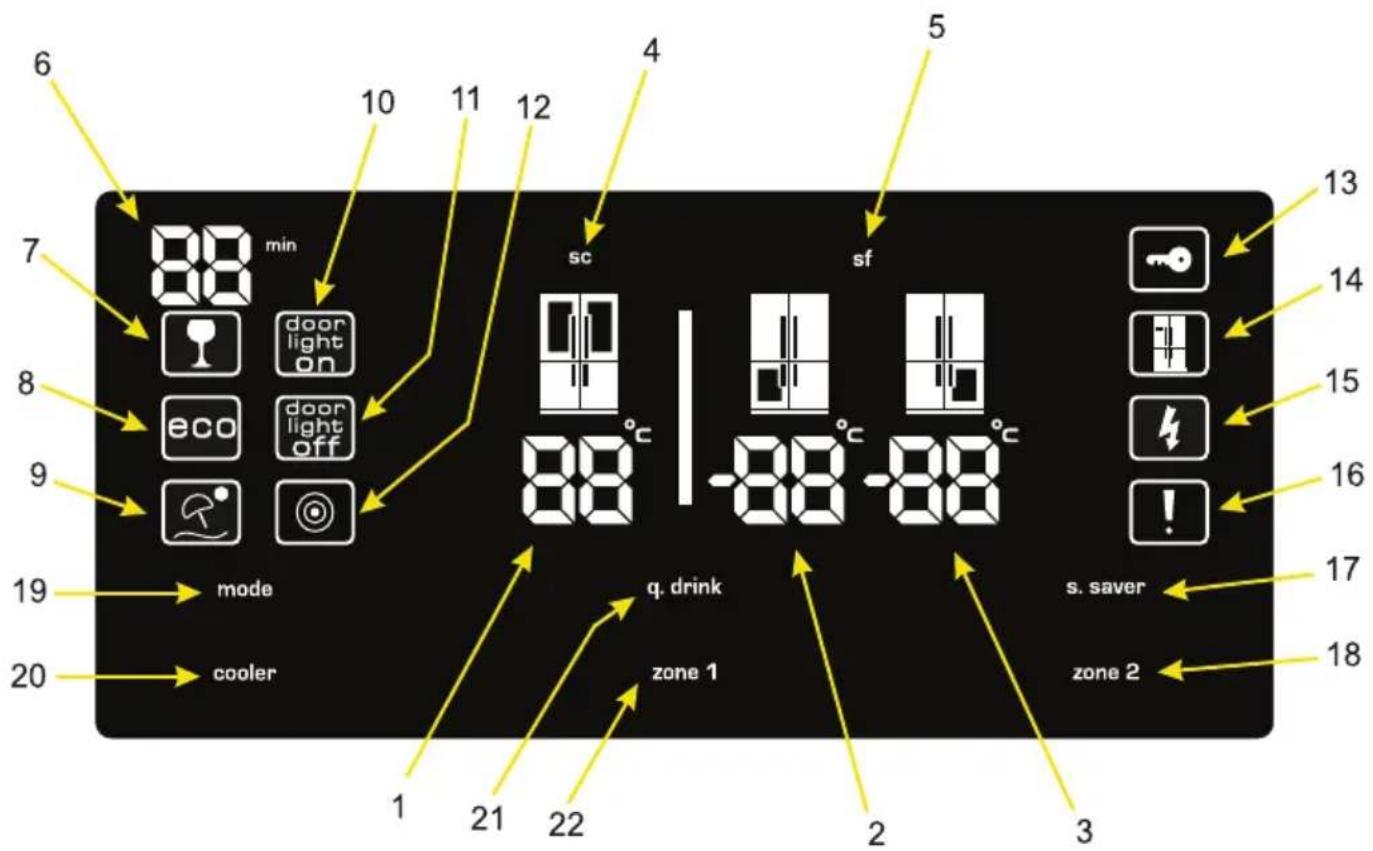

2.2 Electronic display and usage

1. Fridge Compartment Temperature indicator
2. Left Freezer Compartment Temperature indicator
3. Right Freezer Compartment Temperature indicator
4. Super cooling light
5. Super freezing light
6. Qdrink alarm counter
7. Qdrink light
8. Economy mode
   9.Holiday mode

9. Door lights ON indicator

10. Door lights OFF indicator

11. Night sensor
12. Child lock
13. Dealer-Demo mode
14. Low voltage warning
15. Alarm
16. Screensaver button
17. Zone 2 (Right freezer)
    19.Mode button
18. Cooler
19. Qdrink mode
20. Zone 1 (Left freezer)

The values on the screen indicate temperature values specified by the consumer.

"10. Door lights ON / 11. Door lights OFF" is an optional feature. Door light on/off icons on the display are located on the refrigerators which have this feature.

USE OF APPLIANCE

2.2.1 Beverage cooling (QDRINK)

[q.drink] button should be pressed to activate beverage cooling mode. Each press will increment the time for 5 minutes up to 30 minutes, and then it returns to zero. You can view the time zone you want to set on "Qdrink alarm counter" section. Qdrink mode only lets the refrigerator release an audible alert after a specific period.

Important: It should not be confused with cooling.

You must adjust the time according to the temperature of the bottles before you put them in zone1 and/or zone2 compartments. For example, you can set the time as "5 minutes" in the beginning. After this time, if the cooling is insufficient, you might set another 5 or 10 minutes. While using this mode, you must check the temperature of the bottles regularly. When the bottles are cool enough, you must take them out of the appliance. If you forget bottles in Q.DRINK mode, bottles may explode.

Important: If you are using Zone2 compartment for cooling, this mode will not be activated.

2.2.2 Economic mode (ECO)

It ensures that your refrigerator runs within ideal temperatures. In order to activate "ECO" mode, you should just press [mode] button until "eco and e" light is on.

2.2.3 Holiday mode (H)

It is represented by an umbrella and sun. If you will go to holiday for a long time during which you will not use cooler compartment, you may activate this mode. To switch the appliance to holiday mode, you should just press [mode] button until "holiday symbol and H" light comes on.

2.2.4 Quick freezing (SF SUPERFREEZE)

You should press on [zone1] or [zone2] buttons until "sf" letters are displayed on the display. Once "sf" letters are viewed, a beep sound will be released if you press no button and the mode will be selected. You can use this mode to freeze prepared meals or freeze large amounts of food quickly. Quick freezing mode will automatically be deactivated after 24 hours or once the freezer compartment temperature sensor feels sufficient temperature.

For quick freezing, zone1 compartment should be selected preferably.

2.2.5 Quick cooling (SC SUPERCOOL)

Press cooler button until "sc" letters are viewed on the display. Once "sc" letters are viewed, a beep sound will be released if you press no button and the mode will be selected. You can use this mode to cool prepared meals or cool large amounts of food quickly. Quick cooling mode will be automatically cancelled after 4 or 6 hours depending on the environmental temperature or when the cooler compartment reaches a sufficiently low temperature.

USE OF APPLIANCE

2.2.6 Door lights On/Off (DOOR LIGHT ON/OFF)

Illumination system hidden in the door handles of the product should be used based on demand. In order to activate illumination system on the door handles, you need to press [mode] button for 3 seconds. For deactivation, press [mode] button for 3 seconds again.

In case of "ON" position, door illuminations will always be on. Door light on/off is an optional feature which applies to the refrigerators having the feature.

2.2.7 cooler (COOLER)

It is used for temperature setting of cooler compartment. By pressing [cooler] button, you can set the values of cooler part to 2, 3, 4, 5, 6, 7, 8 Celcius temperature values.

2.2.8 Freezer / Cooler 1 (ZONE 1)

It is temperature setting button for bottom-left compartment. By pressing [zone 1] button freezing value of bottom-left part can be set as -16, -17, -18, -19, -20, -21, -22, -23, -24 Celsius temperature values. If you do not want to use bottom-left part as cooler, press [zone1] button for 3 seconds to switch to this mode, and set to 2, 3, 4, 5, 6, 7, 8 Celsius temperature values.

2.2.9 Freezer / Cooler 2 (ZONE 2)

It is temperature setting button for bottom-right compartment. By pressing [zone 2] button freezing value of bottom-right part can be set as -16, -17, -18, -19, -20, -21, -22, -23, -24 Celsius temperature values. If you do not want to use bottom-right part as cooler, press [zone 2] button for 3 seconds to switch to this mode, and set to 2, 3, 4, 5, 6, 7, 8 Celsius temperature values.

2.2.10 Child lock (Key Symbol)

In order to activate child lock, you need to press [cooler]+[zone 2] buttons simultaneously for 5 seconds. When the child lock is active, other buttons will be deactivated, and therefore changing the settings you have made will be prevented. In order to deactivate child lock, you, again, need to press [cooler]+[zone 2] buttons simultaneously for 5 seconds.

2.2.11 Screensaver (SCREEN SAVER)

Thanks to this function that is activated when you press [s.saver] button for 3 seconds, you save energy by utilizing digital indicator panel with its lights off. In order to deactivate the mode, repress [s.saver] button for 3 seconds.

2.2.12 Night sensor (NIGHT SENSOR)

Thanks to this function that is activated when you press night sensor [mode] and [s.saver] buttons for 3 seconds, your refrigerator's lights will be OFF in case of sufficient illumination, therefore you will save energy.

2.2.13 Dealer Demo mode

It is a mode used by service and not related to the use of refrigerator.

2.3.14 Alarm

Once an alarm light comes on, you should contact a service.

If you press [s.saver] button when there is an alarm and an exclamation mark on the display, the alarm sound will turn off, however the exclamation mark will stay on the digital indicator panel until error is fixed.

USE OF APPLIANCE

2.2.15 Compartment On-Off mode

You can wholly cancel compartments you do not need nor want by checking through indicator panel.

In order to turn off Zone 2 and cooler at the same time, hold [mode] and [zone 2] buttons pressed simultaneously for 5 seconds, and all figures indicating the part turned off will disappear on the digital indicator panel.

In order to turn off Zone 1 compartment, hold [mode] and [zone 1] buttons pressed simultaneously for 5 seconds, and all figures indicating the part turned off will disappear on the digital indicator panel.

In order to turn off just the cooler, hold [mode] and [cooler] buttons pressed simultaneously for 5 seconds, and all figures indicating the part turned off will disappear on the digital indicator panel.

In order to reactivate the turned-off compartment, use the same combination of buttons.

2.2.16 Using a Freezer Compartment as Cooler Compartment Based On Demand

The bottom-right and -left compartments on the appliance can be used either as freezer and cooler.

Preferably, you need to press [zone 1] button for 3 seconds to use bottom-left part as cooler or [zone 2] button for 3 seconds to use bottom-right part as cooler.

Important : If Zone1/Zone2 compartment will be converted from freezer to cooler:

• You should empty the food in the related compartment and leave the door open for 4 hours. Then, food will be placed in the relevant compartment.
• Baskets and/or shelves removed from the compartment should be re-fitted.

Similarly, in order to utilize any of bottom compartments used as cooler as freezers again, you need to press the related compartment button for 3 seconds.

Important : If Zone1/Zone2 compartment will be converted from cooler to freezer:

• You should empty the food in the related compartment and leave the door open for 2 hours. Then, food will be placed in the relevant compartment.
• When zone 1 and zone 2 compartments used as cooler are switched to Holiday or Economic setting value, it will keep on running as cooler.

Important

• If you want to use zone compartments as cooler, please give priority to Zone 1 compartment for energy saving.

2.3Warnings about Temperature Adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings the quantity of food kept inside the fridge and ambient temperature of the place of your fridge.

USE OF APPLIANCE

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient temperature oC
T 16 to	43°C
ST 16 to	38°C
N 16 to	32°C
SN 10 to	32°C

Note: If the ambient temperature is higher than 38^ , the compartment temperature cannot be set to -22^ , -23^ or -24^ . It can only be set to -16^ , -17^ , -18^ , -19^ , -20^ or -21^ .

2.4 Accessories

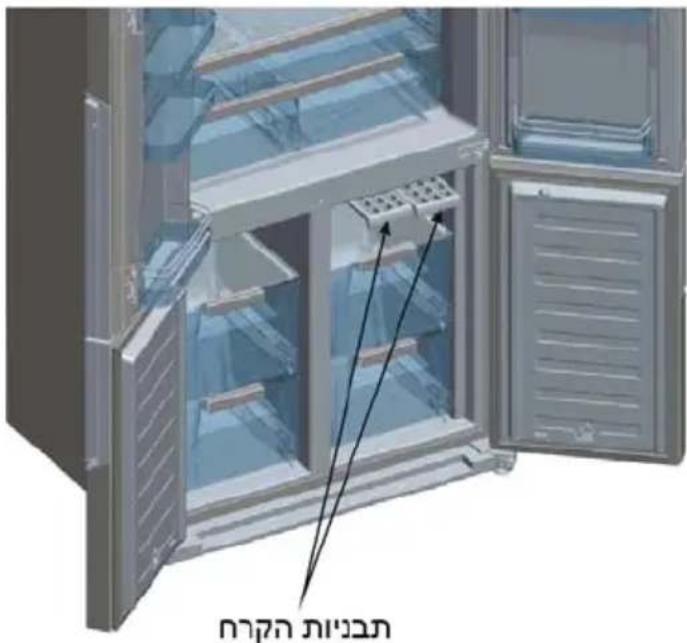

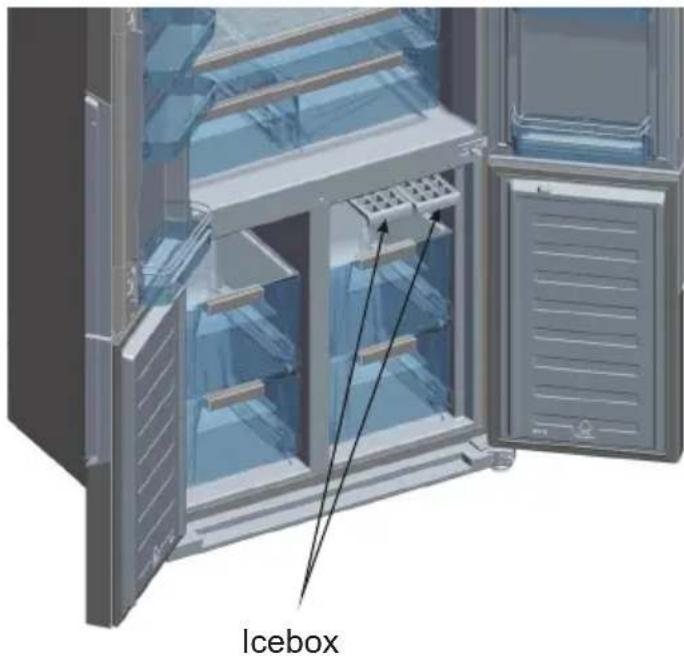

2.4.1 Icebox

• Remove the icebox by grasping its front side.
• Fill 3 / 4 of icebox with water and insert it.
• You can take ice after 2 hours approximately. You can service by extracting icebox.

Note: When placing the icebox after filling with water, make sure that you position it horizontally without tilting. Otherwise, water inside icebox may pour on the basket.

USE OF APPLIANCE

2.4.2 Vegetable Bowl and Chiller (Breakfast)

Chiller / Breakfast

When this compartment is used as 0^ compartment (chiller), it ensures that your food is preserved at 0^ . You can keep the frozen foods that you take out of the deepfreeze compartment in order to defrost them or you can keep the meats and cleaned fishes (in plastic bags or packets) etc. which you will use within 1-2 days without need for freezing.

Note: Water is frozen in 0^ but the foods including salt or sugar can be frozen in colder environments.

! Please do not put the food you would like frozen or iceboxes in this partition.

USE OF APPLIANCE

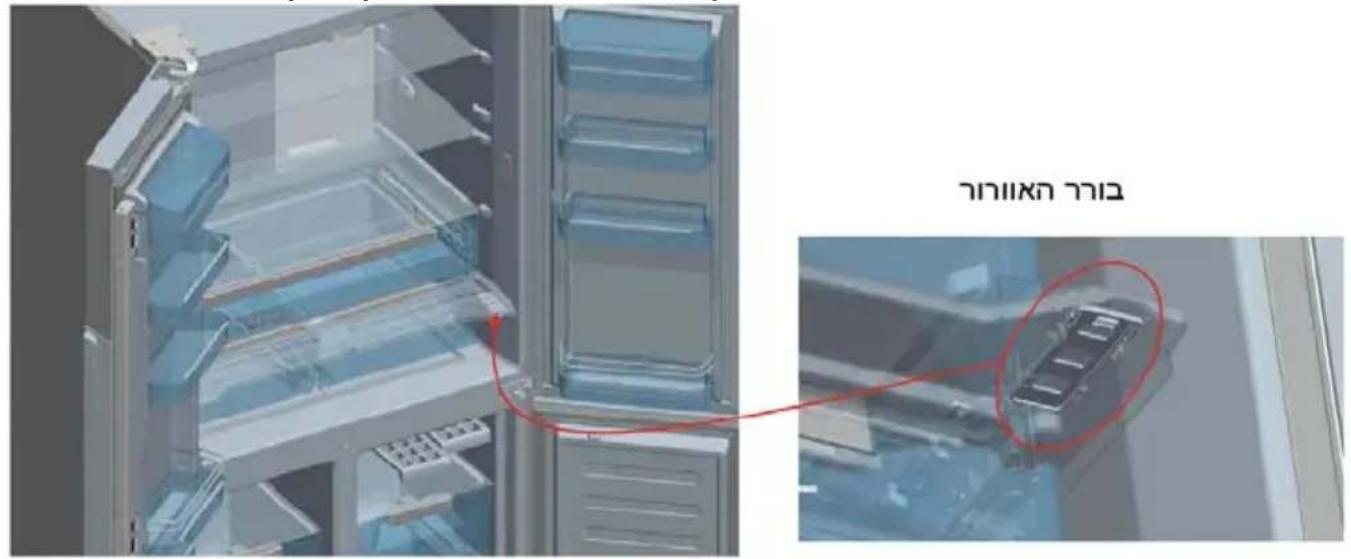

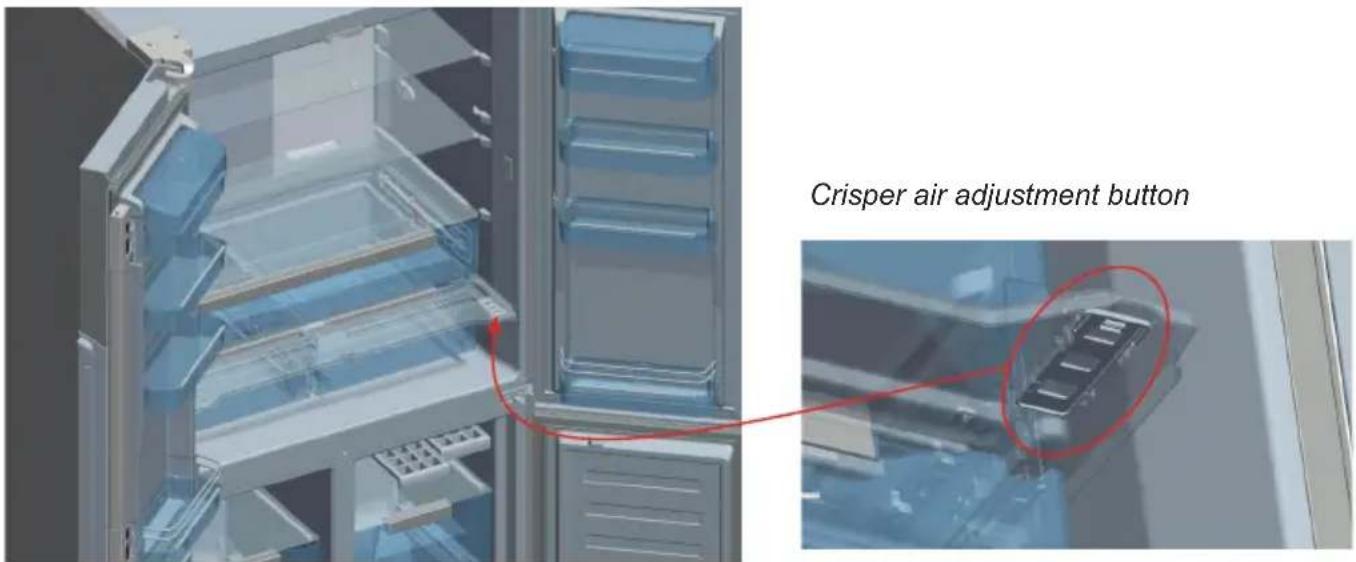

2.4.3 CRISPER AIR SETTING BUTTON

Turn the air adjustment knob between crisper and chiller to open position when the crisper is filled excessively. This way, the air intake into the crisper is adjusted and food remains fresh for a longer period of time.

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

PART 3. PLACING THE FOOD

3.1 Cooler Compartment

• Under normal operation conditions, it is enough to set the temperature of cooler compartment to +4 / +6 oC.
• In order to avoid frosting, humidification and odour, food should be placed to the fridge in closed containers or covered with appropriate material.
• Hot food and beverages should be cooled to room temperature before being placed in the fridge.
• Vegetables and fruits can be placed into crisper without packaging.

Important Note:

• Cover the liquid and stews when you put them on fridge. Otherwise, the humidity amount inside the fridge increases. And, this causes the fridge to operate more. Covering the food and beverages also allow you to protect their taste and flavour.
• Potatoes, onion and garlic shouldn't be kept in the fridge.

Some suggestions on the placing and storing of your food in the fridge compartment are supplied below.

Food Storing time		Where to place in the fridge department
Vegetables and fruits: 1 week		Vegetable bin (without being wrapped)
Meat and fish 2 - 3 Days		Wrapped in plastic foil or bags or in a meat container (on the glass shelf)
Fresh cheese 3 - 4 Days In special door shelf
Butter and Margarine 1 week In special door shelf
Bottled products Milk and Yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs 1 month In the egg shelf
Cooked food All shelves

PLACING THE FOOD

3.2 Deep-Freeze Compartments

• The freezer compartment is used for storing frozen foods for a long time or for producing ice.
• If you leave the door of freezer open for a long time, frosting will appear on the lower stage of freezer. Thus, air circulation will be obstructed. In order to avoid this, first unplug the cord and wait until thawed. After ice melts, you should clean the freezer.
• You can take off baskets, cover, etc. to increase storing volume of freezer.
  Volume specified on the product label shows the value without baskets, covers, etc.

IMPORTANT

Please never refreeze frozen food after thawing them.

It may be hazardous to your health as it may lead to food poisoning.

• Do not place hot food to the freezer before cooling them. This may cause other frozen food in the freezer to get decayed.
• When buying frozen food, make sure that it was frozen under appropriate conditions and its package is not torn.
• In case of humidification on package of frozen food and a smelly odour, food may have been stored under inappropriate conditions beforehand and it may have gotten decayed. Do not buy those kinds of food.
• Storing time for frozen food may differ according to the ambient temperature, frequency of door openings, thermostat adjustments, type of food and the time between the buying of the food and placing of the food in the freezer. Always follow instructions on the package and do not exceed storing period.
• Note: If frozen food taken out of freezer of refrigerator is placed into bottom compartment one day before, it promotes refrigerator by preserving its temperature there, so energy will be saved. If you put the material in the deep freeze to an open area, energy loss occurs.

Some spices in cooked food (aniseed, basil, dill, vinegar, spice mix, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, bologna sausage etc.) may have a foul taste when stored for a long time. Therefore, frozen food should be spiced just a little or spice should be added after the food is thawed.

The storing time for the food depends on the oil used. Margarines, veal fat, olive oil and butter are suitable, peanut oil and lard are not suitable.

Cooked food in liquid form should be frozen in plastic containers, other food should be frozen wrapped in plastic foil or in plastic bags.

Some suggestions on the placing and storing of your food in the freezer compartment are supplied pages 21, 22 and 23.

PLACING THE FOOD

Meat and fish Preparation	Storing time (month)	Thawing time in room temperature (hours) -hour-
Steak Wrapping in a foil 6-10 1-2
Lamb meat Wrapping in a foil 6-8 1-2
Veal roast Wrapping in a foil 6-10 1-2
Veal cubes In small pieces 6-10 1-2
Lamb cubes In pieces 4-8 2-3
Minced meat	In packages without using spices	1-3 2-3
Giblets (pieces) In pieces	1-3 1-2
Bologna sausage/salami	Should be packaged even if it has membrane	Until it is defrosted
Chicken and turkey Wrapping	In a foil 7-8 10-12
Goose and Duck Wrapping	In a foil 4-8 10
Deer, Rabbit, Wild Boar	In 2.5 kg portions and as fillets	9-12
Fress海水鱼(Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.	2
Lean fish; bass, turbot, flounder		4-8
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2-4
Shellfish	Cleaned and in bags	4-6
Caviar	In its package, aluminium or plastic container	2-3
Snail	In salty water, aluminum or plastic container	3

Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.

PLACING THE FOOD

Vegetables and Fruits	Preparation Storing time	Thawing time in room temperature (hours) -hour-
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12	It can be used as frozen
String beans and beans	Wash and cut to small pieces 10 - 13	It can be used as frozen
Beans Hull and wash	12		It can be used as frozen
Mushroom and asparagus	Wash and cut to small pieces 6 - 9	It can be used as frozen
Cabbage Cleaned 6 - 8 2	Cut to pieces of 2cm after washing	10 - 12	Separate them from one another
Eggplant
Corn	Clean and pack with its stem or as sweet corn	12	It can be used as frozen
Carrot Clean and cut	to slices 12		It can be used as frozen
Pepper	Cut the stem, cut into two pieces and remove the core	8 - 10	It can be used as frozen
Spinach Washed 6 - 9 2	9 2
Apple and pear Peel	and slice 8 - 10 (In Fridge) 5
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6	(In Fridge) 4
Strawberry and Blackberry	Wash and hull 8 - 12	2
Cooked fruits	Adding 10 % of sugar in the container	12	4
Plum, cherry, sourberry	Wash and hull the stems	8 - 12	5 - 7

PLACING THE FOOD

Dairy Products Pastry		Preparation	Storing time (months)	Storing Conditions
Packet (Homogenize) Milk		In its own packet 2 - 3		Pure Milk – In its own packet
Cheese-excluding white cheese		In slices 6 - 8		Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine In its package 6
ECS	Albumen 10 - 12			30 gr of it is equal to a yolk.	In closed container
	Egg mixture (Albumen – yolk)	Mixed completely, you may add a pinch of salt or sugar to prevent thickening	10	50 gr of it is equal to a yolk.
	Yolk	Mixed completely, you may add a pinch of salt or sugar to prevent thickening	8 - 10	20 gr of it is equal to a yolk.

(*) Should never be frozen with its shell. Albumen and yolk should be frozen individually or completely mixed.

	Storing time (month)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3 4-5	(220-225 °C)
Biscuits 3 - 6 1 - 1,5	5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-	10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8	(190-200 °C)
Phyllo dough	2 - 3 1 - 1,	5 5-8 (190-200 °C)
Pizza	2 - 3 2 - 4	15-20 (200 °C)

PART 4. CLEANING & MAINTENANCE

Make sure to unplug the fridge before starting to clean it.

• Do not wash your fridge by pouring water.
• You can wipe the inner and outer sides of your appliance with a soft cloth or a sponge using warm and soapy water.
• Remove the parts individually and clean with soapy water. Do not wash in washing machine.
• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.
• The condenser (the back part with black wings) should be cleaned using a vacuum cleaner or a dry brush at least once a year. This will help your freezer to operate more efficiently and will enable you to save energy.

Cleaning evaporation bowl

• Your fridge defrosts automatically. Water produced by defrosting flows to evaporating container passing through water collecting groove, and vaporizes here by itself.

4.1 Replacing LED lights used for illumination

For replacing LED lights used for illumination, do contact an authorized service.

PART 5. SHIPMENT AND REPOSITIONING

• Original package and foam may be kept for re-transportation (optionally).

• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

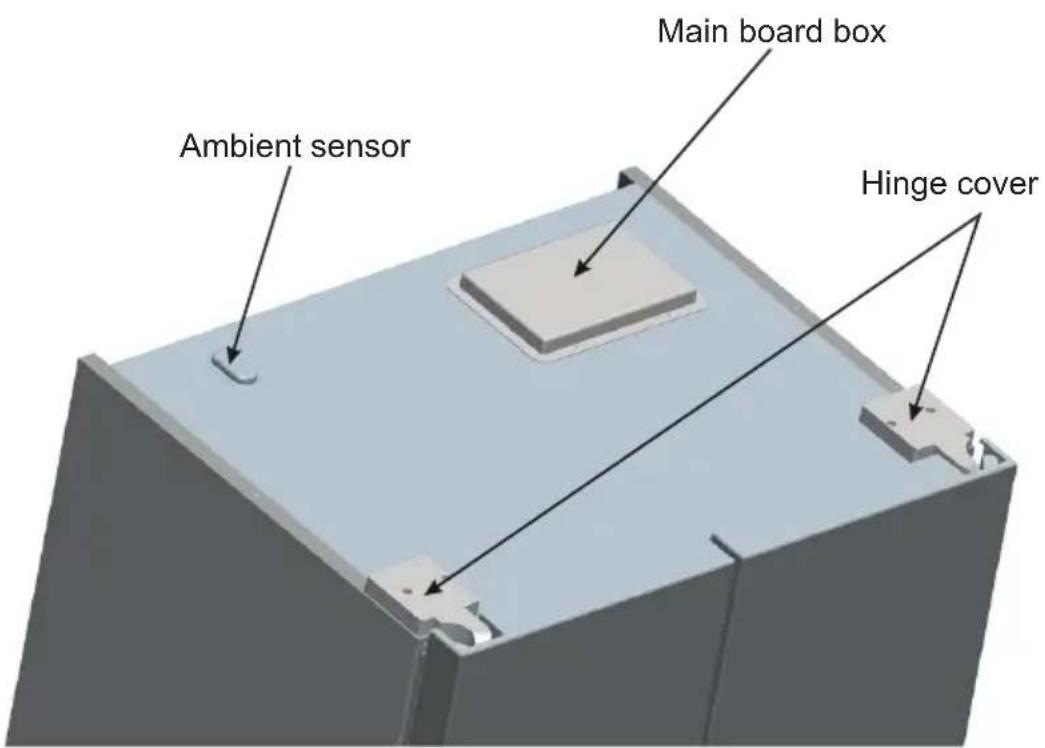

• An ambient sensor, main board and hinge covers are available on your refrigerator. During cleaning, make sure no fluid enters this area.

Carry your refrigerator with 4 people as indicated in the figure.

CheckWarnings;

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. You can see these warnings on the indicator display.

ERROR DISPLAY ERROR TYPE REMA	RK DO's
and audible warning	Error warning	One or more equipment of the product has been deactivated or there is cooling problem. Contact a service as soon as possible.
	Freezer department is not cold enough	May arise due to long-period energy cut-off or failure of cooling equipment. 1. In case of melted product in compartment, do not refill and consume up as soon as possible. 2. Until temperature of compartment returns to normal (warning disappears), operate in a lower temperature or in Super Freeze Mode. 3. Do not place fresh food in compartment unless this warning disappears.
	Freezer department is not cold enough	Cooler has lost its ideal temperature. 1. Until temperature of compartment returns to normal (warning disappears), operate in a lower temperature or in Super Cool Mode. 2. Do not open door until this error disappears.
	Cooler compartment is overcool.	Our product in cooler compartment are in risk of freezing. 1. If Super Cool is active, cancel it. 2. Operate under lower setting value.
	Mains voltage has decreased under 170V.	This is not an error, it is intended for warning and precaution. When mains voltage restores to normal value, the warning will disappear.

BEFORE CALLING SERVICE

CheckWarnings;

If your fridge is not operating;

• Is there any electrical faults?
• Is your appliance plugged?
• Is the fuse of the receptacle that the plug is plugged or the main fuse blown?
• Is there any fault in the socket? Examine this by plugging your fridge into a socket outlet which you are sure that is working.

If your fridge is operating too loudly

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Valve sound: Ticking sound is normal when your refrigerator runs. This sound is released from a valve behind your refrigerator.

Vacuuming sound: After your refrigerator's doors are opened and closed, a short sound may be heard due to pressure difference. That is normal exactly.

Normal motor noise: This noise means that the compressor operates normally. Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air blow noise: Normal fan noise. This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door joints broken or torn?
  Is your fridge on a level surface?

BEFORE CALLING SERVICE

IMPORTANT NOTES:

• Compressor protection thermal fuse will be blown after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 4 or 5 minutes, there is nothing to worry about.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. After defrosting, clean your fridge and leave the door open to prevent humidity and smell.

• If the problem persists after you have followed all the instructions above, please consult to the nearest Authorized Service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• The lifetime of your appliance stated and declared by the Consumer Protection and Market Surveillance General Directorate under T.R. Ministry of Customs and Ministry (the period for retaining parts required for the proper functioning of the appliance) is 10 years.

6.1 Recommendations for Energy Saving

1. Place your appliance in a cool and well-ventilated room, avoid placing towards direct sunlight or near heat radiators (radiator, oven, etc.). Otherwise, use insulation plate.
2. Allow hot food and drinks to cool down outside the appliance.
3. Place frozen food in refrigerator for thawing. When frozen food is thawed, its lower temperature will help refrigerator cool down. Thus, energy will be saved. Putting frozen food outside will cause waste of energy.
4. When putting drinks and homemade food into refrigerator, make sure that they are in an enclosed bowl. Otherwise, humidity in the appliance will rise. This will make operation time longer. Preserving drinks and homemade food in enclosed bowls will also avoid deterioration of odours and tastes.
5. When putting drinks and food in the refrigerator, leave door of appliance open for some time as short as possible.
6. Keep compartments with different temperature values in the appliance closed. (crisper, chiller compartment, etc.)
7. Door gasket should be clean and flexible. Replace old gaskets.
8. Night sensor in active mode and door handle LEDs in OFF position will lead to energy saving. (It applies to the refrigerators having the feature)

B1. Zone-1 / B2. Zone-2

nnn nnn nn nnn nnn nnn nnn nnn

XINU DIOO N

, nnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n7 nno7 ty nnn nn nnn nnn nnn nnn nnn

.

X 7nn X7 nn7 yinn .nwn nn7 x7 D0 w7inn iinn n

.

nir nir, nir niu, nir nn. dnnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnr

.0NN NIN 001 NNI DNN NNN

I 1

.

#

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

NITAN

.6C T4C-7 IINN NNNN NNN

n nn nnnn nn nn nnnnnnnnnn nn nnnn

1N DIOI, DIOO

nnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

:nnyn

ynnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Oo oon nn nnnn nn nnnn nn nnnn

nann nn nnn nyon ny

.111 111 111 111 111

JINN JIN NNNNNNNNNNN

3/4 1

y 109 y n nn nn nnnn nn nn nn nn

.

:

X .nON X77 IINN NININ INNTIIN NINNNN NNNN

.707 pinn nn nnnn nn

n nn nnnn nn

nynnnn nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

n 10C-7 nnnn nn nn nn nn nn nn nn

nhyonnn nhy

JINN NIN,NNN INNININNININNINININININININININININININ

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

777

24 2n nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

.

n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn

.5 7y7y7

n7 7 nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nn

n nn nnnnnnn

ninn nnn nn nnn nnn nnn nnn

.15 nnnn nn nnnn

.

2-wnnnn .yohny

.

n no nn nn nnn nn nn nn nn nn nn nn nn nn nn nn

y 7 .nIOI nn noNN y n7 ynn nn .10

.

nnuuuyinio7nx,innnnnnnnnnnnnnnnnn

.11X 7u 7y 79N7 TJNT

nunnnn 197

X117 1y7 ynn noon n7 niw 3- nn

.

nhy nyn nn yonnn ny

.

NIN

nwnnn nn nn nn nn nn 7x

X97n X n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

1.

.

nnn nn 7 nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

.

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.172n nn 1210 7X nTyn 7N,179n 7

nnn n nn n nn n nn n nn n nn

ninnnn

7777777X.0000000000000000000000000000

n7 nnnn nn nnnn nn nnnn nn nnnn nn

nXn 7n 7n 7n

.（）n9nnnnnnn nn nwnnwnnnn

.

IN INIOI 7D DNOXN NINN

n nn nnnn nn n nn n nn n nn n nn

nX97nn 7nn nn

Tynn nn nnnn nn nnnn nn nnnn nn nnnn

JINON

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

yNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnN

.

.

IN Nn nn (nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nTn 17 nniin nn ynn ,IOyIN IN DONN IN

nn nn7 7n n y in79 .nnin7 D'NNNn "y vin" nn

.7wnnnn

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.7noin XIO IN INVON NIN

T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T 7 T

:1n
