Brand	TP-Link
Model	Archer VR200v
Product Type	ADSL/VDSL modem router with VoIP telephony
Dimensions (approx.)	20.0 x 14.0 x 3.5 cm
Weight (approx.)	300 g
Power Supply	12V / 1A power adapter
Main Functions	ADSL/VDSL router, Wi-Fi access point (802.11n/ac standards), VoIP telephony (2 RJ11 ports), 4 Gigabit LAN ports, 1 WAN port, firewall, parental control
Wireless Security	WPA/WPA2-PSK, WPA/WPA2-Enterprise
Wi-Fi Frequency Band	2.4 GHz and 5 GHz (dual band)
Care and Cleaning	Unplug before cleaning, use a soft dry cloth. Keep away from water, heat, and humidity.
Safety	Do not disassemble, repair, or modify. Use the recommended adapter. Keep out of reach of children.
Spare Parts and Repairability	No user-serviceable parts. In case of failure, contact TP-Link support or retailer.
Warranty	Limited warranty (duration varies by country, see packaging)
General Information	79-page user manual available in PDF. Tether app for mobile management.

Frequently Asked Questions - Archer VR200v TP-LINK

What to do if the authentication page does not appear?

Check that the computer obtains an IP address automatically. Type http://tplinkmodem.net correctly in the address bar and press Enter. Try a different browser. Reboot the modem router. Disable then re-enable the network adapter.

What to do if the LED status is not correct?

Check the telephone and power connections. Reset the modem router to factory settings. Remove the DSL filter and connect directly to the telephone jack. Contact your ISP to check the DSL line status. If the problem persists, contact technical support.

What to do if I cannot access the Internet?

Make sure the telephone and network cables are properly connected. Log into the web interface via http://tplinkmodem.net. Check the VCI/VPI settings, connection type, username, and password with your ISP. Restore default settings and reconfigure.

What to do if I forgot my administration password?

Reset the router to factory settings by holding the RESET button for about 10 seconds until the LEDs blink. Then use admin as the username and password, or create a new password.

How to restore the modem router to factory defaults?

While powered on, hold the RESET button until the LEDs change state (blinking). Release. You can also do this from the web interface under System Administration.

How to change the Wi-Fi password?

Log into the administration interface via http://tplinkmodem.net. Go to Wireless Settings, modify the Wireless Password and save. Reboot the router if necessary.

How to update the router firmware?

Download the latest firmware from the TP-Link website. Log into the web interface, go to System Tools > Firmware Update. Select the downloaded file and start the update. Do not turn off the power during the operation.

How to set up parental control?

Log into the web interface, go to Access Control or Parental Control. Add rules to block or limit access to certain sites or time ranges. You can also use the Tether app.

Can the router work without a telephone line?

Yes, if you do not use the telephone service, you can connect the modem router directly to the telephone jack for ADSL, or use the WAN port in Wi-Fi router mode if you already have a modem.

How to use the Tether app?

Scan the QR code in the manual to download the Tether app from the App Store or Google Play. Install it, then follow the instructions to connect your router. You can manage Wi-Fi, parental control, block devices, etc.

USER MANUAL Archer VR200v TP-LINK

Quick Installation Guide

Wireless DSL Modem Router

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support.

2024TP-Link710651173REV1.5.3

CONTENTS

1 / Deutsch
6 / English
11 / Espanol
16 / Eληνικα
22 / Français
27 / Italiano
32 / Portugues
37 / Suomi
42 / Svenska
47 / Netherlands
52 / Norsk
57 / Dansk

Hardwareinstallation

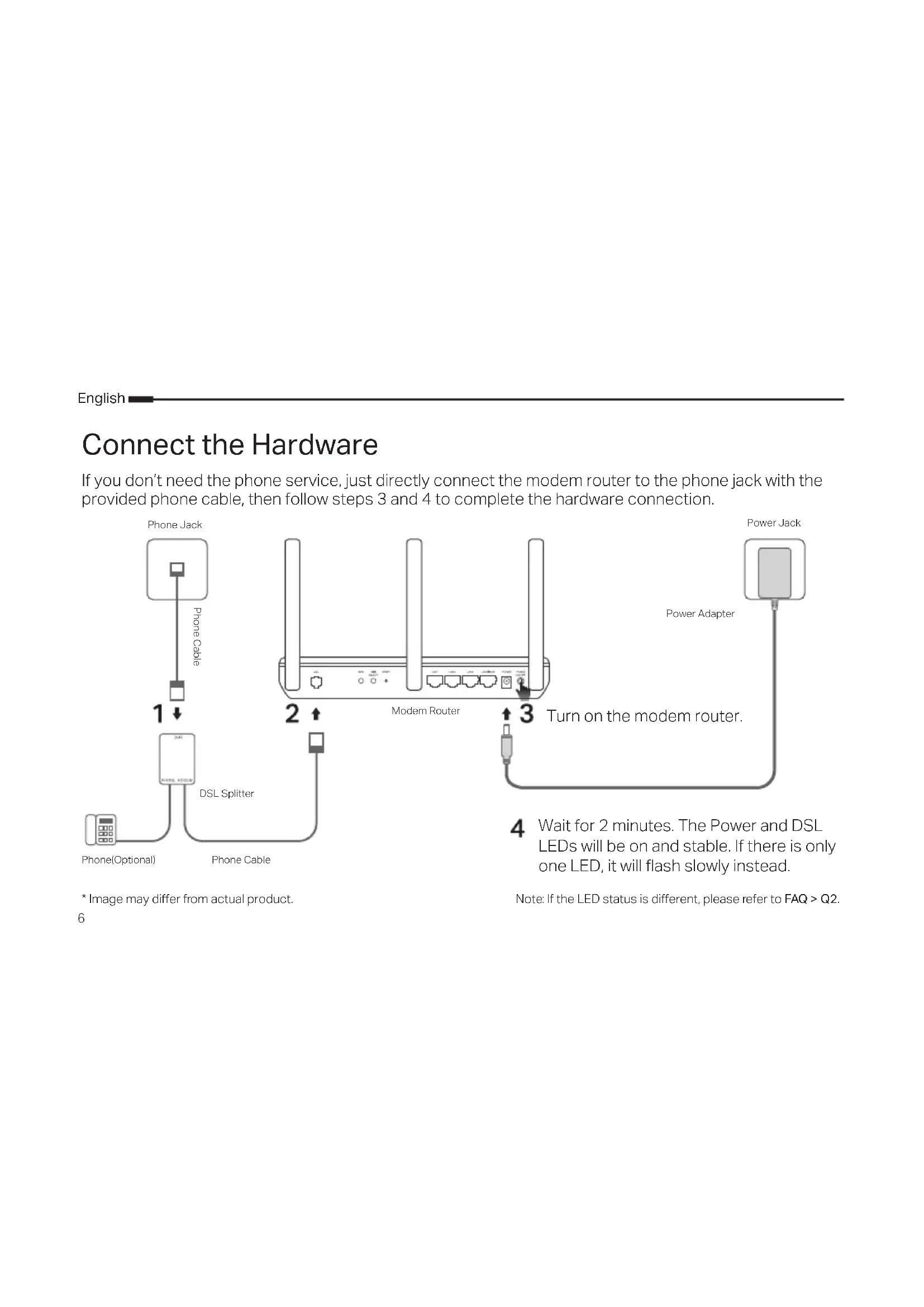

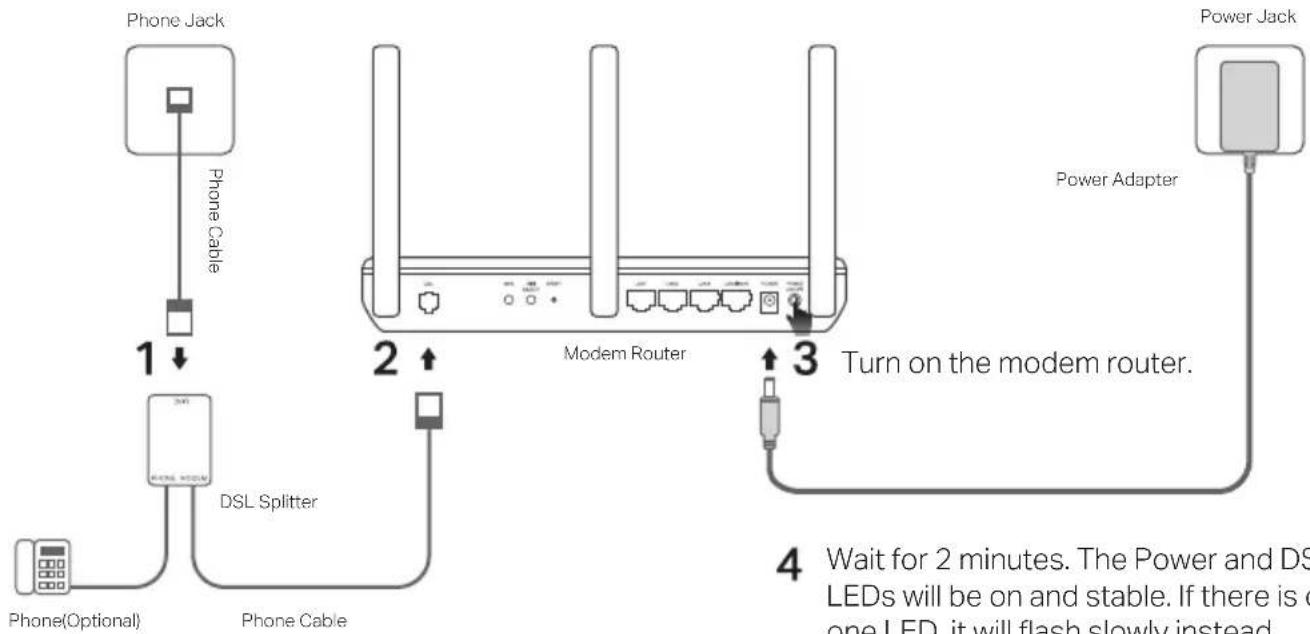

Connect the Hardware

If you don't need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

* Image may differ from actual product.

4 Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only one LED, it will flash slowly instead.

Note: If the LED status is different, please refer to FAQ > Q2.

Configure via Web Browser

1 Connecting your computer to the modem router via a wired or wireless connection

Wired

Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable.

Wireless

Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router.

2 Configuring the modem router via a web browser

A Launch a web browser and type in

http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ >Q1.

B Create a password for future login attempts, or use admin for both username and password for some routers.
C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration.

Now you can enjoy your internet.

Already Have a Modem?

If you already have a modem or your internet comes directly from an Ethernet wall outlet, you can switch to Wireless Router mode. Follow the steps below and set up.

1 Connect your computer to the router (LAN 1/2/3 port) via a wired or wireless connection. Note: The SSIDs (network names) and wireless password are printed on the product label.

2 Configuring the modem router via a web browser

A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1. Note: If the login page does not appear, please refer to FAQ >Q1.

http://tplinkmodem.net

B Create a password for future login attempts, or use admin for both username and password for some routers.

3 Connect the modem to the router's WAN port via an Ethernet cable.

4 Go to WAN > WAN Configuration to change WAN PHYSICAL TYPE and finish the setup.

Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link's official website at www.tp-link.com.

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

Note: Tether is not supported by some routers. Please check the app description before downloading.

FAQ (Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

A1. If the computer is set to a static or fixed IP address, change the settings to obtain an IP address automatically from the modem router.
A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.
A3. Use another web browser and try again.
A4. Reboot your modem router and try again.
A5. Disable and enable the active network adapter.
Q2. What can I do if the LED status is not correct?
A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.
A2. Restore your modem router to its factory default settings.
A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then reconfigure the modem router by following the instructions in this Quick Installation Guide.
A4. Contact your ISP to verify if the DSL line is in good status.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

English

Q3. What can I do if I cannot access the internet?

A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again.
A4. Restore the modem router to its factory default settings and reconfigure the modem router by following the instructions in this Quick Installation Guide.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

Q4. What can I do if I forget my password?

• Web management page password:

A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

• Wireless network password:

A1. The default Wireless Password/PIN is printed on the product label of the modem router.

A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password.

Q5. How do I restore the modem router to its factory default settings?

A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button.
A2. Log in to the web management page of the modem router and go to the system management page to restore the modem router.

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only.

For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.
