Brand	TELEFUNKEN
Model	TFEKS123X10A++
Product type	Combined refrigerator-freezer
Power supply	220-240 V, 50 Hz
Climate class	SN, N, ST, T (from 10°C to 43°C)
Refrigerant	R600a (flammable, environmentally friendly)
Freezing capacity (24h)	Indicated on the rating plate
Features	Adjustable thermostat (1-5), automatic defrost for refrigerator, manual defrost for freezer, open door indicator, ice cube tray
Door reversibility	Yes, possible to reverse the opening direction
Adjustable feet	Yes, at the front
Interior lighting	Bulb (max 15W) or LED depending on version
Included accessories	Ice cube tray, plastic spatula, shelves, vegetable drawer, egg tray, bottle rack
Maintenance	Cleaning with baking soda and warm water, periodic defrosting of freezer
Safety	Grounded plug, child lock (destroy lock before disposal), do not use multiple sockets
Installation	50 cm from heat sources, 2 cm between appliances, wait 3 hours before starting after transport
Energy class	Not specified (refer to energy label)

Frequently Asked Questions - TFEKS123X10A++ TELEFUNKEN

How to adjust the temperature of the refrigerator and freezer?

Use the thermostat: position 1 (minimum) to 5 (maximum). For short-term storage, set between 1 and 3; for long-term storage, between 3 and 4. The "●" position stops cooling.

What to do in case of abnormal noise?

Check that the appliance is level, that objects on it are not vibrating, and that the refrigerant gas is circulating normally (bubbling sound). If the noise persists, contact after-sales service.

How to defrost the freezer?

The day before, set the thermostat to 5 to freeze the food. Then, set the thermostat to "●", unplug the appliance, leave the door open and remove the frost with a plastic spatula. Never use metal objects.

How to reverse the door opening direction?

Follow the instructions in the manual: disassemble the hinges, pins and covers, then reassemble them on the opposite side. Note: this operation requires tools and patience.

What to do if the interior bulb no longer lights up?

Unplug the appliance, remove the lamp cover by pressing the hooks, replace the bulb with one of less than 15W, then replace the cover and plug back in after 5 minutes. For LED, contact a professional.

Why is there water in the vegetable drawer?

This may be due to a blocked defrost water drain hole. Clean it with the provided cleaning rod. Also check that food is not blocking air circulation.

How long can I store food in the freezer?

It depends on the food. In general, meat keeps for 6 to 10 months, vegetables 8 to 12 months, and cooked dishes 1 to 3 months. Respect the times indicated on the packaging.

Can I refreeze a thawed food?

No, once thawed, the food must be consumed quickly or cooked before refreezing. Refreezing may cause food poisoning.

What to do if the appliance is not cooling enough?

Check the thermostat setting, that the door is properly closed, that the ventilation is not obstructed, and that the ambient temperature is within the climate class range. If nothing works, call after-sales service.

What are the essential safety instructions?

Do not damage the refrigeration circuit (R600a), do not use electrical appliances inside unless recommended, do not store explosive substances, and unplug before cleaning. Children should not play with the appliance.

USER MANUAL TFEKS123X10A++ TELEFUNKEN

Simple line drawing of a rectangular door with a vertical slot on the left side (no text or symbols)

Diagram of two coiled heat exchanger-like structures with no text or symbols

Diagram showing six labeled mechanical parts with corresponding schematic symbols and specifications

Abb. A

mm 550 40 min min. 200 cm² 560-570 540 max. 2100 B 90° min. 200 cm² A A B 875 875 - 895 1020 1020 - 1040 1225 1225 - 1245 Abb. C

min. 200 cm² min. 200 cm²

Abb.B

Technical diagram of a refrigerator with labeled parts and directional arrows indicating assembly or movement.

Abb. D Abb.E

Technical diagram of a refrigerator with labeled parts and an inset showing internal structure with arrows and symbols.

5 Abb. F

Figure G

Technical diagram of a cabinet with labeled components and assembly steps, showing internal components and mounting details.

Abb. H

Diagram of a refrigerator interior with labeled parts 11, 12, and 13, showing mechanical components and airflow direction.

Abb. J Abb.K

17 15 a 16 c 18 b 14

Labeled diagram of an open refrigerator showing numbered compartments and internal structure

Line drawing of a handheld electric shaver with spiral cooling fins and a circular dial (no text or symbols)

Illustration showing three hand positions: a bench with a fork, a grid-patterned tray, and a hand holding a tool with a black X (no text or symbols)

Simple diagram showing a green vertical line inside a gray rounded rectangle, with no text or symbols present.

Technical line drawing of a structural component with an inset showing hand positioning on a staircase (no text or symbols)

Technical line drawing of a handheld electric shaver with internal components (no text or symbols)

1.1. General Safety Warnings ......21
1.2. Installation Warnings ......23
1.3. During Usage....24

2. INSTALLATION....25

2.1. Installation instaructions and door reversibility....25
2.2. Door reversing....28

3. DESCRIPTION OF THE APPLIANCE 28

4. USING THE APPLIANCE ...... 29

4.1. Thermostat Setting 29
4.2. Warnings for Temperature Settings 29
4.3. Accessories ...... 30
4.3.1. Ice Tray....30
4.3.2. "Door Open" Indicator; 30
4.3.3. Plastic Scraper 30

5. FOOD STORAGE GUIDANCE .... 30

5.1. Refrigerator Compartment....30
5.2. Freezer Compartment ......31

6. CLEANING AND MAINTENANCE .... 34

6.1. Defrosting ....34
6.1.1. Refrigerator Compartment....34
6.1.2. Freezer Compartment ...... 34
6.2. Replacing the Light Bulb 35

7. SHIPMENT AND REPOSITIONING....35

7.1. Transportation and Changing of Installation Position 35
8. TROUBLESHOOTING....35
9. TIPS FOR SAVING ENERGY ...... 36

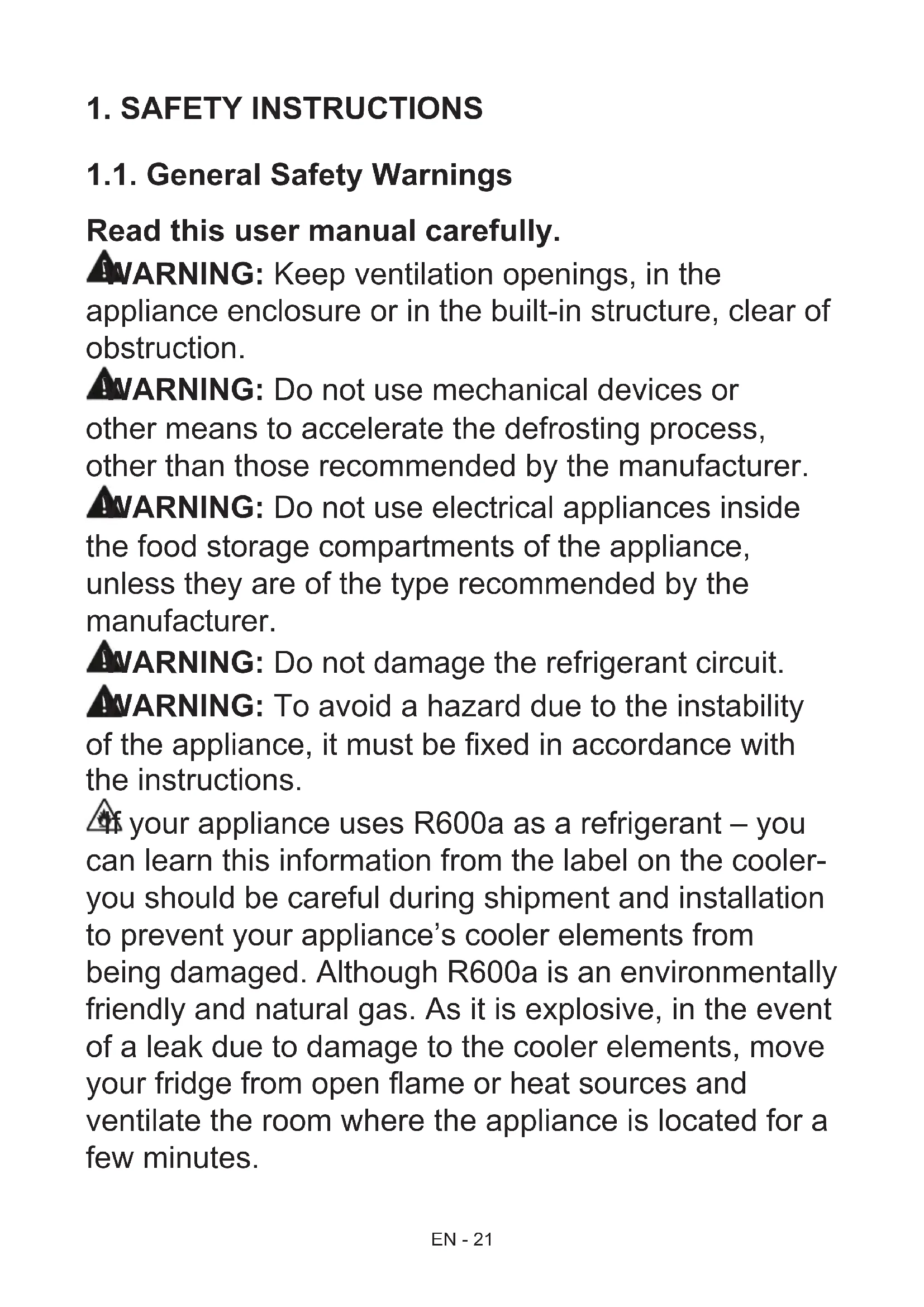

1. SAFETY INSTRUCTIONS

1.1. General Safety Warnings

Read this user manual carefully.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler-you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and similar applications such as;

-staff kitchen areas in shops, offices and other working environments

-farm houses and by clients in hotels, motels and other residential type environments

-bed and breakfast type environments

-catering and similar non-retail applications

- If the socket does not match the freezer fridge plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your freezer fridge. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved.

Children shall not play with the appliance. Cleaning

and user maintenance, shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

1.2. Installation Warnings

Before starting to use your fridge freezer, you should pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not

be exposed to direct sunlight.

• Your fridge freezer should never be used outdoors or exposed to rain.
• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• When your fridge freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).
• The installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge freezer.
• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning
• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ (as shown in the figure) to prevent the condenser from touching the wall.
• The fridge freezer should be placed

against a wall with a free space not exceeding 75 mm.

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows

Two identical diagrams showing a person running on parallel lines with a robot-like figure below, no text or symbols present.

efficient operation and prevents damage to the compressor.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

1.3. During Usage

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.
• Do not place explosive or flammable material in your fridge freezer. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.
• Do not cover the body or top of fridge freezer with lace. This affects the performance of your fridge freezer.

- Secure any accessories in the fridge freezer during transportation to prevent damage to the accessories.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

- We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

2. INSTALLATION

2.1. Installation instaructions and door reversibility

Before installation, read the instructions carefully.

Fit the refrigerator/freezer in stable kitchen units only.

If necessary, reverse the door according to instructions.

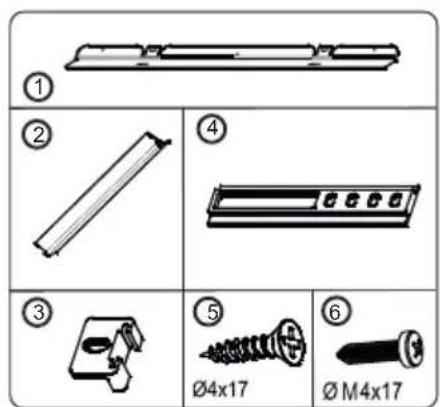

1. See fig.A for the necessary attachment components.

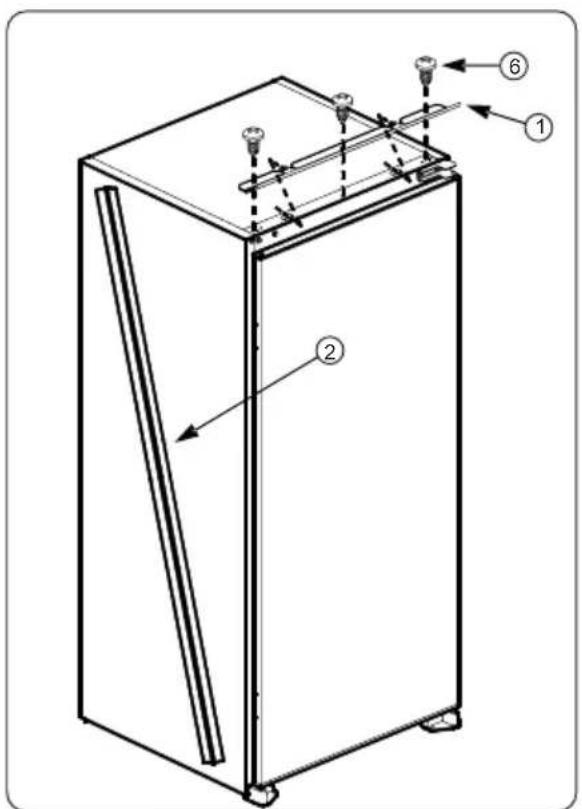

2. Insert trim flap ^1 into slot and screw by screws ^6 . (fig.D)
3. Pass the power cord through ventilation shaft and position it so that the appliance could be easily plugged in once it has been installed. (fig.B - fig.C)
4. Take out the trim gasket ^4 located on the side panel of the appliance and stick it on reverse side of the door hinges of the appliance. (fig.D - fig.E)
5. Raise the appliance and slide into the kitchen unit.
6. Push the appliance to the reverse side of the door hinges providing that the trim gasket ^2 covers the space between the appliance and the kitchen unit.

7. Align the front feet with front surface of the kitchen unit. (fig.F)

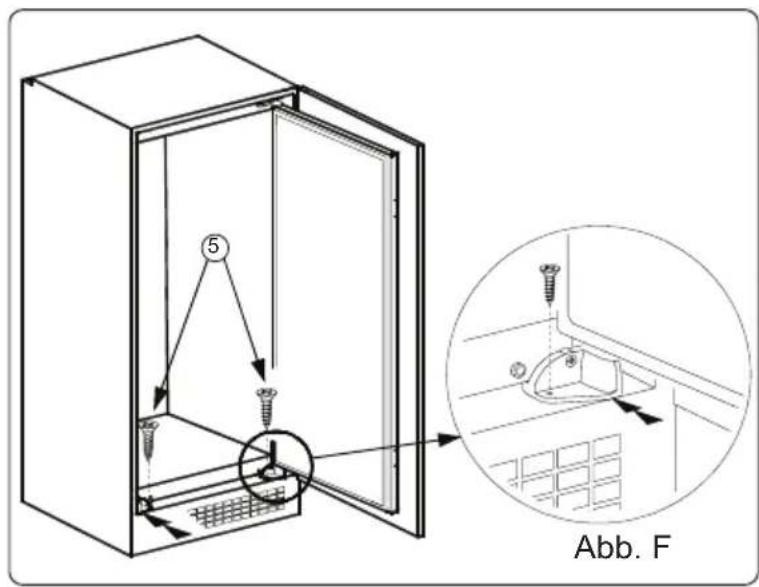

8. Screw the front feet by using screws ^5 . (fig.F)

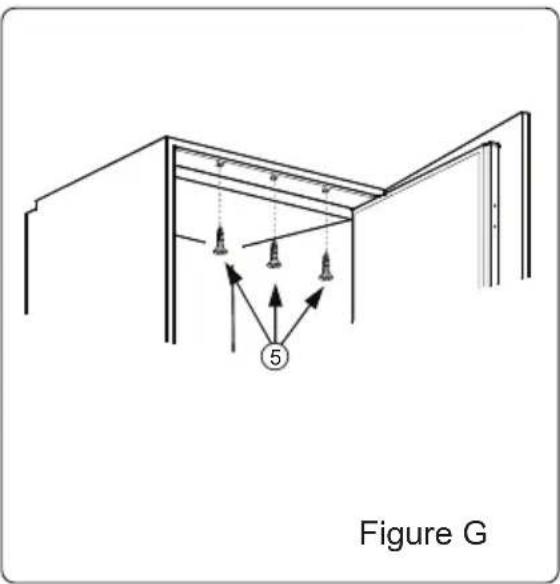

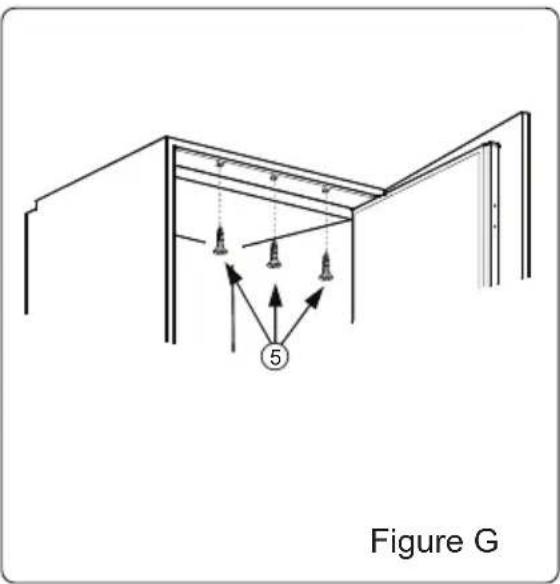

9. Screw trim flap ^1 to kitchen unit using screws ^5 . (fig.G)
10. Screw guides ^3 to appliance door with screws ^6 . (fig.H)
11. Lean appliance door to unit door as it is opened at right angle.
12. Slide rails ^4 into guides ^3 aligning the groove. (fig.H)
13. Screw the rails ^4 to the unit door with screws ^5 . (fig.H)
14. Set 1\~2 mm gap on handle side between unit itself and unit door by adjusting guides ^3 . That is vital for appliance performance. (fig.H)

Diagram showing six labeled mechanical parts with corresponding schematic symbols and specifications

Figure A

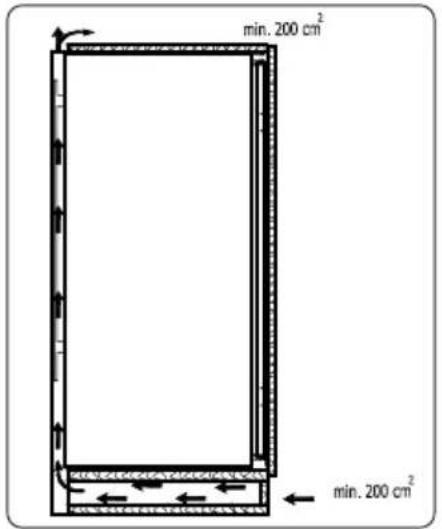

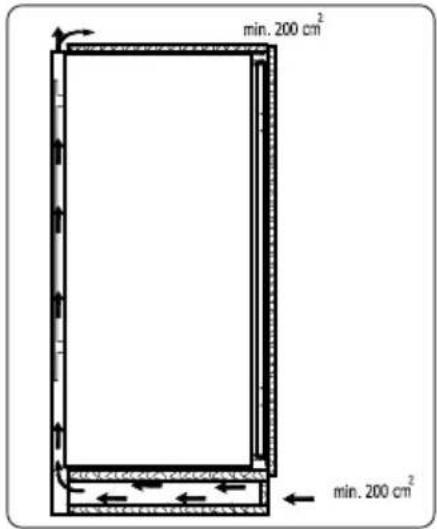

A B 875 875 - 895 1020 1020 - 1040 1225 1225 - 1245 550 min. 200 cm² 560-570 max. 2100 B 540 90° min. 200 cm² A

Figure C

min. 200 cm² min. 200 cm²

Figure B

Technical diagram of a refrigerator with labeled parts and directional arrows indicating assembly or movement.

Figure D

Technical diagram of a refrigerator with labeled parts and an inset showing internal structure details.

Figure E

Figure F

Figure G

Figure H

13 12 11 Figure J

17 15 a 16 c b 18 14 Figure K

2.2. Door reversing

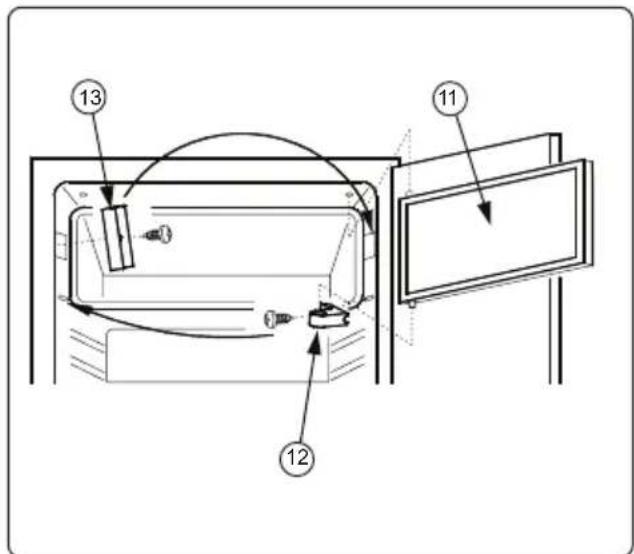

1. Open appliance door ^14 and freezer door ^11 . (fig.J)
2. Disassemble freezer door hinge ^12 and take freezer door ^11 to safe place. (fig.J)
3. Disassemble freezer door lock ^15 and assemble it to opposite side.(fig.J)
4. Position freezer door ^11 to keep handle close to freezer door lock ^13 and insert its upper axes into cabinet hole / lower axes into freezer door hinge 12 and then assemble freezer door hinge ^12 to opposite side of original position. (fig.J)
5. Disassemble door hinge ^15 and take appliance door ^14 to safe place. (fig.K)

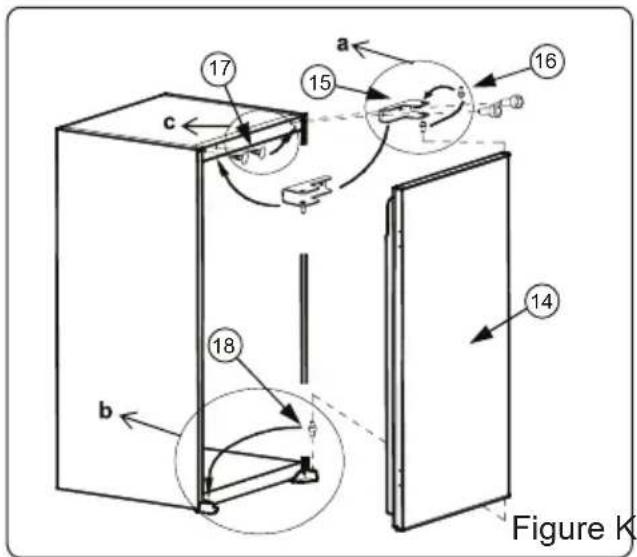

6. Unscrew door hinge pin ^16 and screw it to opposite side firmly and take to safe place. (fig.K.a)
7. Take door lower pin ^18 to opposite side. (fig.K.b)
8. Take hole plugs ^17 to opposite side. (fig.K.c)
9. Place appliance door ^14 over door lower pin18 and insert door hinge pin ^16 into hinge hole on appliance door ^14 and then screw door hinge ^15 firmly onto opposite side of original position. (fig.K)

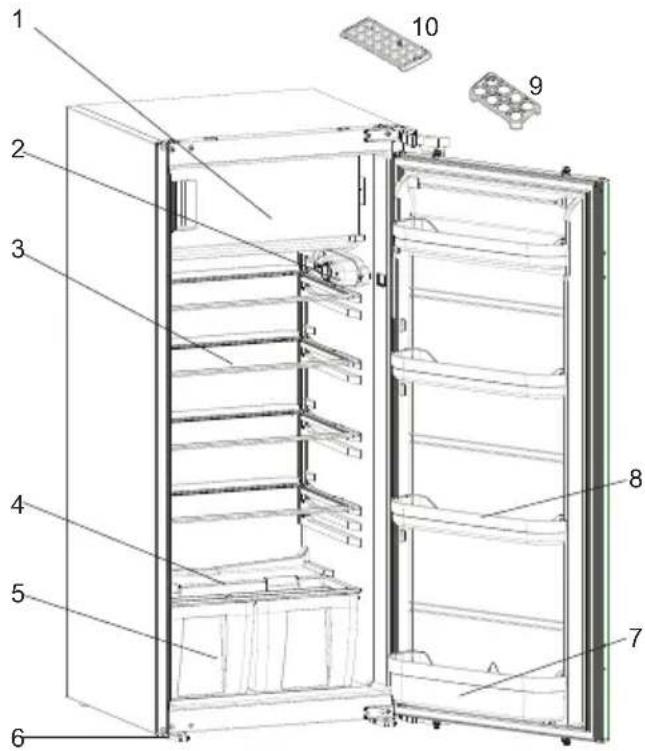

3. DESCRIPTION OF THE APPLIANCE

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Freezer compartment & Freezer door
2) Termostat box
3) Fridge compartment shelves
4) Crisper cover
5) Crispers
6) Left & right feet
7) Bottle shelf
8) Door shelves
9) Egg holder
10) Ice tray

4. USING THE APPLIANCE

4.1. Thermostat Setting

Thermostat knob MAX 5 Lamp cover

• The thermostat automatically regulates the inside temperature of the refrigerator compartment and the freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained.
• Important note: Do not try to rotate the knob beyond position 1. It will stop your appliance from working.
• For short-term storage of food in the freezer compartment, you can set the knob between positions 1 and 3.
• For long-term storage of food in the freezer compartment, you can set knop to positions 3-4.
• Note that: the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

4.2. Warnings for Temperature Settings

• Warnings for Temperature Settings
• The freezer**** of the refrigerator can cool up to -18°C and more.
• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

- The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.

- Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

- A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.

- This appliance is designed for use at an ambient temperature within the 16°C - 32°C range.

Climate class Ambient temperature °C
T Between 16 - 43	°C
ST Between 16 - 38	°C
N Between 16 - 32	°C
SN Between 10 - 32	°C

4.3. Accessories

4.3.1. Ice Tray

Illustration showing three hand positions: a tool on a grid, a hand holding a keyboard, and a hand crossed out with a black 'X' symbol (no text or symbols present)

- Fill the ice tray with water and place in freezer compartment.

• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

4.3.2. "Door Open" Indicator;

- The "Door Open" indicator on the lock

slide indicates whether the door is closed properly or not.

- If the red indicator is visible, the door is still open.

- If the red indicator is invisible, the door is properly closed.

- Observe that the freezer door should always be kept closed properly. This will prevent food inside the freezer from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

4.3.3. Plastic Scraper

After a period of time, frost will build up in certain areas in the freezer compartment.

The frost, accumulated in the

freezer, should be removed periodically.

Use the plastic scraper provided if necessary. Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit.

All written and visual descriptions in the accessories may vary according to the appliance model.

Simple diagram of a device with a green indicator line and a small red dot, no text or symbols present.

5. FOOD STORAGE GUIDANCE

5.1. Refrigerator Compartment

The refrigerator compartment is used for storing fresh food for few days.

• Do not place food in directly in contact with the rear wall of the refrigerator compartment. Leave some space around the food to allow air to circulate.
• Do not place hot food or evaporating liquid in the refrigerator.
  • Always make sure food is wrapped or stored in closed containers before placing in the refrigerator.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.
• We recommend that you loosely wrap meat and store it on the glass shelf just above the vegetable bin, where the air is cooler.
• Store fruit and vegetable items loose in the crisper containers.
• To prevent the cold air from escaping, try not to open the door too often and do not leave it open for a long time.

Food	Maximum Storing time	Where to place in the fridge compartment
Vegetables and fruits	1 week Vegetable bin
Meat and fish	2 - 3 Days	Wrapped in plastic foil or bags or in a meat container (on the glass shelf)
Fresh cheese	3 - 4 Days In special door shelf
Butter and margarine	1 week In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs 1 month	In the egg shelf
Cooked food	All shelves

5.2. Freezer Compartment

• The freezer compartment is used for freezing fresh food and for storing frozen food for the period of time indicated on packaging and for making ice cubes.
• When freezing fresh food, wrap and seal the food properly; that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil (heavy grade, if in doubt double wrap), polythene bags and plastic containers are ideal.
• Do not allow the fresh food to come into contact with the already frozen food.
• Always mark the date and the content on the pack and do not exceed the stated storage time.
• In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.
• The maximum amount of fresh food that can be stored in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).
• Never place warm food in the freezer compartment.
• When purchasing and storing frozen food products, ensure that the packaging is not damaged.
• The storage time and the recommended temperature for storing frozen food is indicated on the packaging. For storing and using, follow the manufacturer's instructions. If no information is provided, food should not be stored for more than 3 months.
• Place frozen food in the freezer compartment as soon as possible after buying it.
• Once the food has thawed, it must not be refrozen. You must cook it as quickly as possible. In order to consume or to freeze once again.

Meat and fish Preparation		Maximum Storing time (month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna Sausage /Salami	Should be packaged even if it has membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar In 2.5 kg portions and as fillets 6 - 8
Freshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.	2
Lean fish; bass, turbot, flounder		4
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2 - 4
Shellfish	Cleaned and in bags	4 - 6
Caviar	In its package, aluminium or plastic container	2 - 3
Snail	In salty water, aluminum or plastic container	3

NOTE: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.

Vegetables and Fruits Preparation		Maximum Storing time (months)
String beans and beans	Wash and cut to small pieces and boil in water	10 - 13
Beans Hull and wash and boil in water 12
Cabbage Cleaned and boil in water 6 - 8
Carrot Clean and cut to slices and boil in water 12
Pepper	Cut the stem, cut into two pieces and remove the core and boil in water	8 - 10
Spinach Washed and boil in water 6 - 9
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut to pieces of 2cm after washing	10 - 12
Corn	Clean and pack with its stem or as sweet corn	12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone	4 - 6
Strawberry and Blackberry Wash and hull	8 - 12
Cooked fruits	Adding 10 % of sugar in the container	12
Plum, cherry, sourberry	Wash and hull the stems 8 - 12

	Maximum Storing time (months)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits	3 - 6	1 - 1,5	5-8 (190-200 °C)
Pastry	1 - 3	2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza 2 - 3	2 - 4	15-20 (200 °C)
Dairy Products	Preparation	Maximum Storing time (months)	Storing Conditions
Packet (Homogenize) Milk	In its own packet	2 - 3	Pure Milk – In its own packet
Cheese-excluding white cheese	In slices	6 - 8	Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine	In its package	6

6. CLEANING AND MAINTENANCE

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water Do not clean m in the dishwasher.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

THE POWER SUPPLY MUST BE DISCONNECTED.

6.1. Defrosting

6.1.1. Refrigerator Compartment

Technical line drawing of a structural component with an inset showing hand positioning on a grid-like structure (no text or symbols)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

6.1.2. Freezer Compartment

- The frost, accumulated in the freezer compartment, should be removed periodically (Use the plastic scraper provided). The freezer compartment should be cleaned in the same way as the refrigerator compartment, with the defrost function of the compartment at least twice a year.

- For this:

- The day before you defrost, set the thermostat dial to "5" position to freeze the food completely.

- During defrosting, frozen food should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten its storage life. Remember to use this food within a relatively short period of time.

- Set the thermostat knob to position “•” or unplug the unit. Leave the door open until the unit is completely defrosted.

• To accelerate the defrosting process, one or more bowls of warm water can be placed in the freezer compartment.

- Dry the inside of the unit carefully and set the thermostat knob to the MAX position.

6.2. Replacing the Light Bulb

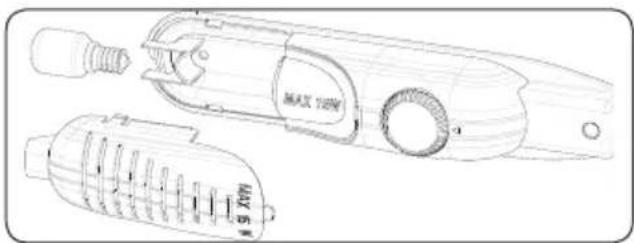

Technical line drawing of a handheld tool with two views: top shows internal components, bottom shows internal structure (no text or symbols)

When replacing the bulb of the fridge compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

7. SHIPMENT AND REPOSITIONING

7.1. Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Carry your freezer fridge in the upright position.

8. TROUBLESHOOTING

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check that:

• There is a power failure,
- The mains plug is not plugged in properly, or is loose
- The thermostat setting is on position “•”,
- The socket is defective. To check this, plug in another appliance that you know is working into the same socket.

The appliance performs poorly,

Check that:

• You have overloaded the appliance,
  • The doors are not closed properly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise:

• The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If you hear a different sound, check if:
  • The appliance is installed firmly as described in the Installation Manual.
  • The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator,

Check that:

• The drain hole for the water is not clogged (use the defrost drain plug to clean the drain hole).
• If your fridge is not cooling sufficiently:
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated on the information label. We

do not recommend operating your fridge out of stated temperatures value limits.

This will reduce the cooling efficiency of the fridge.

Recommendations

• Unplug the refrigerator during a power cut in order to prevent any damage to the compressor. Wait 5-10 minutes before plugging the appliance in once power returns.
• If you unplug your refrigerator for any reason, wait at least 5 minutes before plugging it in. This will avoid damage to the refrigerator's components.
• The cooling unit of your refrigerator is hidden at the rear of the appliance. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal, there is no need to perform a defrosting operation unless the icing is excessive.
• If you do not intend to use your fridge for a long period of time (e.g. in summer holidays), put the thermostat to “•” position. After defrosting, clean your fridge and leave the door open to prevent humidity and smells.
• If a problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.
• The appliance you have purchased is designed for domestic use and can only be used for the stated purposes. It is not suitable for commercial use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and dealer will not be responsible for any repair or failure within the guarantee period.

9. TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.
4. Cover drinks or other liquids when placing them in the appliance Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
5. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (crisper, chiller etc) closed
7. Door gasket must be clean and pliable. Replace gaskets if worn.

SOMMAÏRE

1. AVANT D'UTILISER L'APPAREIL 38

Two identical diagrams of heat exchanger-like structures with no text or symbols

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

2. INSTRUCTIONS DE MONTAGE ET REVERSIBILITE DES PORTES

Diagram showing six labeled mechanical parts with corresponding schematic symbols and dimensions

Figure A

A B 875 875 - 895 1020 1020 - 1040 1225 1225 - 1245 550 min. 200 cm² 560-570 max. 2100 B 540 90° min. 200 cm² A

Figure C

min. 200 cm² min. 200 cm²

Figure B

Technical diagram of a refrigerator with labeled parts and directional arrows indicating assembly or movement.

Figure D

Technical diagram of a refrigerator with labeled parts and an inset showing internal structure with arrows and symbols.

Figure E

Figure F

Figure G

Figure H

13 12 11 Figure J

17 15 a 16 c b 18 14 Figure K

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Line drawing of a handheld device with spiral grooves and a circular knob (no text or symbols)

- in the environments which are out of the stated temperature intervals in terms of cooling efficiency.

Illustration showing three hand gestures: a keyboard, a mouse on a keyboard, and a hand holding a pen with a black 'X' symbol (no text or symbols present)

- The "Door Open" indicator on the lock slide indicates whether the door is closed properly or not.

- If the red indicator is visible, the door is still open.

- If the red indicator is invisible, the door is properly closed.

- Observe that the freezer door should always be kept closed properly. This will prevent food inside the freezer from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

Simple diagram of a rectangular object with a green vertical line and diagonal line, no text or symbols present.

Technical line drawing of a structural component with an inset showing hand positioning on a panel (no text or symbols)

Technical line drawing of a handheld tool with two views: top shows internal components, bottom shows internal circuitry (no text or symbols)

7. TRANSPORT ET DEPLACEMENT
