TFK562FW2 - Fridge TELEFUNKEN - Free user manual and instructions

Product type	Refrigerator
Brand	Telefunken
Model	TFK562FW2
Energy class	A++
Annual consumption	99 kWh / year
Total net volume	250 L
Refrigerator net volume	250 L
Refrigeration system	Static
Climate class	N (16 °C – 32 °C)
Noise level	42 dB(A)
Power supply	220-240 V, 50 Hz, grounded plug
Refrigerant	R600a (flammable gas)
Number of glass shelves	4
Number of vegetable drawers	2
Number of door balconies	5
Egg tray	1
Adjustable thermostat	Yes, positions 1 to 5
Interior lighting	Bulb 15 W max (replacement with standard bulb)
Defrosting	Automatic
Condenser maintenance	Annual cleaning with brush
Adjustable feet	Yes, at front
Refrigeration temperature	4 – 6 °C

Frequently Asked Questions - TFK562FW2 TELEFUNKEN

How to set the refrigerator temperature?

Turn the thermostat from position 1 (least cold) to position 5 (coldest). For medium storage, choose between 1 and 3; for long storage, between 3 and 4. The '•' position stops cooling.

How long to wait before plugging in the appliance after installation?

Wait 3 hours before plugging in the appliance to ensure optimal performance.

How to clean the interior of the refrigerator?

Unplug the appliance. Use a solution of baking soda dissolved in warm water. Do not use abrasive products. Rinse with clear water and dry thoroughly.

Is defrosting automatic?

Yes, defrosting is automatic. Defrost water evaporates in a tray. Regularly clean the drain hole with the supplied rod to avoid water accumulation.

What to do if the refrigerator does not cool enough?

Check that the thermostat is set correctly, doors close properly, condenser is not dusty, and air circulates freely at the back. Avoid overloading the appliance.

Why is there water at the bottom of the refrigerator?

The defrost water drain hole may be blocked. Clean it with the defrost drain cleaning rod.

How to save energy with this refrigerator?

Install the appliance away from heat sources, let food cool before storing, cover drinks, open the door briefly, and clean the condenser once a year.

What to do in case of power outage?

Avoid opening the door. Food stays cold for several hours. If the outage is prolonged, consume perishables quickly.

How to replace the interior bulb?

Unplug the appliance. Remove the lamp cover by pressing on the sides. Replace the bulb with a new one of max 15 W. Replace the cover and wait 5 minutes before plugging back in.

The refrigerator makes unusual noises, is this normal?

A slight gas circulation noise is normal. If the noise changes, check that the appliance is level, no objects are touching, and food is stable. Adjust the adjustable feet if necessary.

USER MANUAL TFK562FW2 TELEFUNKEN

(Instruction Booklet)

KÜHLGERÄT

Old and out-of-order fridges .... 4

Safety warnings....4

Installing and operating your fridge 5

Before Using your Fridge 5

USAGE INFORMATION 6

Thermostat Setting 6

CLEANING AND MAINTENANCE 7

Defrosting 8

Replacing The Bulb 8

SHIPMENT AND REPOSITIONING 9

Repositioning the Door 9

BEFORE CALLING SERVICE 9

Tips for saving energy 11

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .... 12

Product part list 13

Product fiche 13

CHAPTER 1. BEFORE USING YOUR FRIDGE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. Although R600 is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

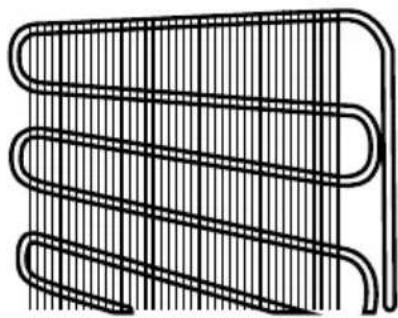

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments

• farm houses and by clients in hotels, motels and other residenti type environments

• bed and breakfast type environments;

• catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Simple line drawing of a trash bin with no text or symbols

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a welding or cutting process with a tool, showing different angles and motion (no text or symbols)

Cartoon illustration of a plug with an angry face and a lightning bolt, no text or symbols present

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.

Cartoon character peeking through a book (no text or symbols)

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220-240 V at 50Hz.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

- The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

- Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° as shown in the figure to prevent the condenser from touching the wall.

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Before Using your Fridge

Simple line drawing of a hand holding a smiling square character (no text or symbols)

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

CHAPTER 2. USAGE INFORMATION

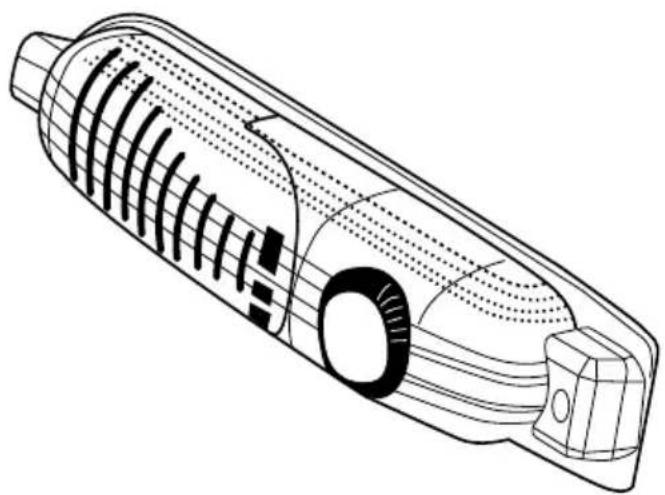

Thermostat Setting

Technical line drawing of a handheld device with internal components and ventilation slots (no text or symbols)

Larders (coolers) have not any freezer compartment but can cool below 5°C.

- Thermostat automatically regulates the inside temperature of the refrigerator compartment. By rotating the knob from position « 1 » to « 5 », colder temperatures can be obtained.

- « • » position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the refrigerator compartment, you can set the knob between minimum and medium position.(1-3)

- For long-term storage of food in the refrigerator compartment, you can set knob to medium position.(3-4)

- Note that: the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

- Larders (coolers) have not any freezer compartment but can below 5^ .

- When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.

• In this time do not open the door so often and place a lot of food inside the appliance.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

CHAPTER 3. CLEANING AND MAINTENANCE

- Make sure to unplug the fridge before starting to clean it.

- Do not wash your fridge by pouring water.

Cartoon illustration of a hand using a tool to interact with a device (no text or symbols present)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and cup (no text or symbols)

- Remove the parts individually and clean with soapy water. Do not wash in washing machine.

- Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of cleaning items (no text or symbols)

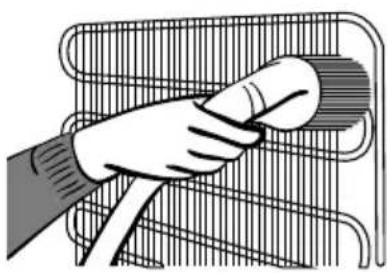

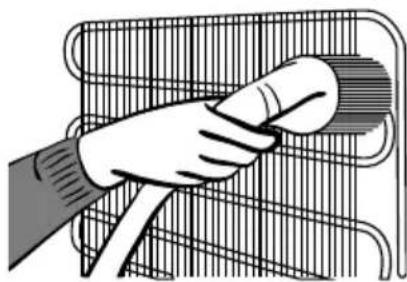

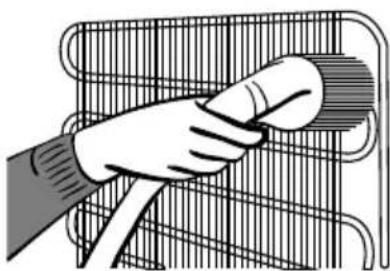

- You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

Illustration of a hand cleaning a metal rack with a circular object on top (no text or symbols)

- Make sure that your fridge is unplugged while cleaning.

Defrosting

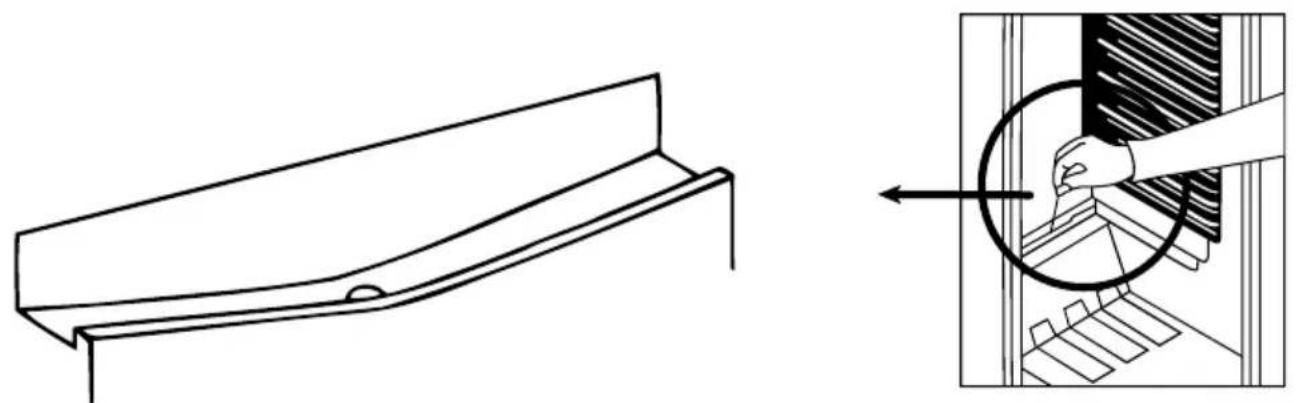

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

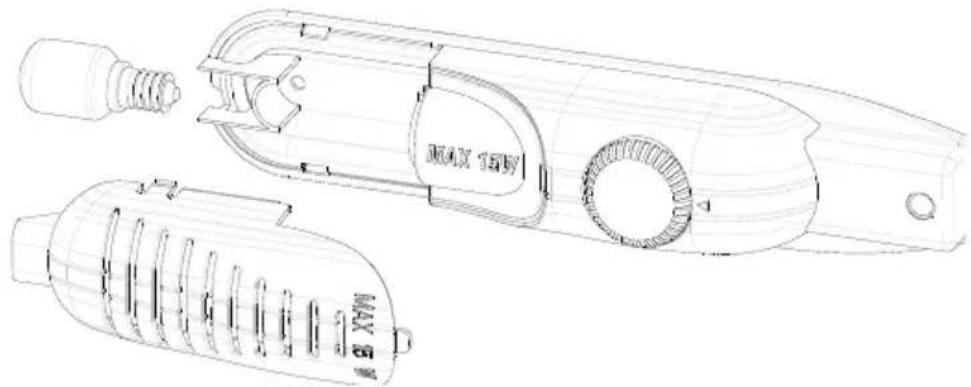

Replacing The Bulb

To replace the bulb in freezer and fridge departments;

1- Unplug your fridge.

2- Remove the cover of the box from the claws using a screwdriver.

3- Replace with a bulb of maximum 15 Watts.

4- Install the cover.

5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

CHAPTER 4. SHIPMENT AND REPOSITIONING

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.
• Carry your fridge in the upright position.

Simple line drawing of two children playing a game with a long block (no text or symbols)

Repositioning the Door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorized Service to have the opening direction changed.

CHAPTER 5. BEFORE CALLING SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is not disconnected,
• The thermostat setting is on « • » position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well leveled,
- Nothing is touching the rear,
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of refrigerators is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, when the compressor is running. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick ice layer forms on the back wall.
• If the appliance is not used for a long time (for example during the summer holidays). Set the thermostat knob to « • » position. Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.

Conformity Information

• This appliance is designed for use at an ambient temperature within the 16^ - 32^ range.
• The appliance is designed in compliance with the EN62552, IEC60335-1/IEC60335-2-24, 2004/108/EC standards.

Tips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc.). Otherwise use an insulating plate.
2- Allow warm food and drinks to cool down outside the appliance.
3- When placing, drinks and liquids they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and liquids helps preserve the smell and taste.
4- When placing food and drinks, open the appliance door as briefly as possible.
5- Keep the covers closed of any different temperature compartment in the appliance (crisper, chiller ...etc. ).
6- Door gasket must be clean and pliable. Replace gaskets if worn.

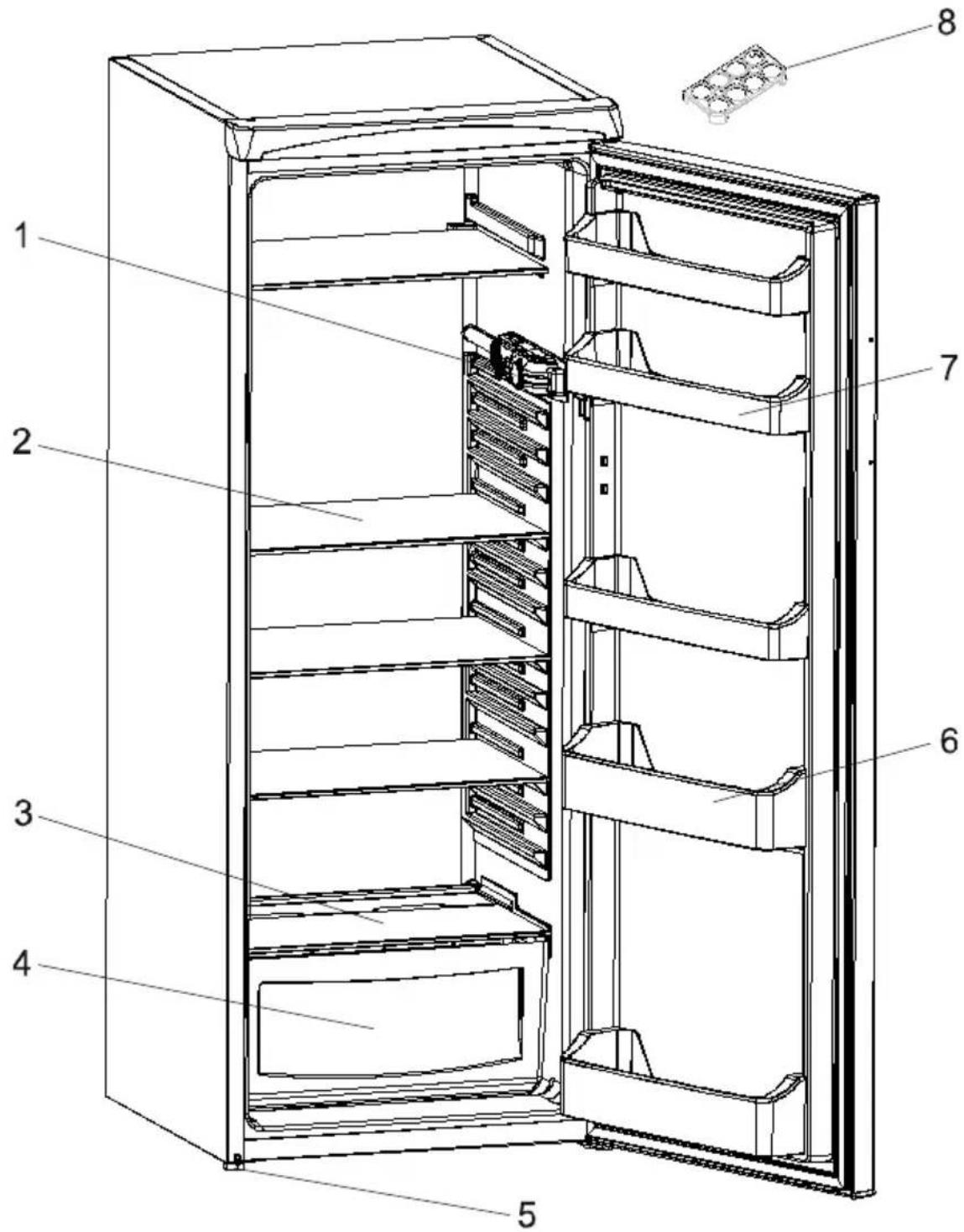

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Thermostat box

5) Levelling feet

2) Refrigerator shelves

6) Bottle shelves

3) Crisper cover

7) Butter & Chees shelf

4) Crisper

8) Egg holder

Product part list

Mark / Model	TELEFUNKEN
	Fridge
Freezer wire shelf	-
Glass shelves	4
Crisper	2
Door shelves	5
Egg tray	1
Ice cube tray	-
Plastic ice blade	-
User manual / Installation booklet	Yes
Warranty documents	Yes

Product fiche

Brand	TELEFUNKEN
Model	TFK562FS2TFK562FW2
Product category	1 (Fridge)
Energy class ^1	A++
Annual energy consumption ^2	99 kWh / year
Total gross volume	253 l
Total net volume	250 l
Refrigerator gross volume	253 l
Refrigerator net volume	250 l
Freezer gross volume	- l
Freezer net volume	- l
Star rating ^3	-
Refrigeration system	Static
Temperature rise time (-18°C) - (-9°C)	-
Freezing capacity	-
Climate class ^4	N (16 °C-32°C)
Noise emission	42 dB(A)

1. Between A(low consumption) to G (high consumption)
2. Energy consumption of 99 kWh per year, calculated on the basis of results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.

3.

(*) One Star storage is for the frozen food which keeps the inner temperature lower than -6 °C.
(**) Two Star storage is for the frozen food which keeps the inner temperature lower than -12 °C.
(***) Tree Star storage is for the frozen food which keeps the inner temperature lower than - 18 °C.
(* * *) FOUR Star storage is for the freezing the food from +18 TO - 18 °C. It also keeps the foods under 3 star storage conditions.

1. Your fridge is designed to operate in the ambient temperature intervals stated in the

standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Conformity Information

• This appliance is designed for use at an ambient temperature within the 16^ - 32^ range.
• The appliance is designed in compliance with the EN62552, IEC60335-1/IEC60335-2-24, 2004/108/EC standards.

INHALT

BEVOR SIE DAS GERÄT BENUTZEN 16

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Illustration of four different techniques for using a tool, showing hand positioning and cutting process (no text or symbols)

Cartoon illustration of a character inside a door, holding a phone to open the door (no text or symbols present)

Cartoon illustration of a distressed container with arms and legs, holding a paper labeled 'KG' (no text or symbols beyond the label)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a mortar, no text or symbols present

Simple line drawing of a hand holding a smiling emoji-shaped object (no text or symbols)

Cartoon illustration of a refrigerator with a hand cleaning it, accompanied by a small bottle and a cup (no text or symbols)

Diagram of an open refrigerator with red crosshair lines indicating storage compartments (no text or symbols)

Cartoon illustration of a smiling book character with arms and a sad face, accompanied by two smaller figures (no text or symbols)

Pure diagram of a coiled spring or cooling element without any text, numbers, or symbols

Abtauen

Technical line drawing of a mechanical component with an inset showing a hand holding a tool inside a structural frame (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Simple line drawing of a three chasing recycling symbol (no text or labels)

FONCTIONS DIVERSES 34

TRANSPORT ET DEPLACEMENT 36

AVANT D'APPELER LE SERVICE APRES-VENTE 37

Pure electrical circuit lines without any symbols

Illustration of four hands performing a manual cable manipulation technique (no text or symbols present)

Cartoon illustration of a character peeking out of a door, with expressive gestures and no text or symbols present.

Illustration of a hand holding a smiling face, a crossed-out prohibition symbol, and a robot-like object (no text or labels)

Cartoon illustration of a distressed container character holding a box labeled 'KG', with arms and legs showing stress or discomfort (no text beyond label)

Simple line drawing of a hand holding a smiling square with a smiley face (no text or symbols)

SECTION 2. FONCTIONS DIVERSES

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

Cartoon illustration of a hand brushing a small object with a mouth, no text or symbols present

Simple line drawing of a smiling emoji on a square object held by a hand (no text or symbols)

Cartoon illustration of a refrigerator with a hand cleaning it, accompanied by a small bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a hand giving thumbs up, next to a mortar and pestle (no text or symbols)

Diagram of a refrigerator with a red X symbol crossed out, indicating no text or symbols present.

Illustration of a hand using a tool to clean or inspect a wire mesh (no text or symbols)

LA PRISE DOIT ETRE DEBRANCHEE.

Technical line drawing of a structural component and its magnified inset showing hand positioning (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

SECTION 4. TRANSPORT ET DEPLACEMENT

Simple line drawing of two children playing a game with a block (no text or symbols)

SECTION 5. AVANT D'APPELER LE SERVICE APRES-VENTE

- bed and breakfast e simili,

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration of four hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a character peeking out of a door (no text or symbols)

Illustration of a hand holding a smiling face icon, a crossed-out prohibition symbol, and a square with a smiley face (no text or symbols present)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

PARTE 2. FUNZIONI E POSSIBILITA'

Technical line drawing of a handheld hair dryer with spiral ventilation slots and a circular button (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl, giving a thumbs-up (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding a spoon, accompanied by a small bottle and cup (no text or symbols)

Line drawing of a multi-tiered refrigerator with red crosshair lines indicating internal structure (no text or symbols)

Cartoon illustration of a smiling rectangular box character with arms and legs, accompanied by two small fish characters (no text or symbols)

Illustration of a hand cleaning a wire cage with a brush (no text or symbols)

Sbrinamento

Technical line drawing of a structural component and its magnified cross-section showing hand positioning (no text or symbols)

Simple line drawing of two children playing a game with a large block (no text or symbols)

Pure electrical circuit lines without any symbols

Illustration of three hands performing a manual cable manipulation technique (no text or symbols present)

Cartoon illustration of a character peeking through a door (no text or symbols)

Cartoon illustration of a distressed container character holding a box labeled 'KG', with arms and facial expression (no text beyond label)

Simple line drawing of a hand holding a smiling square with a smiley face (no text or symbols)

Line drawing of a handheld hair dryer with spiral blades and a circular button (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and thumbs up, next to a bowl of food (no text or symbols)

Cartoon illustration of a hand cleaning a door with a smiling face (no text or symbols)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand, accompanied by a small bottle and a cup (no text or symbols)

Line drawing of a multi-tiered refrigerator with red crosshair lines indicating internal structure (no text or symbols)

Cartoon illustration of a smiling rectangular character and two baby dolls (no text or symbols)

Illustration of a hand using a tool to clean or adjust a wire mesh structure (no text or symbols)

Ontdooien

Technical line drawing of a structural component and its magnified cross-section showing a hand holding a tool (no text or symbols present)

Simple line drawing of two children playing a large block together (no text or symbols)
