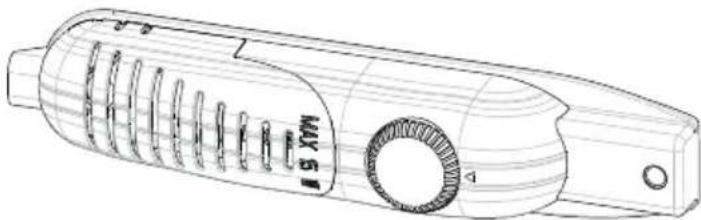

Temperaturregelung

Line drawing of a handheld hair dryer with spiral blades and a circular button (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Cartoon illustration of a hand holding a bird near a door, with no text or symbols present.

Cartoon illustration of a smiling refrigerator with a hand holding a cup and a bottle nearby (no text or symbols)

Line drawing of a multi-tiered refrigerator with red crosshair lines indicating internal structure (no text or symbols)

Cartoon illustration of a smiling book character with arms and legs, accompanied by two smaller figures (no text or symbols)

Illustration of a hand using a tool to clean or adjust a mesh structure (no text or symbols visible)

Abtauen

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

Technical line drawing of a handheld electric shaver with internal components (no text or symbols)

Stromschlaggefahr!

Simple line drawing of two children playing a large board (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Old and out-of-order fridges 18

Safety warnings....18

Installing and Operating your Fridge 19

Before Using your Fridge 19

USAGE INFORMATION 20

Thermostat Setting 20

Warnings for Temperature Settings 21

ARRANGING FOOD IN THE APPLIANCE 21

CLEANING AND MAINTENANCE 22

Defrosting 23

Replacing The Bulb 23

SHIPMENT AND REPOSITIONING 24

BEFORE CALLING SERVICE 24

Tips for saving energy 25

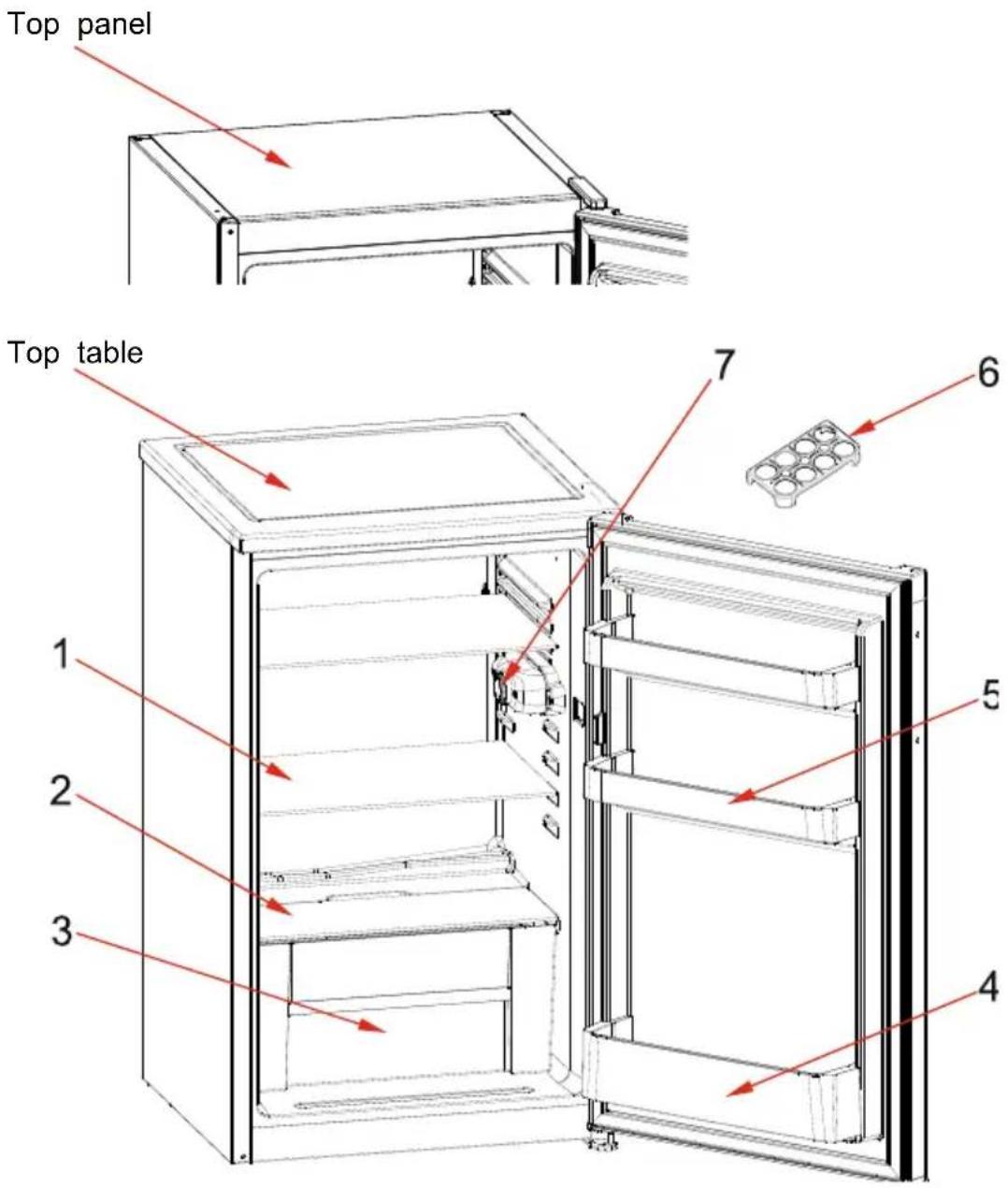

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 27

Product part list 28

Product fiche 28

CHAPTER 1. BEFORE USING YOUR FRIDGE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

- If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and domestic applications such as:

- staff kitchen areas in shops, offices and other working environments.

- farm houses and by clients in hotels, motels and other residential type environments.

- bed and breakfast type environments;

- catering and similar non-retail applications.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Pure electrical circuit lines without any symbols

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.

Illustration of three hands performing a welding or cutting process with a tool, showing different angles and postures (no text or symbols)

Cartoon illustration of an electric plug with a sad face and plug, emitting exhaust smoke (no text or symbols)

• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.

- Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• Do not cover the body or top of fridge with lace. This effects the performance of your fridge.

Cartoon character peeking out of a door, no text or symbols present

Safety warning illustration showing a smiling face with a phone icon and a prohibition symbol

- Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and Operating your Fridge

Before starting to use your fridge, you should pay attention to the following points:

- The operating voltage for your fridge is 220-240 V at 50Hz. - We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge where it will not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or exposed to rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm of free space is available above it.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.

• Install the plastic distance guide (the part with black vanes at rear) by turning it 90^ (as shown in the figure) to prevent the condenser from touching the wall.

- The refrigerator should be placed against a wall with a free space not exceeding 75 mm.

a KG

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

Simple line drawing of a hand holding a smiling square with eyes, next to a rectangular object (no text or symbols)

CHAPTER 2. USAGE INFORMATION

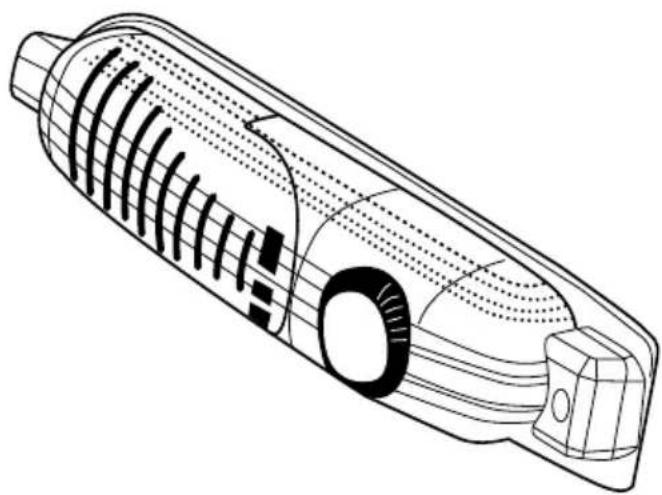

Thermostat Setting

Technical line drawing of a handheld device with internal components and ventilation slots (no text or symbols)

Larders (coolers) have not any freezer compartment but can cool below 5°C.

- Thermostat automatically regulates the inside temperature of the refrigerator compartment. By rotating the knob from position « 1 » to « 5 », colder temperatures can be obtained.

- « • » position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the refrigerator compartment, you can set the knob between minimum and medium position.(1-3)

- For long-term storage of food in the refrigerator compartment, you can set knob to medium position.(3-4)

- Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

Warnings for Temperature Settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.
• This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

CHAPTER 3. ARRANGING FOOD IN THE APPLIANCE

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

CHAPTER 4. CLEANING AND MAINTENANCE

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

Cartoon illustration of a hand washing a bottle into a container (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding a tool, accompanied by a bottle and bucket (no text or symbols)

- Make sure that no water enters the lamp housing and other electrical components.

- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl, giving thumbs up (no text or symbols)

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

Simple line drawing of a kitchen appliance with a red X symbol crossed out (no text or symbols present)

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

Cartoon illustration of a smiling book character waving, with two small puffer-like figures nearby (no text or symbols)

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

THE POWER SUPPLY MUST BE DISCONNECTED.

Illustration of a hand cleaning a corrugated metal rack (no text or symbols)

Defrosting

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

- Defrosting occurs automatically in the refrigerator compartment during operation; the water is collected by the evaporation tray and evaporates automatically.

- The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.

- You can also clean the drain hole by pouring 1/2 glass of water down it.

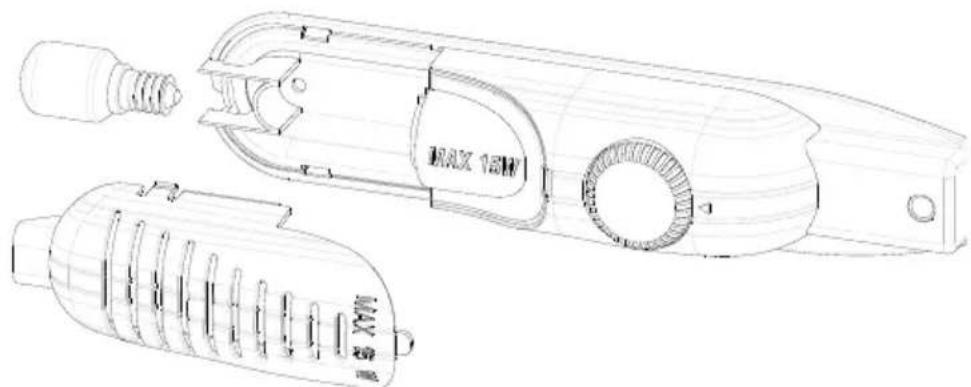

Replacing The Bulb

MAX 125V MAX 125V MAX 125V

To replace the bulb in freezer and fridge departments;

1- Unplug your fridge.

2- Remove the cover of the box from the claws using a screwdriver.

3- Replace with a bulb of maximum 15 Watts.

4- Install the cover.

5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

CHAPTER 5. SHIPMENT AND REPOSITIONING

- The original packages and foamed polystyrene (PS) can be retained if required. - During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

- Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Simple line drawing of two children playing a game with a large block (no text or symbols)

Carry your fridge in the upright position.

CHAPTER 6. BEFORE CALLING SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate; Check that;

• There is no power,
• The general switch in your home is not disconnected,
• The thermostat setting is on « • » position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly; Check that;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well leveled,
- Nothing is touching the rear,
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

Recommendations

- In order to increase space and improve the appearance, the « cooling section » of refrigerators is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, when the compressor is running. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick ice layer forms on the back wall.

- If the appliance is not used for a long time (for example during the summer holidays). Set the thermostat knob to « • » position. Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.

Tips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc.). Otherwise use an insulating plate.

2- Allow warm food and drinks to cool down outside the appliance.

3- When placing, drinks and liquids they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and liquids helps preserve the smell and taste.

4- When placing food and drinks, open the appliance door as briefly as possible.

5- Keep the covers closed of any different temperature compartment in the appliance (crisper, chiller ...etc.).

6- Door gasket must be clean and pliable. Replace gaskets if worn.

Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

Symbol of a trash bin crossed with diagonal lines, no text or labels present

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling

Simple line drawing of a three chasing recycling symbol (no text or labels)

Our packaging is made of environmentally - friendly, recyclable materials:

External packaging made of cardboard

Moulded parts of CFC-free polystyrene (PS)

Films and bags made of polyethylene (PE)

Wrapping straps made of polypropylene (PP).

If you have sufficient space to permit it, we recommend you retain the pach aging, at least during the warranty period. If the device must be returned for repair or brought into a repair drop-off centre, the device is only adequately protected in the original packaging.

If you want to no longer retain the packaging, please dispose of this in an environmentally friendly manner.

CHAPTER 7.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Top panel Top table 1 2 3 4 5 6 7

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1. Refrigerator shelves (Safety glass)
2. Crisper cover (Safety glass)
3. Crisper
4. Bottle shelf
5. Cheese / butter shelves
6. Egg holder
7. Thermostat box

Product part list

Mark / Model	TELEFUNKEN
	Refrigerator
Glass shelves	2
Crisper	1
Door shelves	3
Egg tray	1
User manual / Installation booklet	Yes
Warranty documents	Yes

Product fiche

Brand / Product type		TELEFUNKEN
		Refrigerator
Model		Telefunken CF- 31- 120- BTelefunken CF- 31 -120- STelefunken CF- 31- 120- W
Energy class (1)		A++
Annual energy consumption(2)	kWh / Year	88
Total gross volume	Lt 91
Total net volume	Lt 89
Freezer net volume	Lt -
Refrigerator net volume	Lt 89
Star rating		-
Temperature rise time	Min. -
Freezing capacity	kg / 24h -
Climate class (3)		T/SN (10 °C - 43 °C)
Voltage and Frequency	V / Hz 220-240V / 50Hz
Dimensions (W x D x H)	mm 821	x 480 x 500

1. Between A(low consumption) to G (high consumption)

2. Energy consumption of 88 kWh per year, calculated on the basis of results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.

3. Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

CE
