SJ150 - Juicer TELEFUNKEN - Free user manual and instructions

Product Type	Slow juicer (Slow juicer)
Brand	Telefunken
Model	SJ150
Power supply	220-240 V ~ 50/60 Hz
Power	150 W
Screw type	Pressing auger (worm screw)
Pulp container capacity	Not specified
Juice container capacity	Not specified
Functions	Forward (I), Stop (0), Reverse (R)
Jam protection	Reverse to unclog
Included accessories	Extraction bowl, filter barrel, auger, lid, pusher, cleaning brush, pulp container, juice container
Accessory material	Plastic (food-grade plastic)
Dishwasher cleaning	Not recommended for accessories; hand washing recommended
Safety	Stops if lid not properly closed; unplug before cleaning
Prohibited ingredients	Dry, frozen, hard, oily foods, sugar cane, nuts, etc.
After-sales service	Spare parts available at pieces-detachees.sogedis.fr
Importer	Vestel France, 17 rue de la Couture - 94563 Rungis CEDEX
Environmental standard	Compliant with WEEE (2012/19/EU) – recycling at approved center

Frequently Asked Questions - SJ150 TELEFUNKEN

How to properly assemble the juice extractor?

Place the filter barrel into the extraction bowl aligning the white dot with the red dot. Insert the pressing auger into the center of the barrel, turn it until it stops. Mount the assembly onto the motor block by turning clockwise until it locks. Finally, place the lid and turn it until you hear a click.

Which ingredients are prohibited in this extractor?

The following ingredients should not be used: dry foods (soybeans, cereals), frozen (ice), very hard (peach pits, sugar cane), oily (sesame, peanuts), gummy (okra, persimmon), or hot. In general, avoid any food that could damage the screw or clog the filter.

How to clean the extractor after use?

Unplug the appliance and disassemble the accessories. Wash the parts (bowl, barrel, auger, lid, etc.) with a sponge and dish soap, rinse with hot water and dry. Never put in the dishwasher. For stubborn stains, let soak for 30 minutes in hot soapy water. Clean the motor block with a damp cloth without immersing it.

What to do if the appliance jams during use?

Use the reverse function by holding the switch in the 'R' position for a few seconds. The jammed ingredients should release. Release, then restart the appliance (position 'I'). If that doesn't work, turn off, unplug, and manually remove the ingredients using the pusher.

Why doesn't the appliance start?

First check that the plug is connected and the switch is on 'I'. If nothing happens, the lid is probably not correctly closed (it should click). Disassemble and reassemble making sure the lid is turned until it locks. If the problem persists, check that no ingredient is obstructing the mechanism.

How to use the reverse function?

Reverse is indicated by the letter 'R' on the switch. Press and hold the switch in position 'R' to rotate the auger in reverse. This helps to unblock jammed food. Do not hold for more than a few seconds. Release, then press 'I' again to resume normal extraction.

Can the accessories be washed in the dishwasher?

No, the accessories are not compatible with the dishwasher. The manual recommends hand washing with a soft sponge and dish soap. Machine washing could deform or damage the plastic parts and reduce their lifespan.

What is the power of the Telefunken SJ150 extractor?

The power of the appliance is 150 W under a voltage of 220-240 V ~ 50/60 Hz. This power is suitable for slow and efficient extraction of fruit and vegetable juices.

How to prepare fruits and vegetables before extraction?

Wash and peel if necessary. Remove pits and large seeds. Cut the ingredients into pieces of suitable size (less than 3 cm) so they fit into the chute. For hard vegetables (carrots), cut into thin 2 cm sticks. Leafy vegetables can be cut into 2 cm strips.

Where to find spare parts for model SJ150?

Spare parts are available on the website pieces-detachees.sogedis.fr. Also check the manual for more information. If needed, contact the after-sales service of Vestel France (importer).

USER MANUAL SJ150 TELEFUNKEN

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IT CONTAINS IMPORTANT INFORMATION. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.
• THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS SUCH AS:

STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS;
FARM HOUSES;
BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE ENVIRONMENTS;
BED AND BREAKFAST TYPE ENVIRONMENTS.

• THIS APPLIANCE SHALL NOT BE USED BY CHILDREN. KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN.
• THIS APPLIANCE CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN.
• ALWAYS DISCONNECT THE APPLIANCE FROM THE SUPPLY IF IT IS LEFT UNATTENDED AND BEFORE ASSEMBLING, DISASSEMBLING OR CLEANING.
• WARNING: POTENTIAL INJURY FROM MISUSE.
• EXTRA CARE SHALL BE TAKEN WHEN HANDLING THE SHARP CUTTING BLADES, EMPTYING THE BOWL AND DURING

CLEANING.

• BE CAREFUL IF HOT LIQUID IS POURED INTO THE FOOD PROCESSOR OR BLENDER AS IT CAN BE EJECTED OUT OF THE APPLIANCE DUE TO A SUDDEN STEAMING.
• SWITCH OFF THE APPLIANCE AND DISCONNECT FROM SUPPLY BEFORE CHANGING ACCESSORIES OR APPROACHING PARTS THAT MOVE IN USE.
• THE APPLIANCE MUST NO BE USED IF THE ROTATIVE FILTER OR THE COVER LID HAS ANY VISIBLE DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY.
• THIS APPLIANCE CAN ONLY BE USED WITH ITS PROVIDED STAND.
• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
• REGARDING THE INFORMATION FOR OPERATING TIMES AND ACCESSORIES SETTING, THANKS TO REFER TO THE BELOW PARAGRAPH OF THE MANUAL.

SAFETY INSTRUCTIONS FOR CLEANING AND MAINTENANCE

• ALWAYS UNPLUG THE APPLIANCE AND LET IT COOL DOWN COMPLETELY BEFORE ANY CLEANING OPERATION.
• NEVER IMMERSE IN WATER OR ANY OTHER LIQUID THIS APPLIANCE, ITS ELECTRIC PLUG AND CORD.
• THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.

FOR THE DETAILS ON HOW TO CLEAN SURFACES IN CONTACT WITH FOOD, PLEASE SEE SECTION "CLEANING AND MAINTENANCE".

SAFETY CAUTIONS

• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN.
• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURER MAY CAUSE INJURIES.
• THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF IT HAS ANY VISIBLE DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY.
• ALWAYS UNPLUG THE APPLIANCE IF NOT USING IT FOR A PERIOD OF TIME.
• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.
• AFTER UNPACKING YOUR APPLIANCE, MAKE SURE YOU HAVE PUT IT ON A FLAT, STABLE AND HEAT-RESISTANT SURFACE. CHECK YOU HAD LEAVE ENOUGH SPACE BETWEEN YOUR APPLIANCE AND SURROUNDING WALL TO LET THE AIR CIRCULATE AROUND. THERE SHOULD BE AT LEAST 50CM ON THE TOP AND 20CM ON SIDES APART FROM THE APPLIANCE.

• KEEP AWAY THE APPLIANCE AND ITS POWER CORD FROM CHILDREN LESS THAN 8 YEARS OLD.

• THIS APPLIANCE MUST BE EARTHED.

• CHECK THAT YOUR ELECTRICAL INSTALLATION IS SUFFICIENT FOR SUPPLYING THIS APPLIANCE.
• TAKE ALL NECESSARY MEASURE WITH CORDS AND EXTENSIONS TO AVOID ANY INJURIES WHILE IN USE.
• FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.
  DO NOT PUT THIS APPLIANCE ON TOP OF OTHERS.
• NEVER LEAVE APPLIANCE PLUGGED IN WHEN NOT IN USE.
• NEVER MOVE THE APPLIANCE WHEN IN USE.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS. NEVER USE THE APPLIANCE WITH BARE OR WET FEET.
• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE. ALWAYS UNPLUG THE APPLIANCE FROM THE MAIN SOCKET.
• REGARDING THE INFORMATION FOR INSTALLATION AND OPERATING SETTING, THANKS TO REFER TO THE BELOW PARAGRAPH OF THE MANUAL.

STANDARDS

THIS APPLIANCE IS CONFORMED TO CURRENT DIRECTIVES AND STANDARDS.

SAFETY INSTRUCTIONS ON RECYCLING

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of

in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligaon, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for informaon concerning the correct disposal of their old appliance.

TABLE OF CONTENTS

DESCRIPTION 1

Main body. 1

Switch. 1

SET UP AND USE 2

Before rst use. 2

Assembling the appliance 3

Prepare the ingredients for juicing 4

Using your appliance. 5

Disassembling aer use 7

TROUBLESHOOTING 8

CLEANING AND MAINTENANCE 8

TECHNICAL INFORMATION 10

DESCRIPTION

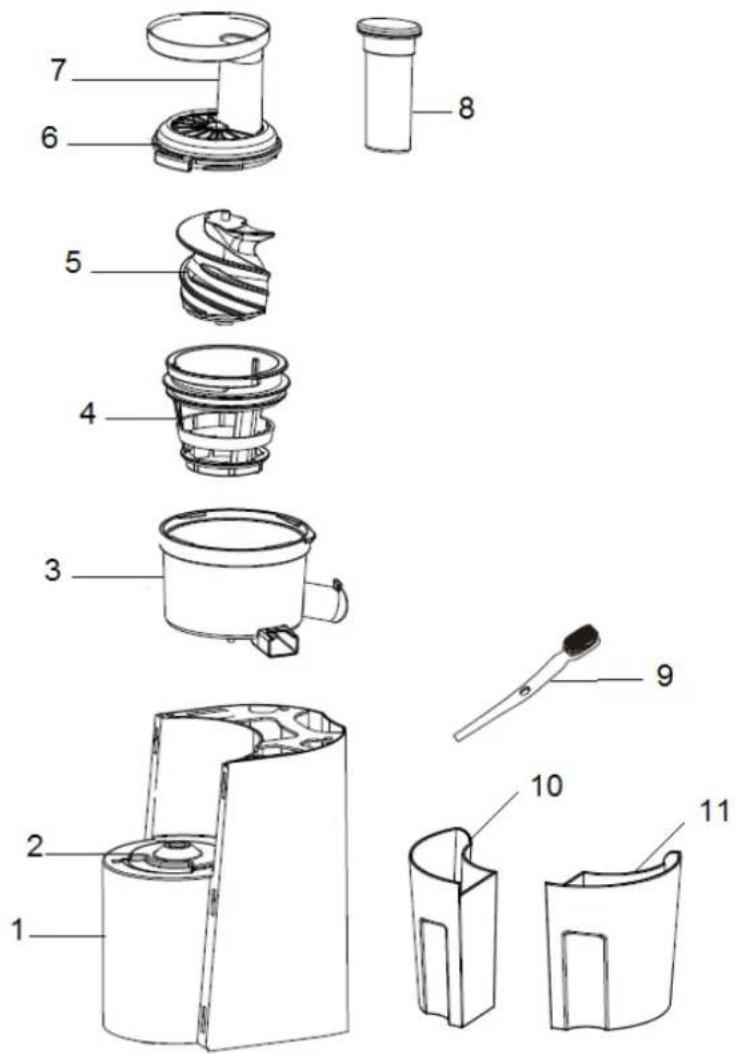

Main body

1. Main body
2. Motor part
3. Juicing bowl
   4.Filter
4. Auger
5. Cover
6. Feeding tube
7. Food pusher
8. Cleaning brush
9. Pulp container
10. Juice container

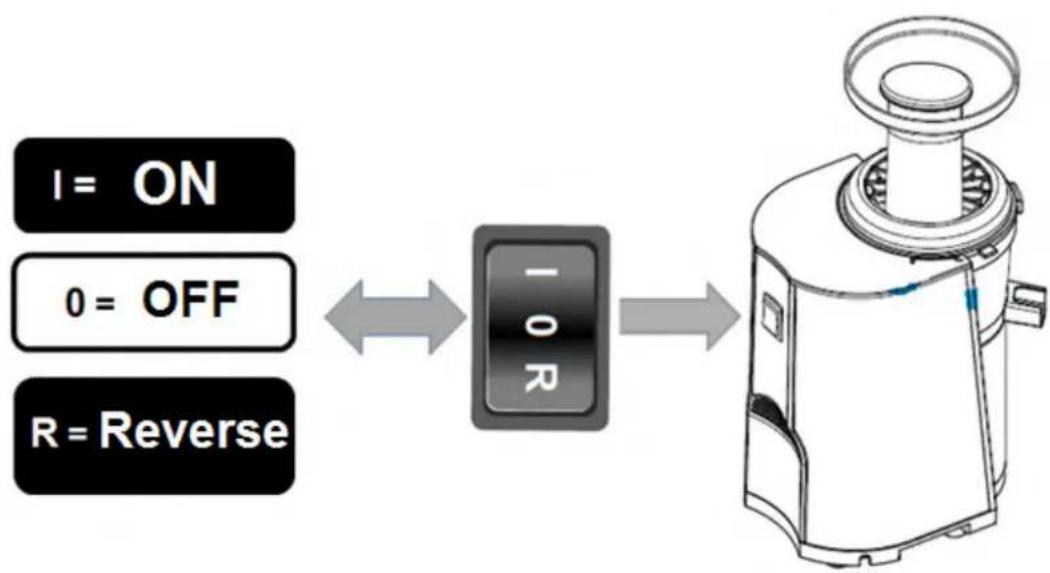

Switch

SET UP AND USE

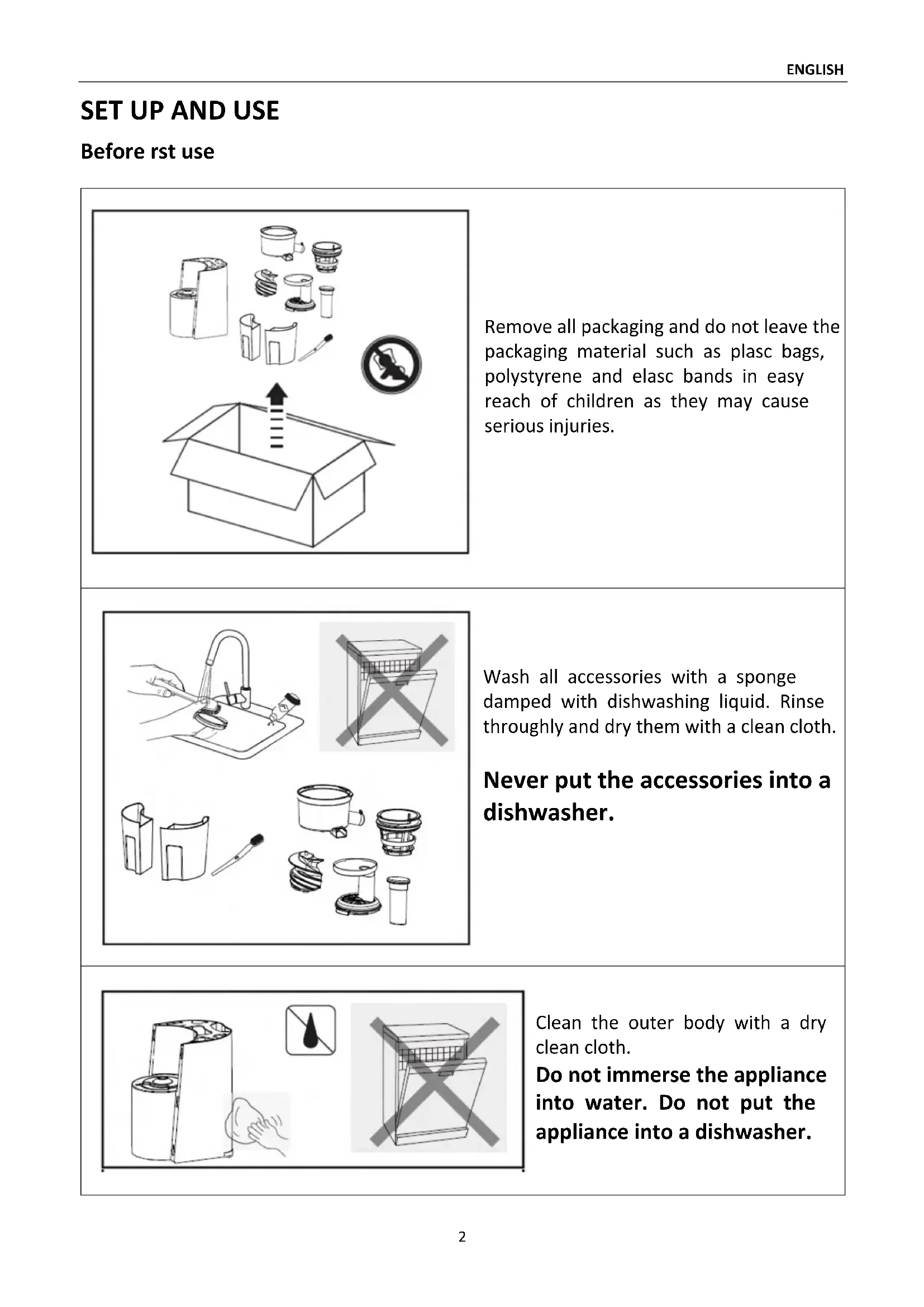

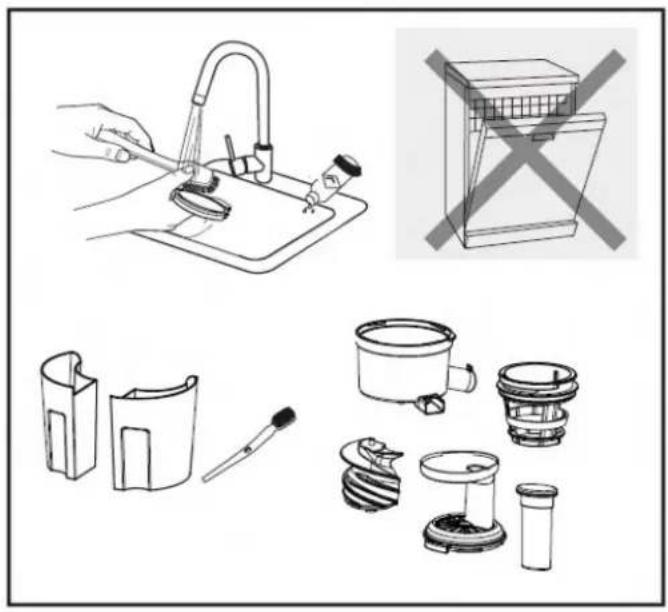

Before rst use

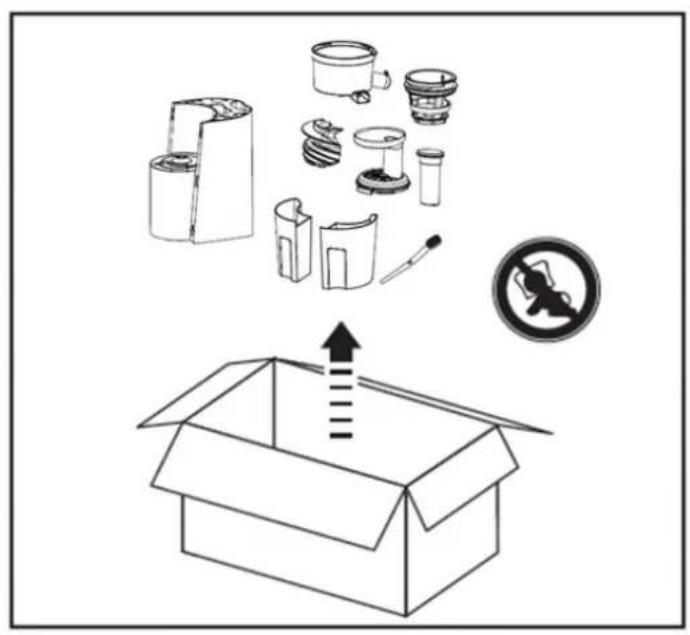

Remove all packaging and do not leave the packaging material such as plasc bags, polystyrene and elasc bands in easy reach of children as they may cause serious injuries.

Wash all accessories with a sponge damped with dishwashing liquid. Rinse throughly and dry them with a clean cloth.

Never put the accessories into a dishwasher.

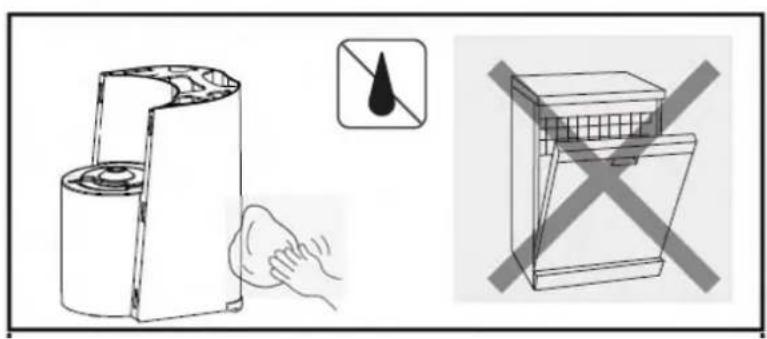

Clean the outer body with a dry clean cloth.

Do not immerse the appliance into water. Do not put the appliance into a dishwasher.

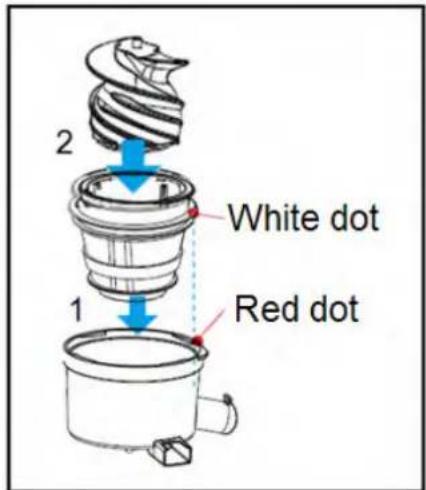

Assembling the appliance

Warning: Never plug in the appliance before assembling the accessories. Always plug out when disassembling the appliance.

Note: the cover will not close if the auger is not well assembled.

Warning : ensure your nger is not stucked in the space between the auger and the Iter.

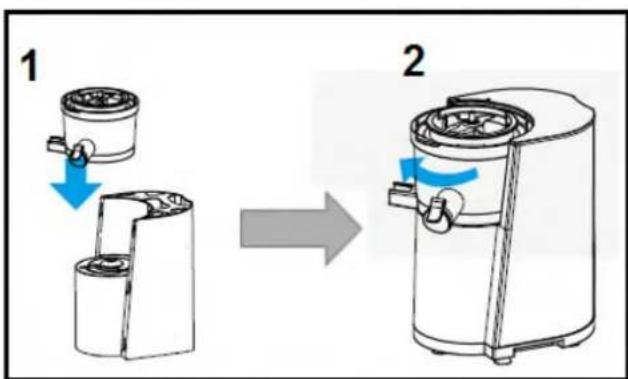

1. Place the full block on the motor area.
2. Turn clockwise the juicing bowl unl its locking posion.

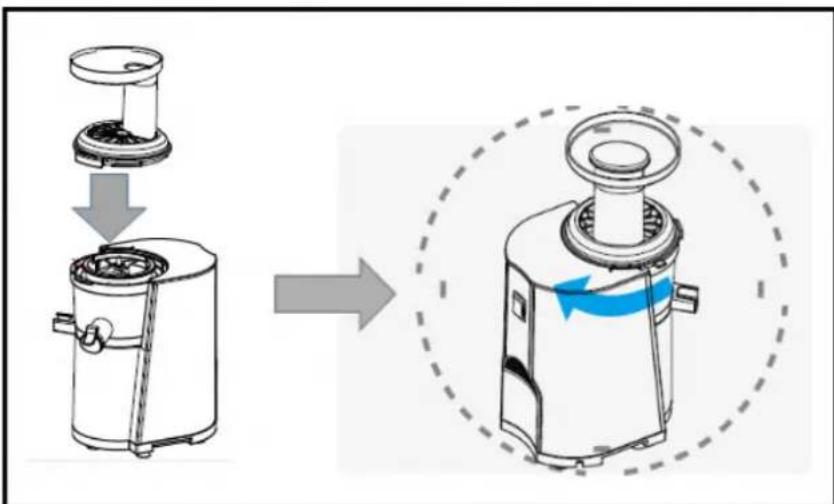

Place the cover on top of the juicing bowl then turn clockwise unI its locking point.

Note: ensure that the pin on the cover is well inserted into the notch.

assembled before switching on the appliance.

Warning: Ensure that all accessories are well

Prepare the ingredients for juicing

Prohibited ingredients

Ingredients that may damage parts

Ice and frozen ingredients
Seed of peach, plum, mango, etc.
Persimmon (whose seeds cannot be removed completely)
Dry foods (soy bean, other beans, grains etc.)
Unheated pumpkin, burdock, etc.
Sugar cane
Liquor, vegetable oil, other cooking oils
Hot foods

Sticky ingredients which are not squeezable

Lotus root
Okra
Mulukhiya, etc.

Oily ingredients

Sesame
Walnut
Peanut, etc.

Note

Oily ingredients which can be squeezed with liquid added.

Ingredient preparation

Fruit

• Peel the thick skin and remove large and/or hard seeds and stones from fruit such as pineapple, some citrus fruits, peaches, and mangoes.

Leave the thin skin on apples, lemons and limes etc.

• Cut fruit into pieces that are small enough to fall down into the feeding tube.

Vegetable

• Remove stem end and seeds.
• Cut vegetables into pieces that are small enough to fall down into the feeding tube. (Less than 3 cm width or cubes.)
• Cut leaf vegetables into approximately 2 cm pieces or strips.
• Cut hard ingredients such as carrots into thin 2 cm wide strips.

Tips

• Use fresh fruit and vegetables.
  Taste and extracting amount may vary with freshness and harvesting timing of ingredients.
• When using ingredients with less moisture, add equivalent amount of liquid such as water or milk little by little.
• It is better juicing ingredients which contain a lot of flesh such as bananas, peaches or mangos with moist fruit such as apples or oranges.
• Leaf vegetables stick easily to the squeezing screw and/or inside of attachments or jam easily in the pulp spout. It is recommended to feed them into the feeding tube with stems.
• Do not insert pulp into the feeding tube again for extraction.

Using your appliance

1. Aer assembling your appliance, place it on a at and stable surface.

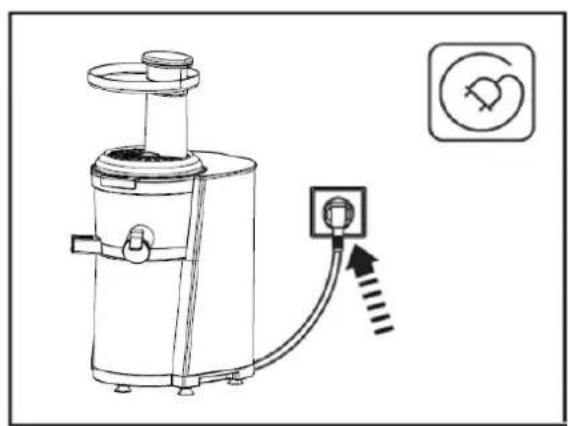

2. Plug the appliance to a power socket.

1. Place the pulp container under the pulp spout « A »
2. Then place the juice container under the juice spout « B ». Open the juice spout cap « B »
3. Retrieve the food pusher from the feeding tube.

Switch funconing:

I = ON:

Press one time to set up the appliance

0 = OFF:

Press one time to stop the appliance

R = REVERSE:

Only to be used when food is blocked inside. Press continuously for few seconds until it's unblock.

Juice extracon:

1.

=ON:

Press one time to set up the appliance

2.

3.

0 = OFF:

Press one time to stop the appliance

1. Press one me on the switch to I posion.

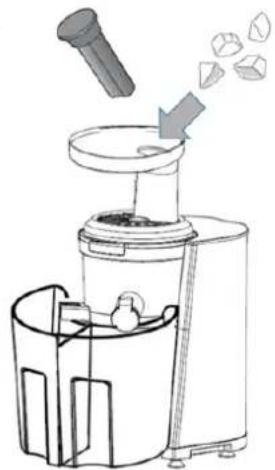

2. Insert your ingredients into the feeding tube in small quanes every 5 seconds. Use the food pusher when ingredients are stucked.
3. At the end of your preparaon, press one me on the switch to stop the appliance.

R = Reverse

When foods are blocked inside the appliance, press connuously for few seconds the switch on « R » (reverse) posion. Then press the switch back to « I » posion to connue juicing.

Warning:

• Never insert your hands or any objects into the feeding tube. When foods are blocked, use the food pusher.
• Do not let the appliance work for more than 30 seconds without any food.
  Always ensure all the accessories are well assembled.
• Ne jamais uliser l'appareil avec les mains mouillées. Never use the appliance with wet hands.
• Do not block the pulp and the juice spout during use.
• Ne pas ouvrir le couvercle ou démonter le bol d'extracon du jus pendant que l'appareil est en marche. Do not open the cover or retrieve the juicing bowl during use.
• Do not move the appliance when in use.

Recipes:

Recipe	Ingredients	Preparaon
Energy juice	2 grapefruit2 oranges1 lemon5 fresh mint leaves5 gr of ginger	Cut all the fruits then insert them inside the feeding tube.
Tropical juice	1 mango1/2 pineapple	Cut all the fruits then insert them inside the feeding tube.
Detox juice	1 carrot1 celeri1 apple50 gr spinach	Cut all the fruits/vegetables then insert them inside the feeding tube.

Note: It is advised to drink your juice within 15 minutes aer the end of your preparaon to preserve all the vitamins and minerals.

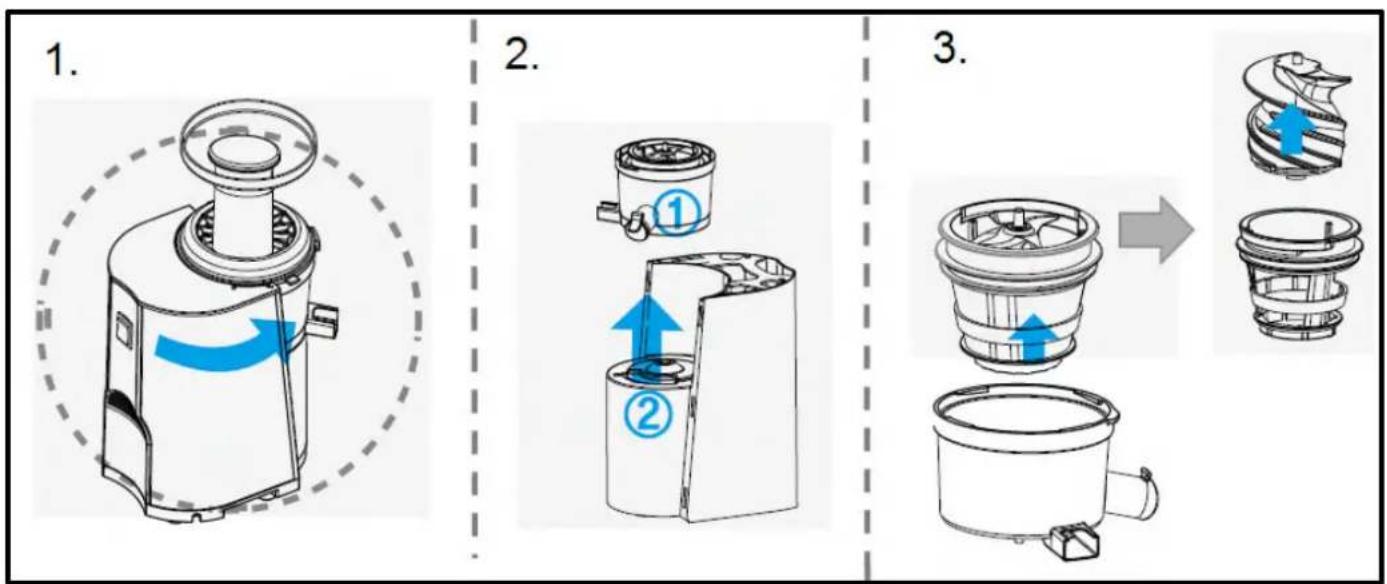

Disassembling aer use

Warning : Always unplug the appliance before retrieving the accessories.

1. Tournez le couvercle dans le sens contraire des aiguilles d'une montre. Turn the cover an-clockwise to retrieve it.
2. Retrieve the juicing bowl by pulling it from the main body.
3. Retrieve the Iter by pulling it from the juicing bowl. Then retrieve the auger by pulling it from the Iter.

TROUBLESHOOTING

Problem	Cause and solution
The juicer does not run after the power is switched on. The juicer stopped suddenly.	● Is the power plug inserted into an outlet? → Insert the power plug into an outlet. ● Set the juicer correctly. → The lid needs to be turned until you hear a "click" sound. If you fail to do so, the juicer will not run after the power is switched on. ● You have used prohibited ingredients. ● The volume of ingredients is too large. ● The ingredients are too hard. → Remove prohibited ingredients from the juicer. ● The lid is open. → Switch off the power, close the lid, and start again. ● Clogging of pulp spout. → Switch off the power and remove residue using the tip of the cleaning brush handle.
The motor housing is hot.	● The operating time is longer than the rated duration. → Follow the rated duration (up to 30 minutes). To resume operation, please wait for at least 30 minutes. This allows the motor housing to cool down and avoid failure due to overheating of motor.
Noise during operation.	● This is normal. You may hear sound such as squeaking or cracking. ● These are the sound of ingredients being compressed. (Depending on the ingredients, the noise may be quite loud.) ● This is the sound of the rotating brush contacting with filter.
Leakage of juice or frozen dish.	● The rubber, rubber brushes and/or rubber plug are not assembled correctly. → Assemble them correctly.
The juicing bowl or motor housing shakes during operation.	● This is normal. Since the juicing bowl and motor housing are split type, they may shake when the squeezing screw is rotating. Do not press the lid or juicing bowl. (Doing so may result in failure of the juicer.)
Abnormal noise or vibration.	● The squeezing screw and attachments are not assembled correctly. → Assemble the squeezing screw and attachments correctly

CLEANING AND MAINTENANCE

1. Aer using your appliance turn it o by seng the speed variator at 0.

2. Unplug your appliance from the power socket.

3. Ensure to always unplug your appliance before any cleaning operaon. Never put the motor unit into the dishwashing or under the water.

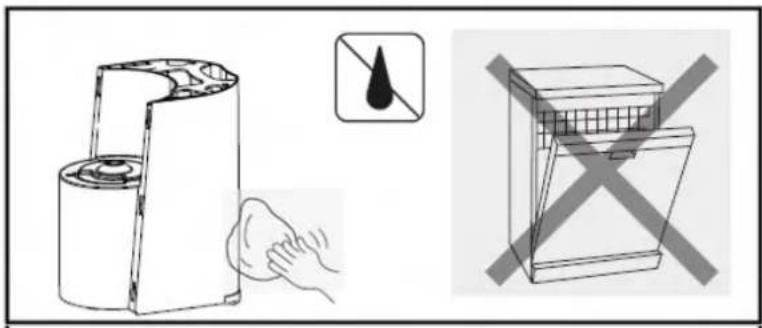

Cleaning the body motor unit:

Clean the outer surface with a so cloth (or sponge) on the surfaces of the appliance.

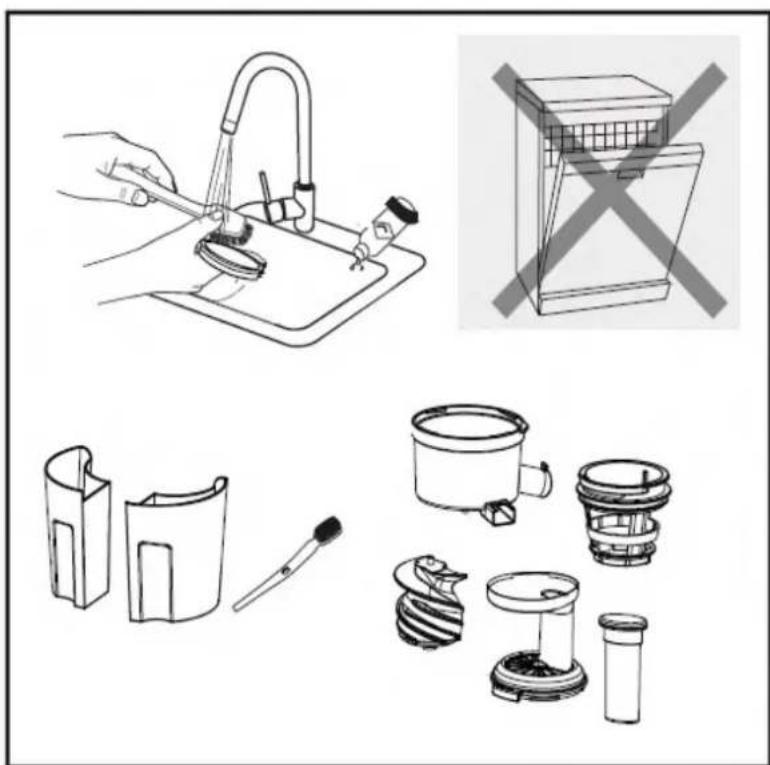

Cleaning the accessories:

Wash the accessories with a sponge and dishwashing liquid and rinse them.

To take out the heavy stains, put all the accessories into hot water with dishwashing liquid and let it rest for 30 min. then use a brush to clean it.

Do not use a hard brush or any others cleaners to avoid scratching or damaging the appliance.

Do not use a hard brush or any others cleaners to avoid scratching or damaging the appliance. Never immerse the appliance.

TECHNICAL INFORMATION

Model	SJ150
Voltage	220-240V ~ 50Hz/60Hz
Power	150W

Imported by Vestel France, 17 rue de la Couture - 94563 Rungis CEDEX

This manual instruction is also available on the following website: http://pieces-detachees.sogedis.fr/
