Product Type	Tablet
Brand	Telefunken
Model	TF-MID802G
Display Size	8 inches
Display Resolution	1280 x 800 pixels
Operating System	Android
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	16 GB
Expandable Storage	microSD card up to 128 GB
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Camera (Rear)	5 MP
Camera (Front)	2 MP
Battery Capacity	4000 mAh
Dimensions (W x H x D)	210 x 125 x 9 mm
Weight	350 g
Power Supply	DC 5V, 2A via micro USB
Main Functions	Web browsing, video playback, e-reading, gaming, apps
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Keep away from heat and water; use only approved charger
Spare Parts / Repairability	Contact authorized service center for battery and screen replacement
General Info	Released 2018; user manual available in PDF

Frequently Asked Questions - TF-MID802G TELEFUNKEN

How do I turn on the Telefunken TF-MID802G for the first time?

Press and hold the power button located on the top edge until the screen lights up. Then follow the on-screen setup wizard to select language, connect to Wi-Fi, and sign in to your Google account.

How can I insert a microSD card into the tablet?

Locate the microSD card slot on the side of the tablet (usually under a small flap). Gently insert a compatible microSD card (up to 128 GB) with the gold contacts facing down until it clicks into place.

Why is my tablet not charging?

Ensure you are using the original charger and cable. Check the micro USB port for debris. Try a different power outlet. If the issue persists, the battery or charging port may need service.

How do I perform a factory reset on the TF-MID802G?

Go to Settings > Backup & reset > Factory data reset. Alternatively, press and hold Volume Up + Power button during boot to enter recovery mode, then select 'wipe data/factory reset'.

Can I connect a Bluetooth keyboard or mouse?

Yes. Go to Settings > Bluetooth, turn it on, and pair your keyboard or mouse. The tablet supports Bluetooth 4.0 peripherals.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for about 2 seconds. The screenshot will be saved in the Gallery app.

What should I do if the touchscreen becomes unresponsive?

First, clean the screen with a soft cloth. If still unresponsive, try restarting the tablet by holding the power button for 10 seconds. If the problem persists, perform a factory reset or contact support.

How can I extend the battery life?

Reduce screen brightness, turn off Wi-Fi/Bluetooth when not in use, close background apps, and enable power-saving mode in Settings > Battery.

Does the tablet support 4G LTE?

The TF-MID802G model supports Wi-Fi only, not cellular networks. It does not have a SIM card slot for mobile data.

How do I update the operating system?

Go to Settings > About tablet > System updates. The tablet will check for updates and prompt you to download and install if available. Ensure you have a stable Wi-Fi connection and sufficient battery.

USER MANUAL TF-MID802G TELEFUNKEN

Black tablet with a white display showing red poppy flowers (no text or symbols visible)

8" TABLET PC/

8" ПЛАНШЕТ

TF-MID802G

Instruction manual

Руководство по

эксплуатации

Table of contents

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product. Keep this manual for future reference.

Table of contents 2

Before you start 3

Important safeguards 3

General provisions.... 3

Health and safety of the user 3

Power adapter, ports and connectors .... 3

LCD 4

Cleaning and maintenance 4

Utilization of the product 4

Battery 4

Operation 5

Control elements 5

Front panel 5

Rear panel 5

Left panel 5

General operation 6

Power on/off 6

Rebooting the device.... 6

The main screen 6

Status bar 6

Adding/removing objects on the desktop 6

Wallpaper 7

Upgrading basic software (OS).... 7

Connections 8

Connecting to Wi-Fi 8

3G connectivity 8

A-GPS 8

Connect external USB-devices 8

Connect memory cards 9

Connecting to PC 9

Applications 9

Installing applications 9

Deleting applications 10

List of applications 10

System setup 11

The Settings menu.... 11

The WIRELESS & NETWORKS menu..... 11

The DEVICE menu.... 11

The PERSONAL menu 12

The ACCOUNTS menu 13

The SYSTEM menu.... 13

General information.... 14

Troubleshooting guide.... 14

Accessories.... 15

Warranty.... 15

Specifications 16

Important safeguards

General provisions

• Carefully read this manual to familiarize yourself with the device.
• Have this manual available as a reference for operating procedures and precautions. Do not allow the use of the device by unauthorized persons who have not read and understood this instruction manual.
• Usage of the device at temperatures beyond the operating temperature range significantly reduces the life of the screen and other components of the device and can lead to malfunction of the device.
• Do not drop, cause an impact or strong shaking of the device.
• Do not use the device near magnetic fields. Do not store the device near credit cards, tickets, etc., otherwise magnetic stripe cards may be damaged.
• Make sure the power supply is turned off if you are not going to use the device for a long time or during a thunderstorm.
• Make sure the power supply is turned off if some malfunction of the device is detected or the device is overheated, makes uncharacteristic sounds, smells, emits smoke, or if liquids have been spilled onto it. In these cases a qualified technical maintenance is required.
• Do not use the unit while driving. Observe the law and traffic rules of the country of your residence.
• The device must be turned off during takeoff or landing when used on an aircraft.
• Do not use the device in areas of electronic interference or static electricity. This can cause data loss.
• In case of a malfunction, contact a sales representative or a nearest service center.

Health and safety of the user

- Electrical equipment can be dangerous if used improperly, so if children use this device they should always be supervised by adults.

Do not allow children to touch the internal components and cables of this device.

• To ensure complete safety, do not disassemble the casing and do not try to get inside the unit. Repairs should be performed by qualified personnel only.
• Do not spill liquids on the device. This can cause electric shock. Besides, if liquid or dust get inside the unit, they may cause malfunction, overheating and smoke. Keep the unit dry.
• Make sure there are no foreign objects inside the device. They can cause malfunction or fire.
• Using headphones at high volumes can lead to permanent hearing loss. You can increase the volume to a level at which sound is perceived normally and does not lead to irritation and damage to your hearing. Set the volume at a safe level.
• If you have a regular ringing in your ears, reduce volume or stop using the device.

Power adapter, ports and connectors

• Do not touch the power adapter with wet hands. This can lead to electric shock.
• Use only the supplied power adapter. Using other power adapters with this unit may cause damage and lead to malfunction.
• The power adapter can be connected only to the type of electrical network the parameters of which are specified on the rating label. If you are not sure about the parameters of power supply and power adapter, please contact one of the manufacturer's authorized service centers.
• Make sure the plug of the power adapter is securely inserted into the power supply socket. Otherwise it may cause fire.
• Do not step on the AC adapter cord or place heavy objects on it.

• Do not stretch or tangle the cable.
  • After charging, disconnect the adapter from the wall outlet.

• When unplugging the AC adapter from the wall pull the plug, do not pull the cable itself.

• Do not connect the adapter to any other devices.
• Keep the power adapter away from children.
• Do not insert connector plugs into ports with force. If a plug cannot be easily inserted into the port, the connector and the port may not match. Make sure the connector matches the port and that they are correctly aligned.

LCD

Liquid-crystal display (LCD) is a delicate device that requires careful handling.

• Do not touch the screen with sharp objects.
• Do not exert strong pressure on the screen and do not place any objects on it. This can cause damage to the display and malfunction of the device.
• Do not expose the display to direct sunlight.

Cleaning and maintenance

• Before cleaning the device, make sure it is switched off.
• To clean the LCD screen and casing of the device use a soft cloth, special tissue and special cleaners. Do not use aerosol sprays, solvents, alcohol or abrasives.

The manufacturer reserves the right to alter specifications, appearance, contents of SW and equipment of the product unilaterally, without prior notice.

Utilization of the product

If you want to dispose of this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for

the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Battery

Connect the power adapter to the electric supply network and insert the adapter plug into the power connector of the device. While charging, the process is displayed as an additional lightning symbol in the power icon:

We recommend not to disconnect the device until the battery is fully charged. When the battery is fully charged, the power icon on the screen will be completely filled.

In order to maintain efficiency and prolong the battery life, follow the instructions described below:

• Before the first use, it is recommended to attach the device to the electric mains for 8-12 hours to fully charge the battery.
• Do not charge the device at high temperatures.
• Do not charge the device too often: you can do this when the display shows a low level of charge.
• If you are not using the device for a long time, charge the battery at least once in two weeks; do not wait for the moment of a full discharge.

Control elements

Front panel

1. Display
2. Front (additional) camera
3. Home (ESC) button
4. VOL+/- buttons
5. POWER button
6. Back (main) camera
7. Earphones 3.5 mm jack
8. Microphone
9. RESET button (hole)
10. MicroUSB port
11. microSD slot
12. 3G SIM card slot
13. Speaker

Rear panel

General operation

Power on/off

- Power on: Press and hold the power button until the logo appears, followed by the splash screen and the main screen. Hold down the icon and drag it to the right onto the icon representing an open lock to unlock the device.

Abstract digital interface with camera and lock icons on a blue gradient background (no text or symbols)

- Sleep Mode: Sleep mode is convenient for regular use of the device. In this mode the device stays active, but the display is turned off and the main screen is locked. This allows you to instantly access your operating system while preventing accidental pressing on the display and saving battery power. To go into sleep mode and back, briefly press the power button. - Turn off: Press and hold the power button until a prompt appears asking if you want to switch off the device, switch to Airplane mode or mute/unmute the sound. Select the Power off option and touch "OK" to shut down.

In case of low battery the device can be switched off automatically after notifying the user about the problem. Moreover, all unsaved data may be lost. To avoid this, save your open documents, close all applications and connect the tablet PC to a power source.

Rebooting the device

If the device cannot be turned on and does not respond to charging, then restart it by pressing and holding the POWER button for 8 seconds or longer and then wait for the device to restart.

After the reboot please turn the device off and on again to activate both keyboard language presets.

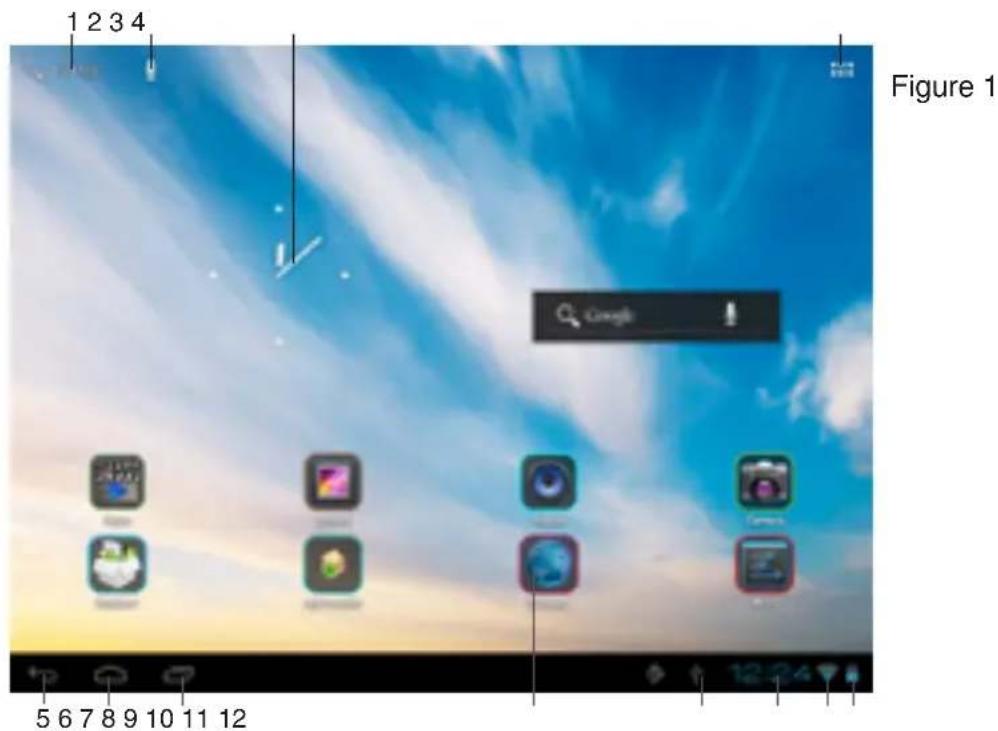

The main screen

After unlocking the device you can see the main (home) screen which provides access to system controls and operating functions.

The screen has the status bar (bottom right corner), the desktop, which can be extended by pressing a finger on the screen and moving it left or right, as well as icons for access to applications. Elements of the main screen are (Fig. 1):

1. Google Search. Click to go to the Google search page.
2. Voice search.
3. Alarm clock
4. List of all installed applications.
5. "Back" button. Click to return to the previous page/screen.
6. "Home" button. Click to go to home screen.
7. Click here to quickly switch between active applications.
8. Application icons.
9. Bluetooth connection.
10. Clock.
11. Wi-Fi connection status.
12. Battery charge indicator.

Status bar

The status bar is located at the bottom right corner of the main screen. It gives access to control elements, displays system alerts, shows indicators, wireless connections status, battery charge level and clock. To access the Quick menu or see the details of the system when receiving a notification, click on the status bar at the bottom right corner, then click on the icon.

Adding/removing objects on the desktop

- Adding a shortcut: Click the applications menu button (4) at the top right corner of the main screen, then select the item you wish to place on your desktop. Touch the icon and hold it for 3 seconds. Without taking your finger off the screen, drag the icon to a blank space of the active desktop, release the icon and it will lock on the home screen.

You can move any object on the active home screen. You cannot add a new object on the screen if there is no free space left. Remove unused objects from the active screen, or add the new object to another home screen.

- Removing an object from the desktop: On the home screen, click the unwanted item and hold for 3 seconds, until a white X and the word "Remove" appear at the top of the screen. Without taking your finger off the screen drag and drop it on the X when it turns red.

Deleting an object from the desktop will not delete it from your system. Any object can be restored on the desktop as described above.

Wallpaper

There are two ways to set the background image on your desktop and screen lock:

- On the home screen, click on a blank area of the desktop and hold for 3 seconds, then choose a wallpaper from several available options. Click "Set Wallpaper" to finalize your choice.

- On the home screen, click the applications menu button (4) at the top right corner of the main screen, in the APPS tab select "Settings". In section "Display" select "Wallpaper". Select a picture available on the device. Click "Set Wallpaper".

Upgrading basic software (OS)

- You can find the latest version of firmware and operating system (OS) updates (if any)

on the manufacturer's website. Do not use the OS updates for other models, as they are incompatible and cannot provide full and stable work of the device.

• If your device is working properly do not update the software, as it is quite possible that the device has a newer version of the software installed.
• Before upgrading/replacing the OS make sure that the OS is designed for models with the same serial numbers as your device (the serial number is located on the back panel of your device). To perform the upgrade/ replacement of the OS, follow the instructions posted on the page of this model on the manufacturer's website.

Connections

Connecting to Wi-Fi

• Click the applications menu button (4) in the top right corner of the main screen, in the APPS tab select "Settings". In the WIRELESS & NETWORKS section click Wi-Fi to set it into the ON position.
• Connecting to the network: The system automatically detects available Wi-Fi-networks and displays their names; select a network you want to connect to and, if necessary, enter the password. When the connection is established, the display shows the Wi-Fi icon (11) in the notification area. The number of blue sectors in the icon shows the strength of the Wi-Fi signal.

To add a Wi-Fi network to the list, click "Add Network" in the top right corner, then use the pop-up keypad to enter the network name and click "Save".

After disabling Wi-Fi please switch the 3G module off and on again.

3G connectivity

Insert a 3G SIM-card into the appropriate slot on the unit. Click the applications menu button (4) in the top right corner of the main screen, in the APPS tab select "Settings". In WIRELESS & NETWORKS select "More ..." Click on "Mobile networks", put a tick next to «Modem power» and enter the PIN-code. In the "Mobile network settings", select "Access Point". Select your access point from the list or adjust manually. When a successful connection is performed, icon appears in the system tray.

Once the SIM-card is inserted and initialized, you must reboot the device to ensure the correct network registration and functionality.

• When using a device with 3G, while out of network coverage, you must disable the transmission of data in order to stop the system from constantly trying to register in the network. This is recommended to prevent poor system performance and a shorter battery life.
• Impossibility of a 3G-connection can be caused by a lack of 3G coverage in your location, and in this case it is not a defect of the device.

A-GPS

• The A-GPS function enables you to determine the coordinates of the location of mobile devices and display it on the map. The positioning is performed via cellular connection channel and/or Wi-Fi.
• Click the applications menu button (4) in the top right corner of the main screen, in the APPS tab select "Settings". In "Location services" put a tick next to the option "Google's location service" and remove the tick for the option "GPS satellites". Now when you start working with map application (Google Maps), after clicking on the icon on the map will display the location of your device.

This unit is equipped with a GPS module which allows to position your coordinates without a Wi-Fi or cellular connection.

Connecting external USB-devices

- Connect an external USB-drive with a microUSB cable to the microUSB or USB (OTG-host) port of this unit. Run the “Explorer”

application and select "USB" to access the contents of the connected drive.

- You can connect other peripheral USB-devices (e.g. mouse, keyboard, external hard drives). It's enough to connect the peripheral device to the tablet; the device will be recognized and connected automatically.

According to the USB 1.1/2.0 Standard, usage of a USB device with power current consumption exceeding 500 mA is not recommended without supplementary power supply. Failure to use supplementary power for connected USB drives with power consumption exceeding this value as well as defective USB drives may cause mechanical or thermal changes of elements of this unit as well as malfunction of internal elements of the USB port. Such damages are not warrantee cases.

Warning: usage of external USB drives containing BIN files in the root directory may cause malfunction of the unit or damage to the software.

Connecting memory cards

The tablet PC is equipped with a slot for microSD memory cards. The maximum supported card capacity is 32 GB. After properly installing a memory card, the device detects it automatically. To safely remove the memory card, follow these steps: click the applications menu button (4) in the top right corner of the main screen, in the APPS tab select "Settings", select "Storage", click on "Eject SD-card" and wait for the process to finish. Press on the card until it clicks, then pull it out of the slot.

To insert the card into the slot make sure it faces the proper direction and side. For proper operation of the device, use licensed microSD cards of well-known manufacturers. Avoid the use of counterfeit cards by dubious brands.

Connecting to PC

- Connect the USB connector of a PC to the microUSB port of the device using a microUSB cable. Click "Turn on USB storage" at the bottom of the screen. After a while the device is detected as a removable USB-drive, and you will have access to the internal memory of the tablet and the memory card.

- To turn off the tablet connected in USB-drive mode, click "Turn off USB storage" at the bottom of the screen.

Applications

Installing applications

In addition to the pre-installed basic application package, you can install additional software on your own. Programs can be installed from memory cards or USB-flash drives, downloaded from the Internet or from the official Android Market (Google Store) online catalog.

- Installing applications from Android Market: Installation of applications from the Android Market Internet service is only available to users having a Google account. The Play Market application is pre-installed as standard software. At first launch of the application you will be prompted to set up a Google account. On the page «Setting up a Google account» press «Next». If you already have a Google account, click «Login», enter your user name and password and click «Enter» again. If you do not have a Google account, you should create one. To do this, click «Create» and follow the instructions on the screen. All applications in the Android Market catalog are grouped by categories («Widgets», «Multimedia», «News & Weather», «Tools» etc.). To install an application simply click «Install» (or «Buy» if the application is not free).

Internet connection is required to use the Android Market Before shopping at the Android Market, make sure that your device has correct current date and time settings, otherwise connection to the server can fail; • Installing on your own: Copy the setup

file (with .apk extension) on a memory card, flash drive or internal memory. Locate the file in the «Explorer». Open the file and confirm the installation.

For safety reasons, installation of applications received elsewhere apart from the Android Market is disabled by default. If you still need to install the application, activate the «Unknown sources» section under the «Settings» => «Security».

Deleting applications

Click the applications menu button (4) in the top right corner of the main screen, in the APPS tab select «Settings». Open the «Apps» section; find and select the application from the list, click «Uninstall» and confirm the action.

Applications that are part of the system cannot be deleted.

List of applications

1. Google Maps - a set of applications based on mapping service and technology provided by «Google» company.
2. Gmail (Google Mail) -the e-mail service from Google. Provides access to mailboxes via a web interface.
3. Email (Electronic Mail) - technology which provides services for sending and receiving electronic messages distributed in the network.
4. Browser (Web browser) - software for viewing websites, (mainly on the Internet), processing, and page navigation. Entering addresses and requests is performed by using pop-up keyboard accessible by clicking on the search bar in the browser interface.
5. Calendar - software that emulates the functions of the calendar and allows you to see dates and set event reminders.
6. Calculator - software that emulates the functions of the calculator and allows you to perform operations on numbers or algebraic formulas.
7. Camera - an application that allows you to perform video and photography recording with both cameras of the device. You can also

activate the camera application by holding and dragging the 🔊 icon to the left on the icon representing a camera in screen-lock mode.

The camera auto focusing system is not intended for shooting the objects at very close distances (macrophotography). The auto focus may not work properly when shooting at close-up ranges which may result in poor quality of the picture. This operation aspect of the camera is not a defect and shall not serve as the grounds for warranty repair, refund or replacement of the device.

Camera application interface

1. Browsing images
2. Selecting front/rear camera
3. Press to record
4. Adjusting white balance
5. Photo mode
6. Video mode

7. Panoramic shooting mode

8. Gallery - a program enabling you to view and edit image files contained in this unit and external devices. Menu of operations with images (cropping, rotation, ability to set image as wallpaper, etc.) is available by clicking the icon in the upper right corner of the gallery interface.

9. Google search - application enabling you to perform quick search using the Google search engine.
10. Music - software player that can play audio files stored on the device and external drives, including operations such as rewind, stop, pause, change the playback order, repeat. The menu of additional functions (setting track as ringtone, delete tracks,

equalizer, etc.) is available by clicking the icon in the status bar of the audio player interface.

1. Video - software video player that plays audio files stored on the device and external drives, including operations such as rewind, stop, pause, adjust the brightness, select the format of the video. To call/hide the operation menu, click on the screen during playback. The menu of additional functions (language subtitles and audio language selection, etc.) is available by clicking the icon in the lower right corner of the operation menu in the video player interface.
   The manufacturer guarantees the proper playback of licensed video files only. Some files may not be played by the device due to their configuration and parameters, as well as recording conditions. Video files exceeding 2 GB in size may not be played in full.
2. Clock - a program that emulates the functions of a clock and allows to set an alarm.
3. Advanced task manager - a program with which you can check the status of system processes and memory devices and quickly switch to different applications and perform other useful operations.
4. Recorder - a program that allows you to record sound via the built-in microphone.
5. iReader - a program for reading electronic books in various formats. To call/hide the menu of operations with books (change the font size, style, add bookmarks, etc.) click on the screen while displaying a book.
6. Explorer - an application that implements a GUI user access to files in the operating system.
7. Skype - software enabling you to transfer encrypted voice and video calls between computers over the Internet (VoIP), as well as services for calls to mobiles and landlines.
8. Youtube - an application that provides video hosting services. Users can add, view and comment on videos.
9. ApkInstaller - service enabling to manage the applications stored on the device and

external drives, performing such operations with applications as installation, uninstallation, launching and export.

System setup

The Settings menu

The Settings menu of the operating system (Figure 2) allows you to connect to Wi-Fi, adjust the display settings and sound, set the language settings, date and time, manage installed applications and much more. There are two ways to access the Settings menu:

- On the home screen, press the

Application menu button (4) in the top right corner, in the tab APPS tab select «Settings».

- Tap the status bar at the bottom right corner, then from the menu, click on the icon, menu, select quick setup «Settings».

The WIRELESS & NETWORKS menu

Menu => Settings => Wireless & Networks

• Wi-Fi. See section «Connecting to Wi-Fi» above.
• Bluetooth. If you select «ON» for this item, you can connect the tablet to another device via Bluetooth with an intuitive menu.
• Data usage. This section allows you to enable/disable the tracking of mobile traffic, set a limit and view traffic statistics.

The DEVICE menu

Menu => Settings => Device

- Sound

Volumes: Adjust the playback volume of music and the notifications.

Default notification: select the melody for notifications.

Touch sounds: Enable/disable the sound of pressing on the screen.

Screen lock sounds: turn on/off the clicking sound of screen lock.

Fig. 2

- Display

Brightness: adjust the screen brightness.

Wallpaper: select a background image for your desktop.

Auto-rotate screen: Enable/disable the automatic change of the screen orientation.

Sleep: Set the time after which the device automatically switches to sleep mode in idle state.

Font size: Set font size.

• Storage. This section allows you to view information about available total and free memory space, as well as operation with memory cards, if they are connected.
• Battery. This section allows you to view status information and battery level and time of its operation.
• Apps. This section allows you to manage installed applications, view information about installed programs and, if necessary, uninstall them. The «Running» section will show a list of running applications and services.

The PERSONAL menu

Menu => Settings => Personal

- Location services. This section allows you to adjust the identification of a user's location through wireless networks, as well as synchronize data with Google for optimization of search and other Internet services.

- Security

Screen lock: choose how to lock the screen (slide, face unlock, pattern, PIN, password, disable the lock).

Owner info: enable/disable the display owner information on the lock screen.

Device administrators: List of administrators of the device.

Unknown sources: put a tick to allow the installation of third-party applications that are not received from Android Market.

• Language and input

Language: select the preferred language of your device.

Spelling correction: enable/disable spell checking in text input.

Personal dictionaries

KEYBOARD & INPUT METHODS

Default

Android Keyboard: configure the keyboard. If you want to set several languages, please

disable the «Use system language» function and pick the desired languages from the list by tapping on them. You can switch them on the keyboard.

Google speech-to-text

SPEECH

Voice search

Text-to-speech output

MOUSE/TRACKPAD

Pointer speed: Adjust the speed of the mouse.

- Backup & reset. This section allows you to enable or disable backing up passwords, access point of Wi-Fi, bookmarks and other settings, applications and also reset to the factory settings.

The ACCOUNTS menu

Menu => Settings => Accounts

This section allows you to create and edit accounts in Gmail, Android Market and other Internet services.

The SYSTEM menu

Menu => Settings => System

- Date & time

Automatic date and time: remove the tick if you want the device to display user-configured time. If the tick is put the network time will be displayed.

Set date: If the date and time of the network is disabled, set the current date.

Set time: If the date and time of the network is disabled, set the current time.

Select time zone: Select the time zone.

Use 24-hour format: Remove the tick to display time in the 12-hour format.

Select date format: Select the date display format.

- Accessibility

Large text: Increase the font label on the screen.

Auto-rotate screen: Enable/disable the automatic change of the screen orientation.

Speak passwords: enable/disable voice recognition of passwords

Touch-and-hold delay: set the delay time for operations to be performed by pressing and holding your finger on an item.

Install web scripts: allow/disallow the installation of scripts to improve the availability of Google web content.

- Developer options. This menu section is only intended for developers of the device.

- About tablet. This section allows you to view information about the model, firmware version and the kernel, battery status, IP-address and other data.

Troubleshooting guide

The following information will help you identify and eliminate common hardware and software problems you may encounter when using the device. If you experience any of the following issues you should first try to resolve them yourself, using the given recommendations. In case the given advice will not help, please contact the customer support desk or an authorized service center.

Problem Reason	and solving
Power, start-up
The tablet PC cannot be turned on	Check the battery; if it is discharged, attach the power adapter and wait for at least 5 minutes.Press and hold the power button on the device for at least 5 seconds.If the battery is charged press and hold the POWER button for 8 seconds to reboot the device.If the unit does not turn on even after charging and rebooting, please contact support or an authorized service center.
The tablet PC turns off immediately after turning on	It is possible that the battery is very low. In this case, the system automatically prevents the complete discharge to avoid loss of information and stored data. Before you make an attempt to switch the device on again, charge it for at least 5 minutes and do not plug the power adapter off from the wall outlet during operation.
The battery discharges quickly	You may use programs that require a large expenditure of power. The largest power-draining operation is video playback.Try to set screen brightness lower.Install the latest firmware.The battery is discharged quicker when operating at low temperatures.
The battery cannot be charged	Make sure the power adapter is plugged into a working outlet. When you connect the power adapter to the device, the power indicator should be lit.Make sure you are using the power adapter included with the device.Battery may not charge when operating at high temperatures.
Sound
The sound cannot be heard	Make sure the sound playback is enabled in the basic system settings.Make sure that the volume is set to the maximum or your desired level.Many of the problems with the playback of audio are associated with the software. If no audio issues were previously observed, the problem may happen due to incorrect software installation or configuration of the installed program. To resolve the problem, contact the manufacturer of the software.Check for damaged files. Try to play another file in another directory.
Problems with sound recording	Make sure that the device's microphone is directed towards the sound source, and that the record displayed on the desired volume level. The level of the recorded sound may not be sufficient to successfully record it.Make sure the proper recording software is installed. Reinstall the software if necessary.
Miscellaneous
USB operation problems	Make sure the USB-device is functioning properly. If you use an external hard drive, make sure it is connected to the power supply.
The device cannot read the memory card	Make sure the card is properly inserted into the appropriate slot.The card may be damaged. Try to test the card on another device.Try to remove or re-insert the card, try restarting your tablet.Refer to the “Connecting memory cards” section of this manual.
Problems with file copying	Check whether the connection was established between the desktop computer / laptop and the device.The device memory may be full; remove unused files.The problem may be in the application which you use to copy files.Reinstall the application.
Problems with auto-rotation of the screen	Make sure that this feature is enabled. Put a tick next to «Auto Rotate Screen» section of the settings (see «System Setup»).

Accessories

1. Tablet PC 1 pc
2. Power adaptor 1 pc
3. USB cable 1 pc
4. Earphones 1 pc
5. Consumer Information 1 pc
6. Warranty Card 1 pc
7. Instruction Manual 1 pc

Warranty

Manufacturer's warranty does not cover:
- Cases of unauthorized reinstallation of the integral software, except for the OS updates from the official developer's website, of the mechanical damage, and damage due to overheating of the device, flooding it with liquids, presence of foreign objects and insects inside.
- Third-party programs installed by the user, including the damage they can cause to the basic software.
- Unstable operation of the device due to power quality, wireless connectivity, negative external effects (high humidity, high temperatures, overheating by direct sunlight).

Specifications

Unit dimensions/Net weight 201 x 9.9 x 152 mm/0.43 kg

CPU MediaTek MT8377 Dual core; 1.0 GHz

GPU SGX 531 Open GL ES 2.0

Operating system Android 4.1 Jelly Bean

Display touch 8" capacitive, IPS panel, 5-point multi-

Screen resolution 1024x768

Main camera 2 MP

Front camera 0.3 MP

Supported audio formats MP3, WAV, FLAC, AAC, OGG

Supported video formats AVI, MP4, RMVB, FLV, 3GPP

Supported photo formats JPG, BMP, GIF, PNG

Supported text formats PDF, TXT, EPub, FB2

Memory built-in flash 8 GB + up to 32 GB MicroSD memory card slot

RAM DDR III, 1 GB

Wi-Fi specifications

frequency, MHz 2400-2483.5

power, mWt 40

protocol 802.11 b/g/n

Bluetooth 4.0

frequency, MHz 2400-2483.5

power, mWt 10

protocol 802.15.4

3G WCDMA frequency, MHz 2100

GPS +

Connectors and ports microUSB, microSD slot,

3.5 jack output, SIM-3G card slot

Power 3700 mAh battery (3.7 V)

Battery operation time up to 3 hours playing HD video

Operation temperature range +5 0 - +35°

Storage temperature range -20 ^0 - +55 ^0

Specifications are subject to change without notice. Dimensions are approximate. The list of supported file formats is given for informational purposes only and is not an obligation of the manufacturer.

This device is equipped with a capacitive-type screen panel. When operating the device do not exert significant pressure (exceeding 500 g) on the screen to prevent its damage. If excessive pressure is applied, interferential leakages and fringes may appear on the screen. This is a visual reaction to excessive pressure of a multilayered structure of the screen and is not a warranty case.

Areas with non-uniform backlite on the edges of the screen are normal, this is a sstructural feature of the LCD-screen and is not a warranty case.

The LCD-screen of the tablet PC is a high-technology device, containing a great number of thin-film transistors which give a clear, finely detailed picture. Sometimes inactive dots of various colors (blue, green, red, black or white) may appear on the screen. This is not a defect and does not affect the characteristics of your device.

Digital lock icon with a red arrow pointing to the lock symbol, set against a blue sky background (no text or symbols)

®licensed by TeLefunKen Licenses GmbH
