USER MANUAL TFEHI60SW10A TELEFUNKEN

EN BUILT-IN SET / User Manual

WARNING: DIESES GERÄT MULLS GEERDET WERDEN.

Thank you for choosing this product.

This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
A	WARNING Serious injury or death risk
S	RISK OF ELECTRIC SHOCK Dangerous voltage risk
A	CAUTION Injury or property damage risk
O	IMPORTANT Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS 32

1.1. General SafetyWarnings 32
1.2.InstallationWarnings 34
1.3.During Usage 35
1.4. During Cleaning and Maintenance 36

2.INSTALLATION AND PREPARATIONS FOR USE 37

3.PRODUCT FEATURES 40

4. USE OF PRODUCT 42

4.1. Control of Hob 42
4.2. Control of the Induction zone 42
4.3. Control of Oven 45
4.4.Use of Digital Timer 46

5.CLEANING AND MAINTENANCE 48

6.TROUBLE SHOOTING&TRANSPORT 50

6.1.Trouble shooting 51
6.2. Transport 52

1. SAFETY INSTRUCTIONS

• Read these instructions carefully and completely before using your appliance and keep them in a convenient place for reference when necessary.
• This manual is prepared for more than one model. Your appliance may not have some of the features described in this manual. Pay particular attention to any figures while you are reading the operating manual.

1.1. General SafetyWarnings

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continuously supervised.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
  WARNING: Danger of fire: do not store items on the cooking surfaces.
• 4WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric

shock.

• For models which incorporate a hob lid, clean any spillages off the lid before using and allow the Cooker to cool before closing the lid.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside the oven.
• During use handles held for short periods in normal use may get hot.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface. They can scratch the surface which may result in shattering of the glass or damage to the surface.
• Do not use steam cleaners for cleaning the appliance.
  WARNING: To avoid the possibility of electric shocks, make sure that the appliance is switched off before replacing the lamp.
• CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.
• Your appliance is produced in accordance with all applicable local and international standards and regulations.
• Maintenance and repair work must only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure

that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

• CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment or room heating.
• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.

1.2. InstallationWarnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it has not been damaged during transportation.

In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow, excessive humidity etc.
• The material around the appliance (cabinet) must be able to withstand a minimum temperature of 100^ .

1.3. During Usage

• When you first use your Oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that before using your Oven for the first time you leave it empty, and set at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.
• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.
• Do not put flammable or combustible materials in or near the appliance when it is operating.
• Always use oven gloves to remove and replace food in the oven.
• Do not leave the cooker unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.
• Always position pans over the centre of the cooking

zone, and turn the handles to a safe position so they cannot be knocked or grabbed.

• If the product will not be used for a long period of time, turn the main control switch off. Also when not using a gas appliance, turn the gas valve off.
• Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.
• The trays incline when pulled out. Take care not to spill or drop hot food when removing it from the ovens.
• Do not place anything on the oven door when it is open. This could disrupt the balance of the oven or damage the door.
• Do not place heavy items or flammable or ignitable items (e.g. nylon, plastic bag, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles).
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4. During Cleaning and Maintenance

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

2. INSTALLATION AND PREPARATIONS FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

Instructions for the Installer General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.
• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
• The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100^ .

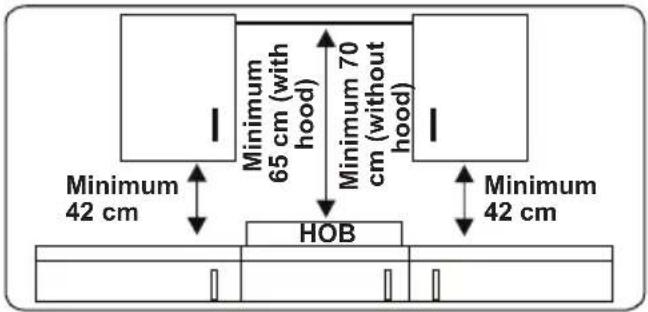

• If a cooker hood or any cupboard is to be installed above the appliance, the safety distance between cooktop and any cupboard/cooker hood should be as shown below.

• The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.
• The oven should have a cooling fan.
  Make sure that the induction hob is well ventilated and the air inlet and outlet are not blocked.

Installation of the appliances

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

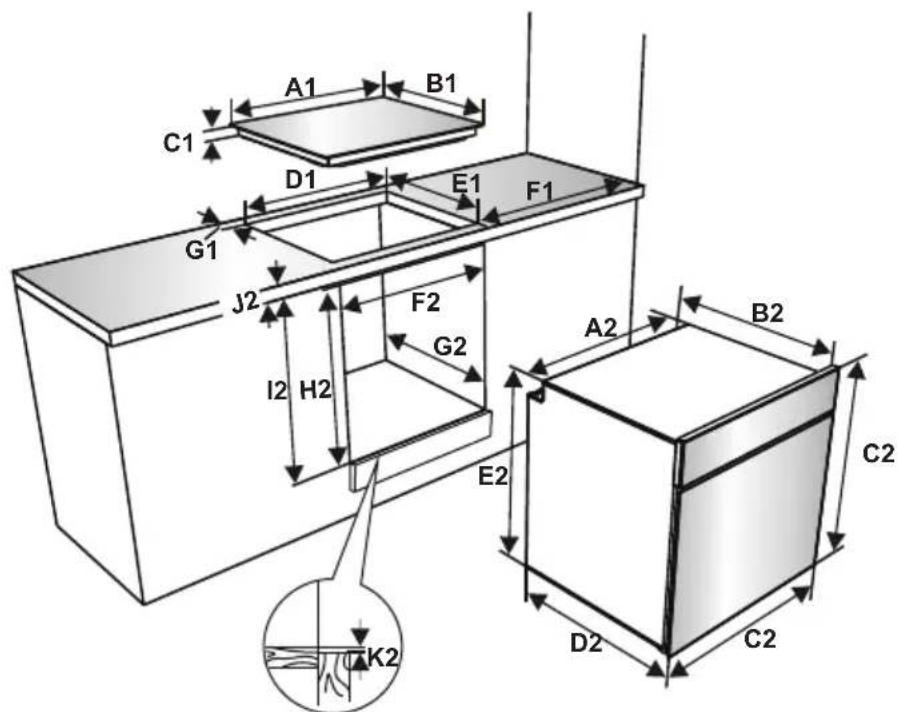

Installation dimensions for hob

A1 (mm) 5	90 E1 (mm)	490
B1 (mm) 5	20 min. F1 (mm) 150
C1 (mm) 5	6 min. G1 (mm) 60
D1 (mm) 5	60

Installation dimensions for oven

A2 (mm) 557	E2 (mm) 576
B2 (mm) 550	min. F2(mm) 560/580
C2 (mm) 595	min. G2 /K2(mm) 555/2
D2 (mm) 575	H2 (mm) 590
I2 (mm)	600	J2(mm) 25

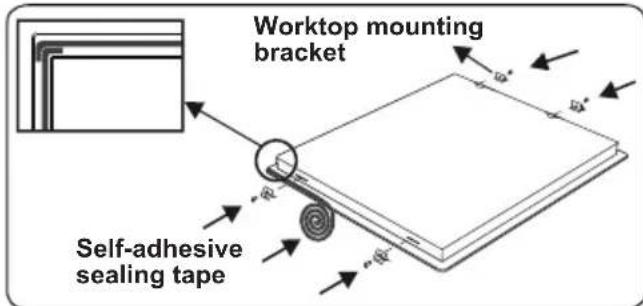

Installation of the hob

• Apply the supplied one-sided self-adhesive sealing tape all the way around the lower edge of the cooktop. Do not stretch it.

• Screw the 4 worktop mounting brackets on to the side walls of the appliance.
• Insert the appliance into the aperture.

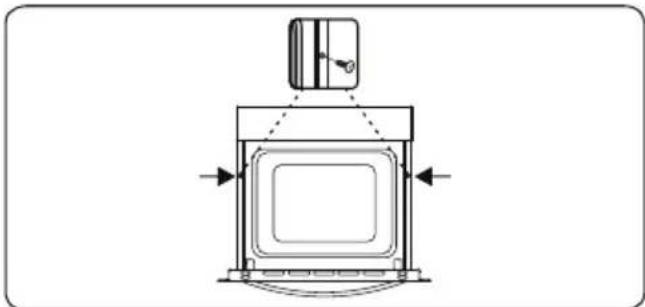

Installation of the oven

1. After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

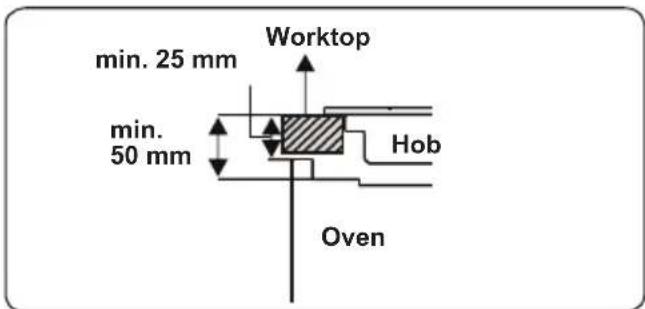

1. The distance between the worktop and the top panel of the oven must be a minimum of 50~mm and the distance between the worktop and the top of control panel must be a minimum of 25~mm .

1. The distance between the base of the hob and the top panel of the oven must be a minimum of 10mm for air circulation.

Electrical Connection and Safety

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).
• During installation, please ensure that isolated cables are used. An incorrect connection might damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a multi-pole isolator switch (with at least 3mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220-240V ~ and 380-415V 3N~. If your supply is different, contact the authorised service person or a qualified electrician.
  The power cable (H05VV-F) must be

long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.

• Ensure all connections are adequately tightened.
  Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.

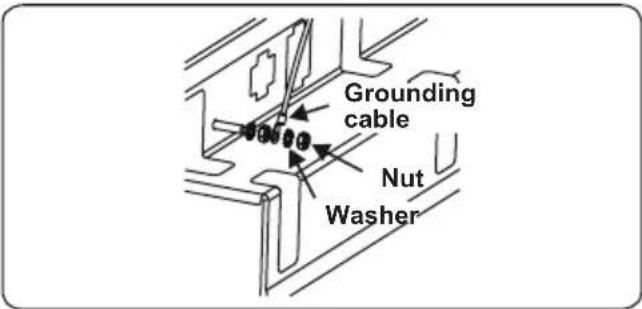

• Remove the nut and the washer on the screw shown in the figure and attach the Yellow + Green grounding cable to this screw. Then retighten the screw with a washer and nut when the oven is installed.

3.PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

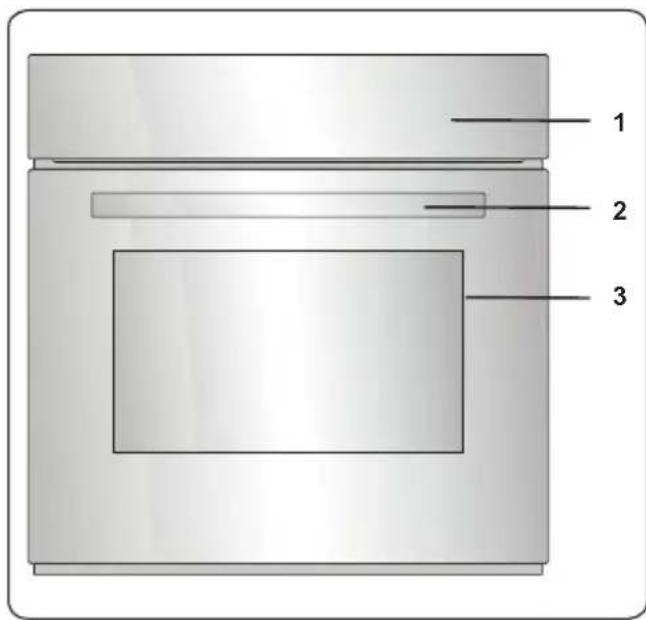

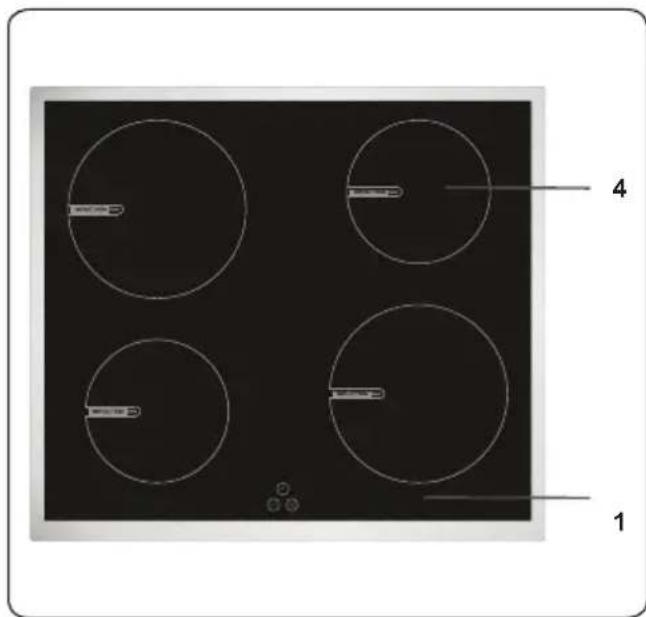

List of Components

1. Control Panel
2. Oven Door Handle
3. Oven Door

1. Electric Heater

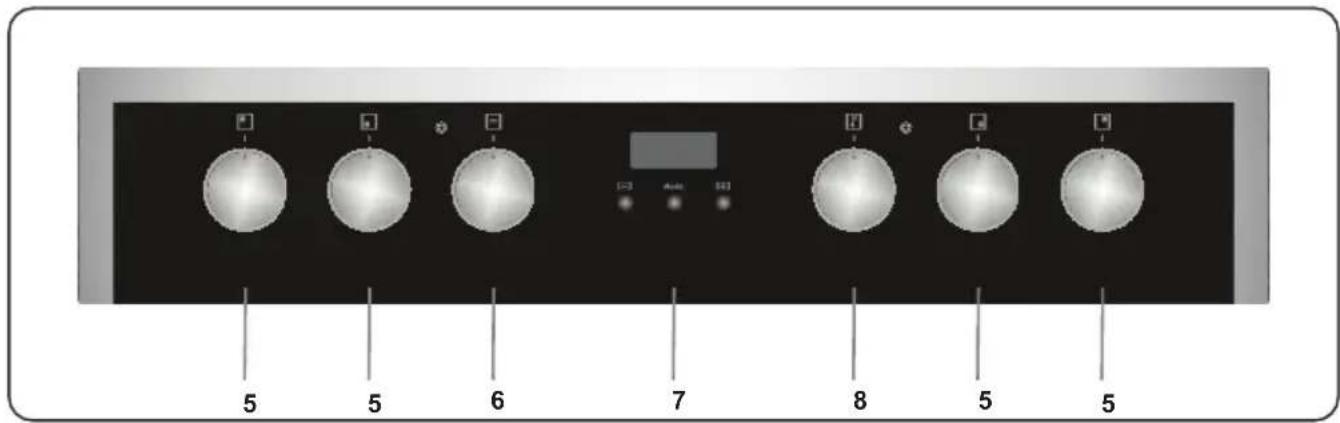

Control Panel

1. Hob Control Knob
2. Oven Function Control Knob
3. Timer
4. Oven Thermostat Knob

4. USE OF PRODUCT

4.1. Control of Hob

Control of the Induction zone

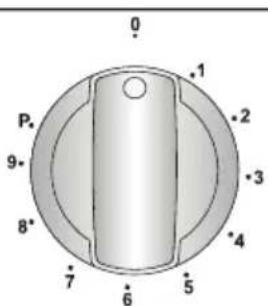

The induction zone is controlled by a 9 position knob.

The induction zone is operated by turning the control knob to the required setting.

Near each control knob is a symbol which indicates the zone that is controlled by the knob.

The information given in the following table is for guidance only.

Settings Use for

0 Element off

1-3 Delicate warming

4-5 Gentle simmering, slow warming

6-7 Reheating and rapid simmering

8 Boiling, saute and searing

9 Maximum heat

P Boost function

Cookware

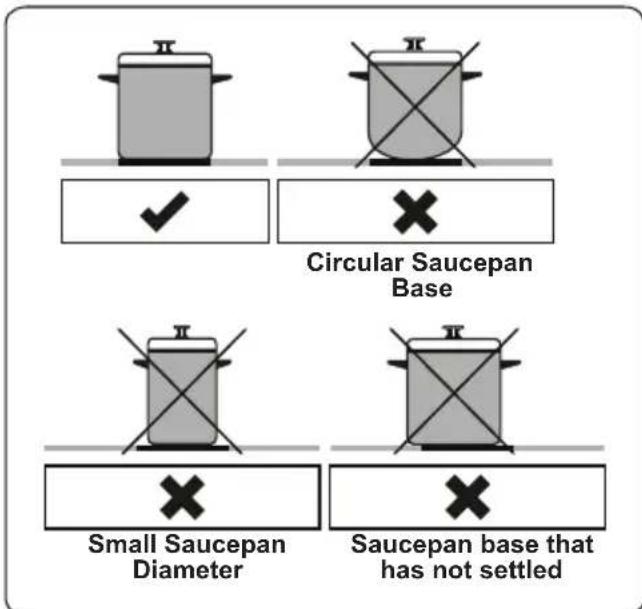

• Use thick, flat, smooth bottomed cookwares that are the same diameter as the element. This will help reduce cooking times.
• Cookware made of steel, enamelled steel, cast iron and stainless steel (if appropriately labelled by the manufacturer) will give the best results.
  Cookware with enamelled steel, aluminium or copper bottoms can cause a metallic residue to remain on the hob. If left, this becomes difficult to remove. Clean the hob after every use.
  Cookware is suitable for induction cooking if a magnet sticks to the bottom

of it.

Cookware must be placed centrally on the cook top If it is not placed correctly, is displayed.
- When using certain pans, you may hear various noises coming from them, this is due to the design of the pans and does not effect the performance or safety of the hob.

The appliance is operated by touching buttons and the functions are confirmed by displays and audible sounds.

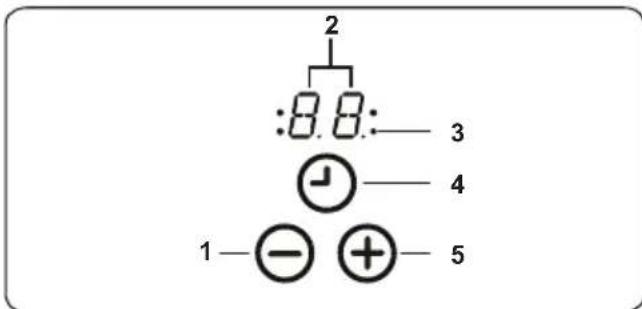

Control of the Touch Control Unit

1- Decrease timer
2-Timer display
3-Timer zone indicator
4- Timer selection
5-Increase timer

Use the induction cooking zones with suitable cookware.

After mains voltage is applied, the hob is in the stand-by mode and is ready for operation.

The hob is controlled by the use of knobs for setting the cooking level and tocuh

sensors for setting the timer. Each button press is followed by a buzzer sound.

Switching the cooking-zones on

Use the corresponding knob to set the cooking level from 0 to 9. The element is now ready to cook on. For fast boil times, keep the knob at the P position for 2 seconds to activate Boost function and then adjust to the desired level.

Switching the cooking-zones off

Adjust the knob to 0^

If the cooking zone is hot, 'H' will be displayed instead of '0'.

Residual heat indicator

The residual heat indicator indicates that the glass ceramic area has a temperature that is dangerous to touch.

After switching off the cooking zone, the respective display shows 'H' until the corresponding cooking zone temperature is at a safe level.

Safety switch off function

A cooking zone will automatically be switched off if the heat setting has not been modified for a specified duration of time. A change in the heat setting of the cooking zone resets the time duration to the initial value. This initial value depends on the selected temperature level.

Heat setting	Safety switch off after
1-2 6 Hours
3-4 5 Hours
5 4 Hours
6-9 1.5 Hours

Timer Function

Cooking zone timer (1..99 min)

When the hob is switched on, an independent timer can be programmed for every cooking zone.

Select a cooking zone, then select the temperature setting and finally activate the timer setting button , the timer can be programmed to switch off a cooking zone. Around the timer four LEDs are arranged. These indicate which cooking zone the timer has been set for.

10 seconds after the last operation, the timer display changes to the timer that will run out next (in cases where a timer is set for more than one cooking zone).

When the timer has run down, a signal

sounds and the timer display shows '00' and, the assigned cooking zone timer LED blinks. The programmed cooking zone will be switched off and the 'H' will be displayed if the cooking zone is hot.

The sound signal and the blinking of the timer LED will be stopped automatically after 2 minutes and/or by operating any button.

Buzzer

While the hob is in operation, the following activities will be signalled by the buzzer:

• Normal button activation will be accompanied with a short sound signal
• Continuous button operation over a longer period of time (10 seconds) will be accompanied with a longer, intermittent sound signal.

Boost Function

To use this function, a cooking zone must be selected, with the desired cooking level set. Then press the P(Boost) button.

The Boost function can only be activated if it is applicable with the cooking zone selected If Boost Function is active a P is shown on the corresponding display.

Activating the booster can exceed the maximum power, in which case the integrated power management will be activated.

The necessary power reduction is shown by the corresponding cooking zone display blinking. Blinking is active for 3 sec. and allows further adaptations of the settings before power reduction.

4.2. Control of Oven

Oven function control knob

Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see 'Oven functions'.

Oven thermostat knob

After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will light whenever the thermostat is in operation to heat up the oven or maintain the temperature.

Oven Functions

• The functions of your oven may be different due to the model of your product.

Oven Lamp: Only the oven light will be turned on. It remains on for the duration of the cooking function.

Defrost Function: The oven's warning lights will be turned on and the fan starts operating. To use the defrost function, take your frozen food and

place it in the oven on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food, to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Turbo Function: The oven's thermostat and warning lights will be turned on and the ring heating element and fan will start operating. The turbo function

evenly disperses the heat in the oven. All food on all racks will be cooked evenly. It is recommended that you pre-heat the oven for about 10 minutes..

Static Cooking Function: The oven's thermostat and warning lights will be turned on and the lower and upper heating elements will start operating. The

static cooking function emits heat, ensuring even cooking of the food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Prehating the oven for 10 minutes is recommended and it is best to cook on only one shelf at a time in this function.

Fan Function: The Oven's thermostat and warning lights will turn on and .The upper and lower heating elements and fan will start

operating. This function is very good when baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you pre-heat the oven for about 10 minutes. The fan and lower heating function is ideal for baking food such as pizza, evenly in a short period of time. While the fan evenly disperses the heat of the oven, the lower heating element bakes the food.

Pizza Function: The oven's thermostat and warning lights will be turned on. The ring, lower heating elements and fan will start operating. This function

is ideal for baking food, such as pizza, evenly in a short time. While the fan evenly disperses the heat of the oven, the lower heating element ensures baking of the food.

Grilling Function: The oven's thermostat and warning lights will be turned on, the grill heating element will start operating. This function is used for

grilling and toasting food. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you pre-heat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Faster Grilling

Function: The oven's thermostat and warning lights will be turned on. The grill and upper heating elements will start

operating. This function is used for faster grilling and for grilling a larger surface area, such as meat. Use the upper shelves of oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you pre-heat the oven for about 10 minutes.

Warning: When grilling, the oven door

must be closed and the oven temperature should be adjusted to 190^

Double Grill and Fan Function: The oven's thermostat and warning lights will be turned on. The grill, upper heating elements and fan will

start operating. This function is used for faster grilling of thicker food and for grilling a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you pre-heat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

4.3. Use of Digital Timer

Time adjustment

The time must be set before you start using the oven. Following the power connection, the symbol 'A' and three '0's will flash on the screen.

1. Press + and keys simultaneously. Symbol will appear, and the dot in the middle of the screen will start to flash.

1. Adjust the time while the dot is flashing, using the ^+ and keys.

1. After a few seconds the dot will stop flashing and light continuously.

Audible warning time adjustment

The audible warning time can be set to any time between 0:00 and 23:59 hours. Audible warning time is for warning purposes only. The oven will not be activated with this function.

1. Press MODE. The symbol Q will begin to flash and three '0's will appear.

1. Select the desired time period using the and ^+ keys while is flashing.

1. The symbol lights continuously, the time is saved and the warning is set.

When the timer reaches zero an audible warning will sound and the symbol will flash. Press any key to stop the audible warning. The symbol will disappear.

Semi-automatic time adjustment (cooking period)

This function helps you to cook for a fixed period of time. A time range between 0 and 10 hours can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature by turning the control knobs.

1. Press MODE until you see 'dur' on the screen. The symbol 'A' will flash.

1. Select the desired cooking time period using the ·^ and + keys.

1. The current time reappears on the screen, 'A', and light continuously.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbol 'A', will flash. Turn both control knobs to position 0 and press any key on the timer to stop the audible warning. The symbol will disappear and the timer will switch back to manual function.

Semi-automatic time adjustment (finishing time)

This function automatically starts the oven so that cooking finishes at a set time. You can set an end time up to 10 hours after the current time. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature by turning the control knobs.

1. Press MODE until you see 'end on the screen. A and the days time will flash.

1. The current time reappears on the screen, 'A' and light continuously.

1. The current time reappears on the screen, 'A', and light continuously.

When the timer reaches zero, the oven

will switch off and an audible warning will sound. The symbol 'A' and will flash. Turn both control knobs to position 0 and press any key on the timer to stop the audible warning. The symbol will disappear again and the timer will switch back to manual function.

Full-automatic programming

This function is used to cook after a certain period of time and within a certain duration. A time up to 10 hours after the actual time can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature by turning the control knobs.

1. Press MODE until you see 'dur' on the screen. The symbol 'A' will flash.

1. Select the desired cooking time period using the and ^+ keys.

1. The current time reappears on the screen, 'A', and light continuously.

1. Press MODE until you see 'end/ on the screen. A', and the time will flash.

1. Select the desired finishing time using the - and + keys.

1. Add the cooking period to the actual time. You can set a time up to 23 hours and 59 minutes after this.

8.The current time reappears on the screen, A, and light continuously.

The oven will calculate the time and automatically start the oven so that cooking finishes at the set finishing time. When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbol 'A', will flash. Turn both control knobs to position 0 and press any key to stop the audible warning. The symbol will disappear and the timer switch back to manual function.

Sound Adjustment

To alter the signal beep, while the timer shows the time of day press and hold the button for 1-2 seconds until an audible signal beep sounds. After that each time the button is pressed a different signal beep is sounded. There are three different types of signal beep. Select the desired signal beep and do not press any other buttons. After a short time, the selected signal beep will be saved.

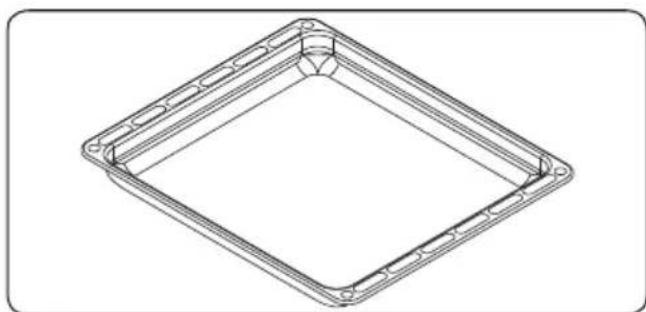

Deep Tray

The deep tray is used when cooking stews. To locate the tray correctly in the cavity, put it to any rack and push it up to the end.

Shallow Tray

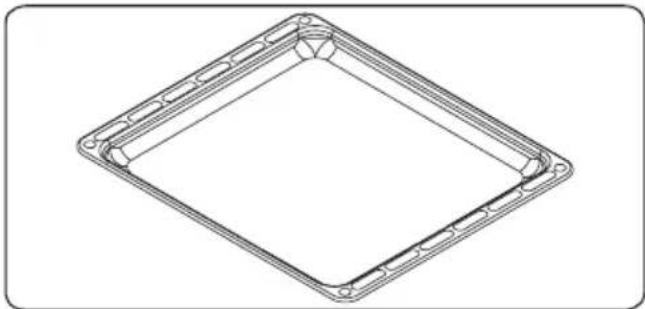

The shallow tray is used when baking pastry, such as flans, etc.

To locate the tray correctly in the cavity, put it to any rack and push it up to the end.

Telescopic Rail Wire

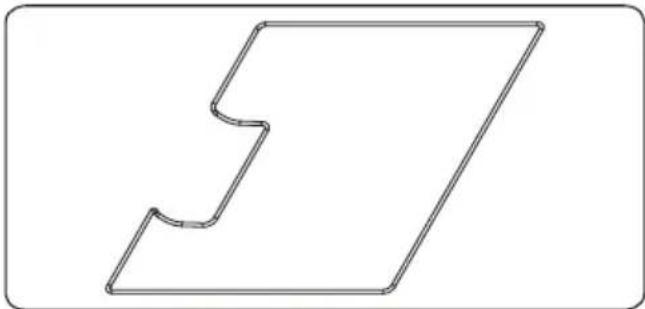

Telescopic rail wire holds the telescopic rail together and allows for synchronisation of movement.

Wire Rack with Two Full Extension Telescopic Rails

Two of the shelves in the wire rack are fully telescopic; they extend out fully on ball bearings to allow easy access to your food.

Vitroceramic Glass Spatula

Always use the glass spatula to remove spillages or deposits from the hob before trying chemical cleaning agents. This is the ideal method of removing even the smallest deposits from the hob and also removing spillages from hot cooking zones before they burn on.

Important: Always push the safety cover back over the razor blade after use. Take care when using the spatula and keep it out of the reach of children.

Child Lock

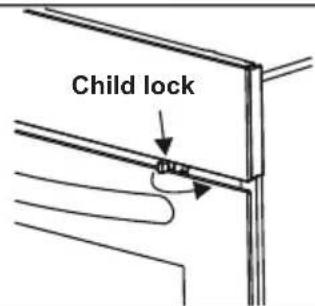

When opening the oven door, first lift the child lock and push it right using your hand, and pull the oven door towards yourself by holding its handle with your other hand, then release the child lock. A slight push to the door will be enough to close the door.

Water Collector

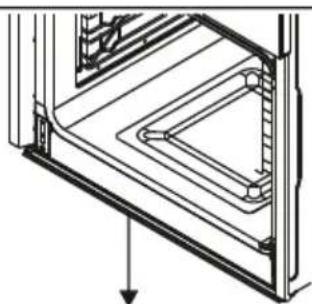

There may be condensation on the inner glass in some cases depending on the food. This is not a product malfunction.

Open oven door till grill position and stay at that position for 20 seconds.
Water drips to collector.

Cool the oven and wipe with a dry towel. That procedure must apply regularly.

5. CLEANING AND MAINTENANCE

5.1. Cleaning

WARNING: Switch off the appliance and allow it to cool down before cleaning your appliance.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before using on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.
• Do not use cleaners that contain particles, as they might scratch the glass, enameled and/or painted parts of your appliance.
• Should any liquids overflow, clean them up immediately to avoid parts becoming damaged.
  Do not use steam cleaners for cleaning any part of the appliance.

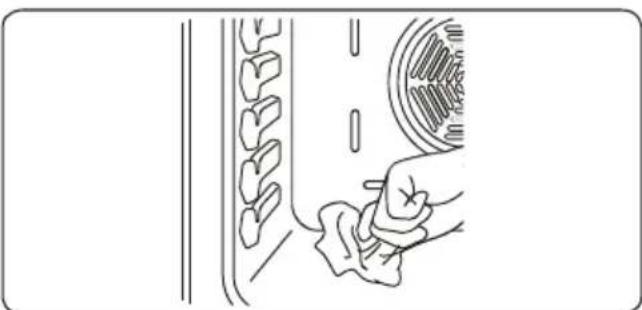

Cleaning the inside of the Oven

• The inside of enamelled ovens are best cleaned when the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then wipe the oven over again with a wet cloth and then dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Cleaning the Ceramic Glass

Ceramic glass can hold heavy utensils but may be broken if it is hit with a sharp object.

WARNING : Ceramic Cooktops - if the surface is cracked, to avoid any possibility of electric shock switch off appliance and call for service.

• Use cream or liquid cleaner to clean vitroceramic glass, then rinse and dry them thoroughly with a dry cloth.

• Do not use cleaning materials meant for steel as they may damage the glass.

• Spilt sugary or sweet foods must be cleaned immediately after the glass has cooled down.
• Dust on the surface must be cleaned with a wet cloth.
• Any changes in colour to the ceramic glass does not affect the structure or durability of the ceramic and is not due to a change in the material.

Colour changes to the ceramic glass may be for a number of reasons:

1. Spilt food has not been cleaned off the surface.
2. Using incorrect dishes on the hob which erodes the surface.
3. Using the wrong cleaning materials.

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean inside and outside of the glass parts, then rinse and dry them thoroughly with a dry cloth.

Cleaning the Enamelled Parts

Clean the enamelled parts of your appliance on a regular basis.

Wipe the enamelled parts with a soft cloth soaked in soapy water. Then wipe them over again with a wet cloth and then dry them.

Do not wash the enamelled parts when they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the enamel for a long time.

Cleaning the Stainless Steel Parts (If available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then dry them thoroughly with a dry cloth.
  Do not wash the stainless steel parts when they are still hot from cooking.
  Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice

on the stainless steel for a long time.

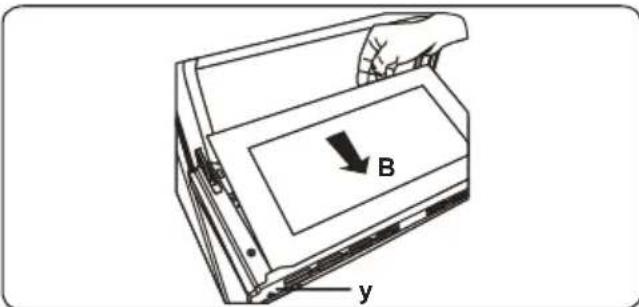

Removal of inner Glasses

Before cleaning the oven door glass, you must remove the inner glass as shown:

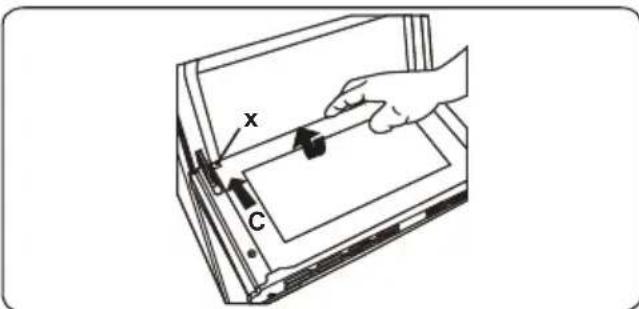

1. Push the glass towards direction B and release from the location bracket (x). Pull out the glass towards direction A.

To replace the inner glass;

1. Push the glass towards and under the under the location bracket (y) towards to direction B.

1. Place the glass under the location bracket (x) towards to direction C.

If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the seconds.

5.2. Removal of oven door

Before cleaning the oven door glass, you must remove the inner glass as shown:

1. Open the oven door.

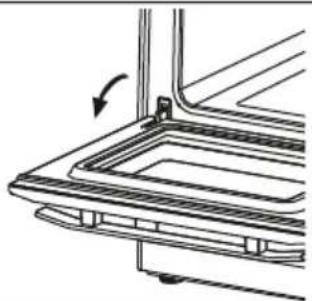

1. Open the saddle bracket (a)(with the aid of a screwdriver) up to the end position.

1. Close the door until it almost reaches the fully closed position and remove the door by pulling it towards you.

Removal of Wire Shelf

To remove the wire rack;

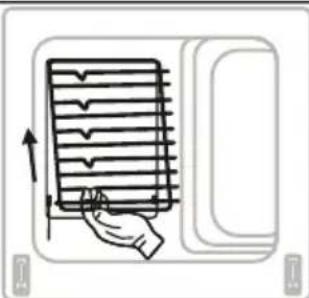

Pull the wire rack as shown in the figure. After releasing it from clips (a), lift it up.

6. Maintenance

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician.

Change of Oven Lamp

WARNING: Switch off the appliance

and allow it to cool down before cleaning your appliance.

• Remove the glass lens and then remove the bulb.
• Insert the new bulb (resistant to 300^ ) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).
• Replace the glass lens, then your oven is ready for use.

The lamp design is designed specifically for use in household cooking appliances. It is not suitable for hold room illumination.

7. TROUBLESHOOTING&TRANSPORT

7.1. Troubleshooting

After checking these basic trouble shooting, if you have still problem with your appliance, please contact with an authorised service person or qualified technician.

Problem Possible Cause Solution
Hob control card's display is blacked out. The hob or cooking zones cannot be switched on.	There is no power supply.	Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances.
The hob switches off while it is in use and an F flashes each display.	The controls are damp or an object is resting on them.	Dry the controls or remove the object.
The hob switches off while it is use.	One of the cooking zones has been on for too long.	You can use the cooking zone again by switching it back on.
The hob controls are not working and the childlock LED is on.	The childlock is on. Switch off the childlock.
The saucepans make noise during cooking or your hob makes a clicking sound during cooking.	This is normal with induction hob cookware. This is caused by the transfer of energy from the hob to the cookware.	This operation is normal. There is no risk, neither to your hob nor to your cookware.
The U symbol lights up in the display of one of the cooking zones.	There is no pan on the cooking zone, or the pan is unsuitable.	Use a suitable pan.
Power level 9 or P is automatically reduced. If you select power level P or 9 on two cooking zones which are at the same side at the same time.	Maximum power level for the two zones is reached	Operating both zones at power level P or 9 would exceed the permitted maximum power level for the two zones.
Oven does not turn on. Power is turned off.		Check whether there is power supplied. Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set. Oven door has been left open.	Check the oven temperature control knob is set correctly.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used. Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
Oven light (if available) does not operate.	Lamp has failed. Electrical supply is disconnected or switched off.	Replace lamp according to the instructions. Make sure the electrical supply is turned on at wall socket outlet.
The timer buttons cannot be pressed properly.	If there is foreign matter caught between the timer buttons Touch model: if there is moisture on the control panel If the key lock function is set	Remove the foreign matter and try again. Remove the moisture and try again. Check whether the lock function is set.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level. Check that the shelves and bakeware are not vibrating in contact with the oven back panel.

7.2. Transport

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging; prepare a carriage box so that the appliance, especially the external surfaces of the product, are protected against external threats.

Brand		TELEFUNKEN
Model TFEHI60SW10A
Type of Oven ELECTRIC
Mass kg 34,0(+/-2)
Energy Efficiency Index - conventional		116,7
Energy Efficiency Index - fan forced		103,6
Energy Class A
Energy consumption (electricity) - conventional kWh/cycle		0,98
Energy consumption (electricity) - fan forced kWh/cycle		0,87
Number of cavities 1
Heat Source ELECTRIC
Volume I 69
This oven complies with EN 60350-1
Energy Saving Tips Oven - Cook the meals together, if possible. - Keep the pre-heating time short. - Do not elongate cooking time. - Do not forget to turn-off the oven at the end of cooking. - Do not open oven door during cooking period.
Type of Hob Electric
Number of Cooking Zones 4
Heating Technology-1 Induction
Size-1 cm Ø16,0
Energy Consumption-1 Wh/kg 189,0
Heating Technology-2 Induction
Size-2 cm Ø16,0
Energy Consumption-2 Wh/kg 189,0
Heating Technology-3 Induction
Size-3 cm Ø20,0
Energy Consumption-3 Wh/kg 189,0
Heating Technology-4 Induction
Size-4 cm Ø20,0
Energy Consumption-4 Wh/kg 189,0
Energy Consumption of Hob Wh/kg 189,0
This hob complies with EN 60350-2
Energy Saving Tips Hob - Use cookwares having flat base. - Use cookwares with proper size. - Use cookwares with lid. - Minimize the amount of liquid or fat. - When liquid starts boiling, reduce the setting.

Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

CE

Disposal of the device

Old devices cannot be placed in the household waste!

If the device can no longer be used, every consumer is legally obliged to hand in devices separately from household waste e.g. at a collection site of their local authority / borough. This ensures that the devices are properly recycled and negative effects on the environment are avoided.

Therefore, electrical devices are marked with the symbol depicted.

Recycling

Our packaging is made of environmentally-friendly, recyclable materials:

External packaging made of cardboard

Moulded parts made of CFC-free polystyrene (PS)

Films and bags made of polyethylene (PE)

Wrapping straps made of polypropylene (PP).

If you have sufficient space to permit it, we recommend you retain the packaging, at least during the warranty period. If the device must be returned for repair or brought into a repair drop-off centre, the device is only adequately protected in the original packaging.

If you want to no longer retain the packaging, please dispose of this in an environmentally friendly manner.

3. CARACTERISTIQUES DU PRODUIT
