USER MANUAL TFIK78EDS10X TELEFUNKEN

Thank you for choosing this product.

This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
A	WARNING Serious injury or death risk
R	RISK OF ELECTRIC SHOCK Dangerous voltage risk
A	CAUTION Injury or property damage risk
O	IMPORTANT Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS 23

1.1. General SafetyWarnings 23
1.2.InstallationWarnings 25
1.3.During Usage 26
1.4.During Cleaning and Maintenance 26
2 INSTALLATION AND PREPARATIONS FOR USE 27
3.PRODUCT FEATURES 30
4. USE OF PRODUCT 31
4.1. Control of Hob 31
4.2. Control of the Induction zone 31
5.CLEANING AND MAINTENANCE 34
6.TROUBLE SHOOTING&TRANSPORT 35
6.1.Trouble shooting 35
6.2. Transport 35

1. SAFETY INSTRUCTIONS

• Read these instructions carefully and completely before using your appliance and keep them in a convenient place for reference when necessary.
• This manual is prepared for more than one model. Your appliance may not have some of the features described in this manual. Pay particular attention to any figures while you are reading the operating manual.

1.1. General SafetyWarnings

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continuously supervised.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
  WARNING: Danger of fire: do not store items on the cooking surfaces.
  WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric

shock.

• For induction hobs, metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• For induction hobs, after use switch off the hobelement by its control. Do not rely on the pandetector.
• For models which incorporate a hob lid, clean any spillages off the lid before using and allow the Cooker to cool before closing the lid.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface. They can scratch the surface which may result in shattering of the glass or damage to the surface.
• Do not use steam cleaners for cleaning the appliance.
• Your appliance is produced in accordance with all applicable local and international standards and regulations.
• Maintenance and repair work must only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.

• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

• CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment or room heating.

• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

1.2. InstallationWarnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.
• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow, excessive humidity etc.
• The material around the appliance (cabinet) must be

able to withstand a minimum temperature of 100^

• The temperature of the bottom surface of the hob may rise during operation. Therefore, a board must be installed underneath the product.

1.3. During Usage

• Do not put flammable or combustible materials in or near the appliance when it is operating.
• Do not leave the cooker unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.
• Always position pans over the centre of the cooking zone, and turn the handles to a safe position so they cannot be knocked or grabbed.
• If the product will not be used for a long period of time, turn the main control switch off. Also when not using a gas appliance, turn the gas valve off.
• Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.

1.4. During Cleaning and Maintenance

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

2. INSTALLATION AND PREPARATIONS FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician,

according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency and/or nature of the gas and gas pressure) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

Instructions for the Installer

General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.
• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
• The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100^ .

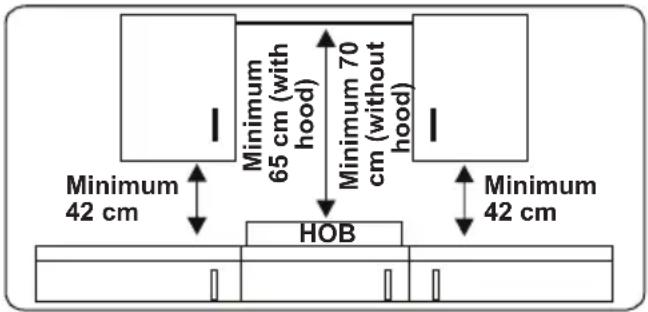

• If a cooker hood or any cupboard is to be installed above the appliance, the safety distance between cooktop and any cupboard/cooker hood should be as shown below.

• The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.
• If the base of the appliance is accessible by hand, a barrier made from a suitable material must be fitted below the base of the appliance, ensuring that there is no access to the base of the appliance.

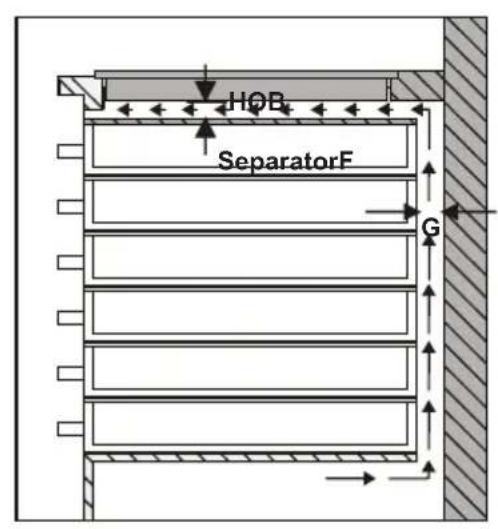

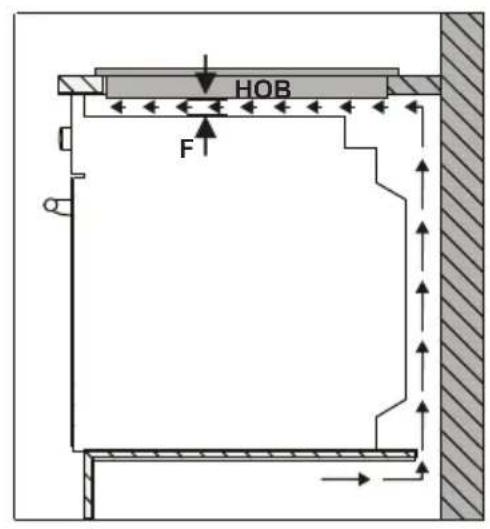

• If the hob is installed above an oven, the oven should have a cooling fan.
• Make sure that the induction hob is well ventilated and the air inlet and outlet are not blocked.

Installation of the Hob

The appliance is supplied with an installation kit including adhesive sealing material, fixing brackets and screws.

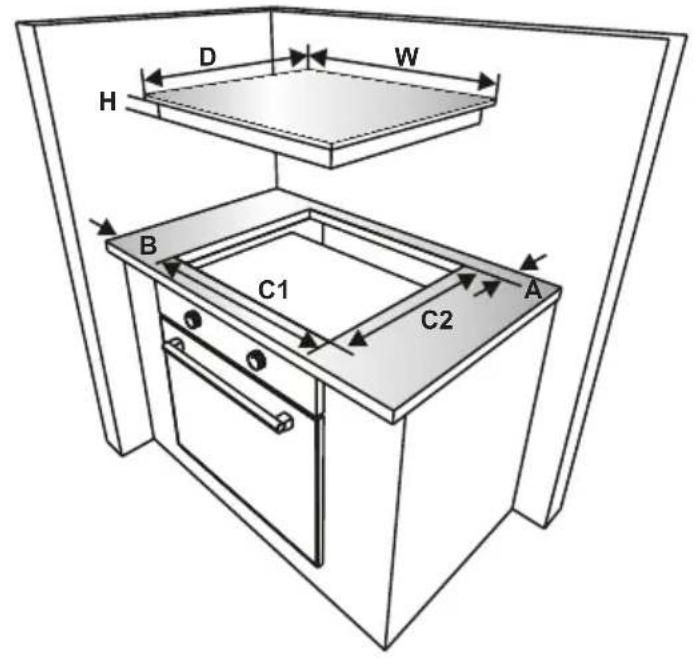

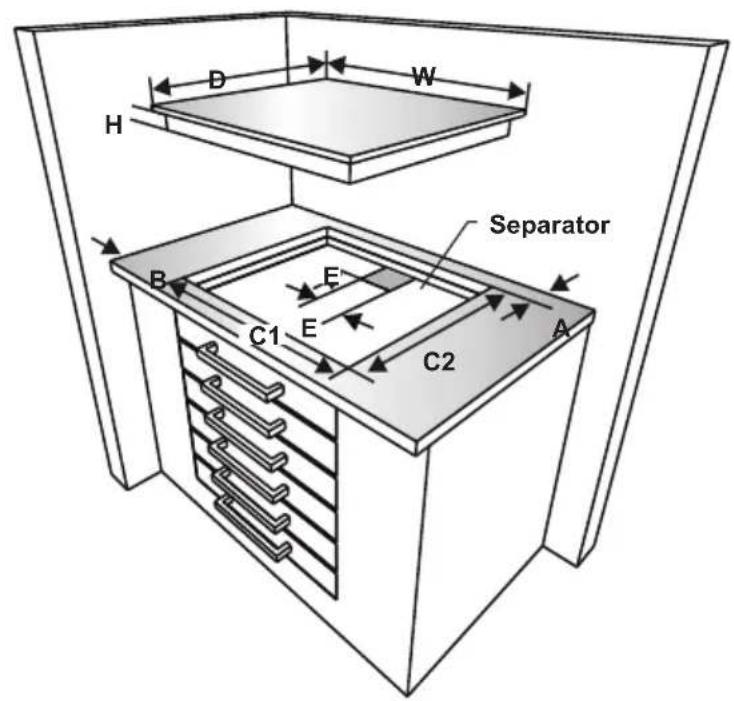

• Cut the aperture dimensions as indicated in the figure. Locate the aperture on the worktop so that, after the hob is installed, the following requirements are followed:

W (mm) 780 min. A (mm) 50
D (mm) 520 min. B (mm) 50
H (mm) 56 E/F (mm) 10
C1 (mm) 750 G (mm) 20
C2 (mm) 490

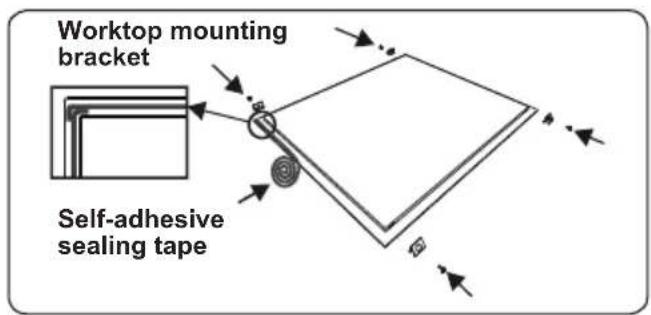

• Apply the supplied one-sided self-adhesive sealing tape all the way around the lower edge of the cooktop. Do not stretch it.

• Screw the 4 worktop mounting brackets in to the side walls of product.

• Insert the appliance into the aperture.

Electrical Connection and Safety

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).
• During installation, please ensure that isolated cables are used. An incorrect connection might damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a multi-pole isolator switch (with at least 3mm contact spacing) must be used in order to meet the safety regulations.
• The fused switch must be easily accessible once the appliance has been installed.
• Ensure all connections are adequately tightened.
  Fix the supply cable in the cable clamp and then close the cover.

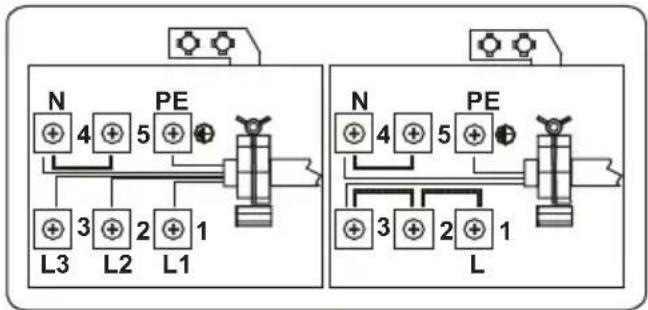

• The terminal box connection is placed on the terminal box.

3.PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

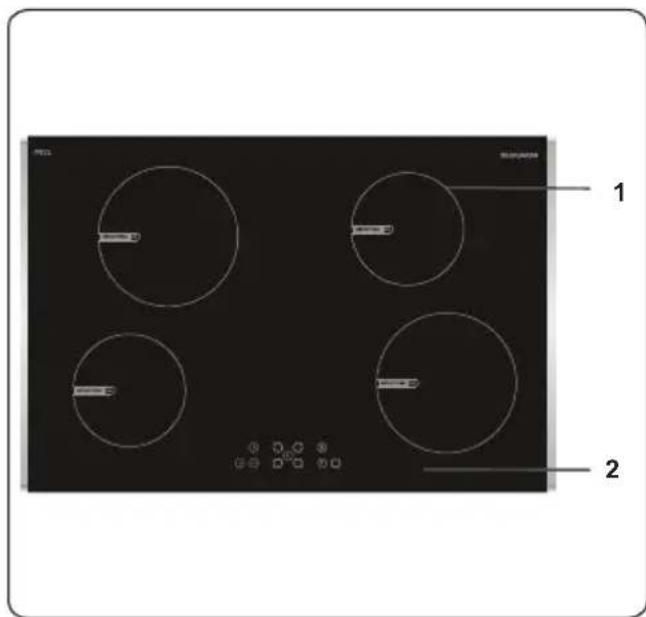

List of Components

1. Induction zone
2. Control Panel

4. USE OF PRODUCT

4.1. Control of Hob

4.2. Control of the Induction zone

The information given in the following table is for guidance only.

Settings Use for

0 Element off

1-3 Delicate warming

4-5 Gentle simmering, slow warming

6-7 Reheating and rapid simmering

8 Boiling, saute and searing

9 Maximum heat

P Boost function

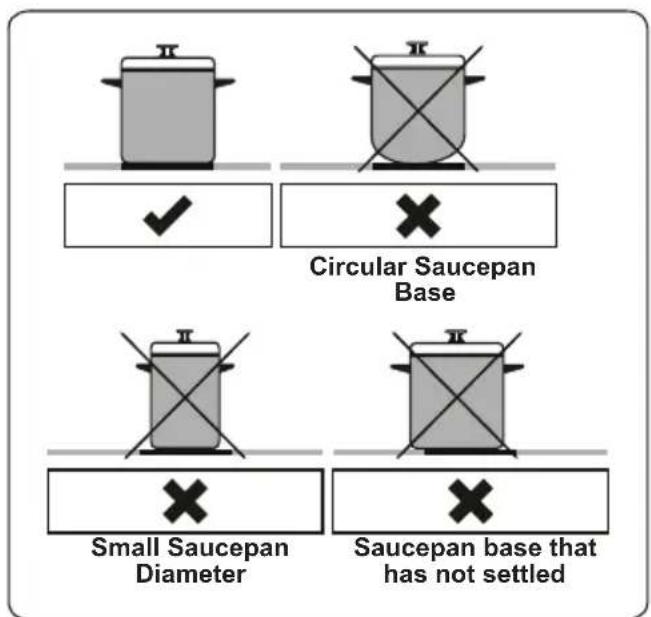

Cookware

Use thick, flat, smooth bottomed cookware that has the same diameter as the element. This will help reduce cooking times.

Cookware made of steel, enamelled steel, cast iron and stainless steel (if appropriately labelled by the manufacturer) will give the best results.
Cookware with enamelled steel, aluminium or copper bottoms can cause a metallic residue to remain on the hob. If left, this becomes difficult to remove. Clean the hob after every use.
Cookware is suitable for induction cooking if a magnet sticks to the bottom of it.
- Cookware must be placed centrally on the cooktop. If it is not placed correctly, is displayed.
- When using certain pans, you may hear various noises coming from them, this is due to the design of the pans and does not effect the performance or safety of the hob.

The appliance is operated by touching buttons and the functions are confirmed by displays and audible sounds.

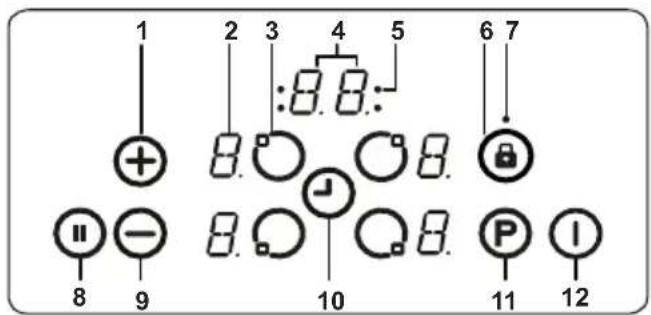

Control of the Touch Control Unit

1-Increase heat setting/timer
2- Heater display
3- Heater selection
4- Timer display
5- Timer function cooking zone indicators
6-Key lock
7- Key lock indicator
8- Smart pause
9- Decrease heat setting/timer
10-Timer selection
11-Boost
12- On/Off

Use the induction cooking zones with suitable cookware.

After mains voltage is applied, all displays are illuminated briefly. After this, the hob is in stand-by mode ready for operation.

The hob is controlled by the pressing the appropriate electronic button. Each button press is followed by a buzzer sound.

Switching the appliance on

Switch the hob on by touching ON/OFF button 1 All heater displays show a static "0" and the bottom right dots blink. (If a cooking-zone is not selected within 20 seconds, the hob will automatically turn off).

Switching the appliance off

Switch the hob off at any time by touching ①

The ON/OFF button always has priority in the switch off function.

Switching the cooking-zones on

Touch the heater selection button that corresponds to the heater you wish to cook on. A static dot will be shown on the selected heater display and the blinking dots on all other heater displays will no longer illuminate.

Select the temperature setting by using the increase heat setting button or decrease heat setting button The element is now ready to cook on. For faster boil times, select the desired cooking level and then touch the P button to activate the Boost function.

Switching the cooking-zones off

Select the element you want to switch off by pressing the heater selection button. Using the button, turn the temperature down to '0'. (Also, pressing the end buttons simultaneously turns the temperature to '0').

If the cooking zone is hot, 'H' will be displayed instead of '0'.

Switching all cooking-zones off

To turn all the cooking zones off at once, press the button

In the stand-by mode, an H^ appears on all cooking zones which are hot.

Residual heat indicator

The residual heat indicator indicates that the glass ceramic area has a temperature that is dangerous to touch.

After switching off the cooking zone, the respective display shows 'H' until the corresponding cooking zone temperature is at a safe level.

Smart Pause

Smart Pause, when activated, reduces the power of all burners that have been switched on.

If you then deactivate the Smart Pause, the heaters will automatically return to the previous level.

If the Smart Pause is not de-activated, the cooktop will turn off after 30 minutes.

Touch () to activate Smart Pause. The power for the activated heater(s) will reduce to level 1 and II will appear at all displays.

Touch (口) again to deactivate Smart Pause. will disappear and the heaters will now run at the level previously set.

Safety switch off function

A cooking zone will automatically be switched off if the heat setting has not been modified for a specified duration of time. A change in the heat setting of the cooking zone resets the time duration to the initial value. This initial value depends on the selected temperature level.

Heat setting	Safety switch off after
1-2 6 Hours
3-4 5 Hours
5 4 Hours
6-9 1.5 Hours

Child Lock

After switching on the appliance, the child lock function can be activated. To activate the child lock, simultaneously press the increase heat setting button ^+ and decrease heat setting button and then press the increase heat setting key ^+ again. L' indicating LOCKED will appear on all heater displays and the controls can not be used. (If a cooking zone is in the hot condition, L' and H' will display alternately).

The hob will remain in a locked condition until unlocked, even if the appliance has been switched off and on.

To deactivate the child lock, first switch on the hob. Simultaneously press the increase heat setting button ④ and decrease heat setting button and then press the decrease heat setting button again. L will no longer be displayed and the hob will be switched off.

Key Lock

The key lock function is used to set 'save mode' on the appliance during operation. It will not be possible to make any adjustments by touching the buttons (for example heat settings). It will only be possible to switch the appliance off.

The lock function is active, if the key lock button 品 is pressed for at least 2 seconds.

This operation is acknowledged by a buzzer. After successful operation, the key lock Indicator flashes and the heater is locked.

Timer Function

The timer function is available in two versions:

Minute minder timer (1..99 min)

The minute minder timer can be operated if the cooking zones are switched off. The timer display shows '00 with a blinking dot. Touch to increase the time or touch to decrease the time. The range is between 0 and 99 minutes. If there is no adjustment to the displayed time within 10 seconds, the minute minder timer will be set and the blinking dot will disappear.Once the timer is set, it begins to count down.

When the timer reaches zero, a signal sounds and the timer display blinks. The sound signal stops automatically after 2 minutes and/or by pressing any button.

The minute minder timer can be changed or switched off anytime by using the timer setting button and/or the decrease timer button Switching off the hob by touching at anytime will also switch off the minute minder timer.

Cooking zone timer (1..99 min)

When the hob is switched on, an independent timer can be programmed for every cooking zone.

Select a cooking zone, then select the temperature setting and finally activate the timer setting button , the timer can be programmed to switch off a cooking zone. Around the timer four LEDs are arranged. These indicate which cooking zone the timer has been set for.

10 seconds after the last operation, the timer display changes to the timer that will run out next (in cases where a timer is set for more than one cooking zone).

When the timer has run down, a signal sounds and the timer display shows '00' and, the assigned cooking zone timer LED blinks. The programmed cooking zone will be switched off and the 'H' will be displayed if the cooking zone is hot.

The sound signal and the blinking of the timer LED will be stopped automatically after 2 minutes and/or by operating any button.

Buzzer

While the hob is in operation, the following

activities will be signalled by the buzzer:

• Normal button activation will be accompanied with a short sound signal
• Continuous button operation over a longer period of time (10 seconds) will be accompanied with a longer, intermittent sound signal.

Boost Function

To use this function, a cooking zone must be selected, with the desired cooking level set. Then press the P(Boost) button.

The Boost function can only be activated if it is applicable with the cooking zone selected If Boost Function is active a P is shown on the corresponding display.

Activating the booster can exceed the maximum power, in which case the integrated power management will be activated.

The necessary power reduction is shown by the corresponding cooking zone display blinking. Blinking is active for 3 seconds and allows further adaptations of the settings before power reduction.

Error Codes
If there is an error, an error code will be shown on the heater displays.
E1	Cooling Fan is disabled. Call an authorised service agent.
E3	Supply voltage is other than the rated values. Turn the hob off by touching wait until “H” disappears for all zones, turn the hob on by touching and continue to use. If same error is displayed again, call an authorised service agent.
E4	Supply frequency is dif ferent from the rated values. Turn the hob off by touching wait until “H” disappears from all zones, turn the hob on by touching and continue to use. If same error is displayed again, turn the plug for the appliance off and on. Turn the hob on by touching and continue to use. If same error is still dispayed again, call authorised service agents.
E5	Internal temperature of the hob is too high, turn the hob off by touching let the heaters cool down.
E6	Communication error between touch control and heater. Call an authorised service agent.
E7	Coil temperature sensor is disabled. Call an authorized service agent.
E8	Cooler temperature sensor is disabled. Call an authorized service agent.
E9	Calibration error . Call authorised service agent.

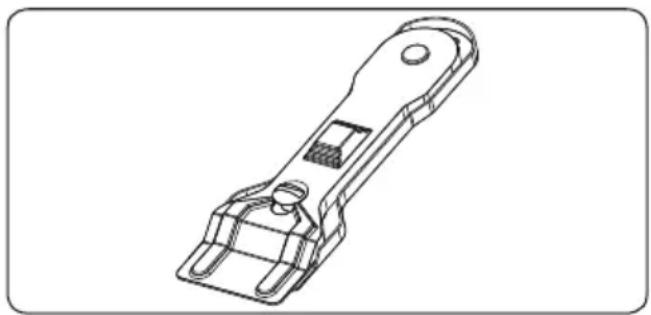

Vitroceramic Glass Spatula

Always use the glass spatula to remove spillages or deposits from the hob before trying chemical cleaning agents. This is the ideal method of removing even the smallest deposits from the hob and also removing spillages from hot cooking zones before they burn on.

Important: Always push the safety

cover back over the razor blade after use. Take care when using the spatula and keep it out of the reach of children.

5. CLEANING AND MAINTENANCE

Cleaning

WARNING: Switch off the appliance and allow it to cool down before cleaning your appliance.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before using on your appliance.

• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles, as they might scratch the glass, enameled and/or painted as of your appliance.

• Should any liquids overflow, clean them up immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Ceramic Glass

Ceramic glass can hold heavy utensils but may be broken if it is hit with a sharp object.

WARNING : Ceramic Cooktops - if the surface is cracked, to avoid any possibility of electric shock switch off

the appliance and call for service.

• Use cream or liquid cleaner to clean vitroceramic glass, then rinse and dry them thoroughly with a dry cloth.

Do not use cleaning materials meant for steel as they may damage the glass.

• Spilt sugary or sweet foods must be cleaned immediately after the glass has cooled down.
• Dust on the surface must be cleaned with a wet cloth.
• Any changes in colour to the ceramic glass does not affect the structure or durability of the ceramic and is not due to a change in the material.

Colour changes to the ceramic glass may be for a number of reasons:

1. Spilt food has not been cleaned off the surface.
2. Using incorrect dishes on the hob which erodes the surface.
3. Using the wrong cleaning materials.

Cleaning the Stainless Steel Parts (If available)

• Clean the stainless steel parts of your appliance on a regular basis.

• Wipe the stainless steel parts with a soft cloth soaked in only water. Then dry them thoroughly with a dry cloth.

Do not wash the stainless steel parts when they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

6. TROUBLE SHOOTING&TRANSPORT

6.1. Trouble shooting

After checking these basic trouble shooting, if you have still problem with your appliance, please contact with an authorised service person or qualified technician.

Problem Possible	Cause Solution
Hob control card's display is blacked out. The hob or cooking zones cannot be switched on.	There is no power supply.	Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances.
The hob switches off while it is in use and an F flashes each display.	The controls are damp or an object is resting on them.	Dry the controls or remove the object.
The hob switches off while it is use.	One of the cooking zones has been on for too long.	You can use the cooking zone again by switching it back on.
The hob controls are not working and the childlock LED is on.	The childlock is on. Switch off the childlock.
The saucepans make noise during cooking or your hob makes a clicking sound during cooking.	This is normal with induction hob cookware. This is caused by the transfer of energy from the hob to the cookware.	This operation is normal. There is no risk, neither to your hob nor to your cookware.
The U symbol lights up in the display of one of the cooking zones.	There is no pan on the cooking zone, or the pan is unsuitable.	Use a suitable pan.
Power level 9 or P is automatically reduced. If you select power level P or 9 on two cooking zones which are at the same side at the same time.	Maximum power level for the two zones is reached	Operating both zones at power level P or 9 would exceed the permitted maximum power level for the two zones.

6.2. Transport

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging; prepare a carriage box so that the appliance, especially the external surfaces of the product, are protected against external threats.

Brand		TELEFUNKEN
Model TFIK78EDS10X
Type of Hob Electric
Number of Cooking Zones 4
Heating Technology-1 Induction
Size-1 cm Ø16,0
Energy Consumption-1 Wh/kg 189,0
Heating Technology-2 Induction
Size-2 cm Ø16,0
Energy Consumption-2 Wh/kg 189,0
Heating Technology-3 Induction
Size-3 cm Ø20,0
Energy Consumption-3 Wh/kg 189,0
Heating Technology-4 Induction
Size-4 cm Ø20,0
Energy Consumption-4 Wh/kg 189,0
Energy Consumption of Hob Wh/kg 189,0
This hob complies with EN 60350-2
Energy Saving Tips Hob - Use cookwares having flat base. - Use cookwares with proper size. - Use cookwares with lid. - Minimize the amount of liquid or fat. - When liquid starts boiling, reduce the setting.

Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

C E

Disposal of the device

Old devices cannot be placed in the household waste!

If the device can no longer be used, every consumer is legally obliged to hand in devices separately from household waste e.g. at a collection site of their local authority / borough. This ensures that the devices are properly recycled and negative effects on the environment are avoided.

Therefore, electrical devices are marked with the symbol depicted.

Recycling

Our packaging is made of environmentally-friendly, recyclable materials:

External packaging made of cardboard

Moulded parts made of CFC-free polystyrene (PS)

Films and bags made of polyethylene (PE)

Wrapping straps made of polypropylene (PP).

If you have sufficient space to permit it, we recommend you retain the packaging, at least during the warranty period. If the device must be returned for repair or brought into a repair drop-off centre, the device is only adequately protected in the original packaging.

If you want to no longer retain the packaging, please dispose of this in an environmentally friendly manner.

3. CARACTERISTIQUES DU PRODUIT
