| Product Type | Massage Chair |
| Brand | Human Touch |
| Model | WholeBody 7.1 |
| Dimensions (upright) | 111.76 x 60.12 x 101.6 cm (L x W x H) |
| Dimensions (folded) | 167.54 x 60.12 x 73.86 cm |
| Product Weight | 48.99 kg |
| Maximum User Weight | 129.27 kg |
| Power Supply | 110-120 V AC, 60 Hz |
| Power Consumption | 140 W |
| Massage Technology | FlexGlide™ Orbital, Body Map PRO |
| Automatic Programs | 5 programs (15 min each) |
| Massage Techniques | Stretch, Tone, Flex, Glide |
| Leg/Foot Massage | Yes, manual deployment |
| Lumbar Heat | Yes (back air shaft) |
| Recline | Mechanical, remote control included |
| Upholstery Material | SoftSuede (faux leather) |
| Care and Cleaning | Soft brush vacuum, suede cleaner |
| Safety | Thermal protection, grounding required |
| Warranty | Online registration recommended (humantouch.com) |
| Manufacturer | Human Touch, LLC |
Frequently Asked Questions - WholeBody 7.1 Human Touch
User questions about WholeBody 7.1 Human Touch
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Massage device in PDF format for free! Find your manual WholeBody 7.1 - Human Touch and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WholeBody 7.1 by Human Touch.
USER MANUAL WholeBody 7.1 Human Touch
2014 Human Tax, LLC. Patents pending and Intellectual property rights entered.
No medical claims are warranted or implied by the use of this product.
Hima a. 1924-50 in Haimon 1924,TC W871-NA-43
WholeBody
RECLINE MASSAGE SWIVEL!
71
NS3089N3
enueeae eae
aennnnneppee
opepin A osn ap jenueu
human touch*
feel better*
use & care manual
Register your product ONLINE today
www.humantouch.com/register
Register your product ONLINE today
www.humantouch.com/register
WholeBody
RECLINE MASSAGE SWIVEL!
welcome to human touch
Enjoy the life-changing benefits of a massage every day, keeping your mind and body healthy.
Since 1979, Human Touch has been producing industry-leading massage chairs using revolutionary and patented Human Touch Technology. Our chairs are meticulously designed and engineered with the highest-quality materials to provide the ultimate relaxing massage experience replicating techniques and a therapeutic touch used by massage professionals. We create products that enable people to alleviate pain and escape stress so they can feel better, enjoy more productive lives and do what they do better. Massage therapy is a key ingredient for a balanced life—and now it's right in your own home!
Experience the same techniques used by massage and chiropractic professionals for back pain and spinal health care. It's hard to believe it's not human! To ensure that you don't overlook any of your chair's features, and that you use it safely, read this manual carefully. Then sit back, relax, and enjoy!
Register your product at www.humantouch.com to ensure your product is In our system to simplify the warranty process should you ever need it.
Please send any questions or comments regarding this manual to documentation@humantouch.com
humantouch.com
keep it safe
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
DANGER: To reduce the risk of electrical shock
Assay amplig his product from the eectrical ouel immediately afer using and before cleaning.
WARNING: To reduce the risk of burns, fire, electric shock or injury to persons:
- No put hands or fingers near the massage mechanism or others while this product is running. Touching the mechanism can result in injury from the rotors squeezing together.
- If the supply crop is damaged, it must be replaced by the manufacturer of its service agent in a similarly qualified person in order to avoid a hazard.
An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off pads.
Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock or injury to persons. - Once supervision is necessary when this product is used by one, or more than children, invalids, or disabled persons. Keep children away from extodoot foot support (or other similar pens).
Use this pssd only for its intended use as described in his morsal. Do no use atachments nor recummeded by the manacacture - Never operate this product if it has a damaged card or paper, if it is not working properly, if it has been dropped or damaged, or dropped into water; Keep this product to a service center for examination and repair.
Do not carry this appliance by supply cord or use cord as a handle. - Always keep the power cord away from heated surfaces.
- Never opende this product with the air openings blocked. Keep the air openings free of dirt, hair, and the like
- Never drop or insert any object into any opening
Do not use outdoors.
Do not oprate where genosal (spray) products are boing used or whc oxygon is boing administerod.
To disconnce, turn all controls to the OFF position, then remove plug from outlet.
Do not message any area of the body that is swolion, Inflamed or covered with skin eruptions.
Do not use on unexplained call pain.
Do not use this product when standing on a damp floor, or when any part of the body is in contact with anything similar to - Connect this appliance to a properly grounded outlet only. See GROUNDING INSTRUCTIONS.
Do not use this product if noise above normsound is heard.
Do not stand on or in appearance. Use only while seated.
This apilance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not stery with the appliance.
Safety Precautions
- Comfortable clothing is recommended while using this product.
This product was meant to be used in a relaxed position. Never force any body part into the backrest area while the roiers are moving.
If you feel any abnormal discomfort during the operation of this product, turn off the power immediately and do not use the product. Consult your physician.
Do not on the controller.
Do not pull on the AC cord. - When using this product and it has been in storage, check to see that the product is operating properly prior to use.
- Always confirm that there are no obstacles behind the product and that there is sufficient space to recline.
SAVE THESE INSTRUCTIONS
Do not attempt to repair this product yourself.
This product is designed for personal in-home use. Commercial use will not warrant.

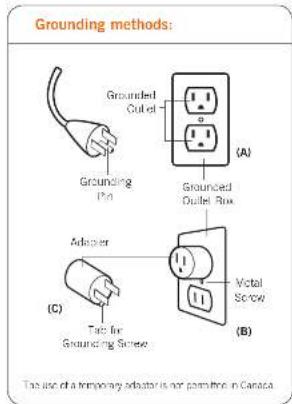

Grounding Instructions:
This product must be grounded. If it should malfunction or crossdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly insulated and grounded in accordance with all local codes and ordinances.
DANGER: Improper connection of the equipment-grounding conductor can result in a risk of electronic shock. Check with a qualified electrician or serviceman if you are in doubt as to whether this product is properly grounded. Do not modify the plug provided with the product - If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-watt circuit and has a grounding plug that looks like the plug illustrated in sketch (A). A laboratory adaptor that looks like the adapter used in sketches (B) and (C) may be used to connect this plug to a 2-pole receptacle as shown in sketch (3), if a properly grounded plug is not available. The temporary adaptor should be used only until a properly grounded outlet (sketch A) can be insulated by a qualified technician. The green colored, rigid air tab or the like extending from the adaptor must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by a metal screw.
For all grounded cord-connected products:
WARNING: This product is equipped with a thermal reselling protection device. This is an added safety feature to protect you and this product from overheating. If the product should suddenly stop and will not start, turn the main power switch located on the back of the product, if and do not operate the product for at least 30 minutes. Failure to turn the product off may result in the product starting unexpectedly when the device costs.
get ready
Unpack the box
Chair Base Head PioowSert Cusion
1. Unfold the chair.
Remove all packaging materials from the chair. Pull up on the backrest, to unfold the chair to an upright position. The backrest looks into place automatically.
Setting up your Human Touch Massage Chair is easy. Attach the seat cushion and head pillow, and you're done!

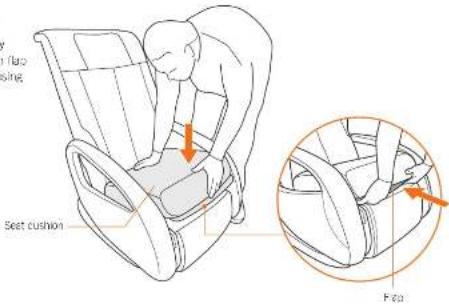

2. Attach the seat cushion.
Align and press the seat cushion firmly into place, wrap the front seal cushion far above the chair frame and attach it using the hook-and-roof fasteners.

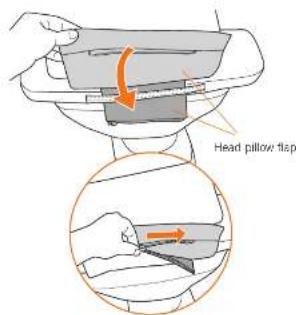

3. Attach the head pillow.
Thread the bottom head pillow slip uncerneath the strap on the top of the backrest, then 20 top hip to the bottom slip to secure it.
NOTE: When enjoying a massage, flip the head pillow over the backrest to increase neck and shoulder massage intensity.
take a seat
Using your Human Touch massage chair is easy. Just take a seat and recline to the desired position. Your Human Touch massage chair helps you feel better, using a wide variety of massage techniques that you control. It's the perfect way to relax and refresh.
1. Power on:
Plug the power cord into a grounded power source. Turn the master power switch on the back of the chair to On

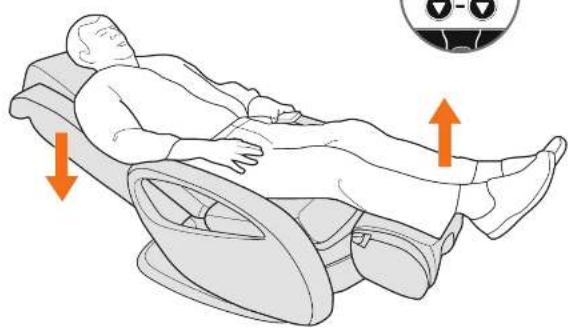

2. Recline the backrest and raise the legrest.
Use the back and legs buttons to position the chair for maximum comfort.
Do not insert the backrest or footrest from power rooling or incline. Do not attempt to manually rotate or incline the backrest or footrest. Interfering with the power recline will permanently damage the other.
FOR A FOOT OR CALF MASSAGE
1. Deploy the foot and calf massager.
Pull the footrest rotation release handle located on the right hand side of the footrest toward you.
For a call message, rotate the footrest away from the chair until it clicks into position with the foot and call message facing up. Do not force the rotation of the footrest past the point at which it clicks to lock. Excess force may damage the mechanism.
For a foot massage, rotate the footroll away from the chair just until the foot and calf massager is taking up. Do not rotate it so far that it clicks into position; the footrest should be moving freely for a foot massage.
NOTE: The foot and calf manager must be locked into position to raise the outcrost.
2. Insert your feet or calves.
Do not stand or sit on the foot and call message.

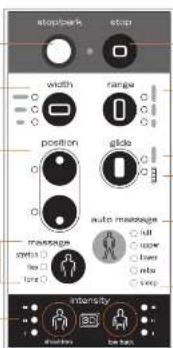

take control
Stoppark- Stops themessage and point themessagerulers at the top of the barriers.
Width : Adjusts the massage widthas desired . This feature works with Ilexand Gicle massage large size benefits .
Position Use this button along with any other message technique to position the message on your back. You can press this button before or after selecting the massage technique.
Targeted Benefits — Taolabs among three stationary massage techniques, each designed to provide unique muscle benefits. Use with the gait function on a partial or full back massage. (See table on the next page.)
Intensity 3D See text: upper line below crack of 3D massage into the middle of the 3D massage medium (1), or inverse 2D.
Power Decline Press and hold in declining line of power.
Back Warm Air - Actives the warm air lumbar heat, when any message is in progress. NOTE: After deactivating the heat, the LED turns off but the fan continues to run. In cool down the heater. This is normal.
When users are running on a node, states it is the correct position in the line of the node. The state of the node is S
-Stop-Slps the massage.
Range — Customizes your work portfolio range.
Full Partial
Auto Massage Programs - Five unique programs automatically massage you for 15 minutes each, using a variety of massage techniques. This corresponding [F] light is in line which massage technique is currently in use.
Power Footrest Deploy Contrad the fastest angle for recine comfort and massage.
bodymap PRO
Foot/Calf - Logos through two fixed speeds and an auto massage program.
human touch
feel better
12x - 1 > 0
Now choose a massage technique. Your Human Touch massage chair lets you customize your massage to achieve a wide variety of targeted muscle benefits. Choose from three stationary massage techniques and a glide massage, or combine them. Use the Range button to tailor your vertical massage range, or the Position and Partial Glide features to target your massage to a specific area. Or, let the chair take control—just select one of the five auto massage programs, which alternate massage techniques and target key areas of your back. No matter how you use it, Human Touch Technology with FlexGlide offers maximum massage flexibility and refreshing benefits.
Understanding Targeted Benefits
| Targeted Benefit What It Does Benefits | ||
| Stretch | Kneads your back in a small circular motion on both sides of your spine simultaneously. | Relieves tension and relaxes by filling and stretching muscles, improves circulation and helps bring vital nutrients to the spinal area. |
| Flex | Attenuates radial tapping strokes along the spine to stimulate both spinal muscles and spinal joint areas, simulating the percutaneous massage technique used in scolitis medicine for deep muscle therapy. | Flosses spinal joints and relaxes pressure on the spinal column, invigilating the entire back area. |
| Tone | Combines circular kneading motion with rapid tapping percutaneous strokes. | Relieves muscle tension and spinal pressure, improves circulation and migrates the back all at once. |
| Glide | Rolls gently up and down your back near your spine. | Worms and loosens your muscles,proposing your back for deeper massage. Relieves muscle tension, improves circulation and relaxes the back. |
Experience the innovation and simplicity of bodymap PRO
When you're experiencing muscle and joint discomfort, you want relief - now. Human Touch BodyMap PRO delivers. Simply press where you want to feel better and immediately receive an effective, therapeutic message experience. The Human Touch FlexGlide massage engine is automatically tuned to just the right intensity to relieve your toughest aches and pains. Each zone runs an individual seven-minute session.
Relieve those tight stresses at your neck (remove head pillow)
Bom sitting at your desk all day? Sored stress relief betweon your shoulders,
Auto focus on those knots below your shoulder blades.
Get generous relief for the muscles in the middle of your back.
Been standing all day? Get big relief in your lower back all the way out to your sides.
Focus-in: close to the spine, on those aches and pains in your lower back.
FlexGlideTM
flexglide
like never before. Free from the pinching and friction associated with typical message chains, or of your body is therapeutically touched by the unparalleled flexibility and seamless glide, a piercing FlexGlide critical technology. Much like a massless upgrading you from a dry to a greasy message, the FlexGlide experience will have you basking in the glow of ultimate relaxation...
care and maintenance
To keep your product working and looking its best, please follow these simple care guidelines.
WARNING:
- Be sure to disconnect the power cord from the electrical outlet before cleaning.
- When cleaning the controller or power switch, use a dry cloth only. Never use a damp cloth to clean the controller or power switch.
- Be sure to use any cleaning solution on a small, inconspicuous part of the product to ensure that the color does not fade prior to using the solution on the entire product surface.
- Do not use benzene, thinner or any other solvents on your product.
Cleaning Code Standard: W
To maintain your Human Touch product in optimum condition, dust it frequently and/or vacuum it with a soft brush vacuum extension. So/Suede® products can also be brushed with a suede brush. If your product becomes dirty, use a water-based upholstery cleaner only. To treat stains, spot clean with an upholstery shampoo or a mild detergent. Foam
Maintenance and Repair:
- The mechanisms of this product are specially cosproof and constructed to be maintenance free. No periodic lubrication or servicing is required.
- Your chair should only be serviced by an authorized service center.
Use and Storage Environment:
- When not in use for a long period of time, we recommend that the chair be covered, the power cord be coiled and that the unit be placed in an environment free of dust and moisture.
- Do not store near head or open barre
- Do not leave this product exposed in direct sunlight for long periods of time. The prey cause fading or damage.
- Do not use or store in extreme temperatures, product stored in cold temperatures may require 48 hours at room temperature to function properly.
- Product should be used and stored in an environment with non-condensing humidity ranging from 10 to 80% . Excessive humidity will damage the mechanics.
Miscellaneous:
- Foreign objects should not be inscrted between the massage nodes or the unit housing.
- Care should be taken not to overload the unit.
Specifications*
Operating Mortgage: AC110 120V 60 Hz
Power Consumption: 140 Watts
Chair Size: 44° L x 28° W x 40° H (upright)
66*1x28"Wx29"H(reclined)
Product Weight:
Required Recline Clearance: 9^
Maximum Load Weight: 285 Lbs.
*Specications are subject to change without prior notice.
