KIN46PROX - Basket BERTAZZONI - Free user manual and instructions

Brand	Bertazzoni
Model	KIN46PROX
Product Type	Built-in range hood
Material	Stainless steel
Power Supply	120 V, 60 Hz, 15 A
Control Type	2-button control (light and speed)
Speeds	3 speeds
Lighting	Halogen max 20 W, 12 V, G4 base
Grease Filter	Washable metal filter with hot water and mild detergent
Charcoal Filter	Optional (not included)
Minimum distance above gas cooktop	65 cm (25.6 inches)
Power Cord	1.5 m with NEMA 5-15 plug
Warranty	Yes (conditions on back of manual)
Safety	Grounding mandatory; disconnect before servicing
Exterior Maintenance	Damp cloth and mild detergent or denatured alcohol
Assembly Instructions	See manual (phases 1 to 4)

Frequently Asked Questions - KIN46PROX BERTAZZONI

How to install the KIN46PROX range hood?

Installation must be carried out by a qualified installer. Remove the metal grilles, then the stainless steel bottom after unscrewing the 6 screws (A) and 2 screws (B). Insert the built-in unit into the cabinet from below and fix it with the 10 wood screws provided. Make electrical connections after disconnecting the appliance. Reassemble everything in reverse order.

What is the minimum distance between the cooktop and the hood?

For a gas cooktop, the minimum distance is 65 cm (25.6 inches) between the highest part of the cooking appliance and the lowest part of the hood. Always check the instructions of your cooking appliance.

How to clean the metal grease filters?

Wash the metal filters every month in hot water with a little mild detergent. Avoid bending them. Let them dry well before reinstalling. To remove them, pull the handle A until they come out of the rail.

How to replace the light bulb?

Disconnect the appliance. Open the panel fully to 90° by pressing PUSH. Replace the lamp with a halogen max 20 W, 12 V, G4 base. Close the panel. If the panel does not close properly, repeat the operation.

What to do if the hood does not work?

First check the power supply (outlet, fuse). Make sure the hood is plugged in and the circuit breaker is on. If the problem persists, contact an authorized after-sales service. Do not attempt to repair it yourself.

Can I use the hood without external evacuation?

Yes, the hood can operate in recirculation mode with an activated carbon filter (optional, not supplied). In this case, the fumes are filtered and reintroduced into the room. Ensure the room is well ventilated.

How to electrically connect the hood?

Connection must be carried out by a qualified electrician. The hood is supplied with a 1.5 m cable and a NEMA 5-15 plug for 120 V, 60 Hz, 15 A. The outlet must be located within the area covered by the exhaust pipe. The appliance must be grounded.

How often should I clean the hood?

The metal grease filters should be washed every month. The exterior of the hood can be cleaned regularly with a damp cloth and mild detergent. Frequent maintenance ensures proper operation and prevents fire hazards.

Are charcoal filters included?

No, activated carbon filters are not included with the hood. They are available as an option and can be ordered separately. Use the coupon attached to the cover of the manual to order.

Is the hood compatible with a gas cooktop?

Yes, it is designed to be used above gas cooktops. Strictly respect a minimum distance of 65 cm between the cooktop and the hood. Ensure the room is well ventilated if other combustion appliances are operating simultaneously.

USER MANUAL KIN46PROX BERTAZZONI

BERTAZZION ITALIA

KIN 36 PRO X

INSTRUCTIONS BOOKLET LIVRET D'INSTRUCTIONS MANUAL DE INSTRUCCIONES

Dear Sir/Madam, congratulations!

You have purchased a prestigious range hood of guaranteed quality. For best results, we suggest that you carefully follow the operating and maintenance instructions provided in this booklet; in addition, to order spare charcoal filters, use the special coupon on the cover.

Chère Madame/Cher Monsieur, félicitations!

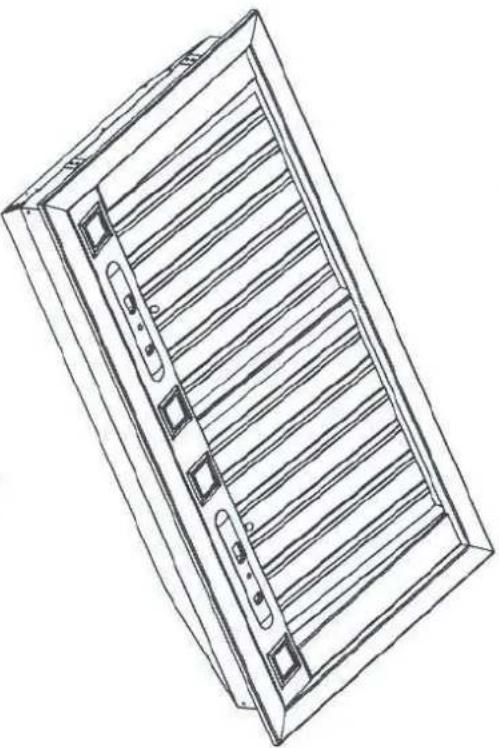

Technical line drawing of a rectangular industrial or mechanical component with two circular cutouts on top (no text or symbols)

Line drawing of a rectangular electronic device with internal slots and mounting holes (no text or symbols)

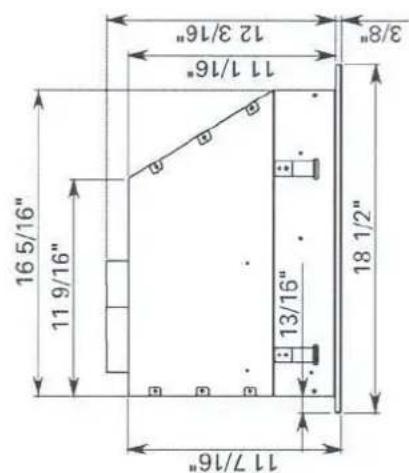

16 5/16" 11 9/16" 11 7/16" 13/16" 18 1/2" 11 1/16" 12 3/16" 3/8"

31 5/8" 23 9/16" 34 1/4"

33" 26 3/4" 13 3/8" 4 1/4" Ø5 15/16" 12 5/8" 1 3/8" 12 7/16" 17 1/8" 18 1/2" 34 1/4"

32 1/16" 16 1/2" CUT OUT

Isometric line drawing of a rectangular electronic component with two circular cutouts on top (no text or symbols)

Line drawing of a rectangular ventilation duct with slatted top and side slots (no text or symbols)

16 5/16" 11 9/16" 11 7/16" 13/16" 18 1/2" 3/8" 11 1/16" 12 3/16"

43 1/16" 35" 45 11/16"

44 7/16" 38 3/16" 12 5/8" Ø5 15/16" 12 5/8" 4 1/4" 12 7/16" 17 1/8" 18 1/2" 45 11/16" 1 3/8" 43 7/16" 16 1/2" CUT OUT

Technical line drawing of a rectangular industrial or mechanical component with a circular top opening and mounting base (no text or symbols)

Line drawing of a rectangular ventilation duct with slatted top and side slots (no text or symbols)

16 5/16" 11 9/16" 11 7/16" 13/16" 18 1/2" 3/8" 11 1/16" 12 3/16"

31 5/8" 23 9/16" 34 1/4"

33" 26 3/4" 13 3/8" 4 1/4" Ø5 15/16" 12 7/16" 17 1/8" 18 1/2" 1 3/8" 34 1/4"

32 1/16" 16 1/2" CUT OUT

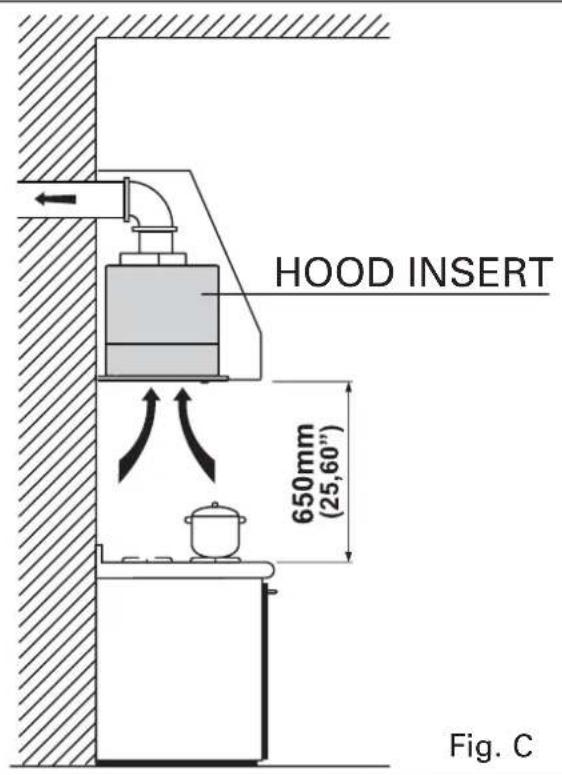

HOOD INSERT 650mm (25,60") Fig. C

STEP 3 STEP 2 STEP 1

Fig. O

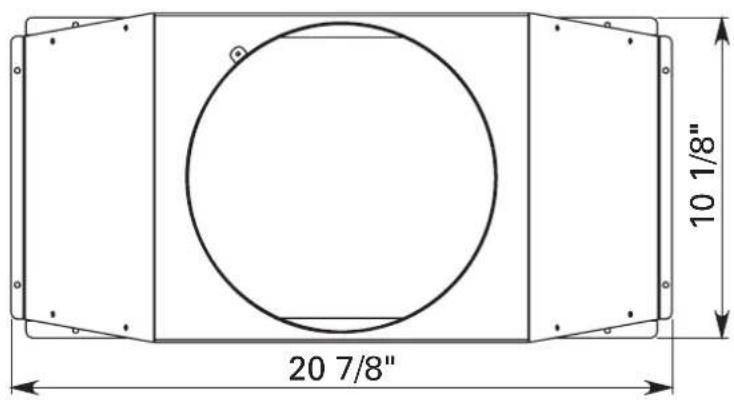

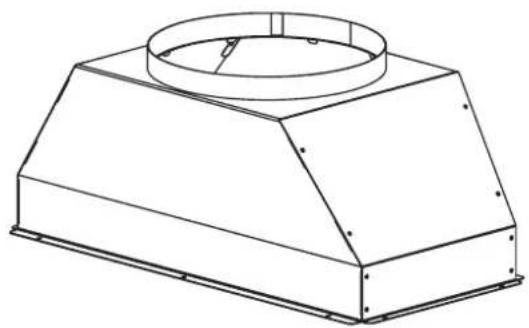

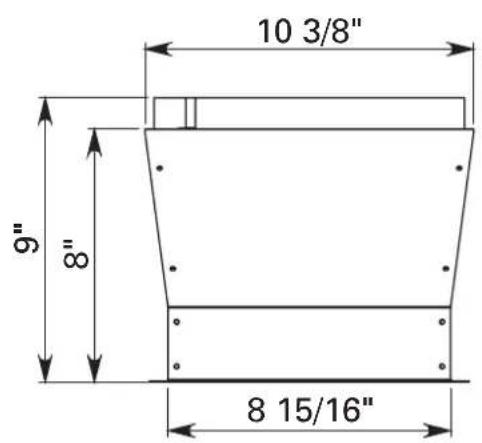

OPTIONAL: Duct transition kit (only for 2 motors version)

11 7/8" 9 13/16" 2 3/8" 20"

10 3/8" 9" 8" 8 15/16"

20 7/8" 10 1/8"

Technical line drawing of a mechanical ventilation duct (no text or symbols)

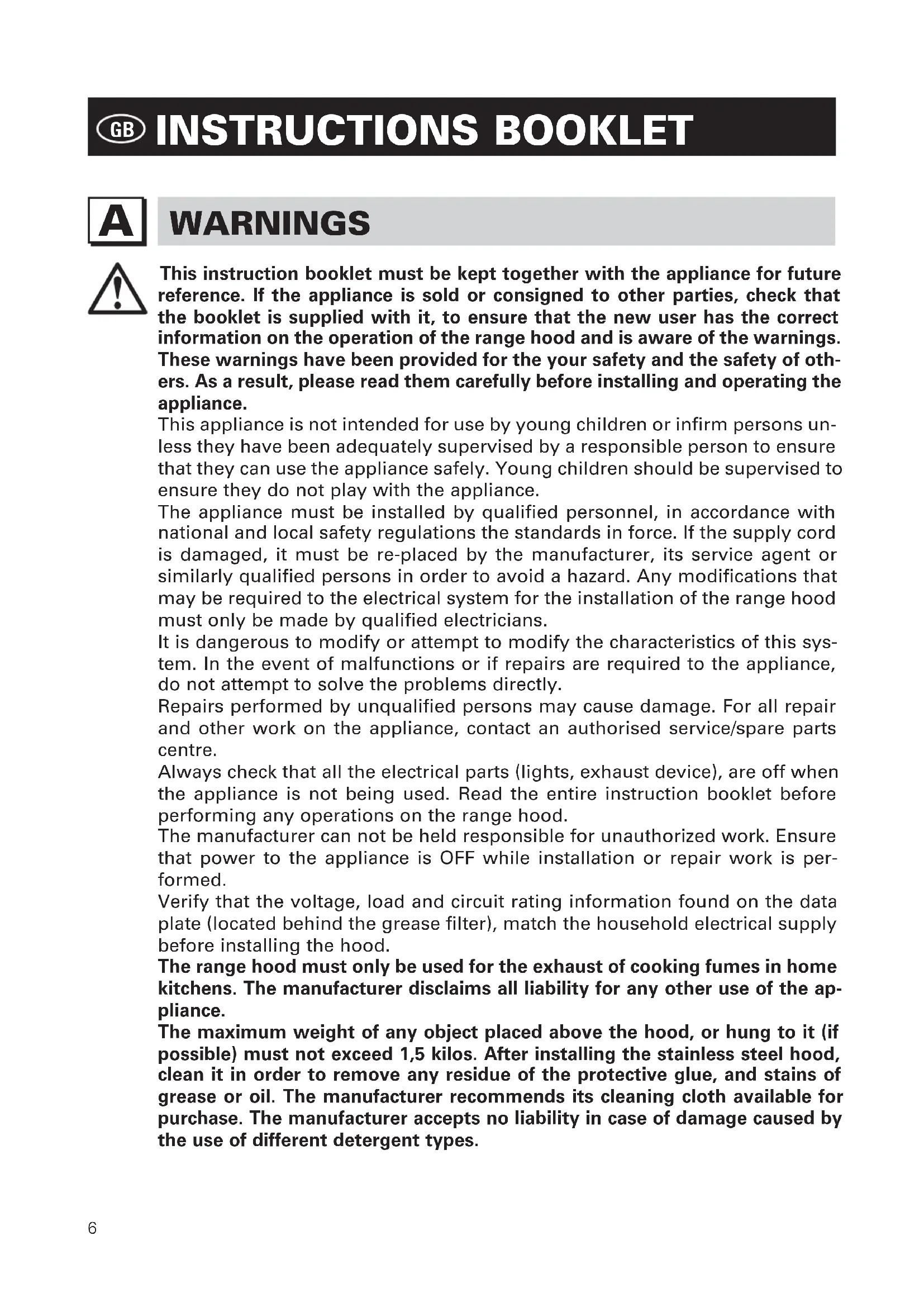

WARNINGS

This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings. These warnings have been provided for the your safety and the safety of others. As a result, please read them carefully before installing and operating the appliance.

This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with national and local safety regulations the standards in force. If the supply cord is damaged, it must be re-placed by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be required to the electrical system for the installation of the range hood must only be made by qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems directly.

Repairs performed by unqualified persons may cause damage. For all repair and other work on the appliance, contact an authorised service/spare parts centre.

Always check that all the electrical parts (lights, exhaust device), are off when the appliance is not being used. Read the entire instruction booklet before performing any operations on the range hood.

The manufacturer can not be held responsible for unauthorized work. Ensure that power to the appliance is OFF while installation or repair work is performed.

Verify that the voltage, load and circuit rating information found on the data plate (located behind the grease filter), match the household electrical supply before installing the hood.

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must not exceed 1,5 kilos. After installing the stainless steel hood, clean it in order to remove any residue of the protective glue, and stains of grease or oil. The manufacturer recommends its cleaning cloth available for purchase. The manufacturer accepts no liability in case of damage caused by the use of different detergent types.

TECHNICAL SPECIFICATIONS

The technical data pertaining to the electric appliance The technical specifications of the appliance are shown on the rating plates located inside the range hood.

INSTALLATION

(Section reserved for qualified installers of the range hood)

Minimum distance: distance between the main top of the cooking appliance and the bottom-most section of the hood. When the hood is positioned above a gas appliance this minimum distance must be at least 65 cm (25,6") (see fig. C) or more importantly, check the distances specified for the gas cooking appliance.

In the outside exhaust version, the diameter of the entire duct run must be no smaller than the range hood connection.

In the horizontal duct run, the duct must slope slightly (around 10%) upwards, so as to better ventilate the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere.

If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time, make sure the room where the fumes are extracted is well ventilated, in compliance with the current regulations.

Mounting instruction: see section "O" of the booklet.

ELECTRICAL CONNECTIONS

(Section reserved for qualified installers)

WARNING!

Before doing any work inside the range hood, disconnect the appliance from the mains power supply.

Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel.

The connections must be performed in compliance with the legal standards in force. Check that the receptacle and wiring are able to support the load of the appliance (see the technical specifications in point B).

THIS APPLIANCE MUST BE GROUNDED.

Important:

The hood comes equipped with a 5 ft(1.5 m) power cord with a NEMA 5-15 molded plug for connection to a 120 VAC, 60 Hz, 15 A power outlet. This outlet must be located in the duct cover area above the hood.

Some types of appliance are supplied with a cable without plug; in this case, "standardised" or a junction box must be used, keeping in mind that:

• the yellow-green wire must be used for the earth,

• the blue/white wire must be used for the neutral,

• the brown/black wire must be used for the phase; the cable must not come into contact with hot parts (over 75°C).

• fit a plug that is suitable for the load to the power cable, and connect it to a suitable power outlet.

If local codes permit, the power cord may be removed and the hood may be connected to a hard wired electrical connection. If there is any question concerning the electrical connection of this appliance to your power supply, please consult a licensed electrician.

For appliances that come supplied with cable and plug please ensure they are plugged into a circuit suitable for this appliance.

Please refer to a qualified person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

RANGE HOOD WITH OUTSIDE DISCHARGE (exhaust)

In this application, the fumes and steam from the kitchen are vented outside through an exhaust duct.

The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside.

There must be adequate ventilation of the room when

the range hood is used at the same time as appliances burning gas or other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

OPERATION

TWO BUTTON CONTROL PANEL

LIGHT - Switch A

Position 0: the light is off.

Position 1: the light is on.

SPEED - Switch B

This is used to start and set the speed of the motor, from 1 to 3, or with continuous speed variator, depending on the version.

LIGHT - C

Motor operation indicator light.

Technical line drawing of a mechanical component with three circular ports and a central hub (no text or symbols)

FILTERS REMOVING AND REPLACING'S INSTRUCTIONS

1. METAL FILTERS

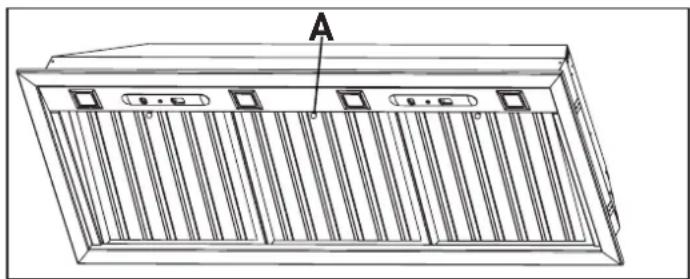

To remove the metal grease-trapping filter, using the handle A until releasing it from the guide. To reposition the filter, repeat the operation in the reverse order.

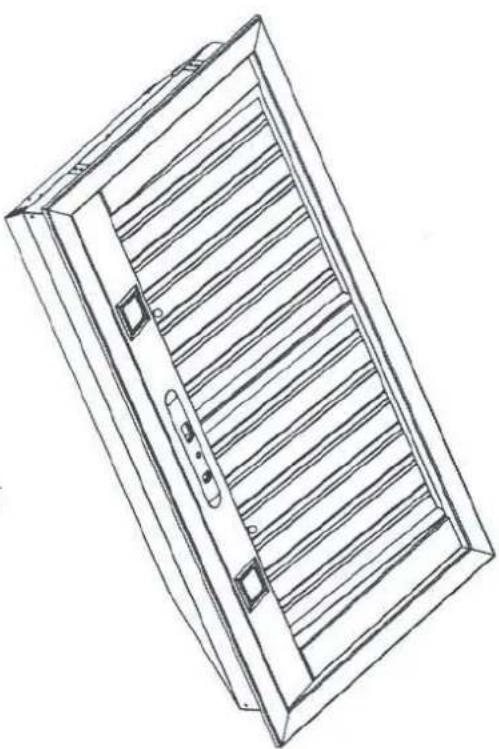

Technical line drawing of a rectangular panel with vertical slats and labeled component A (no text or symbols beyond labels)

LIGHTING ASSEMBLY AND REPLACEMENT

SPOTLIGHT

How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply.

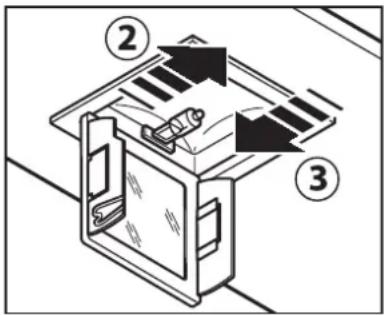

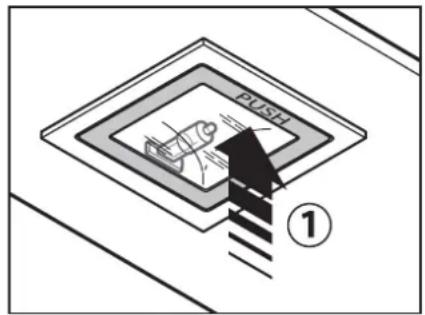

b) Open the panel completely till 90° (see figure) pressing the PUSH button.
c) Replace the lamp with a similar one (halogen, max 20W, 12 Volt, G4 connection).
d) Close the panel. If the panel does not close correctly repeat the operation at point b.

PUSH ①

Diagram showing a device with labeled parts and directional arrows indicating motion or flow

MAINTENANCE AND CLEANING

Constant maintenance ensures the correct operation and efficiency of the appliance over time. Special attention should be paid to the metal grease-trapping filters and the charcoal filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS

These trap the fat and grease particles suspended in the air, and therefore should be washed every month in hot water and detergent, without bending them. Wait until they are completely dry before repositioning them. To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals.

3. CLEANING THE OUTSIDE OF THE APPLIANCE

The outside of the range hhod should be cleaned using a damp cloth and neutral liquid detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using clean with a soft cloth, rinse and wipe dry thoroughly. Do not use products that contain abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using abrasive substances or rough cloths will inevitably damage the finish of steel. The steel surface will be irrevocably damaged if the instructions above are not complied with.

Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the instructions above.

4. CLEANING THE INSIDE OF THE APPLIANCE

The electrical parts or parts of the motor assembly inside the range hood must not be cleaned using liquids or solvents.

Do not use abrasive products. All the above operations must be performed after having disconnected the appliance from the mains power supply.

SAFETY WARNINGS

The electrical system features an earth connection in compliance with international safety standards; furthermore, it is compliant with the European standard for electromagnetic compatibility.

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains voltage corresponds to the values on the rating plate located inside the range hood. The minimum safety distance between the cooktop and the range hood must be at least 65 cm (25,6").

Never cook on "open" flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

• Ensure there is adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
• Do not flambe under the rangehood.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer disclaims all liability for any damage that may be directly or indirectly caused to people, things and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation and maintenance of the appliance.

WARRANTY

The new equipment is covered by warranty. The warranty conditions are provided by the distributor.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.

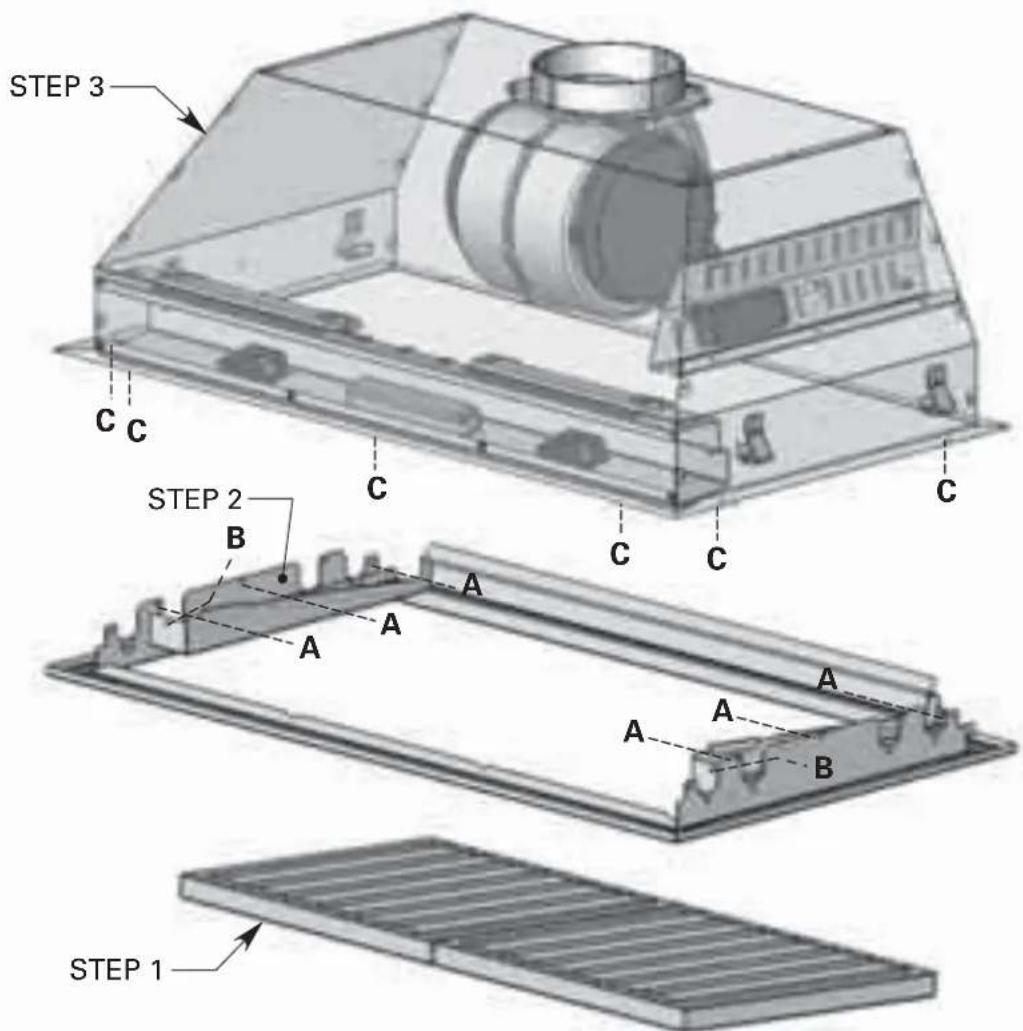

ASSEMBLY INSTRUCTIONS (fig. O)

Step 1: - Remove the metal filters

Step 2: - Screw off the 6 screws (A) and the 2 knurled pins (B), then remove the bottom part.

Step 3: - Insert the hood into the forniture hole fix the hood using 10 screws for wood (C).

Step 4: - Before making the electrical connections disconnect the power supply.

- Repeat step 1,2 to mount the bottom part and the metal filters.

LIVRET D'INSTRUCTIONS

AVERTISSEMENTS

Technical line drawing of a cylindrical mechanical component with two circular ports and labeled sections (no text or symbols beyond numerical labels)

FILTRES INSTRUCTIONS POUR LES ENLEVER ET LES REMPLACER

1. FILTRES MÉTALLIQUES

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

ENTRETIEN ET NETTOYAGE

Technical line drawing of a cylindrical electronic component with two labeled ports (01 and 0123), no readable text or symbols beyond labels.

Technical line drawing of a rectangular enclosure with vertical slats and labeled components (no text or symbols beyond labels)

Diagram of a refrigerator interior with numbered instructions for lifting or adjusting the refrigerator panel

MANTENIMIENTO Y LIMPIEZA
