USER MANUAL MoccaMaster KGB Select Technivorm

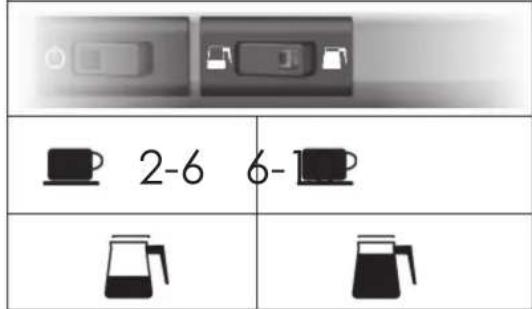

No. 8 - KBG SELECT model 2-6 6-10

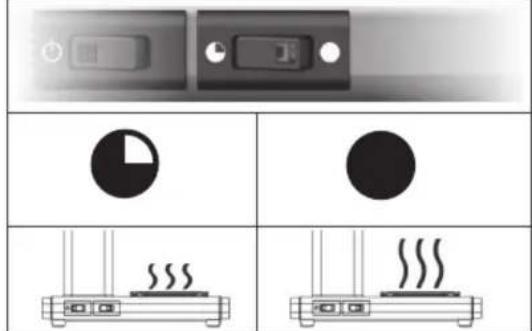

HBG/KBG/KBGT/CDGT/CD models No. 8 - KB/KBG models (not SELECT)

Handmade in the Netherlands Moccamaster’s advanced coffee-making technology is certied by the ECBC (European Coffee Brewing Center) and SCA (Specialty Coffee Association). The ECBC quality mark is only awarded to products which have made it through the extensive quality controls and laboratory tests of the Norwegian Coffee Association. Technivorm Moccamaster is the only manufacturer in the world with ECBC approval for all its machines. Technivorm’s factory is located in the Netherlands and serves customers all over the world. The philosophy of our founder, Gerard Clement Smit, to manufacture high-quality, long-lasting and reliable products, has guided the production of all our appliances since 1964. Each coffee machine is handmade and individually tested, which means we stand rmly behind the quality of our products. High-quality materials, energy efciency and opportunities for recycling play an important role in the design of every Moccamaster. Gerard-Clement SmitFounder of the company and designer of the products. CONGRATULATIONS ON YOUR PURCHASE OF THE WORLD’S FINEST FILTER COFFEE BREWER!

HANDMADE IN THE NETHERLANDS

Moccamaster® is a registered trademark of Technivorm B.V., the Netherlands © Copyright: All rights reserved. This information may not be reproduced and/or published in any way or by any means (electronic or mechanical) without prior, express written permission from Technivorm B.V. Technivorm B.V. cannot be held responsible for damage or injury as a result of the failure to follow these instructions for use carefully or the failure to observe reasonable care in transportation, use and maintenance of the coffee machine. As a result of our constant efforts to improve, it is possible that details of the product may differ from what is described in this manual. For this reason, the instructions given should only be taken as a guideline for the use and maintenance of the product referred to in this manual. This manual has been compiled with all possible care, but Technivorm B.V. and Moccamaster Sales B.V. cannot be held liable for any errors in the manual or the consequences thereof.5

ENGLISHFRANÇAIS NEDERLANDSESPAÑOL DEUTSCHITALIANO

Handmade in the Netherlands Moccamaster’s advanced coffee-making technology is certied by the ECBC (European Coffee Brewing Center) and SCA (Specialty Coffee Association). The ECBC quality mark is only awarded to products which have made it through the extensive quality controls and laboratory tests of the Norwegian Coffee Association. Technivorm Moccamaster is the only manufacturer in the world with ECBC approval for all its machines. Technivorm’s factory is located in the Netherlands and serves customers all over the world. The philosophy of our founder, Gerard Clement Smit, to manufacture high-quality, long-lasting and reliable products, has guided the production of all our appliances since 1964. Each coffee machine is handmade and individually tested, which means we stand rmly behind the quality of our products. High-quality materials, energy efciency and opportunities for recycling play an important role in the design of every Moccamaster. CONGRATULATIONS ON YOUR PURCHASE OF THE WORLD’S FINEST FILTER COFFEE BREWER!

IMPORTANT SAFETY MEASURES

HANDMADE IN THE NETHERLANDS

Moccamaster® is a registered trademark of Technivorm B.V., the Netherlands © Copyright: All rights reserved. This information may not be reproduced and/or published in any way or by any means (electronic or mechanical) without prior, express written permission from Technivorm B.V. Technivorm B.V. cannot be held responsible for damage or injury as a result of the failure to follow these instructions for use carefully or the failure to observe reasonable care in transportation, use and maintenance of the coffee machine. As a result of our constant efforts to improve, it is possible that details of the product may differ from what is described in this manual. For this reason, the instructions given should only be taken as a guideline for the use and maintenance of the product referred to in this manual. This manual has been compiled with all possible care, but Technivorm B.V. and Moccamaster Sales B.V. cannot be held liable for any errors in the manual or the consequences thereof. READ ALL THE INSTRUCTIONS BEFORE USE!

• The appliance is intended for use in households and similar applications such as: ○ staff kitchen areas in shops, ofces and other working environments. ○ farmhouses. ○ by clients in hotels, motels and other residential-type environments. ○ bed & breakfast-type environments.

• The appliance should be used indoors only and exclusively for preparing coffee or tea.

• This appliance is suitable for use by persons (including children) with physical, mental or sensory impairments, provided those persons are supervised or instructed in the safe use of the appliance and the possible risks.

• Keep the packaging (plastic bags and cardboard) out of the reach of children.

• The appliance can be used by children aged 8 and older who are supervised or have been instructed in the safe use of the appliance and the possible risks. Make sure children do not play with the appliance. Keep the appliance and the power cord out of the reach of children younger than 8 years.

• Cleaning and user maintenance should not be carried out by children, unless they are over 8 years old and are supervised.

• Check that the voltage of the appliance corresponds with the mains voltage. The appliance should be plugged into a socket with safety ground.

• In case of problems during use and before cleaning, remove the power plug from the socket. Always unplug the power cord by pulling the plug from the socket; do not pull the cord itself.

• Never submerge the appliance, the power cord or the plug in water or other liquids, either completely or partially. Do not kink or crush the power cord. Never touch the power cord or plug with wet hands. Do not place the power cord on hot surfaces and do not let it hang over the edge of a table or bar where the cord could be pulled by a child.

• Do not use the appliance if the cord or plug are damaged or the appliance is not working correctly.

• Important: If the power cord is damaged, it must be replaced with a special power cord. Repairs must be carried out by skilled service technicians. Please contact [e-mail] or your supplier.

WHEN USING ELECTRICAL APPLIANCES, THE SAFETY

KEEP THESE INSTRUCTIONS!

IMPORTANT SAFETY MEASURES

• The appliance is tted with a short power cord because a long cord would involve a risk that a person might get caught up in it or trip over it.

• If an extension cord is used, marked technical rating must at least be suitable for the nominal current and voltage values of the coffee machine. The extension cord must be a 3-wire cable with a ground wire. The extension cord should be positioned in such a way that it does not hang over a table edge or worktop, so that a child cannot pull the cord and there is no risk of tripping over it.

• Place the appliance on a at, horizontal surface in a frost-proof room, not on a hot surface or near gas or electric cookers or in an oven.

• Do not touch the hot components, such as the outlet pipe, lter holder or hot plate, during or shortly after use.

• Do not pour liquids other than water, a recommended descaling agent or cleaning product into the water reservoir.

• Never use the machine without the outlet pipe. Do not remove the lter holder or jug during the brewing process. If parts are removed during the brewing process, there is a risk of burns.

• Misuse of this appliance could cause personal injuries.

• The heating element surface is subject to residual heat after use.

• Do not place the appliance in a cabinet when in use. Coffee makers with a glass jug:

• Do not place a hot jug on a cold surface. Never place the glass jug above an open ame, on a hot stove or another heat source.

• Do not use the jug if it is cracked or if the handle is loose.

• Do not clean the jug using abrasive cleaners, steel wool or similar materials. Coffee makers with a thermos jug:

• Never place the thermos jug on a hot stove, a gas burner or another heat source or in an oven/microwave.

• Do not use the thermos jug to store dairy products or baby formula because they can curdle if they are kept too long.

• Do not use the thermos jug for carbonated beverages.

• Do not move a lled thermos jug while in a horizontal position or upside down. You can use the mixing lid to make and pour coffee without unscrewing the lid. To ensure a complete seal, you can use the transport lid.

• Do not drink straight from the thermos jug. Liquids from the thermos jug can be very hot.

• Do not clean the thermos jug using abrasive cleaning products, steel wool or similar materials. You can easily clean the thermos jug using dishwasher detergent: place a tablet or powder in the jug and ll the jug to the top with hot water. After an hour, pour away the water, use the brush to clean the jug and rinse with clean water.7

ENGLISHFRANÇAIS NEDERLANDSESPAÑOL DEUTSCHITALIANO

Environmental advice

• Paper lter bags and coffee grounds are organic waste and therefore suitable for the organic waste container or compost heap.

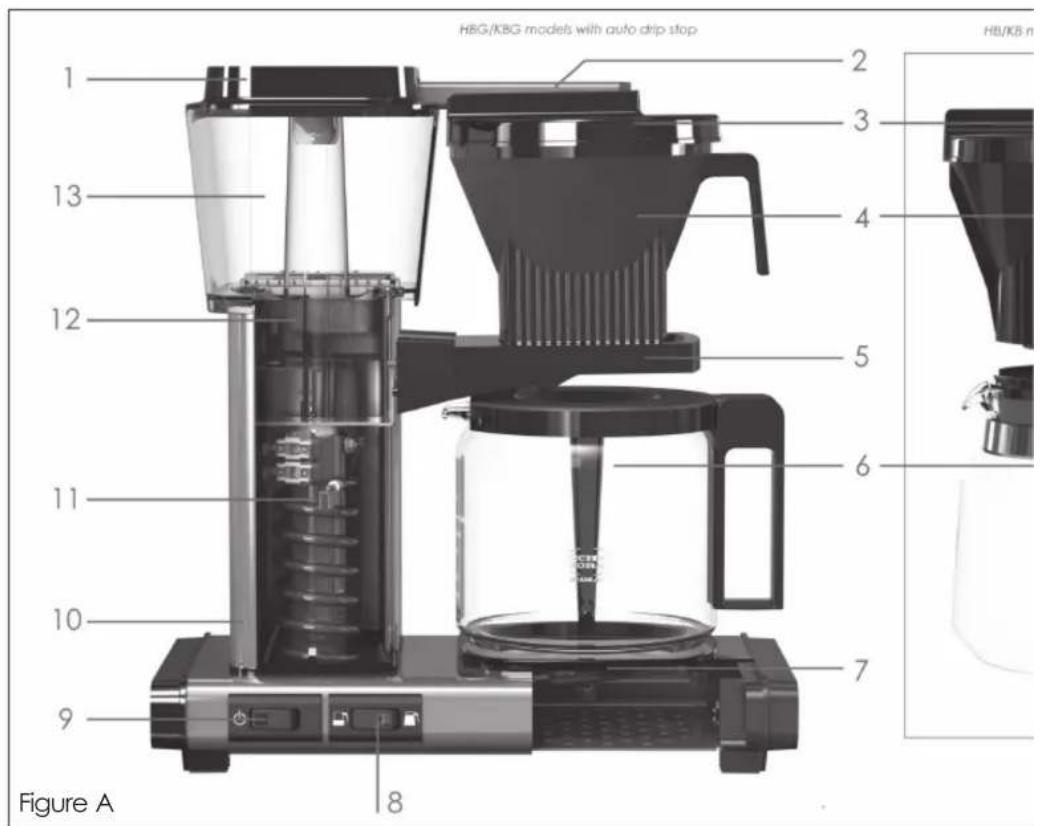

Coffee makers with a glass jug (see page 2)

1) Water reservoir lid

2) 9-hole stainless steel outlet arm

6) Glass coffee jug and mixing lid

7) Enamel hot plate with PTC heating element (coffee tempera-

10) Aluminium housing

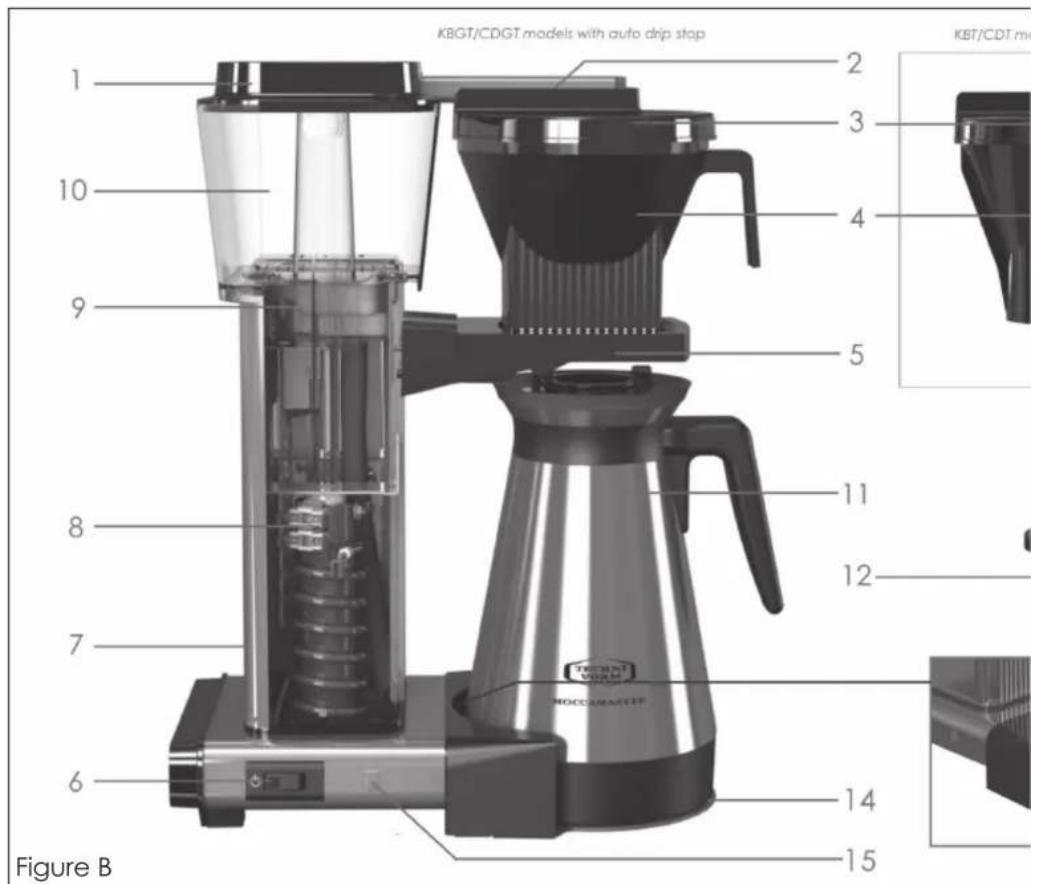

Coffee makers with a thermos jug (see page 2)

1) Water reservoir lid

2) 9-hole stainless steel outlet arm

7) Aluminium housing

11) Thermos jug with mixing lid

14) Footplate (see page 3 for correct placement)

15) Orange indicator light thermal jug in position

Instructions for use a. Before rst use: place all the components in the correct po- sitions as shown in the gure on page 2. Push the outlet arm rmly into the adapter. Run the machine for 1-2 cycles using clean water. b. If the appliance has not been used for some time, we recom- mend running 1-2 cycles with clean water. c. Fill the water reservoir with the required quantity of fresh cold water and replace the lid of the water reservoir. We recom- mend using a different jug for lling the water reservoir and not the coffee jug, because over time this will cause a build- up of grime in the machine. d. Place a lter bag of the correct size in the lter holder and put the required amount of ground coffee in it. The ECBC stand- ard for the perfect cup of coffee is 60 g/l or 75 g for a full 1.25 l jug. A level Moccamaster measuring spoon contains enough coffee for 2 cups. Coffee is a matter of taste: test for yourself which coffee in which dosage you nd the most delicious!9

e. Place the lter holder on the bracket and position the outlet arm above the centre of the lter holder. Now follow the user instructions for coffee makers with a glass jug or a thermos jug Coffee makers with a glass jug: f. Place the glass jug, including the lid, on the hot plate. The glass jug will be quickly preheated by the hot plate. g. Select: This machine has two settings so you can choose a half jug or a full jug. On the half-jug setting, the water is pumped through more slowly for a longer coffee extraction time and a more intense avour. NB: Of course, you can also use this setting for a whole jug. We also recommend the ‘half-jug’ setting when using decaf- feinated coffee or softened water, in order to prevent the lter holder from overowing. h. Set the on/off switch to the ‘on’ setting and the brewing process will quickly begin.

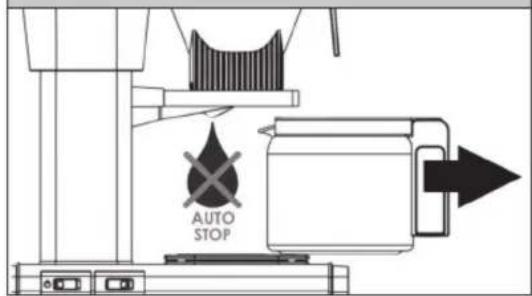

i. Brewing and hotplate are separate systems. If the water res-

ervoir is empty, the brewing process automatically stops. The hot plate stays at the correct temperature for 40 minutes after the start of the brewing process. After 40 minutes, the machine automatically shuts off. If the coffee jug is empty before then, switch off the machine yourself. Coffee makers with a thermos jug: f. Before making coffee, we recommend that you rst rinse the thermos jug with hot water to minimise heat loss. g. Use the mixing lid when making coffee. Place the thermos jug on the footplate so that the jug presses in the white button on the inside of the base fully. The orange light comes on when the thermos jug is correctly placed against the white button. h. Set the on/off switch to the ‘on’ setting and the brewing process will quickly begin. If the water reservoir is empty, the brewing process automatically stops. You can turn off the machine yourself. As the light uses very little electricity, it is not a problem if you forget to do so. Coffee tastes best immediately after it is brewed!10

ENGLISHNEDERLANDSDEUTSCHFRANÇAISESPAÑOLITALIANO

MAINTENANCE & CLEANING Descaling Your coffee machine needs to be descaled regularly in order to con- tinue to ensure optimum performance. If minerals are deposited on the heating element of your Moccamaster, this can inhibit the water ow and negatively impact on the brewing temperature and the taste of the coffee. Without regular descaling with the right agent, it is possible that at some point the appliance will no longer function. Using a good descaler (with additives that make sure the agent does not damage the components of the appliance) will extend the lifespan of your Moccamaster.

1) It is recommended that you descale the appliance once every

100 cycles (guideline: after every box of 100 lter bags) or at least once every 3 months.

2) Preferably use the recommended special descaling products. Ask

your supplier for the correct descaling product.

3) Follow the instructions for use of the descaling product

4) Switch the appliance on and wait until the liquid has owed into

5) Repeat the process two or three times with clean water in order to

rinse the appliance. Cleaning Outside: Remove the power plug from the socket and allow the appliance to cool before cleaning. Regularly clean the outside of the appliance with a damp cloth and dry it afterwards. Regularly clean the jug, lter holder and lids to maintain a good cof- fee avour. Thermos jug: dissolve dishwasher detergent in hot water, brush after an hour and rinse thoroughly with clean water. Inside: The inside of the coffee machine should also be cleaned regularly to maintain a good coffee avour: 4-6 times a year depending on use. Ask your supplier which product is safe and reliable.11

ENGLISHFRANÇAIS NEDERLANDSESPAÑOL DEUTSCHITALIANO

PROBLEM POSSIBLE CAUSE SOLUTION

The appliance is not working, the lights are not coming on. Power supply Check that the plug is securely inserted in the socket. Water ow to the lter holder is slow, the brew cycle takes longer than 6 minutes and produces a lot of steam. Limescale in the appliance. Descale (possibly several times). The glass tube in the water reservoir is cloudy. Limescale in the appliance. Descale. Green deposit in the water reservoir and/or by the oat. Algae formation due to the action of sunlight. Clean: leave the solution to soak for one hour and empty into the sink. Brush and run the brew cycle 2x with clean water. The power light is on but the brewing process does not start. There may be various causes. Please contact your supplier. Filter holder overowing. The drip-stop of the lter holder is clogged. Clean lter holder. Coffee too nely ground. Espresso coffee is too ne and lets the water through less quickly. Use lter grind. When using decaffeinated coffee, the holes of the lter bag can get clogged up. Make a smaller quantity of coffee. Select: set the selector switch to a half-full jug, so that the water is fed to the lter more slowly Salt-based water softener in your tap water. This water has a higher surface tension, which means the water penetrates the coffee powder less quickly Make a smaller quantity of coffee or use non-softened water Select: set the selector switch to a half-full jug, so that the water is fed to the lter more slowly Coffee tastes weak or bitter. Incorrect dosage. Adjust dosage (increase for stronger coffee, reduce for less bitter coffee) TROUBLESHOOTING The table below provides solutions to problems you may encounter with the appliance. If you cannot nd a solution to your specic problem or the recommendations do not help, please contact your supplier or [e-mail]. MAINTENANCE & CLEANING Descaling Your coffee machine needs to be descaled regularly in order to con- tinue to ensure optimum performance. If minerals are deposited on the heating element of your Moccamaster, this can inhibit the water ow and negatively impact on the brewing temperature and the taste of the coffee. Without regular descaling with the right agent, it is possible that at some point the appliance will no longer function. Using a good descaler (with additives that make sure the agent does not damage the components of the appliance) will extend the lifespan of your Moccamaster.

1) It is recommended that you descale the appliance once every

100 cycles (guideline: after every box of 100 lter bags) or at least once every 3 months.

2) Preferably use the recommended special descaling products. Ask

your supplier for the correct descaling product.

3) Follow the instructions for use of the descaling product

4) Switch the appliance on and wait until the liquid has owed into

5) Repeat the process two or three times with clean water in order to

rinse the appliance. Cleaning Outside: Remove the power plug from the socket and allow the appliance to cool before cleaning. Regularly clean the outside of the appliance with a damp cloth and dry it afterwards. Regularly clean the jug, lter holder and lids to maintain a good cof- fee avour. Thermos jug: dissolve dishwasher detergent in hot water, brush after an hour and rinse thoroughly with clean water. Inside: The inside of the coffee machine should also be cleaned regularly to maintain a good coffee avour: 4-6 times a year depending on use. Ask your supplier which product is safe and reliable.12

ENGLISHNEDERLANDSDEUTSCHFRANÇAISESPAÑOLITALIANO

Parts To order parts, contact your supplier or order from www.moccamaster.eu Service and repairs Contact your local dealer or [e-mail] for service and repairs. Warranty The warranty is valid for ve (5) years from the date of purchase. Keep the original sales receipt. Repairs during these 5 years do not extend the warranty period, which remains valid from the date of original purchase. The warranty covers defects and faulty compo- nents which are related to material and production faults The following are not covered by the warranty

1) Normal wear and tear and damage through use; scratches,

dents and damage caused by falls, collisions, etc.

2) The use of the product for purposes other than brewing coffee.

3) Loose parts such as covers, jug, outlet pipe, lter holder, etc.

4) Damage caused by not using suitable cleaning and/or

5) Modications carried out by or on behalf of the customer.

6) Blockages caused by e.g. coffee beans or limescale.

7) Damage caused by incorrect positioning, use other than for

brewing coffee, connecting the appliance to the wrong mains voltage, damage caused by chemical agents, corrosion, damage caused by frost or abnormal environmental inuences.

8) If an ofcial service technician is not able to identify faults in the

product, the cost of repair will not be reimbursed. If repairs or modications are carried out by a non-ofcial service workshop or if non-original parts are used, the warranty is automatically void. SERVICE & WARRANTY13
