| Product type | 4-channel amplifier |
| Brand | Focal |
| Model | FPX 4.800 |
| Power supply | 12 V DC (vehicle battery) |
| Recommended fuse | 60 A (within 40 cm of battery) |
| Minimum impedance per channel | 2 ohms (4 ohms in bridge mode) |
| Available settings | Gain (0.2 V – 5 V), Mode (2CH/4CH), Filter (HPF/LPF/FULL), Cutoff frequency (with x10 multiplier), Phase, Subsonic, Bass Boost (0-12 dB) |
| Signal inputs | 4 RCA inputs (LOW LEVEL INPUTS) |
| Speaker outputs | 4 channels (screw terminals) |
| Remote control included | No (only for FPX 1.1000, 2.750, 5.1200 models) |
| Built-in protection | Short circuit, overheating, under/over voltage (PROTECT LED) |
| Ventilation | Do not obstruct the top radiator |
| Recommended installation | By an authorized Focal dealer |
| Required materials (not supplied) | Power cables, RCA cables, speaker cables, fuse holder, crimping and soldering tools |
| Maintenance and cleaning | Soft dry cloth; do not use solvents |
| Spare parts available | Fuses (60 A), remote control (for compatible models) |
| Repairability | Refer to an authorized Focal dealer |
| Warranty (France) | 2 years (excluding misuse) |
| Country of manufacture | France (Focal-JMlab) |
| User manual included | Yes (64 pages, multilingual) |
Frequently Asked Questions - FPX 4.800 FOCAL
User questions about FPX 4.800 FOCAL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Receiver in PDF format for free! Find your manual FPX 4.800 - FOCAL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FPX 4.800 by FOCAL.

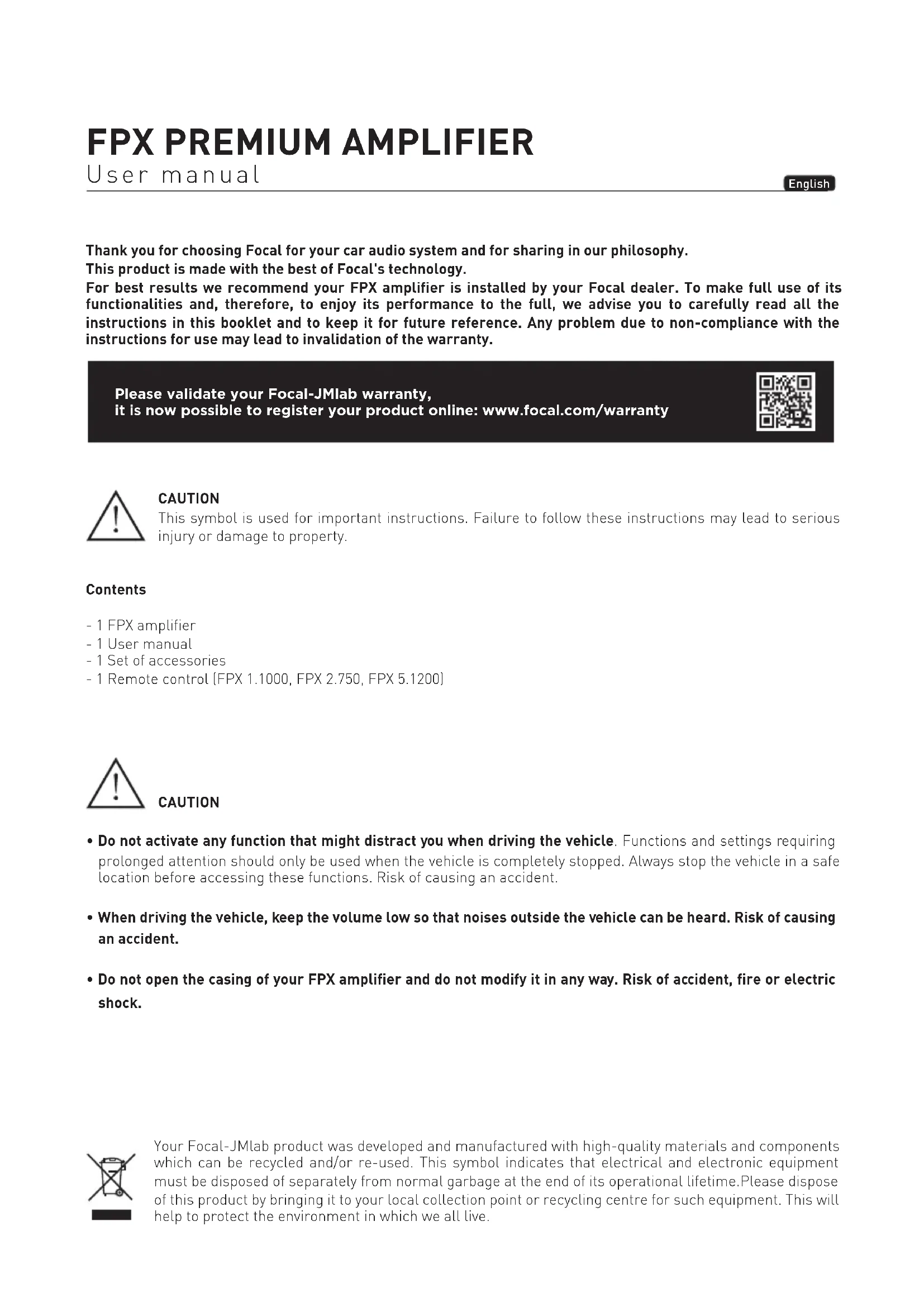

USER MANUAL FPX 4.800 FOCAL
Thank you for choosing Focal for your car audio system and for sharing in our philosophy.
This product is made with the best of Focal's technology.
For best results we recommend your FPX amplifier is installed by your Focal dealer. To make full use of its functionalities and, therefore, to enjoy its performance to the full, we advise you to carefully read all the instructions in this booklet and to keep it for future reference. Any problem due to non-compliance with the instructions for use may lead to invalidation of the warranty.
Please validate your Focal-JMlab warranty, it is now possible to register your product online: www.focal.com/warranty
CAUTION
This symbol is used for important instructions. Failure to follow these instructions may lead to serious injury or damage to property.
Contents
-1 FPX amplifier
-1User manual
-1 Set of accessories
-1 Remote control (FPX 1.1000, FPX 2.750, FPX 5.1200)
CAUTION
- Do not activate any function that might distract you when driving the vehicle. Functions and settings requiring prolonged attention should only be used when the vehicle is completely stopped. Always stop the vehicle in a safe location before accessing these functions. Risk of causing an accident.
- When driving the vehicle, keep the volume low so that noises outside the vehicle can be heard. Risk of causing an accident.
- Do not open the casing of your FPX amplifier and do not modify it in any way. Risk of accident, fire or electric shock.
Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.
CAUTION
- Only use your FPX amplifier on mobile 12 volt applications. Any other use than the designed application entails a risk of fire, electric shock or injury.
- Use fuses of the correct amperage. Risk of fire or electrical discharge.
- Do not obstruct your FPX amplifier's heat sink. It may overheat internally and cause a fire.
- Make connections properly. Check the gauge and type of cable. Risk of fire, injury and/or damage to the amplifier.
- Do not use nuts or bolts from the steering or braking circuits, from tanks or reservoirs, seat belts or other safety equipment for making the ground (earth) connection. The use of these items for grounding (earthing) could deactivate the vehicle control system and cause a fire or other damage.
- Keep small items that may be swallowed, such as bolts, accessories or screws out of the reach of children. Swallowing such items could lead to serious injury. If swallowed, consult a doctor.
- Before beginning installation, disconnect the negative battery terminal to avoid risk of injury, fire or material damage. (Fig. 1)
fig. 1
WARNING
Prolonged listening at high volume, above 110dB, can cause permanent hearing damage. Listening at volumes above 130 dB, even for short periods can lead to untreatable hearing damage.
Stop listening in the event of any problem. Failure to observe this precaution may lead to injury or damage to the equipment. If a malfunction persists, return the unit to your Focal dealer for repair.
Use the specified accessories and install them correctly. Use only the accessories specified in the user manual and those provided in the packaging. The use of other components may cause internal damage to the product, or may lead to its incorrect installation. Parts used may become loose and cause damage or the technical failure of the product. Risk of accident, fire or electric shock.
Do not install the unit in highly damp or dusty areas. Avoid installing the unit in parts of the vehicle subject to high damp or excessive dust. Penetration of the unit by moisture or dust could lead to a failure.
FPX PREMIUM AMPLIFIER
User manual
5
Installing your FPX amplifier
Installing this product requires technical skill and experience. If you are not sure of your ability to install the amplifier, entrust this task to a Focal dealer in order to take full advantage of everything your FPX amplifier can do.
Cabling your FPX amplifier
Only use the connection points specified in the user manual and the accessories supplied.
The speaker cable must ONLY be used to connect the amplifier to the speakers. The gauge of the power cables must match that shown in the table (paragraph 3.1). This gauge depends on the power of the amplifier and the cable length required. Use double or triple shielded RCA cables to prevent any interference to the low level signal.
Operating time for your FPX amplifier
Avoid using the amplifier for extended periods without starting the vehicle. This can lead to flattening the battery.
Ventilation
It is essential to leave the upper part of your FPX amplifier uncovered to prevent overheating.
Items required for installation (in addition to accessories provided)
- 2 appropriately sized cable sheaths (1 for the power cable and one for the set comprising speaker cables, remote, RCA modulation)
- Multimeter (volts/amps)
- Soldering iron and solder
- Crimping tool
Wire stripper - Wire cutter
- Battery terminal spanner
- Hand drill and drill bits
- Heat shrink sleeving in appropriate diameters for the different cables
Power cable of appropriate length and gauge - Remote switch-on wire of appropriate length and gauge (REM input on amplifier)
- Ground (earth) wire of appropriate length and gauge
- Fuse holder and suitable fuse
- Connector to positive (+) battery terminal
- Connector to vehicle chassis (-)
- Bolt with 6 mm head (minimum) with appropriate nut for grounding (earthing) to vehicle chassis
Installation
This section covers points relating to the vehicle that must be taken into account for the installation of your amplifier. You will save time by planning the positioning of your system and its cabling in advance.
During this preparatory phase, ensure that all adjusters remain accessible once installation is complete.
Before commencing installation please scrupulously follow the following instructions:
1 - Read the instructions in full and be sure that you fully understand them before installing your amplifier.
2 - Disconnect the cable from the negative terminal on the vehicle battery before beginning installation (Fig. 1).
3 - For ease of fitting we suggest you put all wires in position before installing your amplifier.
4 - Route the RCA, speaker and REM cables away from power cables to avoid any signal interference.
5 - Use good quality connectors/fittings or good quality soldered joints when connecting the amplifier to ensure a secure installation and to minimise signal or power losses.
6 - Before carrying out any operation ensure you are not cutting or drilling the fuel tank, any fuel, brake, hydraulic or vacuum line or any electrical wiring or safety-related item.
7 - Never run any wiring under the vehicle. It is essential to run wiring inside the vehicle. When running cables, ensure they do not interfere with operation of the vehicle. Cabling that obstructs or passes over such items as the steering wheel, the pedals (brake, accelerator and clutch, etc.) could be extremely dangerous.
8 - Avoid running wires over or through sharp edges. All wiring routed through metal must be protected by a grommet. Route wiring away from moving parts (e.g. seat rails) and sharp or pointed edges. This will also protect cables from being pinched or damaged with the consequent risk of an electrical short-circuit.
9 - Always use fuses to protect the battery and the electrical circuit from any potential damage. Install a fuse-holder and an appropriate fuse in the 12V+ power supply cable less than 40cm from the battery terminal. Ideally, this distance should be as short as possible (Fig. 7).
10 - Prepare the chassis ground (earth) by removing all traces of paint from the metal surface, thus ensuring a good ground (earth) contact. Ground (earth) connections should be as short as possible and ALWAYS connected to metal welded to the vehicle bodywork or chassis (Fig. 2). The grounding (earthing) point usually chosen is the one used to connect the negative terminal of the battery to the vehicle chassis.
11 - NEVER install this product in a vehicle's engine compartment. To do so would void the warranty.
1 - Positioning your FPX amplifier
Choosing a correct location for your FPX amplifier
Because of the amplifier's power, it needs heat dissipation for its operation. For this reason the amplifier must be mounted in a ventilated location, especially above it. Avoid fitting it into any location that is close-fitting or covers the amplifier in its immediate vicinity.
2 - Securing your FPX amplifier in place
Position your amplifier in the desired location and mark it.
Mark the attachment points in its support.
Use the mounting screws supplied (screws supplied are suitable for screwing into a wood base).
3 - Cabling your FPX amplifier
CAUTION
If you have any doubt over your ability to correctly install the amplifier and wiring, entrust this task to a Focal dealer/ installer.
3 - Cabling your FPX amplifier
WARNING
Do not run the power cables near the low level inputs, high level inputs, antenna or sensitive equipment or cabling. The power cables carry a high current, capable of interfering with the audio signal.
WARNING
Use the shortest possible cable lengths to optimise the quality of the installation and limit signal losses.
WARNING
Before beginning the connection phase, remove the negative [-] terminal from the battery of the vehicle (fig.1).
3.1 Choosing cable of the correct gauge
Your FPX amplifier requires a power supply of the correct amperage.
The cable gauge to be used depends on the distance of the cable from the battery, as recommended in the following table:
| Amplifier Amperage Length of cable (meters) | ||||
| 0-2m 2-4m 4-6m | ||||
| FPX 4.800 and FPX 2.750 | 60A 16mm | 2 / 5AWG 21mm | 2 / 4AWG 35mm | 2 / 2AWG |
| FPX 1.1000 90A 21mm | 2 / 4AWG 35mm | 2 / 2AWG 53mm | 2 / 0AWG | |
| FPX 4.400 SQ 50A 8mm | 2 / 8AWG 16mm | 2 / 5AWG 21mm | 2 / 4AWG | |
| FPX 5.1200 90A 21mm | 2 / 4AWG 35mm | 2 / 2AWG 53mm | 2 / 0AWG | |
It is essential to scrupulously adhere to the recommendations in this table for the safety of your electrical system; it is also important to maintain the maximum performance of your FPX amplifier.
3.2 - Cabling your FPX amplifier's input signals
Route all the modulation cables (RCA), speaker cables, and the REM cable together, isolating them from other high-power consumption equipment in the vehicle and, in particular, electrical motors [e.g. windscreen wiper motor, etc.] Do not cut any cables down yet. You will do this later.
3.3 - Wiring your FPX amplifier's power supply
3.3.1 - Route the positive (+) power cable, taking care to keep it away from the cables you have already positioned, to avoid any interference. DO NOT CONNECT THE CABLE YET.
FPX PREMIUM AMPLIFIER
User manual
8

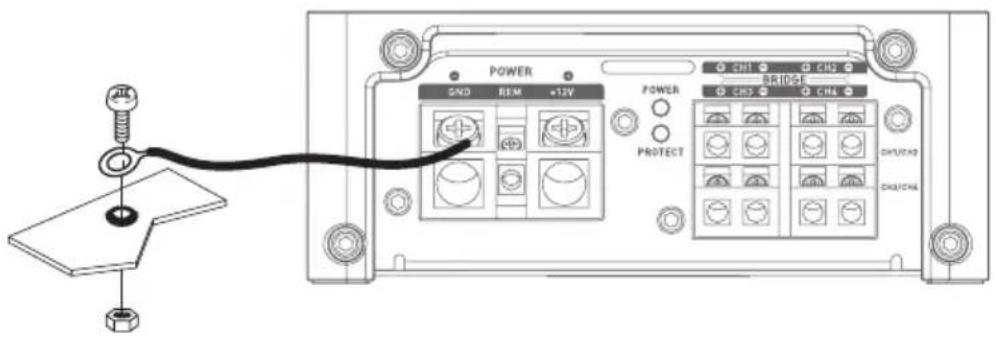

3.3.2 - Locate the negative (-) power cable. This cable should be as short as possible and ideally should not exceed 1 meter in length, in order to ensure an optimal connection between the amplifier and the vehicle chassis. The cable and its gauge must be in accordance with the table in 3.1. Locate an appropriate ground (earth) point, then sand it to remove all traces of paint or other finish, thus optimising the quality of the connection. Drill through the sheet metal you have previously sanded, making a hole to match the bolt you have chosen, ensuring you are well clear of all cable routes, reservoirs or tanks or other sensitive vehicle parts. Solder and insulate (using heat shrink sleeving) the earth cable to the FPX amplifier earth connector supplied (Fig. 2).
fig.2

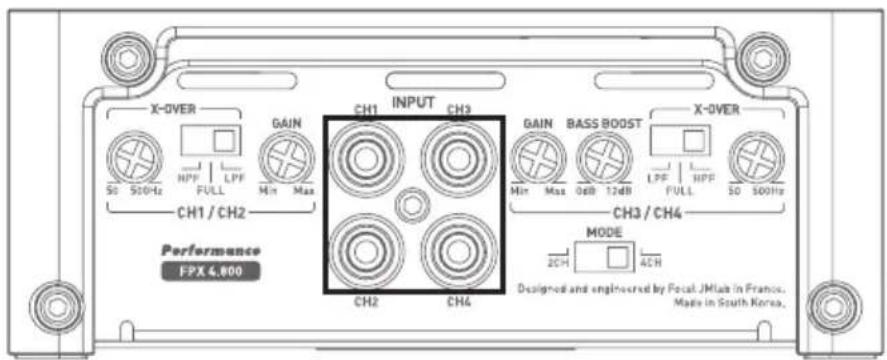

3.4 - Connecting input connectors to your FPX amplifier
You may now begin the input/output cable connection phase.
Connect the RCA connectors (Fig. 3), paying attention to polarity and distribution. Connect the other end to the amplifier's INPUTS connection panel.
fig. 3
FPX PREMIUM AMPLIFIER
User manual
9

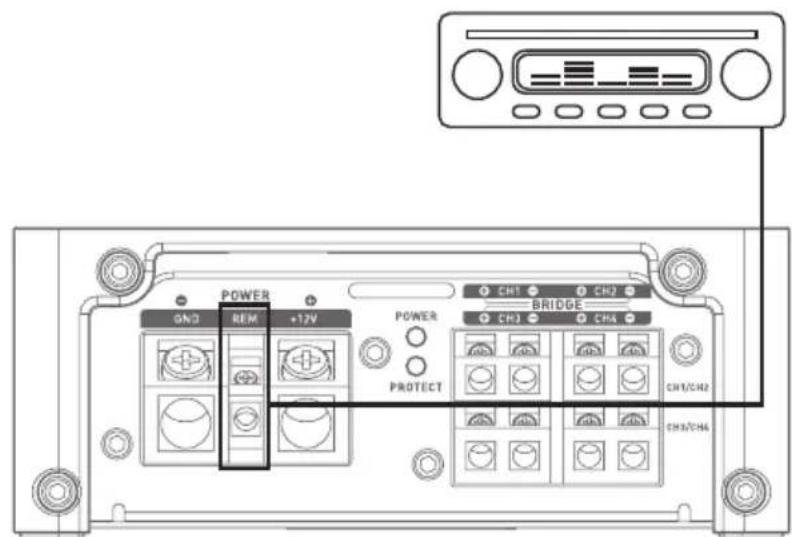

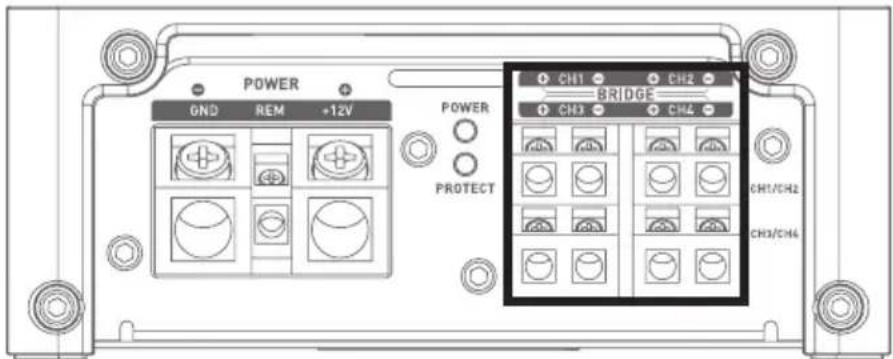

3.5 - Connecting the speakers and the remote to your FPX amplifier
Solder and insulate (using heat shrink sleving) the REMOTE cable to the cable connector provided (Fig. 4). Connect the other end of the REMOTE cable to the REMOTE terminal on the head unit.
fig. 4
Finally, connect the speaker cables to the amplifier, taking care to match polarities [+ to +, - to -] . (Fig. 5).
fig. 5
WARNING
All speakers or speaker sets cabled to your FPX 4.800, FPX 4.400 SQ, FPX 2.750, FPX 5.1200 amplifier must always have an impedance greater than 2 Ohms.
WARNING
All speakers or speaker sets cabled to your FPX 1.1000 amplifier must always have an impedance greater than 1 Ohm.
FPX PREMIUM AMPLIFIER
User manual
10

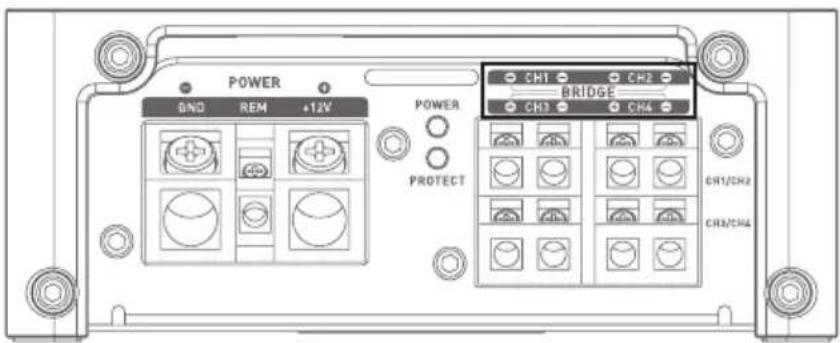

WARNING

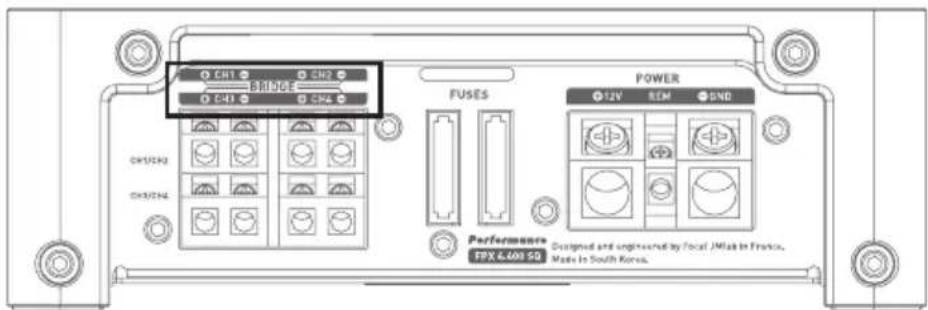

In bridged mode, all speakers or speaker sets connected to your FPX 4.800, FPX 2.750, FPX 4.400 SQ, FPX 5.1200 must always have an impedance greater than 4 Ohms.
Any use of lower impedances would result in the voiding of the warranty.

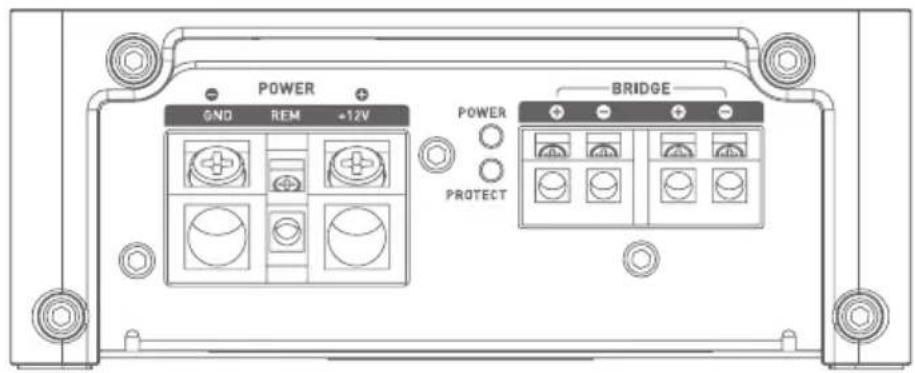

To use a FPX amplifier in bridged mode and thus double the power available, observe the connections and polarities shown below in: "BRIDGE" (Fig. 6).

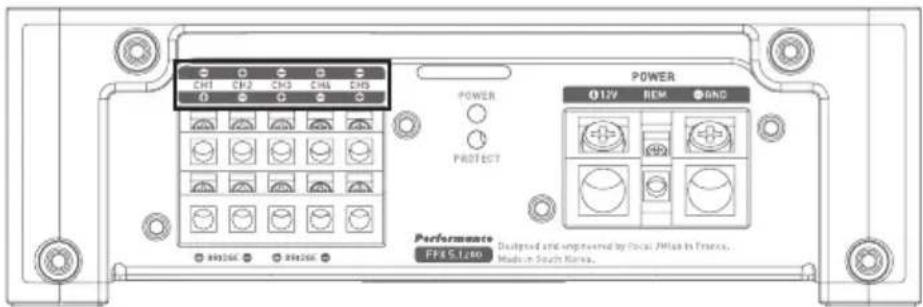

FPX 5.1200
fig. 6
FPX 4.800
fig. 6
FPX 2.750
fig. 6
FPX 4.400
fig. 6
FPX PREMIUM AMPLIFIER
User manual
11

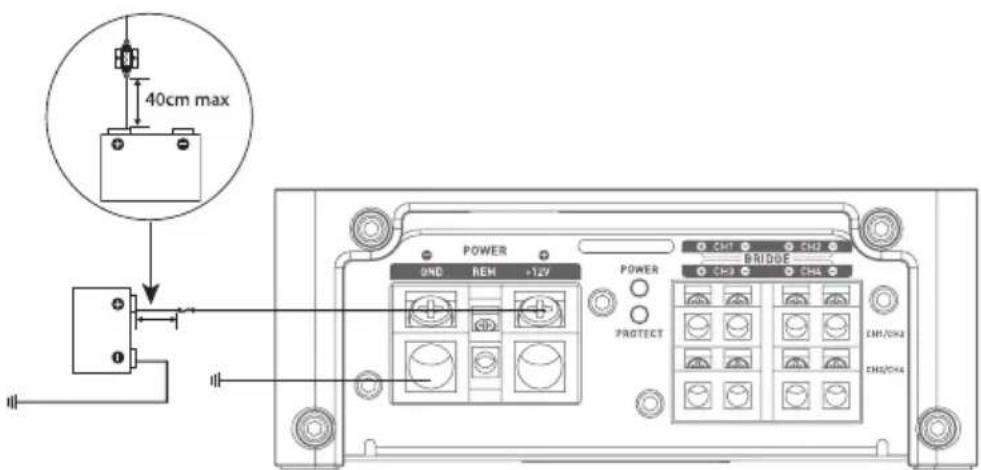

3.6 - Power supply wiring
WARNING
The cable connecting the positive (+) battery terminal to the "+"BATT" terminal on the amplifier must ALWAYS have a fuse suitable for the power of your amplifier, positioned 40 cm or closer to your vehicle battery. Fuse holder connections must be sealed.
Disassemble the fuse holder, taking care to remove the fuse. Secure the base of the fuse holder.
Cut a length of power cable between 10 and 40~cm [max.]. Strip 1 cm and tin. Screw the cable into the terminal on the battery side of the fuse holder. Crimp the power cable into an appropriate connector and screw this to a source of battery power.
Strip 1 cm at the end of the remaining length of cable and lin. Screw the cable into the other terminal of the fuse holder.
fig.7
Solder and insulate (using heat shrink sleving) the positive (+) power cable to the FPX amplifier connector supplied (Fig. 7).
3.7 - Start-up and checking
The connection phase is now complete. It now remains to check the power supply is good and the correct operation of the system (head unit/amplifier/speakers). Set the source gain to minimum. Set the gain on your amplifier at 1/3 of its total travel. Power up all the components. Once all components are switched on, test at low volume.

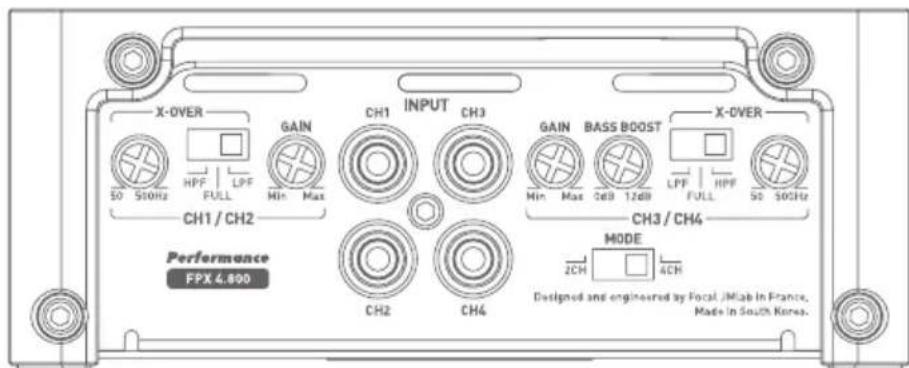

4 - Control panel and connections
FPX 4.800
fig.8
FPX PREMIUM AMPLIFIER
User manual

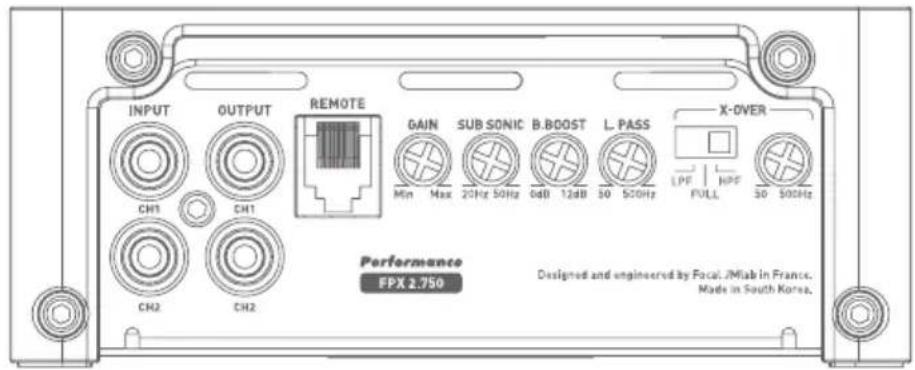

FPX 5.1200
FPX 2.750

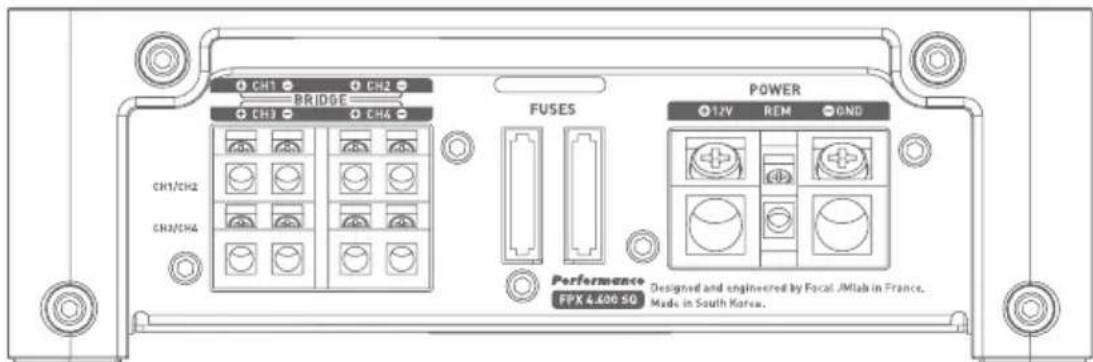

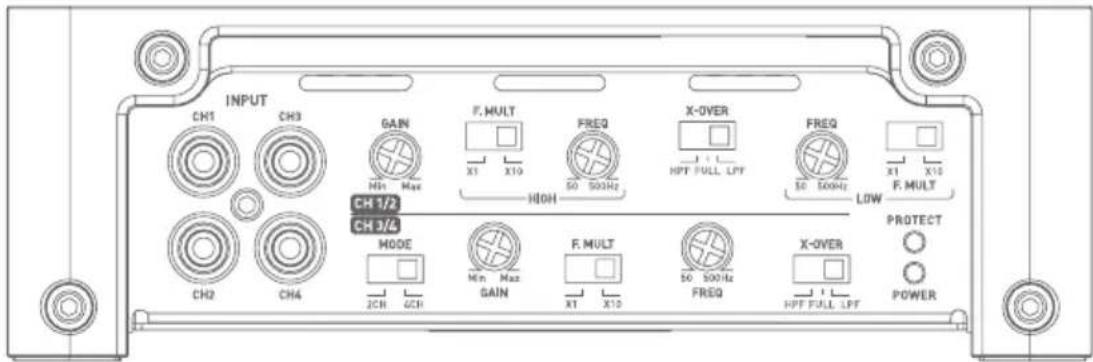

FPX 4.400 SQ

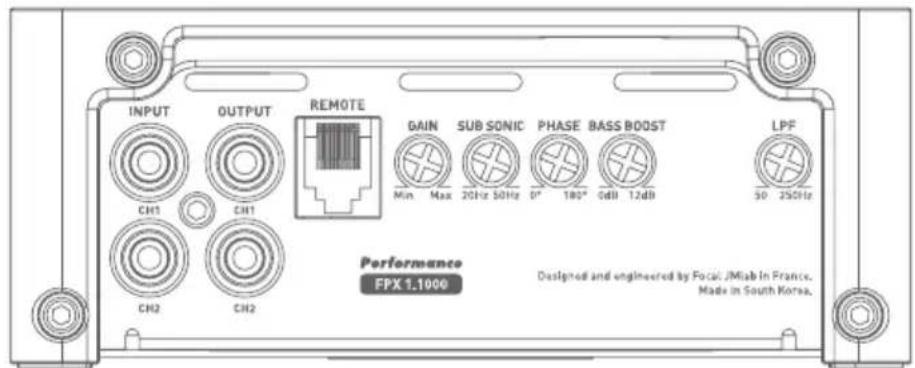

FPX 1.1000
FPX PREMIUM AMPLIFIER
User manual
13

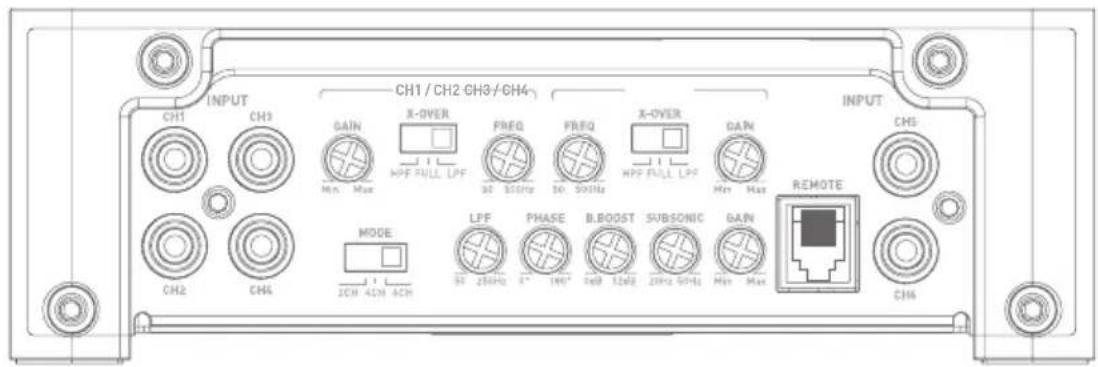

INPUT: These connectors are for low level signal inputs.
OUTPUT: These connectors (FPX 1.1000 and FPX 2.750) allow mirroring.
REMOTE: This connector (FPX 1.1000, FPX 2.750, FPX 5.1200) is for connecting the accessory volume control.
GAIN: The rotary GAIN control is for adjusting the level of the signal entering the amplifier. Voltage gain varies from 0.2 to 5V. Optimisation of the performance of the audio system consists of applying the maximum gain upstream in the system and the lowest gain downstream.
This control should be adjusted to suit the level of the sound source (line output level).
Start by setting the amplifier gain at its lowest level. Gradually increase the level (volume) of the source up to 3/4.
Increase the gain on the amplifier up to the maximum desired listening level. Reduce the level if distortion occurs.
MODE: This switch (FPX 4.800, FPX 4.400 SQ, et FPX 5.1200) allows channels 3 and 4 (3, 4, 5, 6 for FPX 5.1200) to mirror, if required, the signals from channels 1 and 2.
Thus, if you only have one stereo output (a right and a left), you can still amplify all four channels by activating 2CH mode. If you wish to use FPX in its four independent channel mode, select 4CH.
FPX 5.1200 4CH mode allows channels 3 and 4 to mirror channels 5 and 6.
PHASE (^) : The rotary PHASE control is used to adjust channel phasing with the rest of the system.
A readjustment of the phase of the subwoofer makes it possible for the subwoofer and the rest of the speakers to play simultaneously at the crossover frequency. For a theoretical signal period, one of the sources is slightly shifted so that at the listening position the phasing is perfect.
X-OVER MODE: This switch enables users to choose between a high-pass filter (HPF), a low-pass filter (LPF) or non filtered mode (FULL).
X-OVER FREQ (Hz): Adjustment of the cross-over filter frequency. This rotary control adjusts the setting of the low-pass or high-pass filter. The value selected defines the frequency up to which or from which the signal will be cut.
F-MULT: This switch activates a 10X multiplier for the setting value of the cut-off frequency.
SUBSONIC: This rotary control is used to remove sub-bass frequencies below a selected frequency.
BASS BOOST: This rotary control is used to raise the bass sound level from 0 to 12 dB.
FPX 4.800
FPX PREMIUM AMPLIFIER
User manual

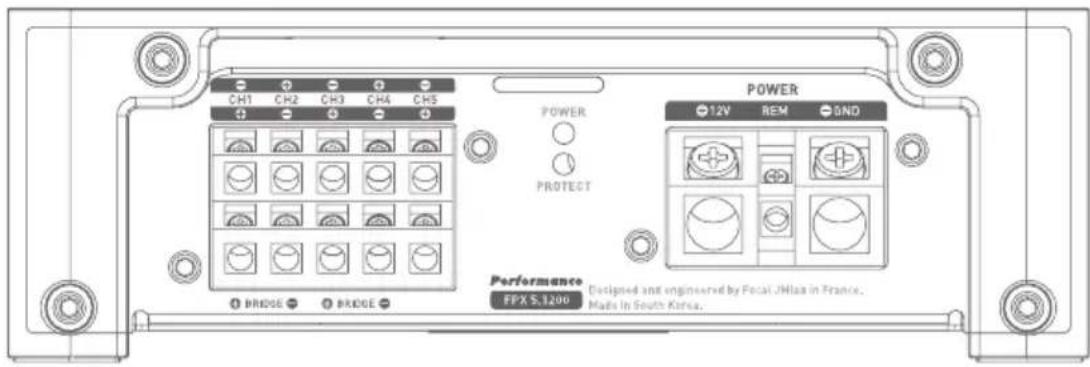

FPX 5.1200
FPX 2.750
FPX 4.400SQ
FPX 1.1000
FPX PREMIUM AMPLIFIER
User manual
15

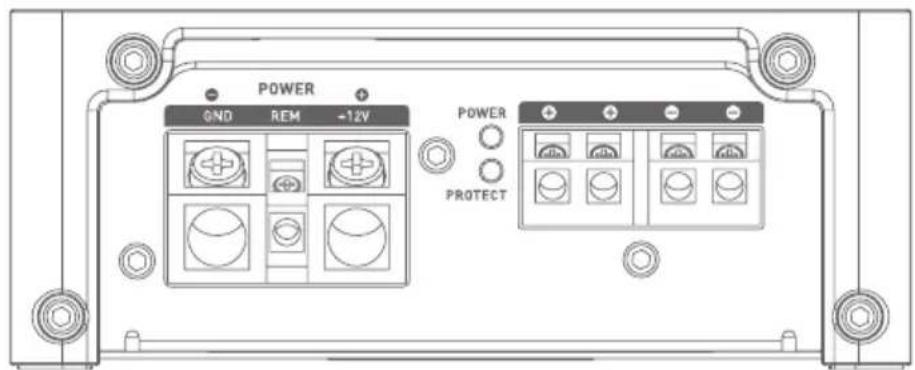

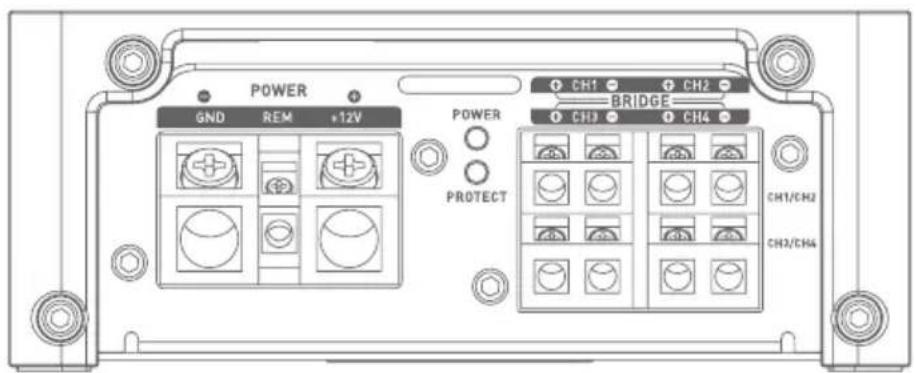

+12V: The +BATT connector is designed to accept the power cable that connects the amplifier with the positive (+) terminal on the vehicle battery.
GND: The GND (ground) connector is designed to accept the negative [-] power cable that connects the amplifier to the vehicle chassis.
REM: The REM connector is for the connection between the amplifier and the source (head unit) via a REM or REMOTE output on the head unit. This switches the amplifier on automatically when the source (head unit) is switched on.
POWER and PROTECT: These indicator lights are for checking that the amplifier is working correctly.
The POWER light, continuously lit, indicates that the unit is working correctly.
The PROTECT light, continuously or intermittently lit, indicates that the product is working abnormally. Refer to troubleshooting in 5.
FUSES: The FUSES connector is for holding the amplifier fuses. Ensure that any replacement fuses perfectly match the amperage of the originals.
5 - Troubleshooting
The statuses of the various LEDs are used to indicate certain failure modes or causes of breakdowns.
Check all possible cases below. If, after these checks, normal operation is not regained, please refer the issue to your FPX amplifier's installer or dealer.
| Status of Indi-cator LEDs | Presence of sound | Possible origin | Action |
| PROTECT red NO | Output short circuit | Turn audio system offCheck speakers, minimum impedance of speakers,speaker connections and cables | |
| Off NO | No power or poor power | Turn audio system offCheck presence of 12 VCheck power cables and their polarityCheck fuses | |
| PROTECT Flashing red | Distorted, intermittent or no sound | Overheating | Turn head unit offAllow your amplifier to cool before resuming use |
| Off NO No | REM signal | Turn head unit onCheck for voltage at REM terminal | |
| Off NO Fuse failure | Turn head unit offCheck fuses and replace if necessary | ||
| POWER Flashing green | YES/NO or distorted | Ground (earth) problem | Turn head unit offCheck continuity of connection between GND terminaland vehicle chassis |
FPX PREMIUM AMPLIFIER
User manual
6 - Technical specifications
| FPX 4.800 Class D 4/3/2 channel amplifier | FPX 2.750 Class D 2 channel/mono amplifier | FPX 4.400SQ Class AB 4/3/2 channel amplifier | FPX 1.1000 Class D mono amplifier | FPX 5.1200 amplifier Class D - 5 channels | |
| CEA power (4 ohms) | 4x120WRMS 2x22 | WRMS 4x70WRMS | 1x420WRMS | 4 x 75WRMS + 1 x 420WRMS | |
| Max. power (2 ohms) | 4x185WRMS 2x38 | WRMS 4x100WRMS | 1x700WRMS | 4 x 120W + 1 x 720W | |
| Max. power (4 ohms bridged) | 2x370WRMS 1x77 | WRMS 2x200WRMS | 1x1000WRMS | 2 x 240 + 720WRMS [channel 5 : 20hms] | |
| Bandwidth | 10Hz - 20KHz 20Hz | z - 20KHz 10Hz - 22KHz 15Hz - 250Hz | 10Hz - 20kHz | ||
| Minimum total harmonic distortion | 0.01% 0.01% 0.04 | % 0.08 % 0,03% | |||
| Crosstalk (1 KHz) | > 55dB > 72dB > 54dB - > 65dB | ||||
| SNR (1W/A) | > 76dBA > 76dBA | > 77dBA > 76dBA | > 76dB | ||
| Subsonic filter | - | 20Hz-50Hz [12dB/oct] | - | 10Hz-50Hz (24dB/oct) | 20Hz - 50Hz |
| High-pass/low-pass filter | Configurable High-pass/low-pass 50Hz-500Hz | Configurable High-pass/low-pass 50Hz-500Hz | Configurable High-pass/low-pass 40Hz-5000Hz | Low-pass 50Hz-250Hz (24dB/oct) | Configurable High-pass/ low-pass 50Hz- 500Hz. Channel 5 : low-pass filter 50Hz - 250Hz |
| Bass Boost | 0 to12 dB linear [%] | 0 to 12dB linear | - 0 to 12dB linear | linear | Channel 5 : 0 to 12 dB linear |
| Phase | - | - | - | 0 to 180° linear | 0 to 180° linear |
| Full-range function | ✓ | ✓ | ✓ | - | Channels 1/2 and 3/4 |
| Mirror mode | ✓ | - | ✓ | - | ✓ |
| Standby current (A) | 1.1 A | 0.95 A | 0.6 A | 1.75 A | 1,75A |
| Fuses | 2x30 A | 2x30 A | 2x30 A 3x30 A 3 x 30A | ||
| Remote control | - | ✓ | - | ✓ | ✓ |
| Protection | Short circuit/low impedance/reverse polarity /DC/voltage drop/overheat protection | ||||
| Dimensions (LxWxH) | \( 9^{21/64} \times 5^{13/64} \times 2^{33/62}" \)(237x132x53mm) | \( 9^{21/64} \times 5^{13/64} \times 2^{33/62}" \)(237x132x53mm) | \( 12^{23/64} \times 6^{23/64} \times 2^{1/64}" \)(314x175x57mm) | \( 11^{11/64} \times 5^{13/64} \times 2^{29/62}" \)(297x132x53mm) | \( 11^{13/16} \times 6^{57/64} \times 2^{1/64}" \)(300x175x57mm) |
| Weight (kg) | 4.40lbs (2kg) | 4.40lbs (2kg) | 8.16lbs (3.7kg) | 5.62lbs (2.55kg) | 9.03lbs (4.1kg) |
Warranty conditions
In the event of a problem, please contact your Focal dealer. The warranty for France for all Focal equipment is 2 years. In case of faulty equipment, this must be sent at your expense, in its original packaging, to the dealer, who will test the equipment and determine the nature of the fault. If the equipment is under warranty, it will be returned to you or replaced with pre-paid shipping. If not under warranty, you will be given an estimate for repair. The warranty does not cover damage arising from improper use or incorrect wiring.
Outside France, Focal equipment is covered by a guarantee with terms and conditions set locally by each country's official Focal distributor in accordance with laws in force in the territory in question.
6 - Specifications techniques
| FPX4.800 Amplificateur Classe D 4/3/2 canaux | FPX2.750 Amplificateur Classe D 2 canaux/mono | FPX4.400 SQ Amplificateur Classe AB 4/3/2 canaux | FPX1.1000 Amplificateur Classe D - Mono | FPX 5.1200 Amplificateur Classe D - 5 canaux | |
| Puisance CEA (4 Ohms) | 4 x 120 W RMS 2 x | 220 W RMS 4 x 70 | W RMS 1 x 420 W RMS | 4 x 75 W RMS + 1 x 420 W RMS | |
| Puisance max (2 Ohms) | 4 x 185 W RMS 2 x | 385 W RMS 4 x 100 | W RMS 1 x 700 W RMS | 4 x 120 W + 1 x 720 W | |
| Puisance max (bridged 4 Ohms) | 2 x 370 W RMS 1 x | 770 W RMS 2 x 200 | W RMS 1 x 1000 W RMS | 2 x 240 + 720 W RMS 它可以 5 : 2 ohms | |
| Bande Passante | 10 Hz - 20 KHz 20 | Hz - 20 KHz 10 Hz | - 22 KHz 15 Hz - 250 Hz 10 Hz - 20 kHz | ||
| Distorsion Harmonique totale minimum | 0.01% 0.01% 0.04 | % 0.08 % 0,03% | |||
| Diaphonie (1 KHz) | > 55 dB > 72 dB > | 54 dB - > 65 dB | |||
| SNR (1 W/A) | > 76 dBA > 76 dBA | > 77 dBA > 76 dBA | > 76 dB | ||
| Filtre Subsonique | - | 20 Hz-50 Hz (12 dB/oct) | - | 10 Hz-50 Hz (24 dB/oct) | 20 Hz - 50 Hz |
| Filtre Passe Haut/ Passe Bas | Configurable Passe Haut/Passe Bas 50 Hz-500 Hz | Configurable Passe Haut/Passe Bas 50 Hz-500 Hz | Configurable Passe Haut/Passe Bas 40 Hz-5000 Hz | Passe Bas 50 Hz-250 Hz (24 dB/oct) | Configurable Passe Haut / Passe Bas 50 Hz - 500 Hz. Canal 5: filtré Passe Bas 50 Hz - 250 Hz |
| Bass Boost | 0 à 12 dB linéaire (3/4) | 0 à 12 dB linéaire | - | 0 à 12 dB linéaire | Canal 5: 0 à 12 dB linéaire |
| Phase | - | - | - | 0 à 180° linéaire | 0 à 180° linéaire |
| Fonction Full range | ✓ | ✓ | ✓ | - | Sur canaux 1/2 et 3/4 |
| Mode Recopie | ✓ | - | ✓ | - | ✓ |
| Courant de repos (A) | 1.1 A | 0.95 A | 0.6 A | 1.75 A | 1,75 A |
| Fusibles | 2 x 30 A | 2 x 30 A | 2 x 30 A | 3 x 30 A | 3 x 30 A |
| Télécommande | - | ✓ | - | ✓ | ✓ |
| Protections | Court-circuit / impédance basse / inversion de polarité DC / Chute de tension / Protection thermique | ||||
| Dimensions (L x L x h) | 237 x 132 x 53 mm | 237 x 132 x 53 mm | 314 x 175 x 57 mm | 297 x 132 x 53 mm | 300 x 175 x 57 mm |
| Poids | 2 kg | 2 kg | 3,7 kg | 2,55 kg | 4,1 kg |
Conditions de garantie
O: It means the harmful substances in the parts of content in all homogeneous materials
are specified in GB/T 26572 limited for the following.
X: It means the harmful material in at least the parts of a homogeneous material content
beyond the limited requirements given in GB/T 26572.
CepnHbH Homep n3eJna
Iopnnscb ynoHHomoueHHoro Iuca npoabua
C TexHnueckmXapaKTepeNCTNKaMn npno6peTeHHbIX n3deJn, npaBnIaMn u ycNoBnMaR rapaHTnHorO o6cnyxNBaHn
O3HaKOMJIeH n COrJaCeH, KOMJIeKTHoCTb n CoCToHHe n3dJIeN npOBepeHbI:
Покураел /Ф.И
.0.
FOCAL
THE SPIRIT OF SOUND
